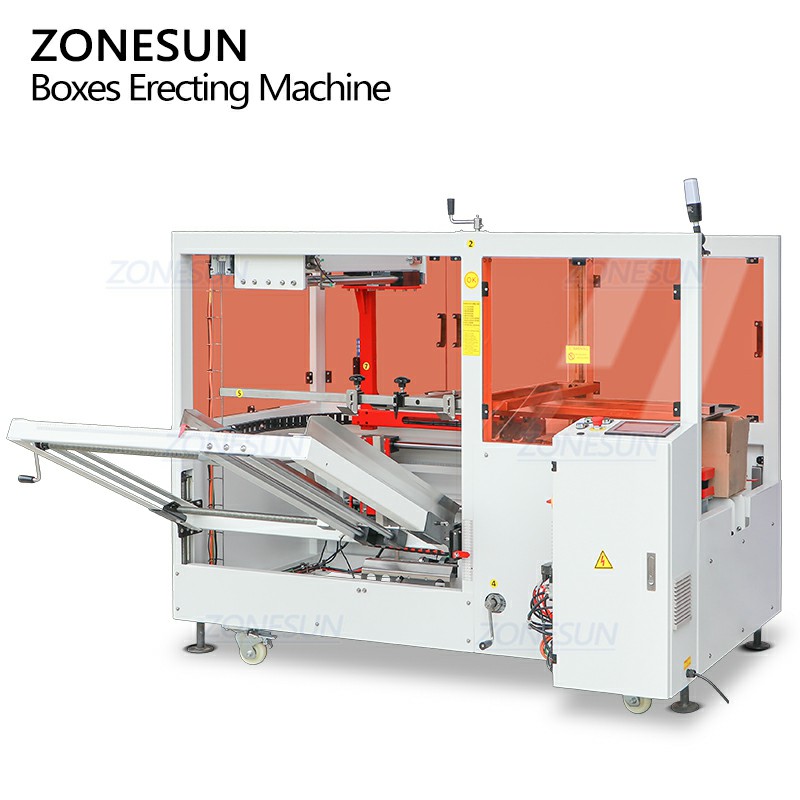

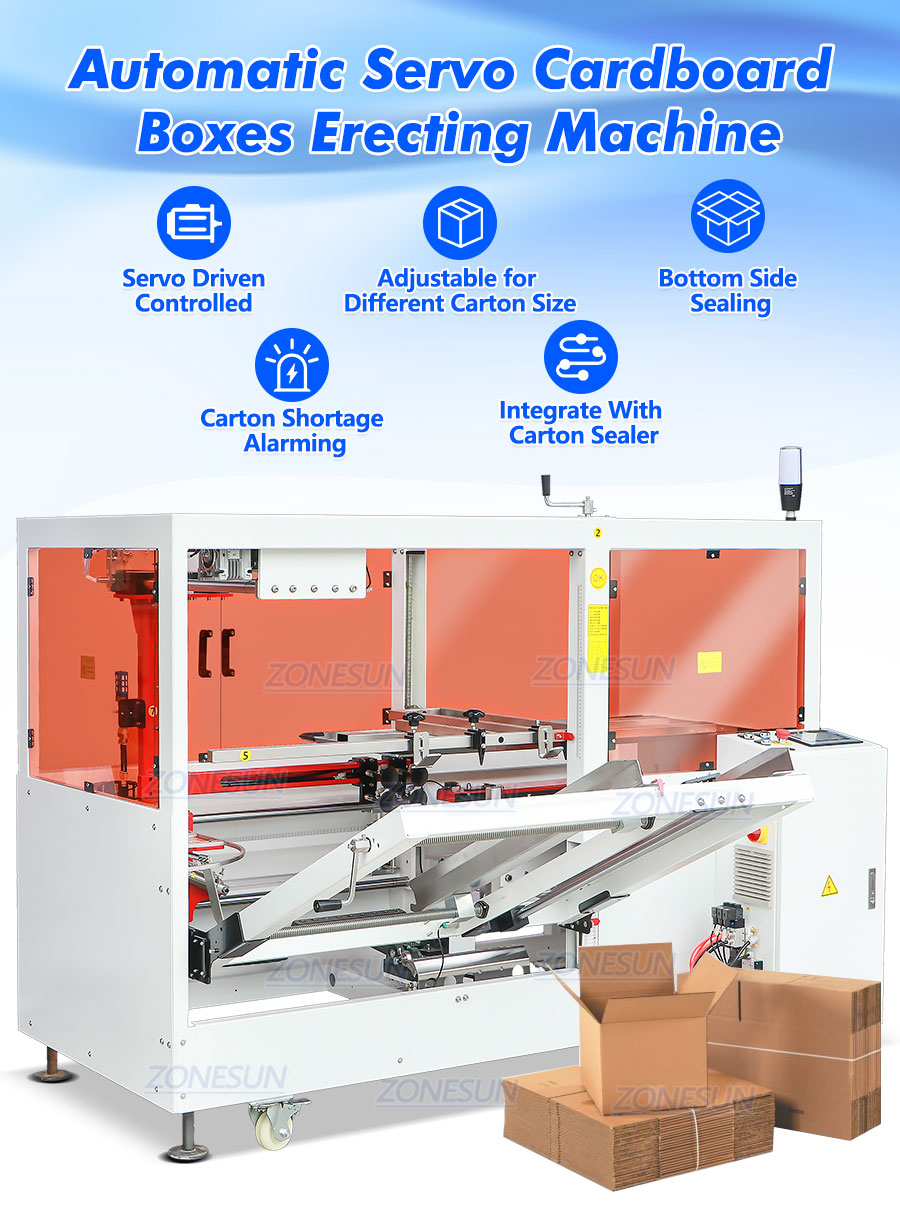

ZS-SVCF70H Servo Automatic Case Erecting Machine With Bottom Sealing
🎄 Servo system, output is 300-900cases/hour.
🎄 Can erect cases and seal tapes to bottom of cases.
🎄 The system can store settings for recall.
🎄 With alarm function for shortage of cardboard or tape.
🎄 기계는 생산 라인에 통합될 수 있습니다.
Video
공유 대상:
제품 설명:

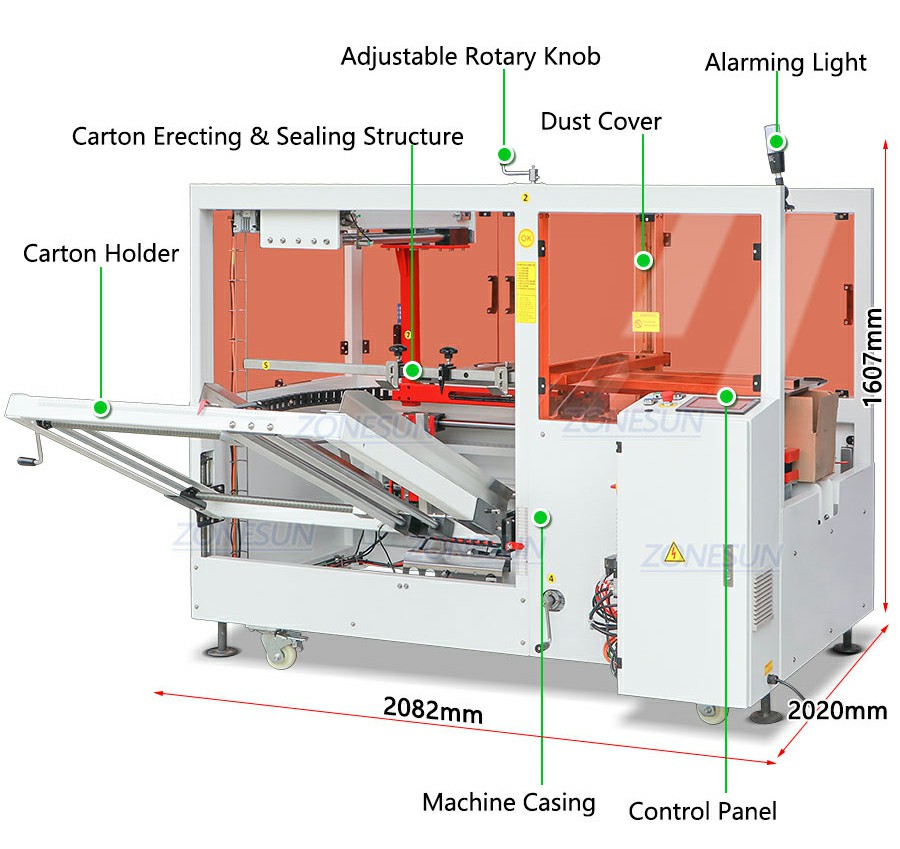

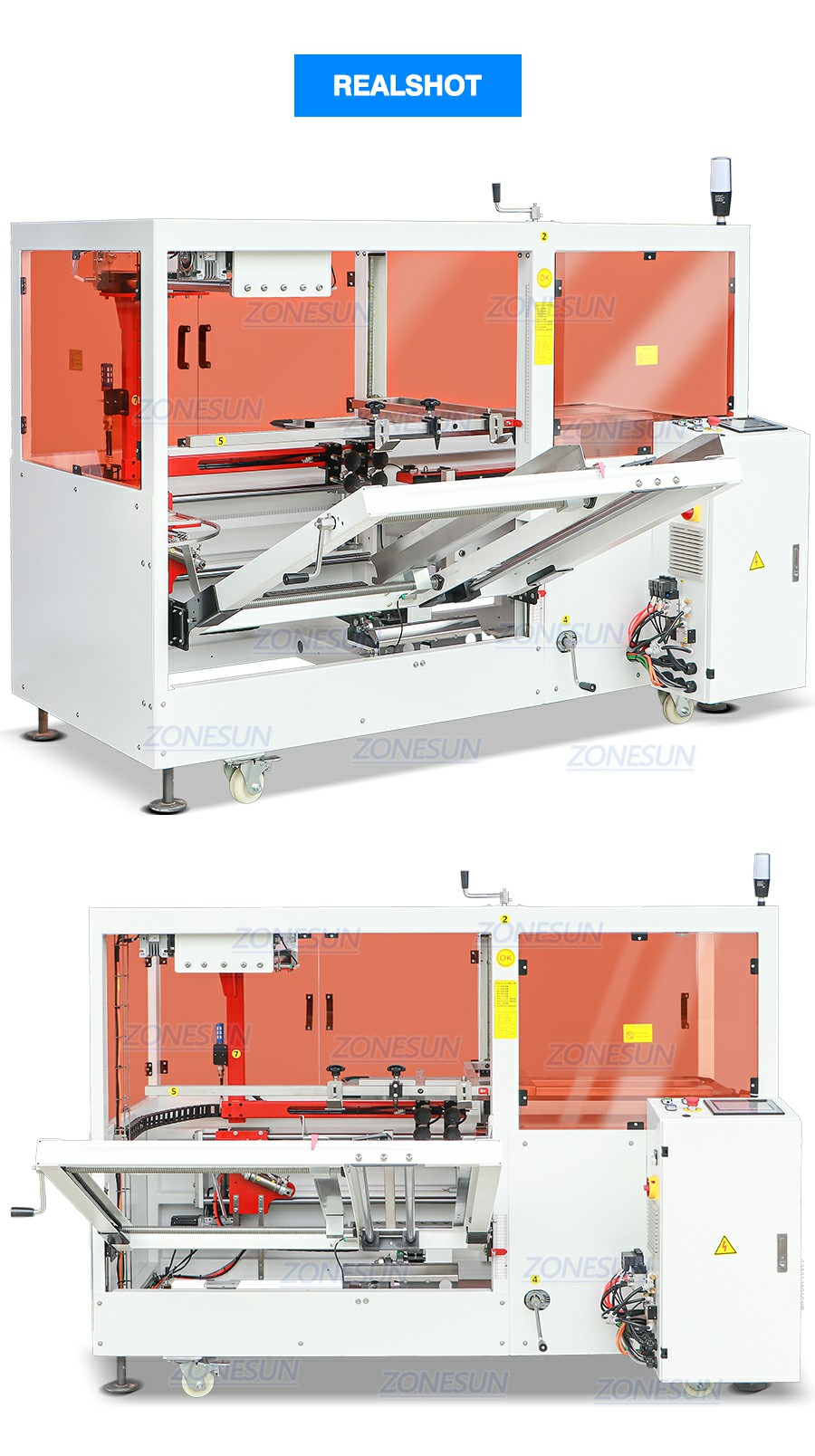

This case erecting machine is driven by servo motor. It is capable of forming cases from straight cardboard and sealing tapes to case bottom. The machine can be adjusted to accommodate different sizes of cases. This machine can work with other machines (like case sealing machine, robotic case packing machine) to achieve automated production.

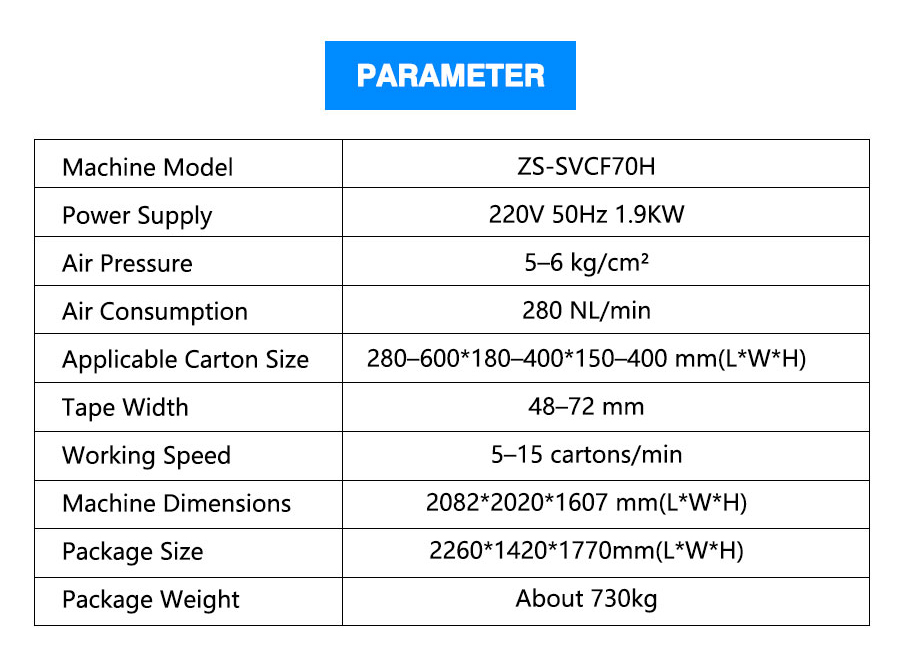

기계 모델 | ZS-SVCF70H |
| 기계 전압 | 220V 50Hz |
힘 | 1.9KW |
| 생산 능력 | About 5-15 cases/min(depending on product size) |
적용 가능한 상자 크기 | 280-600mm*180-400mm*150-400mm(L*W*H) |
| 테이프 폭 | 48-72mm |
공기의 압력 | 5-6kg/cm² |
| 공기 소비량 | 280 NL/min |
기계 크기 | About 2082*2020*1607mm/ About 82.0*79.5*63.3 inch |
| 패키지 크기 | About 2260*1420*1770mm/ About 89.0*55.9*70.0 inch |
패키지 무게 | 약 730kg |

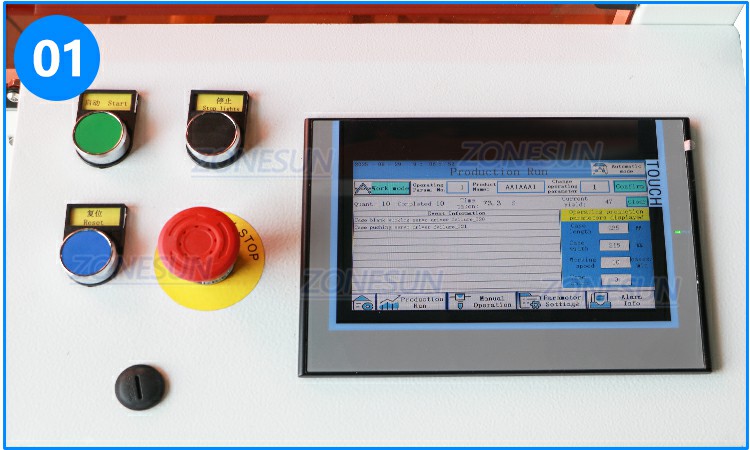

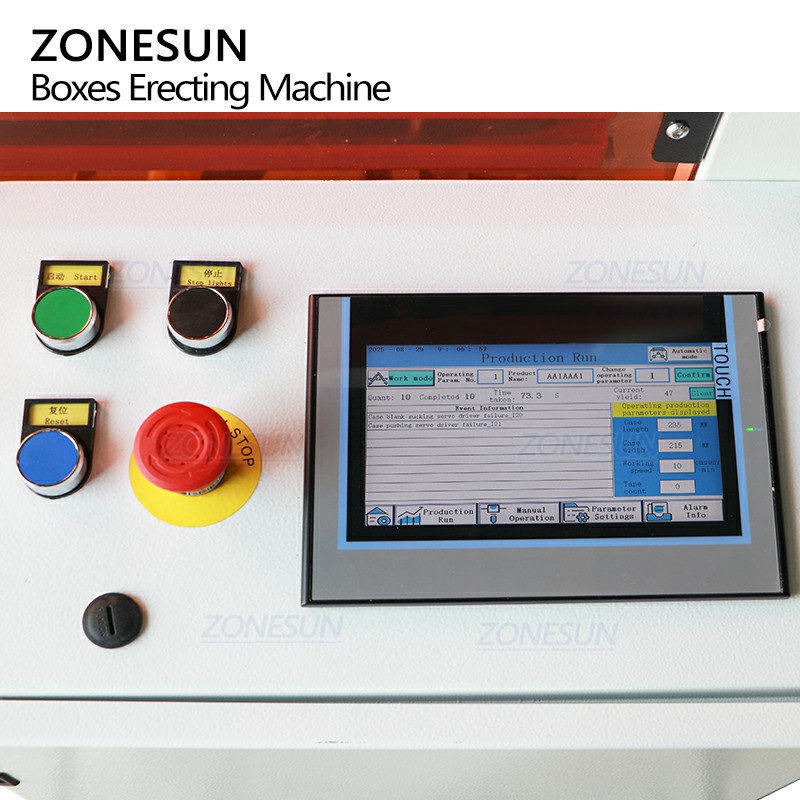

터치스크린 패널
The system has data memory function, allowing for quick changeover between products.

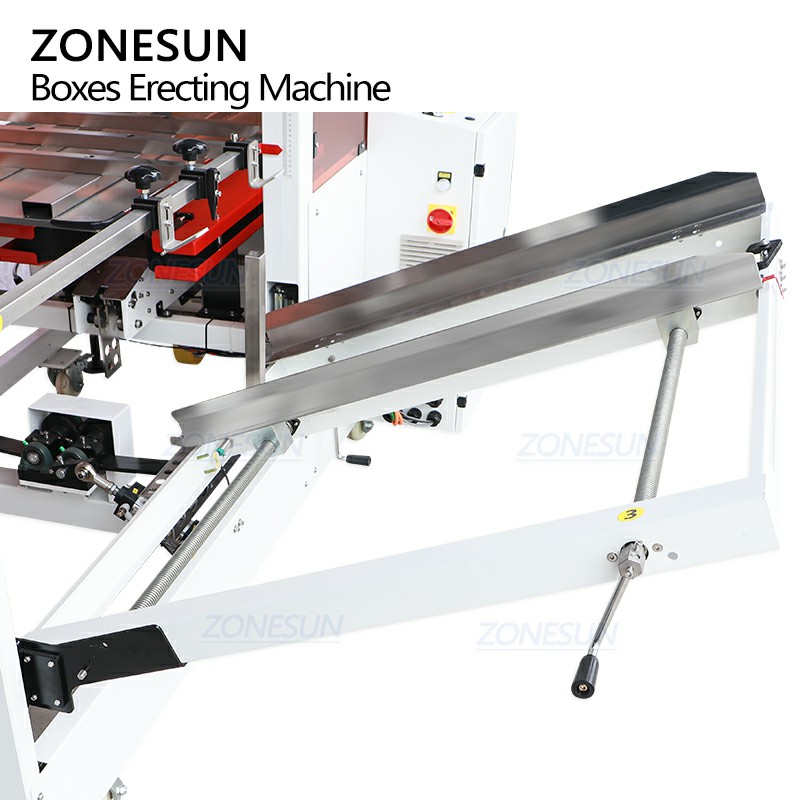

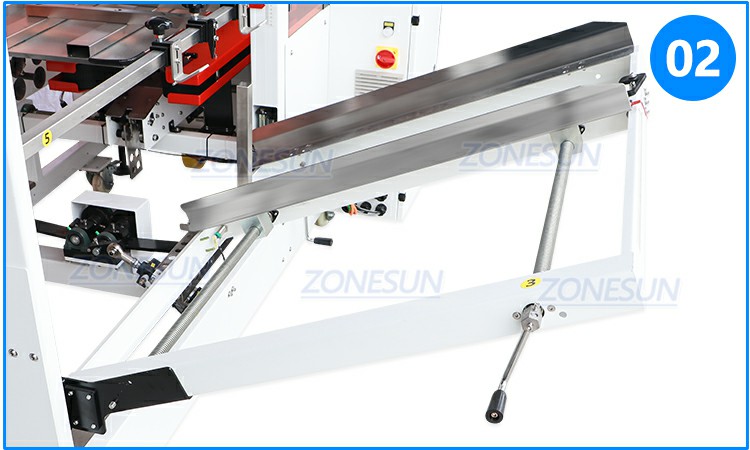

Cardboard Stacking
Capable of stacking up to 50 cardboard. The structure can be adjusted to suit for different sizes of cardboard.

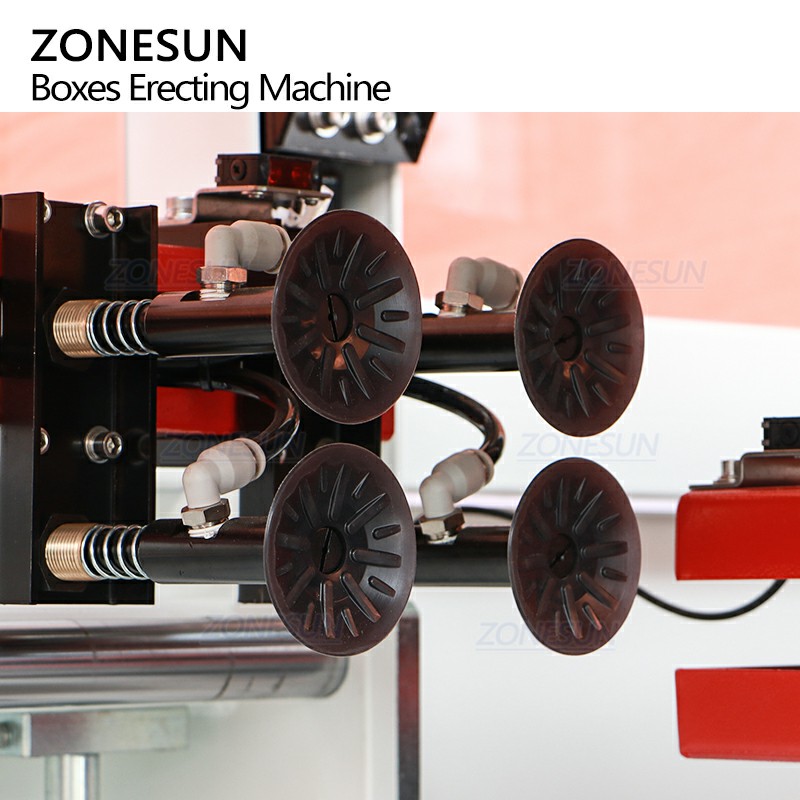

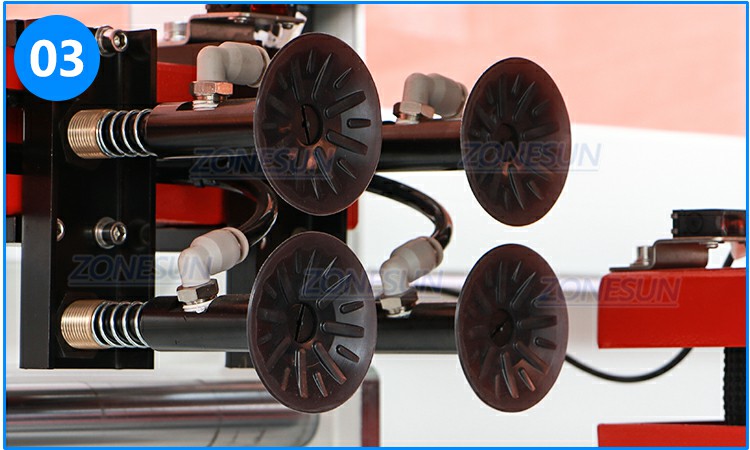

Case Erecting Structure
The suction cups can pick up cardboard and form them into cases.

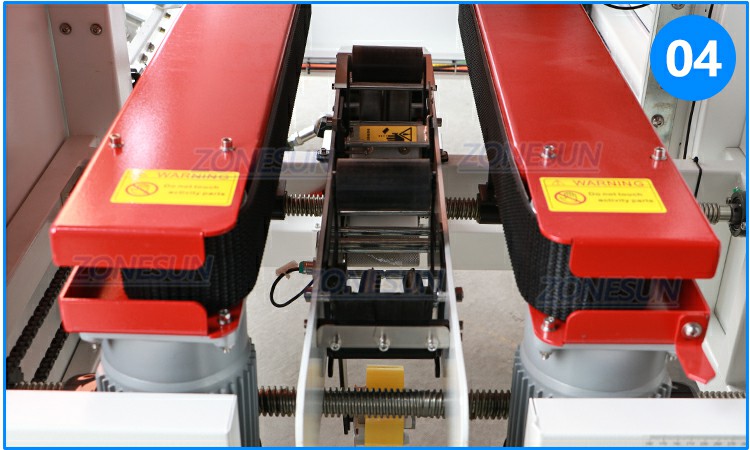

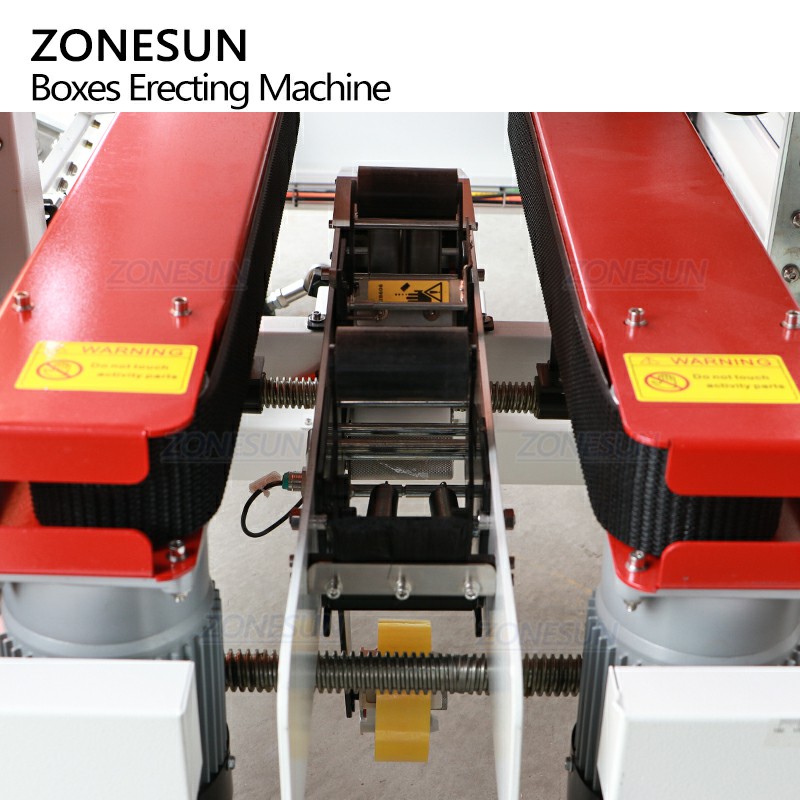

Tape Sealing Structure
Can seal tapes to bottom side of cases. It is suitable for tapes of 48-72mm width.

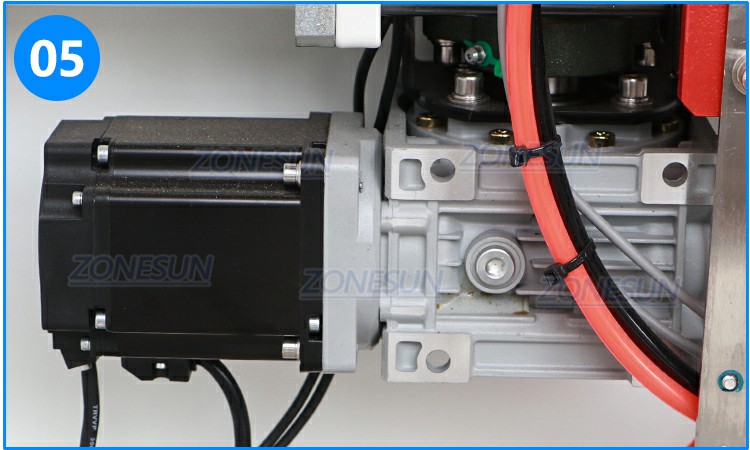

서보 모터
Servo control ensures stable operation and precise motion.

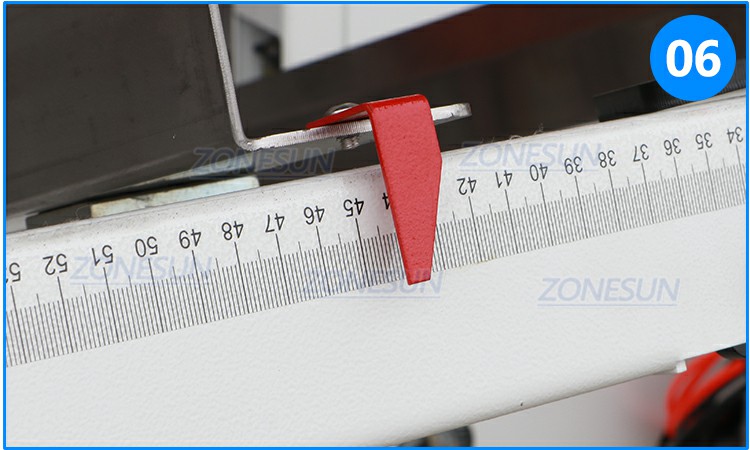

Ruler
Clear scale ensures accurate adjustment for different sizes of cases.
- 적용 가능한 제품: Corrugated boxes.
- 해당 산업: Daily chemical, cosmetic, beverage, food, medicine industries.
