ZS-DDP270 Máquina termoformadora automática de vasos de plástico para miel y mermelada de frutas

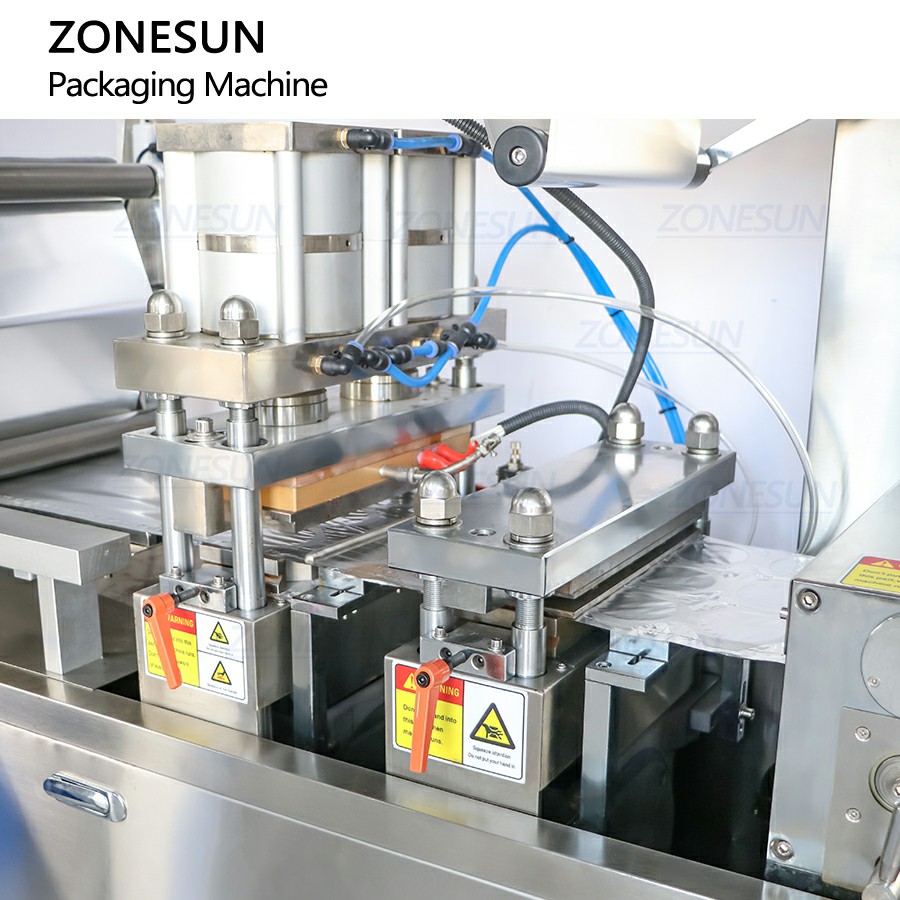

This machine is a monoblock one which integrates functions of thermoforming plastic cups, filling paste, sealing films and cutting cups automatically. Production speed can reach 9600pcs/h. The cup thermoforming packaging machine can be customized to suit for your production need.

Compartir con:

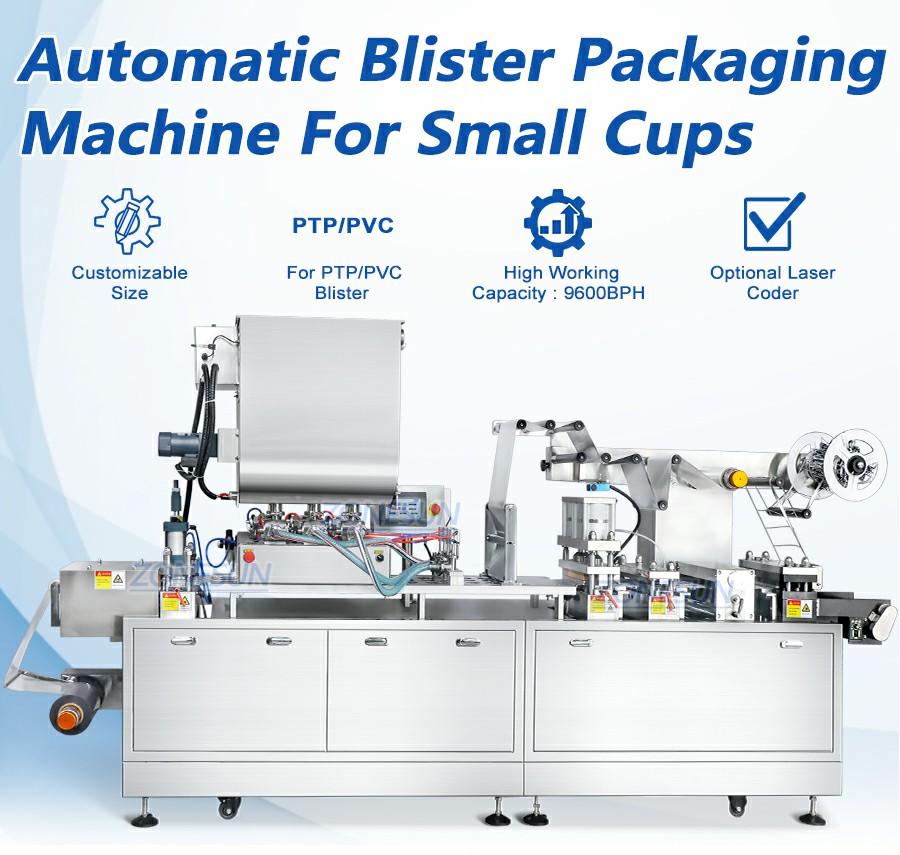

Automatic Thermoforming Machine For Food Packaging

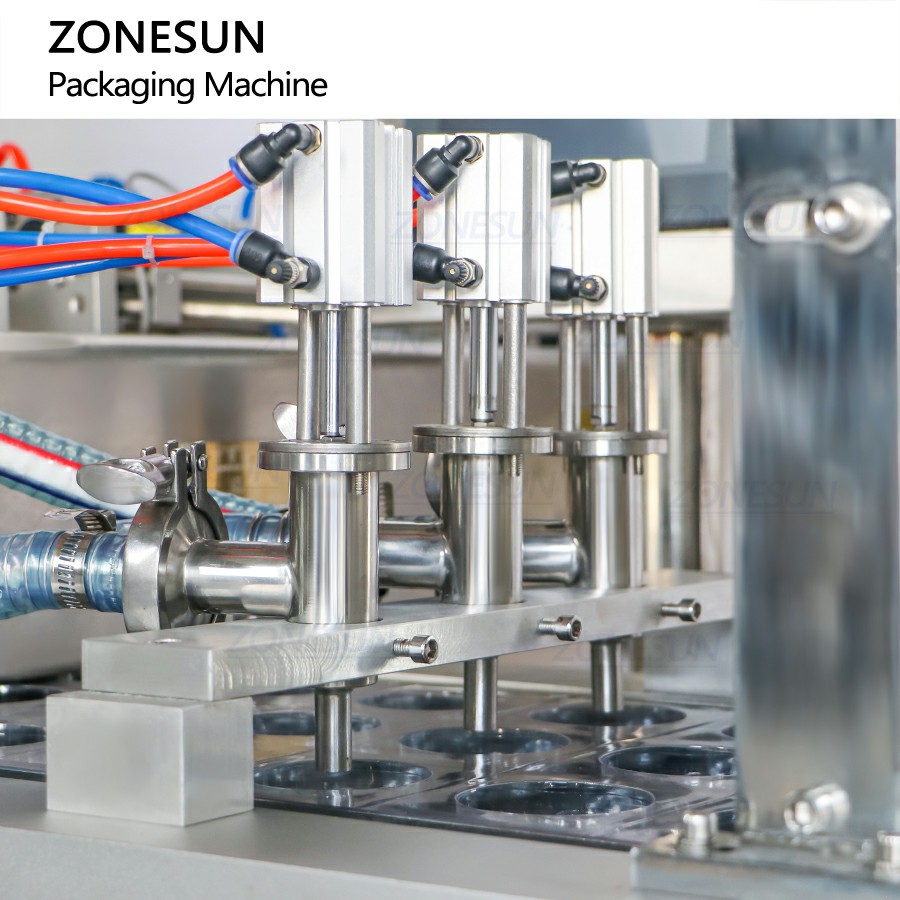

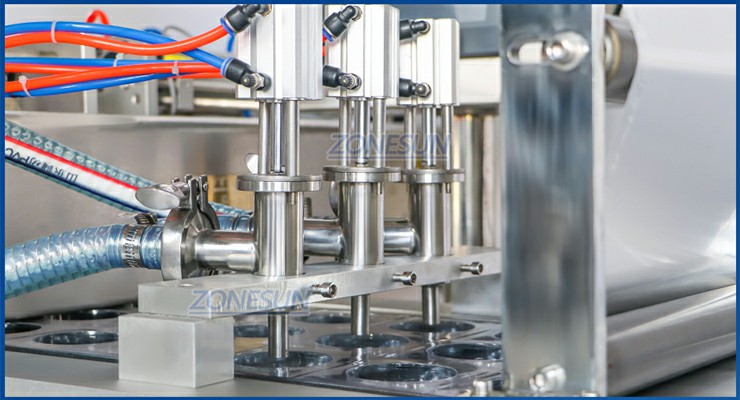

  • Equipped with piston pump, this machine can fill thick paste accurately. Filling range of the pump can be customized.

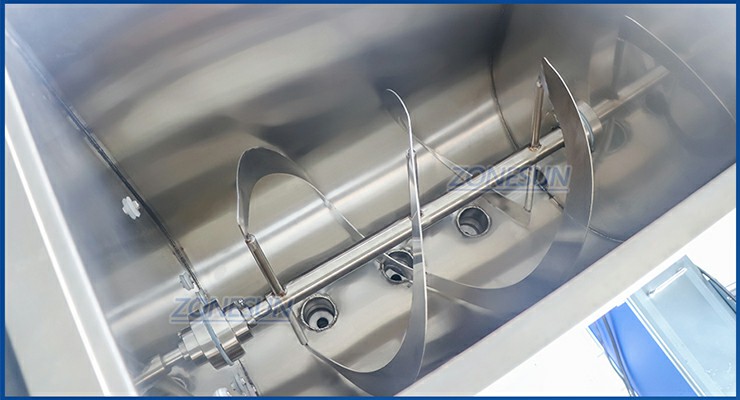

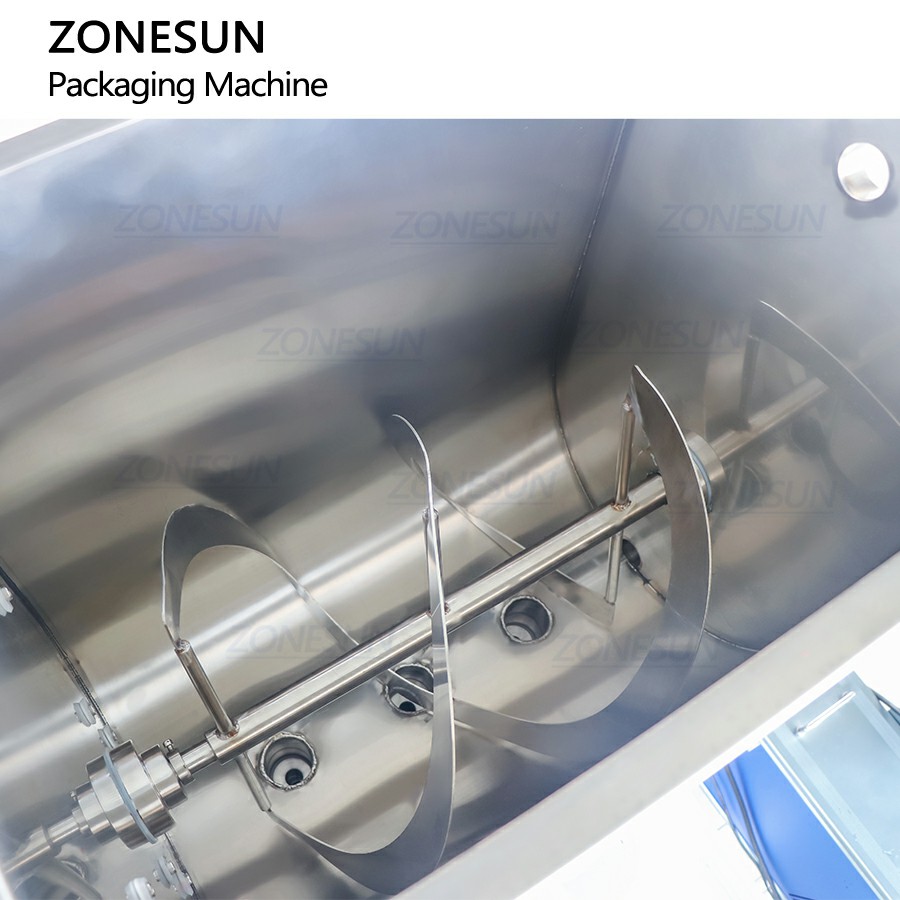

  • The hopper is designed with heating and stirring function, enabling it to fill paste smoothly.

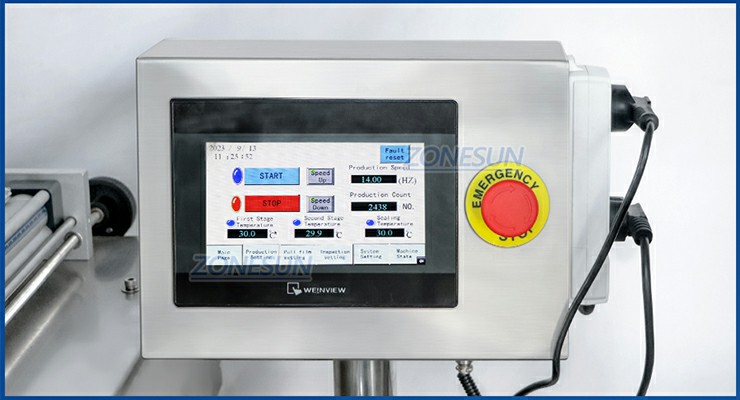

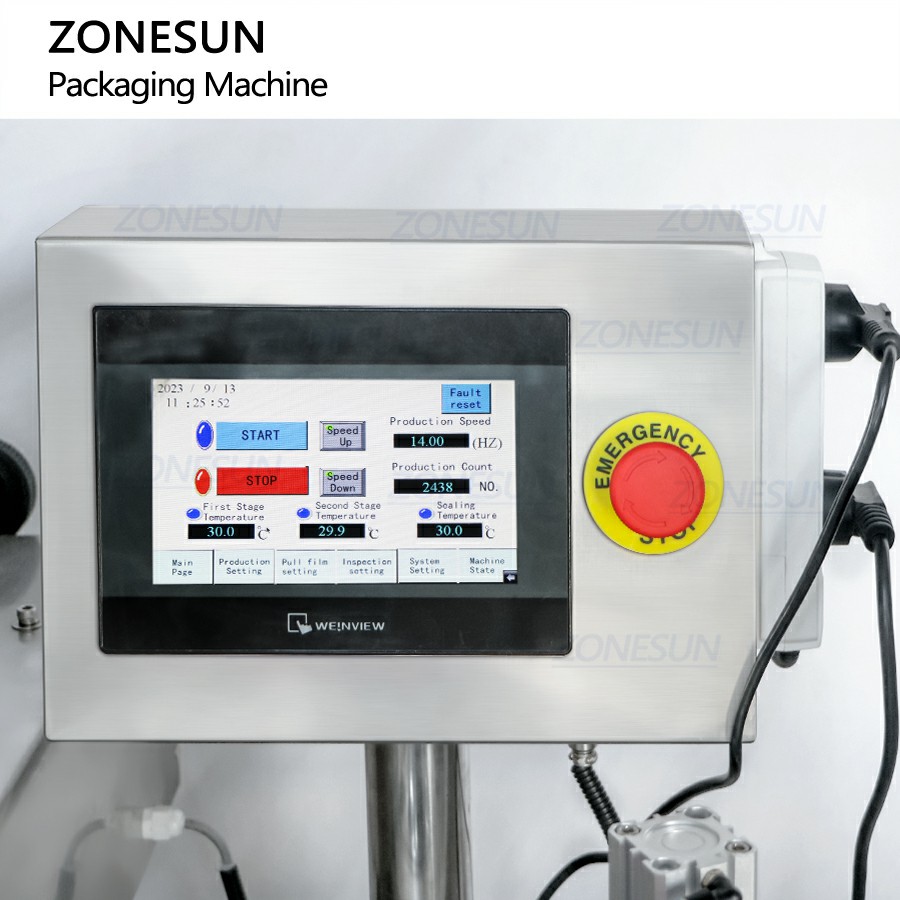

  • With touchscreen panel, it is easy to set and adjust working parameters. Language of panel can be customized as your need.

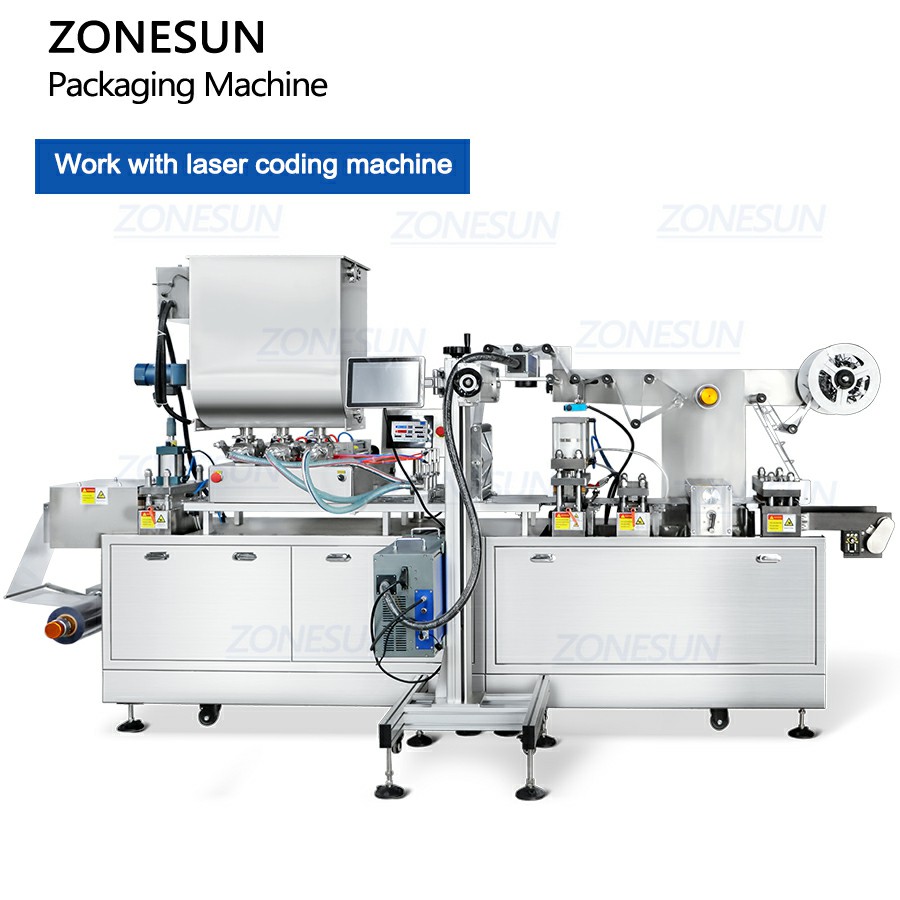

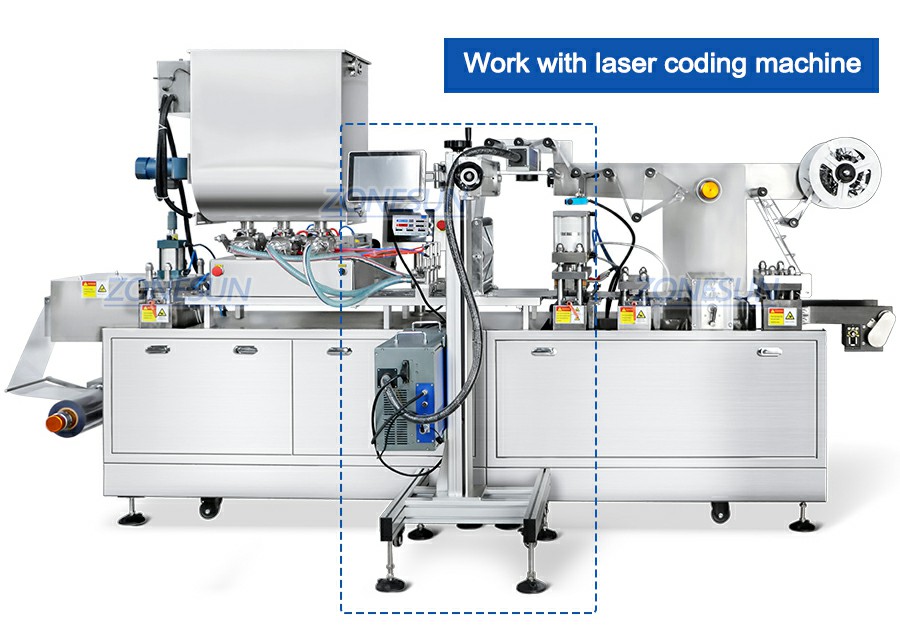

  • This plastic cup thermoforming machine can also be equipped with laser marking machine and material feeding machine to promote production. Please feel free to contact us if you need other machines.

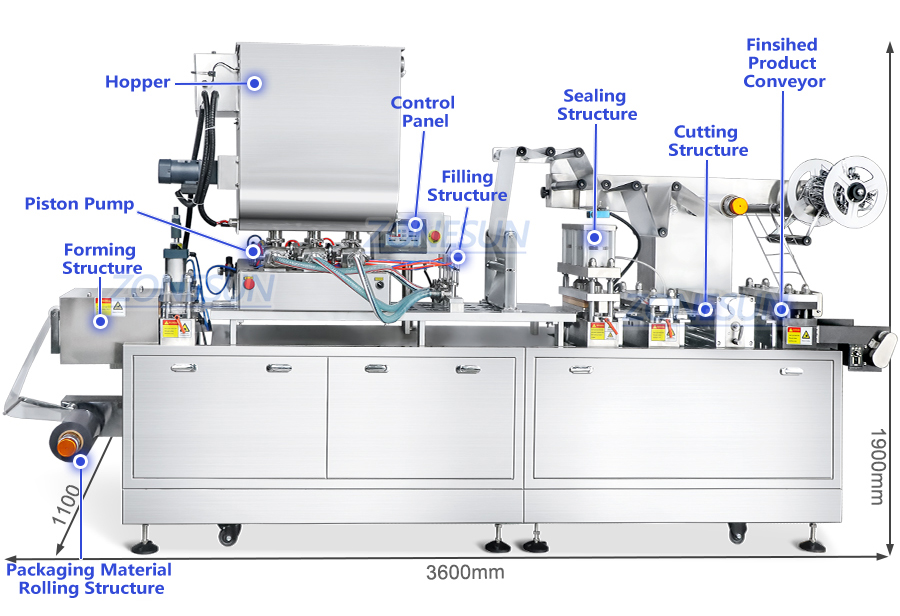

Diagrama de la máquina

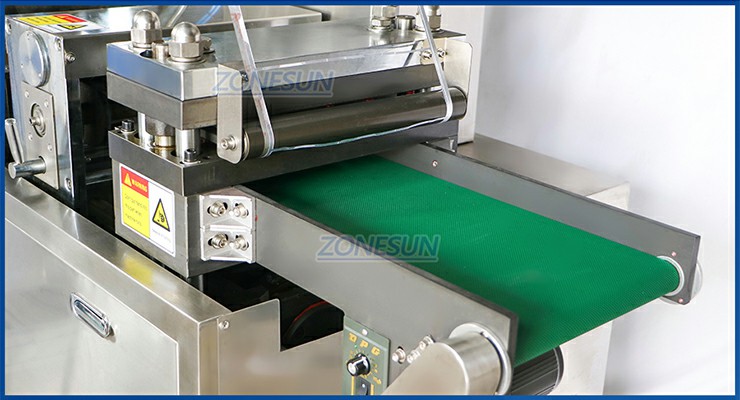

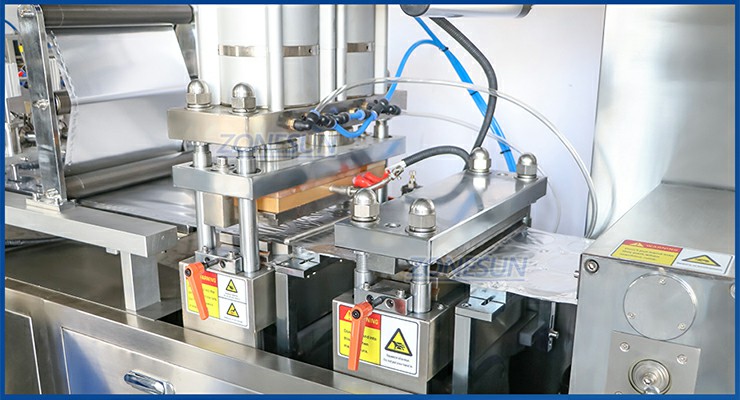

Detalle de la máquina-1

Máquina Detalle-2

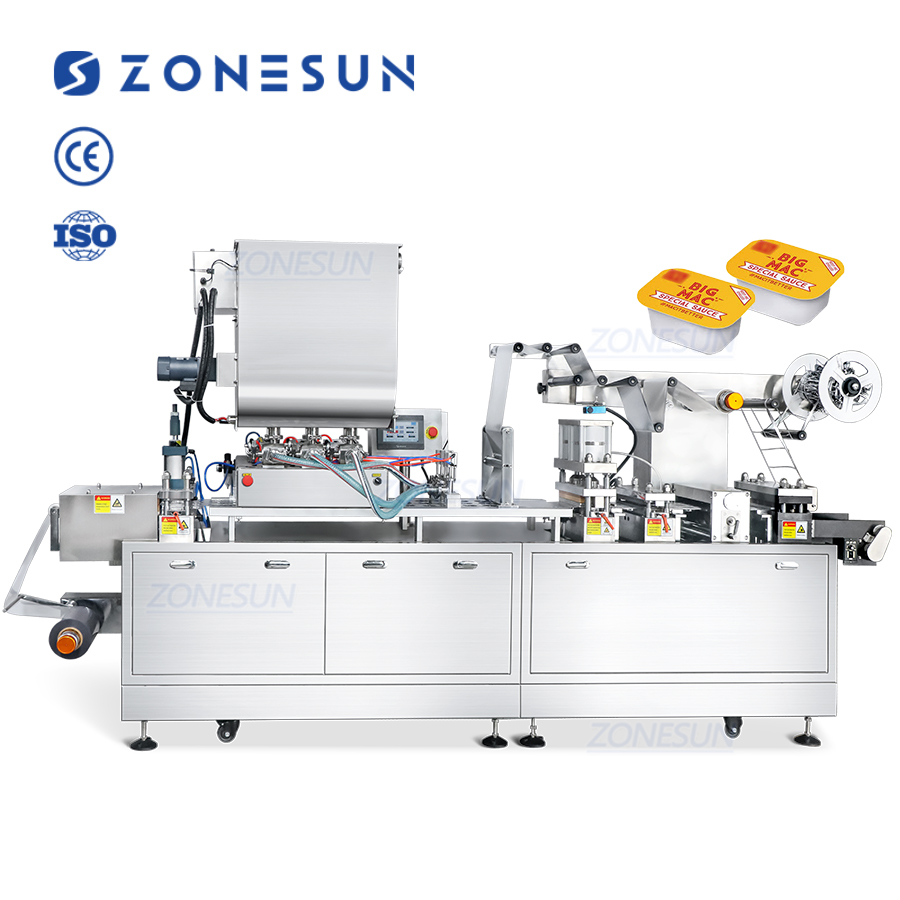

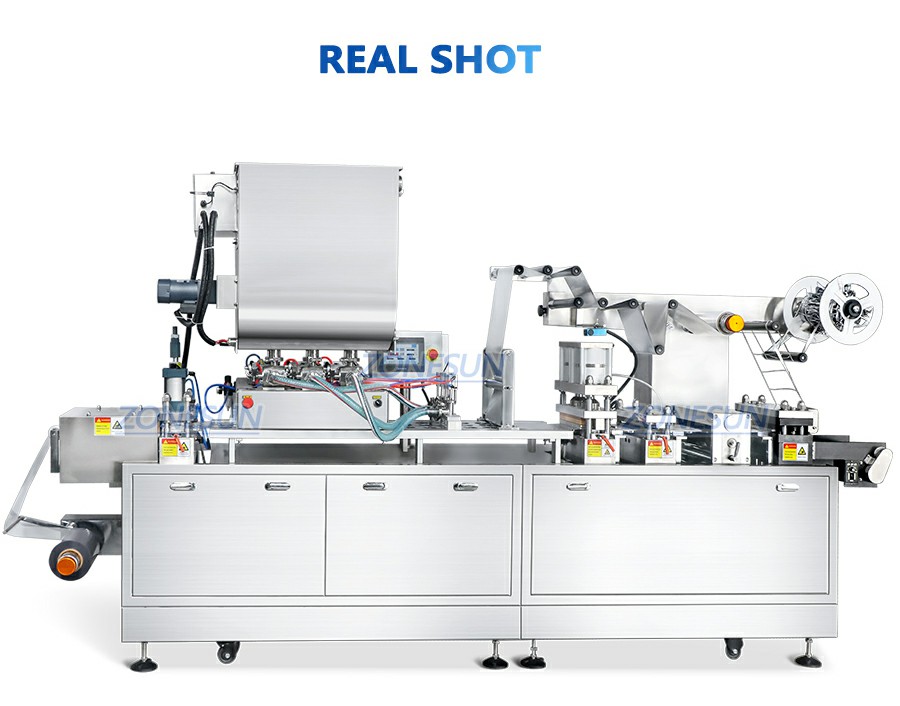

Real Shot of Plastic Cup Thermoforming Machine

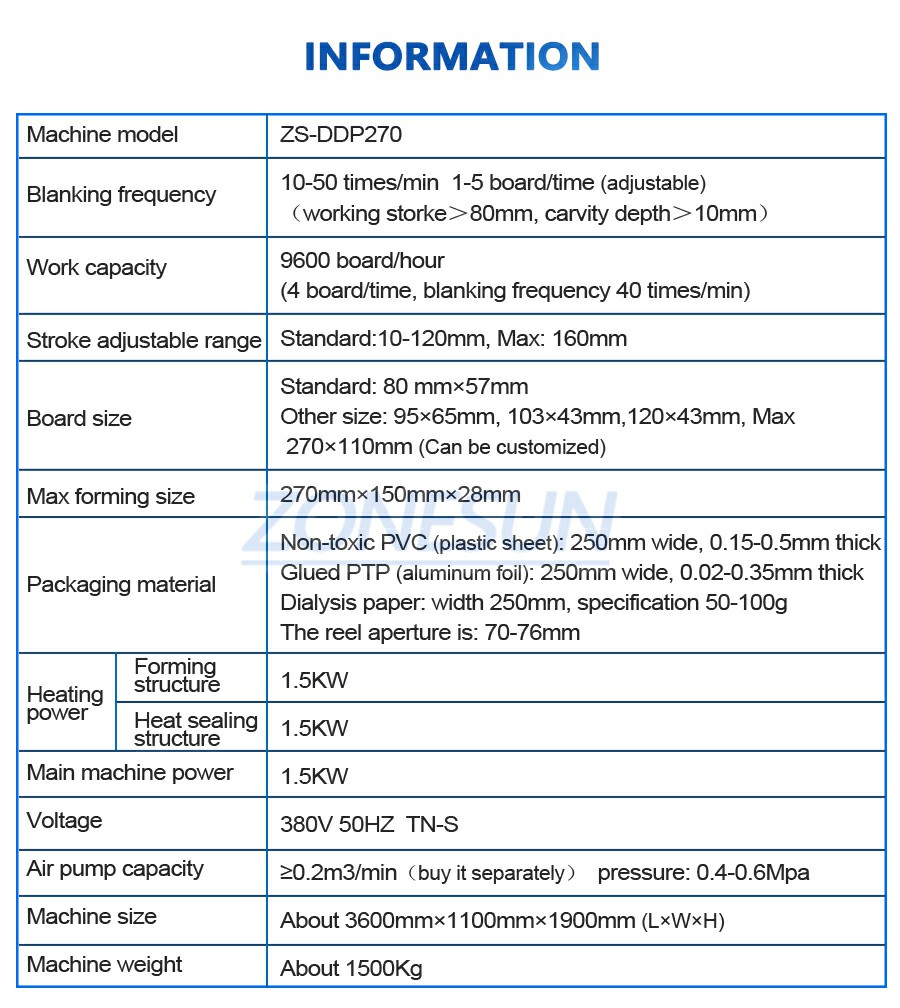

Modelo de máquina ZS-DDP270
Tensión 380V 50HZ  TN-S
Main Machine Power 1,5 KW
Blanking Frequency 10-50 times/min  1-5 boards/time(adjustable)

(working stroke>80mm, cavity depth>10mm)

Capacidad de trabajo 9600 boards/hour(4 boards/time, blanking frequency 40 times/min)
Stroke Adjustable Range Standard: 10-120mm, Max: 160mm
Board Size Standard: 80mm*57mm

Other size: 95*65mm, 103*43mm,120*43mm, Max 270*110mm(Can be customized)

Max Forming Size 270mm*150mm*28mm
Packaging Material Non-toxic PVC (plastic sheet): width 250mm , thickness 0.15-0.5mm

Glued PTP (aluminum foil): width 250mm, thickness 0.02-0.35mm

Dialysis paper: width 250mm, specification 50-100g

The reel aperture is: 70-76mm

Heating Power Forming Structure 1,5 KW
Heat Sealing Structure 1,5 KW
Air Pump Capacity ≥0.2m3/min(should be bought separately)
Presión atmosférica 0,4-0,6Mpa
Tamaño de la máquina About 3600mm*1100mm*1900mm(L*W*H)
Peso de la máquina About 1500Kg
  • Productos aplicables: Honey, jelly, mixed fruit jam, honey mustard, apple sauce, caramel sauce, puree, etc.
  • Industrias aplicables: Industrias alimentaria, química y farmacéutica.

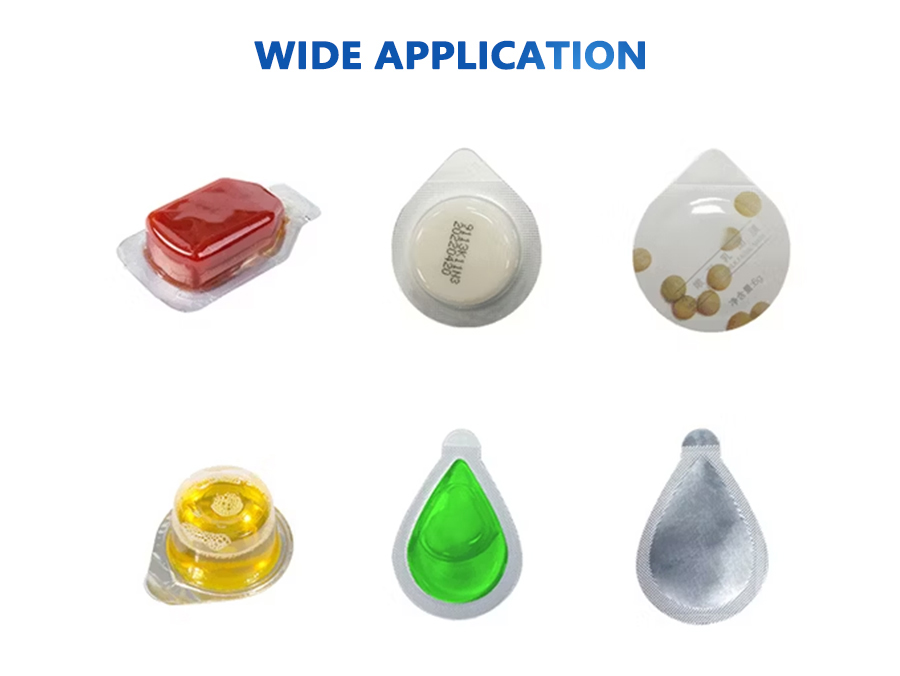

Application of plastic cup thermoforming machine
