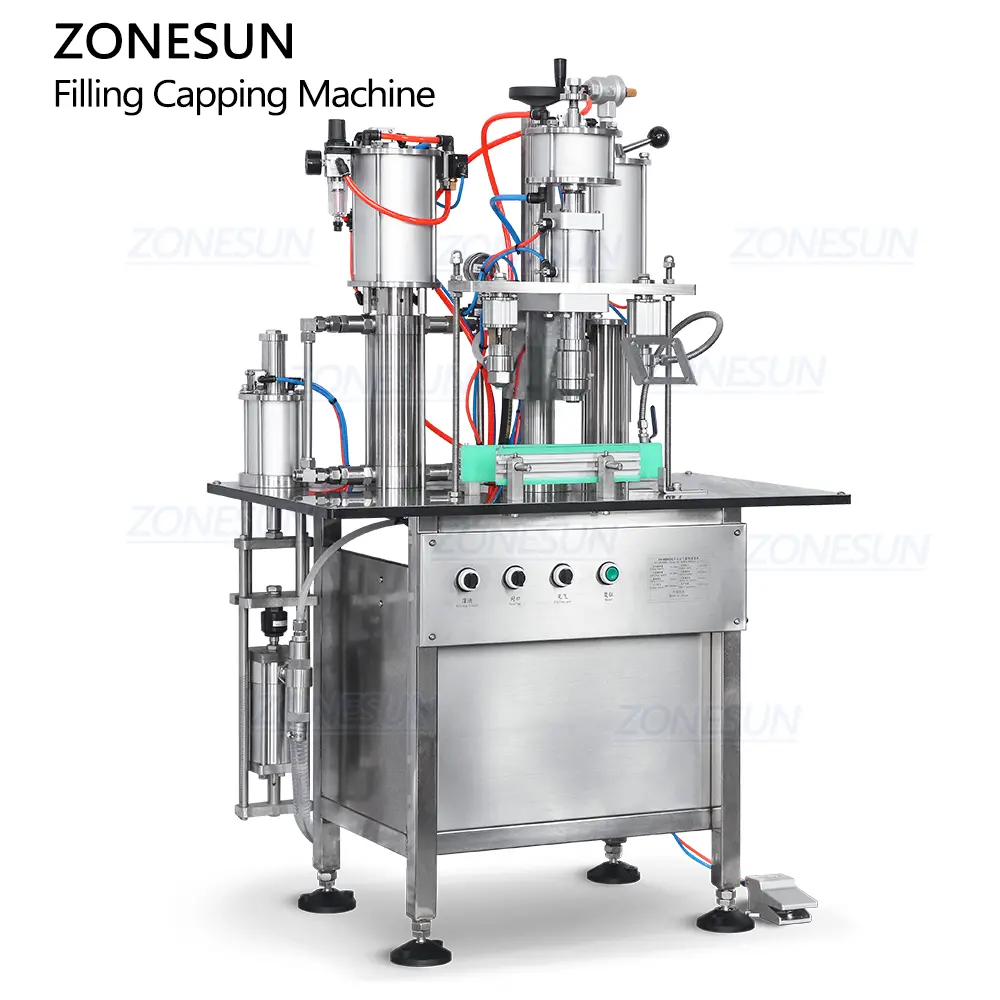

Máquina llenadora y tapadora semiautomática de latas de aerosol ZS-QW254

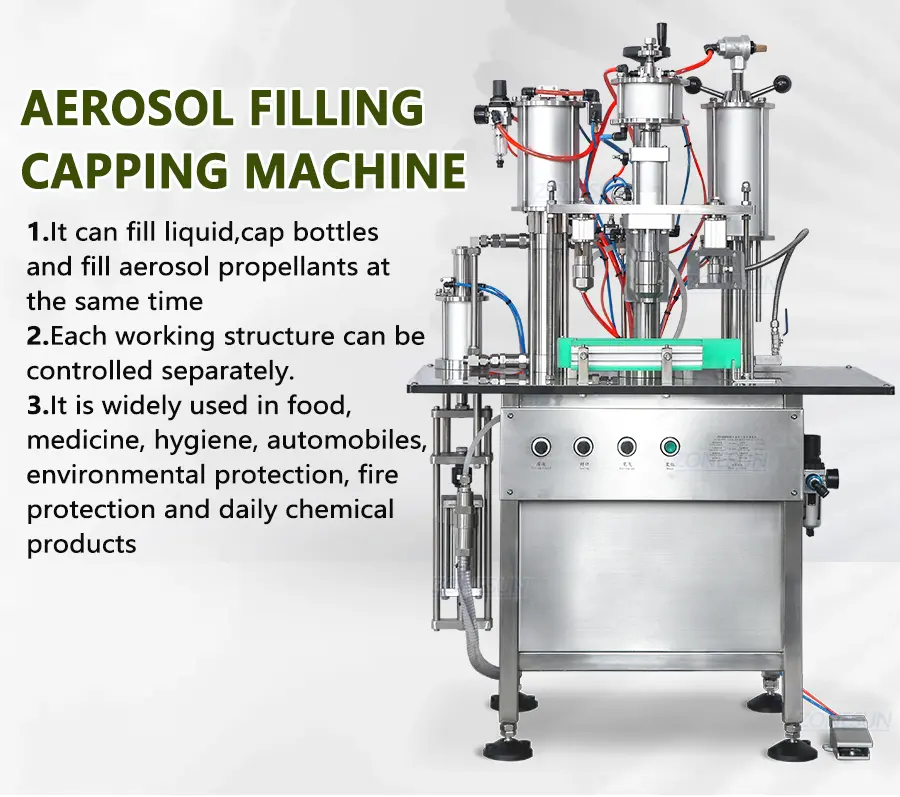

This machine has functions of filling liquid, capping bottles and filling aerosol propellants. It can greatly save working space. The machine can be widely used in chemical, hygiene, daily chemical, industrial industries.

Compartir con:



Semi automatic aerosol spray can filling and capping machine

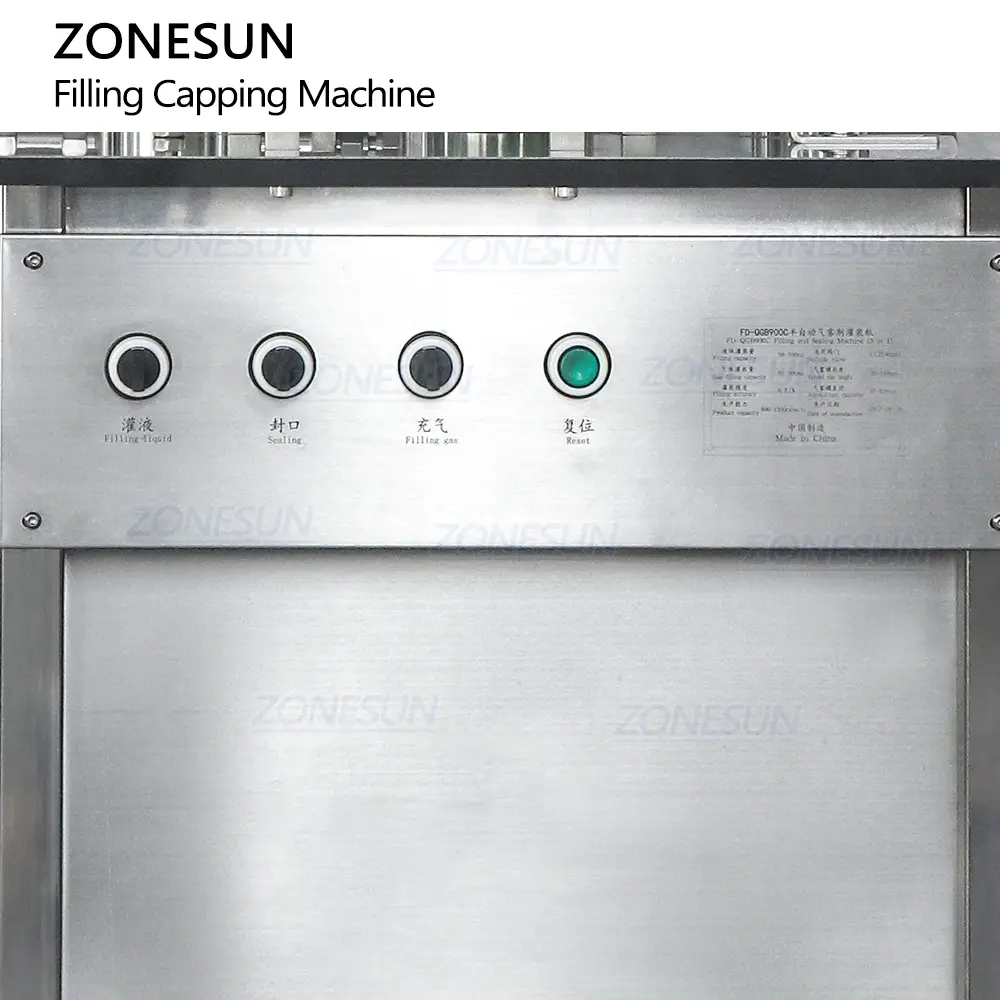

  • It has automatic working mode and manual mode, which can be switched freely.

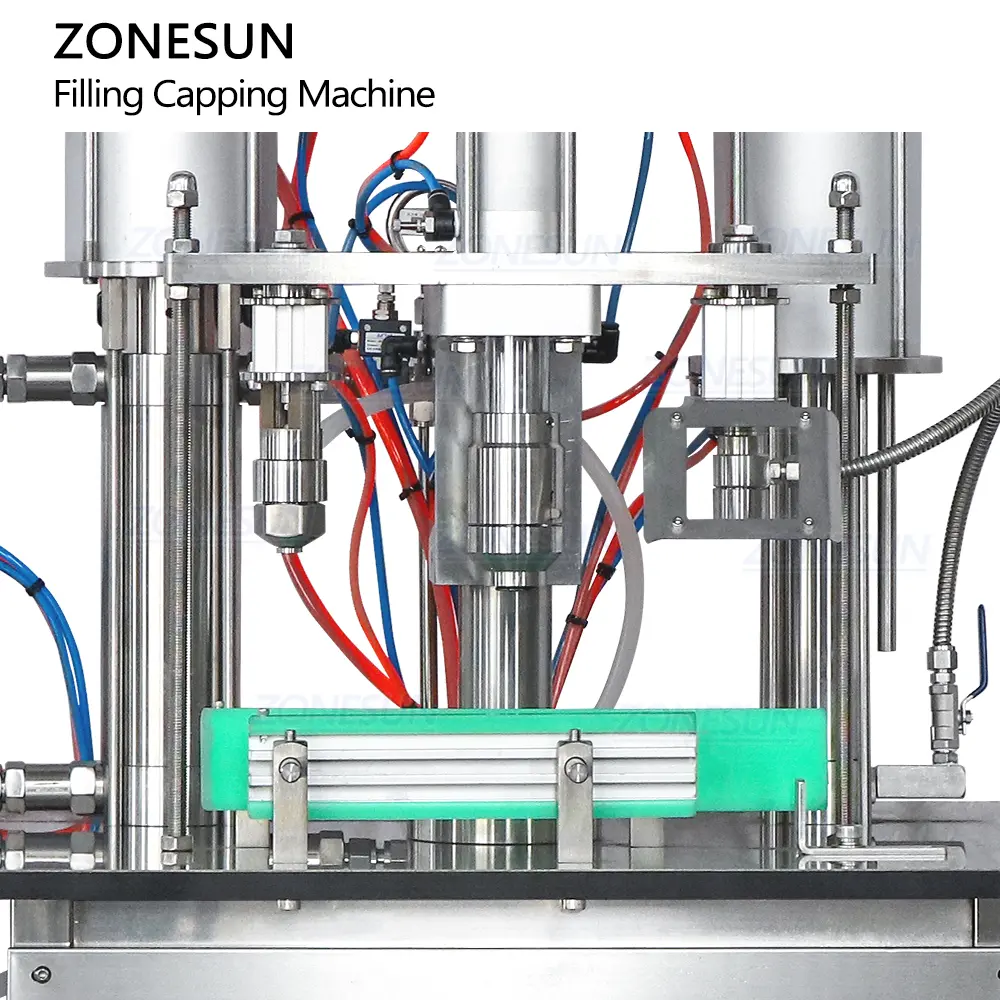

  • The working structures can be controlled separately.

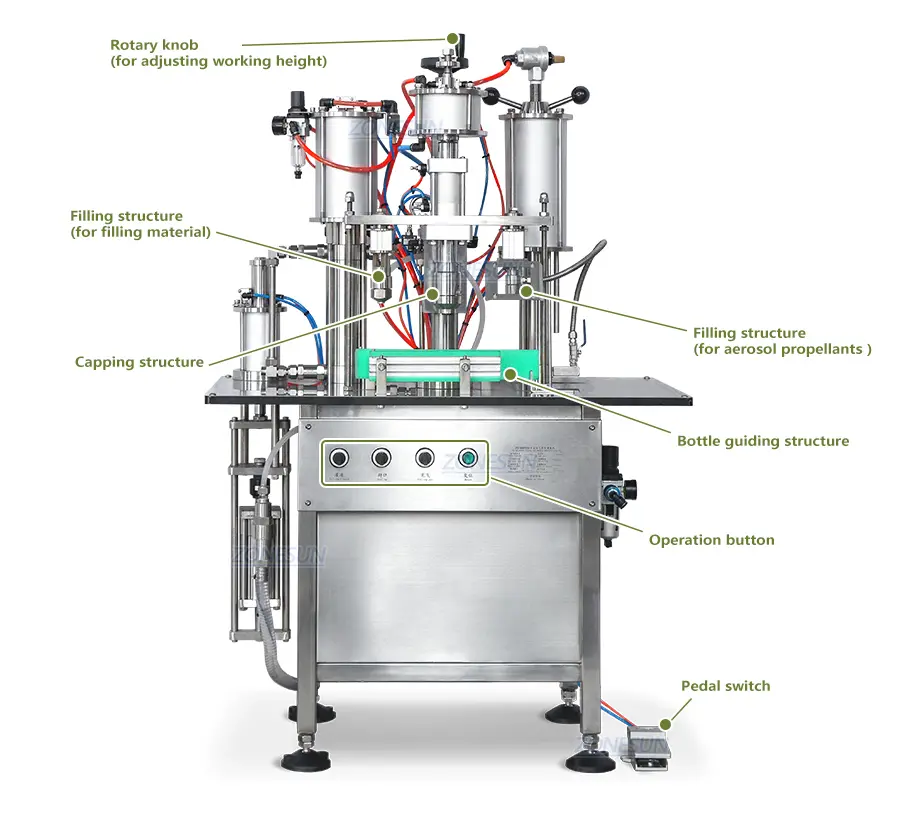

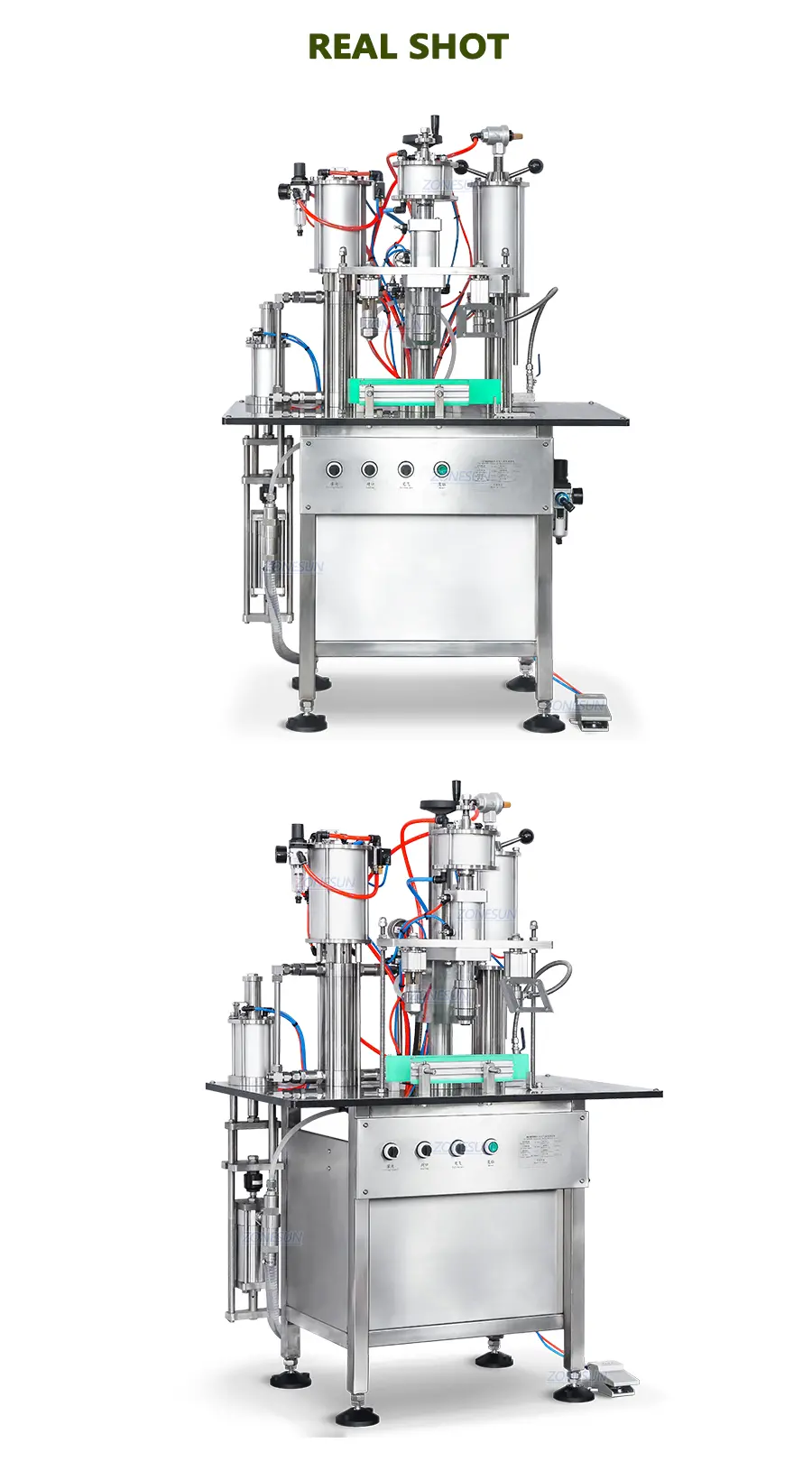

Diagram of Aerosol Spray Can Filling And Capping MachineDetalle de la máquinaReal Shot of Aerosol Spray Can Filling Machine

Modelo de máquina ZS-QW254
Applicable Bottle Mouth Size 1 inch (25.4 mm)
Filling Capacity 50-500ml
Filling Material Input Connector OD 20mm
Propellant Filling Capacity 50-500ml
Propellant Input Connector M22*1.5 anti-thread
Precisión de llenado ±1%
Applicable Aerosol Can Height 70-330 mm
Applicable Aerosol Can Diameter φ35 to φ65mm
Presión de trabajo 0.5-1.0 MPa
Maximum Air Consumption 1 m³/min
Capacidad de producción 1200 bottles/hour(based on liquid and volume)
Tamaño del embalaje About 1220mm*590mm*1550mm
Peso del paquete Unos 180 kg
  • Productos aplicables: Aerosol Cans.
  • Industrias aplicables: Chemical, hygiene, daily chemical, industrial industries.
