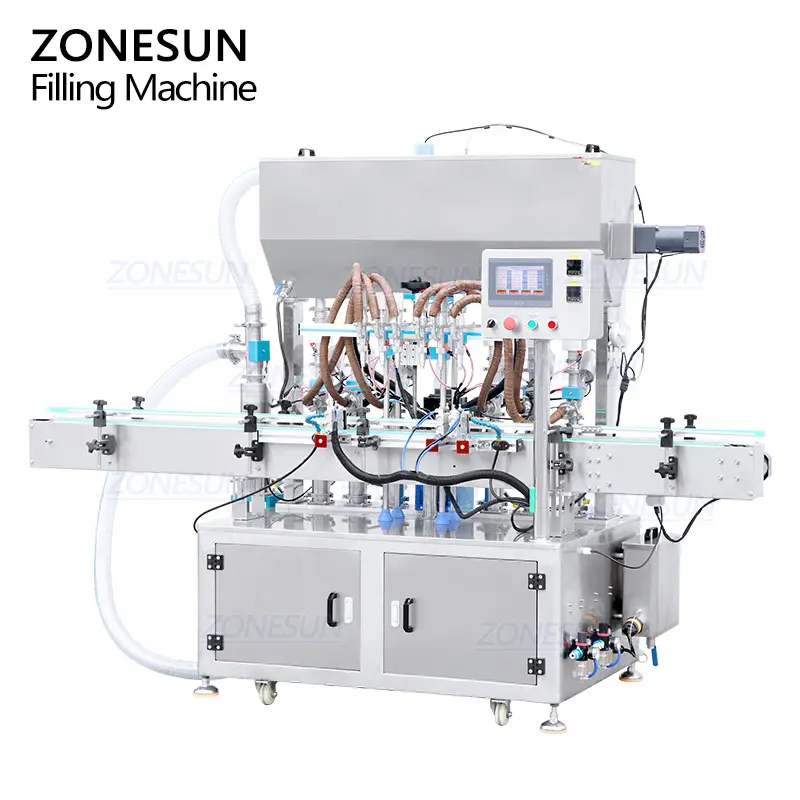

Máquina llenadora de botellas de pomada servo automática con mezclador y calentador ZS-YT6T-6PXH

With heating and mixing functions, this machine is suitable for filling thick paste, such as pomade, wax, vaseline gel, etc. Filling speed is about 20-70 bottles/min. This filling machine can also work with capping and labeling machine to complete automated production.

Compartir con:

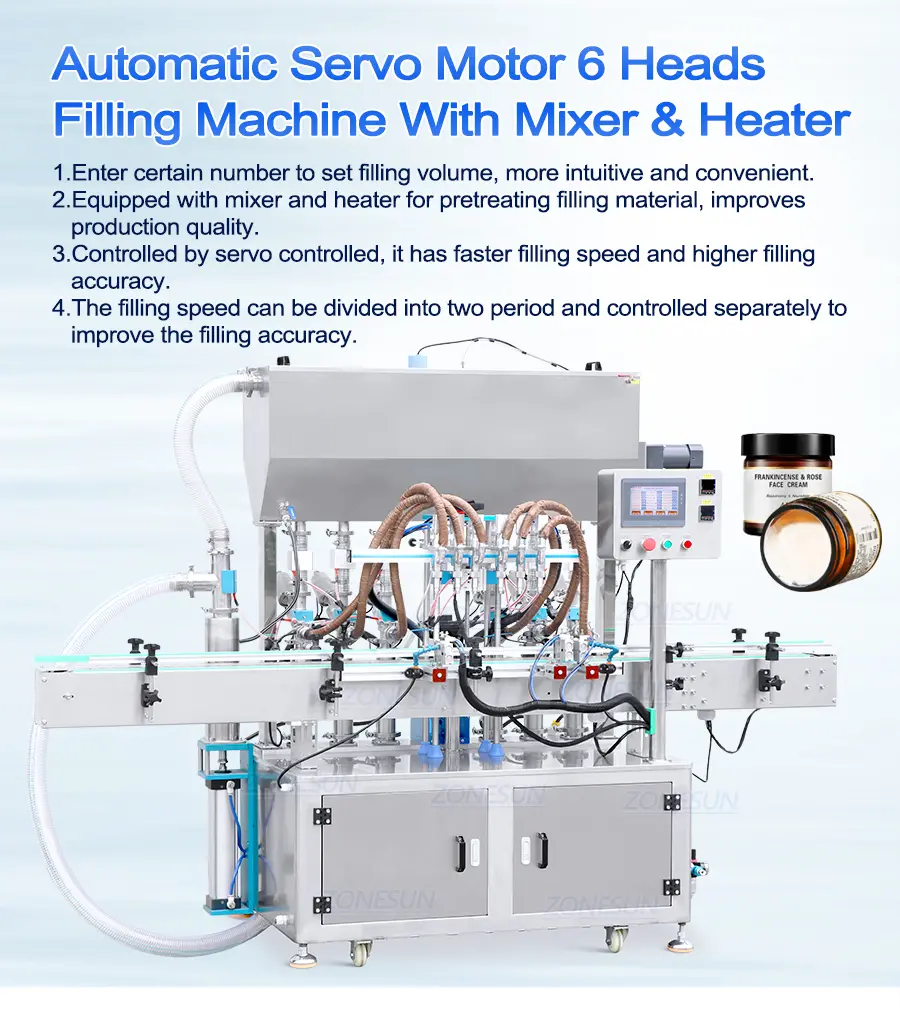

Automatic Paste Filling Machine With Mixer And Heater

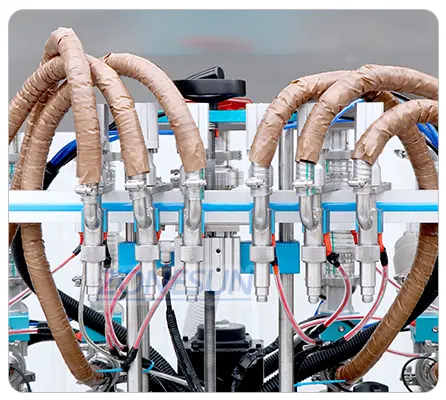

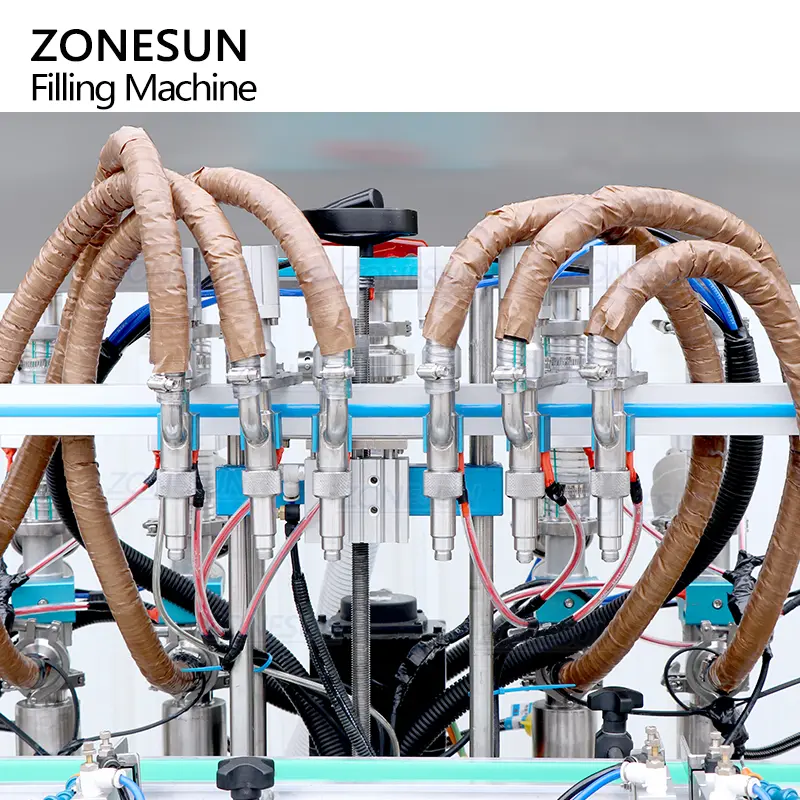

  • Adopting the way of hydronic heating, the filling nozzles of this machine can also keep heated during production, avoiding the materials from solidifying.

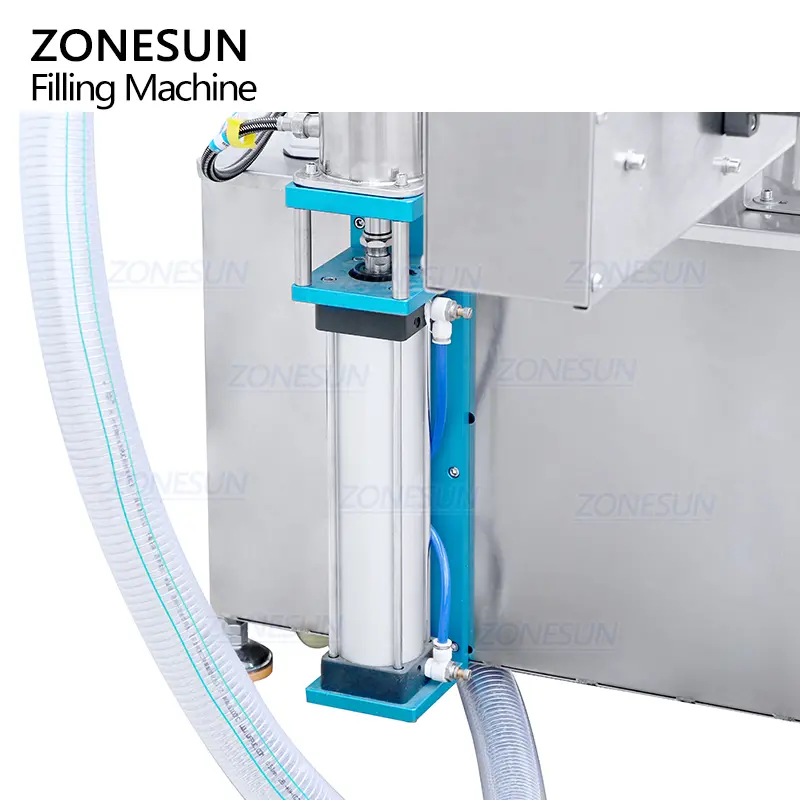

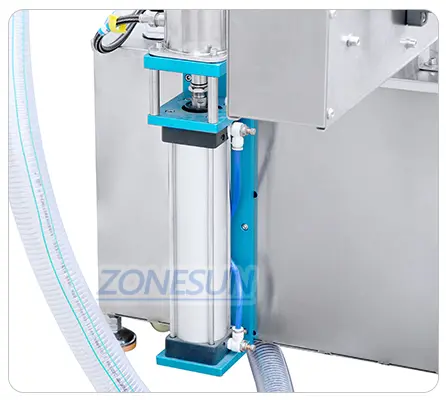

  • This paste filling machine is equipped with feeding pump, which can supply materials in time, improving efficiency.
  • Driven by servo motor, the machine can run steadily and fill paste accurately. Operator can set filling volume on panel directly, easy to operate.

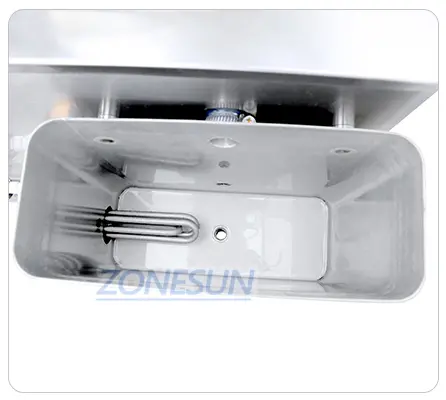

  • The hopper can heat and mix filling materials during production, which can ensure smooth filling. Heating temperature and mixing speed can be adjusted as needed.

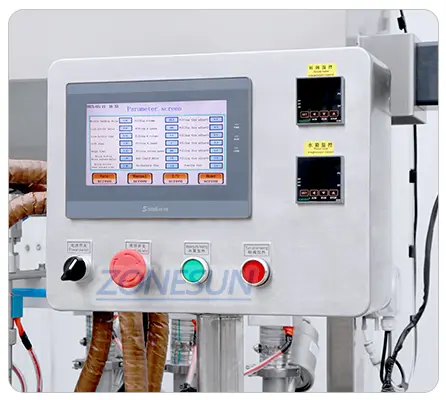

  • This pomade bottle filling machine is designed with PLC panel, making it easier to adjust the working data.
  • The filling nozzle quantity and filling range can be customized to meet your need.

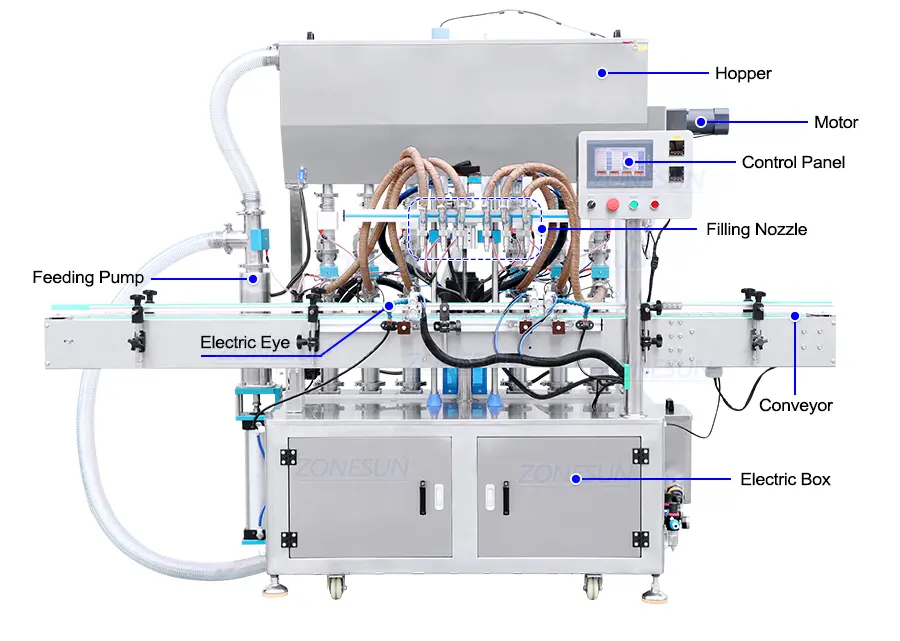

DiagramaBoquillas de llenadoPanel de control PLCWater TankFeeding Pump

Modelo de máquina ZS-YT6T-6PXH
Tensión 480V
Potencia 6KW
Cabezales de llenado 6 Heads(Can be customized)
Gama de llenado 10-300ml(Can be customized)
Velocidad de llenado About 20-70bottles/min(depending on materials and bottle size)
Suitable Temperature Range ≤80℃
Velocidad de mezcla About 50r/min
Precisión de llenado ±1%
Presión atmosférica 0,5-0,8MPa
Memory Function Disponible
Tamaño de la máquina About 2500*950*1900mm(L*W*H)
Tamaño del paquete About 2580*980*2020mm
Peso del paquete 643KG
  • Productos aplicables: Pomade, wax, facial cream, thick lotion, vaseline, hand gel, ointment, etc.
  • Industrias aplicables: Daily chemical, cosmetic, chemical, food, medicine industries.



Aplicación
