ZS-AFC1 3-in-1 Automatic Liquid Essential Oil Bottle Filling Capping Machine

This machine has the function of filling non-viscous liquid, feeding and tightening bottle caps. It can greatly save working space and improve working efficiency. It can work with bottle turntable and labeling machine, completing automated production.

Share to:

Rotary Automatic Essential Oil Filling And Capping Machine


  • The machine can automatically fill liquid, feed caps, cap bottles, greatly saving labor cost.
  • With magnetic pumps, it can fill low-viscosity liquid accurately, ensuring production quality.
  • This essential oil bottle filling capping machine can work with labeling machine to complete automatic production.
  • This automatic filling and capping machine can be customized according to production need.

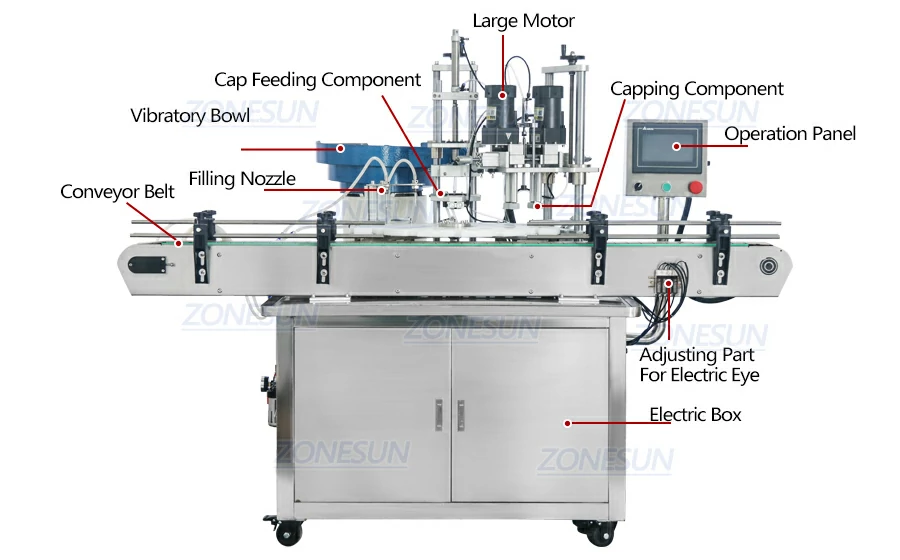

Diagram of bottle filling and capping machine

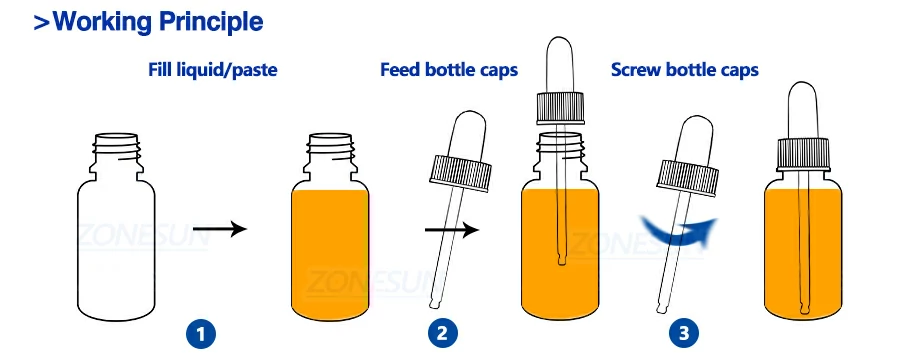

Working process of filling and capping machine

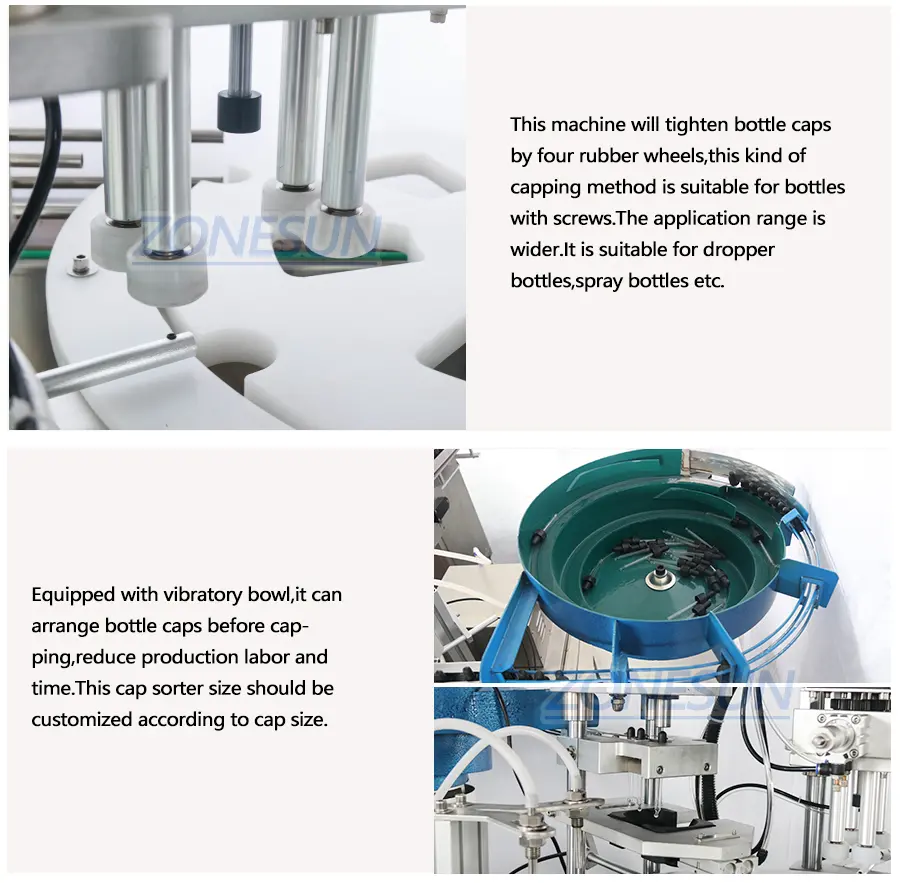

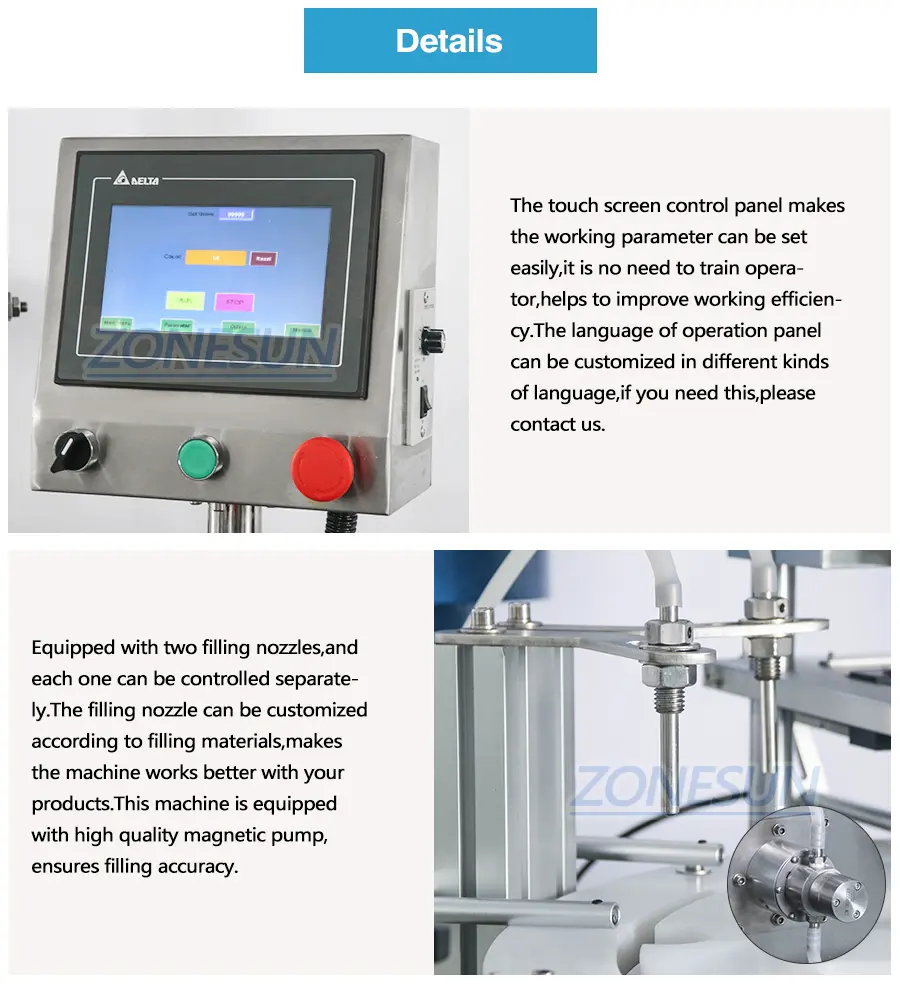

Machine Detail-1

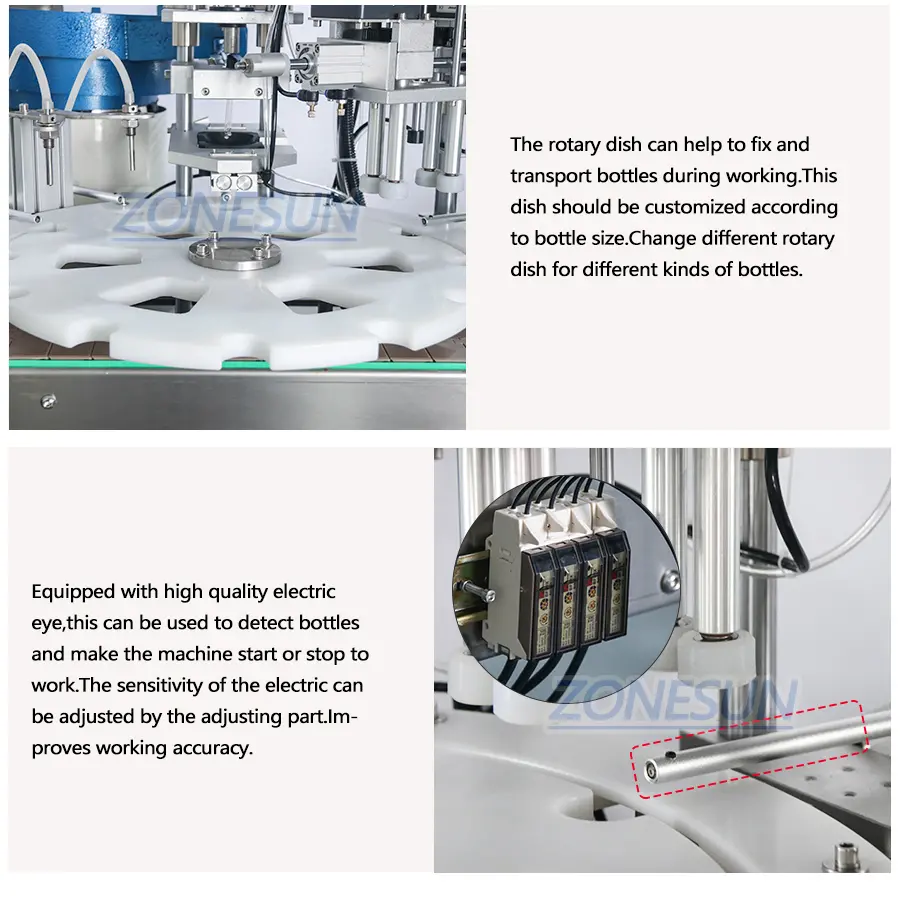

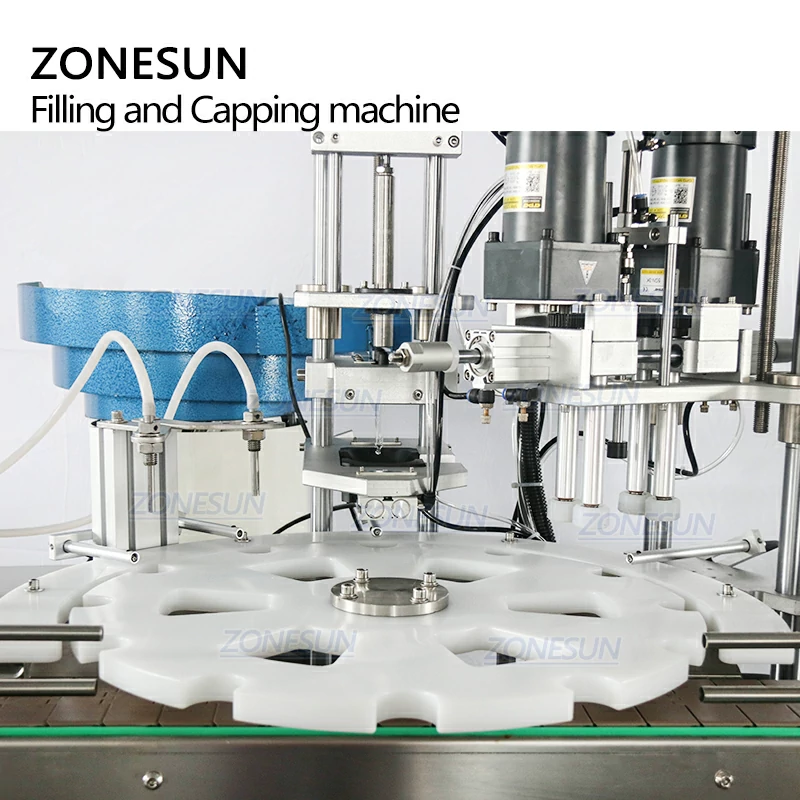

Machine Detail-2

Machine Detail-3

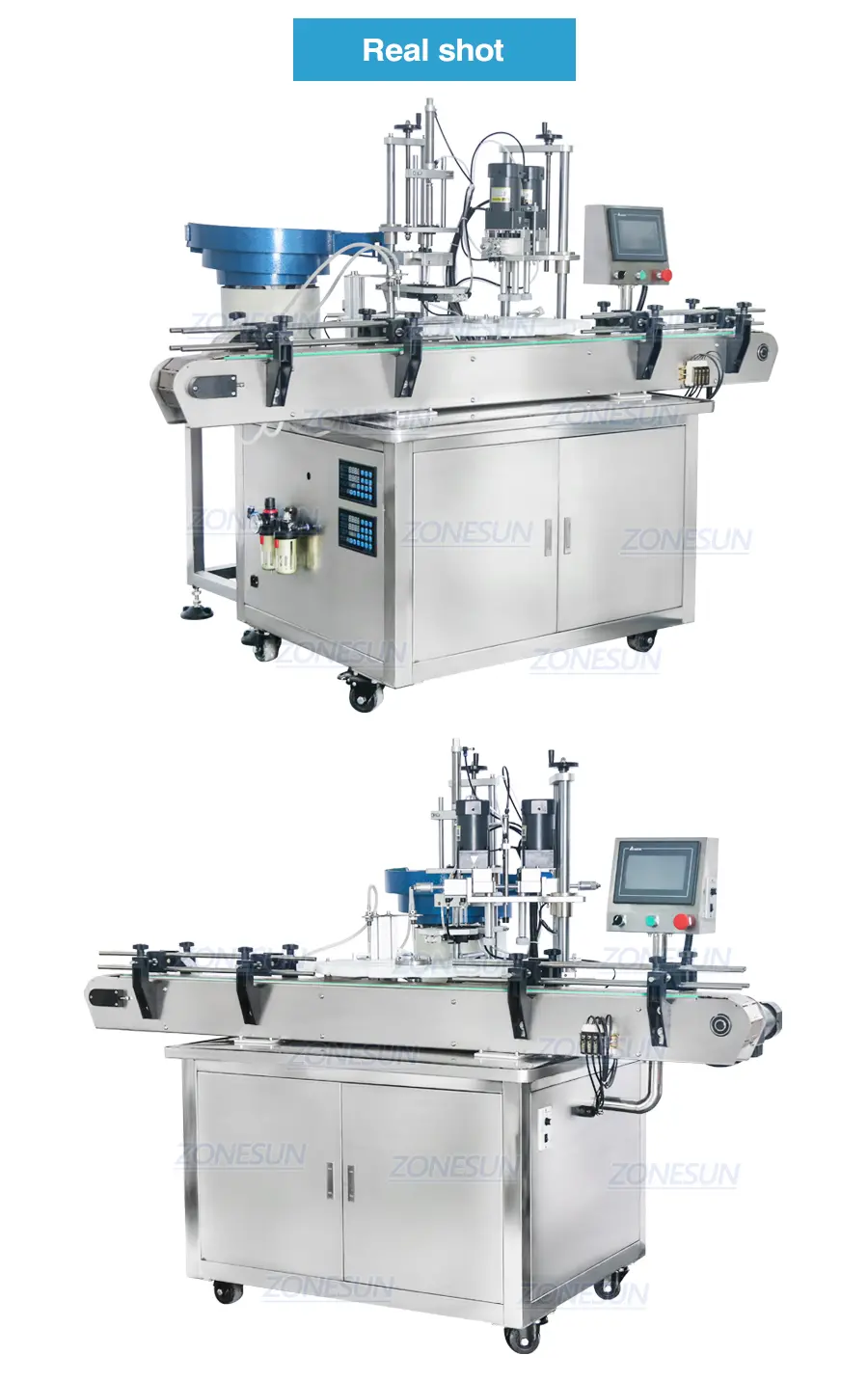

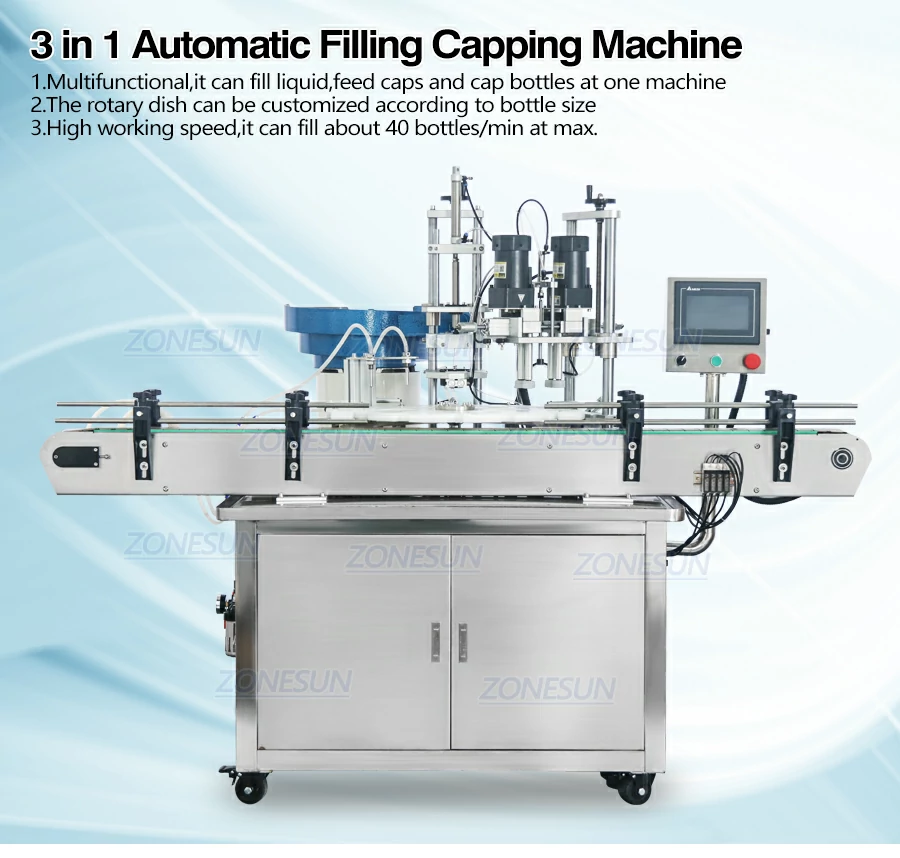

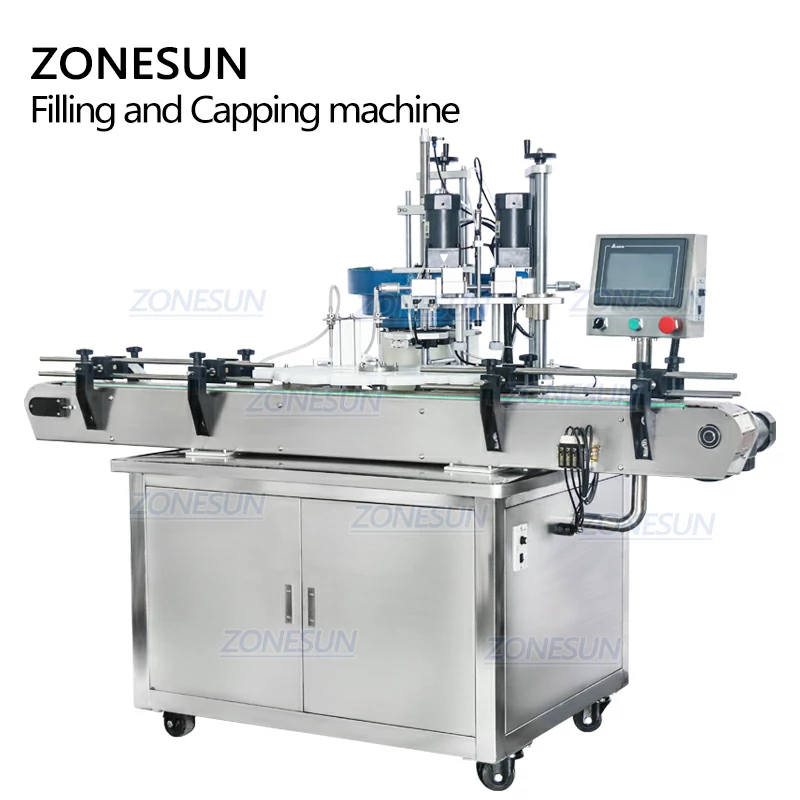

Machine Real Shot

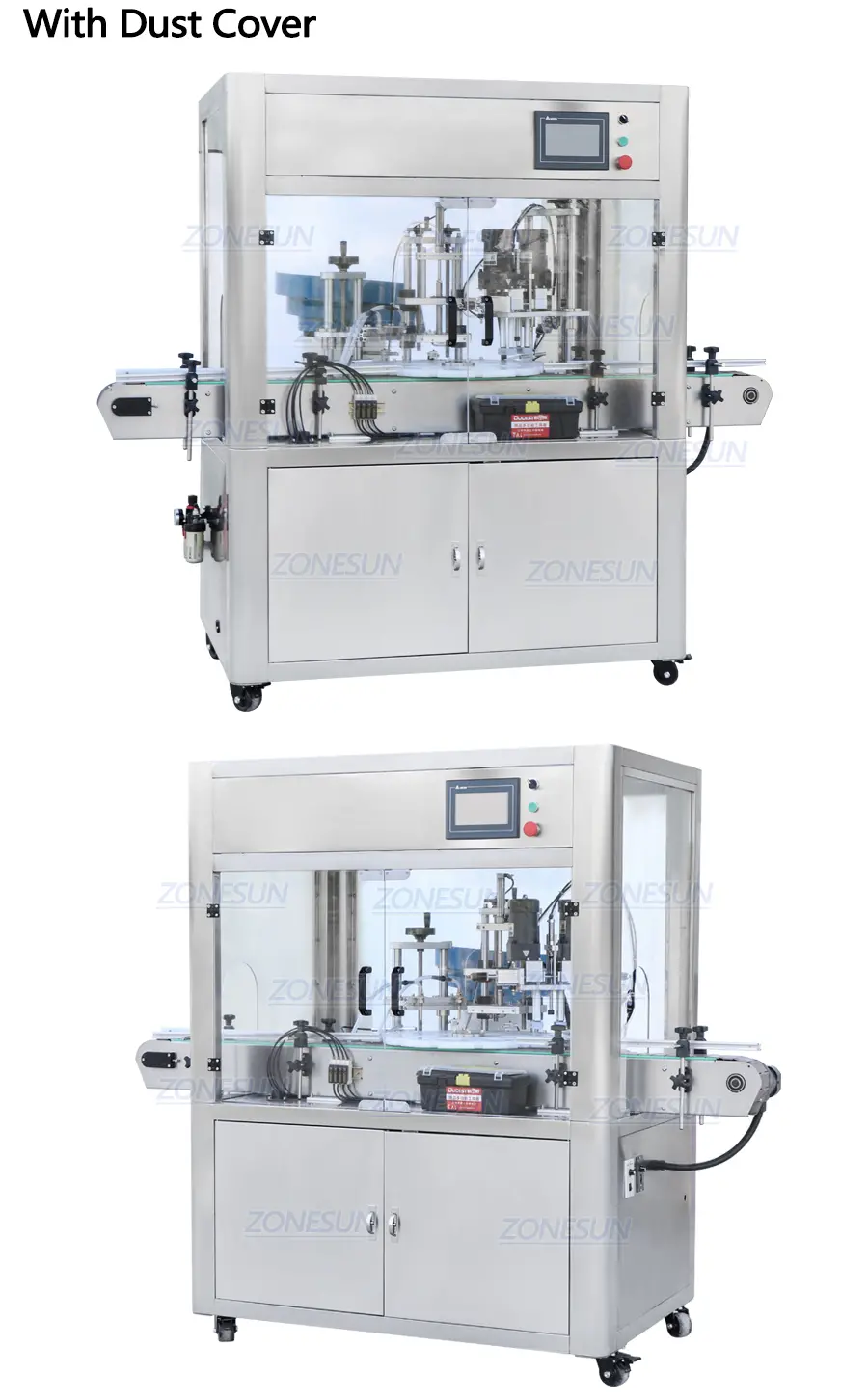

Real Shot of Filling And Capping Machine With Dust Cover

Machine Model ZS-AFC1
Voltage AC220V/110V 50-60HZ
Max Power 300W
Machine Pump Magnetic Pump
Applicable Bottle Diameter 25-50mm
Applicable Bottle Height 50-350mm
Working Speed 0-40 bottles/min(depending on liquid,bottle and caps)
Air Pressure 0.4-0.6MPa
Capping Torsion 4-9kgf/cm
Conveyor Size About 2000*100mm(L*W)
Customization Available
Machine Size About 1015*800*1560mm
Machine Weight About 341kg
  • Applicable Liquid: Low-viscosity Liquid
  • Applicable Caps:Screw-type caps: Dropper caps, twist top caps, plastic caps.
  • Applicable Products: Essential oil, toner, lavender oil, perfume etc.
  • Applicable Industries:Chemical, cosmetic, daily chemical, beverage industries.


Application of Rotary filling and capping machine
