Non-Woven Fabric Pouch Filling Sealing Machine

ZS-FSFM2 Automatic 2 Lanes Non-woven Fabric Pouch Filling Sealing Machine

🎄 Double lanes packing, output is 80bags/min.
🎄 Volumetric cup filling, suitable for granules or powders.

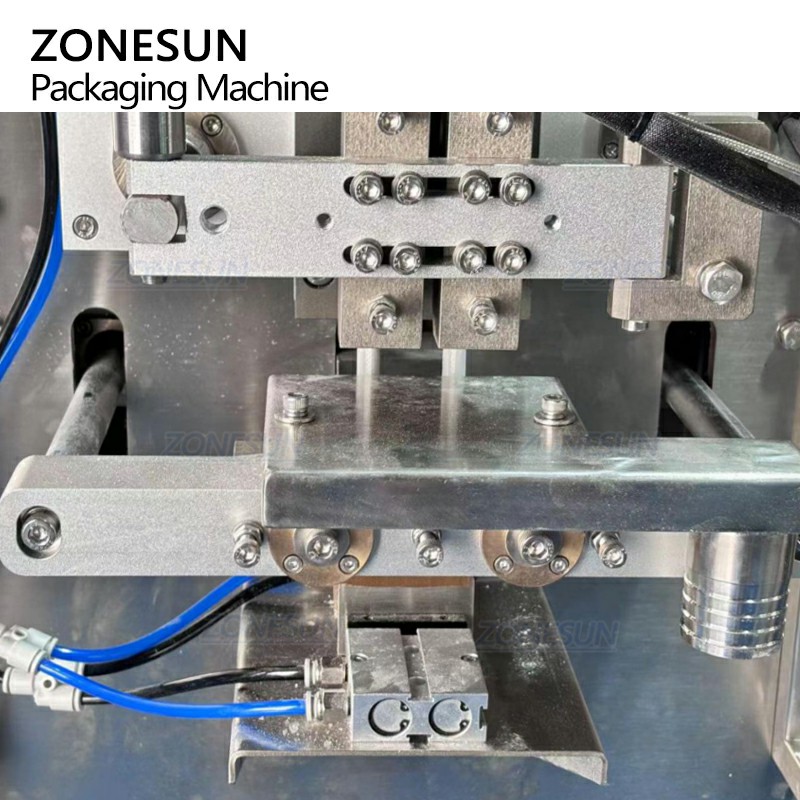

🎄 Ultrasonic sealing, suitable for non-woven fabrics.
🎄 Can be customized according to your products.
🎄 Can work with bottle filling and capping machine.

Video

Share to:

Product Description:

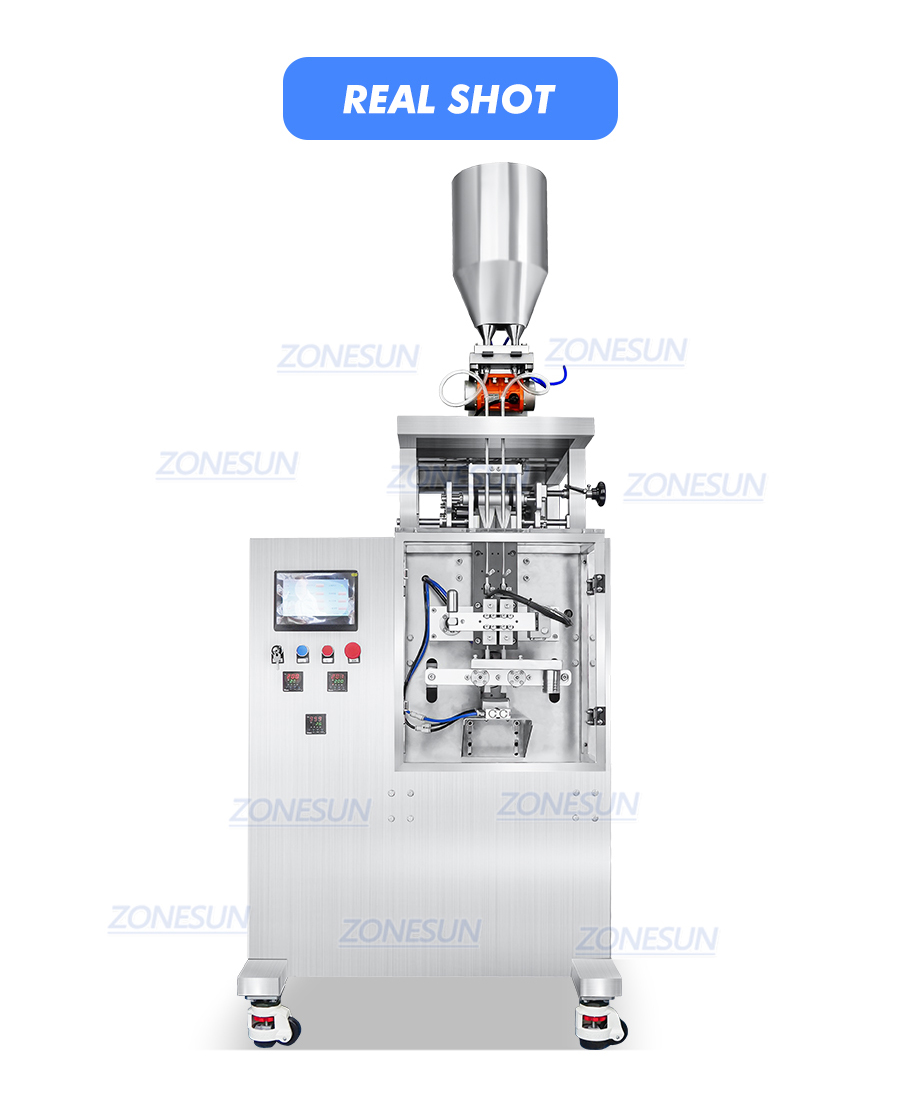

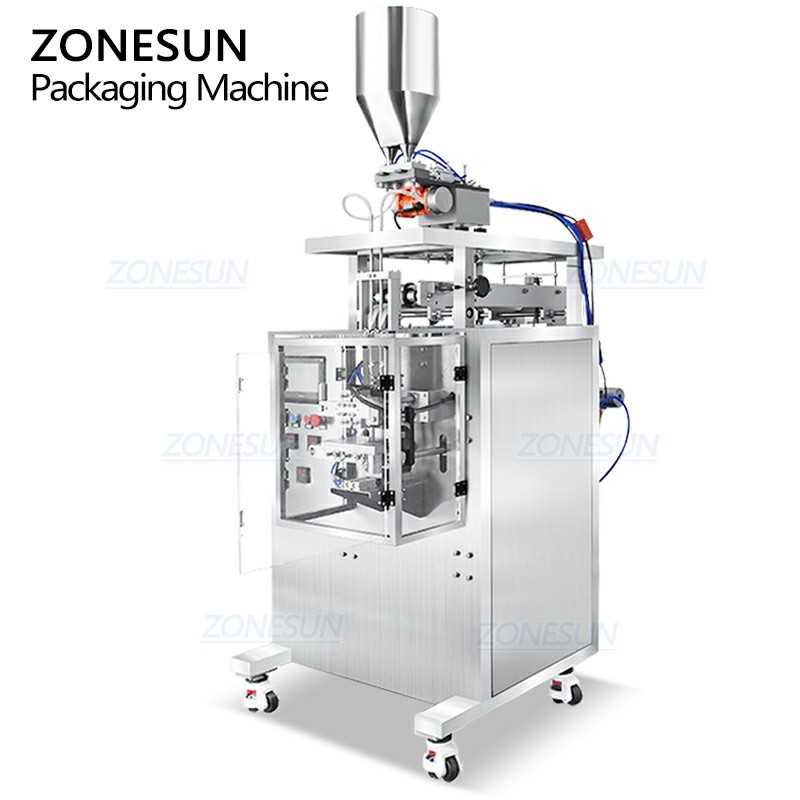

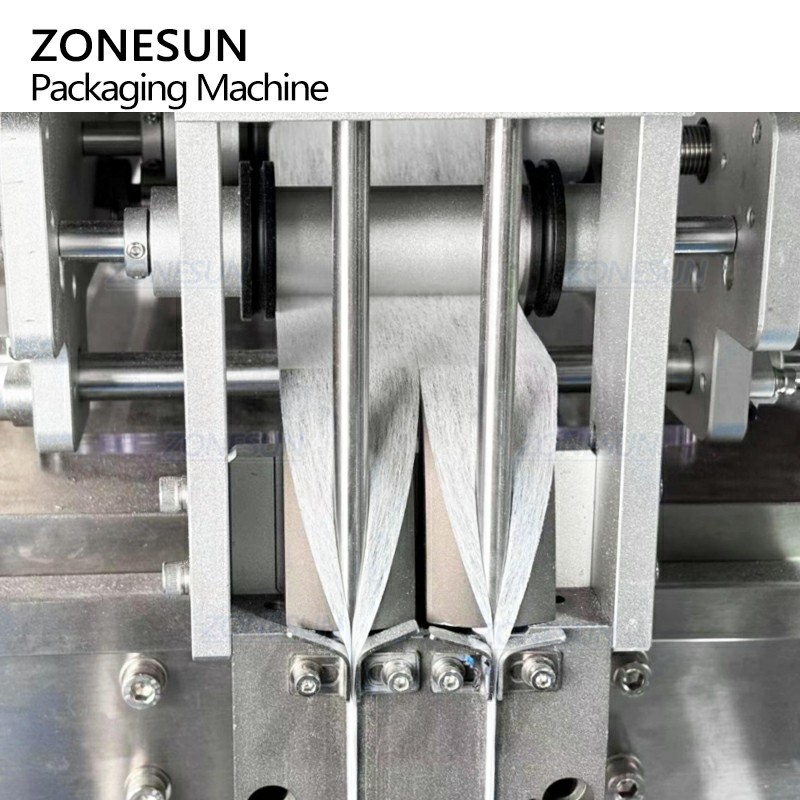

This non-woven fabric pouch filling sealing machine can realize automatic functions of forming pouch, filling fine granules or powders, and sealing pouch. It is built with 2 filling lanes, which can pack 80pcs/min. The machine can be customized to suit for your production needs.

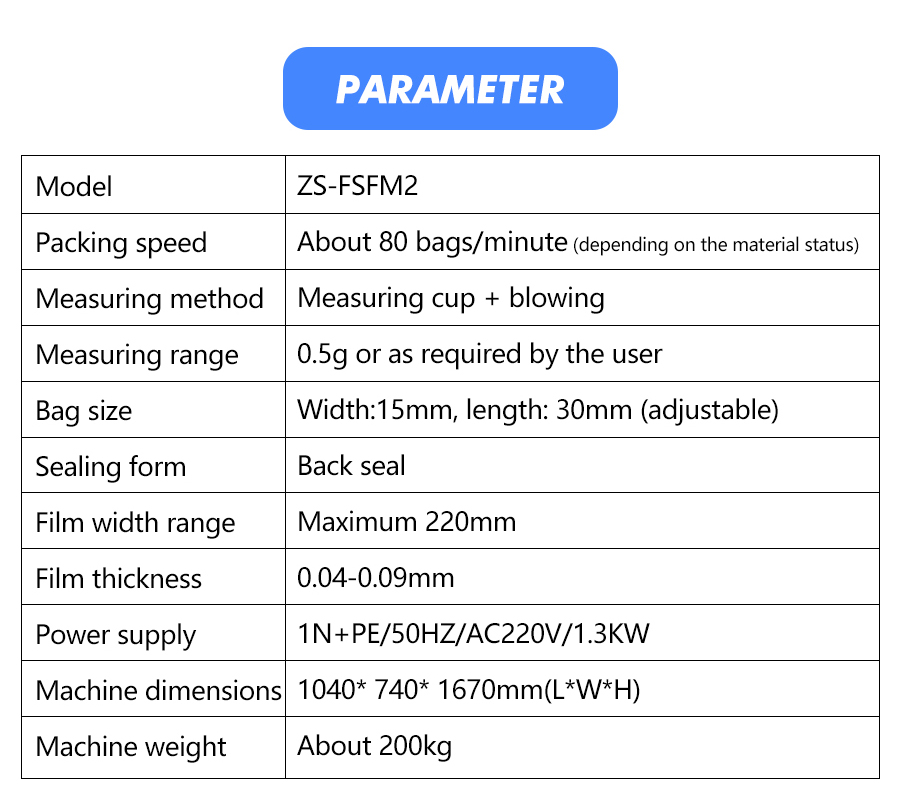

Machine Model	ZS-FSFM2
Machine Voltage	1N+PE/AC220V/50HZ
Power	1.3KW
Production Capacity	About 80bags/min(depending on pouch size and filling materials)
Filling System	Volumetric cups + blowing
Measuring Range	Can be customized
Pouch Size	Width: 15mm*Length: 30mm (Can be customized)
Sealing Type	Back Side Sealing
Film Width	Maximum 220mm
Film Thickness	0.04-0.09mm
Machine Size	About 10407401670mm/ About 40.929.165.7 inch
Machine Weight	About 200kg

❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

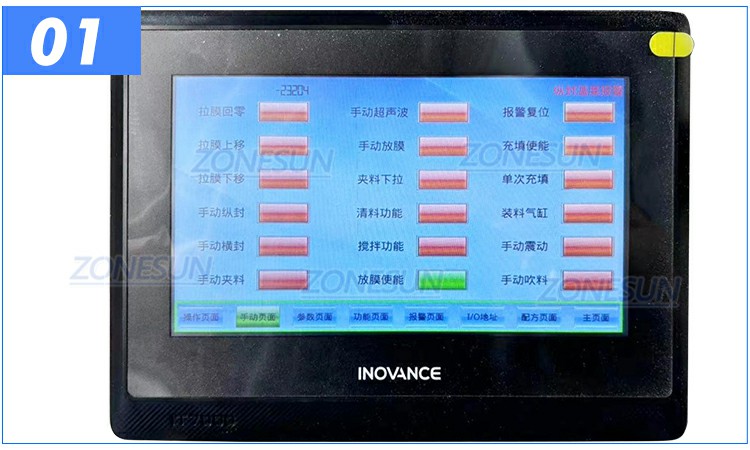

Touchscreen Interface

Visual interface allows for real-time monitoring and easy machine adjustment. It can be customized into different languages as needed.

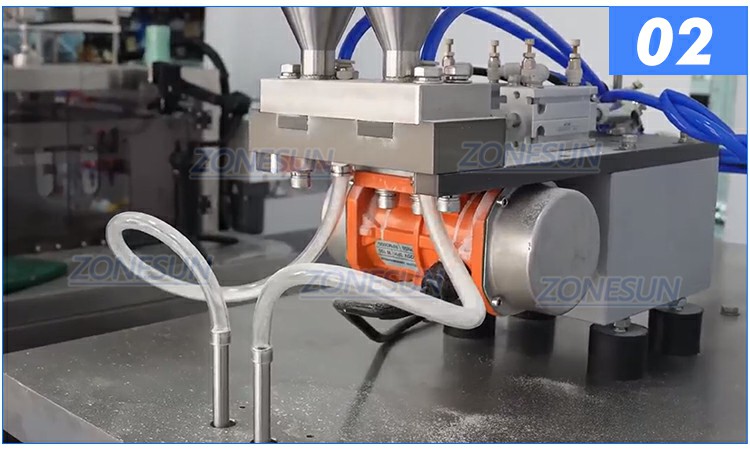

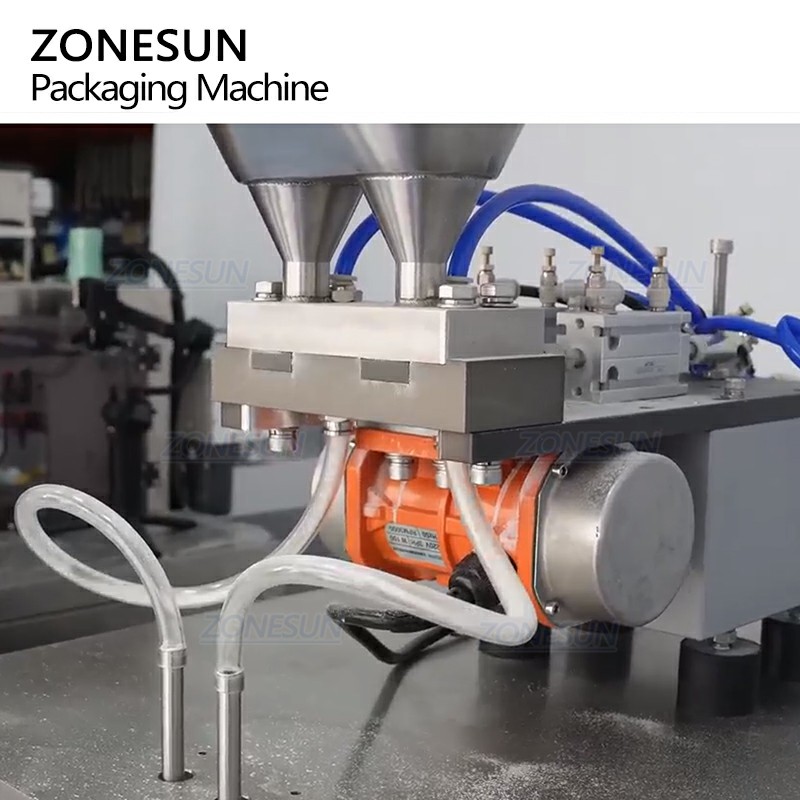

Volumetric Filling System

Volumetric cups ensure quantitative dispensing of fine granules or powder mixtures. Their sizes can be customized to suit for different filling volumes.
