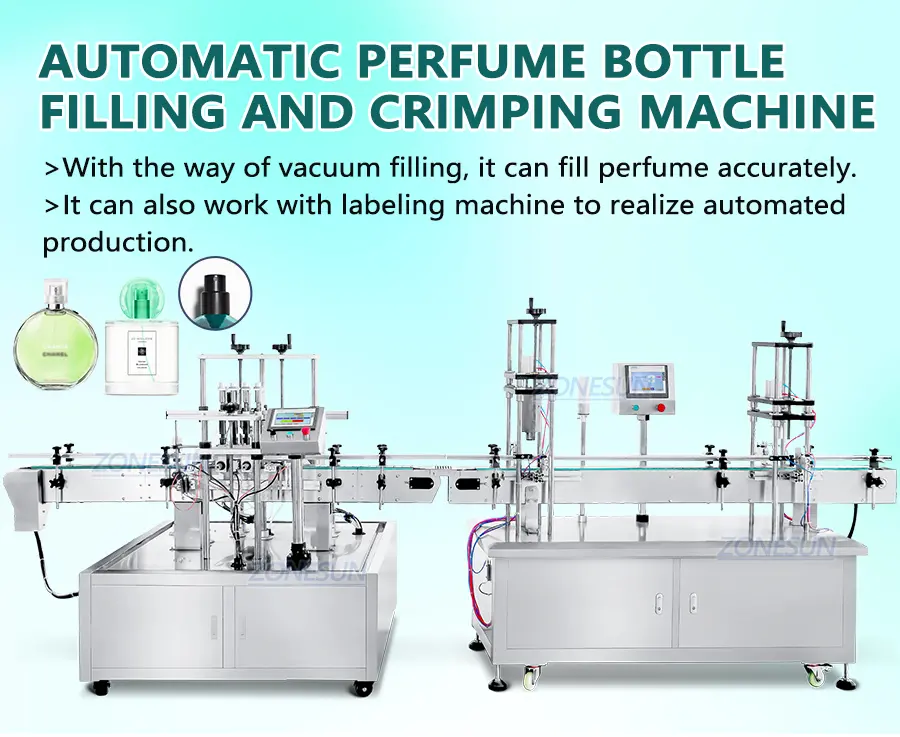

ZS-FAL180X Automatic 4 Head Vacuum Perfume Bottle Filling Capping Machine

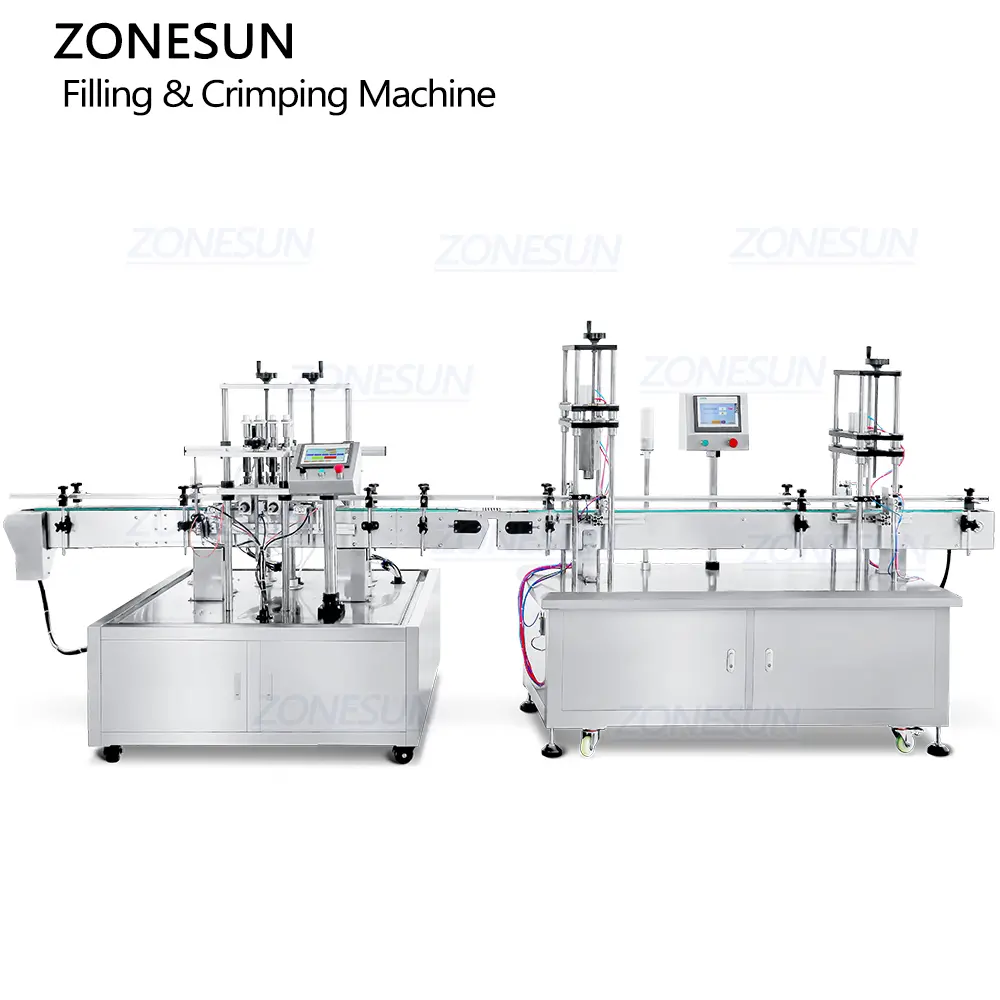

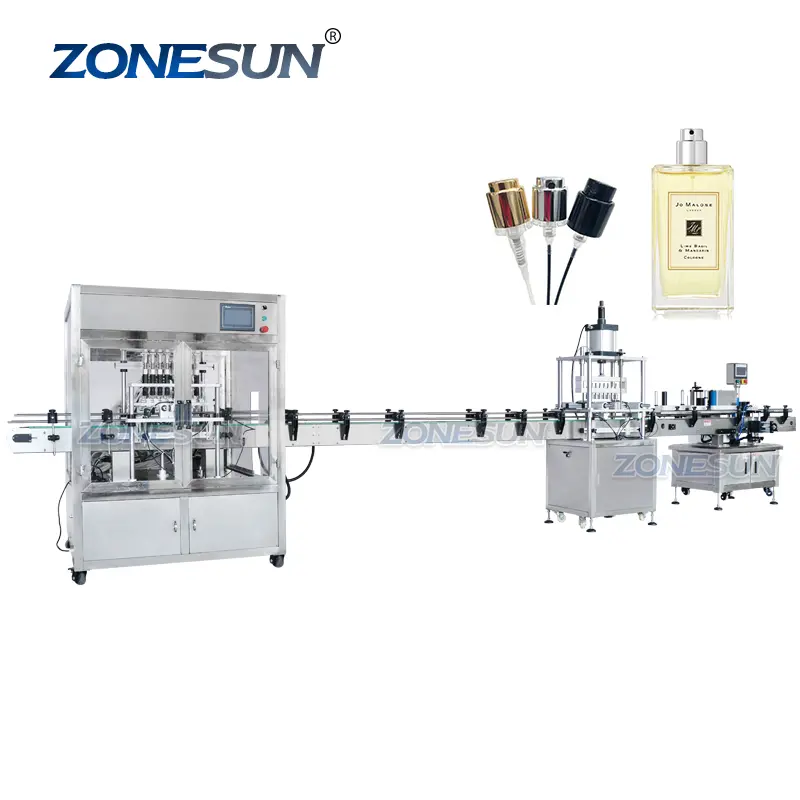

This machine line has the function of filling perfume, crimping perfume sprayer, pressing covers automatically. It can also be connected with labeling machine and bottle turntable, achieving automated production.

Machine Including:
·Automatic 4 Heads Vacuum Liquid Filling Machine
·Automatic Perfume Bottle Cap Crimping Pressing Machine

Share to:

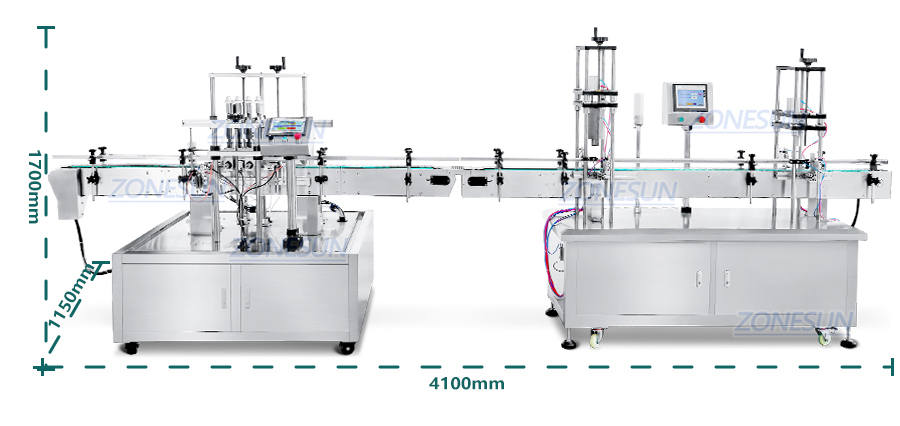

Automatic Perfume Filling And Capping MachineSize of the machine



>Filling Machine

  • Adopting the way of vacuum filling, it can reserve the fragrance of perfume well.

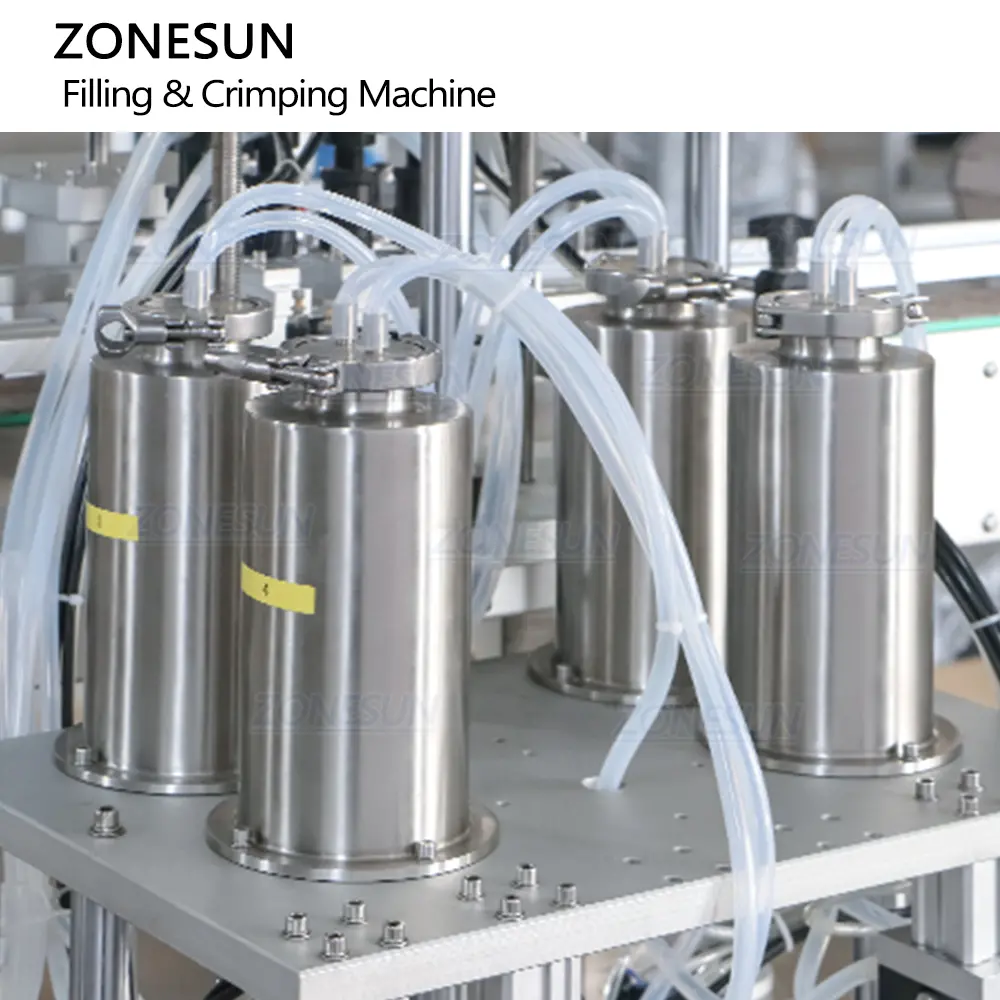

  • With tank to store extra liquid, it can ensure high filling precision.
  • The chain conveyor belt has large bearing capacity, which can convey bottles stably.

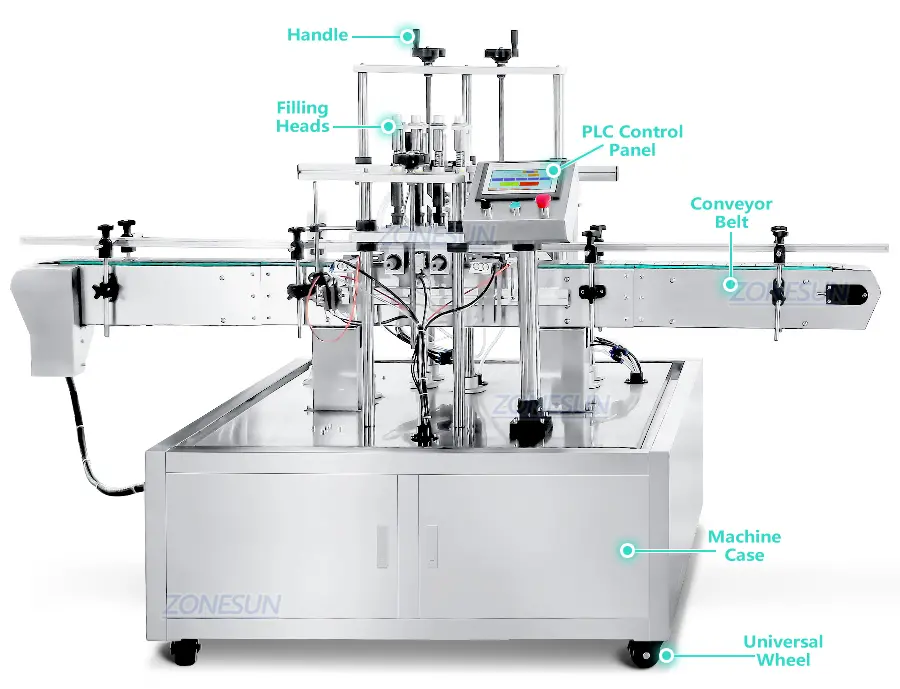

Diagram of perfume filling machine



>Capping Machine

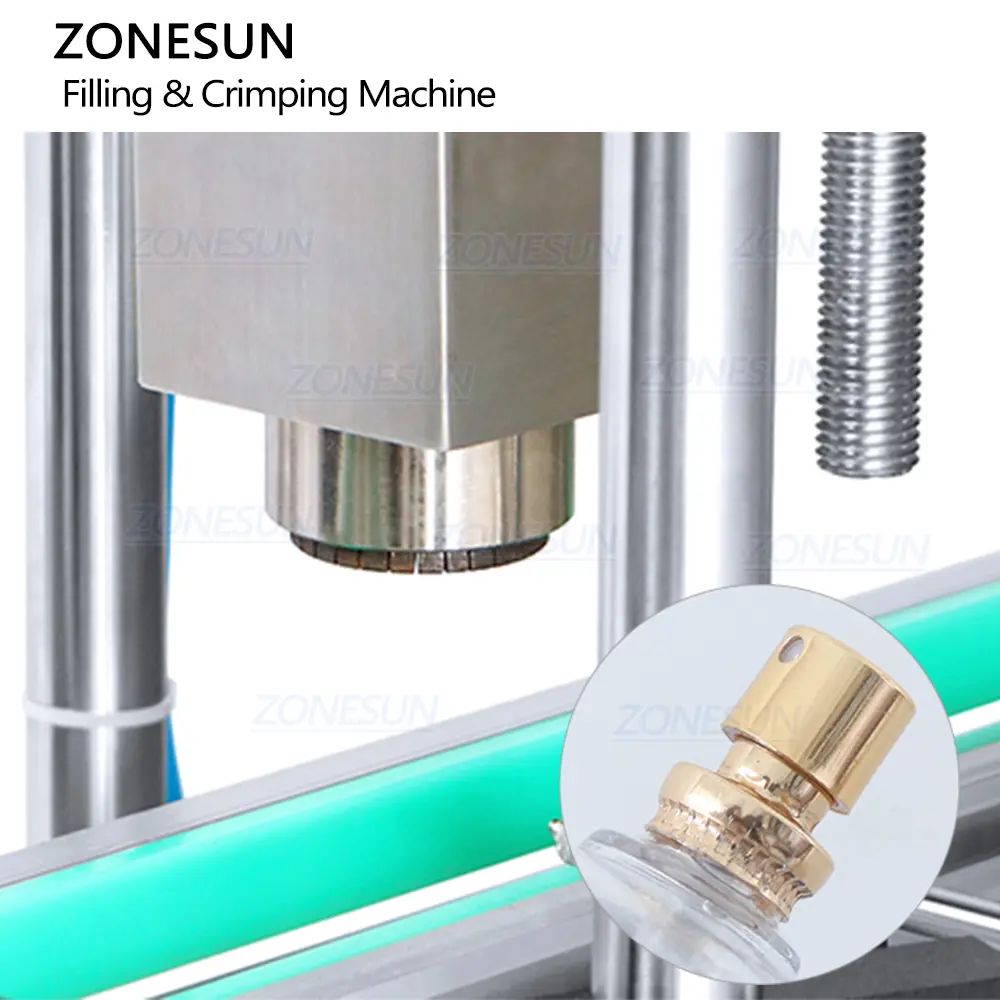

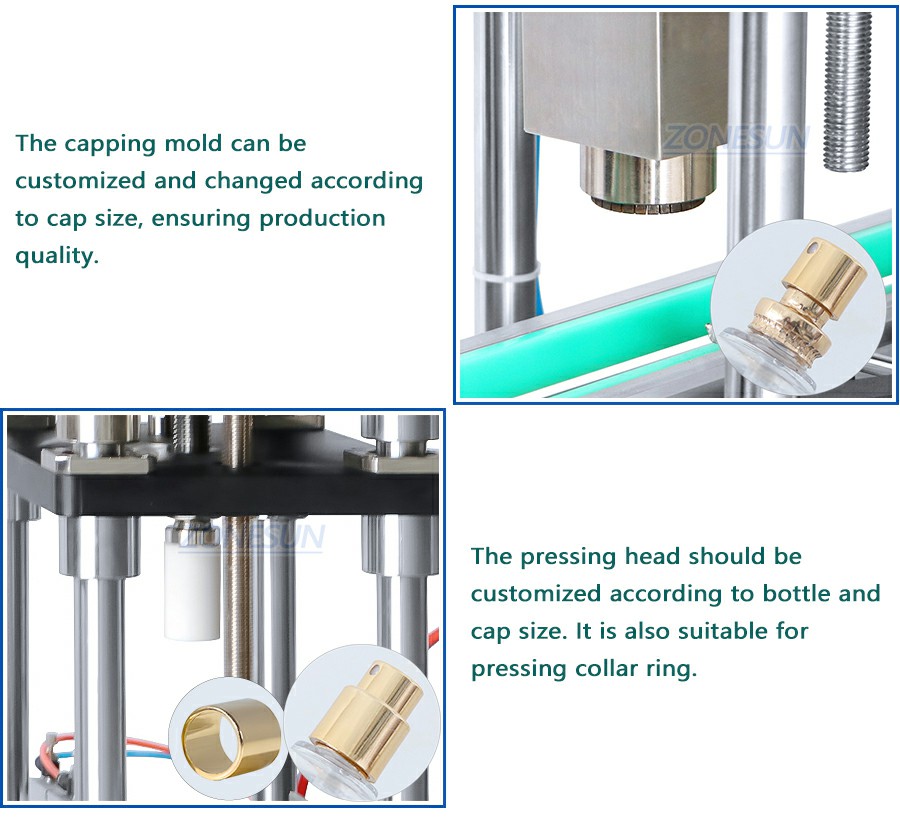

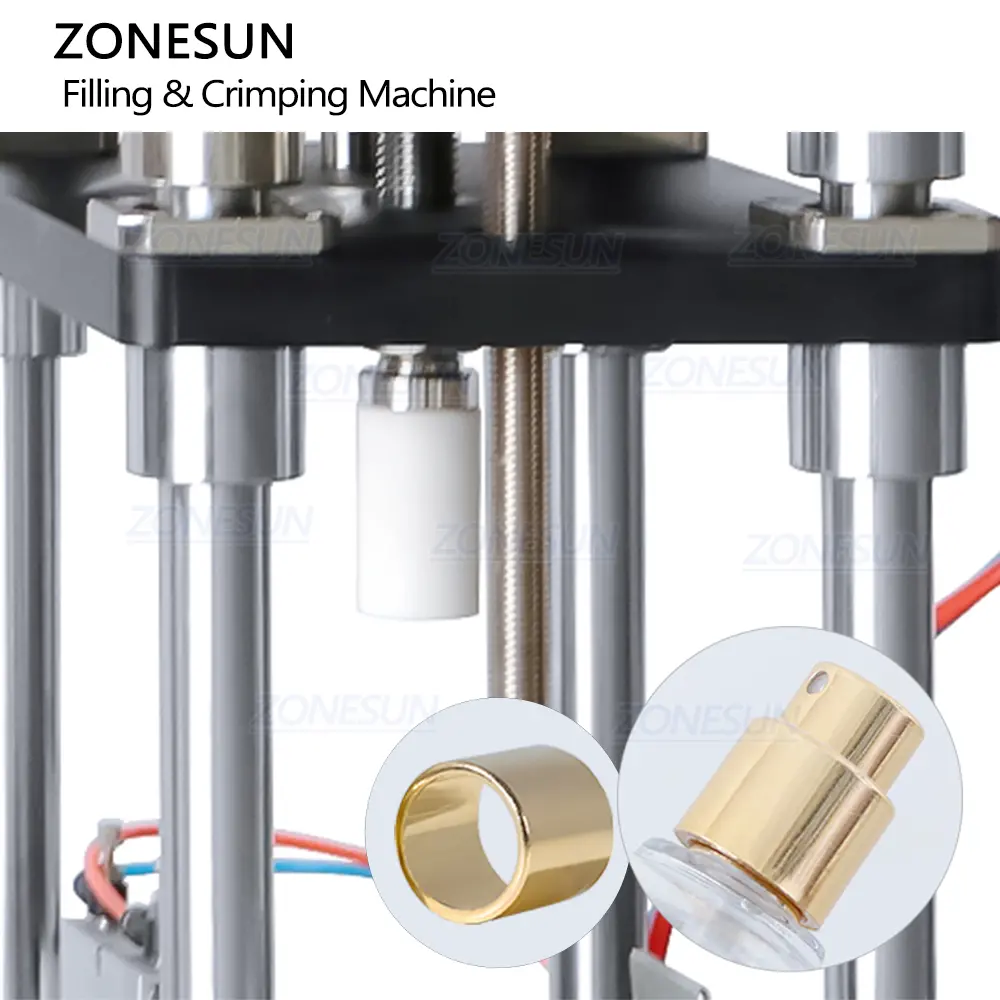

  • The size of crimping head and pressing head can be customized as needed.
  • With electric eye to detect bottles, it can run automatically, saving labor cost.

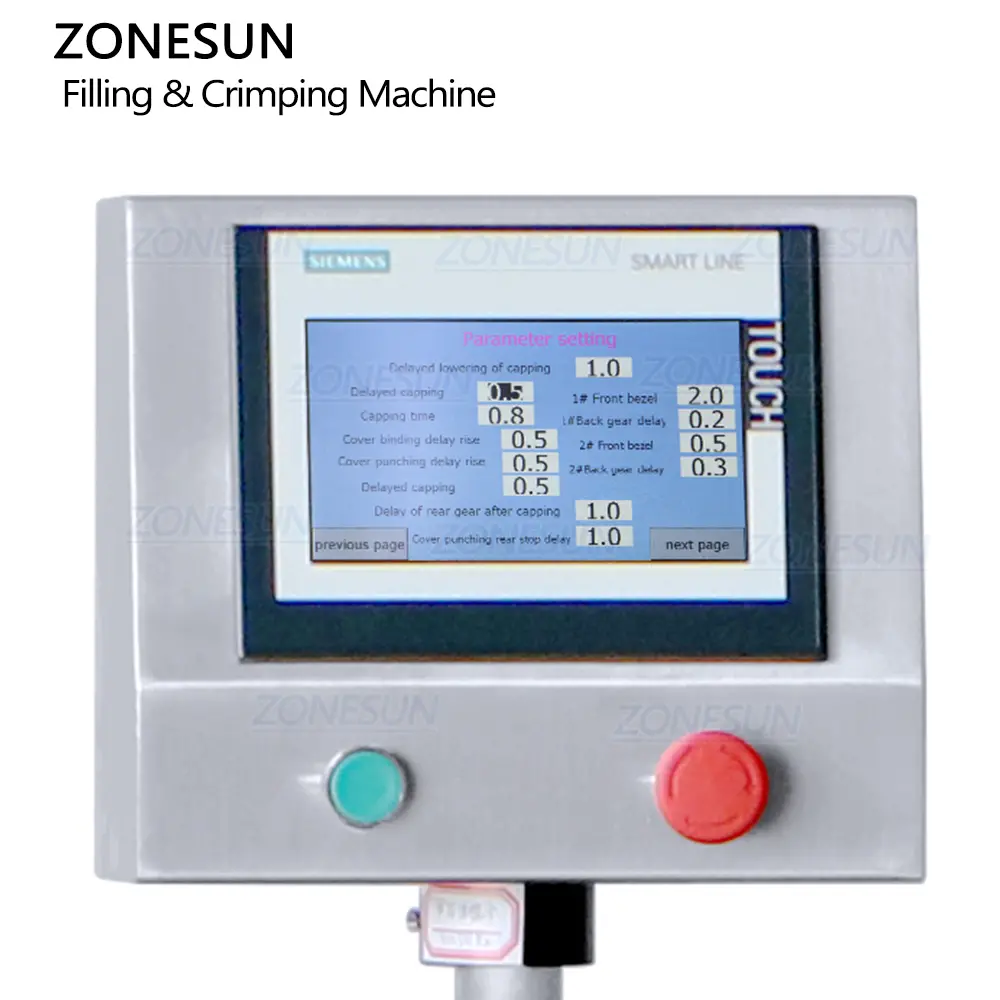

  • With touch screen panel, operator can set parameters easily. The panel’s language can be customized.

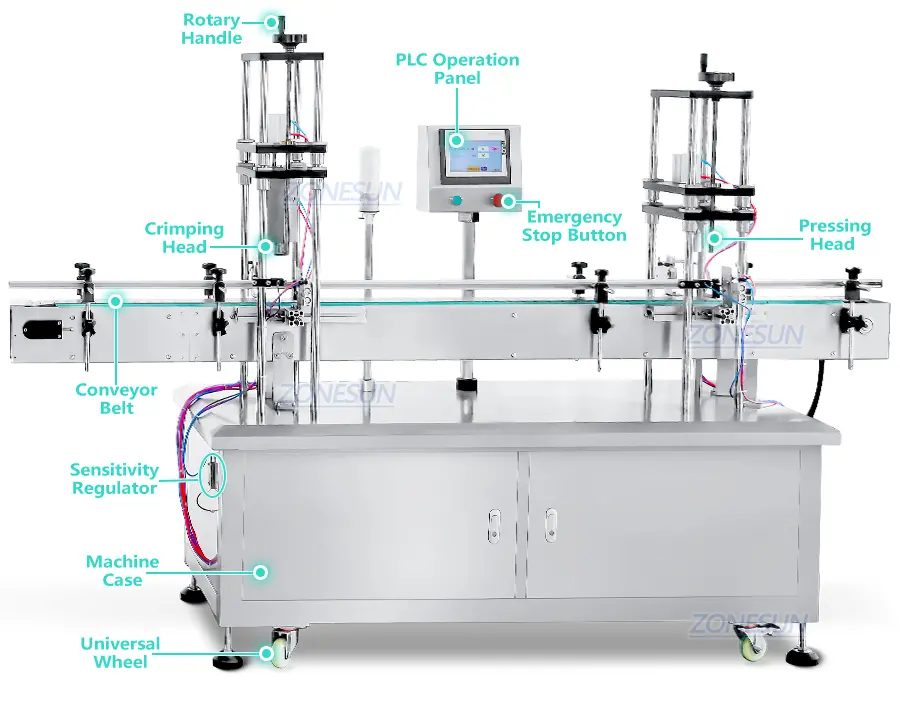

Diagram of capping machine

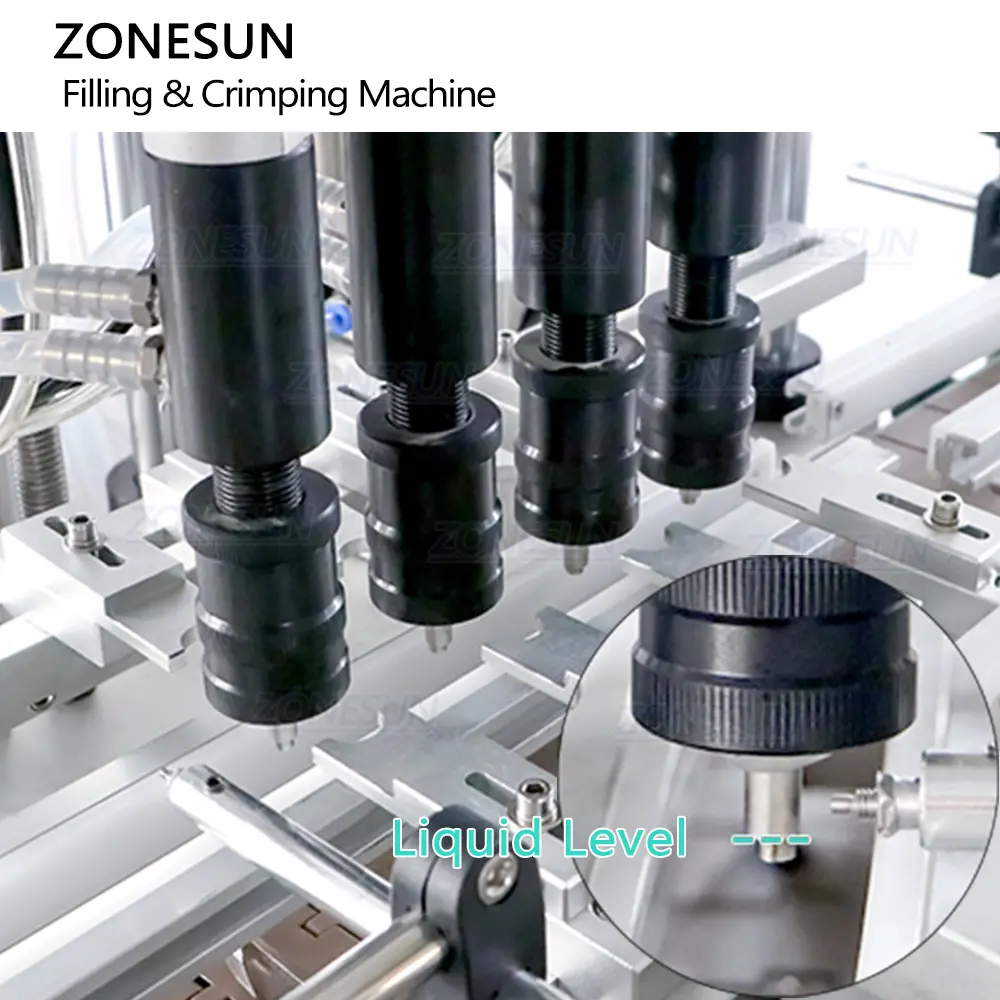

Perfume Filling Capping Machine Details

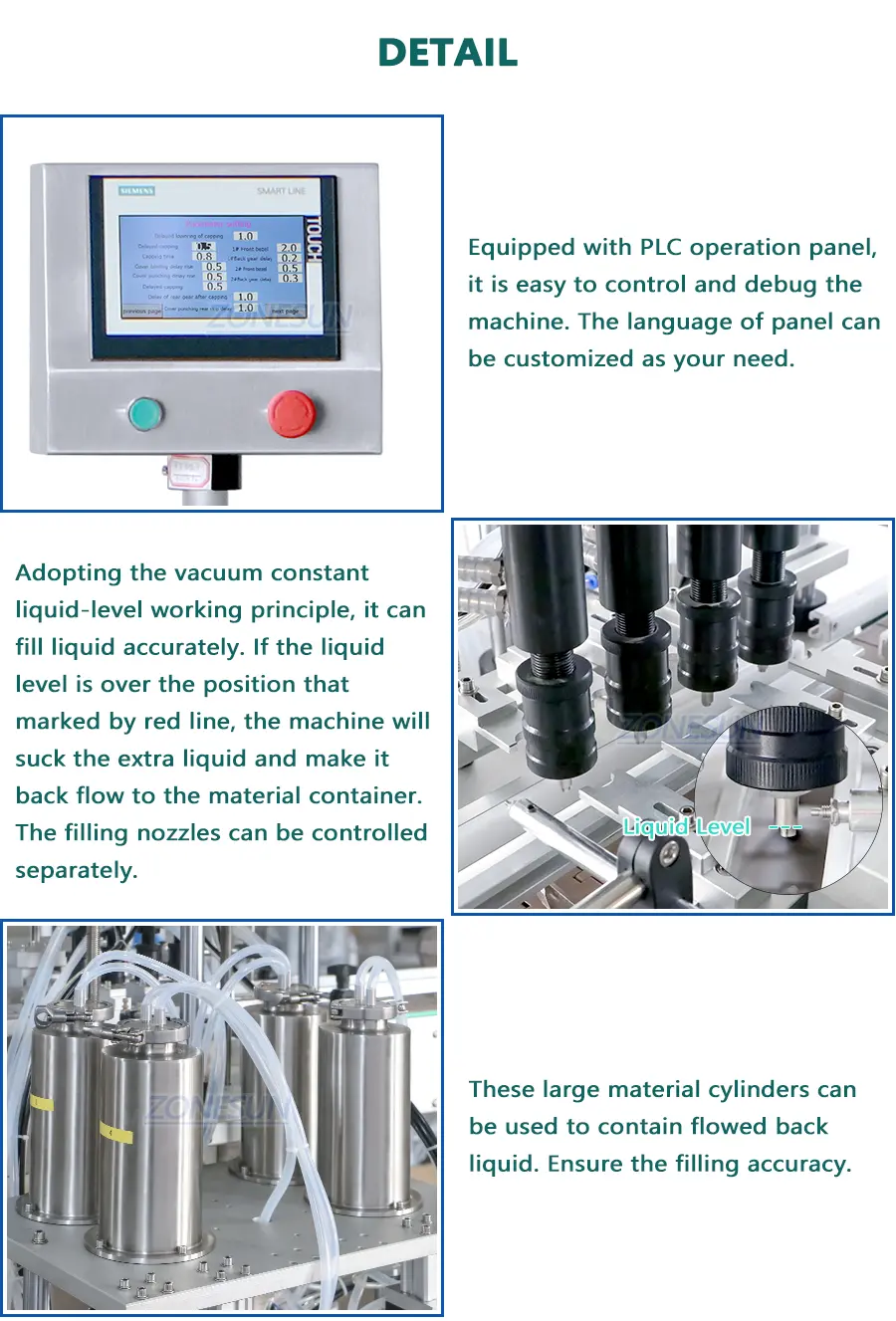

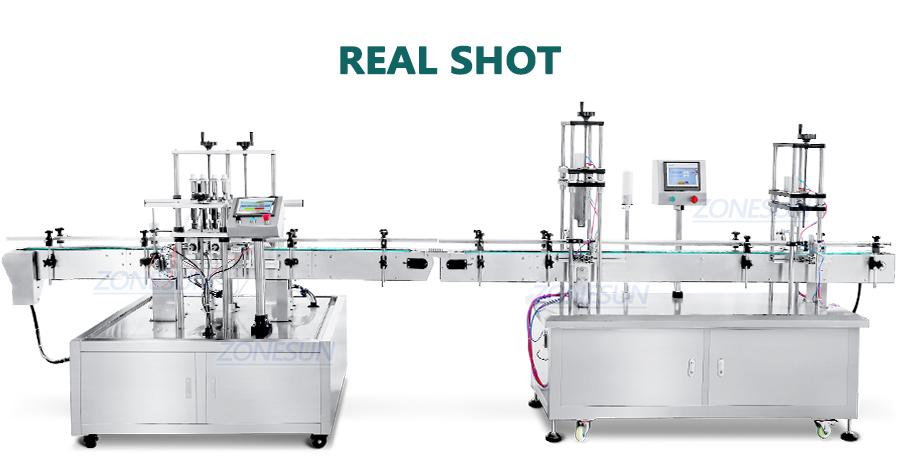

Real Shot

>Perfume Filling Machine

Model ZS-YTZL4A
Filling Head 4 Head
Air Pressure 0.5-0.8MPa
Liquid Level Accuracy ±1mm
Viscosity Range The maximum applicable viscosity is 20Cps (static viscosity)
Working Speed 20-40 Bottles/Minute
Applicable Bottle Height ≤250mm
Bottle Opening Size φ4.5mm-φ28mm
Adjustable Liquid Level (from the bottle mouth) 15-50mm
Pumping Rate 5.5L/S
Machine Size About 1500*1150*1530mm
Net Weight About 278kg



>Perfume Capping Machine

Machine Model ZS-YG11U
Voltage 220V/110V 50-60Hz
Power 1.5kW
Capping Speed About 20bottles/min(depending on bottle and cap size)
Applicable Bottle Height 50-200mm
Bottle Cap Diameter 15-22mm
Bottle Mouth Diameter 14-20mm
Applicable Bottle Diameter 40-110mm
Machine Size About 2600*760*1700mm(L*W*H)
  • Applicable Bottles: Round/Square Bottles.
  • Applicable Bottle Caps: Perfume bottle caps.
  • Applicable Products: Perfume.
  • Applicable Industries: Cosmetic industries.
