ZS-FKR4T Automatic 4 Heads Bottle Plastic Tub PET Aluminum Film Sealing Machine

🎄 4 sealing heads, machine speed is 1400-1800BPH.
🎄 Can cut and seal films to containers from a film roll.
🎄 Can be widely used for PP/PE/PET/PS/aluminum foil films.
🎄 Customized according to container size and shape.
🎄 Can be customized with 1/2/3/4 sealing heads.
🎄 Machine can be integrated into production line.

Video

Share to:

Product Description:

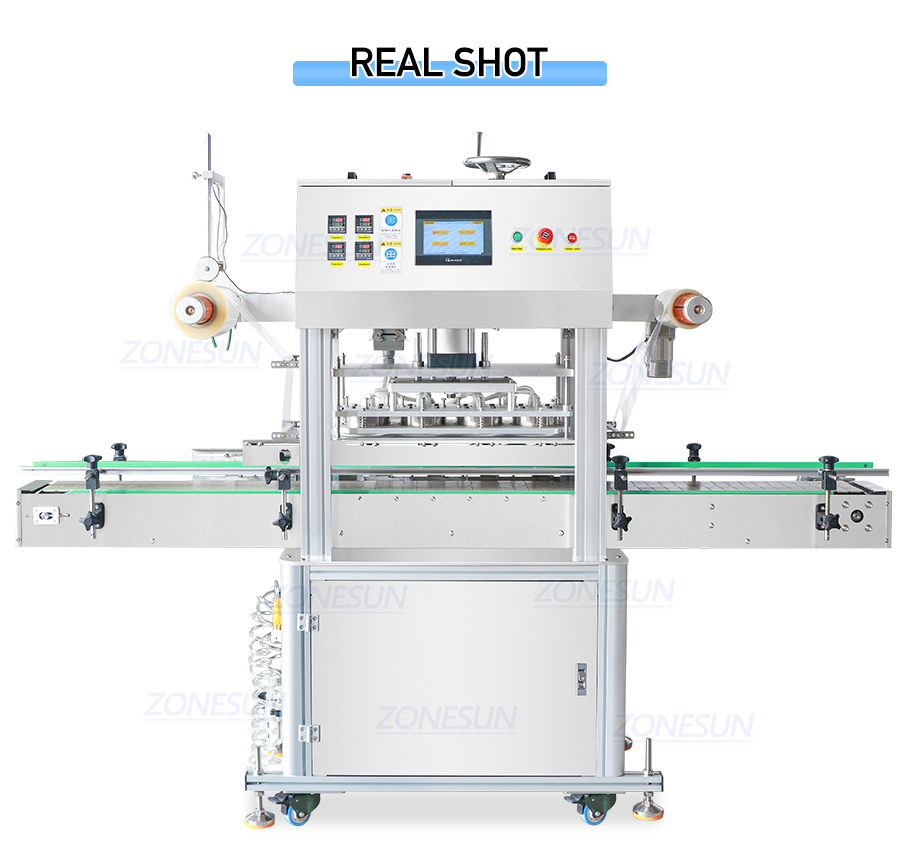

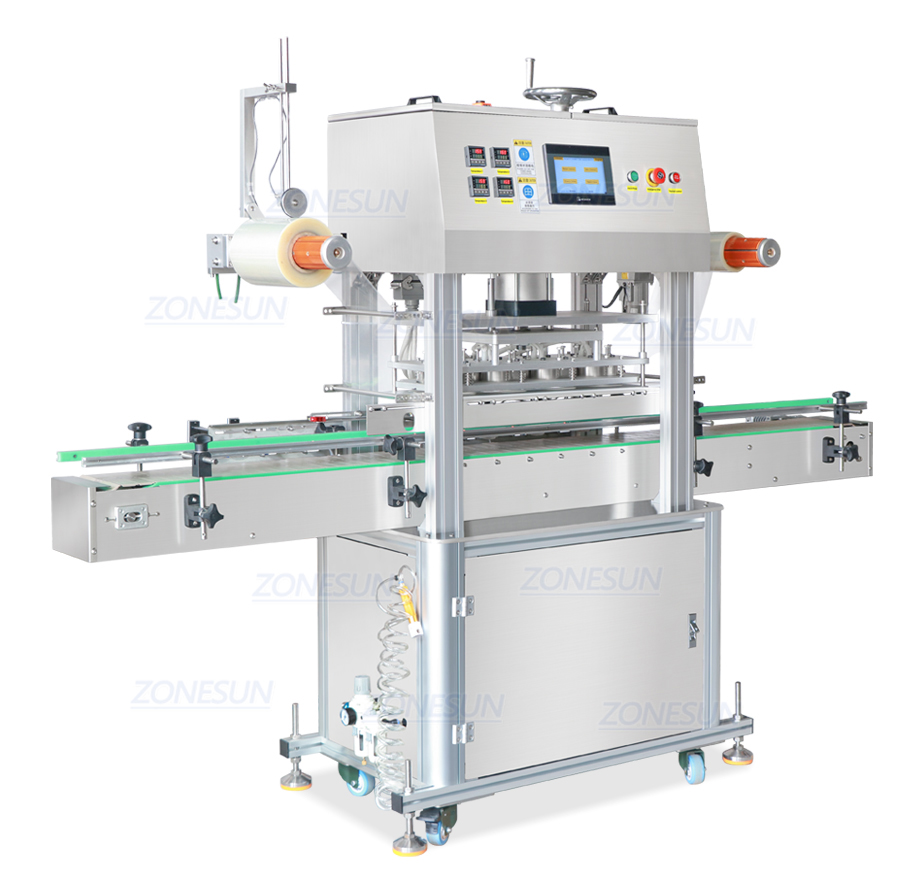

This aluminum film sealing machine is built with 4 sealing heads, which can seal four containers at a time. It can be widely used for sealing PE/PP/PET/PS/aluminum foil films. The sealing temperature is adjustable as production need. This plastic tub film sealing machine can be customized according to your product size.

Machine Model	ZS-FKR4T
Machine Voltage	110/220V 50-60HZ
Power	0.5-1KW
Quantity of Sealing Heads	1	2	3	4
Working Speed	600-800BPH	900-1200BPH	1200-1600BPH	1400-1800BPH
Heating Temperature	About 0-300℃
Sealing Diameter	50-250mm(Can be customized for round/square containers)
Applicable Film Size	2-3mm larger than bottle mouth
Film Materials	PP/PE/PET/PS/Aluminum Foil Film
Air Pressure	4-8kg/cm²

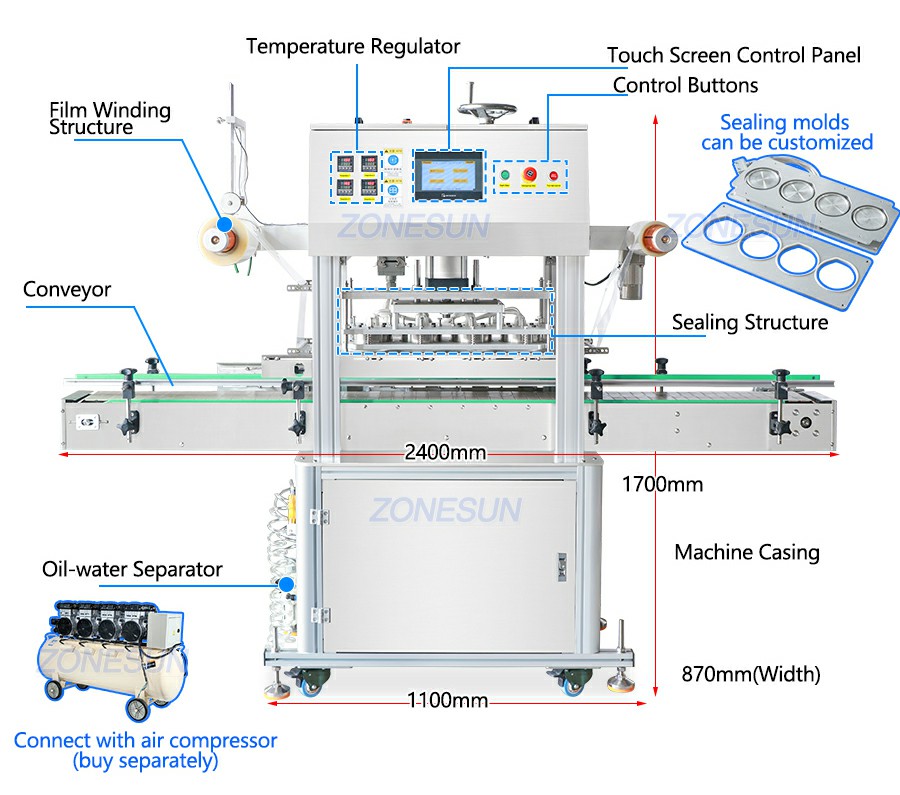

Machine Size	–	–	–	*About 24008701700mm*

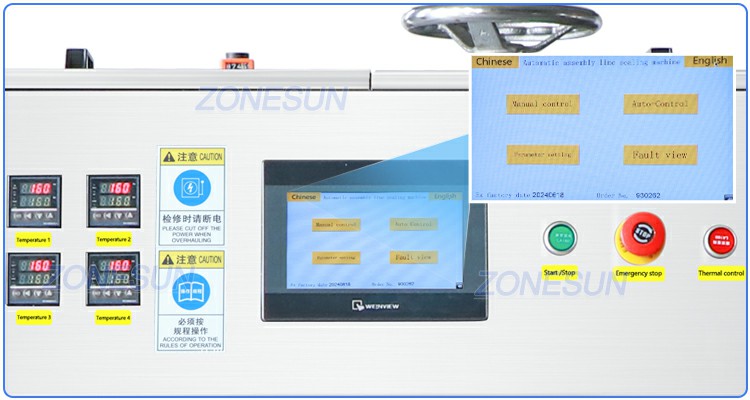

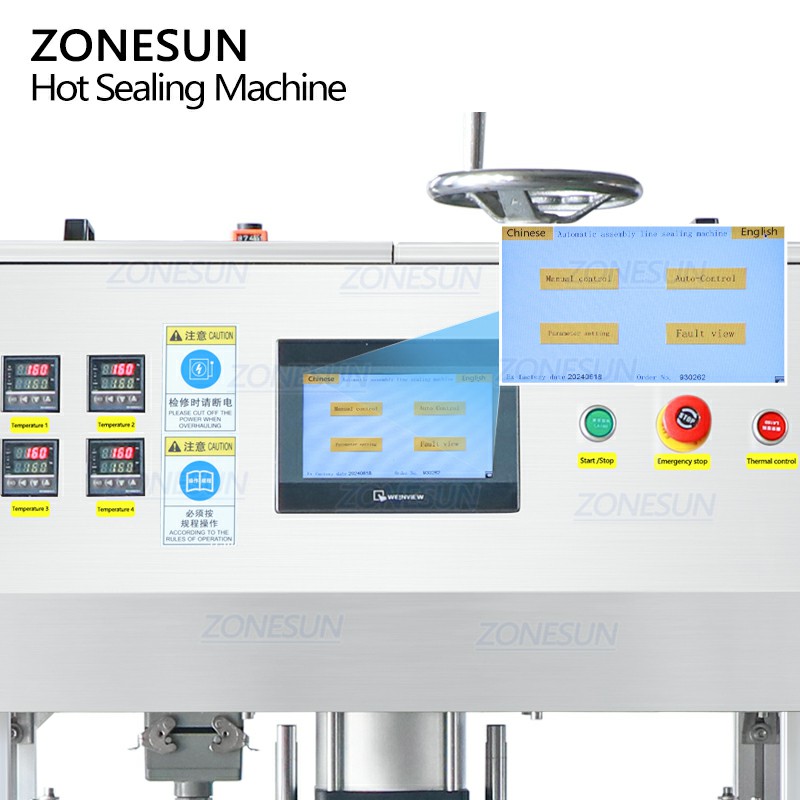

Touchscreen Panel

Intuitive panel enables it to monitor and adjust parameters easily. It can be customized into different languages if needed.

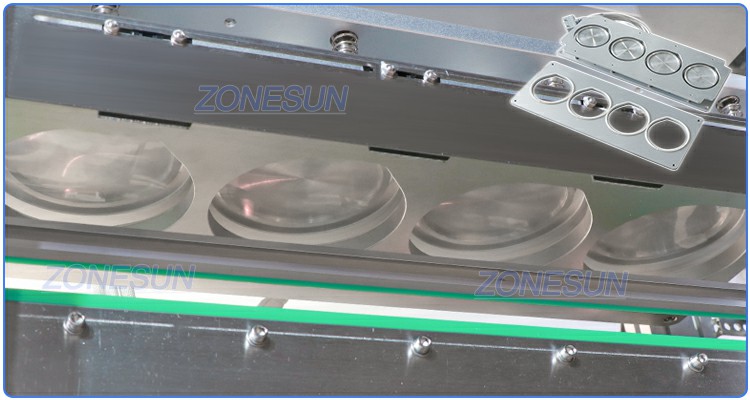

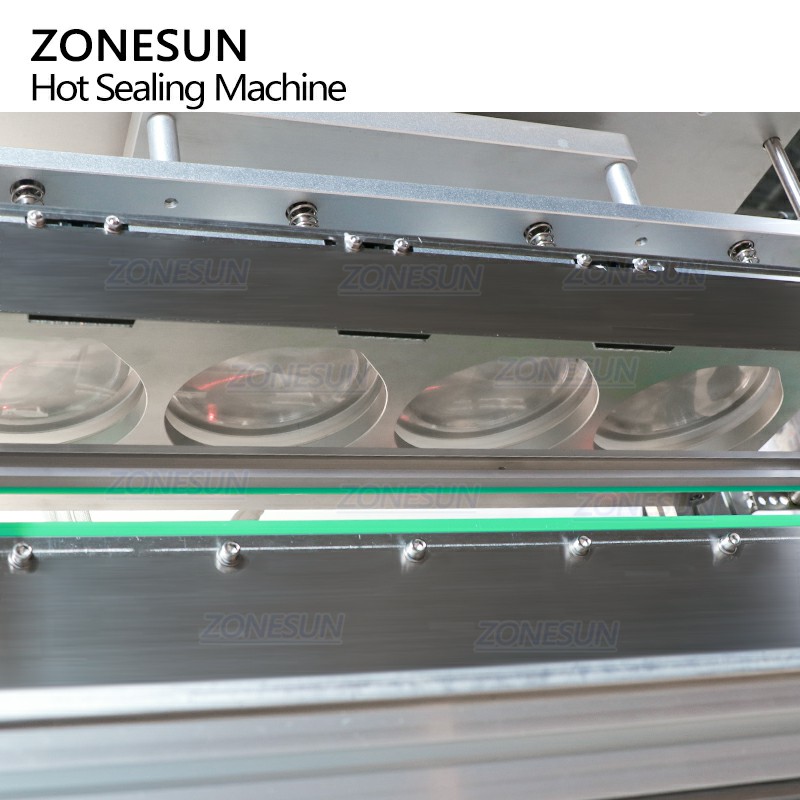

Heat Sealing Structure

Quantity of sealing heads can be customized. The sealing structure is customized according to container size and shape.

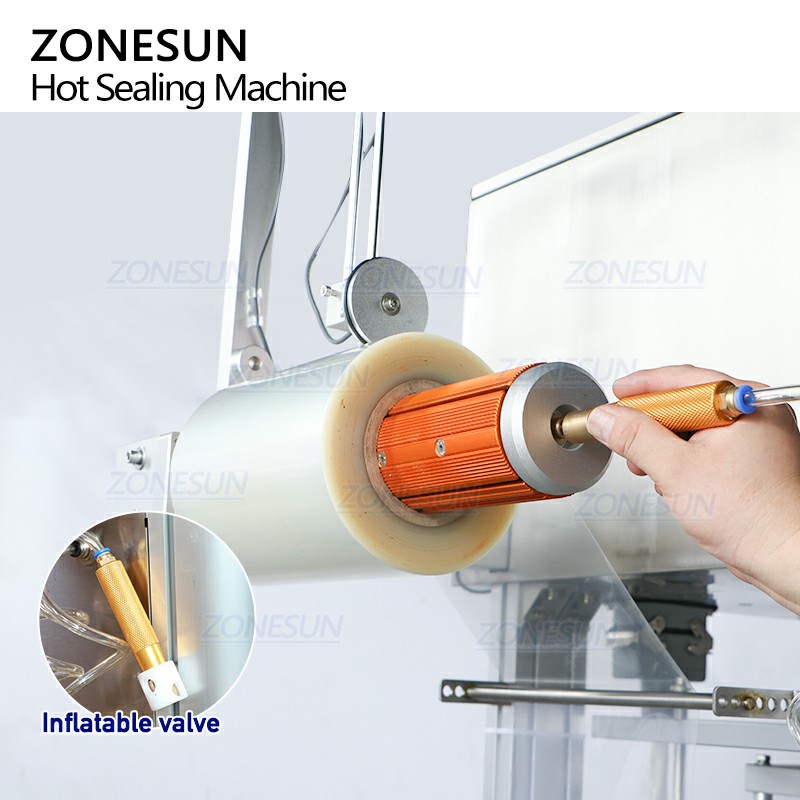

Roll Film Holder

Simple design allows for easy changeover of different films.

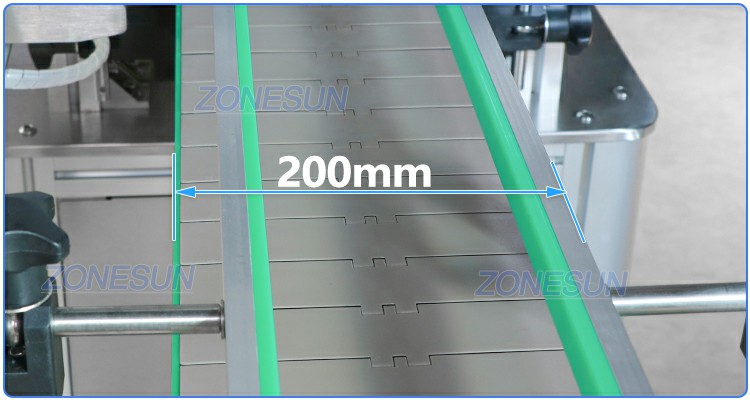

Chain Conveyor

Conveying speed is adjustable. The length and width of conveyor can be customized.

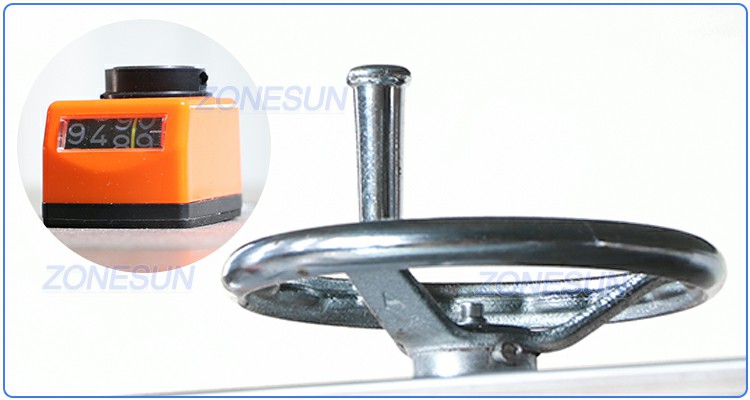

Rotary Knob

Can be used for adjusting the height of sealing structure, making it suitable for different containers.

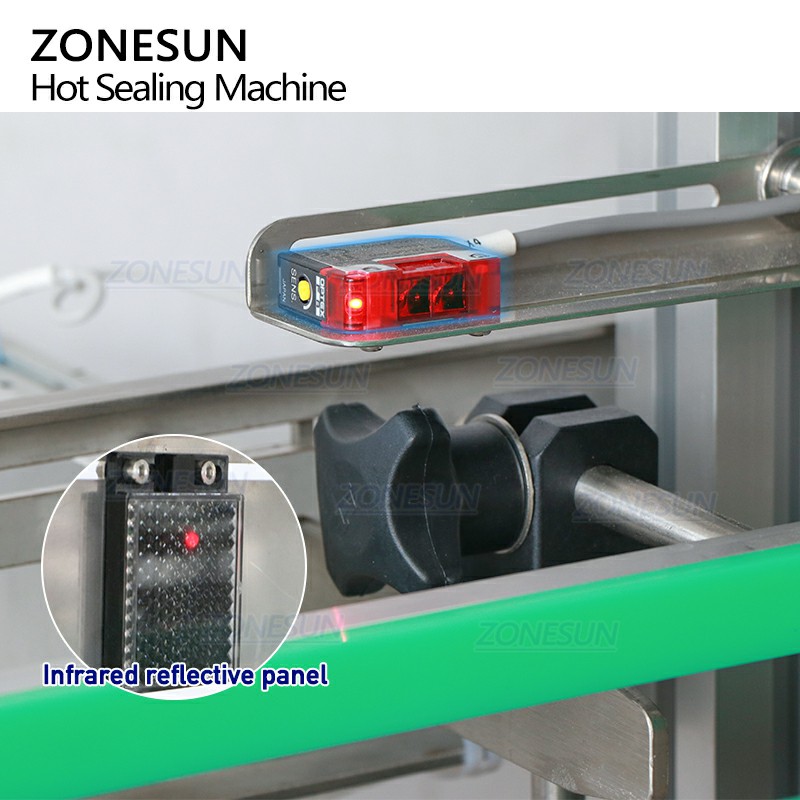

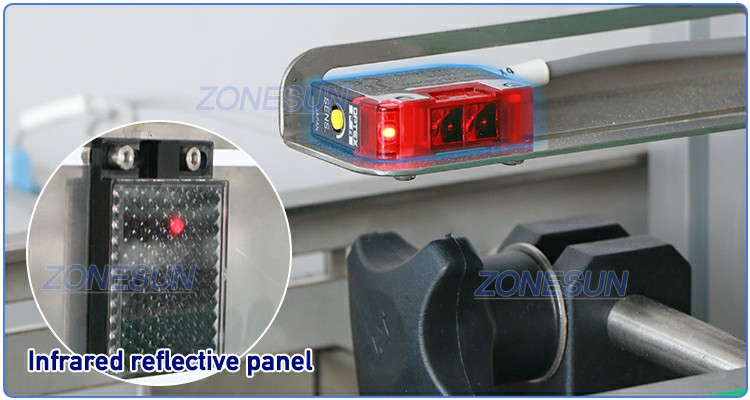

Electric Eye

Using electric eye to sense containers, the machine can complete sealing accurately and automatically.

Applicable Films: PP/PE/PET/PS/Aluminum foil films.
Applicable Products: Sauce, yogurt, sauerkraut, ice cream, sour cream, adhesive, pesticide, paint additives, etc.
Applicable Industries: Food, chemical, daily chemical, medicine industries.
