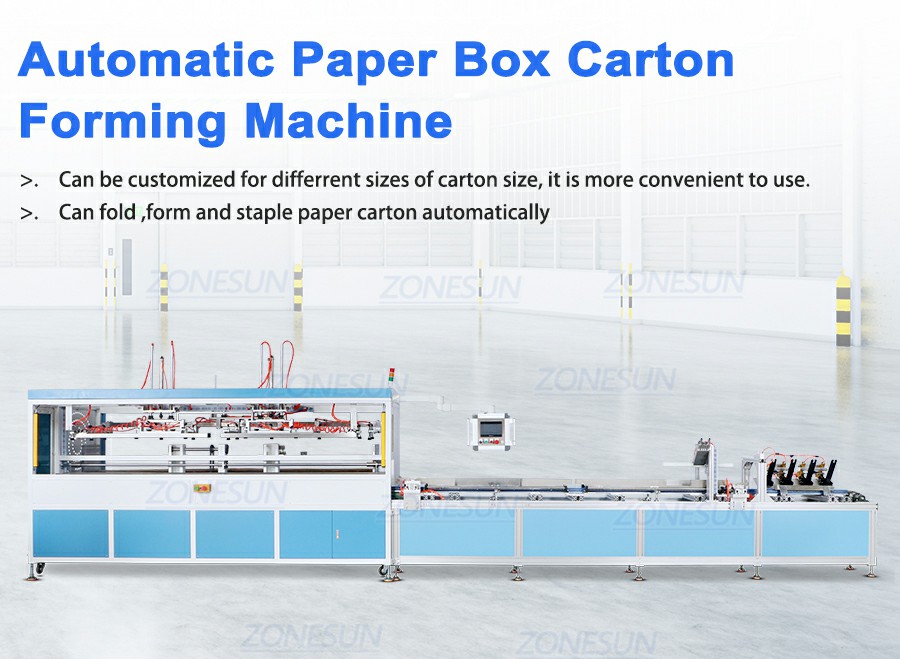

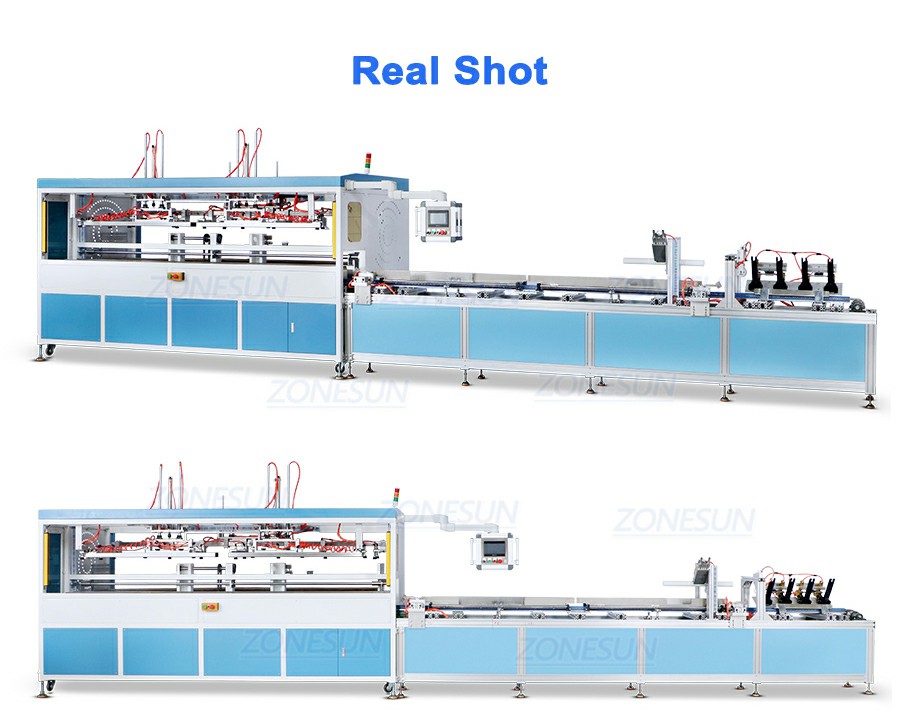

ZS-BFM1 Automatic Cardboard Triangle Tube Box Former And Stapler Machine
🎄 Capable of forming, folding and stapling triangular boxes.
🎄 With servo vacuum mechanism to pick and move cardboard.
🎄 Can be customized to fit different sizes of boxes.
🎄 With touchscreen panel for quick parameter change.
Video
Share to:

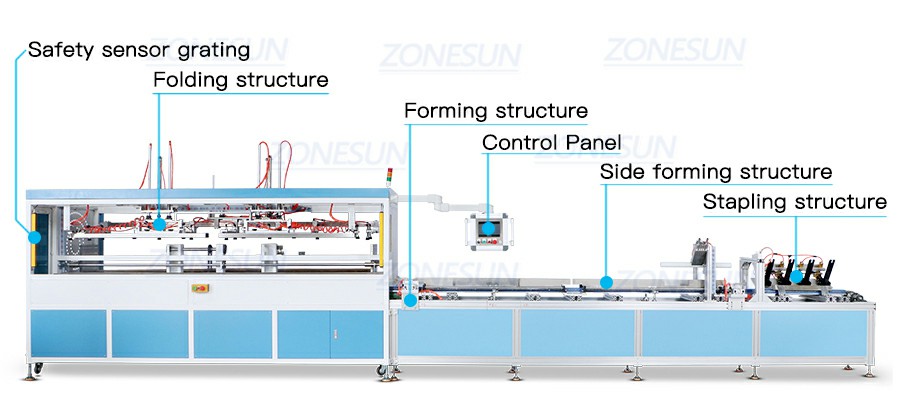

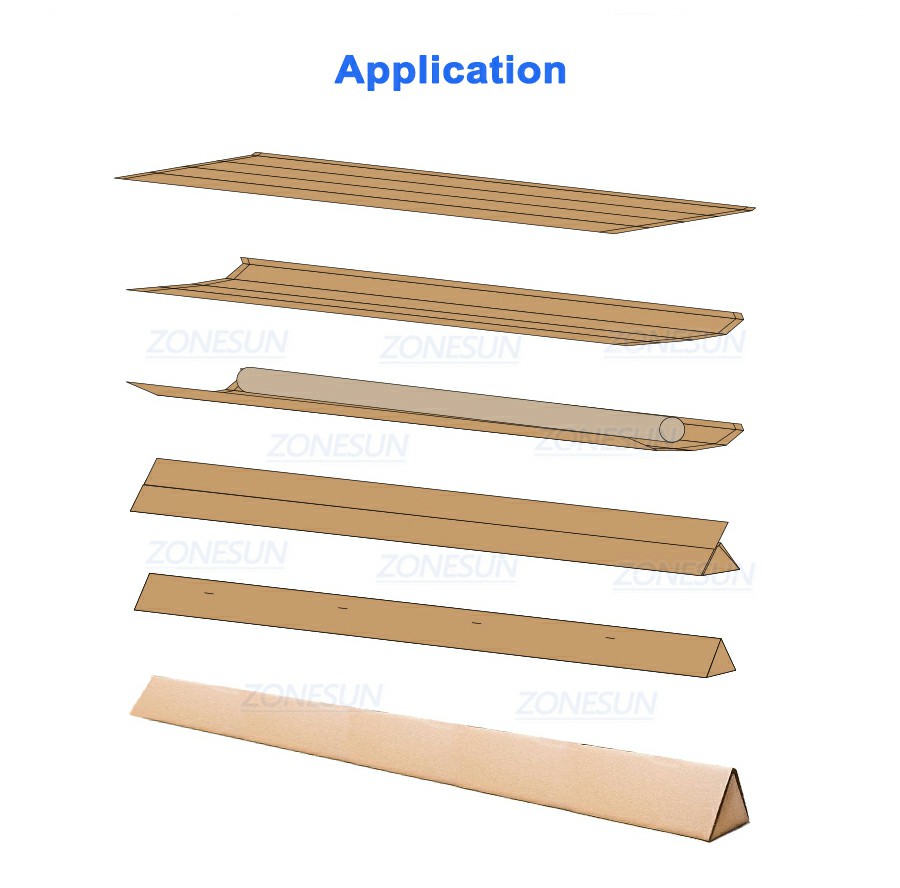

Description of the Triangle Tube Box Former And Stapler Machine:
This model performs functions of feeding cardboard sheets, forming cardboard into triangular boxes, folding flaps, and stapling boxes. It can provide tamper-proof security for heavy or valuable items. The model can be used for packaging metal rods, PVC tubes, textiles, ski poles, etc. This automatic triangle tube box forming machine can be customized according to your product size.

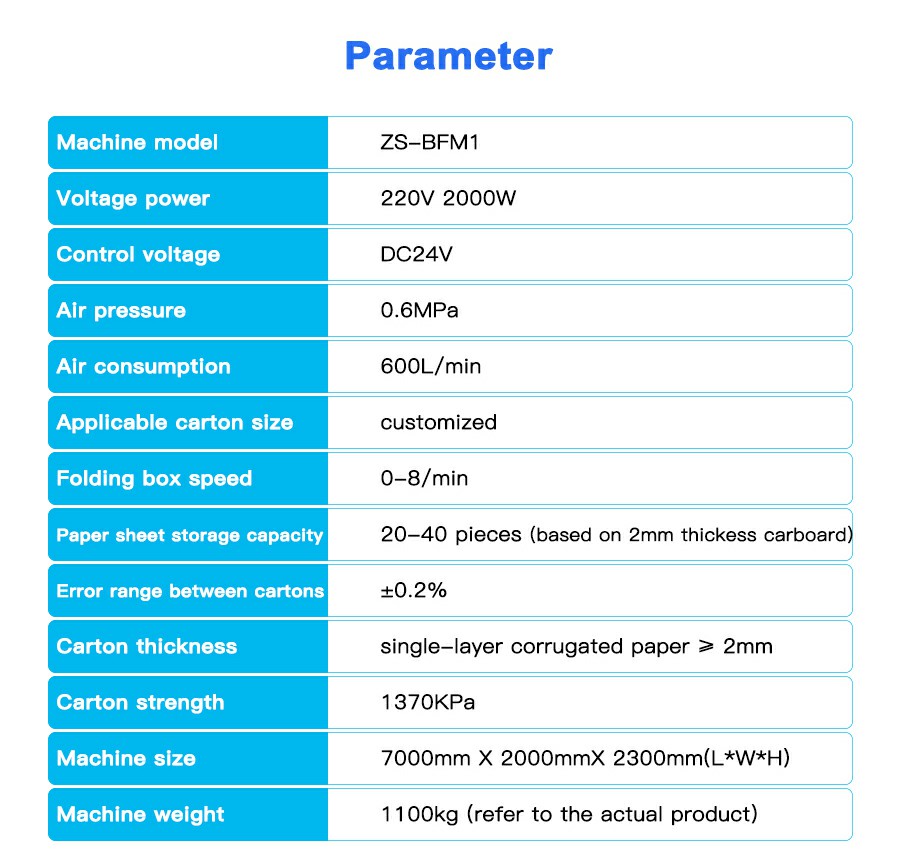

Machine Model | ZS-BFM1 |
| Machine Voltage | 220V 2KW |
Control Voltage | DC24V |
| Box Folding Speed | About 0-8pcs/min(depending on product size) |
Applicable Box Size | Can be customized |
| Cardboard Sheet Storage Capacity | 20-40 pieces (based on 2mm thickness cardboard) |
Error Range Between Boxes | ±0.2% |
| Box Thickness | Single-layer Corrugated Paper ≥2mm |
Box Strength | 1370KPa |
| Air Pressure | 0.6MPa |
Compressed Air Consumption | 600L/min |
| Machine Size | About 7000*2000*2300mm |
Machine Weight | About 1100kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

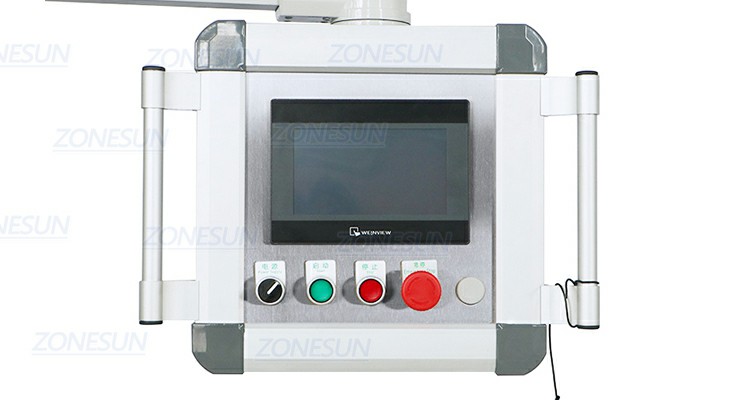

Touchscreen Panel
User-friendly interface enables quick parameter setting and change. It supports customization for multiple languages.

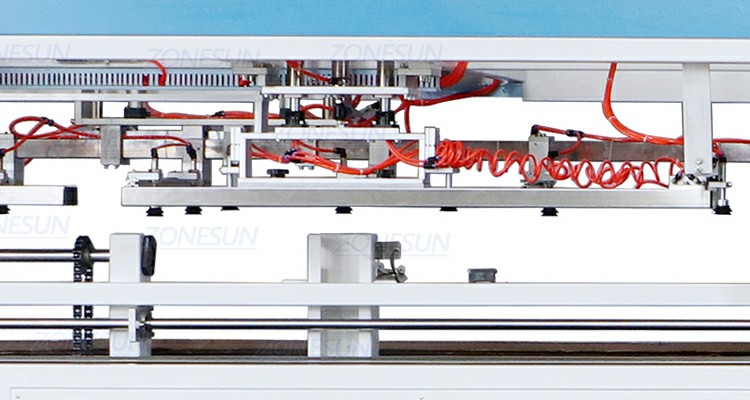

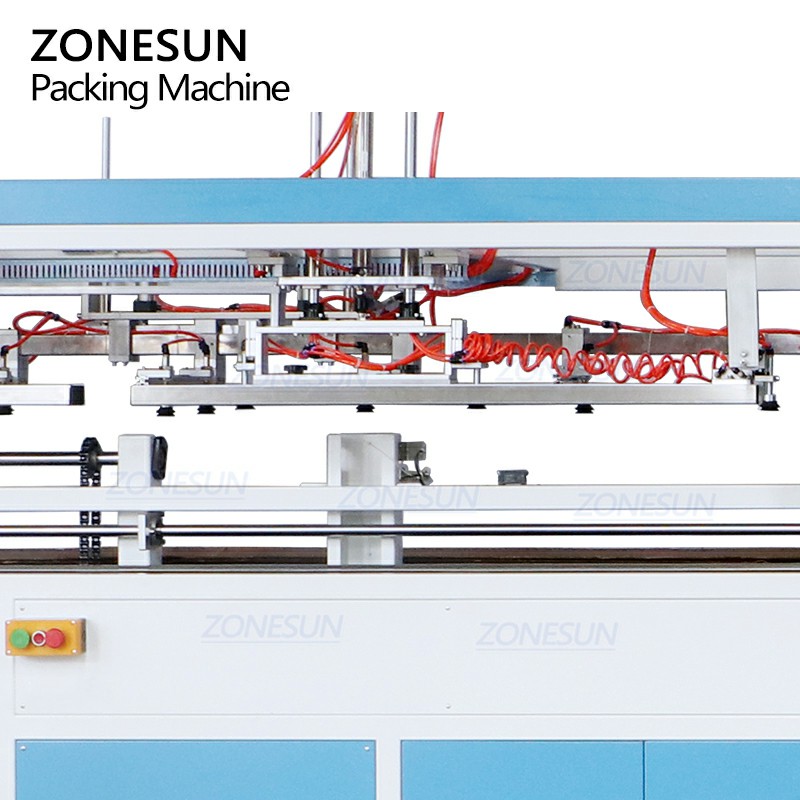

Vacuum Suction Cups
Capable of picking up and moving cardboard sheets to folding station. This saves labor cost.

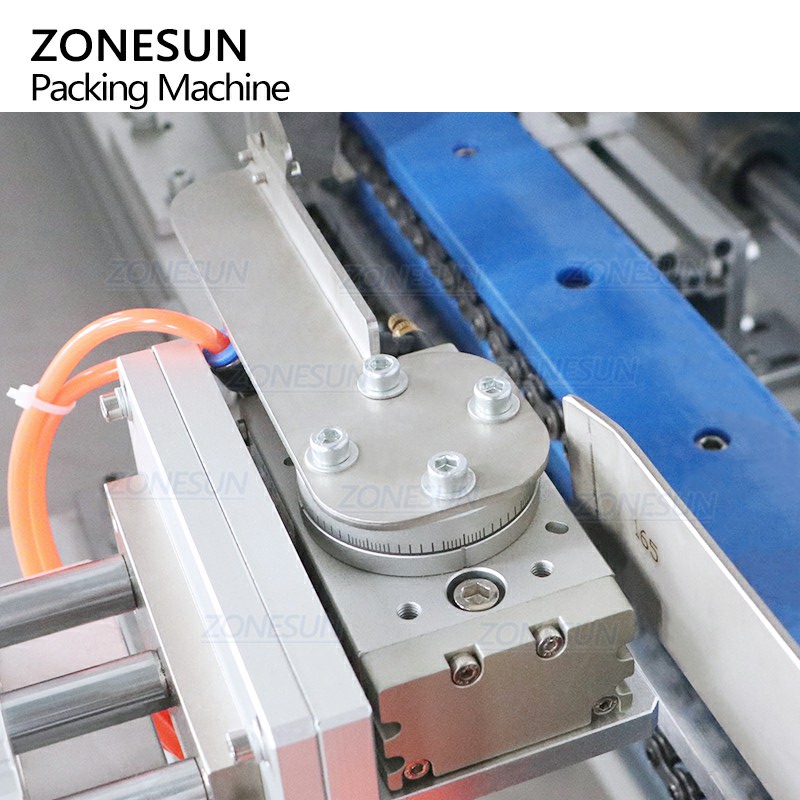

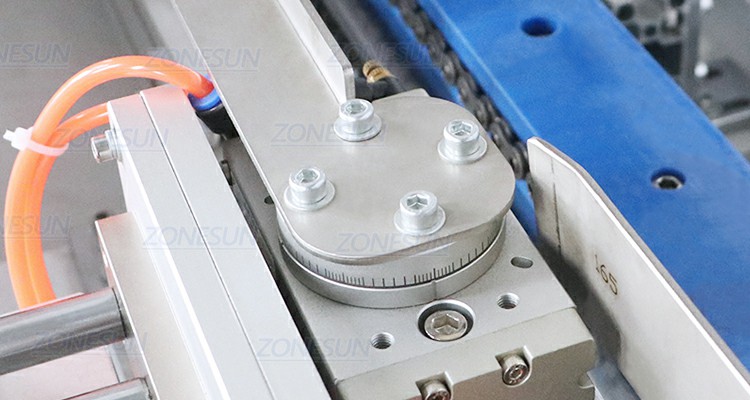

Forming Structure Adjustment
Can be used for adjusting the angle of forming structure, ensuring production accuracy.

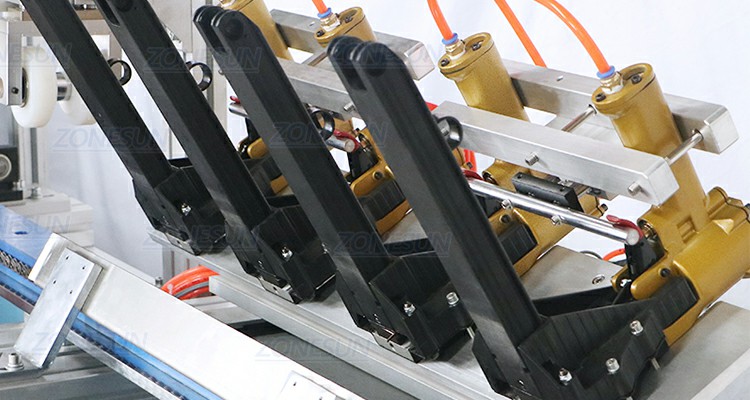

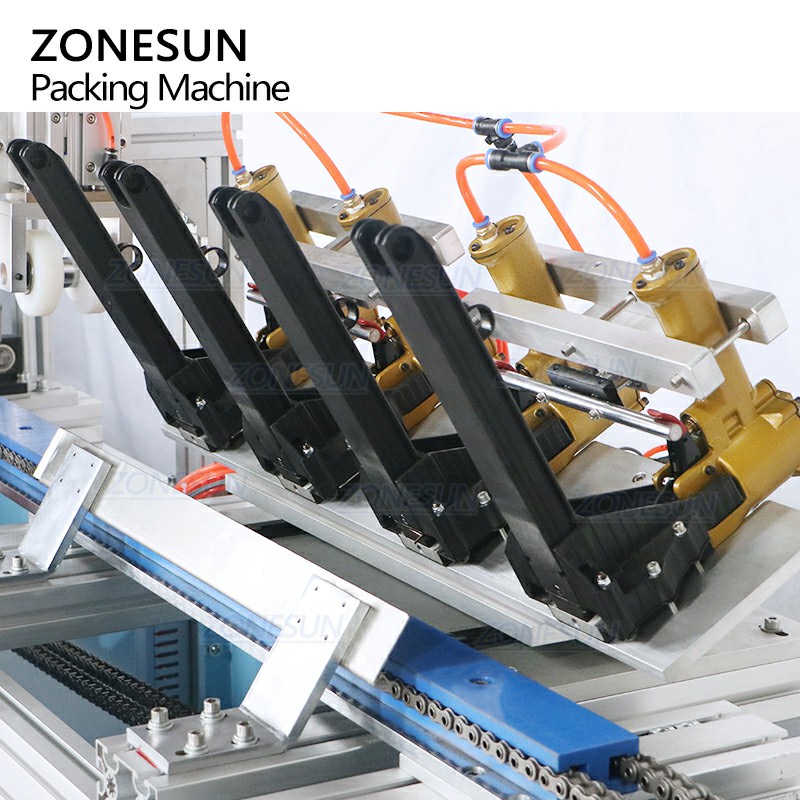

Box Stapling Structure
Can automatically hammer nails into cardboard boxes to realize rigid packaging.
- Applicable Materials: Cardboard boxes.
- Applicable Products: Metal rods, copper pipes, PVC tubes, posters, tripods, fabric, textiles, fishing rods, banners, etc.
- Applicable Industries: Industrial, chemical, daily chemical industries.
