ZS-BFM2 Automatic Corrugated Carton Box Folding And Stapling Machine

This machine is designed for folding and forming corrugated cardboard into three-dimensional boxes. It features functions of feeding cardboard, folding and forming box, and stapling box automatically. The folding box machine can be customized to suit for your products.

Share to:



Carton Box Folding Machine

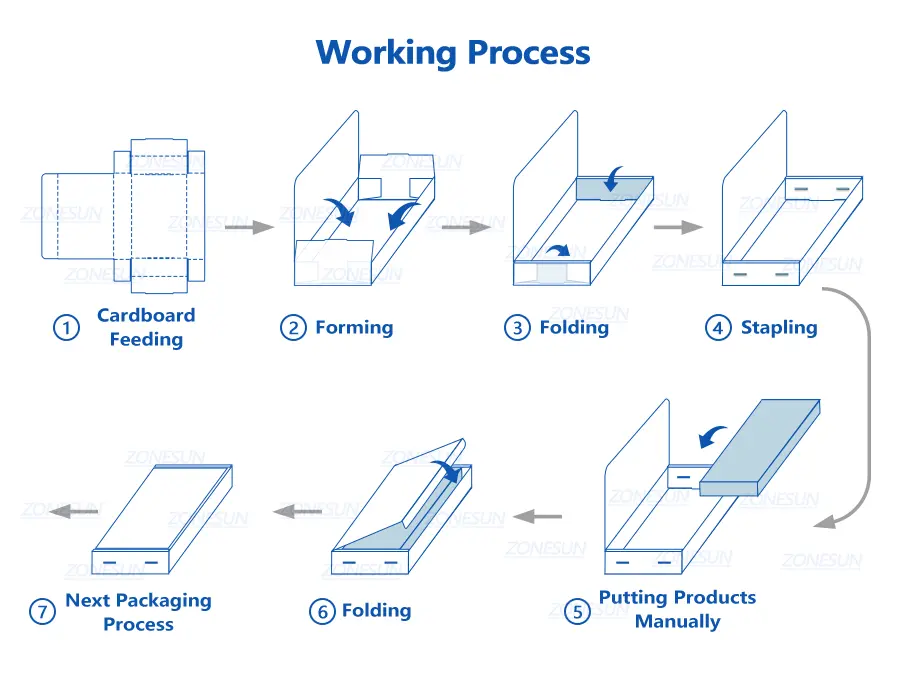

Working Process

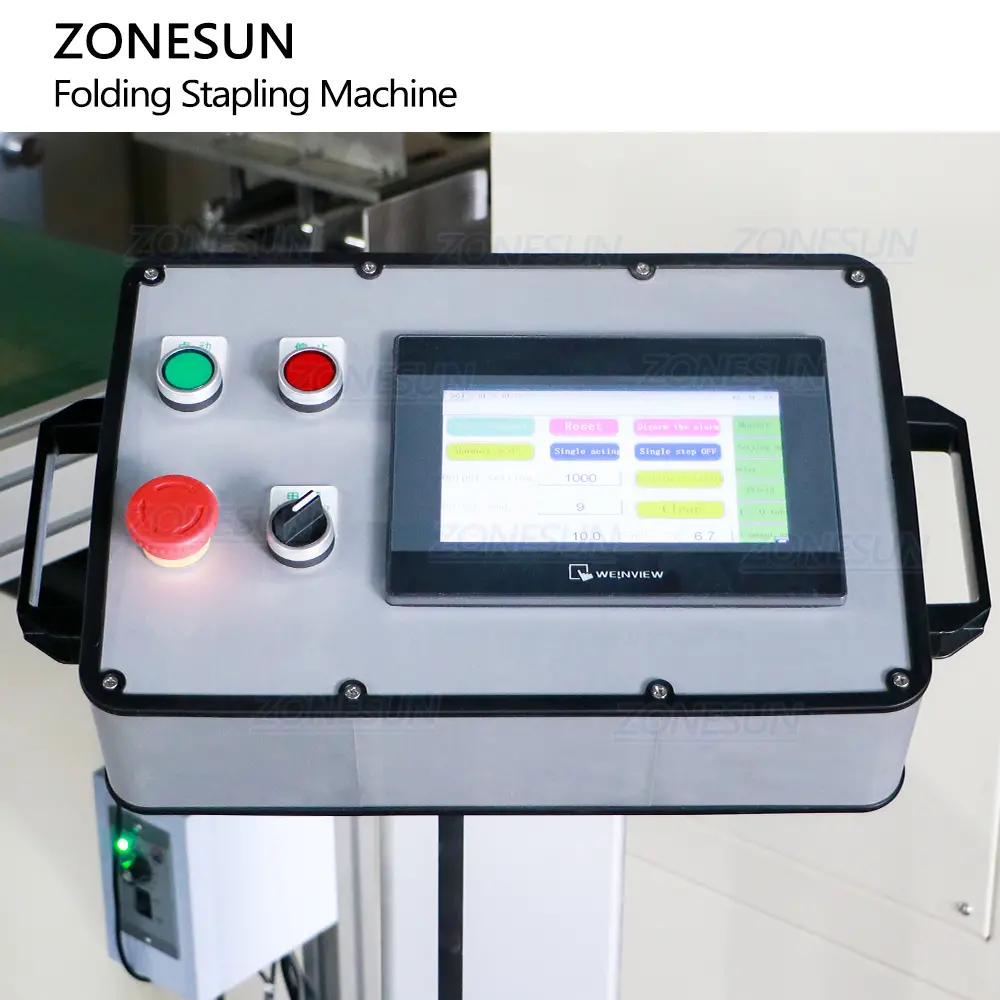

  • This carton box folding machine is equipped with touchscreen panel, making it convenient to operate and debug the machine.
  • With sensor to detect box, this machine can fold, form, staple boxes automatically, saving labor.

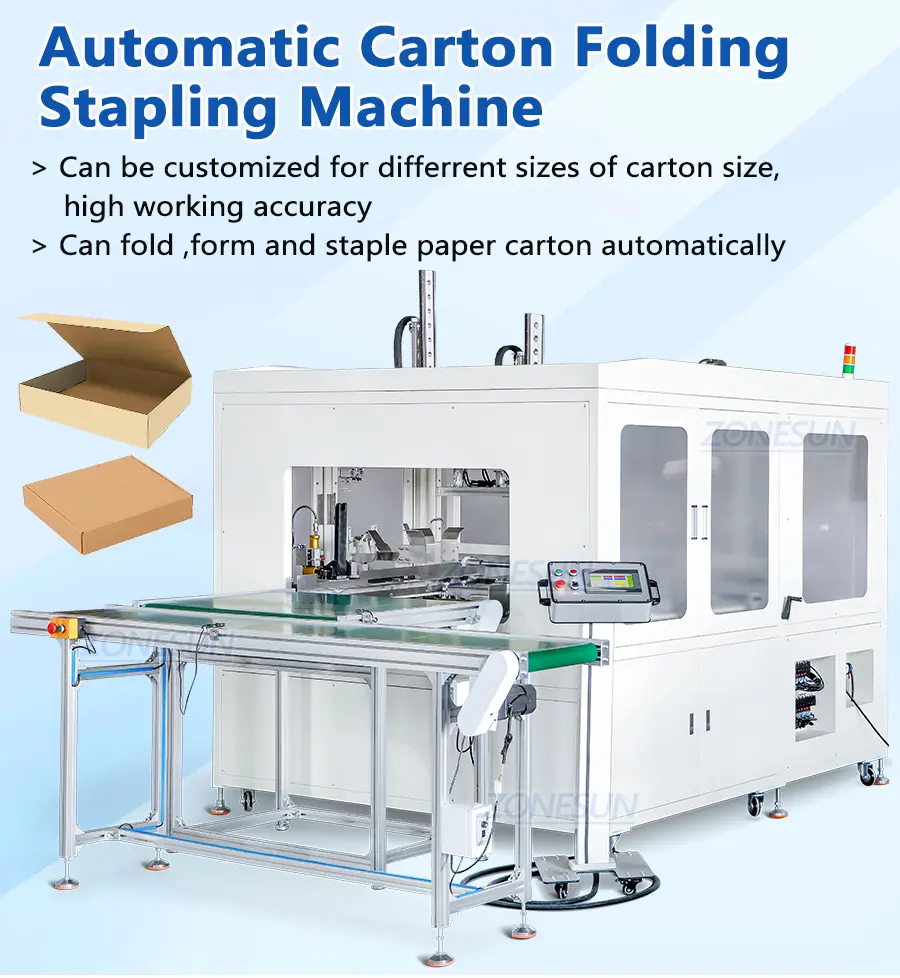

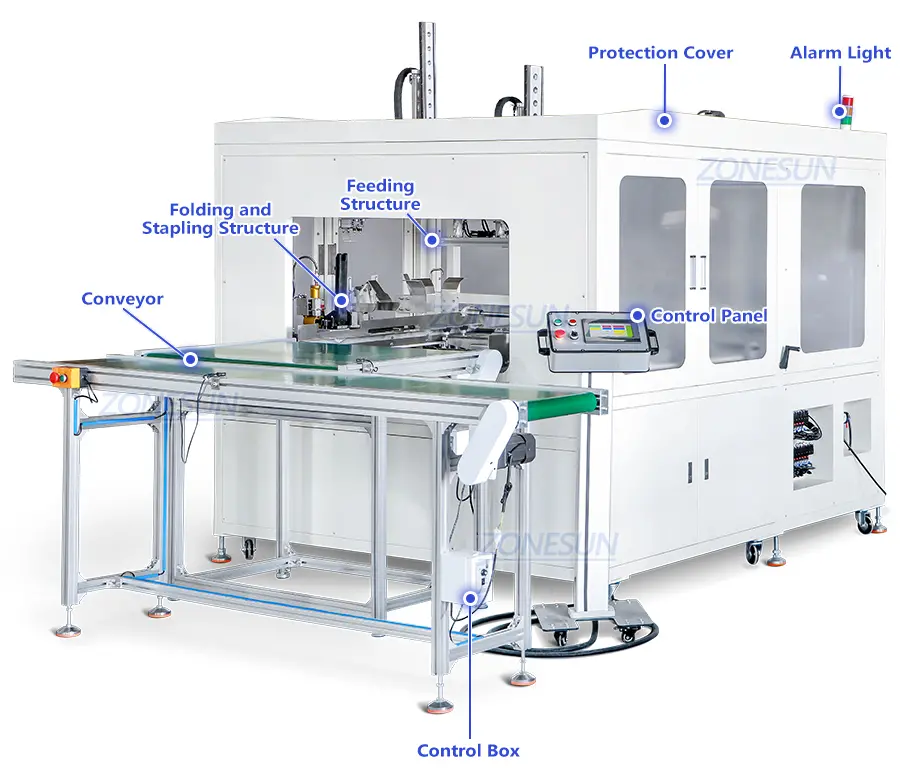

Machine Diagram

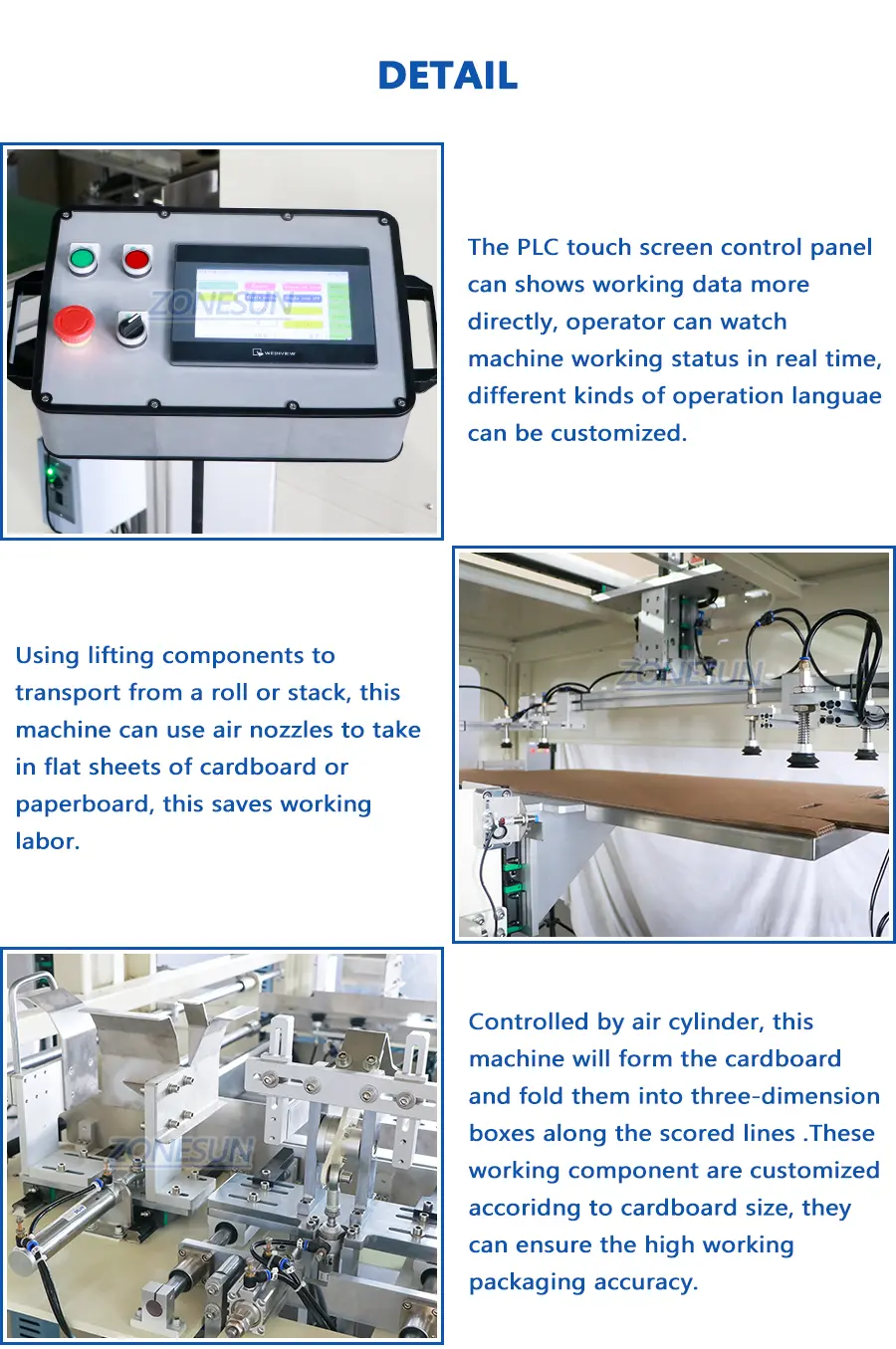

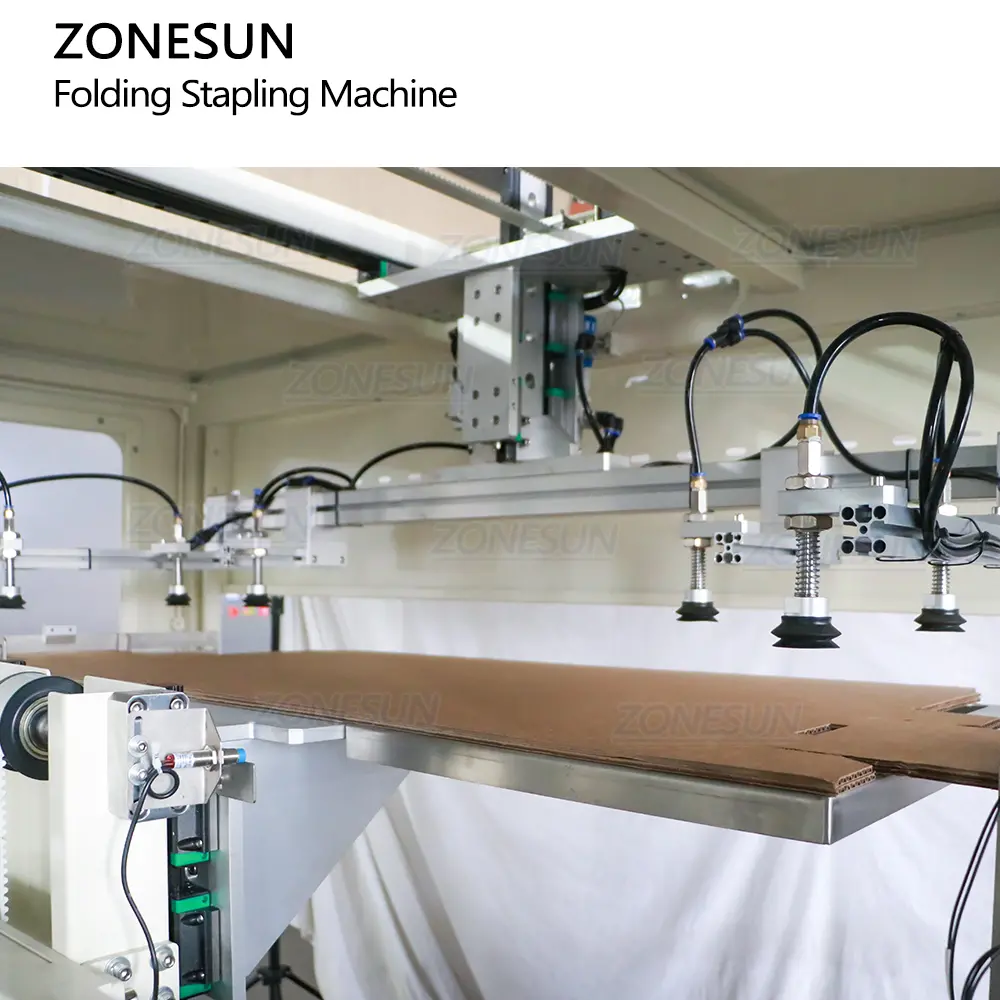

Machine Detail-1

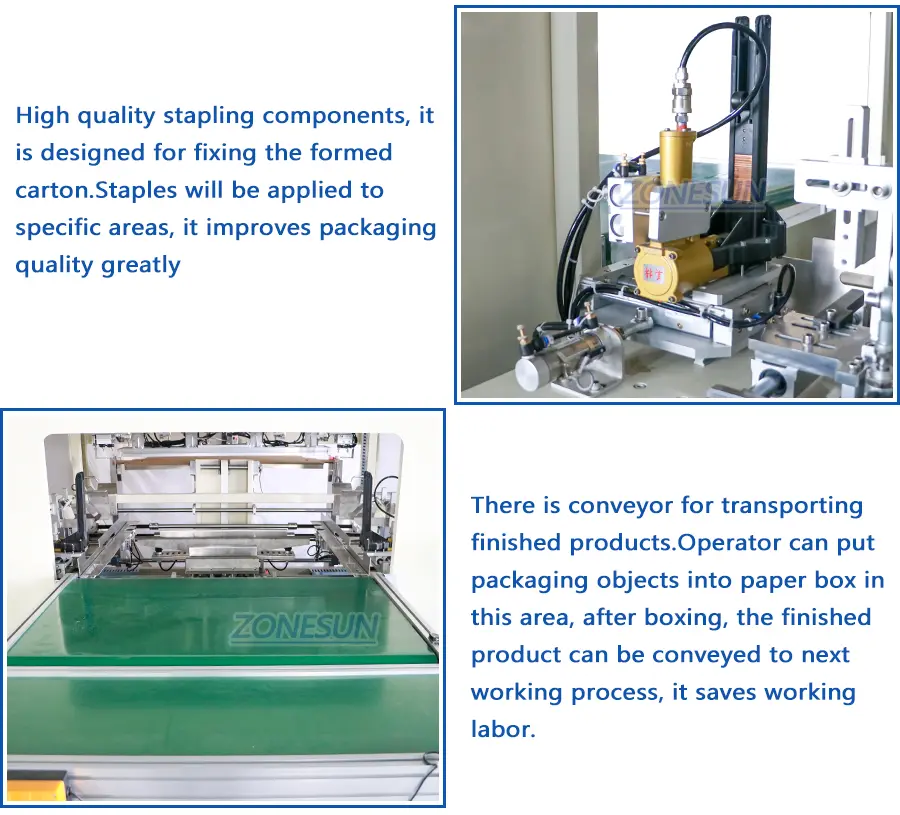

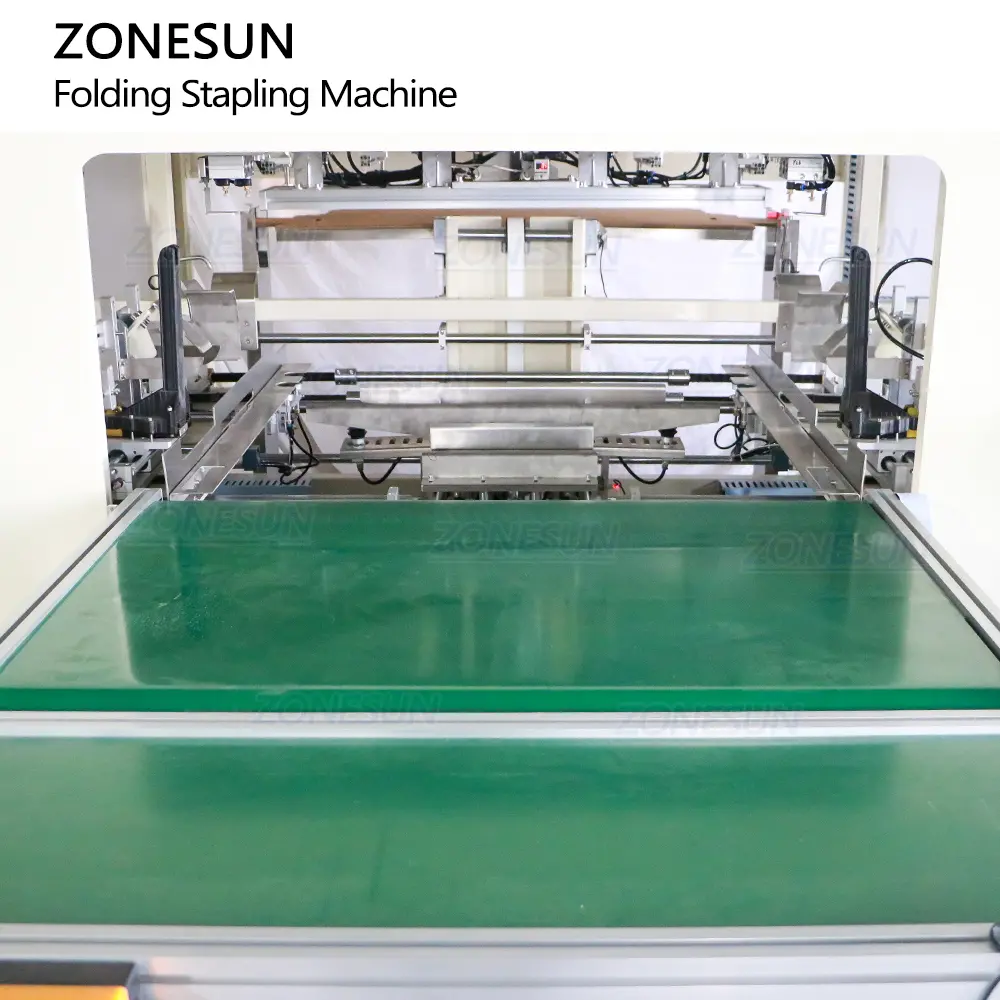

Machine Detail-2

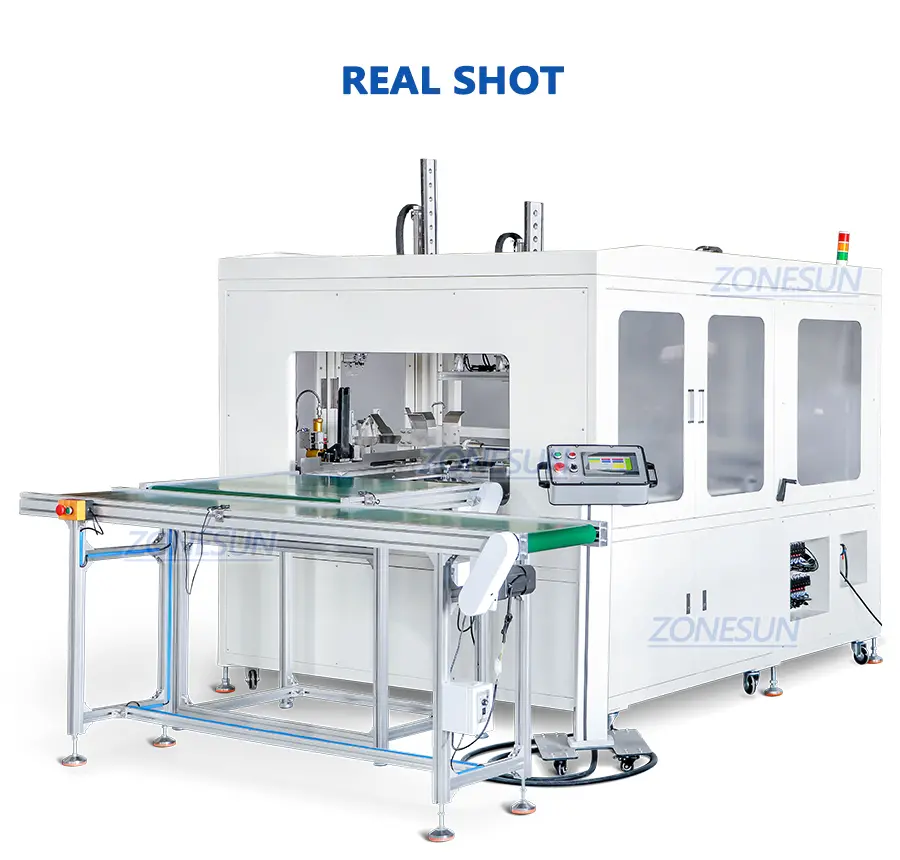

Real Shot

Machine Model ZS-BFM2
Voltage 220V 60HZ 3.5KW
Working Capacity About 600-800pcs/h
Applicable Carton Size Customized
Carton Thickness single-layer corrugated paper ≥ 2mm
Carton Strength 1370KPa
Air Pressure 0.6-0.8MPa
Air Consumption 450NL/min
Error Range Between Cartons ±0.2%
Machine Size About 2200*2200*2000mm(L*W*H)
Machine Weight About 780kg
  • Applicable Industries: Food, chemical, industrial, medical industries.
