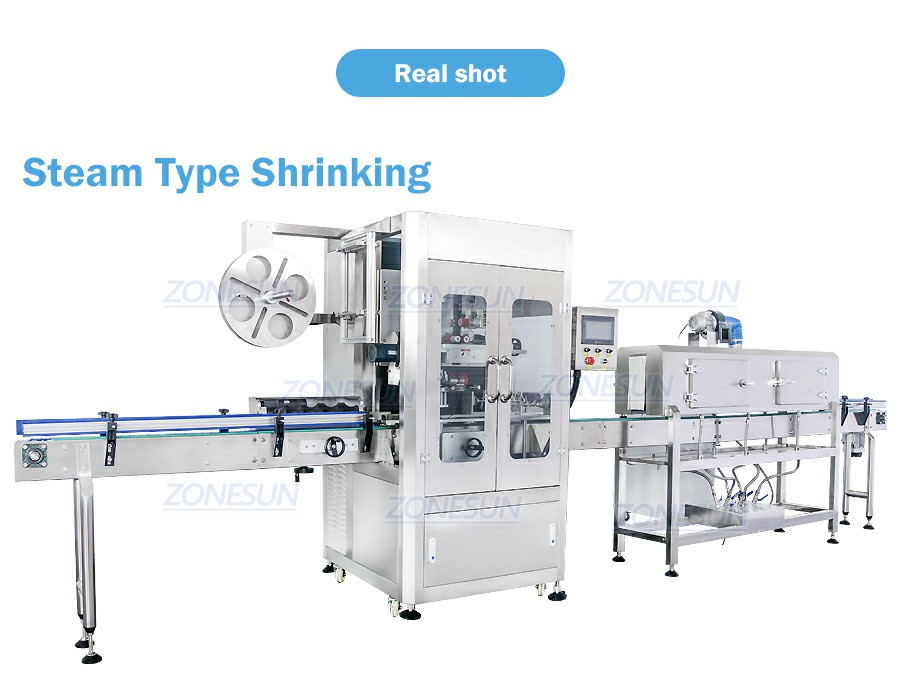

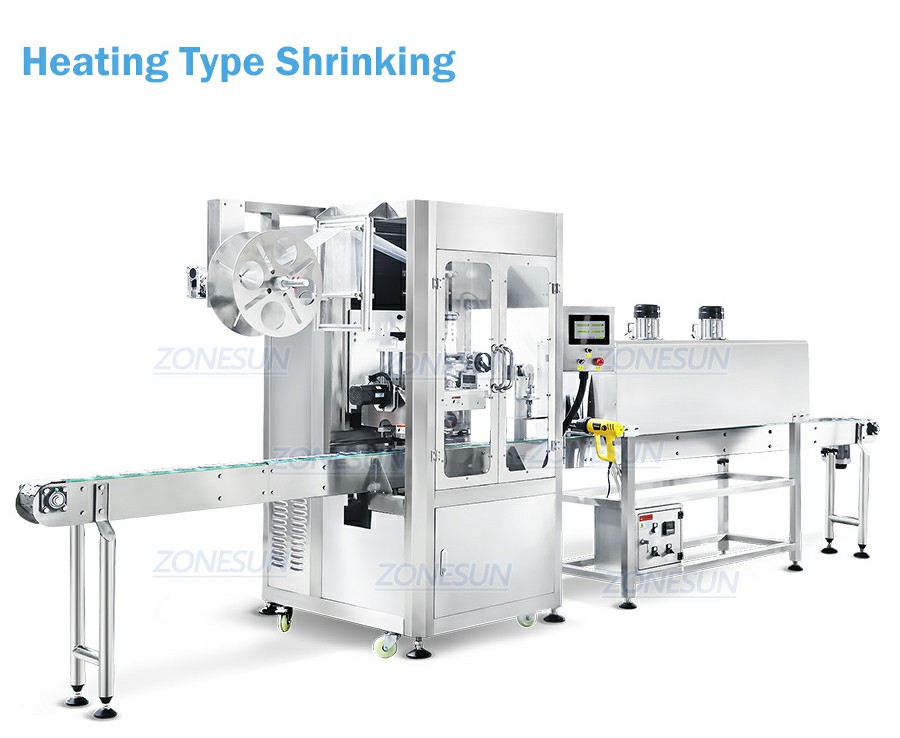

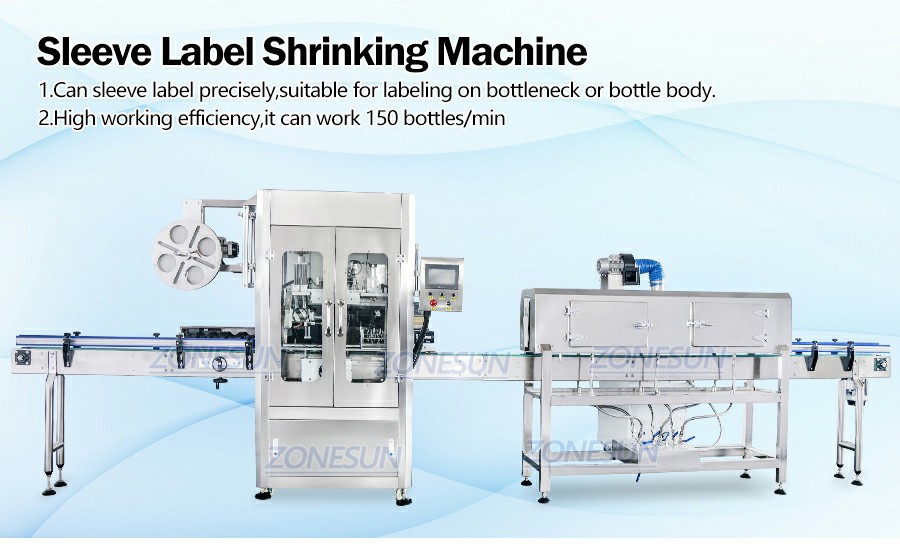

ZS-STB150L Automatic Bottle Shrink Sleeve Applicator Machine
This machine has the function of applying shrink labels onto bottles and shrinking labels automatically. It can pack 150 bottles per minute, greatly improving efficiency. It can work with filling and capping machine line, achieving automated production.
Machine Including:
·Automatic Shrink Sleeve Applicator Machine
·Automatic Shrink Sleeve Steam Tunnel
Video
Share to:
- The machine can apply shrink labels onto bottleneck or bottle body automatically.
- Through PLC control panel, it is convenient to set and adjust working parameters. The language of panel can be customized.
- This shrink sleeve applicator machine can be customized as your production need.

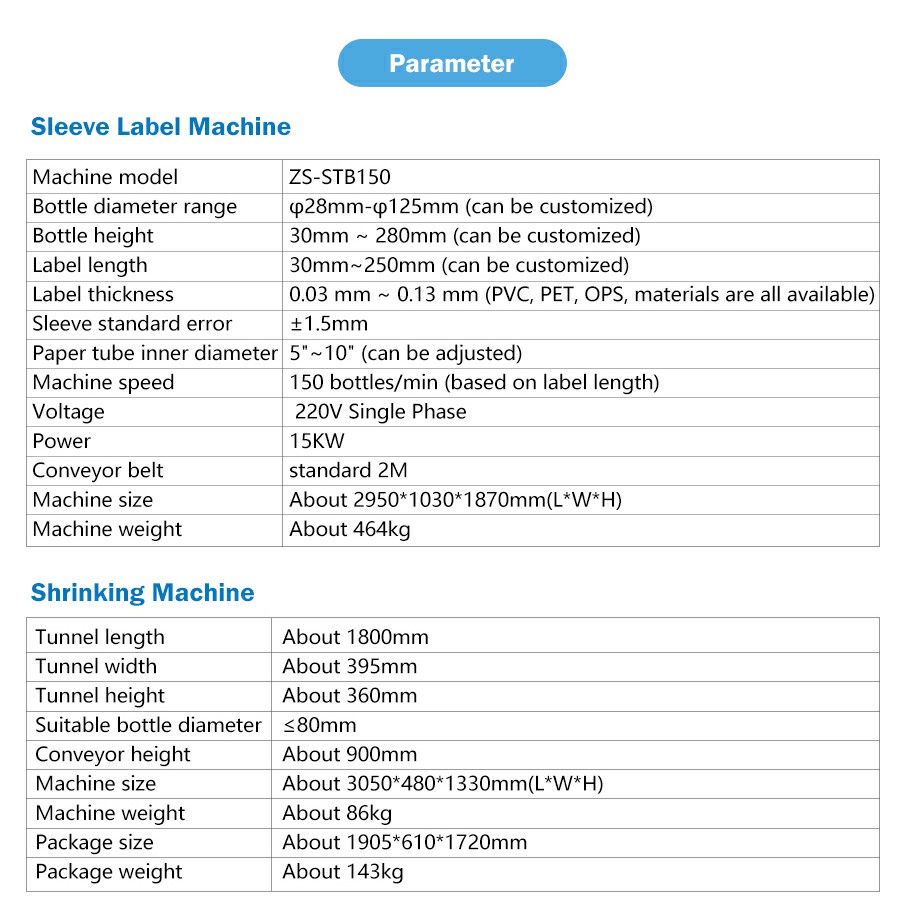

>Shrink Sleeve Applicator
| Machine Model | ZS-STB150 |
| Voltage | 220V Single Phase |
| Power | 1.5KW |
| Applicable Bottle Diameter | φ28mm-φ125mm (can be customized) |
| Applicable Bottle Height | 30mm-280mm (can be customized) |
| Label Length | 30mm-250mm (can be customized) |
| Label Thickness | 0.03 mm-0.13 mm (PVC, PET, OPS, materials are all available) |
| Sleeve Standard Error | ±1.5mm |
| Paper Tube Inner Diameter | 5″-10″ (can be adjusted) |
| Machine Speed | 150 bottles/min (based on label length) |
| Conveyor Belt | standard 2M |

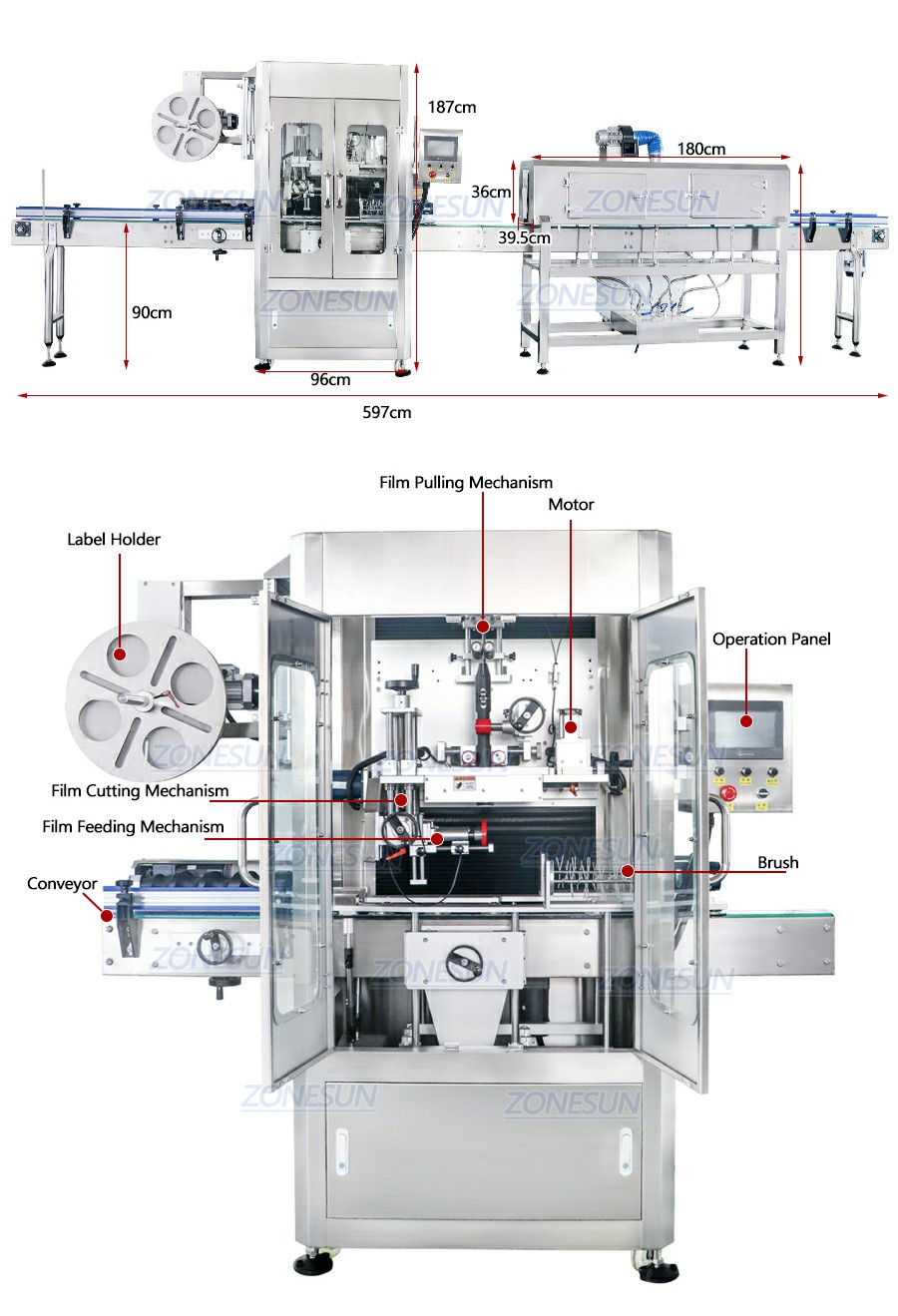

| Machine Size | About 2950*1030*1870 mm(L*W*H) |
| Machine Weight | About 464Kg |
>Shrink Sleeve Steam Tunnel
| Tunnel Length | About 1800mm |
| Tunnel Width | About 395mm |
| Tunnel Height | About 360mm |
| Applicable Bottle Diameter | ≤80mm |
| Conveyor Height | About 900mm |
| Machine Size | About 3050*480*1330mm(L*W*H) |
| Machine Weight | About 86kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

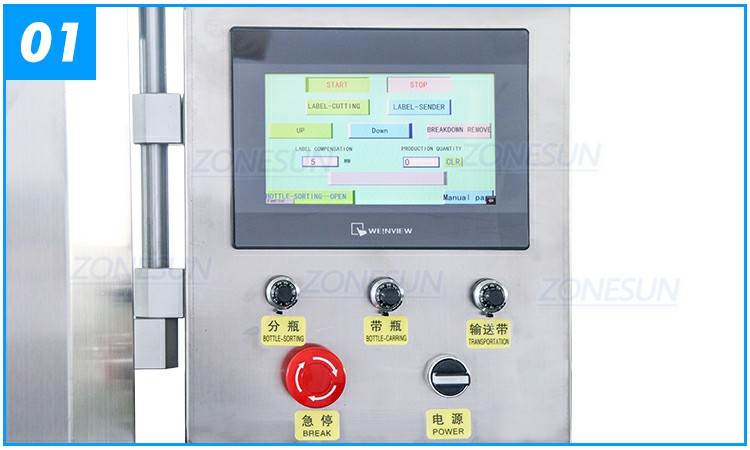

Touchscreen Panel
Can show status intuitively and make it easier to adjust settings. The panel can be customized with multiple languages if needed.

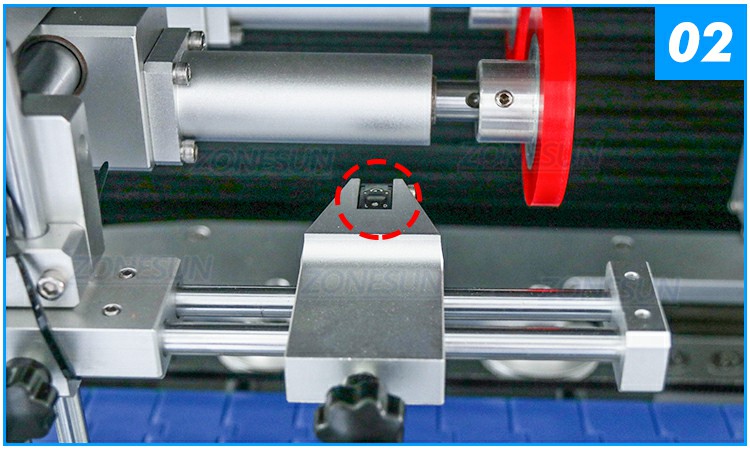

Electric Eye
Can sense the products and control the machine to realize automatic work.

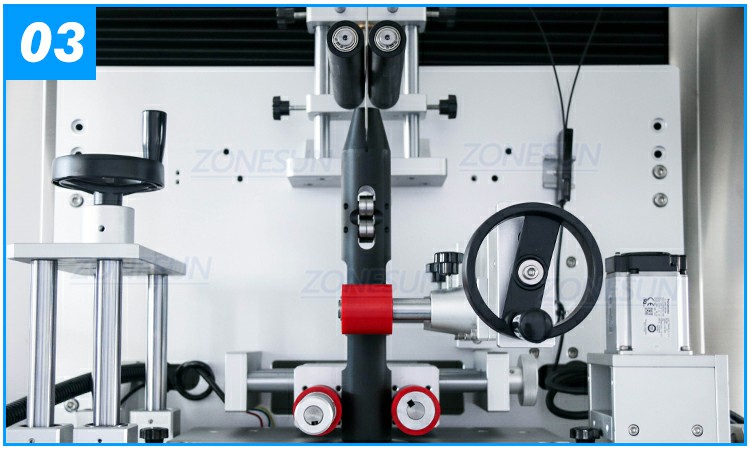

Shrink Film Cutter & Dispenser
Capable of feeding, cutting and placing shrink films over the products. Cutting length is adjustable according to bottle height.

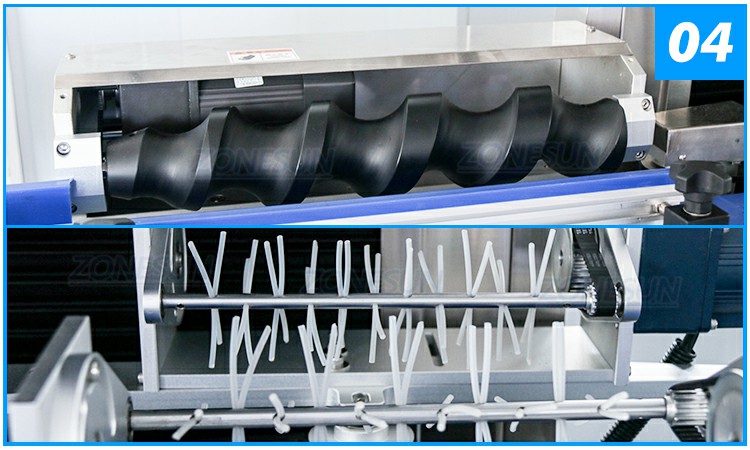

Timing Screw & Brush
Timing screw can space the bottles and ensure orderly labeling. The soft brush can make films guided to the products, ensuring smooth shrinking.

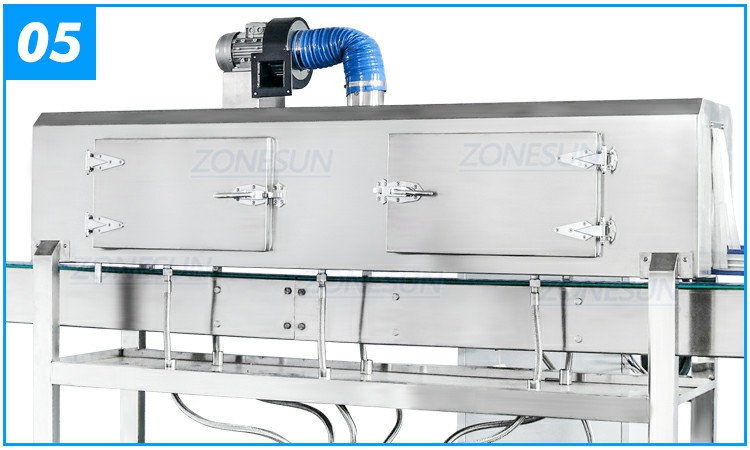

Shrink Tunnel
It uses steam system to shrink the films evenly. Shrink temperature is adjustable to suit for different materials.

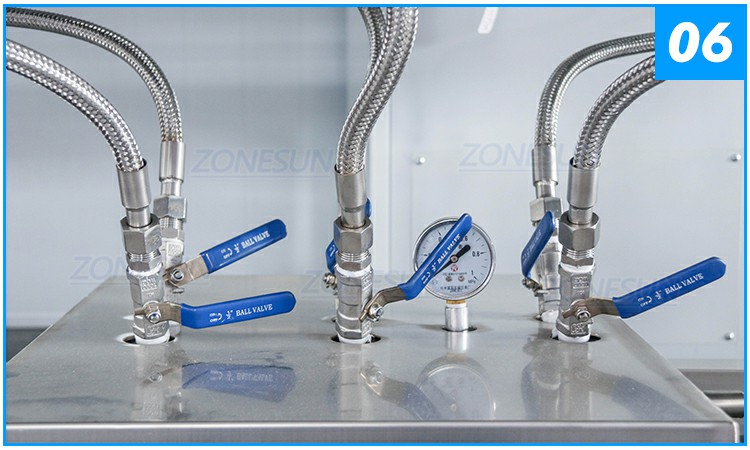

Three-layer Air Hole
The length and direction of jet can be adjusted according to production need.
- Applicable Labels: Sleeve Labels.
- Applicable Industries: Beverage, cosmetic, daily chemical, medicine industries.
