ZS-AFS210V Automatic Food Pouch Filling Sealing Machine Vacuum Packaging
🎄 Can realize premade pouch feeding, and vacuum sealing.
🎄 Machine output is 900-1500 pouches/hour.
🎄 Filling system is customized based on your products.
🎄 Machine is customized according to your pouch size.
🎄 Integrated design saves production space.
Video
Share to:

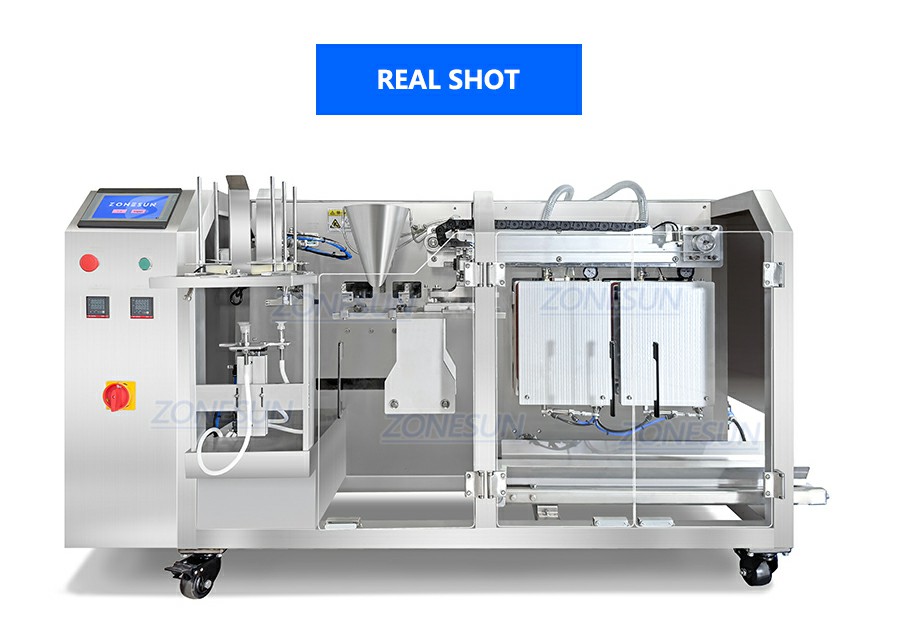

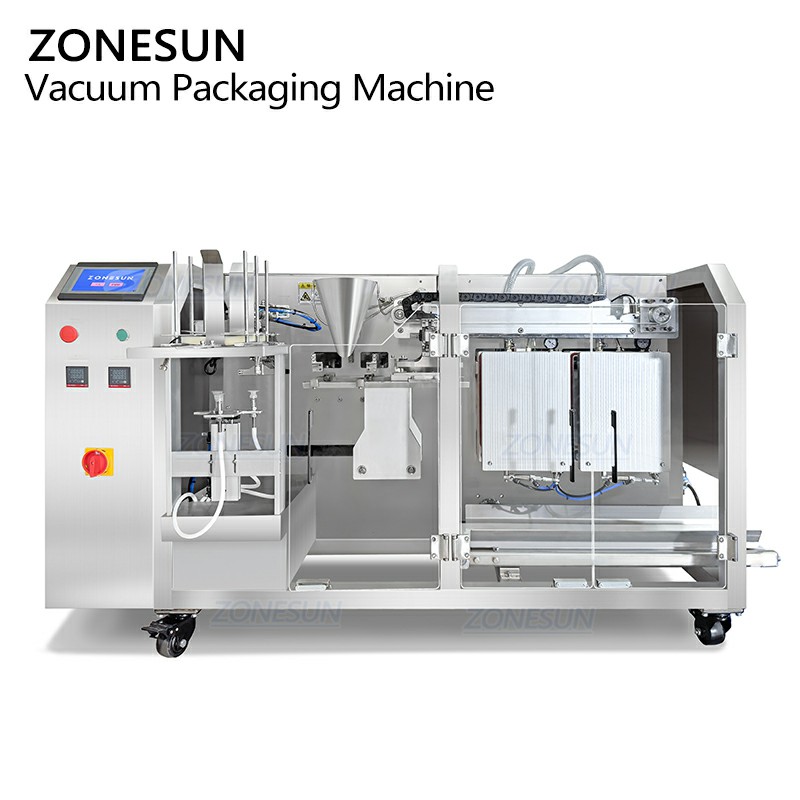

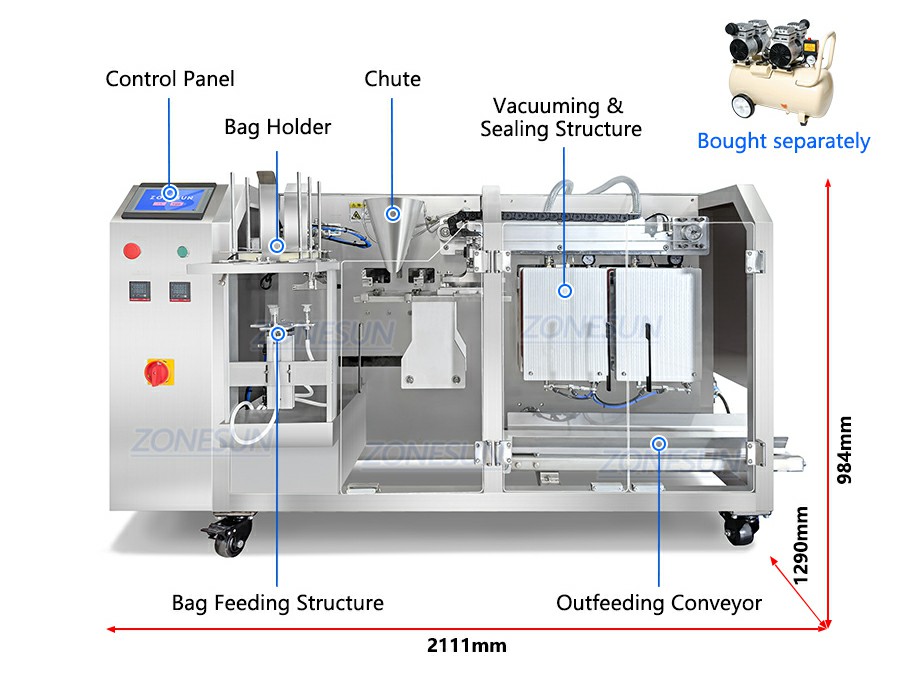

Description of the Automatic Food Pouch Filling Sealing Machine
The ZS-AFS210V model performs functions of feeding, vacuuming and sealing premade pouches. It uses manual product loading method, which suits for packing fragile or irregular products. The model can be equipped with measuring system to fill granulated products. This machine can be used for packing seafood, frozen fish fillets, beef sticks, and so on. The temperature of sealing system is adjustable to handle different pouches. This food pouch vacuum packaging machine can be customized according to your production needs.

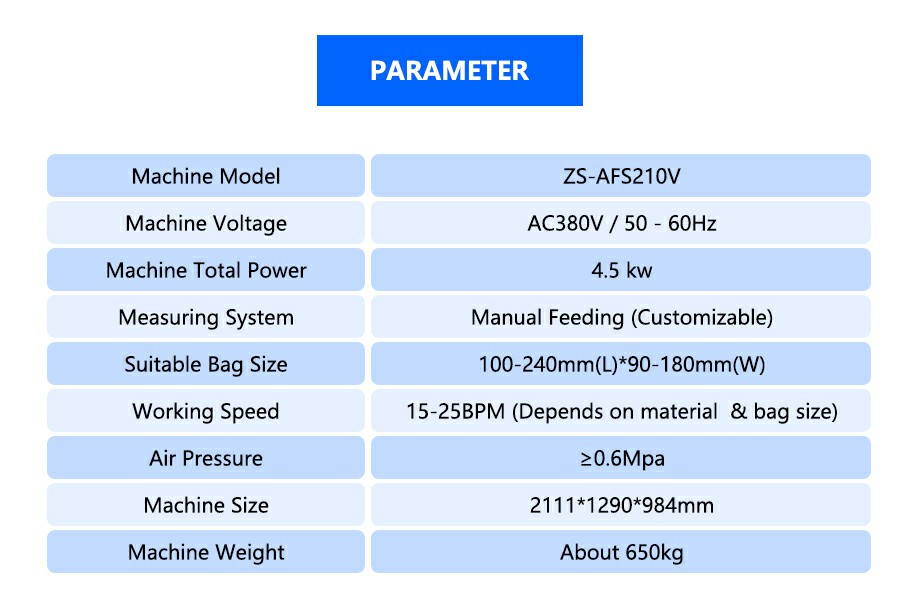

Machine Model | ZS-AFS210V |
| Machine Voltage | AC380V / 50-60Hz |
Total Power | 4.5KW |
| Packaging Speed | About 15-25pcs/min (depending on pouch size and materials) |
Measuring System | Manual Feeding (Customized based on filling materials) |
| Applicable Pouch Size | 100-240mm(L)*90-180mm(W) |
Air Pressure | ≥0.6Mpa |
| Machine Size | About 2111*1290*984mm/ About 83.1*50.8*38.7 inch |
Machine Weight | About 650kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

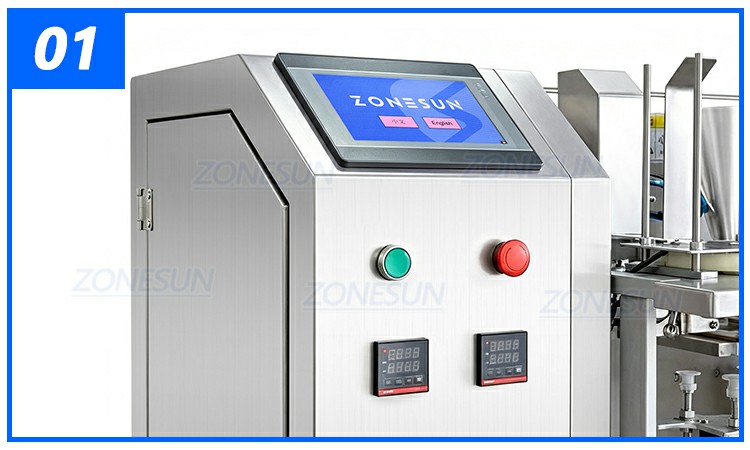

Touchscreen Interface
Touch screen enables centralized and intuitive machine control. It can be customized with different languages as your need.

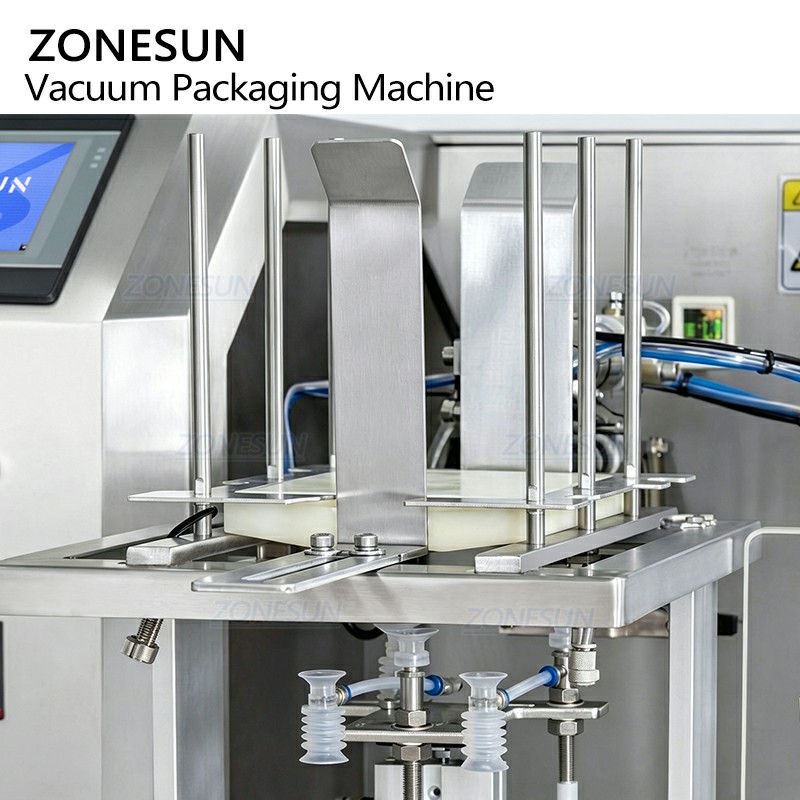

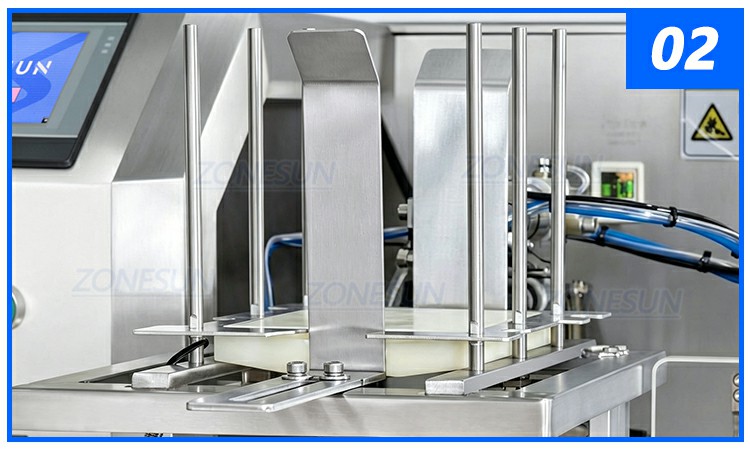

Pouch Holding & Feeding Structure
Can hold a stack of pouches and automatically feed the pouches to next station.

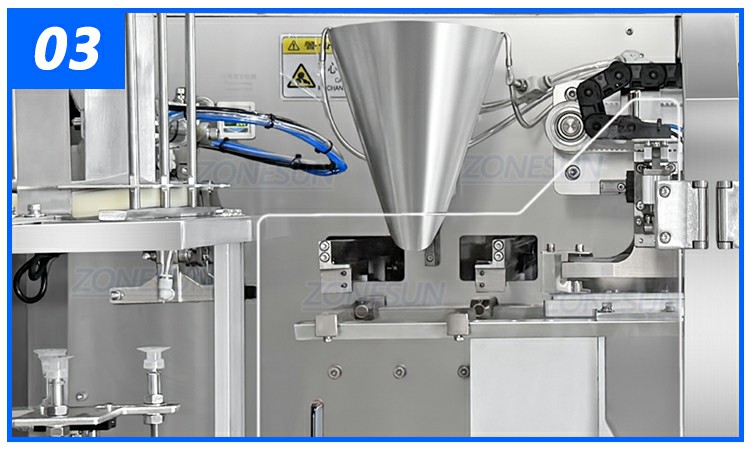

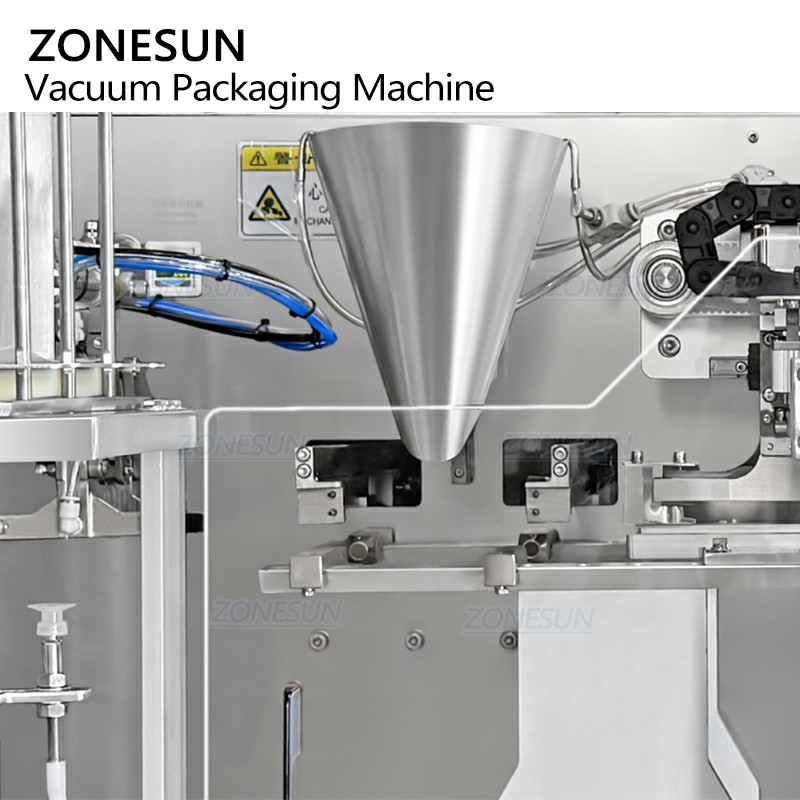

Product Loading System
With manual product placement, it is suitable for fragile or irregular products. It can also be equipped with measuring system for filling granulated products.

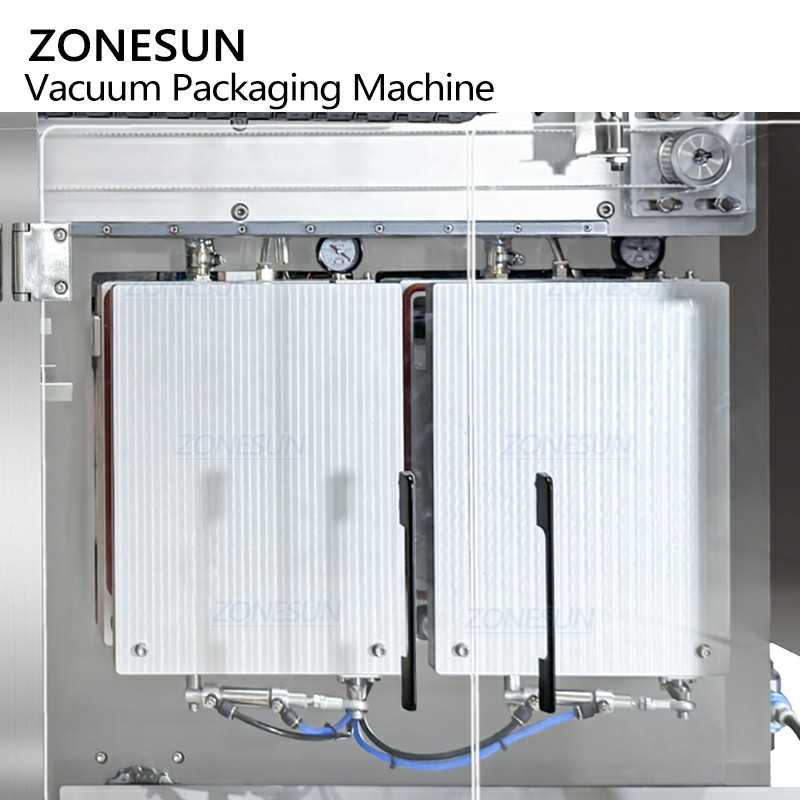

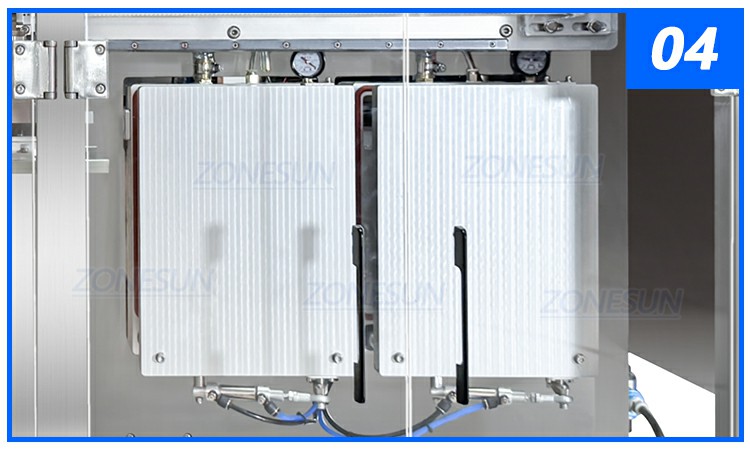

Dual Vacuum Sealing Chambers
Capable of vacuuming and sealing two pouches at a time. The sealing temperature is adjustable according to production need.
- Applicable Pouches: Premade pouches.
- Applicable Products: Meat, seafood, dried fruits, nuts, frozen fish, lentils, seeds, beef sticks, cheese, etc.
- Applicable Industries: Food industries.
