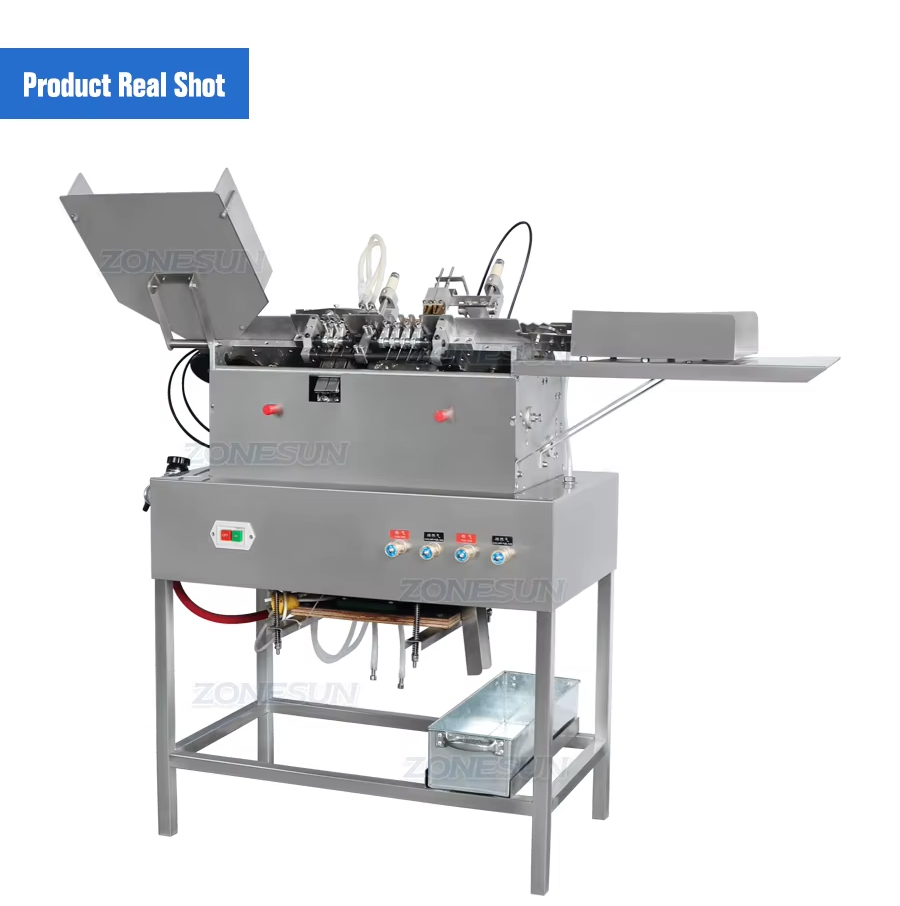

ZS-FSAB2 Automatic Glass Ampoule Liquid Filling Sealing Machine
This machine has the function of feeding, filling and sealing glass ampoule bottles. It is good for 2ml ampoule bottles. We can also customize 1/5/10/20ml machines to suit for your production need.
Video
Share to:
- Can realize automatic filling and sealing at one machine, saving working space.
- With small nozzles, it’s suitable for small-volume filling.
- High working efficiency, it can pack 3500-4500 bottles/h.
- This glass ampoule filling and sealing machine can be customized according to customers’need.

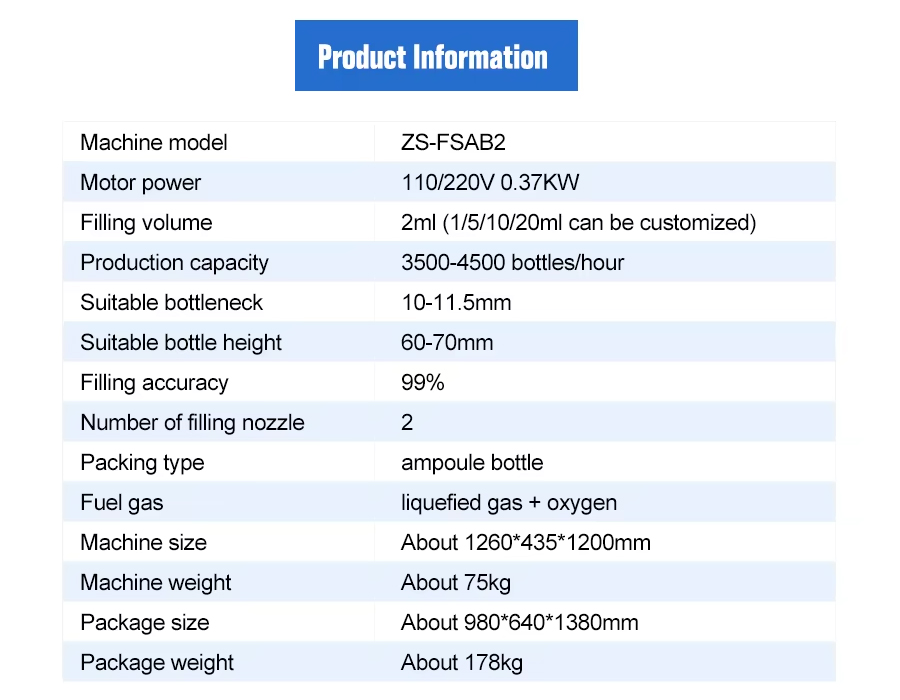

Machine Model | ZS-FSAB2 |
| Motor Power | 110/220V 0.37KW |
Filling Volume | 2ml (1/5/10/20ml can be customized) |
| Production Capacity | About 3500-4500 bottles/hour |
Suitable Bottleneck | 10-11.5mm |
Suitable Bottle Height | 60-70mm |
| Filling Accuracy | 99% |
Number of Filling Nozzle | 2 |
| Packing Type | Ampoule Bottle |
Fuel Gas | Liquefied gas + Oxygen |
| Machine Size | About 1260*435*1200mm |
Machine Weight | About 75kg |
| Package Size | About 980*640*1380mm |
Package Weight | About 178kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.
Ampoule Feeding Structure
Capable of feeding and loading glass ampoule to conveying system orderly.
Small Filling Heads
Can insert into the ampoule and fill liquids, which prevents liquids from splashing.
Ampoule Sealing System
Can apply heat and seal the end of glass ampoule.
Collecting Tray
Can collect the ampoule after sealing, which is convenient for subsequent packaging.

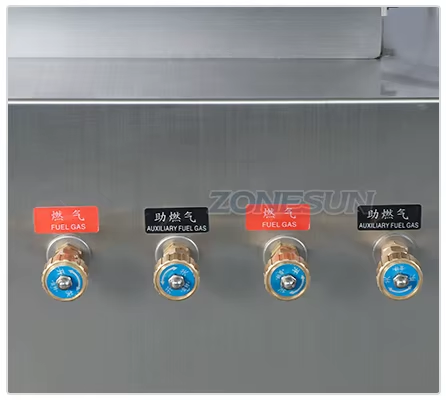

Control Buttons
Designed for controlling the gas or oxygen supply. Easy to operate.
- Applicable Bottles: Glass Ampoule Bottles.
- Applicable Products: Anti-aging acid, serum, medicine liquid, etc.
- Applicable Industries: Pharmaceutical, cosmetic industries.
