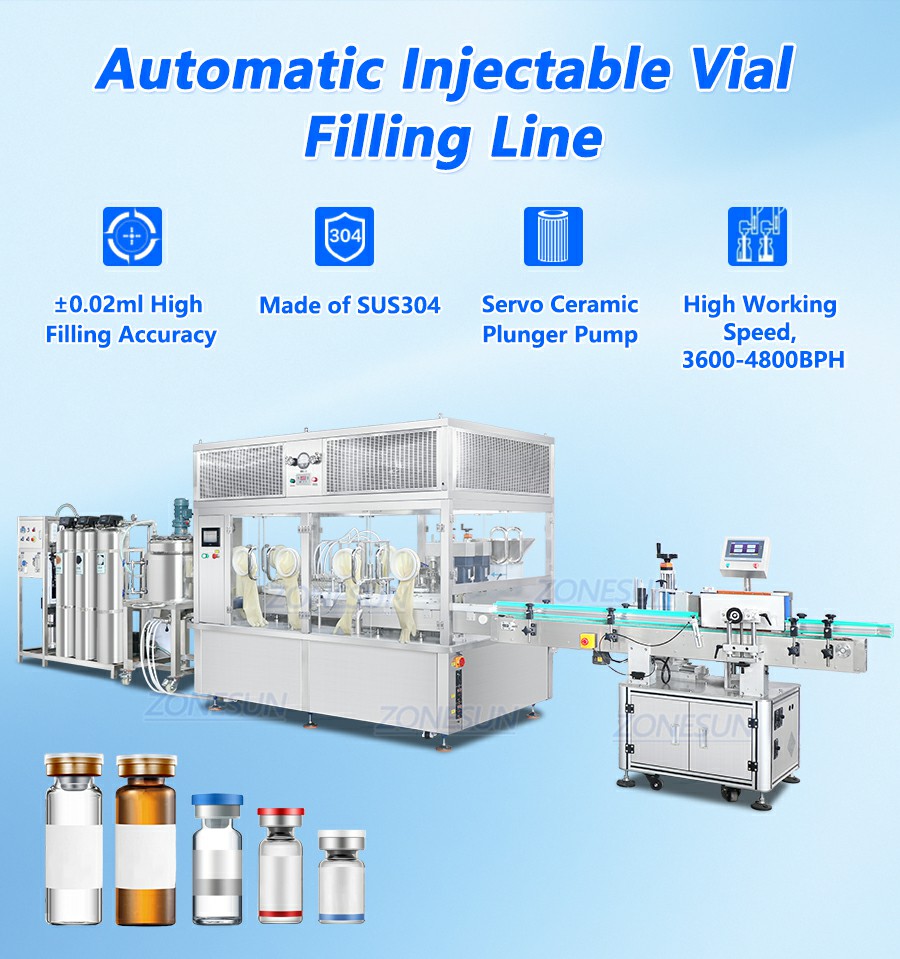

Automatic Glass Medicine Vial Filling Capping Labeling Machine
🎄 Machine output is 3600-4800BPH.
🎄 Servo ceramic pump system, suit for small-dose filling.
🎄 With vibratory feeder to supply rubber stoppers & caps.
🎄 Equipped with water purification machine and mixing tank.
🎄 With laminar flow hood to provide clean working area.
🎄 Can realize continuous labeling on the side of vials.
Video
Share to:
Description of the Medicine Vial Filling Capping Labeling Machine:

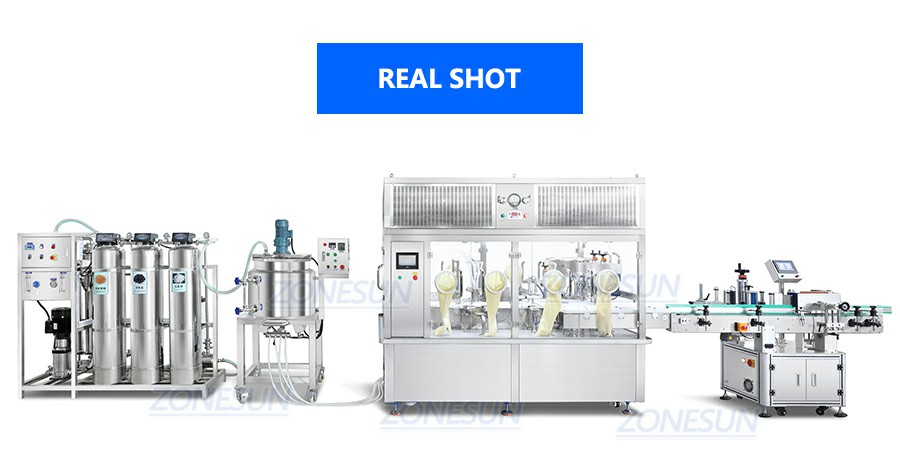

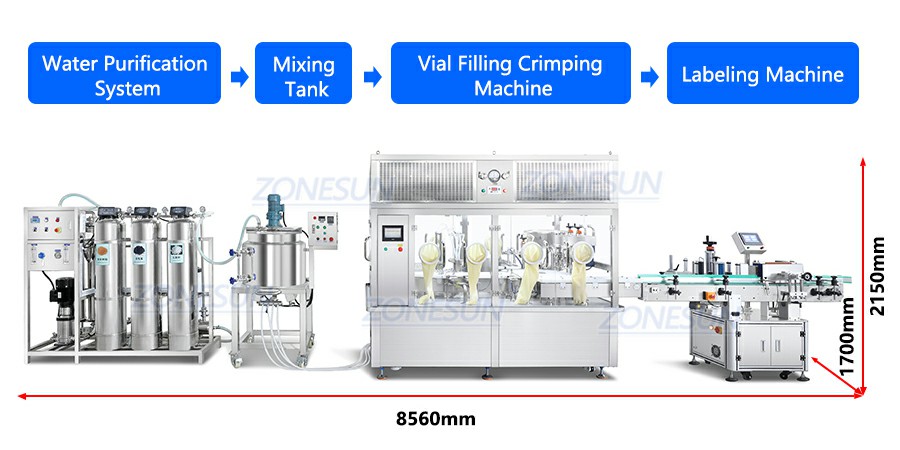

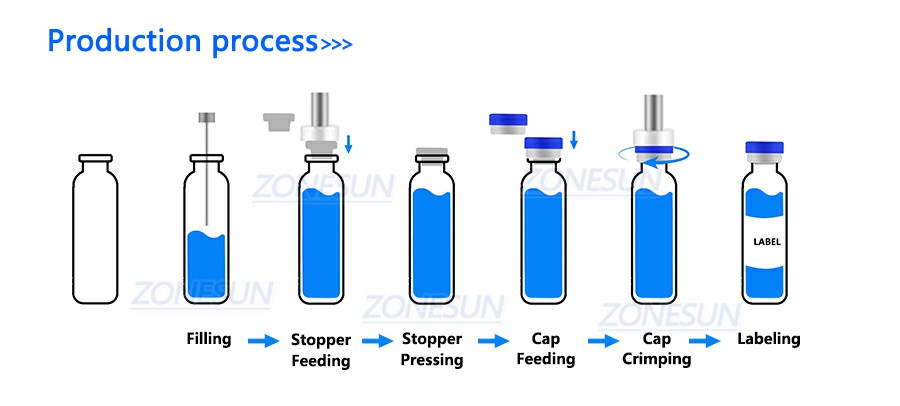

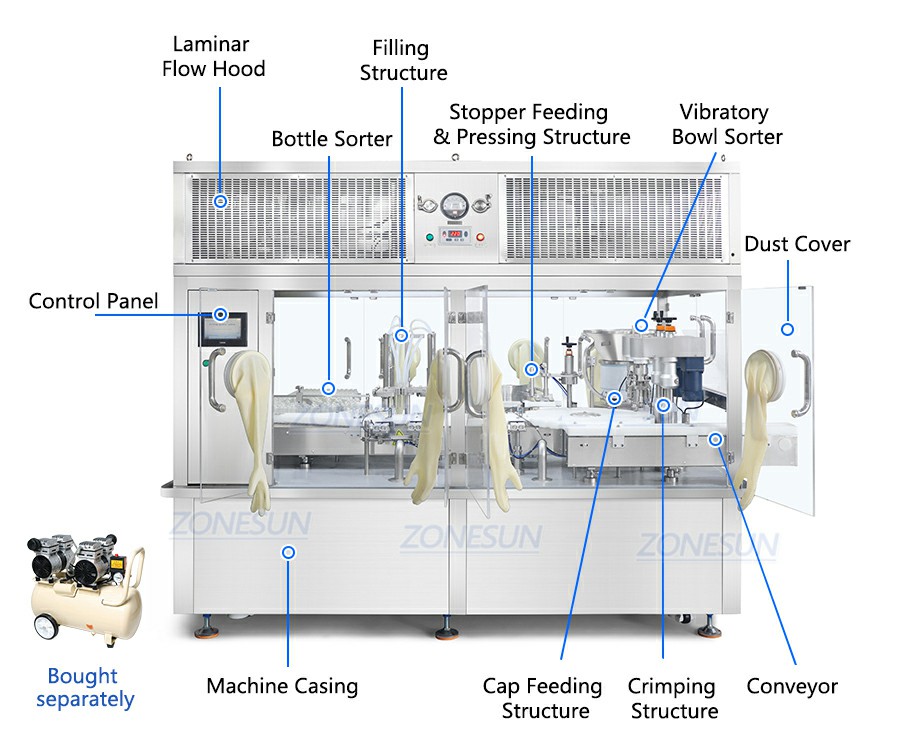

This model is consisting of water purification machine, stainless steel mixing tank, monoblock vial filling capping machine, and labeling machine. Built with servo ceramic pump, it enables precise filling for small-dose liquids. The model can automatically fill liquids, insert stoppers, place caps, crimp caps, and apply labels. It can automate the vial packaging of peptide medications, injectable antibiotics, laboratory chemicals, etc. The filling and capping system utilizes cam control, making it reach at high output of 60-80 bottles per minute. This glass medicine vial filling line can be customized according to your production needs.

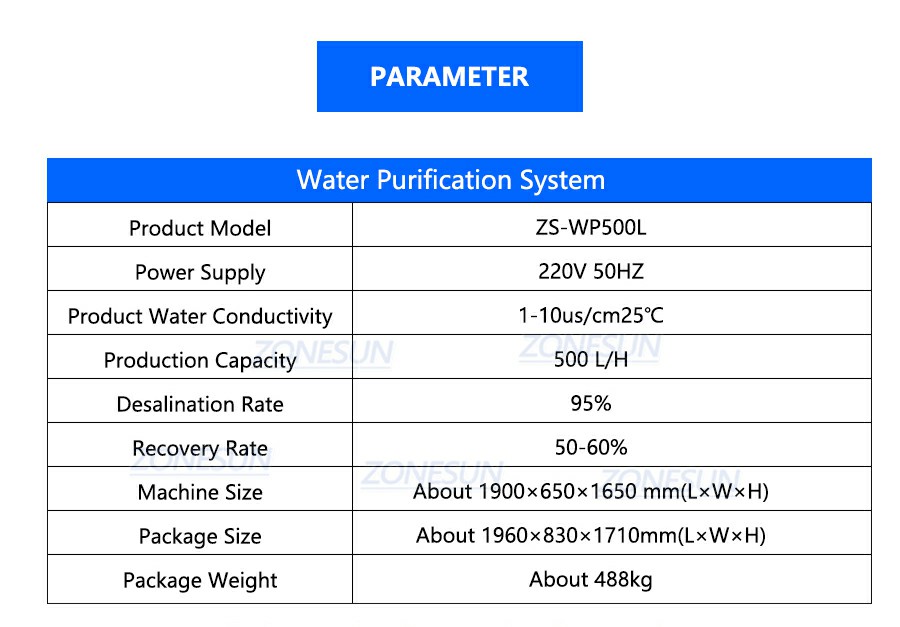

>Water Purification Machine
Machine Model | ZS-WP500L |
| Machine Voltage | 220V 50HZ |
Production Capacity | 500L/H |
| Product Water Conductivity | 1-10us/cm 25℃ |
Desalination Rate | 95% |
Recovery Rate | 50-60% |
| Machine Size | About 1900*650*1650mm(L*W*H) |
Package Size | About 1960*830*1710mm(L*W*H) |
| Package Weight | About 488KG |

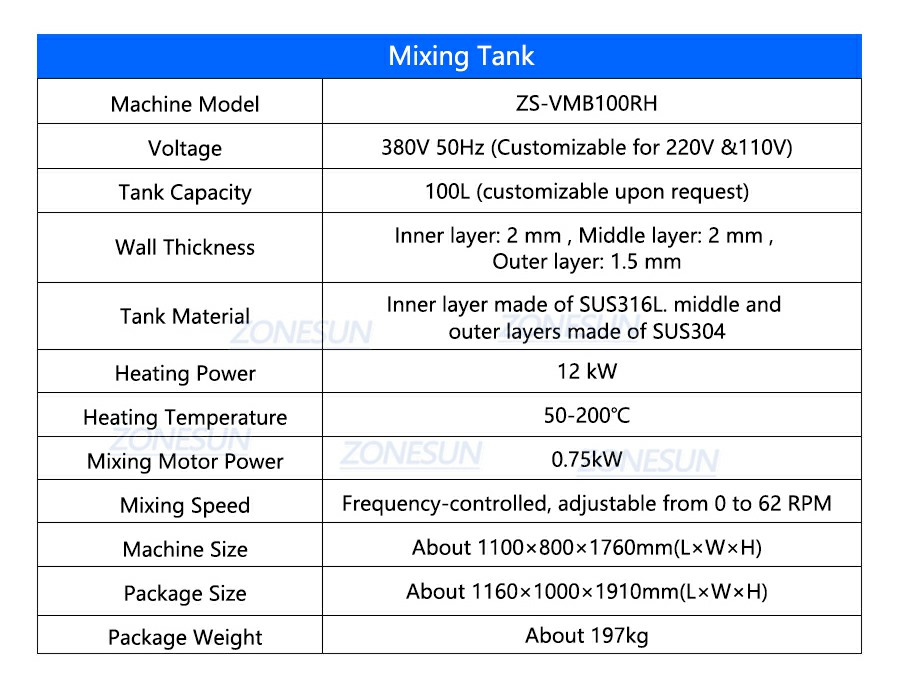

>Heating Mixing Tank
Machine Model | ZS-VMB100RH |
| Machine Voltage | 380V/220V/110V 50Hz |
Tank Capacity | 100L (Can be customized) |
| Wall Thickness | Inner layer: 2mm, Middle layer: 2mm, Outer layer: 1.5mm |
Tank Material | Inner layer made of SUS316L. Middle and outer layers made of SUS304 |
| Heating Power | 12KW |
Heating Temperature | 50-200℃ |
| Mixing Motor Power | 0.75KW |
Mixing Speed | Frequency-controlled, adjustable from 0 to 62RPM |
| Machine Size | About 1100*800*1760mm(L*W*H) |
Package Size | About 1160*1000*1910mm(L*W*H) |
| Package Weight | About 197KG |

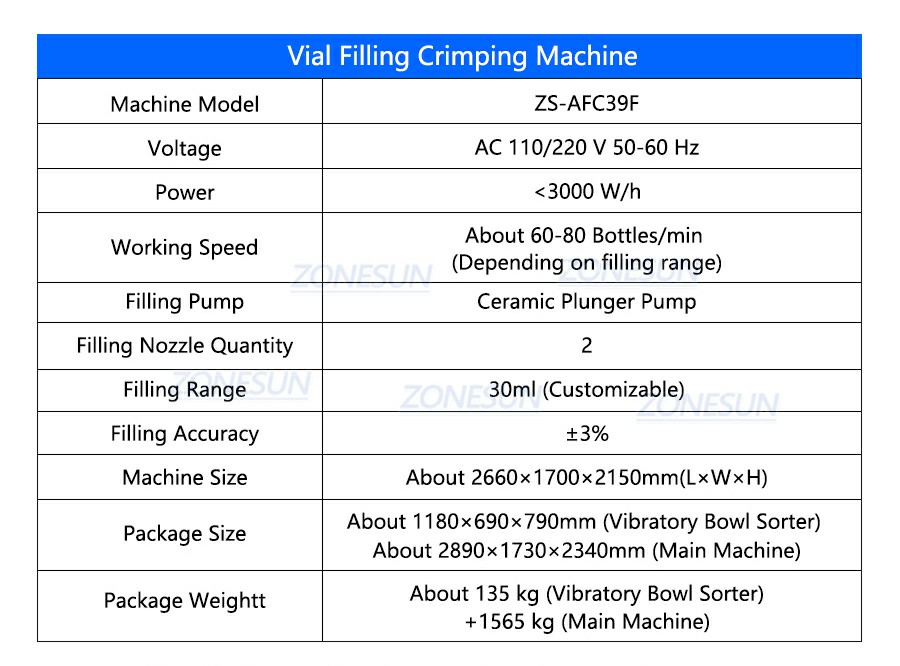

>Vial Filling And Capping Machine
Machine Model | ZS-AFC39F |
| Machine Voltage | AC 220V/110V 50-60Hz |
Power | <3000W/h |
Production Capacity | About 60-80 bottles/min (depending on filling range & materials) |
| Filling Pump | Ceramic Plunger Pump |
Filling Nozzle Quantity | 2 |
| Filling Range | 30ml (Can be customized) |
Filling Accuracy | ±3% |
| Machine Size | About 2660*1700*2150mm(L*W*H) |
Package Size | About 1180*690*790mm(Vibratory Feeder) About 2890*1730*2340mm (Main Machine) |
| Package Weight | About 135KG(Vibratory Feeder)+1565KG (Main Machine) |

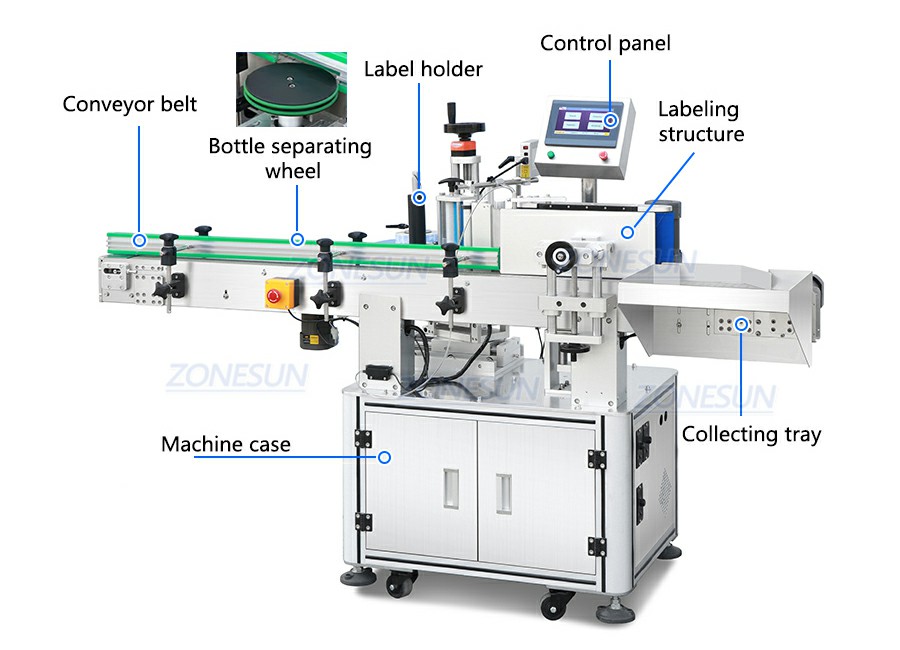

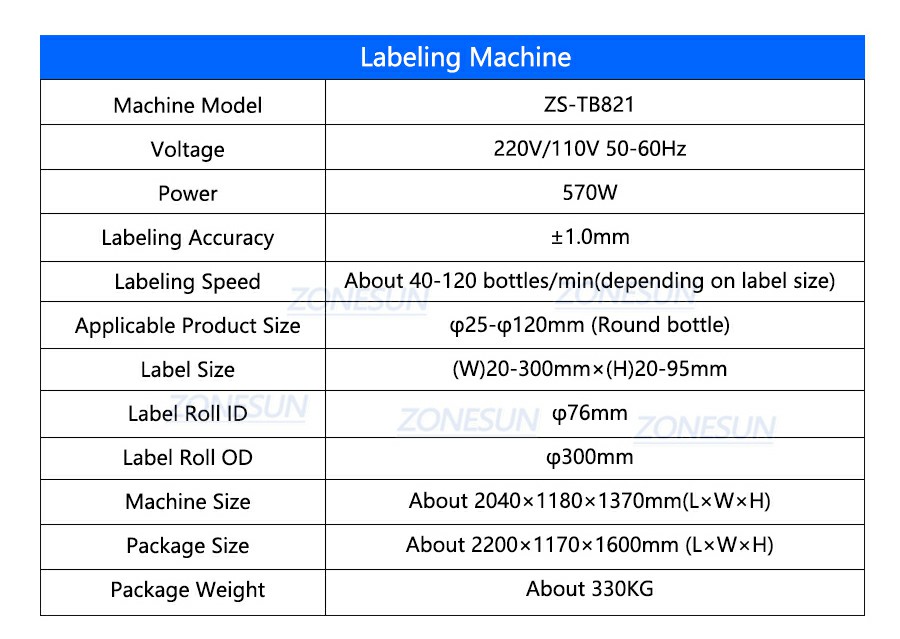

>Vial Labeling Machine
Machine Model | ZS-TB821 |
| Machine Voltage | 220V/110V 50-60Hz |
Power | 570W |
Labeling Speed | About 40-120 bottles/min(depending on product size) |
| Labeling Accuracy | ±1.0mm |
Applicable Product Size | φ25-φ120mm (Round bottle) |
| Label Size | (W)20-300mm*(H)20-95mm |
Label Roll ID | φ76mm |
| Label Roll OD | φ300mm |
Machine Size | About 2040*1180*1370mm(L*W*H) |
| Package Size | About 2200*1170*1600mm(L*W*H) |
Package Weight | About 330KG |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

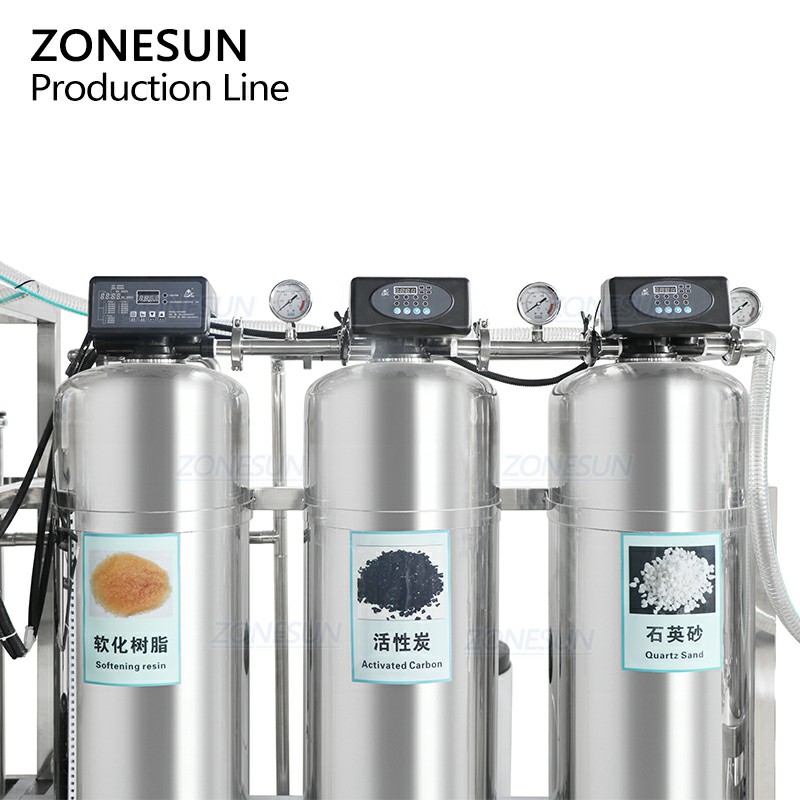

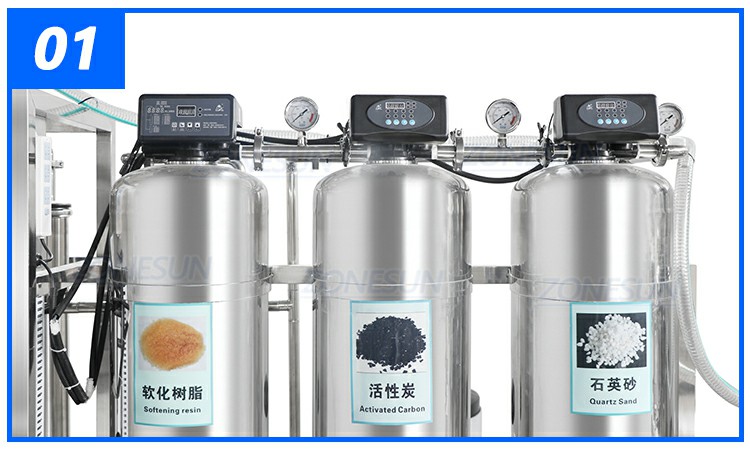

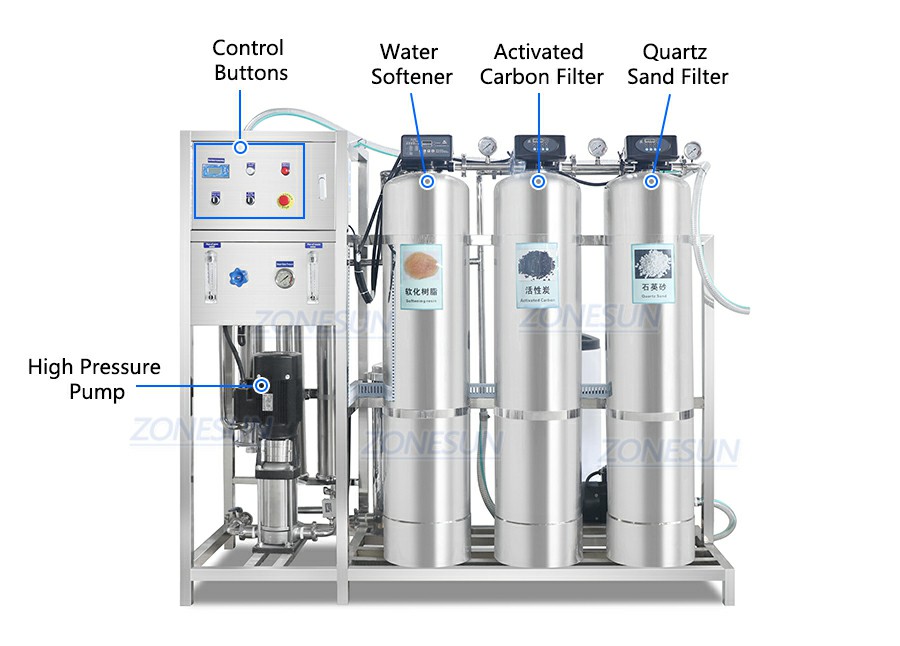

Water Purification Machine
With quartz sand, activated carbon, and softening resin to remove liquid contamination.

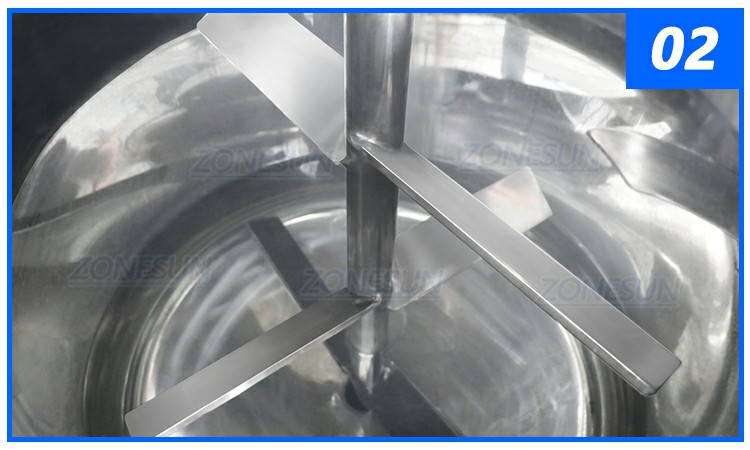

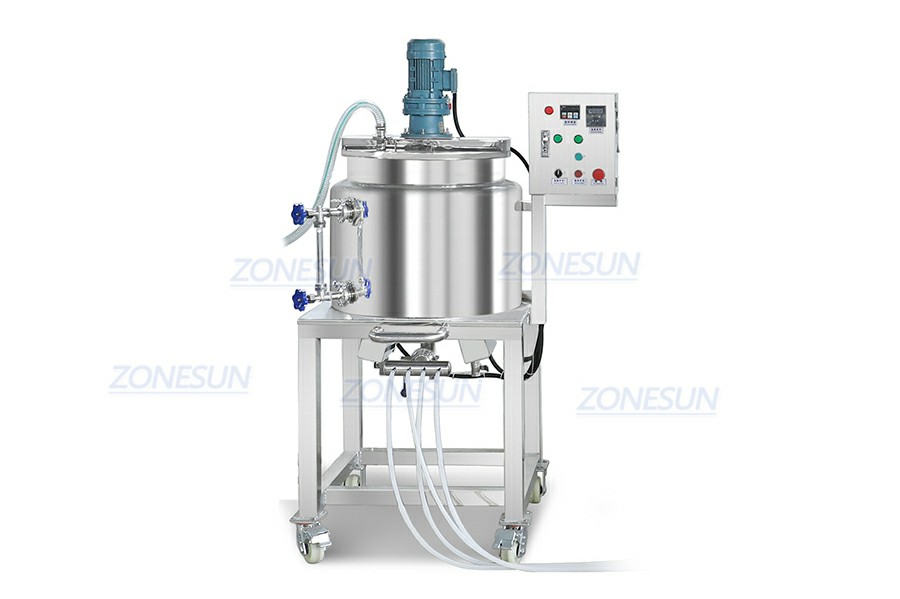

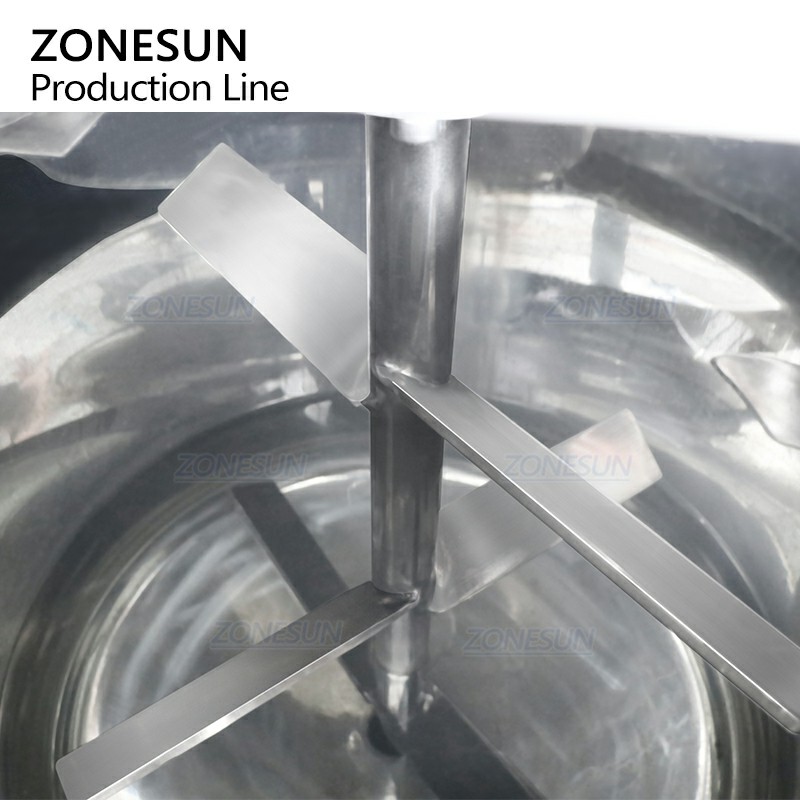

Material Mixing Tank
Mixing speed is adjustable, and tank capacity can be customized as production need.

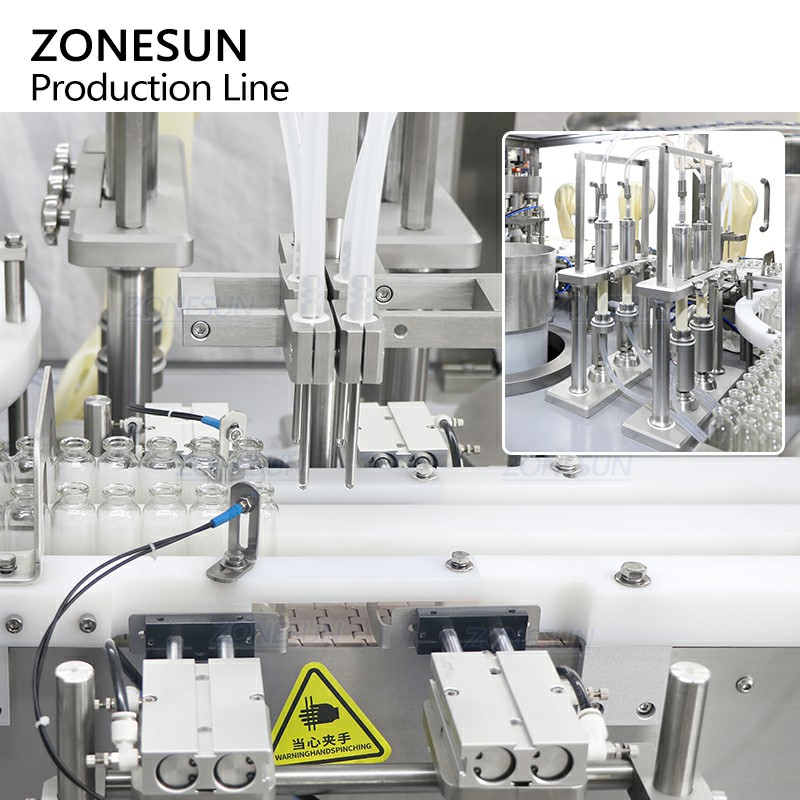

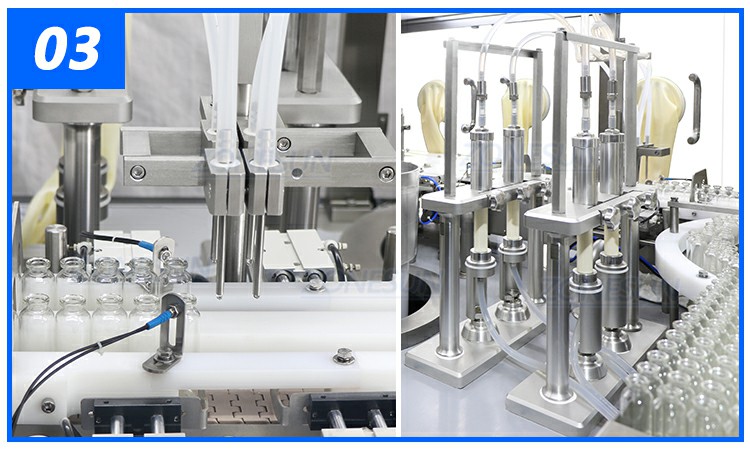

4 Heads Ceramic Pump Filling System
Servo filling system has high precision and suits for small-dose filling. Filling range is customized as production need.

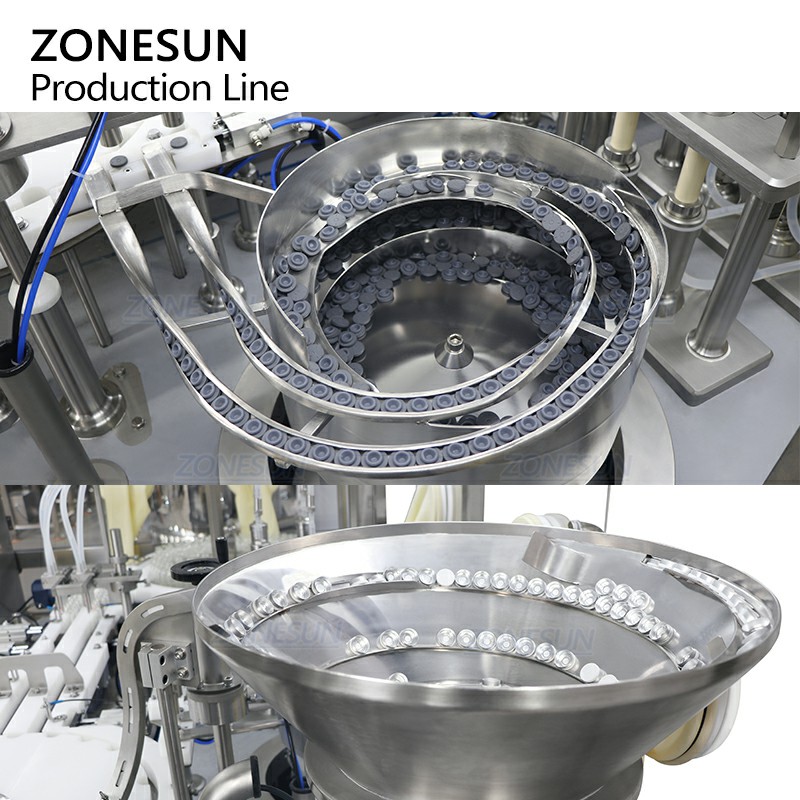

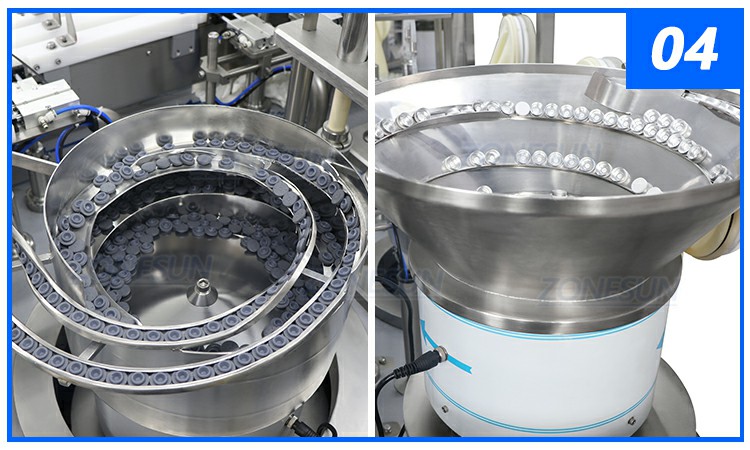

Double Vibratory Feeders
Capable of guiding the rubber stoppers and aluminum caps to loading station. The feeders are customized as your product size.

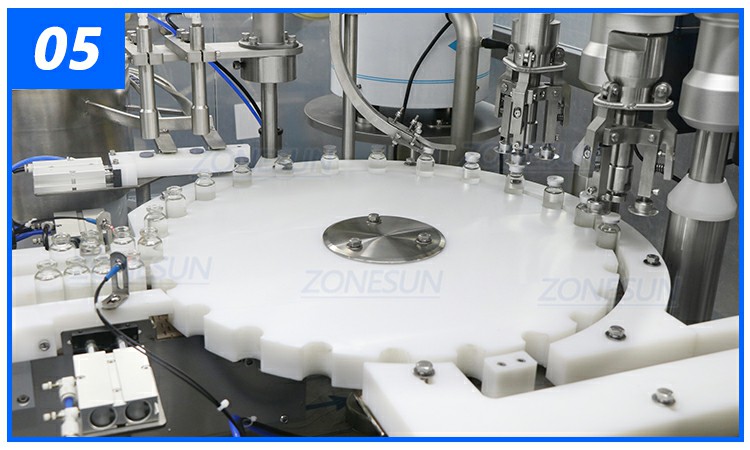

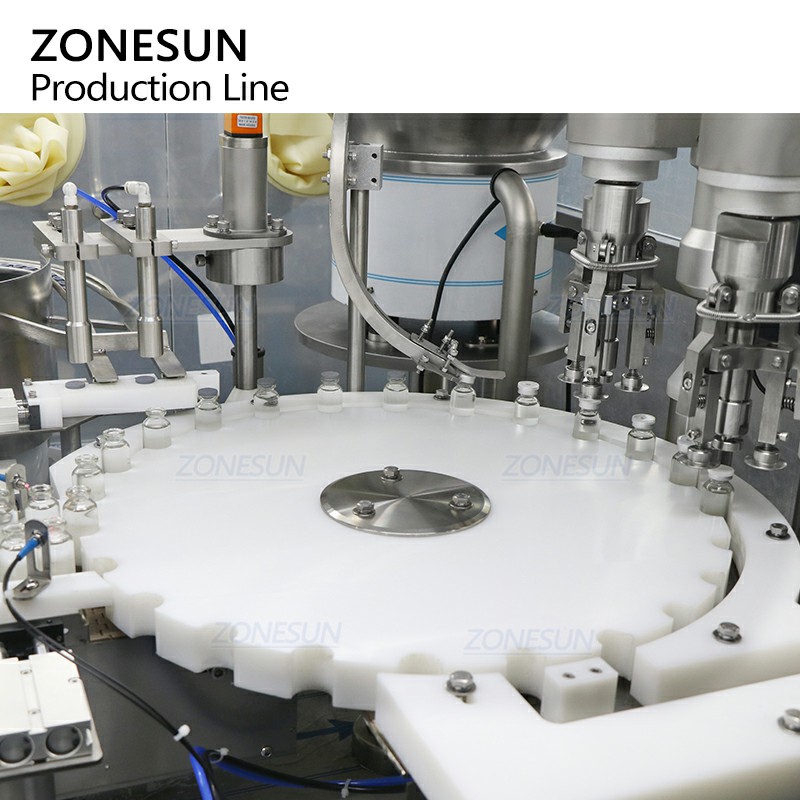

Cam-driven Stoppering & Capping System
Can realize continuous stopper inserting, cap placing and capping, whose speed can reach 60-80 bottles/min.

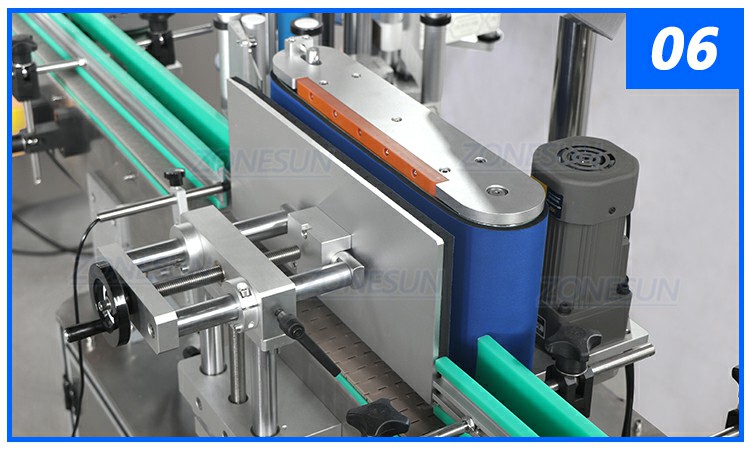

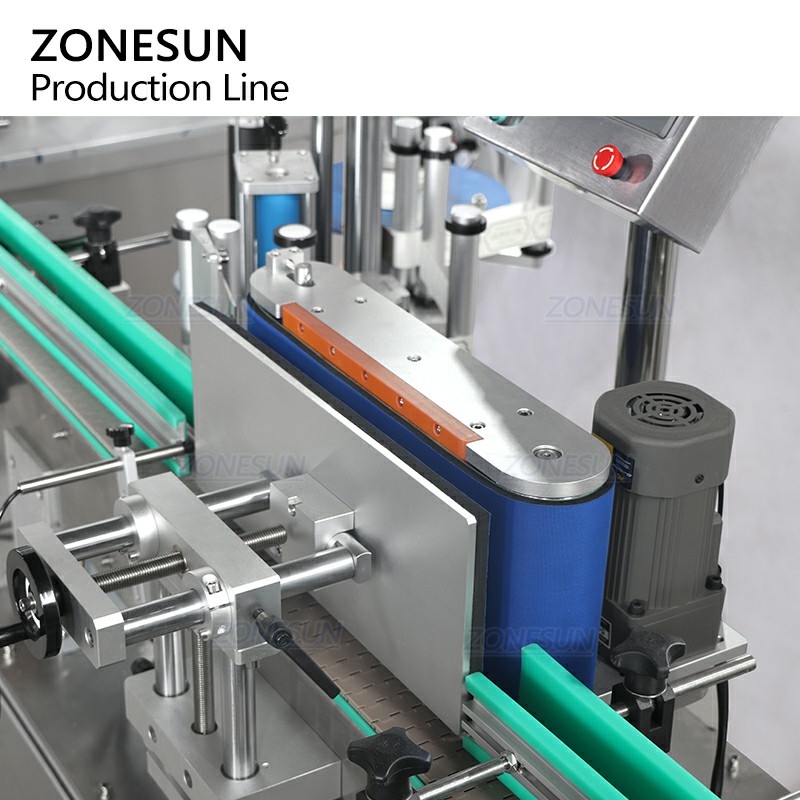

Belt Labeling System
Can apply labels to the side of vials automatically. It can work with date printer if needed.

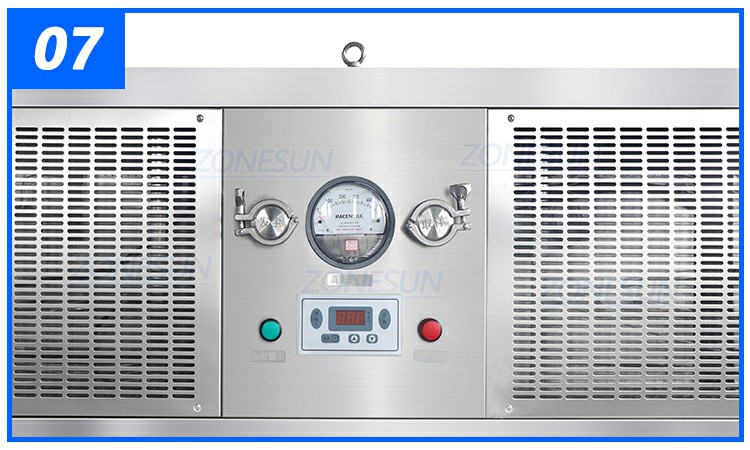

Class 100 Laminar Flow Hood
Can supply filtered clean air over filling and capping area to avoid microbial contamination.
- Applicable Containers: Glass vials.
- Applicable Products: Injectable antibiotics, peptide medications, diagnostic reagents, laboratory chemicals, hyaluronic acid solutions, etc.
- Applicable Industries: Pharmaceutical, biochemical, cosmetic medicine industries.
