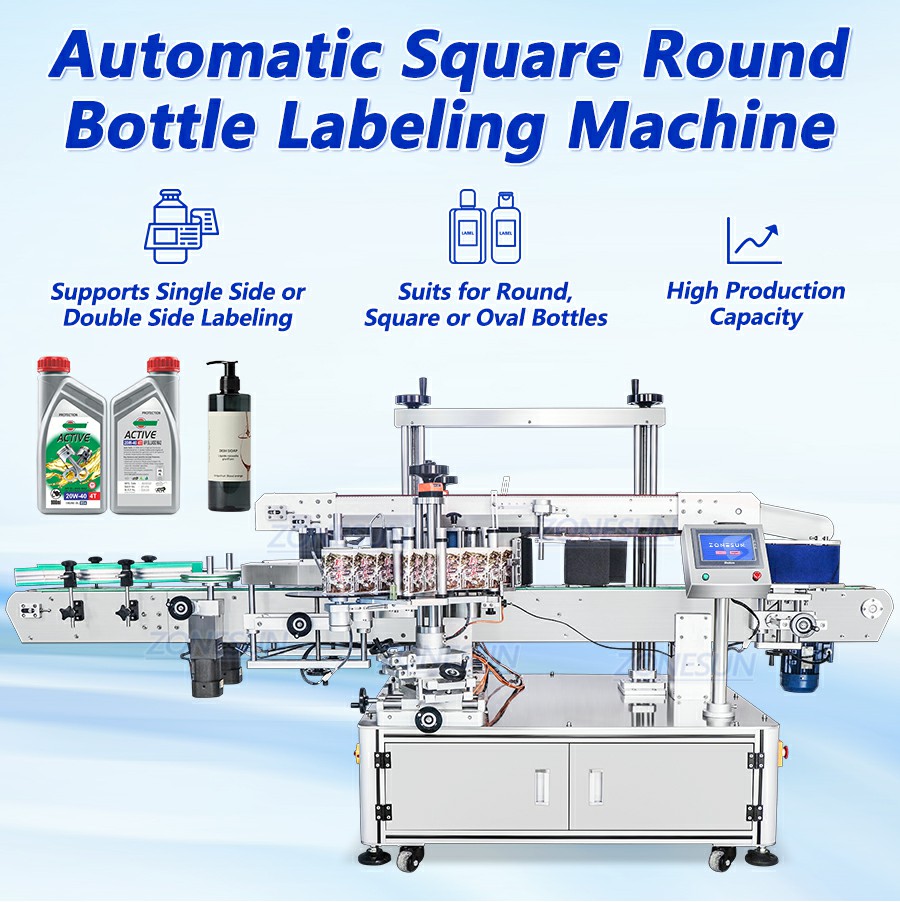

ZS-TB963 Automatic Liquid Soap Juice Bottle Labeling Machine For Stickers
🎄 Can handle round bottles, square bottles, F-style bottles.
🎄 Machine output is 1800-3000BPH.
🎄 Can realize single side and front-and-back labeling.
🎄 Can work with ribbon coder for automatic date printing.
🎄 Machine is customized based on bottle side and shape.
🎄 Machine can be integrated into production line.
Video
Share to:

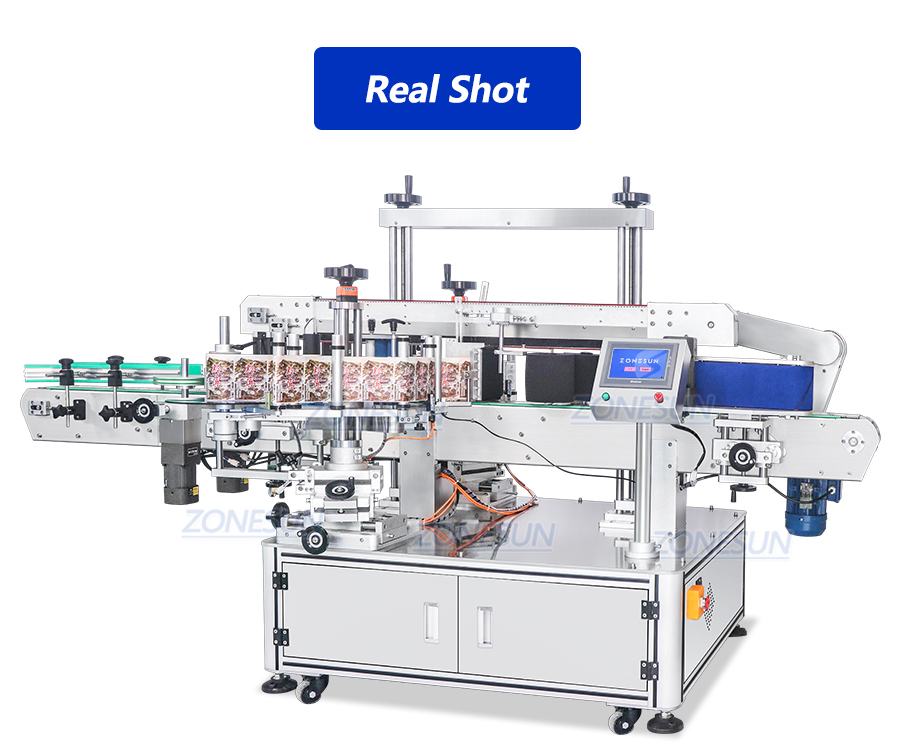

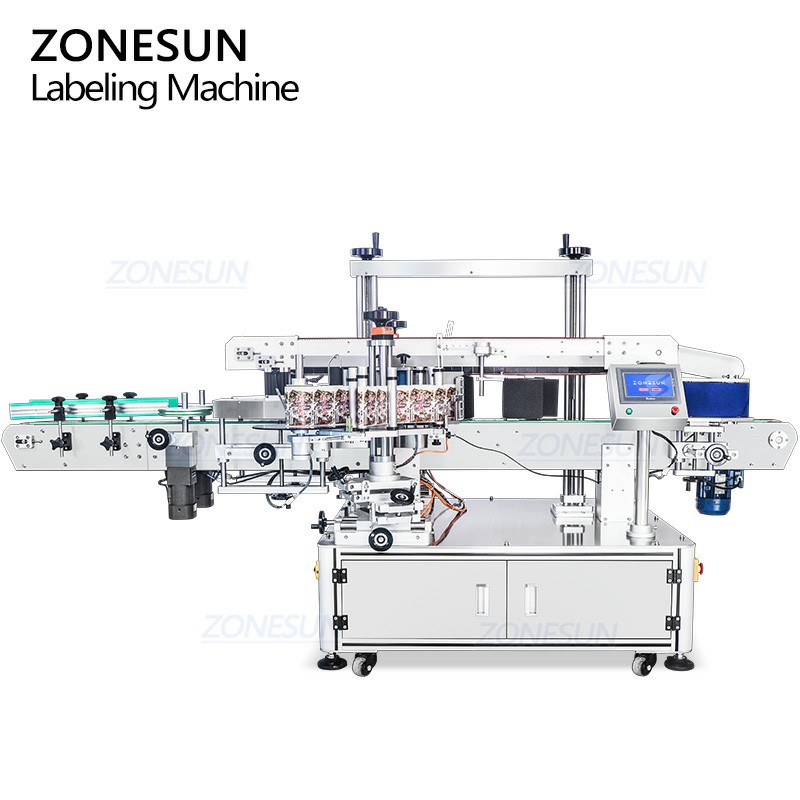

Description of the Automatic Juice Bottle Labeling Machine:
The ZS-TB963 model is a multifunctional automatic bottle labeling machine which can be used for round and square containers. It is an ideal choice for the users who wanna label cylindrical and square bottles on the same machine. It can realize single side, front-and-back, and wrap around labeling. The labeling components are adjustable to fit different sizes of bottles. This model can be equipped with ribbon coder or inkjet printer, which can automatically print expiration dates on labels. The machine can handle cosmetics, foods, drinks, daily chemical products, medicines. This automatic sticker labeling machine can also work with filling and capping systems to realize automated production.

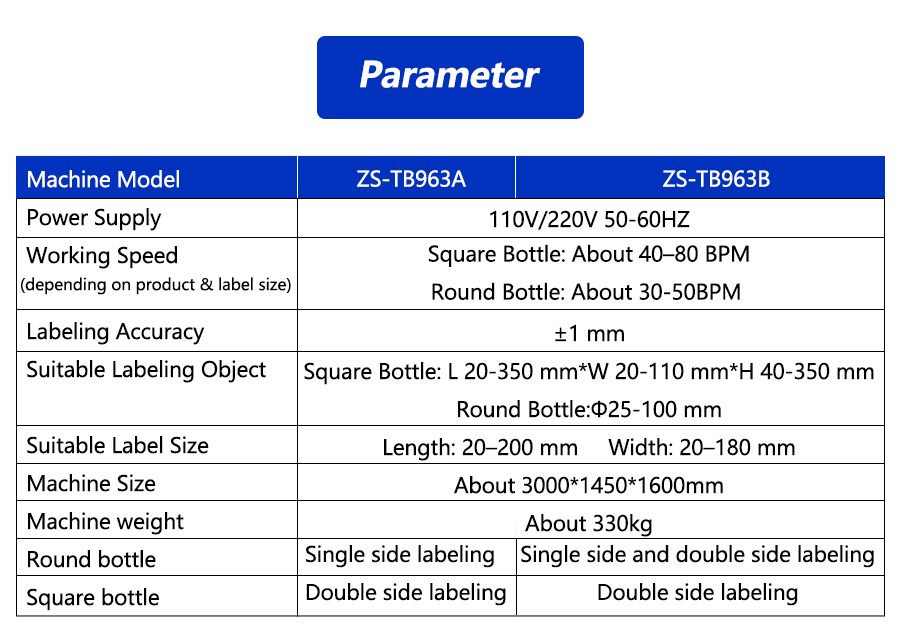

Machine Model | ZS-TB963A | ZS-TB963B |
Machine Voltage | 110V/220V/380V 50-60Hz | |
| Labeling Speed | Square Bottle: About 40-80BPM Round Bottle: About 30-50BPM (depending on product and label size) | |
Labeling Accuracy | ±1mm | |
| Applicable Product Size | Square Bottle: 20-350mm(L)* 20-110mm(W)* 40-350mm(H) Round Bottle: φ25-100mm | |

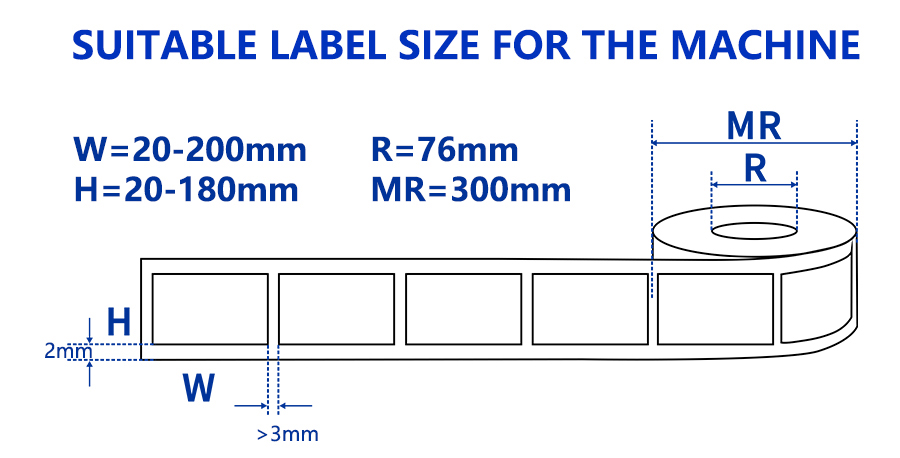

Applicable Label Size | 20-200mm(Length) * 20-180mm(Width) | |
| Machine Size | About 3000*1450*1600mm | |
Machine Weight | About 330kg | |
| Round Bottle | Single Side Labeling | Single Side And Double Side Labeling |
Square Bottle | Double Side Labeling | Double Side Labeling |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

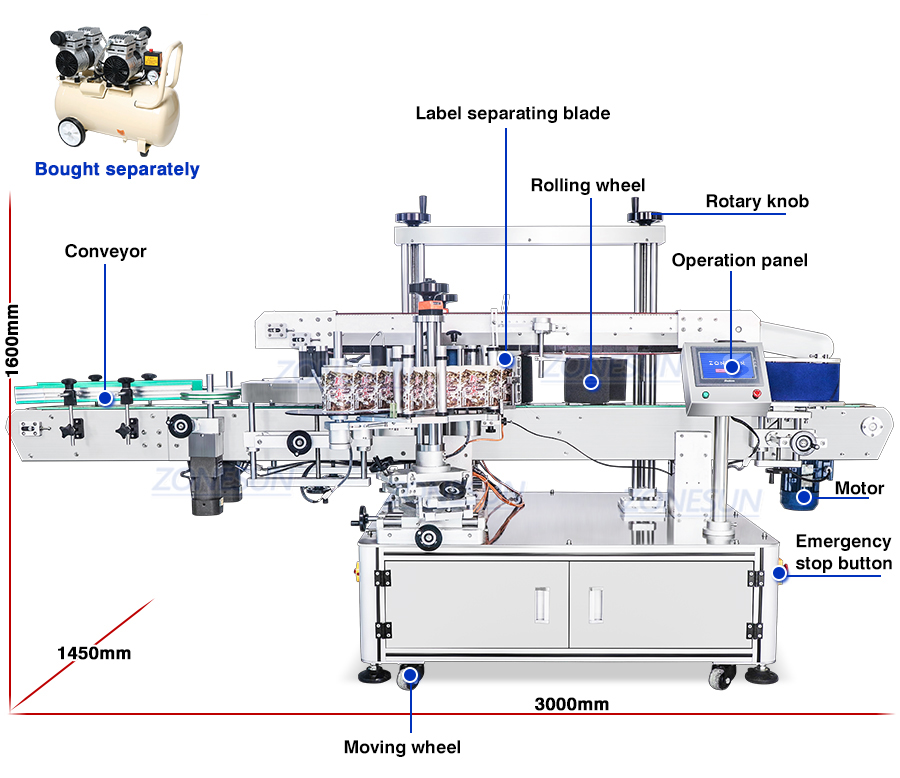

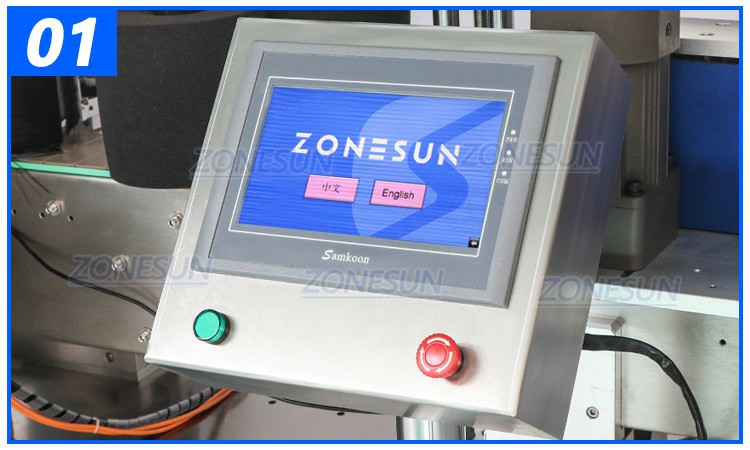

PLC Control & Touch Screen
Intuitive control panel enables easy settings change and real-time monitoring. It can be customized into different languages if needed.

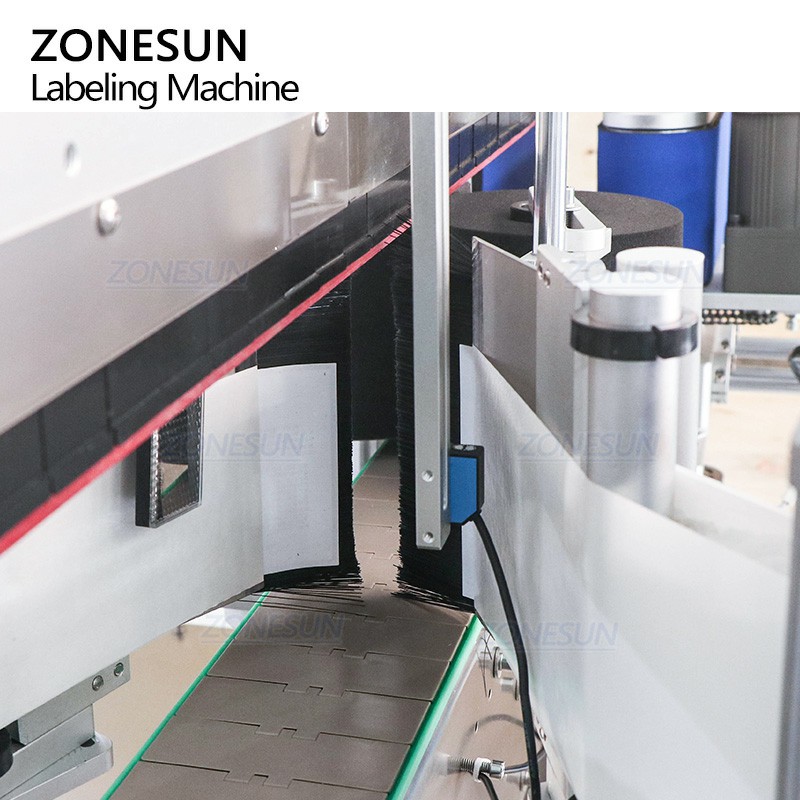

Dual Label Applicators
Can realize single or double sides labeling. It can label flat bottles, square bottles, f style bottles.

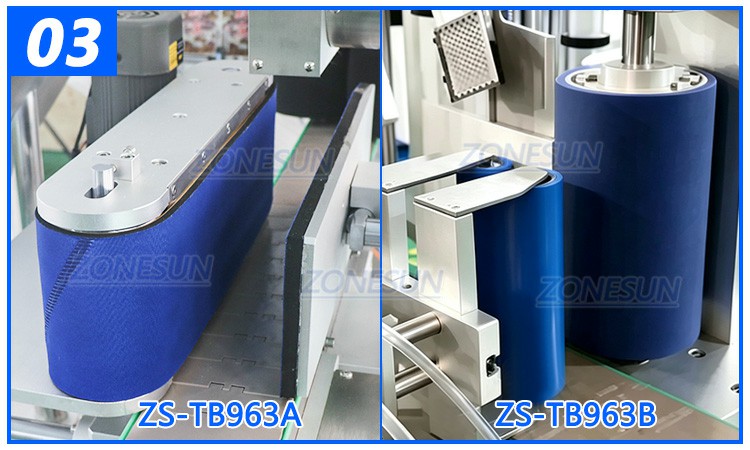

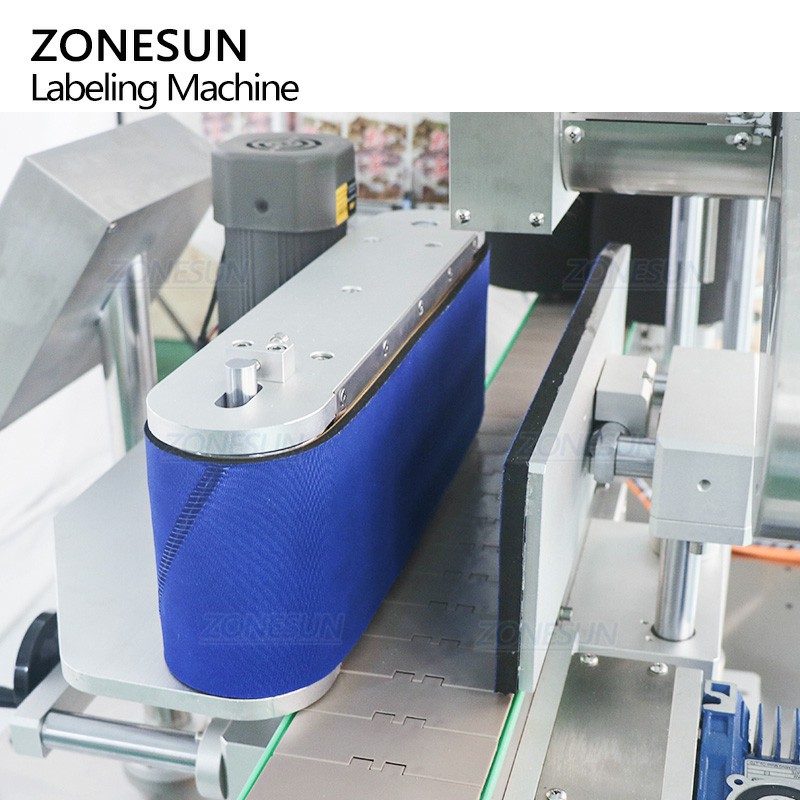

Customized Labeling Structures
Models A and B offer different labeling methods for cylindrical containers. A is suitable for single-sided labeling (not wrap-around). B can realize single-side, double-side and wrap-around labeling.

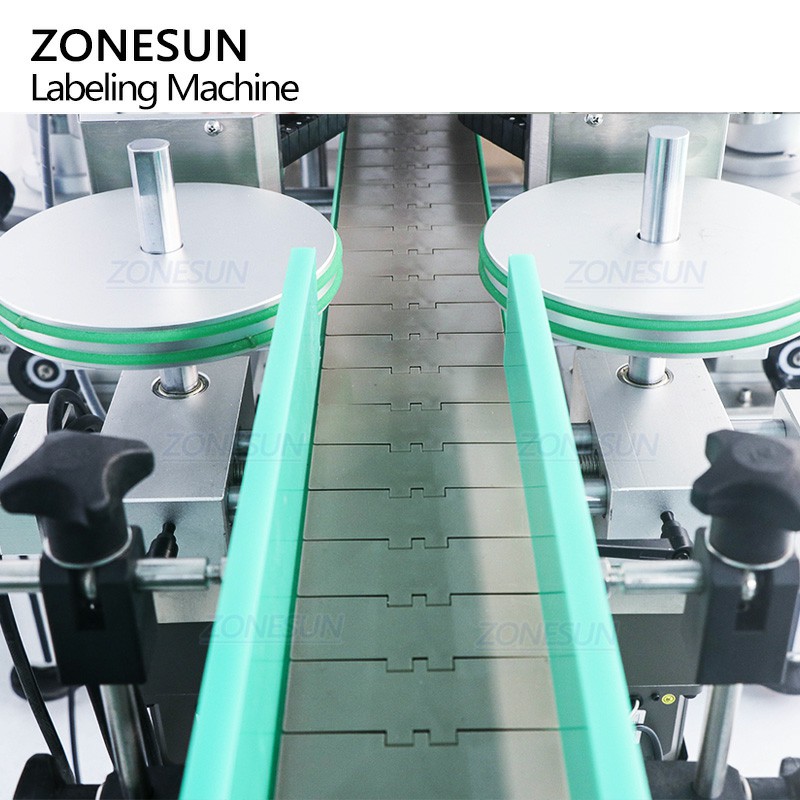

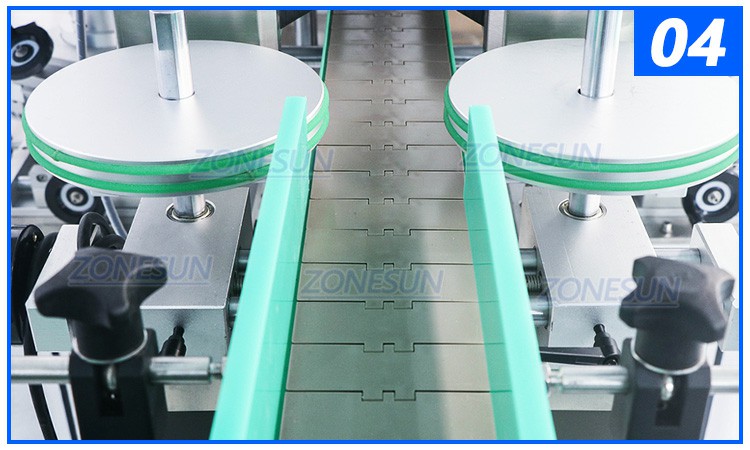

Bottle Separating & Conveying System
Capable of controlling the bottle space and conveying them to labeling station stably. This ensures smooth labeling performance.

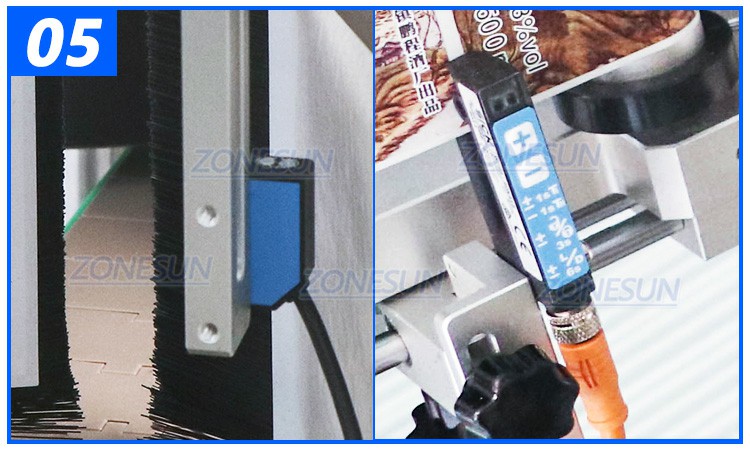

Intelligent Label Sensor
Can detect the labels and trigger label feeding action, ensuring every label is applied at the accurate position.

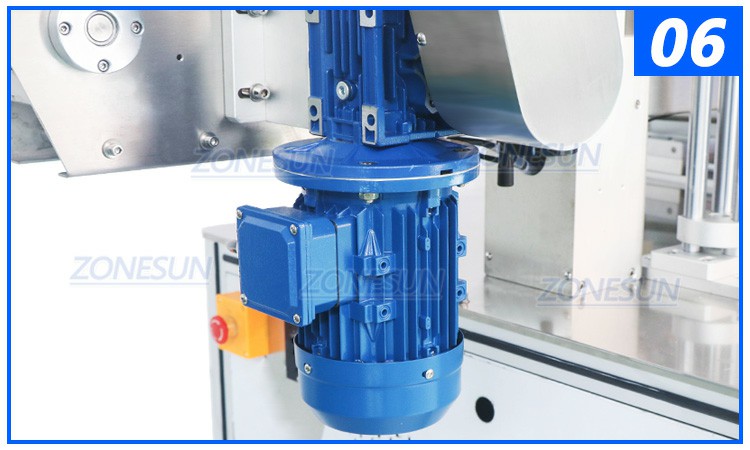

Powerful Motor
Can provide the high rotational speed and torque, supporting efficient bottle labeling operation.
- Applicable Labels: Self-adhesive labels (Normal or transparent labels).
- Applicable Bottles: Round bottles, square bottles, plastic canisters, tin cans, etc.
- Applicable Products: Sauce, engine oil, body wash, honey, detergent, coconut water, whiskey, shampoo, etc.
- Applicable Industries: Daily chemical,food, beverage, cosmetic, chemical, medicine industries.
