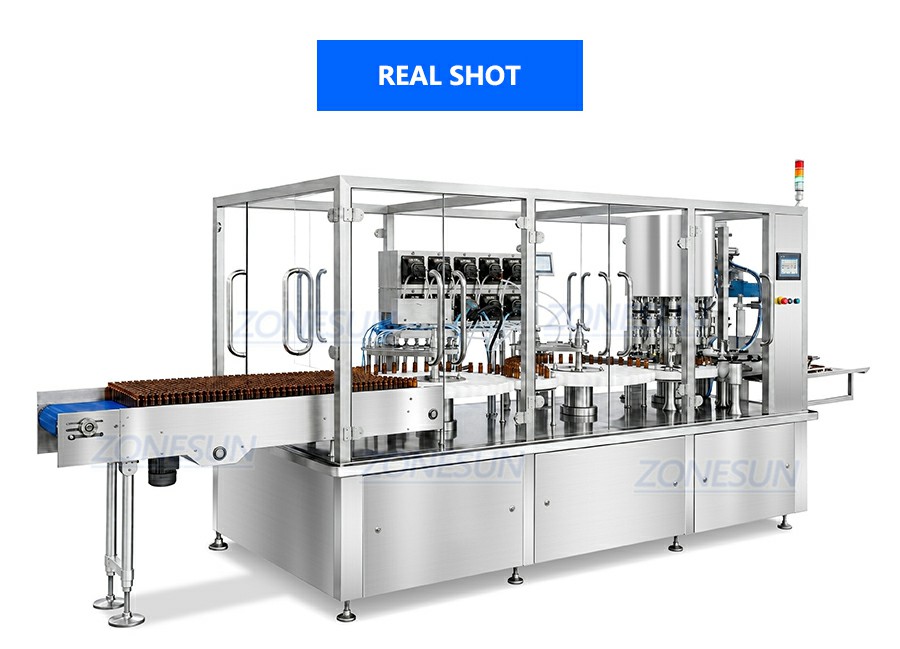

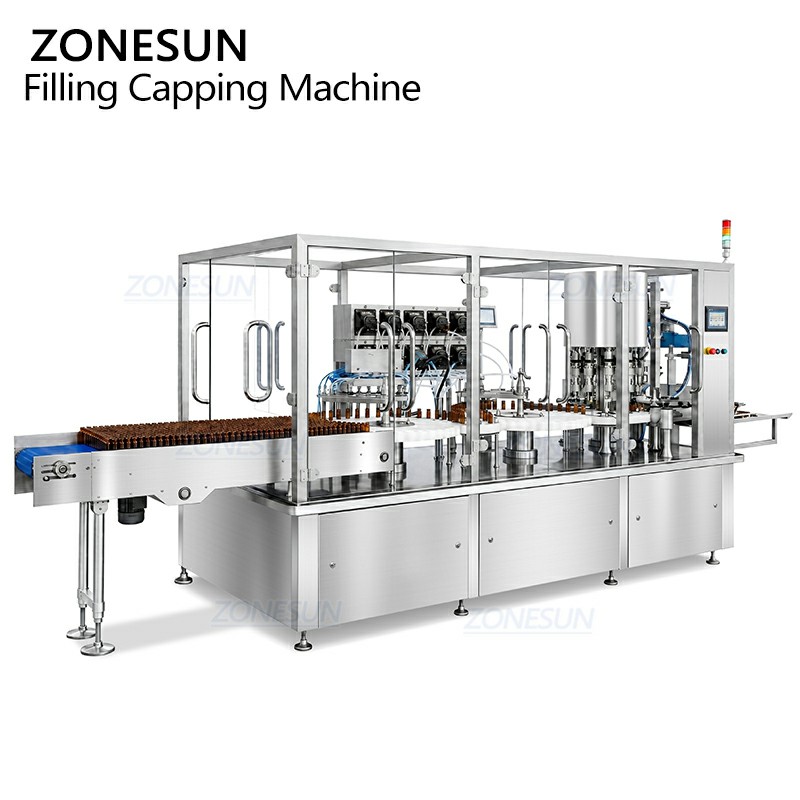

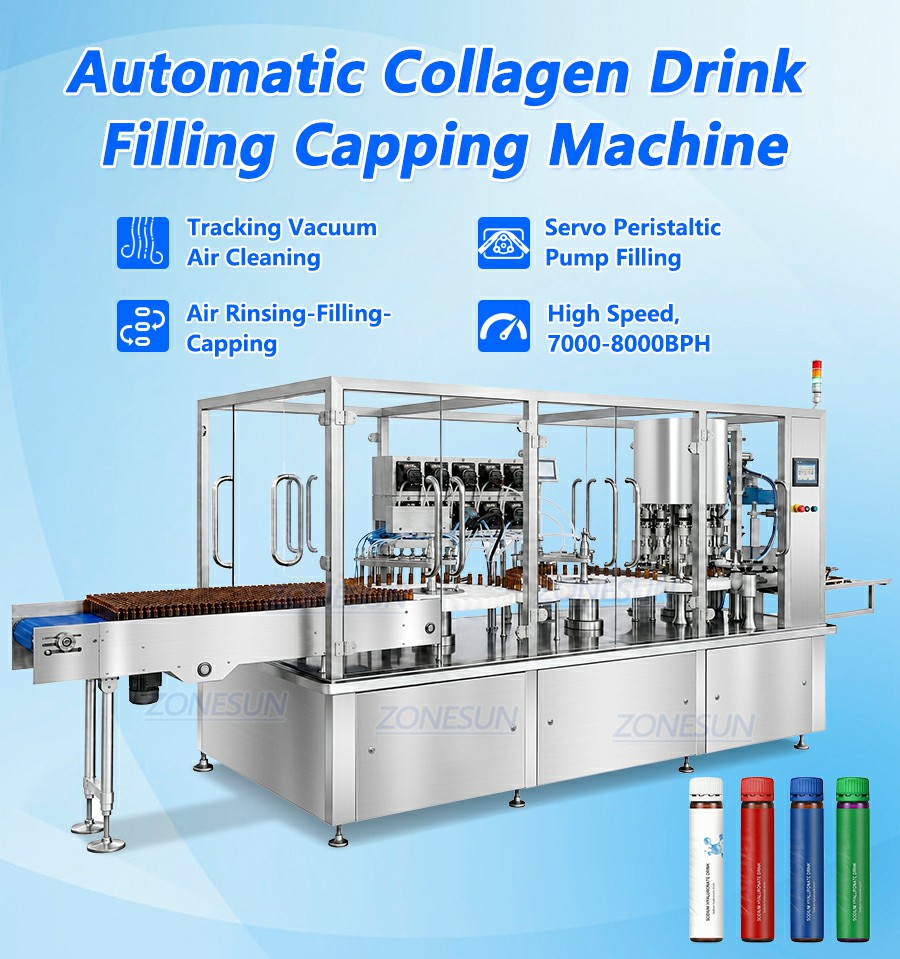

ZS-AFC39W Automatic Liquid Syrup Bottle Filling Capping Machine With Air Rinser

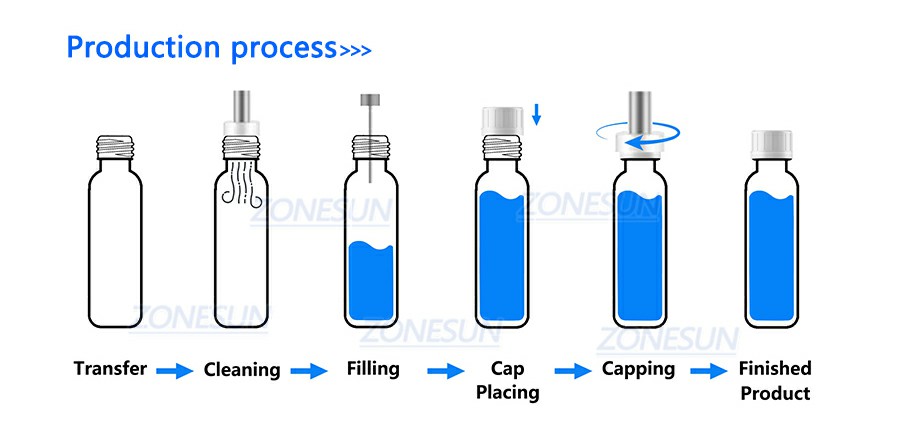

🎄 Combines air rinsing, filling, cap feeding and capping.
🎄 Machine output is 7000-8000BPH.
🎄 With servo peristaltic pumps for precise liquid dosing.
🎄 Machine is customized based on bottle and cap size.
🎄 With dust cover to prevent dust contamination.
🎄 Machine can work with bottle labeler and cartoner.
Video
Share to:
Description of the Automatic Liquid Syrup Bottle Filling Capping Machine:
The ZS-AFC39W model is capable of rinsing, filling and capping small bottles at speed of 7000 to 8000 bottles per hour. Using tracking-type air rinsing, it can remove the dust from bottle insides before filling. With servo peristaltic pumps, it offers precise volume control, which can fill collagen drinks, liquid vitamins, oral liquids, etc. The capping system uses magnetic clutch to place and screw caps to bottles securely. This model can be customized to fit your bottle and cap sizes. The automatic liquid syrup filling machine can also work with other packaging equipment to complete automation.

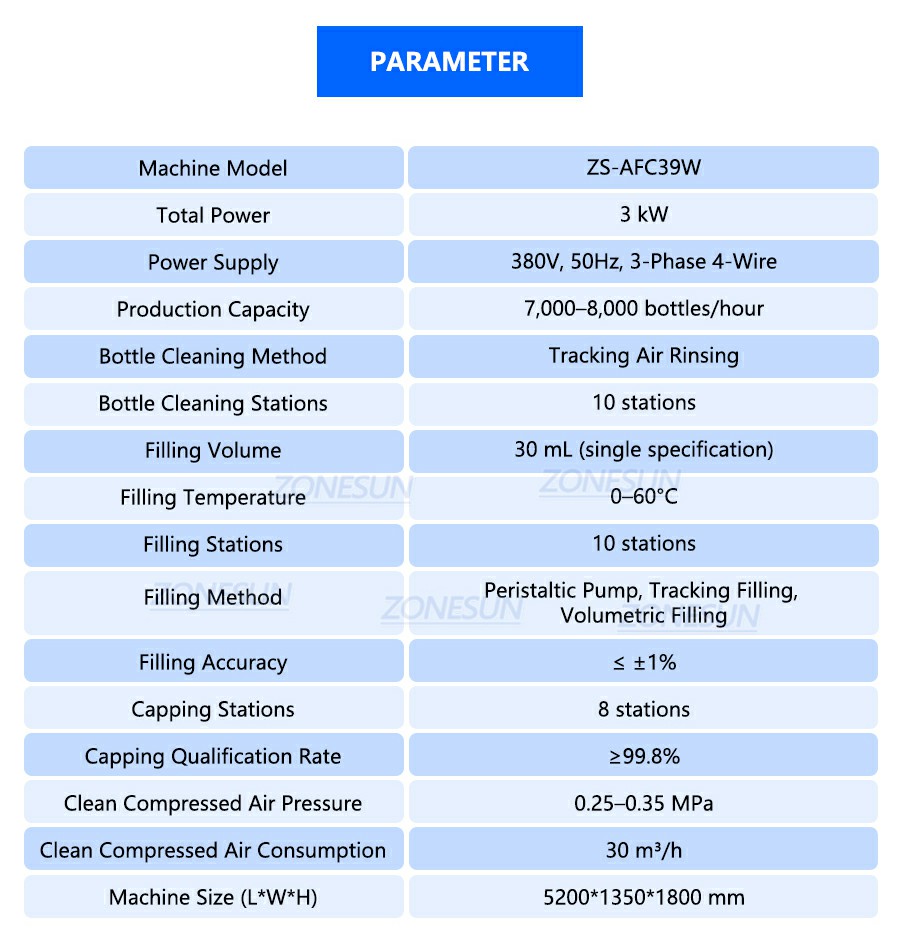

Machine Model | ZS-AFC39W |
Machine Voltage | 3-Phase 4-Wire 380V 50Hz |
| Total Power | 3KW |
Working Speed | About 7000-8000 bottles/hour(depending on filling range and materials) |
| Bottle Cleansing System | Tracking Air Rinsing |
Bottle Cleaning Heads | 10 Heads |
| Filling System | Peristaltic Pump, Tracking Filling, Volumetric Filling |
Filling Volume | 30ml (Single Specification) |
| Filling Accuracy | ≤1% |
Filling Temperature | 0-60℃ |
| Filling Heads | 10 Heads |
Capping Heads | 8 Heads |
| Capping Qualification Rate | ≥99.8% |
Compressed Air Supply | 0.25-0.35MPa, 30m³/hour |

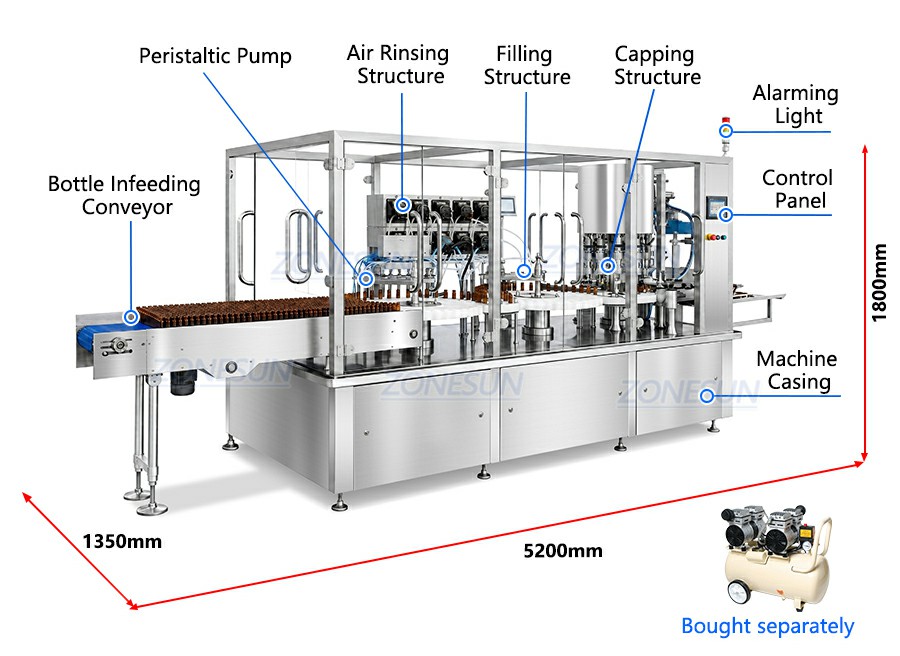

| Machine Size | About 5200*1350*1800mm |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

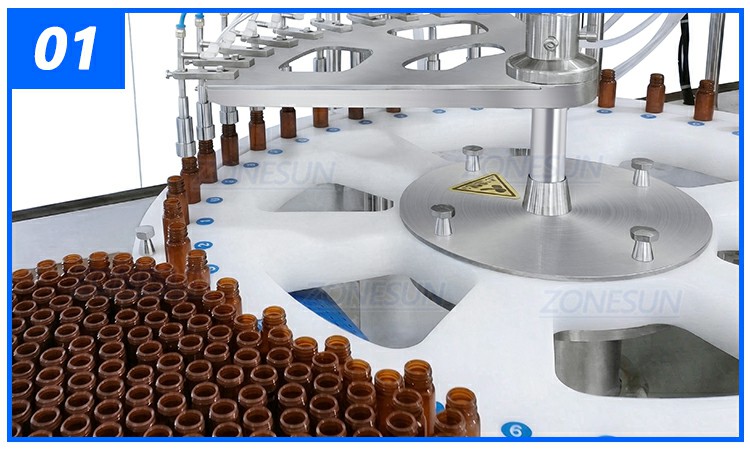

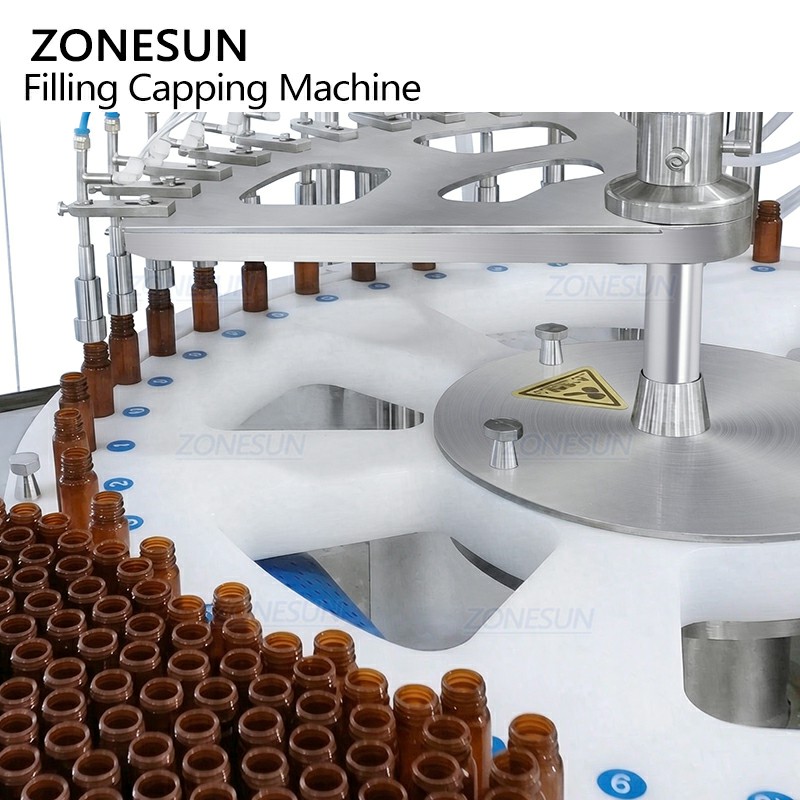

10 Heads Air Rinsing System
With vacuum suction and air blowing structure to remove the dust from empty bottles. The rinsing heads are tracking type, which can move in sync with bottles.

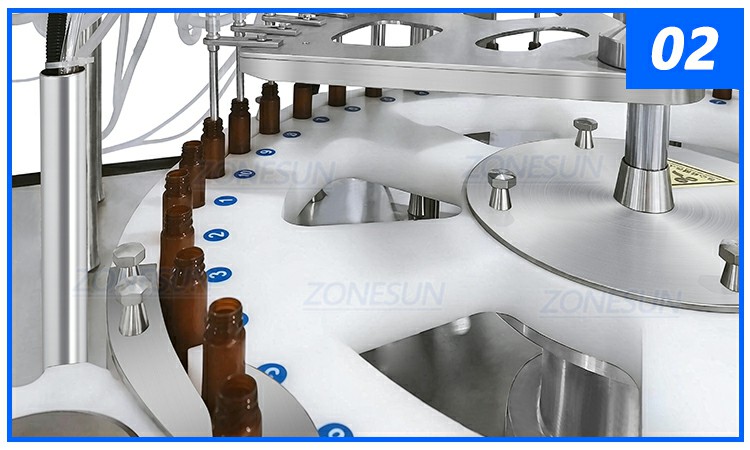

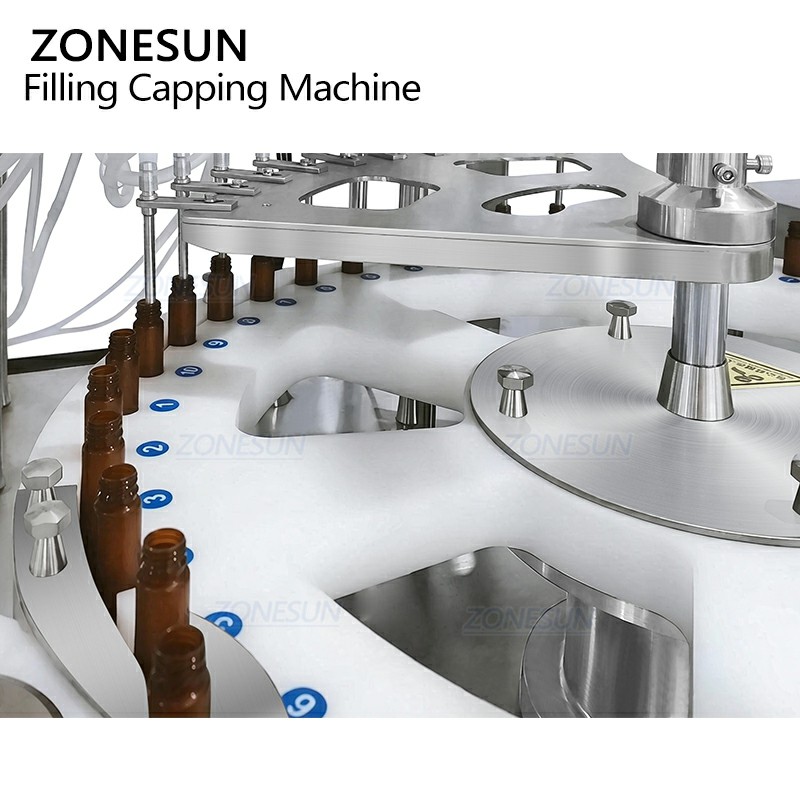

10 Heads Peristaltic Filling System
Servo peristaltic pumps ensure precise liquid dosing, and enable quick tubing changing for filling different materials.

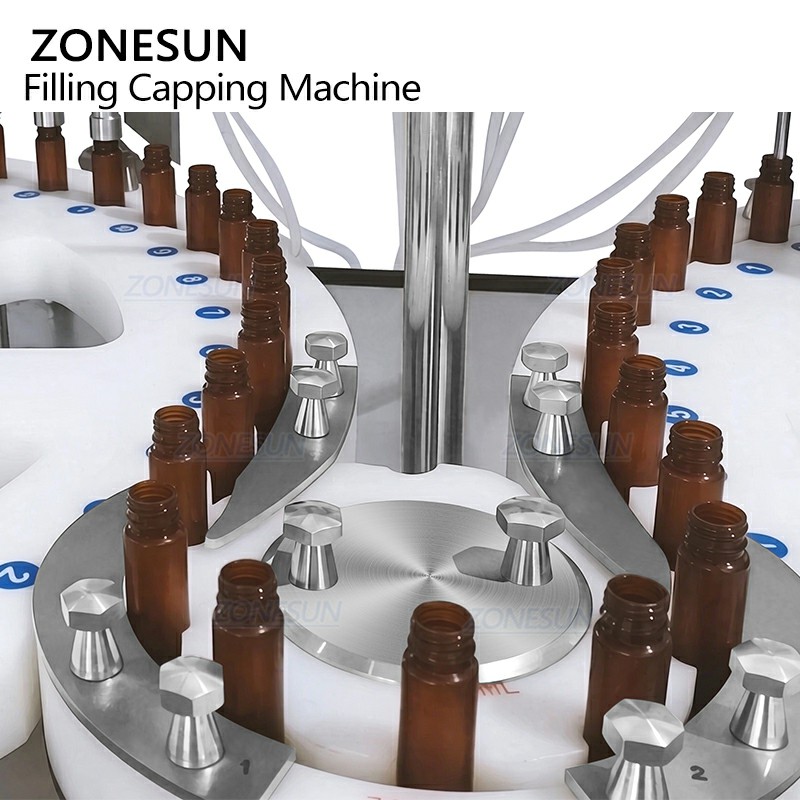

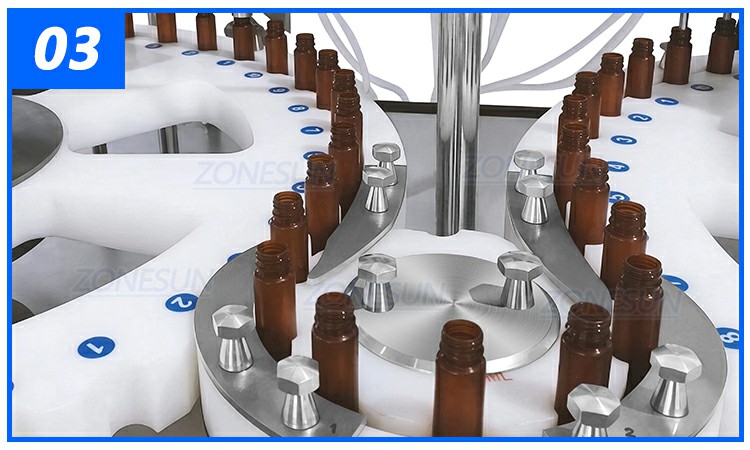

Starwheel Indexing System
Can realize accurate bottle positioning and smooth transferring during high-speed operation. The starwheel is customized according to bottle size.

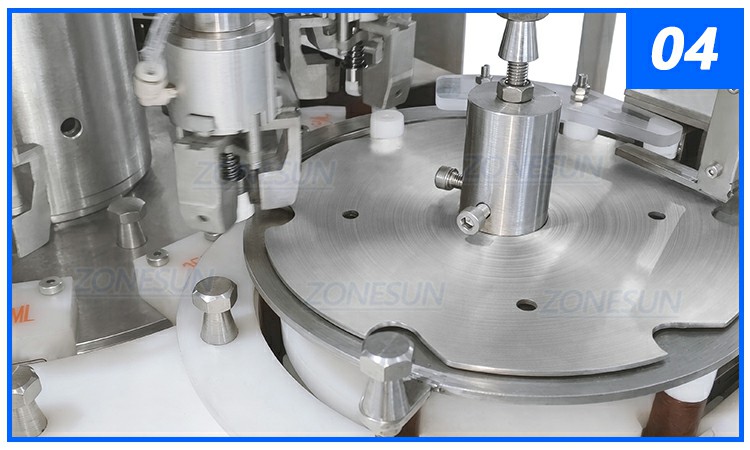

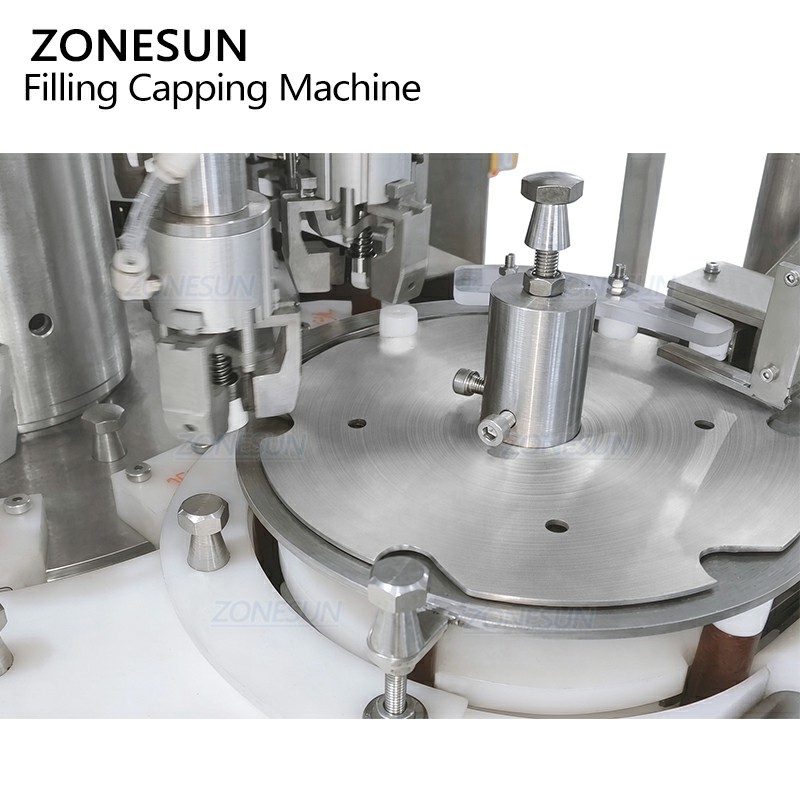

8 Heads Capping System
Magnetic capping heads can continuously pick up and screw the caps to a controlled torque. They can be customized according to your product size.
Bottle Collecting Tray
Capable of receiving the finished products, which is convenient for downstream inspection or packaging.
- Applicable Bottle Caps: Screw-type Caps.
- Applicable Products: Liquid vitamins, collagen drinks, oral liquids, syrups, etc.
- Applicable Industries: Daily chemical, medicine, cosmetic, beverage, biochemical industries.
