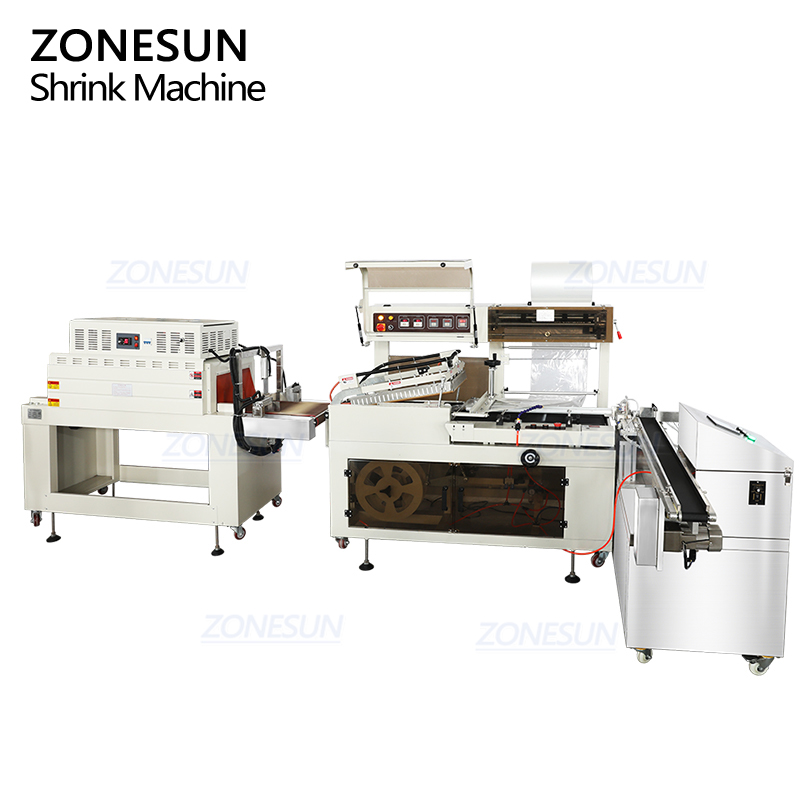

ZS-SPL9 Automatic Multipack Box Film Shrink Packaging Machine
🎄 Can realize product sorting, film wrapping & shrinking.
🎄 Machine output is 900-1800pcs/hour.
🎄 Supports multi-pack or individual packaging.
🎄 Sealing temperature is adjustable for different film materials.
🎄 Machine is customized according to product size.
🎄 Can work with cartoning machine.
Video
Share to:

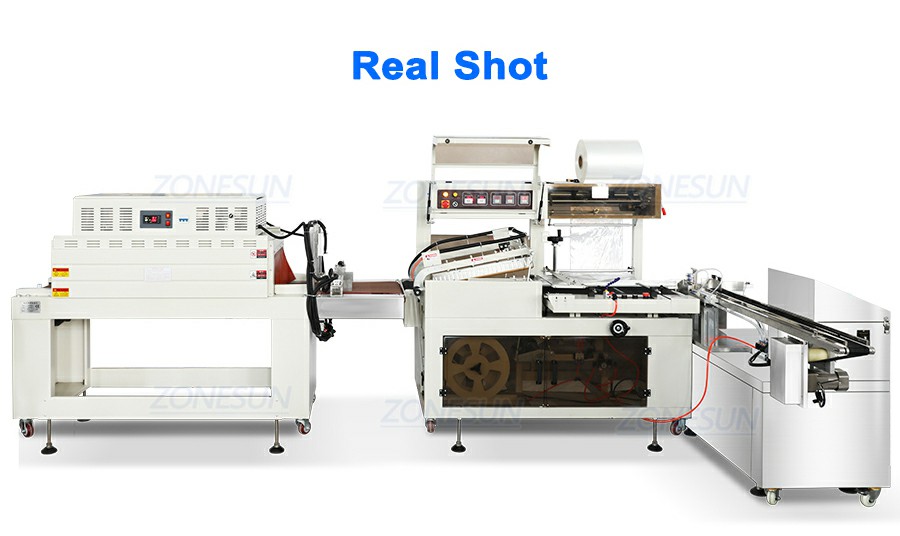

Description of the Automatic Shrink Packaging Machine:
This model is consisting of product sorting machine, shrink film wrapping machine and heat shrink tunnel. It performs automatic processes of arranging products, wrapping films around products, cutting films, and shrinking films. The machine can be used for multi-pack or individual packaging. It can handle PVC, PE or POF films. The film shrink packaging machine can be customized according to your production needs.

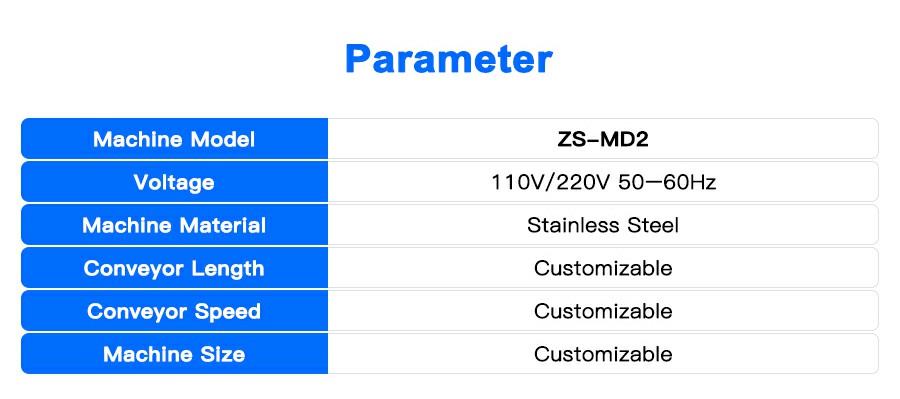

>Product Sorting Machine
Machine Model | ZS-MD2 |
| Machine Voltage | 220V/110V 50-60Hz |
Machine Material | Stainless Steel |
| Conveyor Size | Can be customized |
Conveying Speed | Can be customized |
| Machine Size | Can be customized |

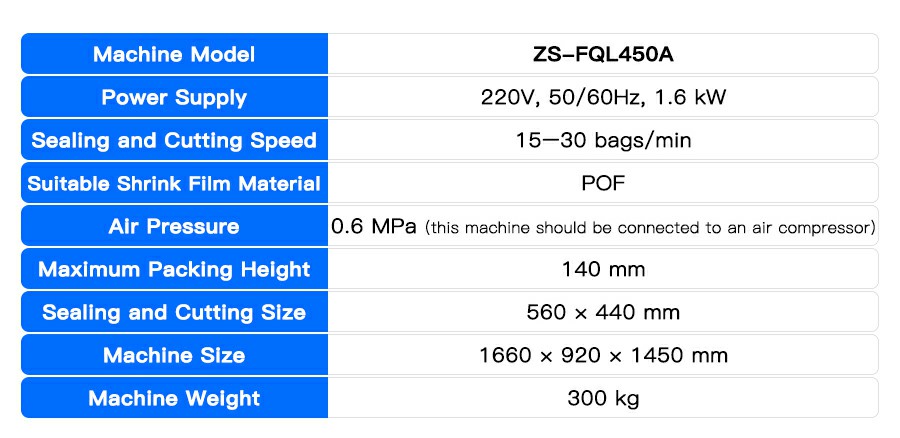

>Shrink Film Wrapping Machine
Machine Model | ZS-FQL450A |
| Machine Voltage | 220V 50/60Hz 1.6KW |
Working Speed | About 15-30pcs/min(depending on product size) |
| Applicable Film Material | POF |
Maximum Packing Height | 140mm |
Sealing And Cutting Size | 560*440mm |
| Air Pressure | 0.6MPA |
Machine Size | About 1660*920*1450mm |
Machine Weight | About 300kg |

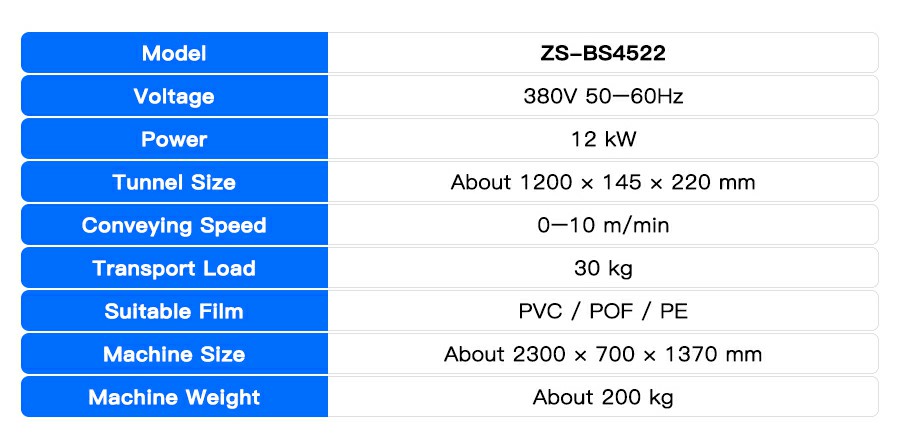

>Heat Shrink Tunnel
Machine Model | ZS-BS4522 |
| Machine Voltage | 380V 50-60Hz 12KW |
Tunnel Size | About 1200*145*220mm |
| Conveying Speed | 0-10m/min |
Conveyor Loading Capacity | 30kg |
| Applicable Film Material | PVC/POF/PE |
Machine Size | About 2300*700*1370mm |
| Machine Weight | About 200kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

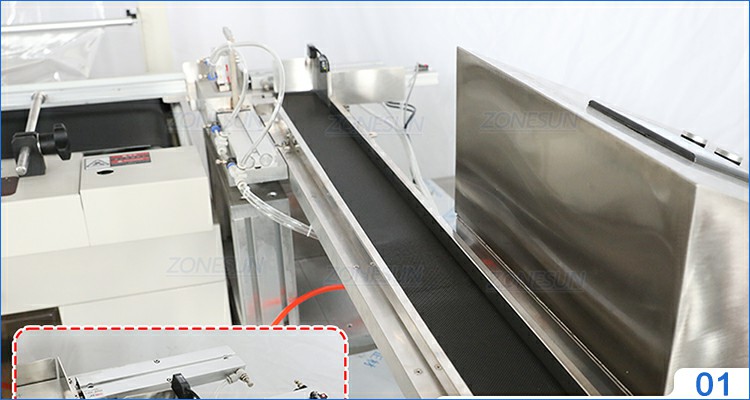

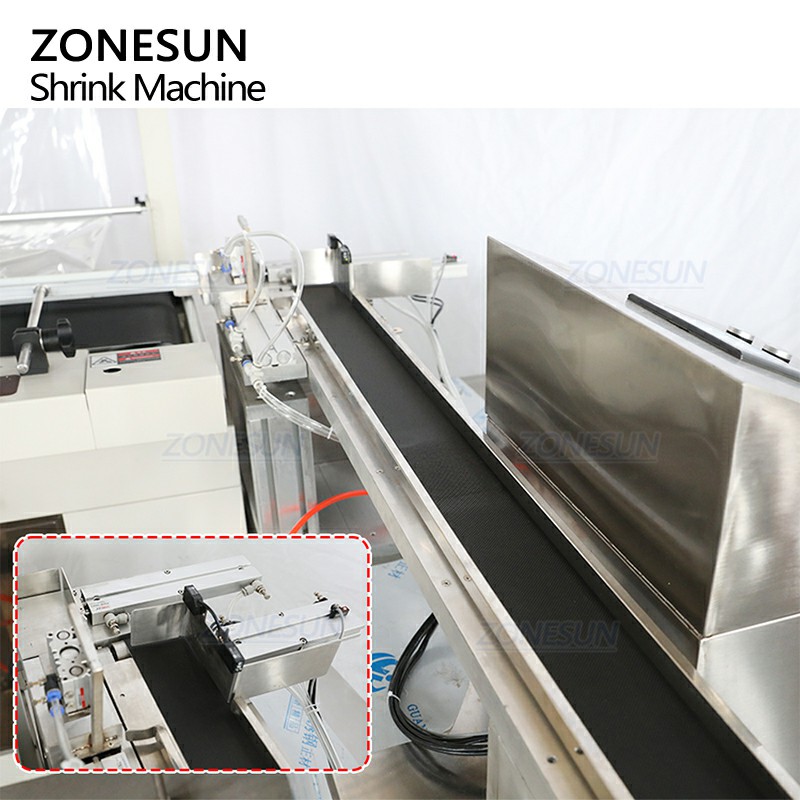

Product Feeding & Sorting System
Capable of arranging and sorting products before wrapping. This is designed for multi-pack packaging.

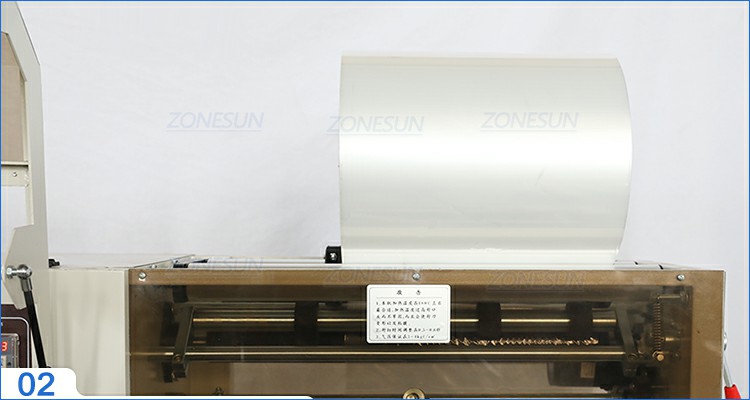

Film Feeding System
Can realize smooth film feeding and wrapping. It can wrap various shapes and sizes of products.

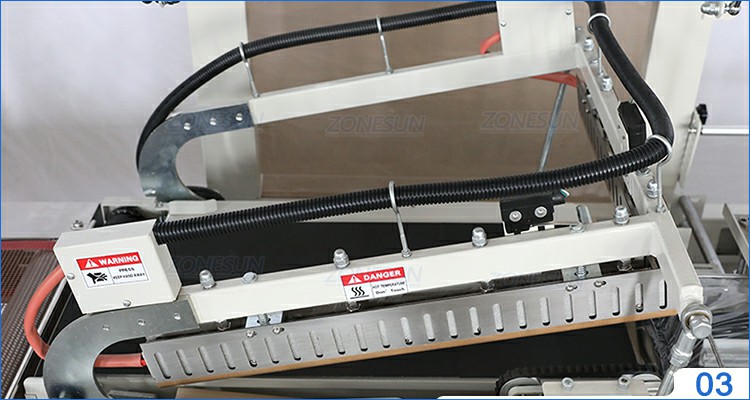

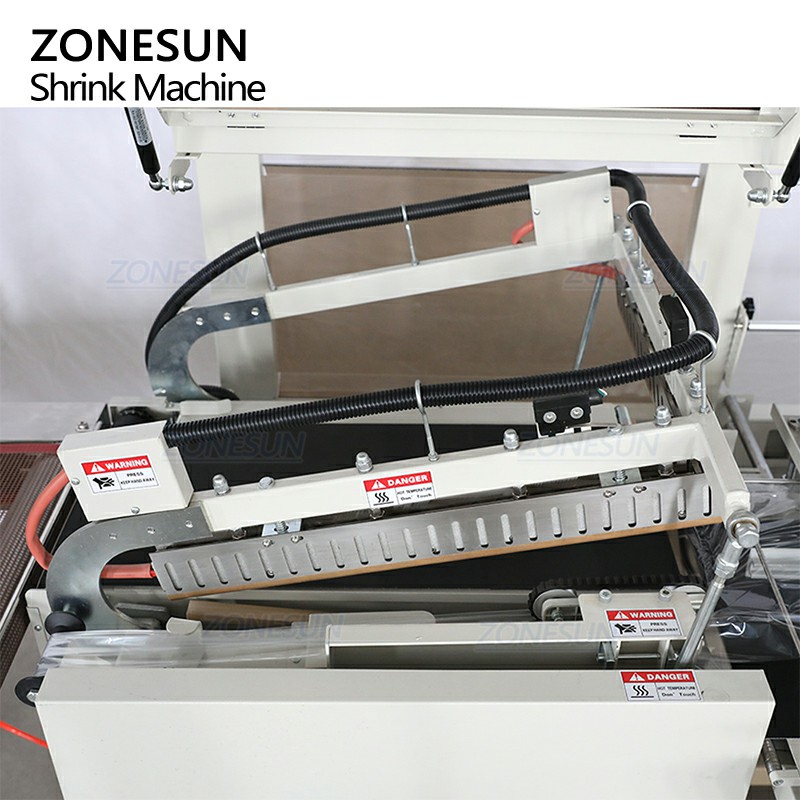

Film Sealing & Cutting System
With Teflon-coated blades to realize neat sealing and cutting. Sealing temperature and time are adjustable as production need.

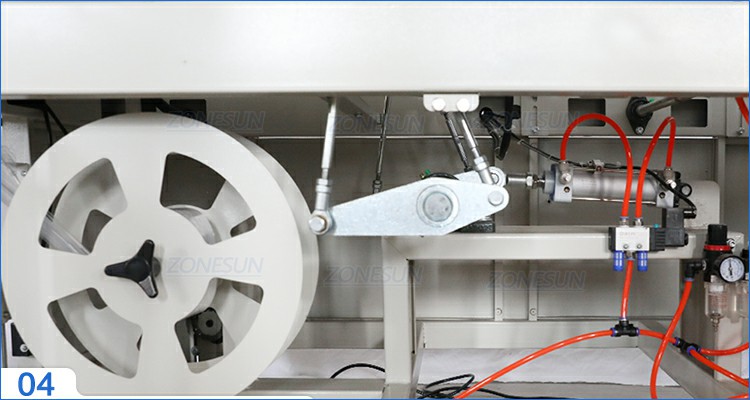

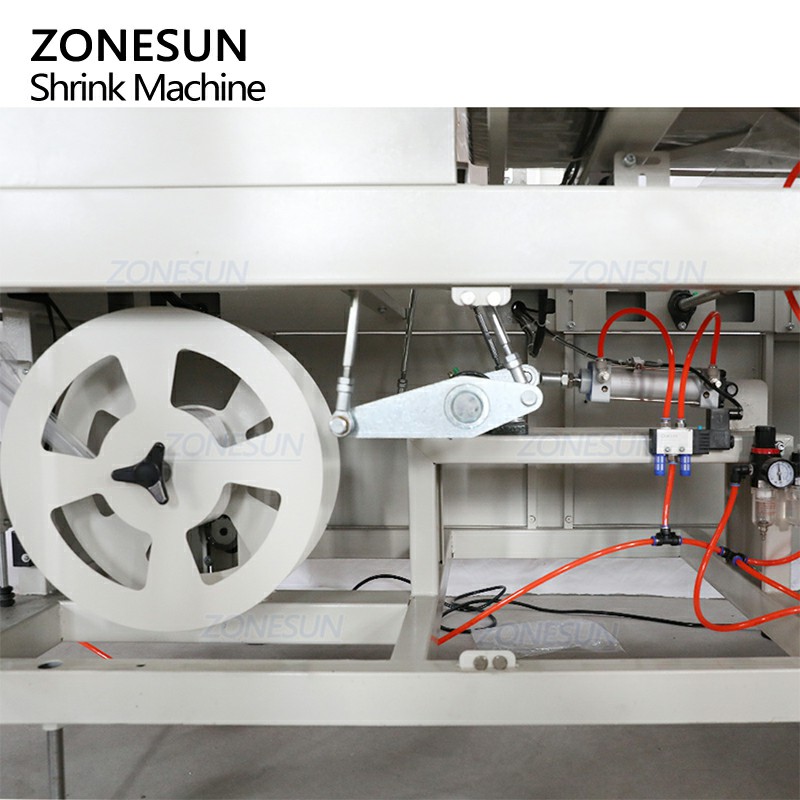

Waste Film Winding Structure
Can automatically collect the waste films to ensure production cleanliness.

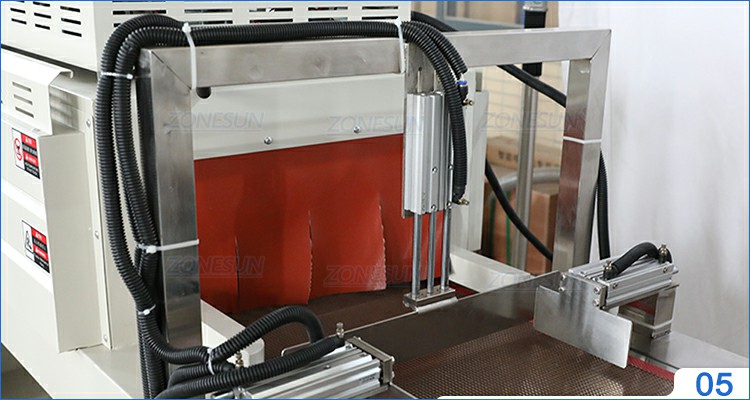

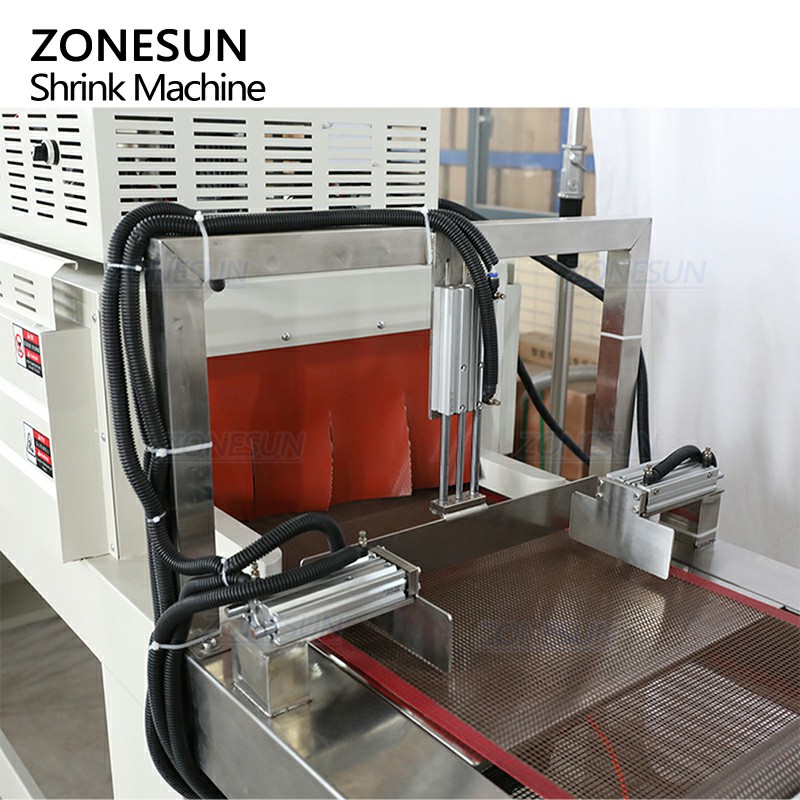

Heat Shrink Tunnel
With hot air circulation system to realize uniform shrink effect. Tunnel size can be customized as needed.
- Applicable Products: Juice cartons, books, pain relievers, toy boxes, fabric softeners, cling film boxes, snack boxes, toothpastes, etc.
- Applicable Industries: Beverage, medicine, daily chemical, cosmetic, agricultural industries.
