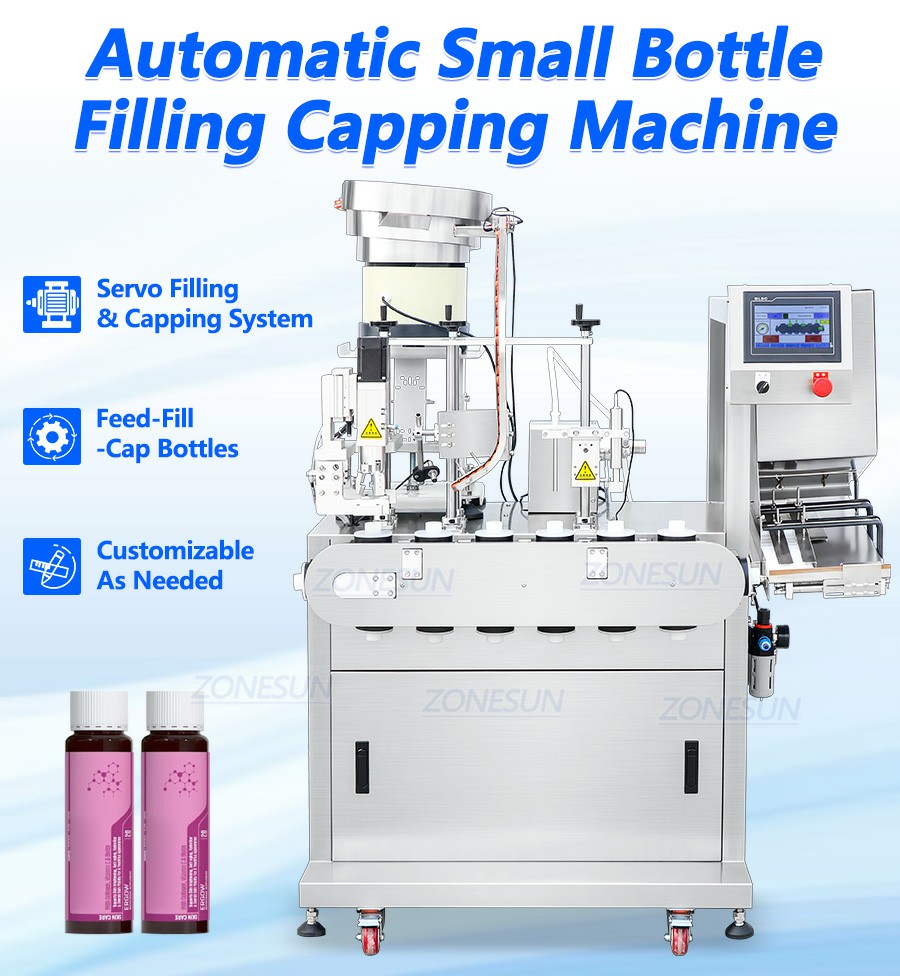

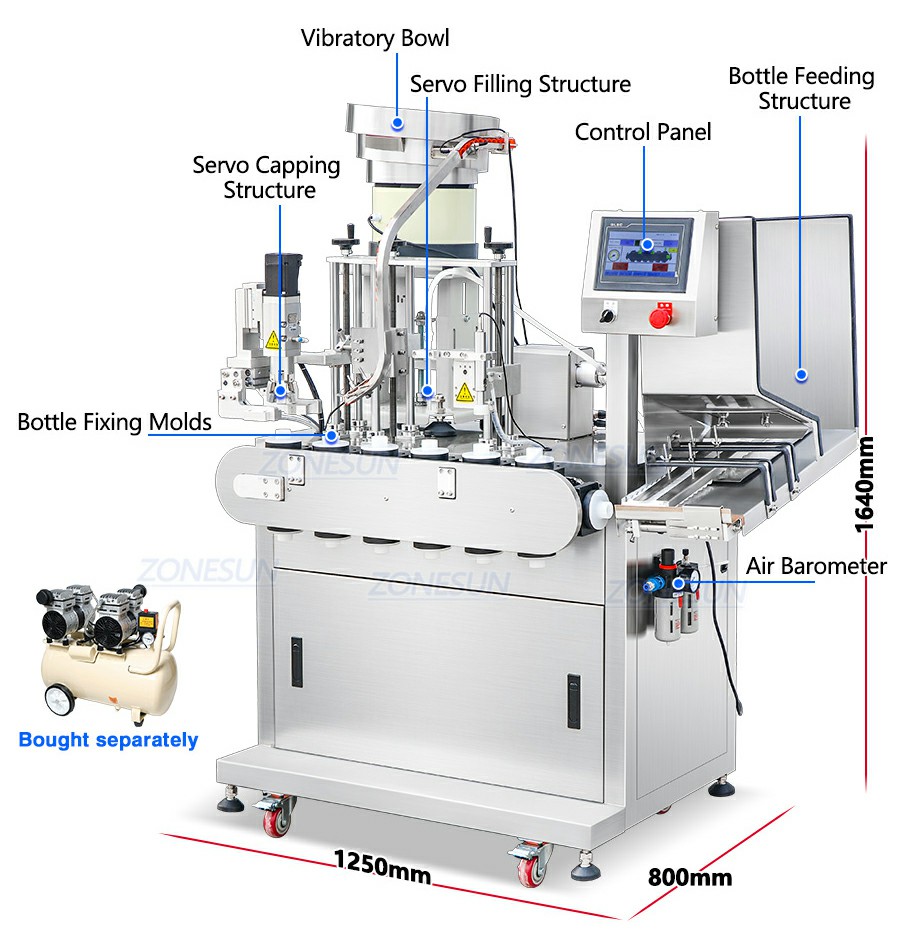

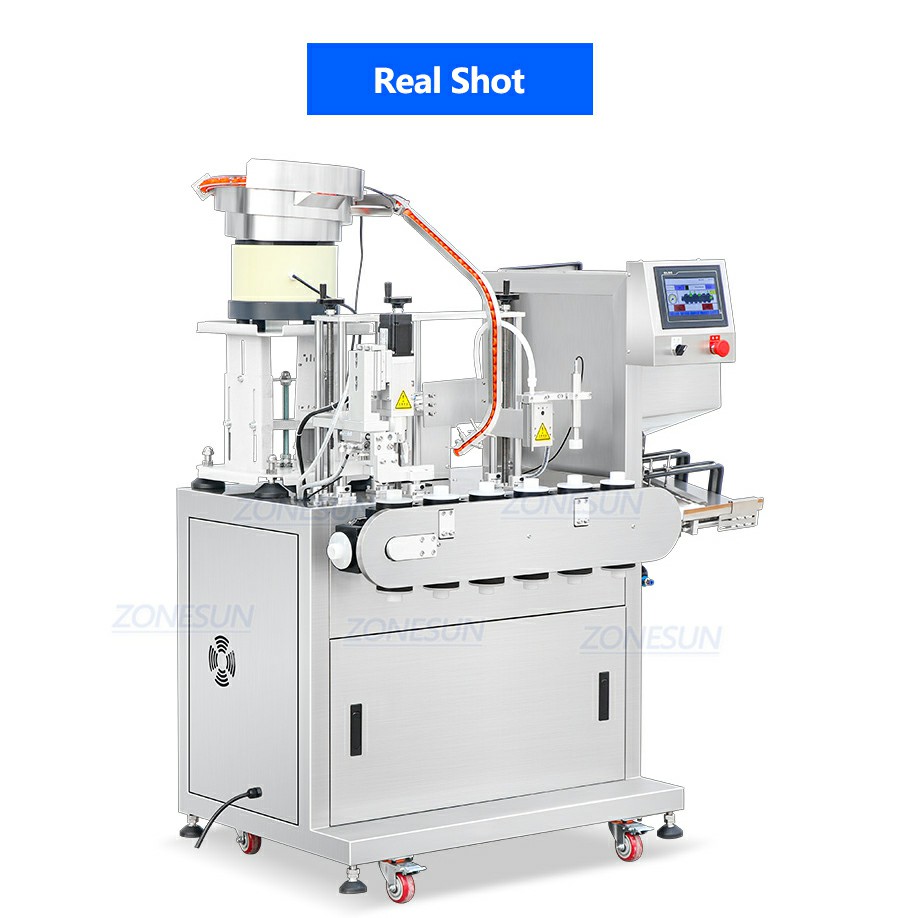

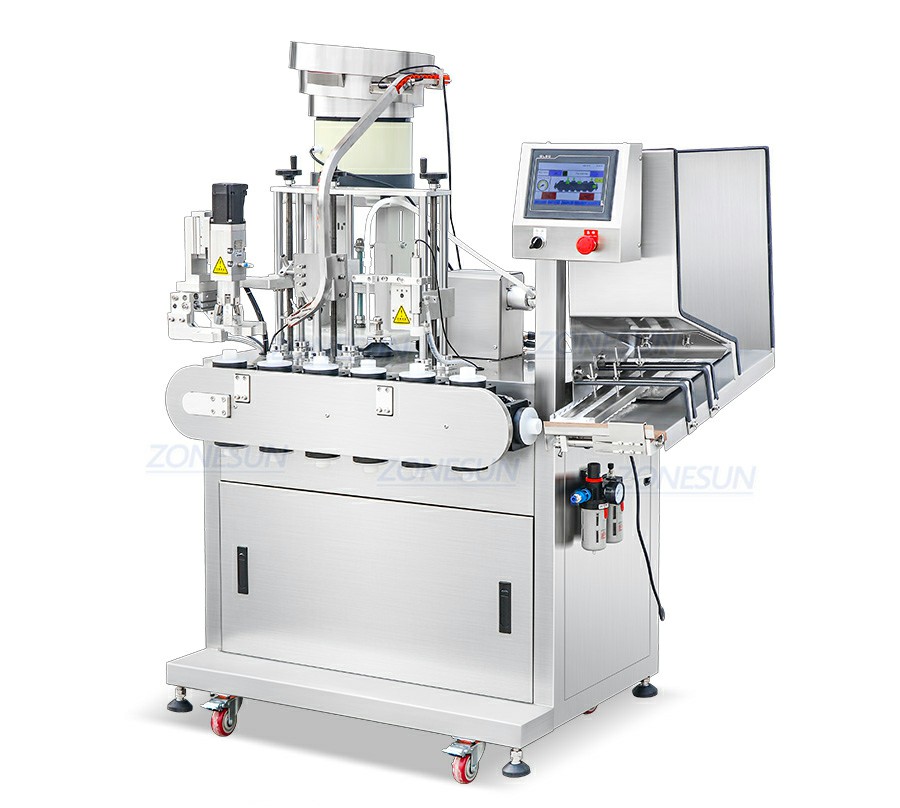

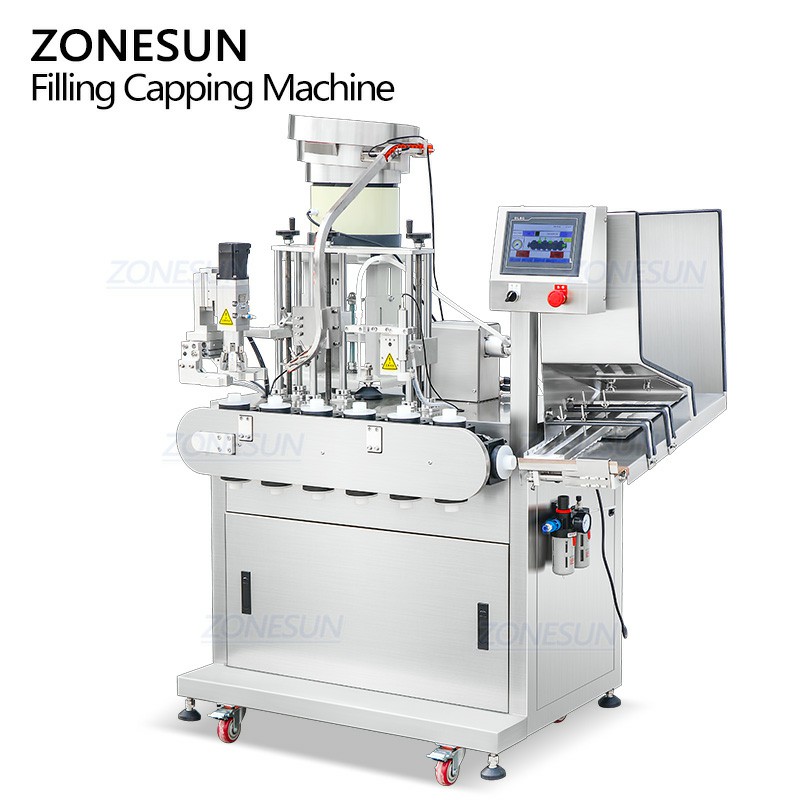

ZS-AFC48 Automatic Oral Liquid Collagen Peptide Drink Filling Capping Machine

Product Description:

This collagen peptide drink filling capping machine is built with servo system, which can run stably and has high accuracy. Equipped with magnetic gear pump, it is suitable for filling low-viscosity liquids, such as liquid vitamin, essential oil. The machine can be customized to suit for your production needs.

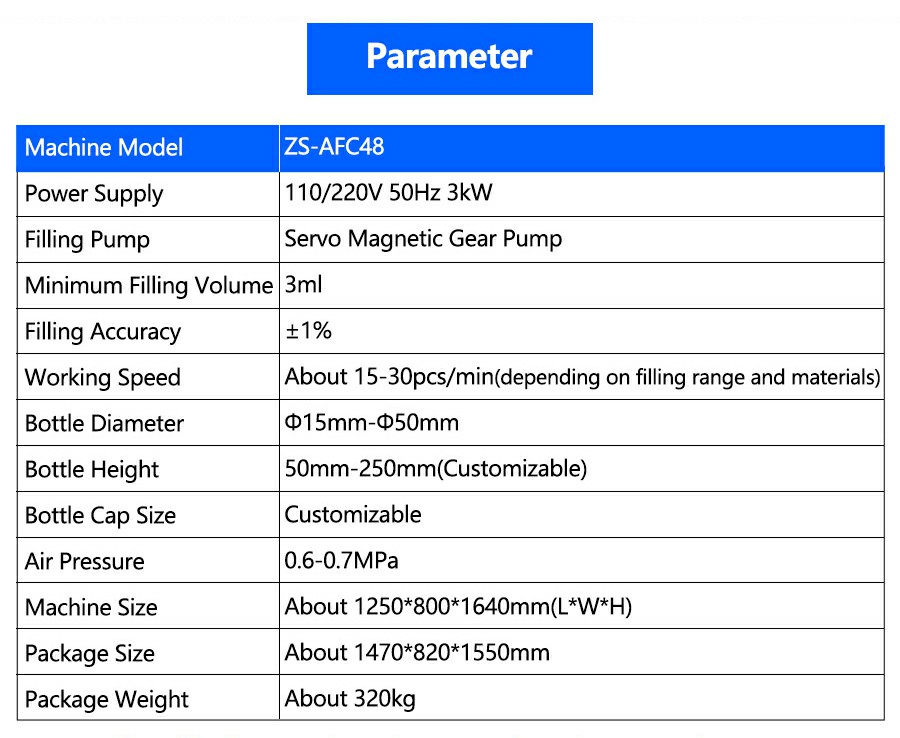

❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

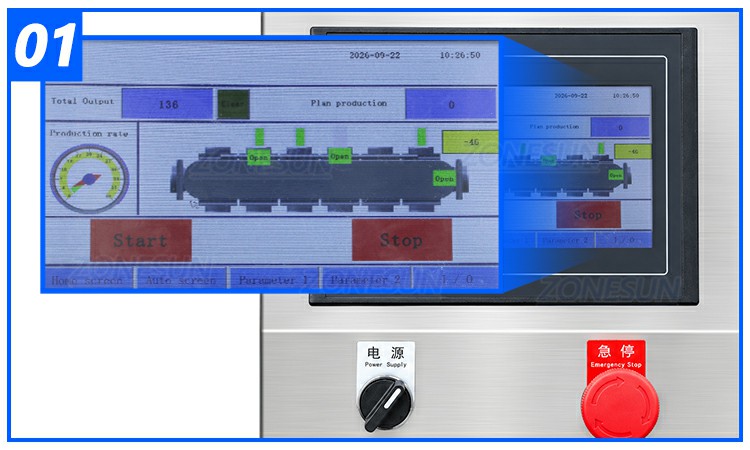

PLC Control & Touch Screen

PLC system offers precision and flexibility for filling and capping processes, and the touch screen makes it convenient for operators to adjust settings.

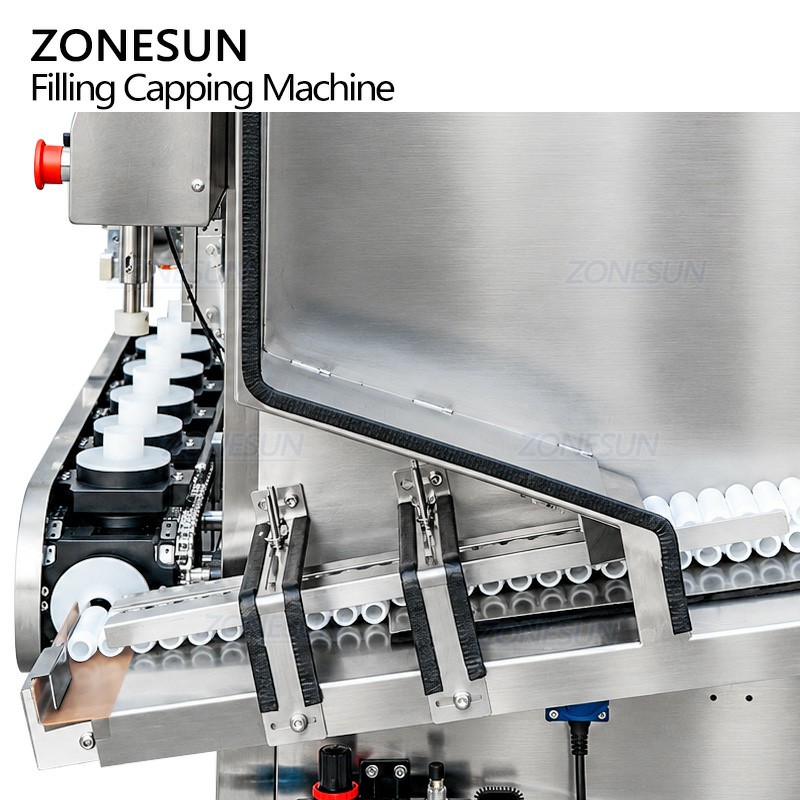

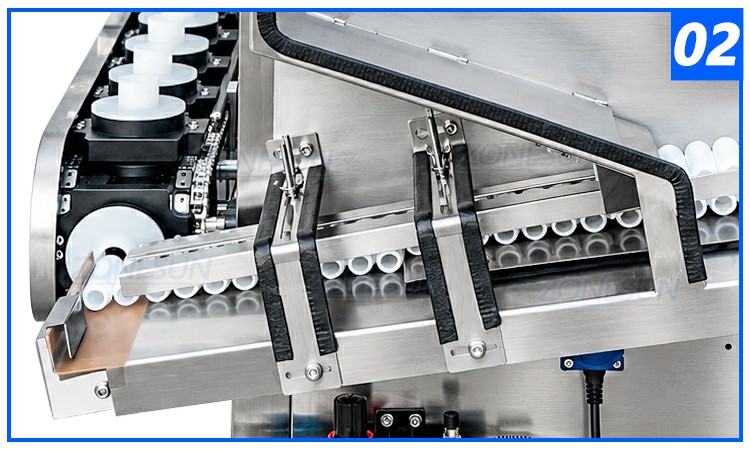

Bottle Feeding Structure

Can realize automatic feeding of bottles into molds. The structure is customized based on bottle size.

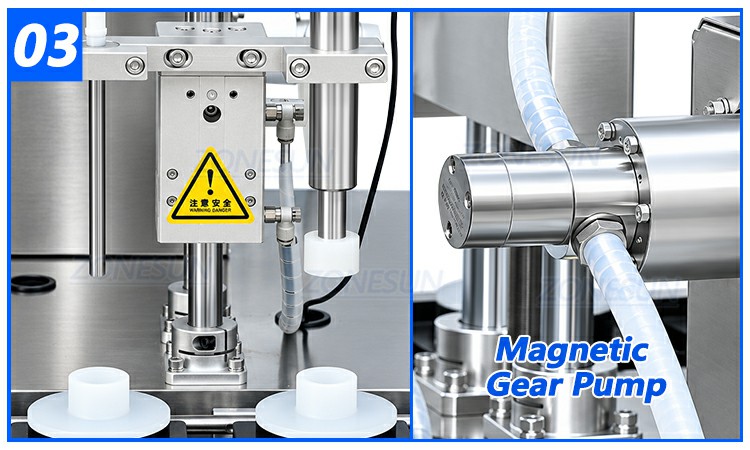

Filling Nozzle

Servo-controlled filling system has high accuracy. The height of filling nozzle can be adjusted according to bottle size.

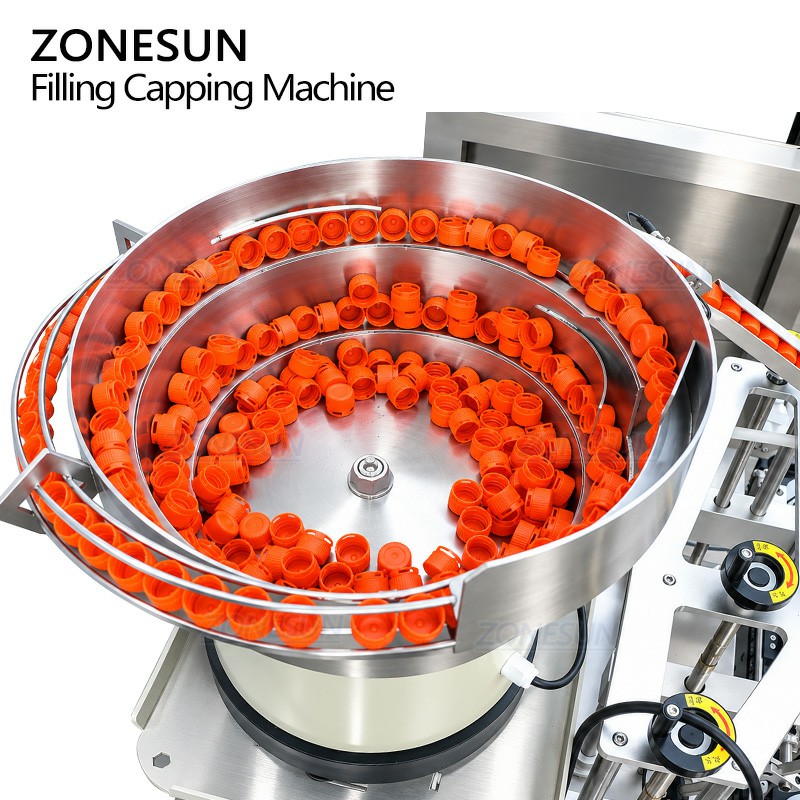

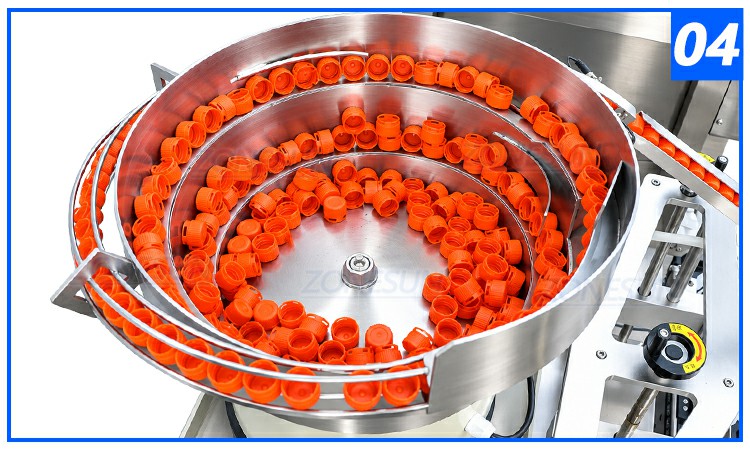

Cap Feeding Structure

Designed for feeding caps onto bottles, the structure is customized according to cap size.

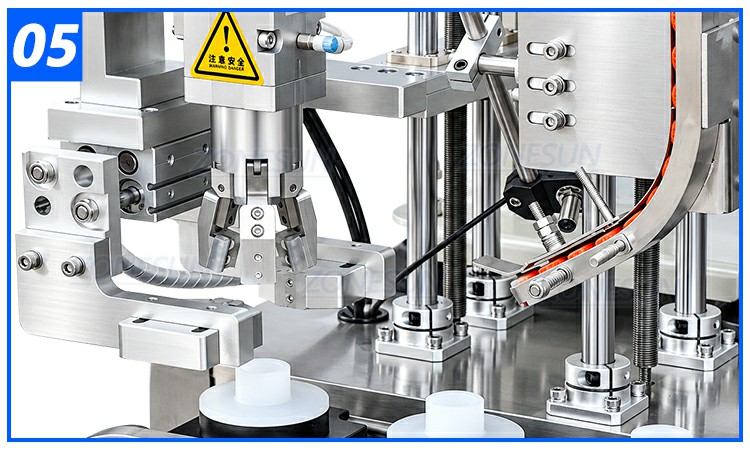

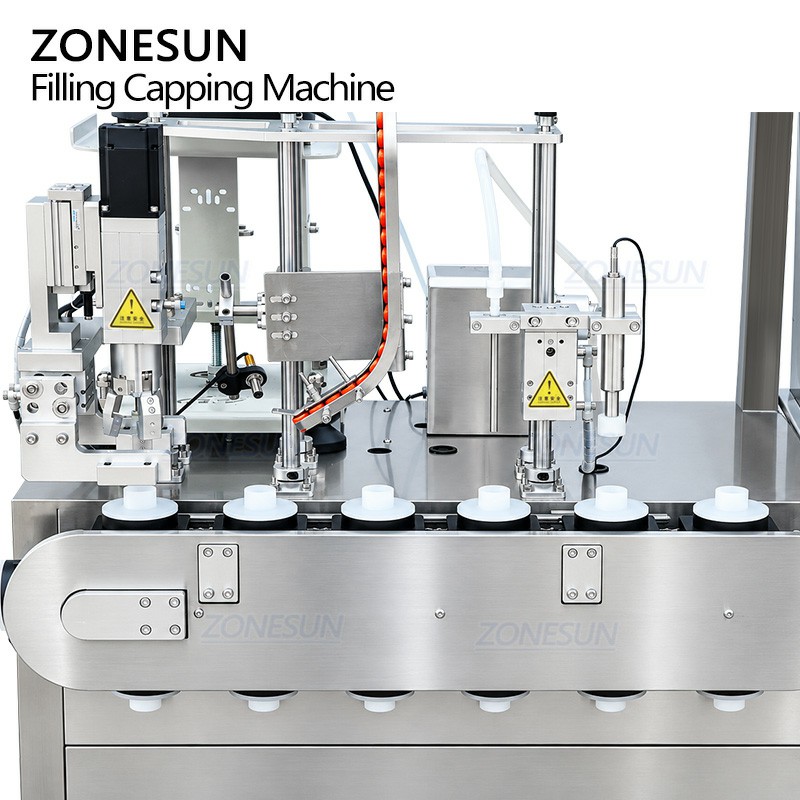

Servo Capping Structure

Capping work is controlled by servo motor, ensuring consistent capping performance. Capping torque can be adjusted to suit for different caps.

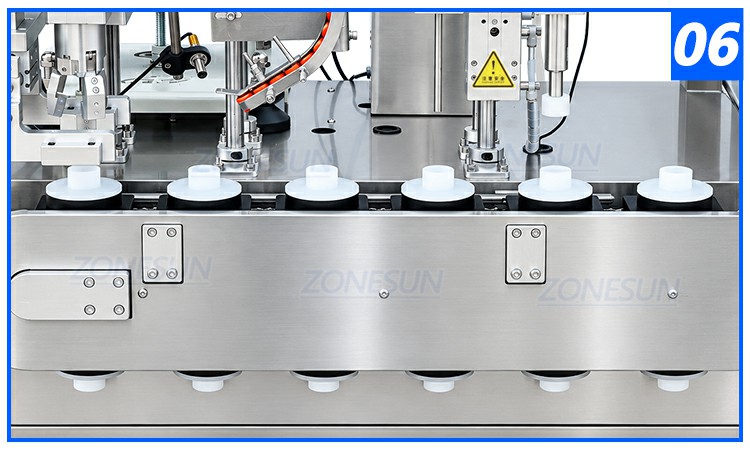

Conveying System

The conveyor is equipped with molds to position the small bottles. Molds are customized according to bottle size.

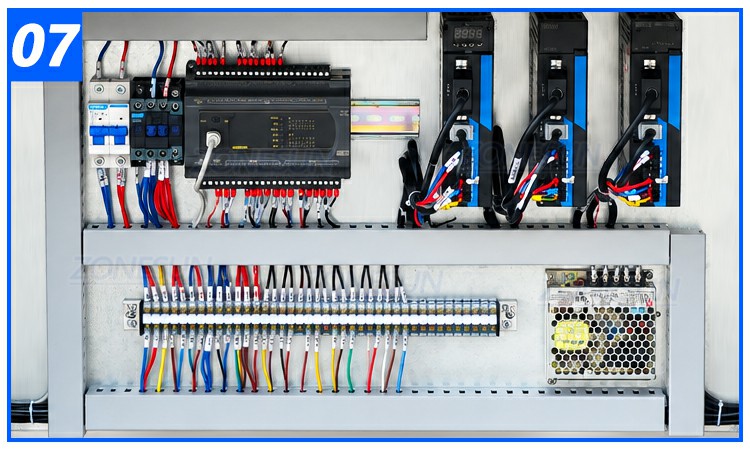

Electrical Circuit Layout

Orderly electrical circuits support smooth filling and capping operation, and allow for future upgrades.
