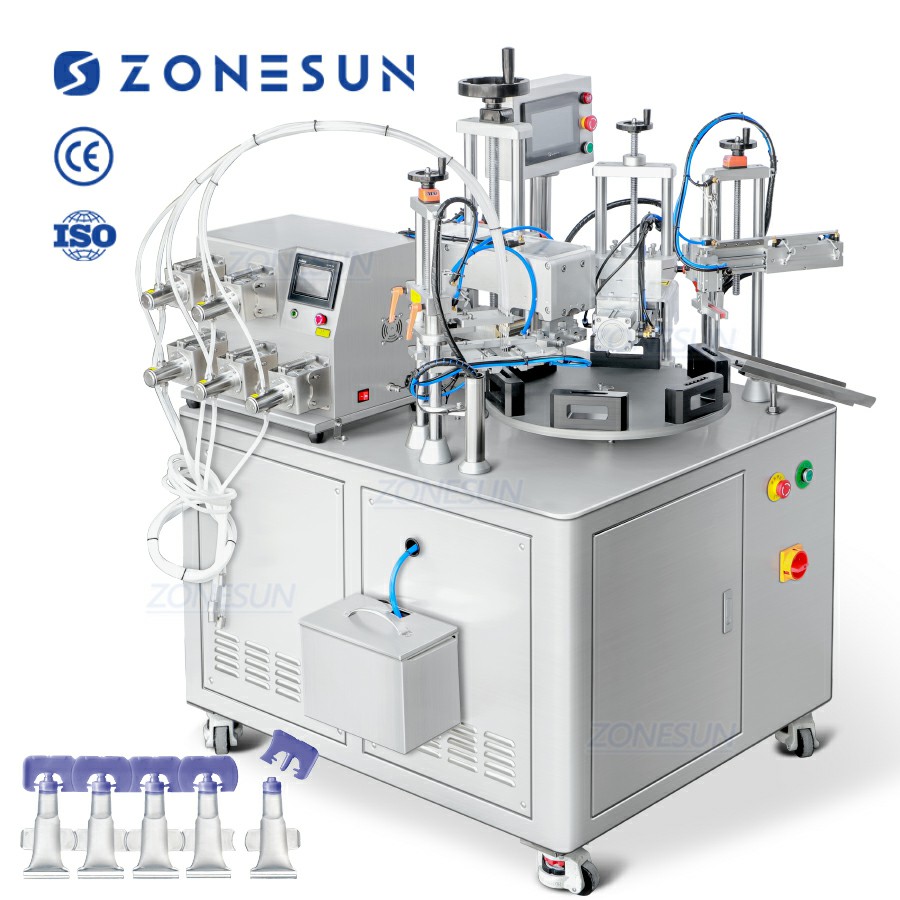

ZS-FS50U Automatic Single Use Eye Drops Filling And Sealing Machine

This machine has the function of filling low-viscosity liquid into single-dose strips and sealing strips. Equipped with high-precision ceramic pump, it suits for small-volume filling. The single use eye drops filling and sealing machine can be customized as needed(including filling range, panel’s language).

Share to:

Automatic Single Use Eye Drops Filling And Sealing Machine


  • With the function of filling liquid, sealing single-dose strips, and printing date automatically, it can greatly save working space.

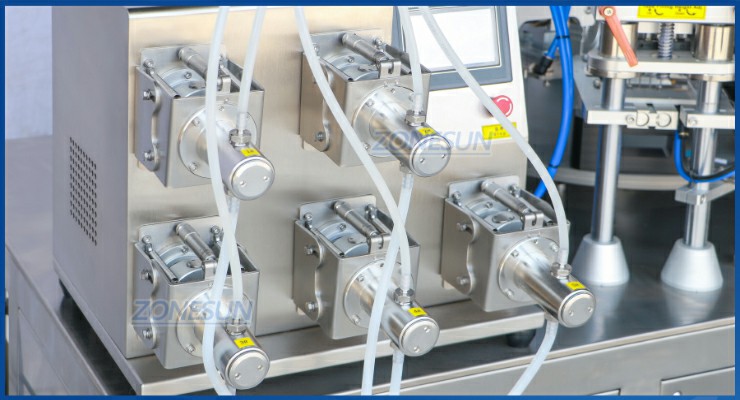

  • The ceramic pumps have the feature of high filling precision, ensuring production quality.
  • The touch screen makes it easier to set parameters, whose language can be customized.
  • This machine can be customized according to customers’need.

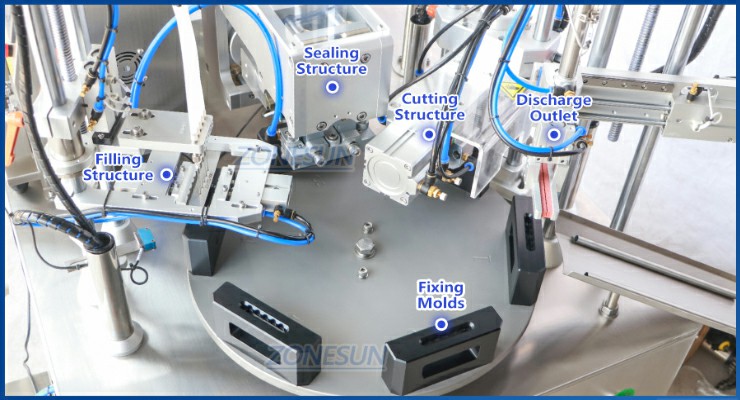

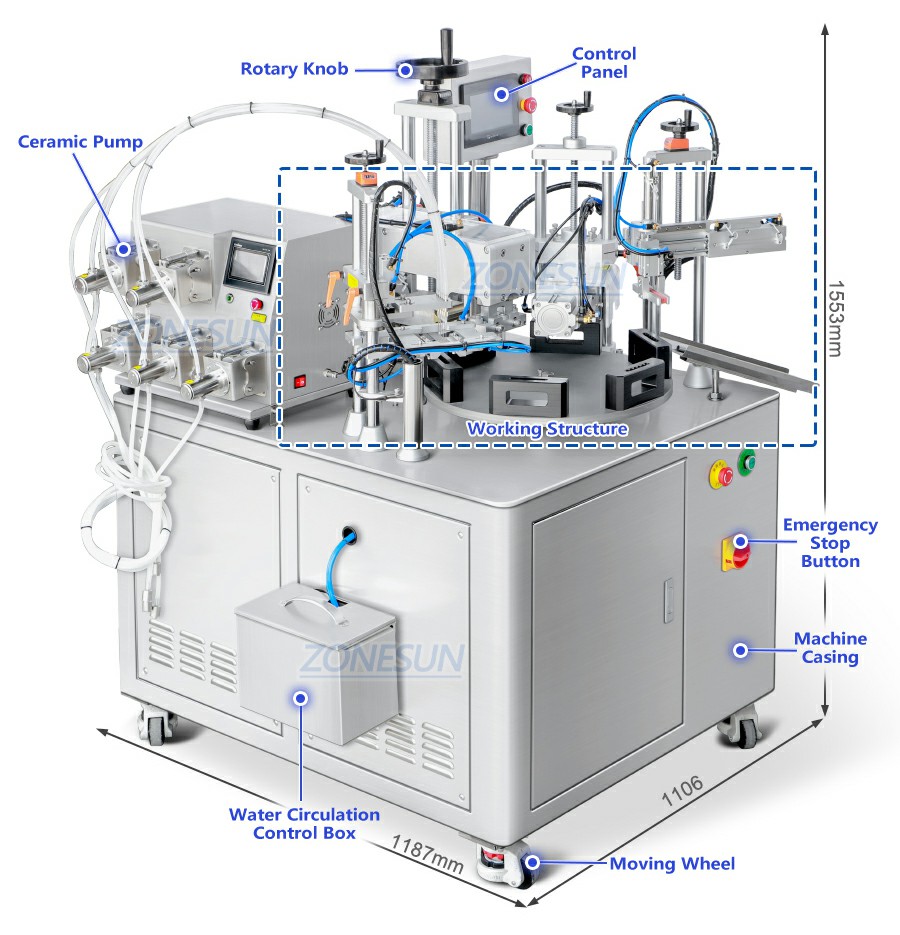

Diagram of single use eye drops filling machine

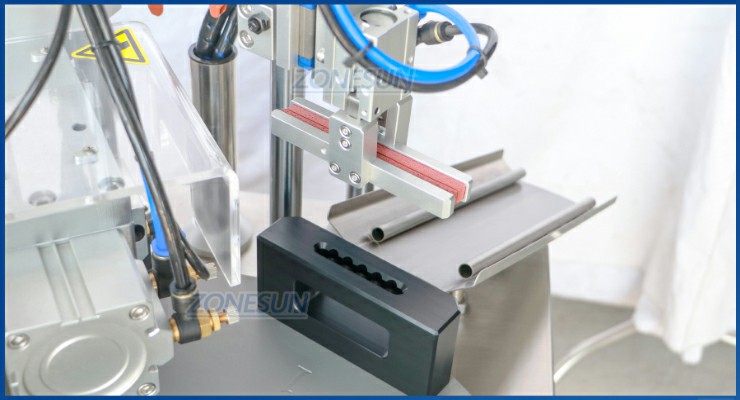

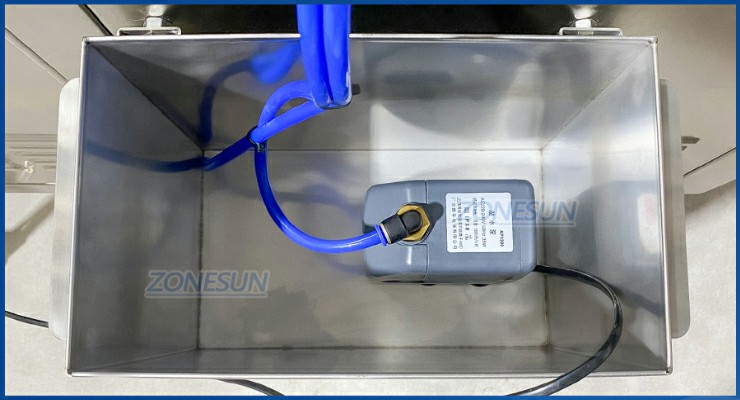

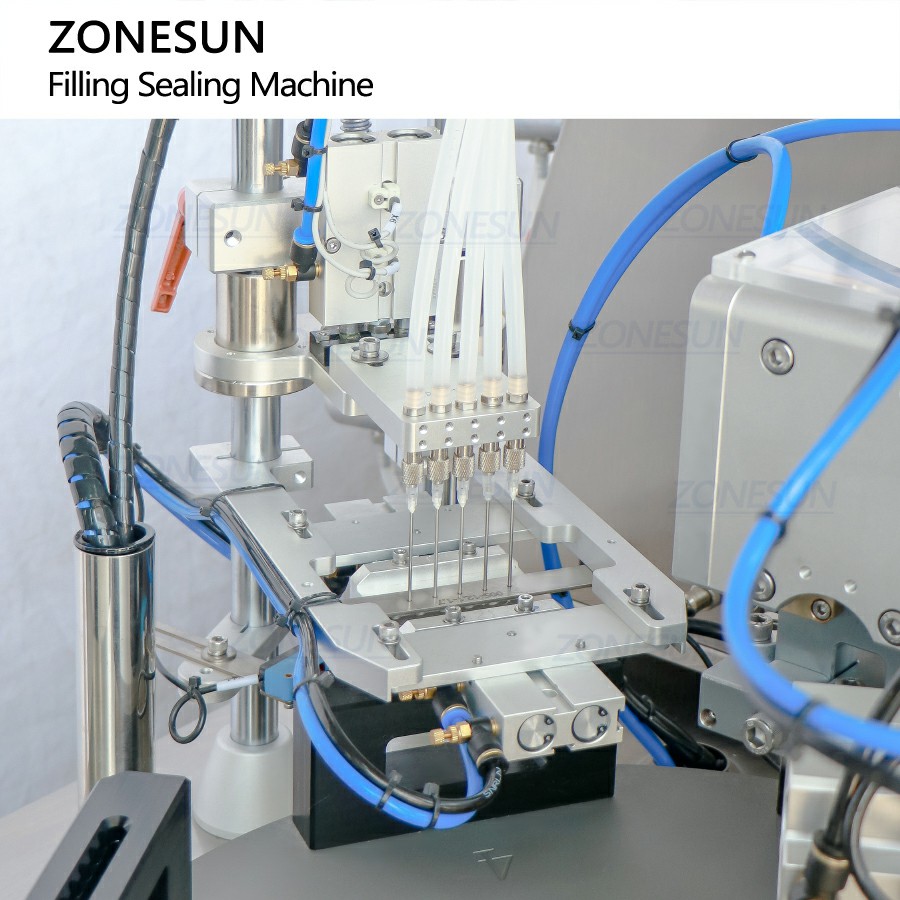

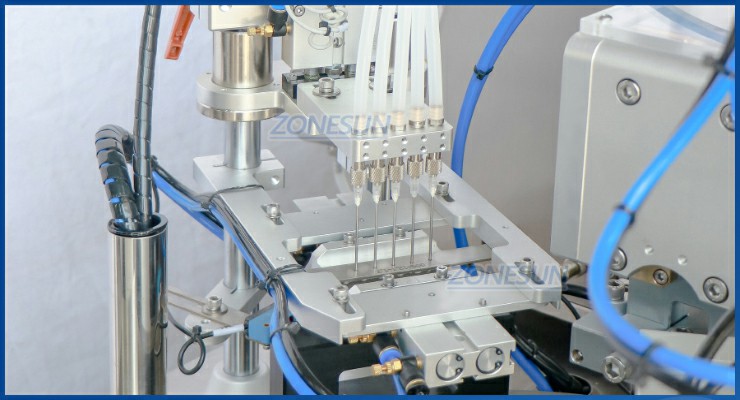

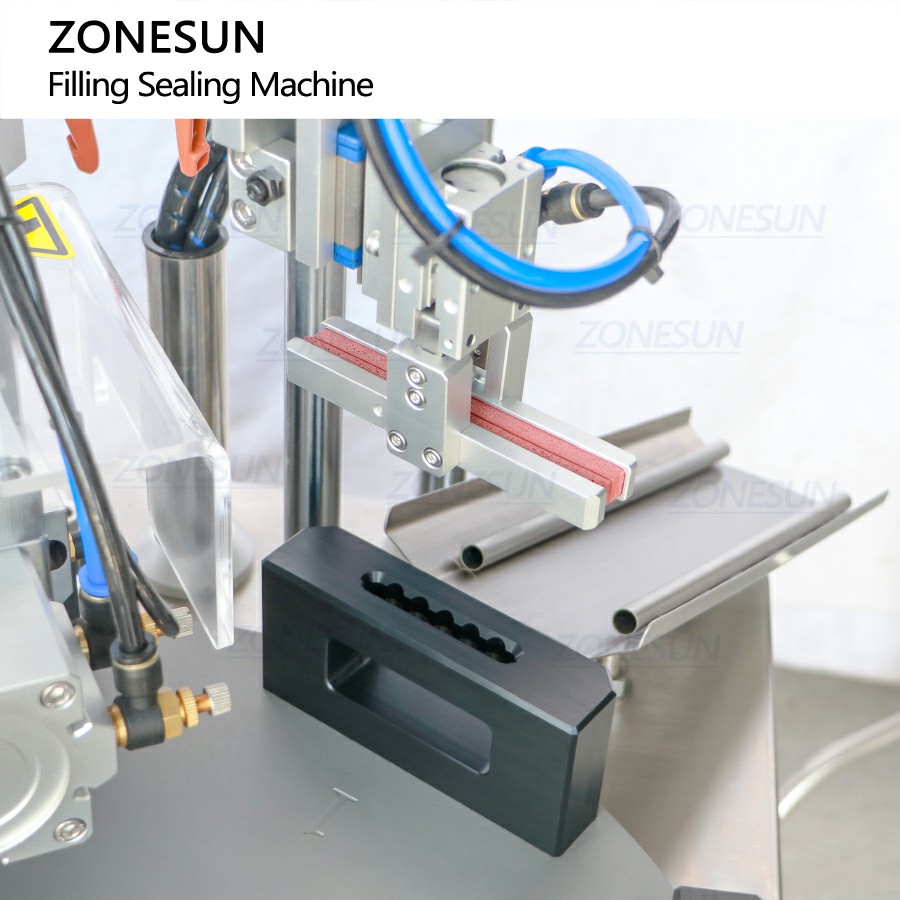

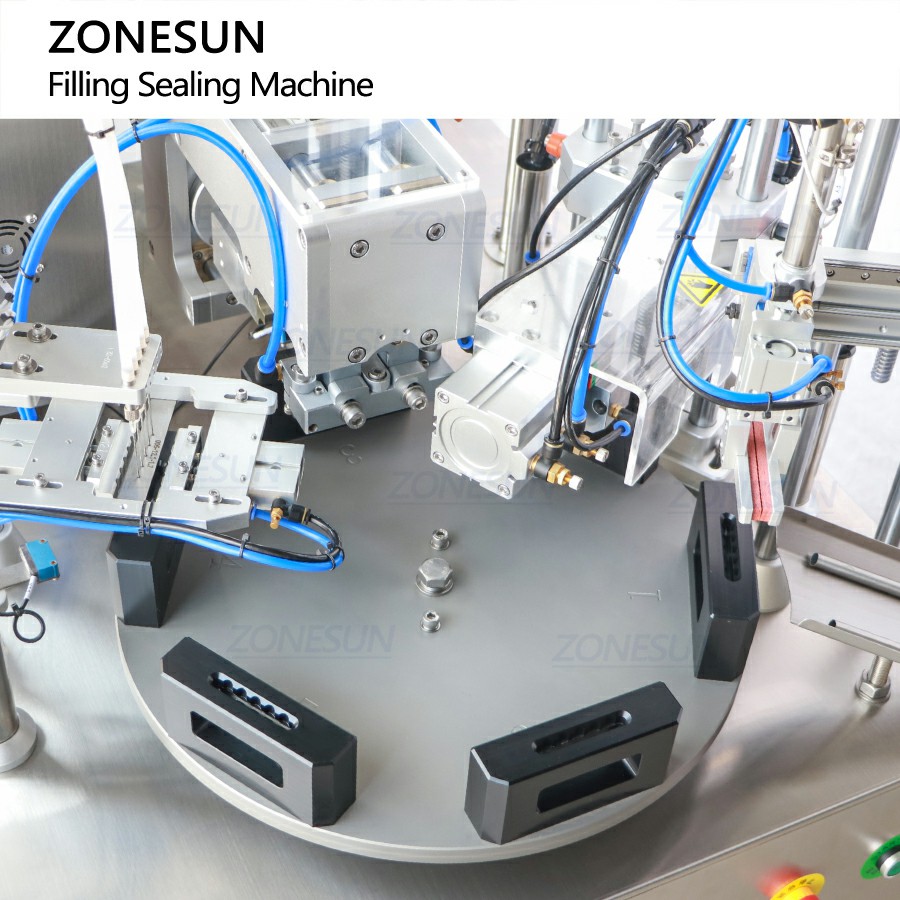

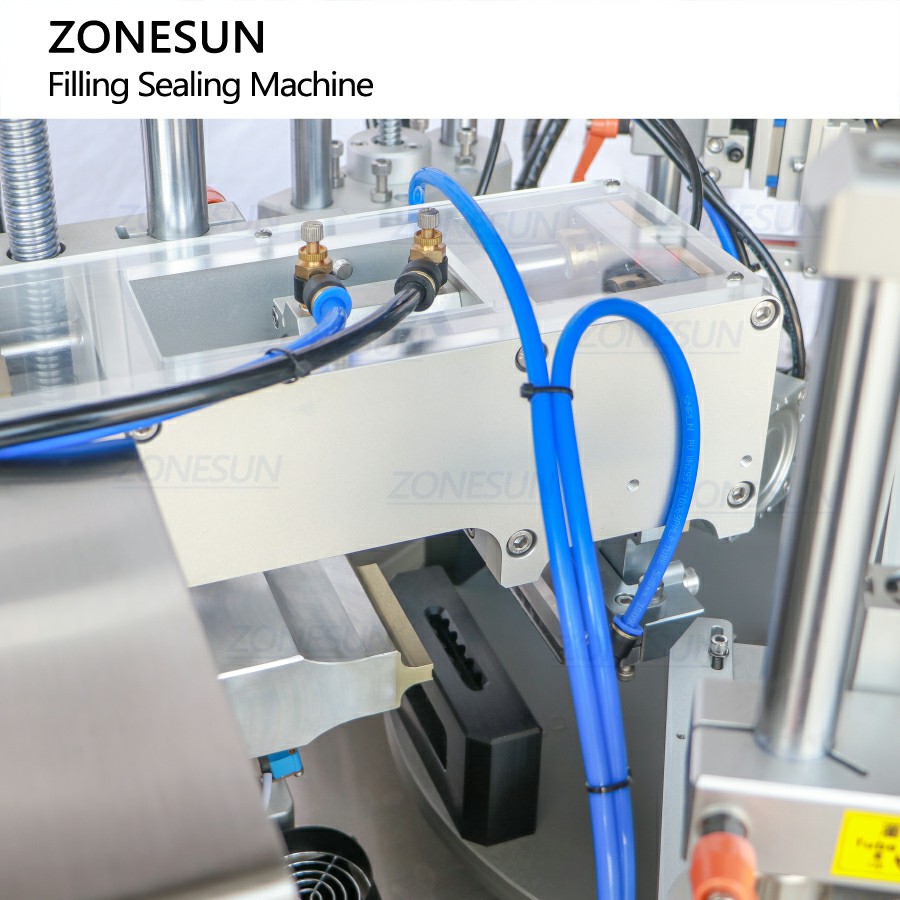

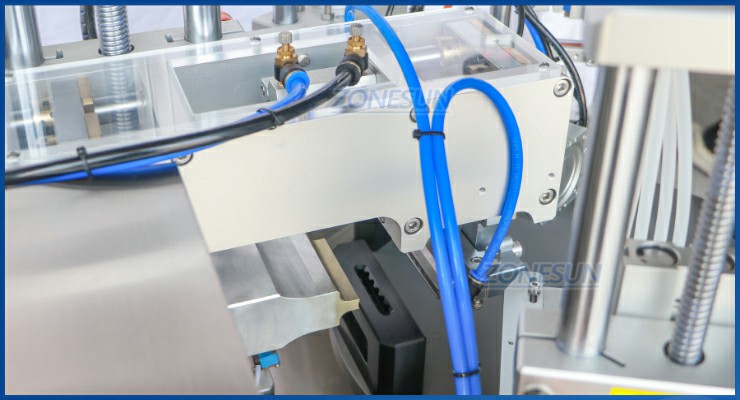

Machine Detail

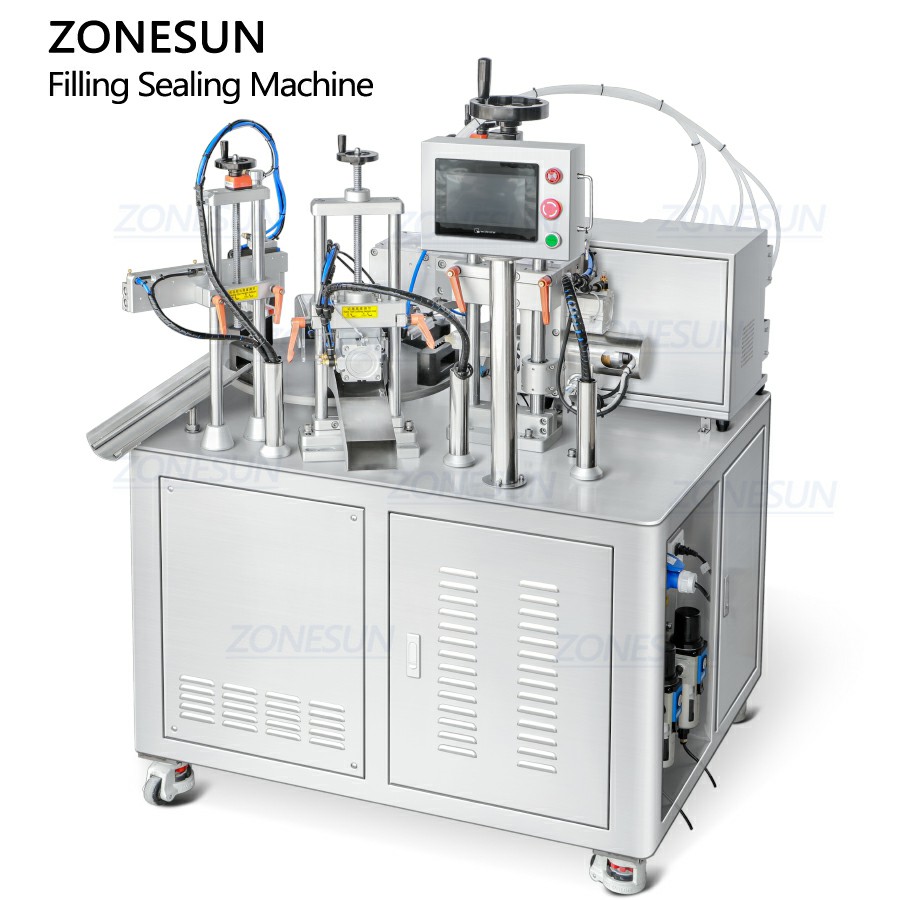

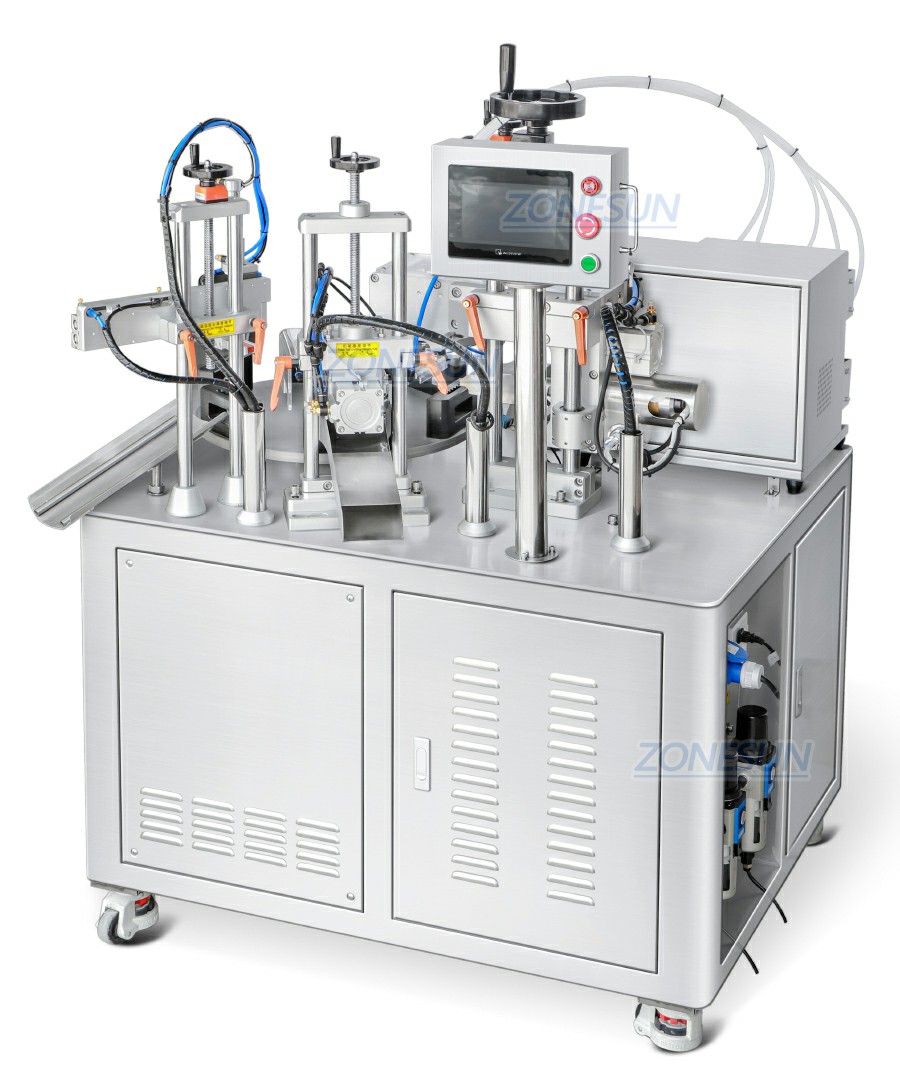

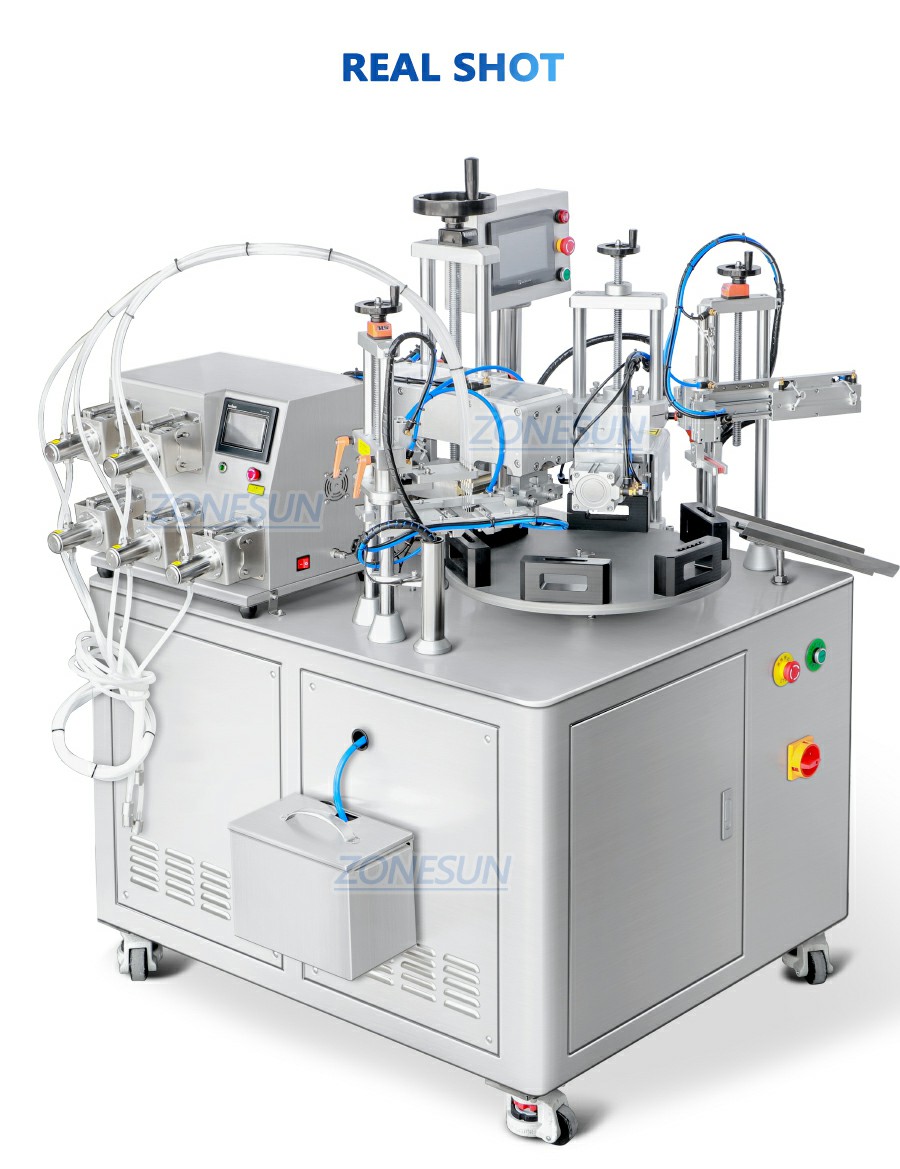

Real Shot

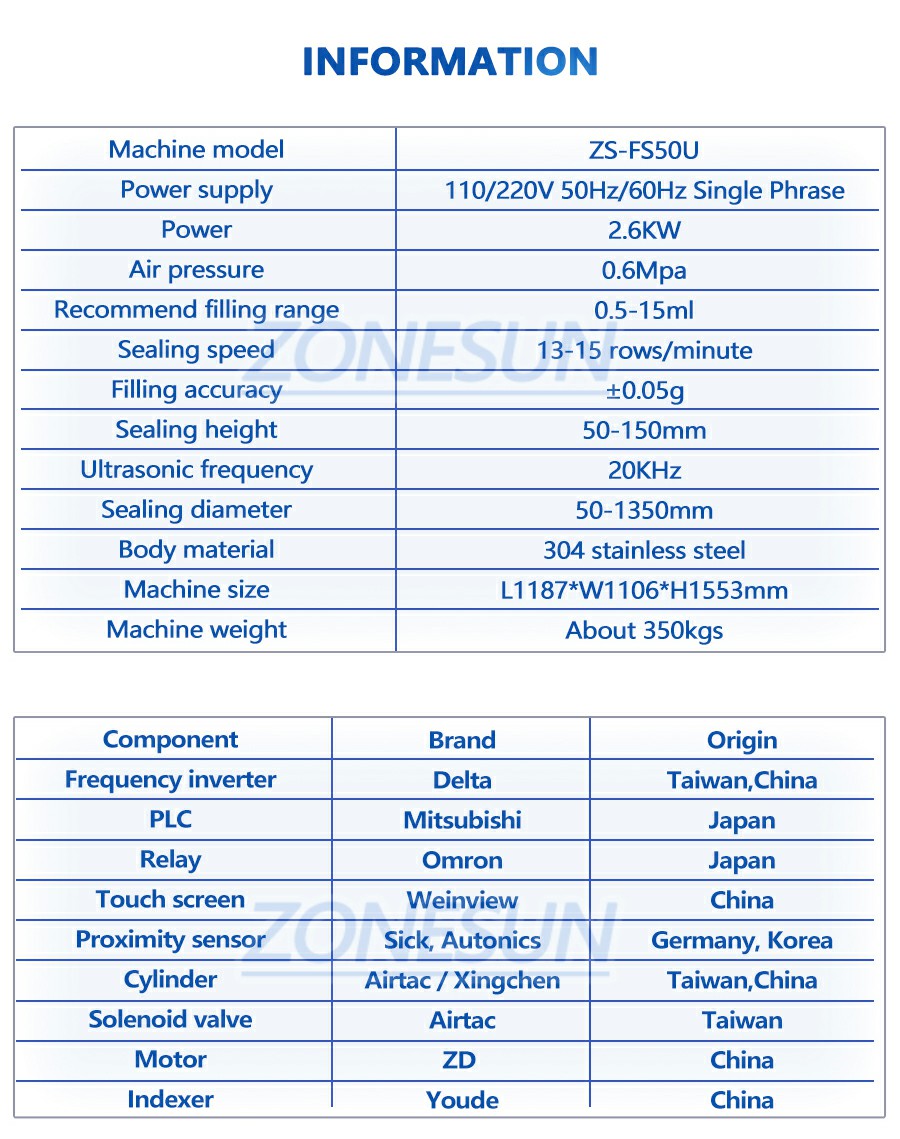

Machine Model ZS-FS50U
Power Supply 220V 50Hz/60Hz
Power 2.6KW
Filling Pump Ceramic Pump
Air Pressure 0.6Mpa
Sealing Speed 10-13 rows/minute(depending on strip size and liquid)
Filling Accuracy ±0.05g
Sealing Height 50-200mm
Frequency 20KHz
Sealing Diameter 50-140mm
Machine Material 304 Stainless Steel
Ultrasonic Electric Box 20K 2600W digital automatic frequency tracking electric box
Machine Size About 1300*1010*1550mm
Machine Weight About 350kg
  • Applicable Products: Toner, eye drops, essential oil, facial essence.
  • Applicable Industries: Cosmetic, pharmaceutical industries.

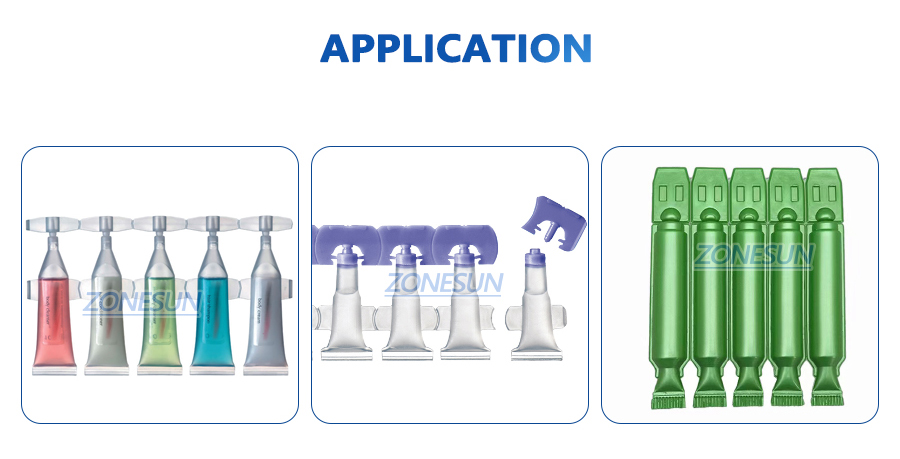

Application of single use tube filling and sealing machine
