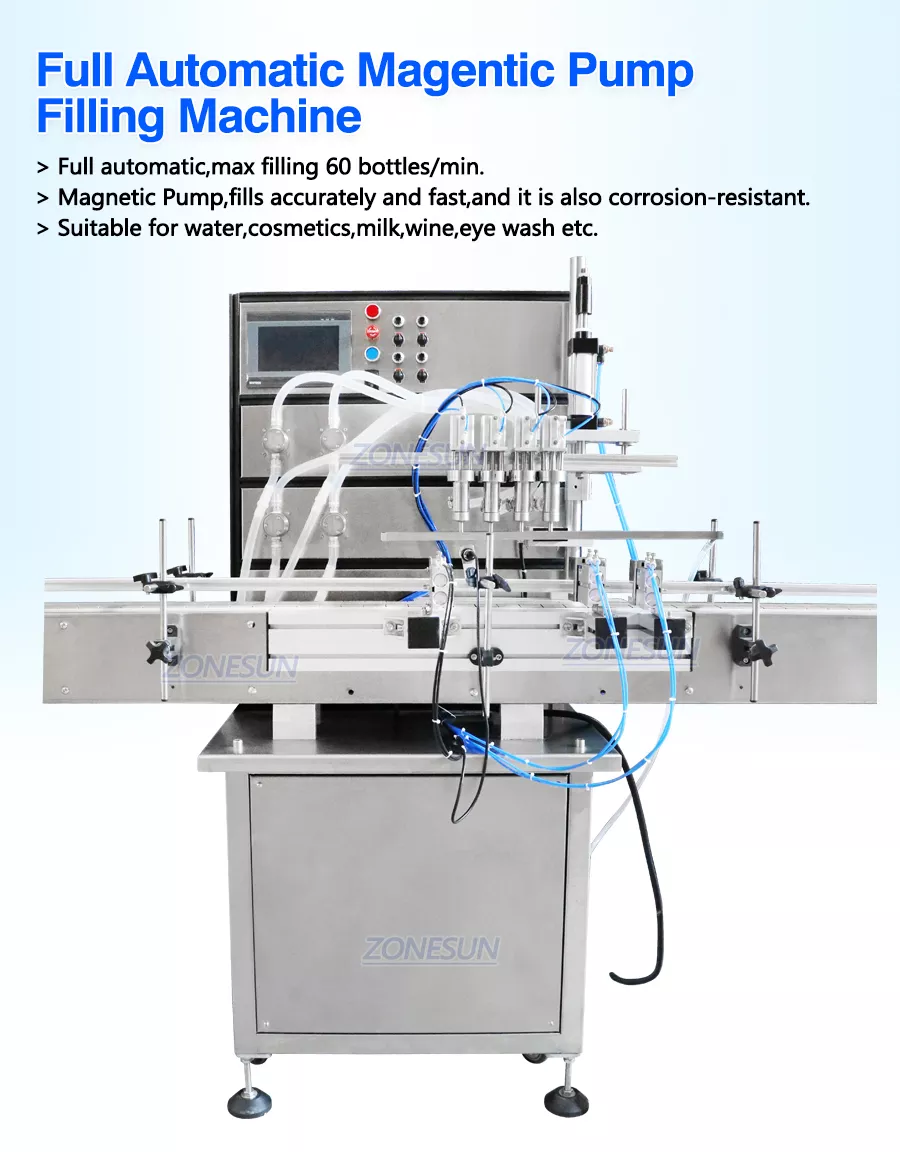

ZS-VTMP80P Automatic Shower Gel Juice Milk Liquid Bottle Filling Machine

This machine can be used for filling viscous liquid or normal liquid, such as gel, laundry detergent. It can work with capping and labeling machine, achieving automated production. Quantity of filling heads and filling range can be customized according to production need.

Video

Share to:

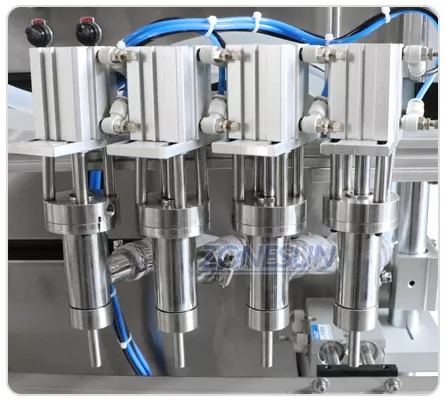

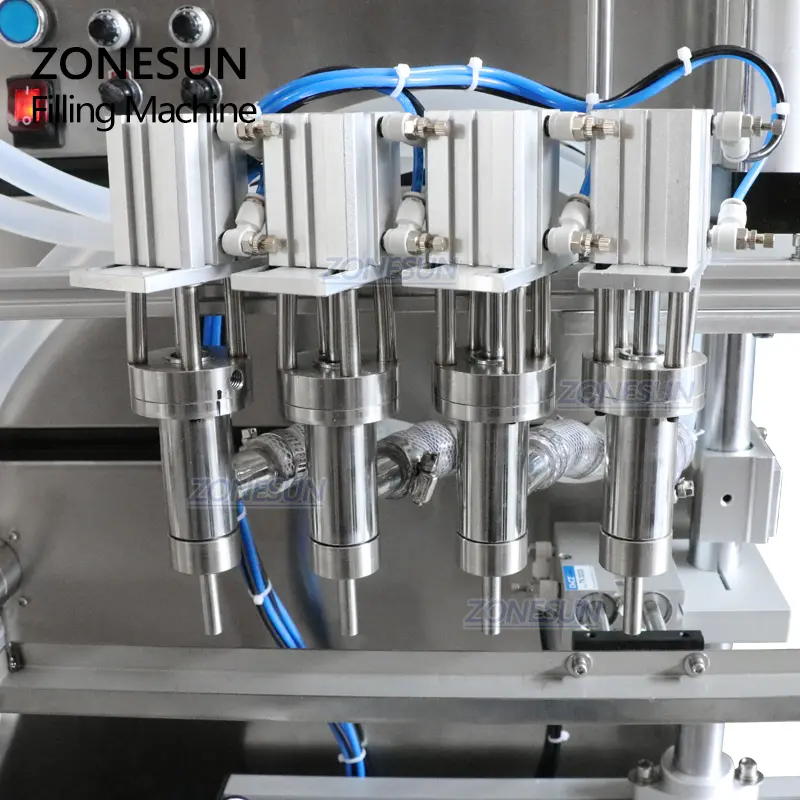

Equipped with pneumatic filling heads, it can fill thicker liquid like gel, laundry detergent.
With magnetic pumps, it has feature of high filling precision and high temperature resistance.

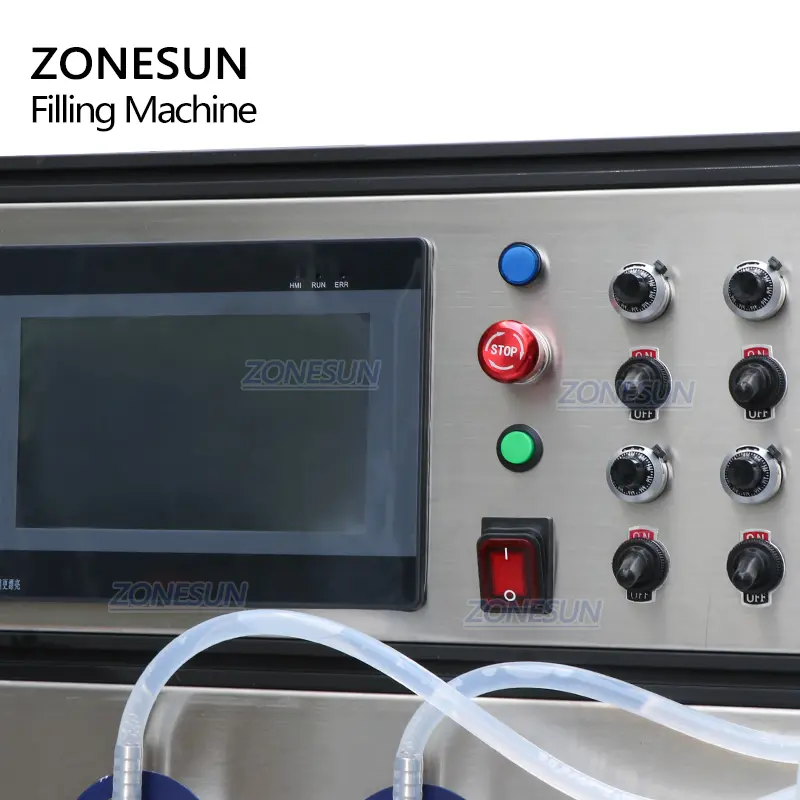

Filling speed of 4 heads can be adjusted separately. Easy to operate.

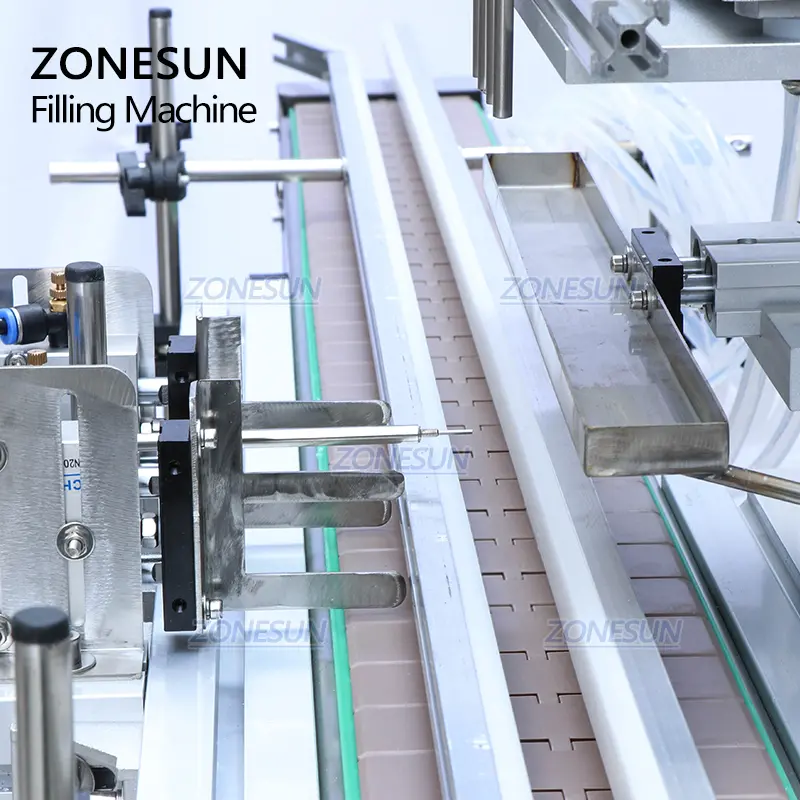

With electric eye to detect bottles, it can run automatically, intelligent and efficient.

Machine Model	ZS-VTMP80P
Power Supply	220V-50HZ/110V-60HZ
The Whole Machine Power	2KW
Container Size	φ20-160mm H30-300mm
Max Flow Rate	6000ml/min	7500ml/min	12000ml/min
Machine Pump	316 Stainless Steel Magnetic Pump
Filling Accuracy	≤100ml deviation≤± 1ml >100ml deviation≤±1% (based on water)

Filling Speed	20-50pcs/min	40-55pcs/min	25-60pcs/min
	(depending on bottles and filling liquid)

Applicable Products: Gel, laundry detergent, syrup, lotion, shampoo, juice.
Applicable Industries: Daily chemical, chemical, beverage, cosmetic industries.
