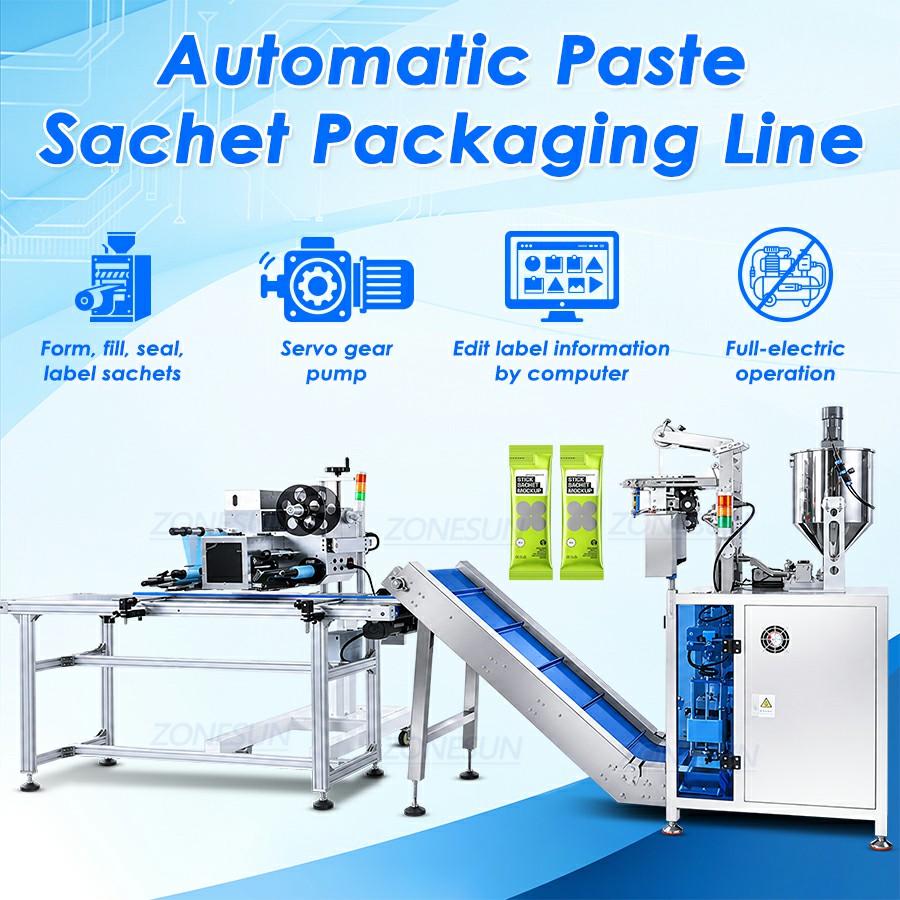

ZS-FSL220 Automatic Small Liquid Sachet Filling Sealing Labeling Machine
🎄 Can realize sachet forming, filling, sealing, cutting & labeling.
🎄 Servo gear pump filling, suitable for viscous liquids or pastes.
🎄 Equipped with thermal label printer.
🎄 Printed label content is edited via computer.
🎄 Can be customized according to sachet shape and size.
🎄 No air compressor required.
Video
Share to:
Description of the Small Sachet Filling Sealing Labeling Machine:

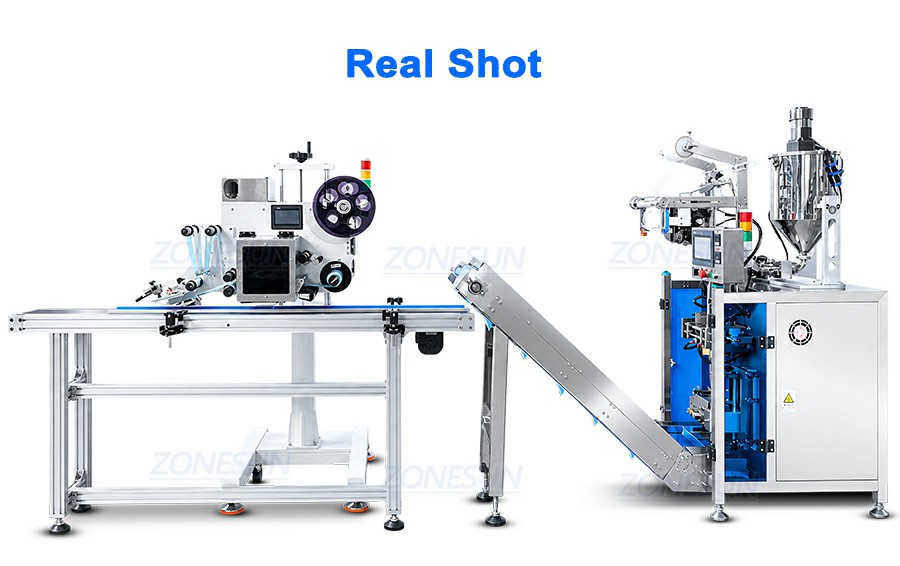

This model is consisting of vertical sachet filling sealing machine, lifting conveyor and printing labeling machine. Equipped with servo gear pump, it can realize accurate filling of viscous liquids or pastes. The model can be used for packing creams, olive oils, soups, shampoos, and so on. The hopper of sachet machine has a built-in agitator, ensuring even filling of viscous materials. The labeling machine is equipped with label printer, which can print logos, patterns, QR codes or texts on labels. This liquid sachet packaging machine can be customized according to your production needs.

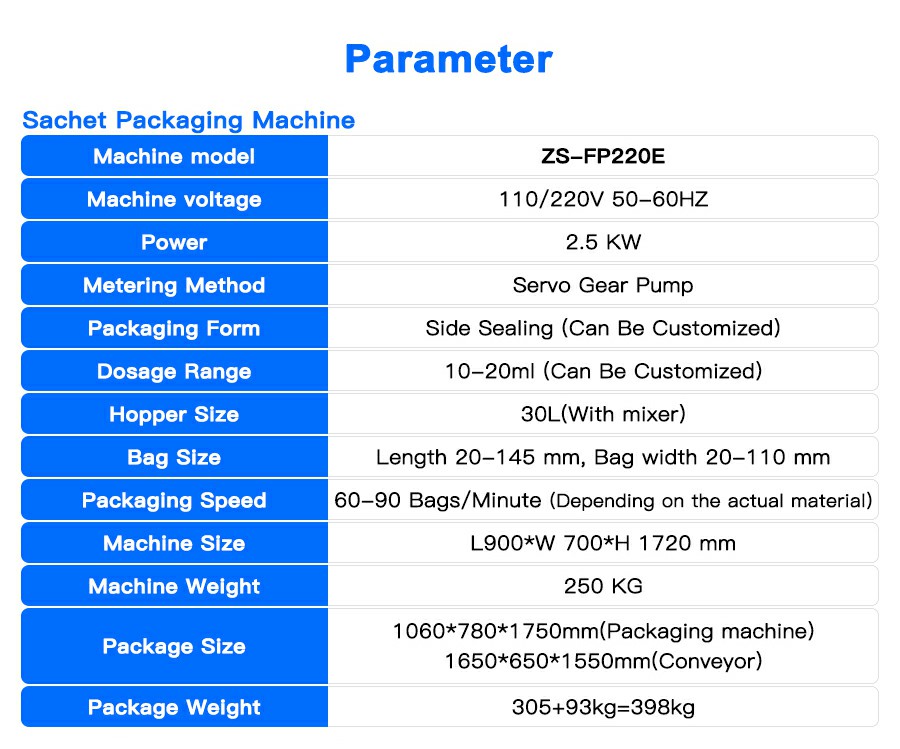

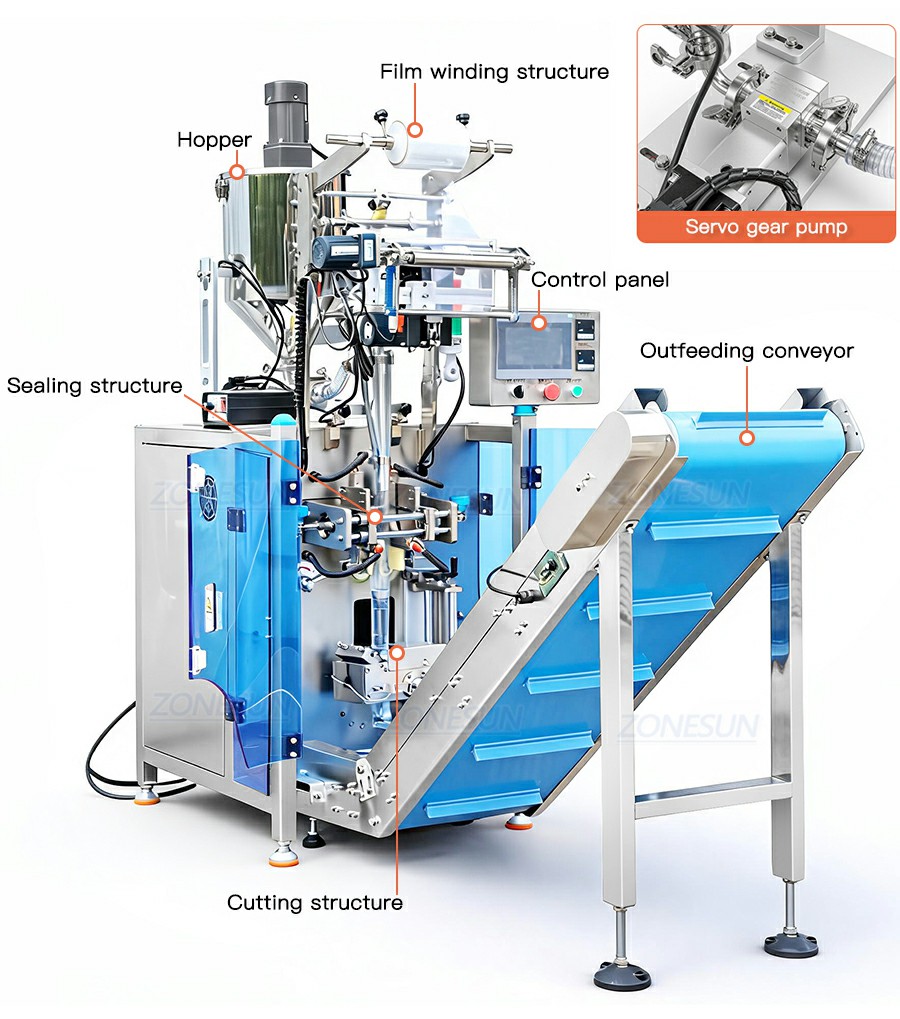

>Sachet Filling Sealing Machine
Machine Model | ZS-FP220E |
Machine Voltage | 220V/110V 50-60HZ |
| Power | 2.5KW |
Production Capacity | About 60-90 sachets/min(depending on sachet size & filling materials) |
| Filling Pump | Servo Gear Pump |
Filling Range | 10-20ml(Can be customized) |
| Sealing Type | Side Sealing(Can be customized) |
Hopper Capacity | 30L(With mixer) |
| Sachet Size | Length: 20-145mm * Width: 20-110mm |
Machine Size | About 900*700*1720mm |
| Machine Weight | About 250kg |
Package Size | About 1060*780*1750mm(Packaging machine) About 1650*650*1550mm(Conveyor) |
| Package Weight | About 305+93kg=398kg |

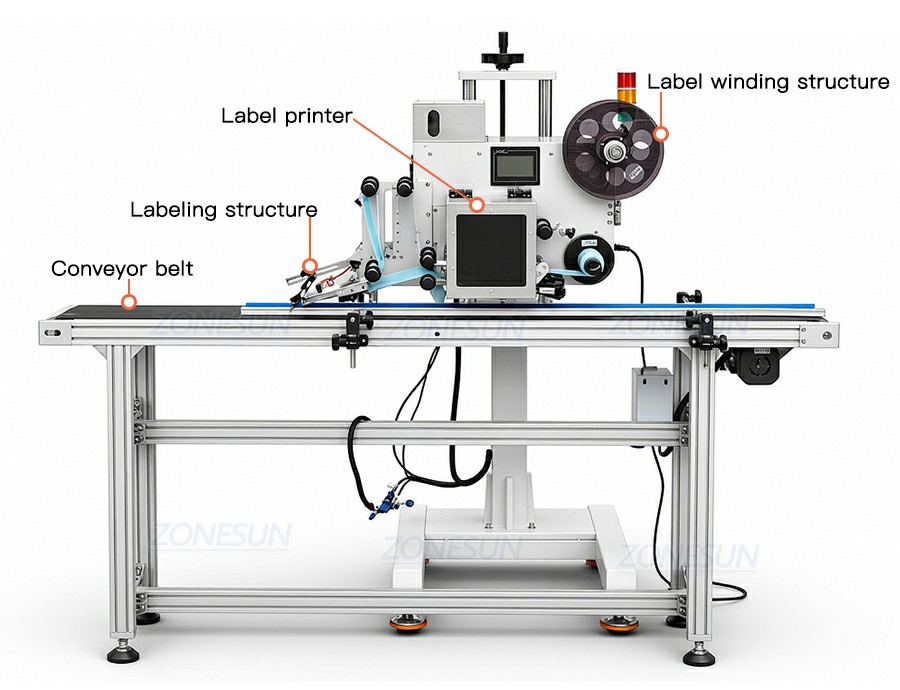

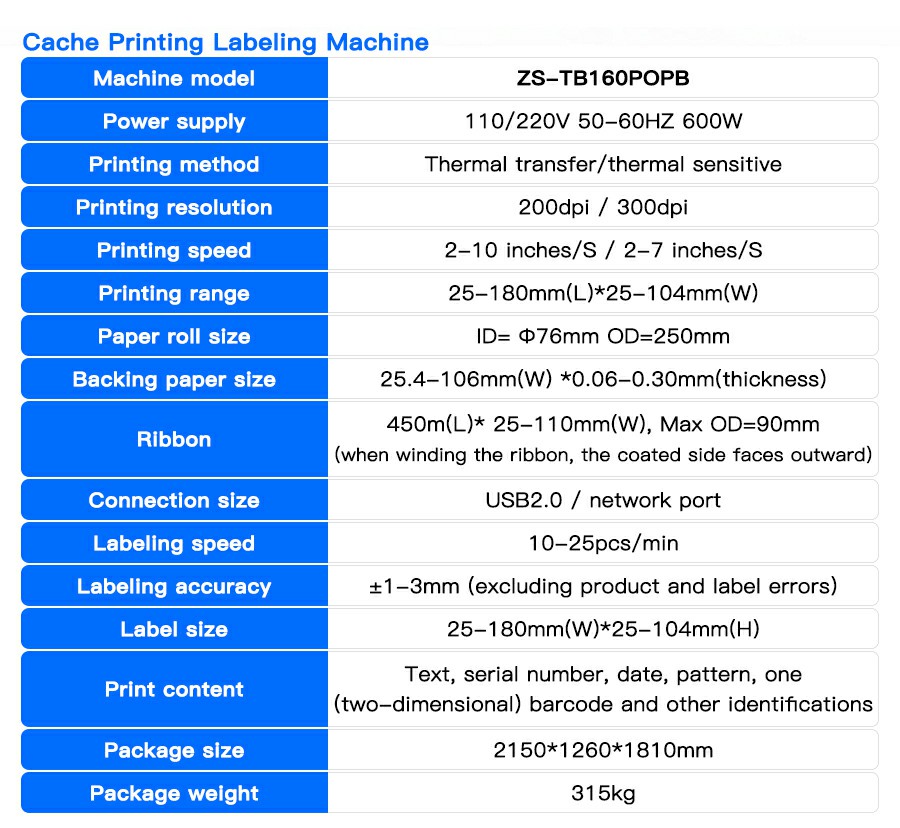

>Sachet Labeling Machine With Label Printer
Machine Model | ZS-TB160POPB |
| Machine Voltage | 220V/110V 50-60HZ 600W |
Labeling Speed | 10-25pcs/min |
| Labeling Accuracy | ±1-3mm (excluding product and label errors) |
Printing Method | Thermal Transfer/Thermal Sensitive |
| Printing Resolution | 200dpi / 300dpi |
Printing Speed | 2-10 inches/S / 2-7 inches/S |
| Printing Range | 25-180mm(L)*25-104mm(W) |
Paper Roll Size | ID= Φ76mm OD=250mm |
| Backing Paper Size | 25.4-106mm(W) *0.06-0.30mm(thickness) |
Ribbon | 450m(L)* 25-110mm(W), Max OD=90mm (when winding the ribbon, the coated side faces outward) |
| Connection Size | USB2.0 / network port |
Label Size | 25-180mm(W)*25-104mm(H) |
| Print Content | Text, serial number, date, pattern, one (two-dimensional) barcode and other identifications |
Package Size | About 2150*1260*1810mm |
| Package Weight | About 315kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

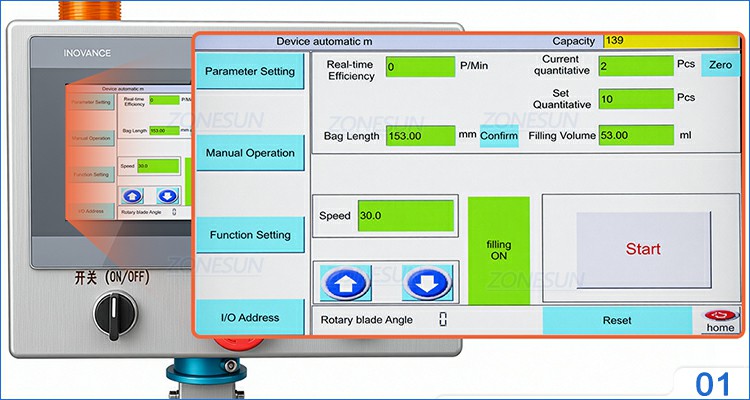

PLC Control Panel
Can intuitively show real-time data and enable easy operation. The panel’s language can be customized as your need.

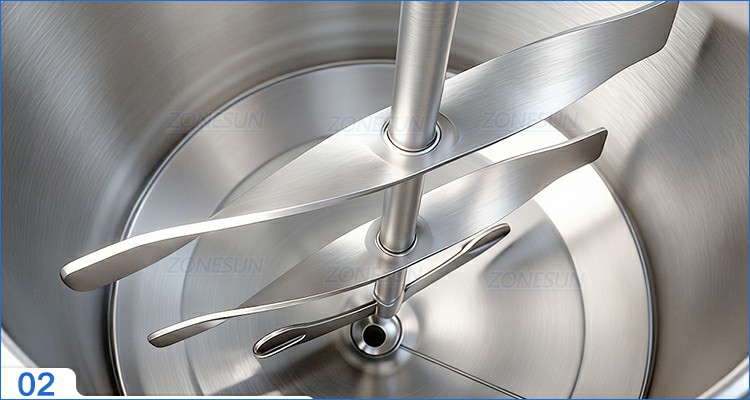

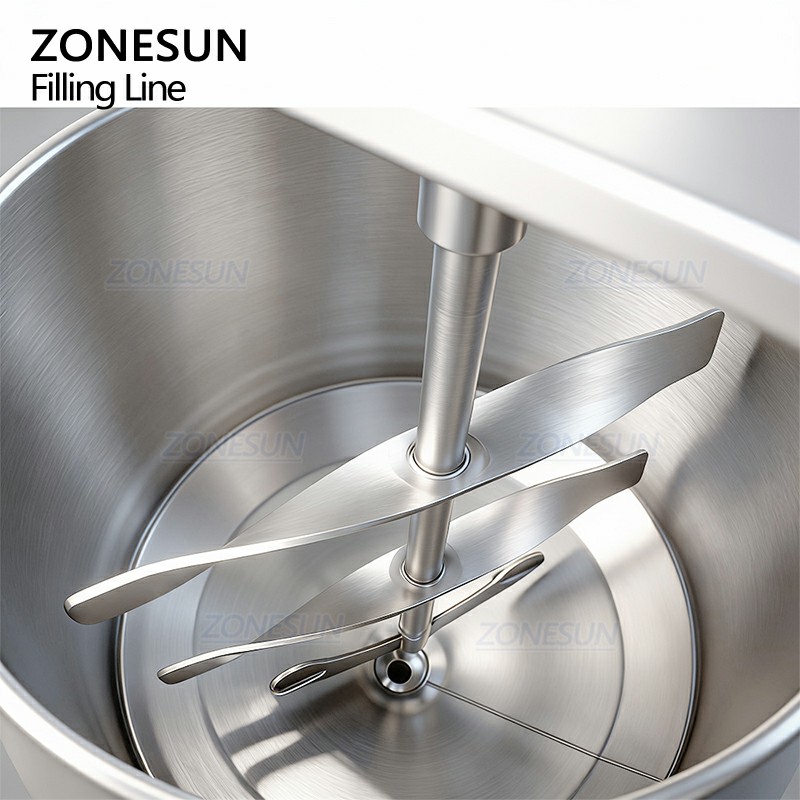

Mixing Hopper
Can mix the materials evenly to maintain uniform viscosity and smooth flow. It can also be equipped with heater if needed.

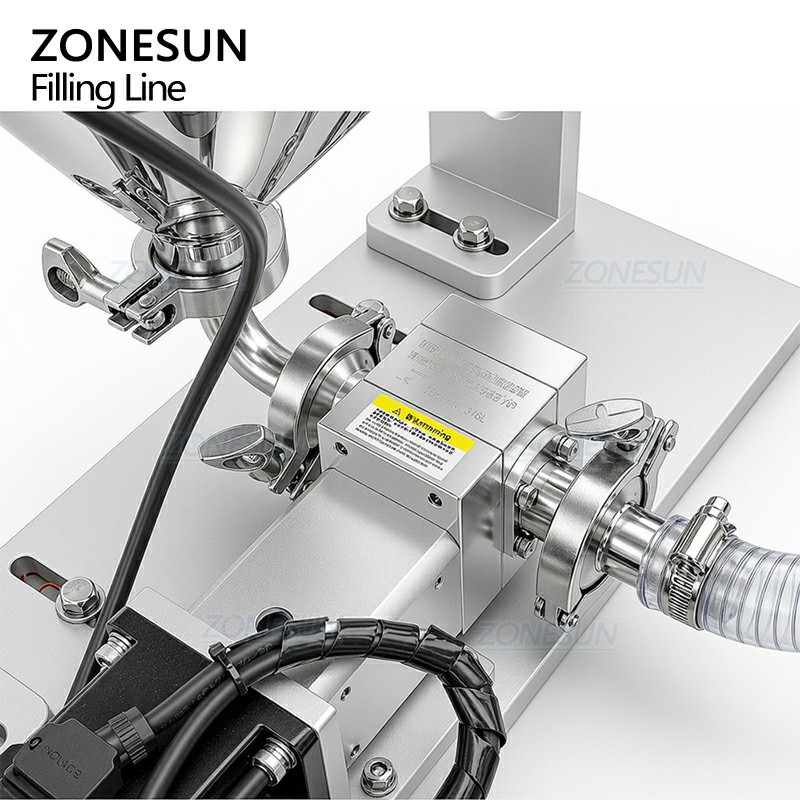

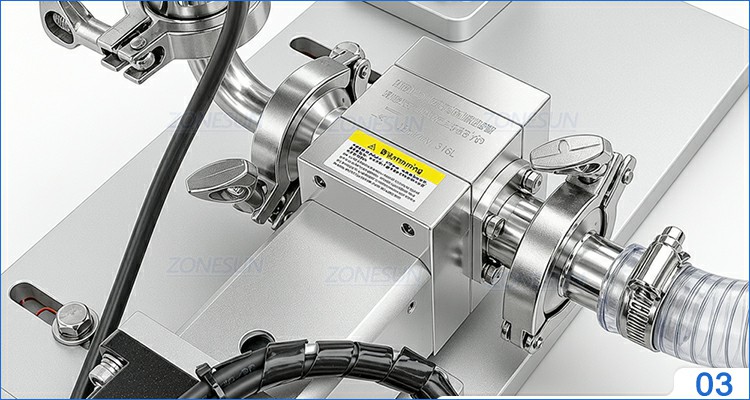

Servo Gear Pump Filling System
Suitable for filling viscous liquids or pastes. Servo control ensures accurate volume control.

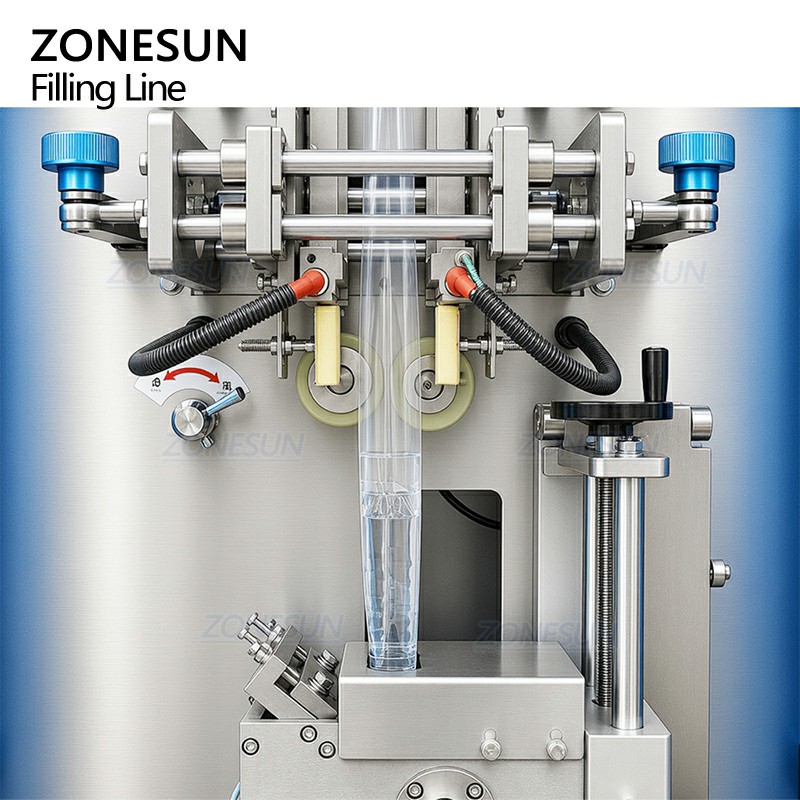

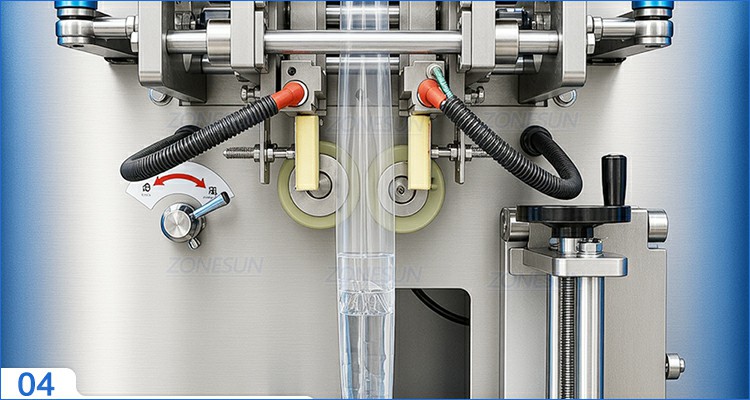

Sachet Sealing & Cutting System
Sealing temperature is adjustable. The sealing and cutting system is customized based on your sachets.

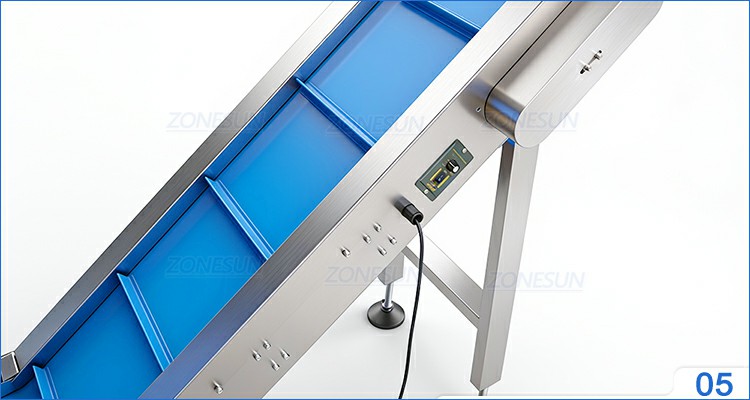

Lifting Conveyor
Designed for moving sachets to labeling station. The conveyor size is customized as production need.

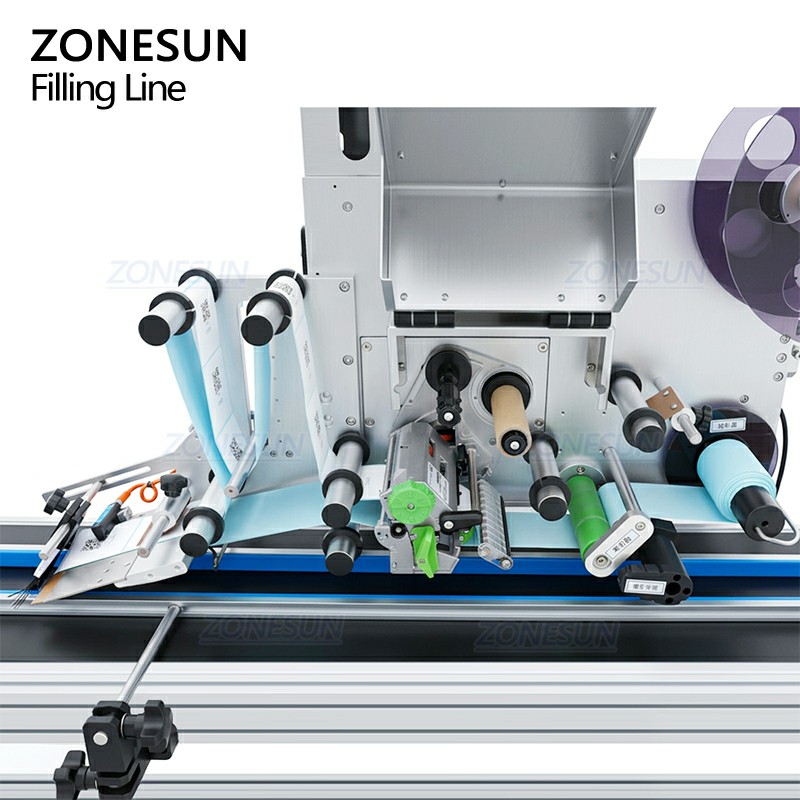

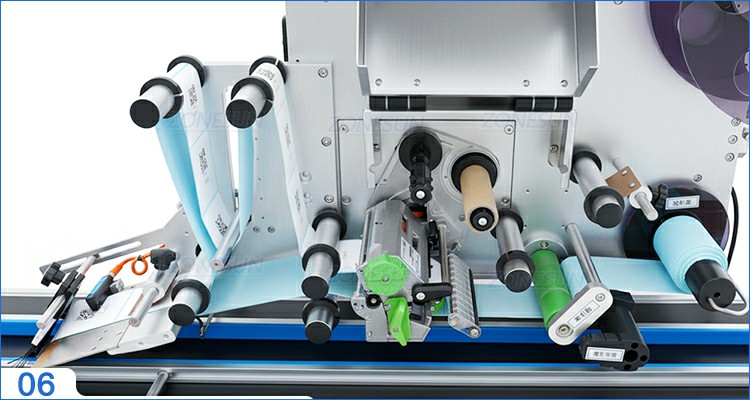

Thermal Label Printer
Can realize printing of numbers, patterns, QR codes, barcode. The printed content is edited via computer.

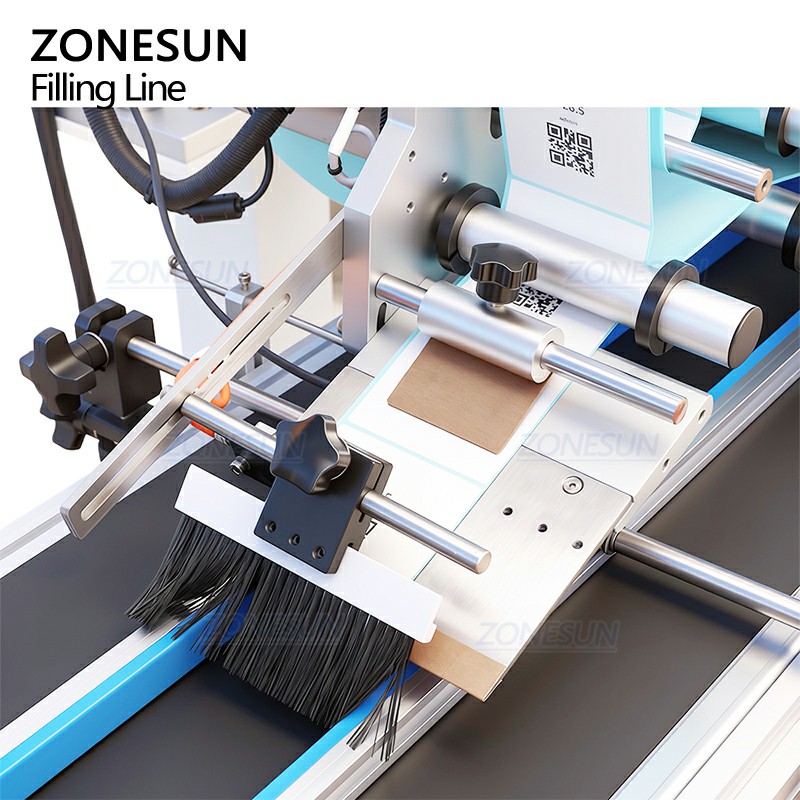

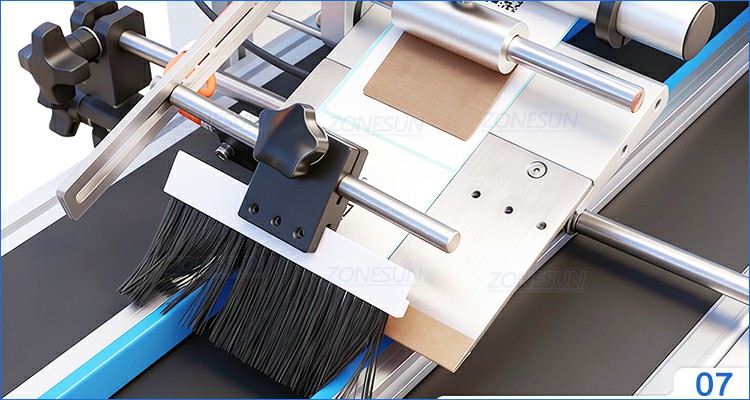

Flat Label Applicator
Capable of applying labels to sachets accurately. The position of label applicator can be adjusted.
- Applicable Products: Olive oils, soups, hand sanitizers, hair masks, antiseptic gels, lotions, shampoos, vinaigrette, concentrate coffee liquid, etc.
- Applicable Industries: Food, beverage, personal care, chemical, cosmetic, medicine industries.
