ZS-JG25 Automatic Soap Dispenser Pump Dip Tube Cutting Machine
🎄 Can realize pump caps feeding and dip tube cutting.
🎄 Machine output is 900-1500pcs/hour.
🎄 With servo gripper to pick and place caps to cutting station.
🎄 Cutting length is adjustable as production need.
🎄 Can be customized for V-shaped or flat end cutting.
Video
Share to:

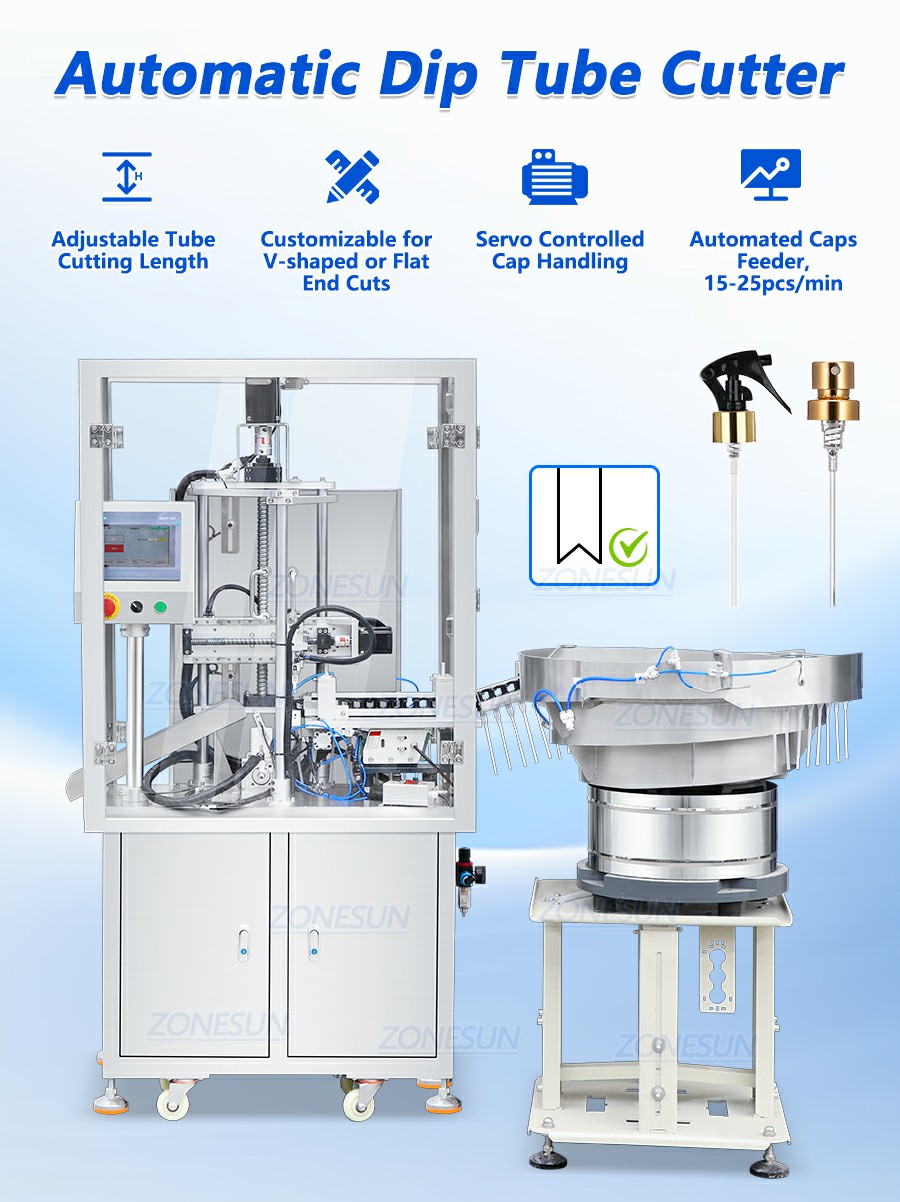

Description of the Automatic Dip Tube Cutting Machine:
Equipped with vibratory feeder, this model performs processes of feeding pump caps, cutting dip tubes and discharging caps. It uses servo-driven gripper to convey caps across the stations, which saves labor cost. The cutting parameters can be set on touch screen directly, simplifying operation. The dispenser pump dip tube cutter can also work with capping machine to complete automated production.
Machine Model | ZS-JG25 |
| Machine Voltage | 220V/110V 50-60HZ |
Production Capacity | About 15-25pcs/min(depending on product size) |
| Applicable Tube Diameter | 4-9.5mm |
Applicable Tube Length(Before Cutting) | 65-330mm |
| Tube Length (After Cutting) | 60-320mm |
Length Cutting Range | 5-270mm |
| Machine Size | About 1800*930*1710mm(L*W*H) |
Package Size | About 1100*560*1850mm(Main Machine) About 1400*950*750mm(Vibratory Feeder) |
| Package Weight | About 210KG (Main Machine) About 220KG(Vibratory Feeder) |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.
Touchscreen Interface
Intuitive interface allows for live data monitoring and easy parameter setting. It supports customization for multiple languages.
Vibratory Cap Feeder
Designed for arranging and feeding dispenser pump caps orderly. The vibratory feeder is customized based on cap size.
Pump Cap Gripping System
Servo-driven gripper can pick up and place caps to cutting station. This saves labor cost.
Dip Tube Cutting System
Can be customized for V-shape or flat end cutting. It uses mold to position caps during cutting, ensuring production quality.
Product Outlet
Outlet plate helps to guide the cut caps to the collection area, ensuring smooth operation.

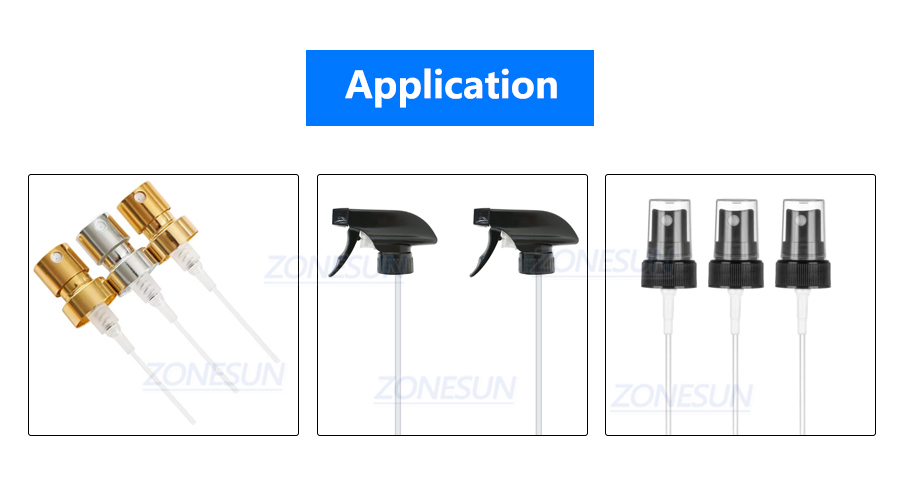

- Applicable Products: Hand sanitizer, body wash, liquid soap, moisturizing cream, shampoo, laundry detergent, dish soap, etc.
- Applicable Industries: Food, cosmetic, personal care, daily chemical industries.
