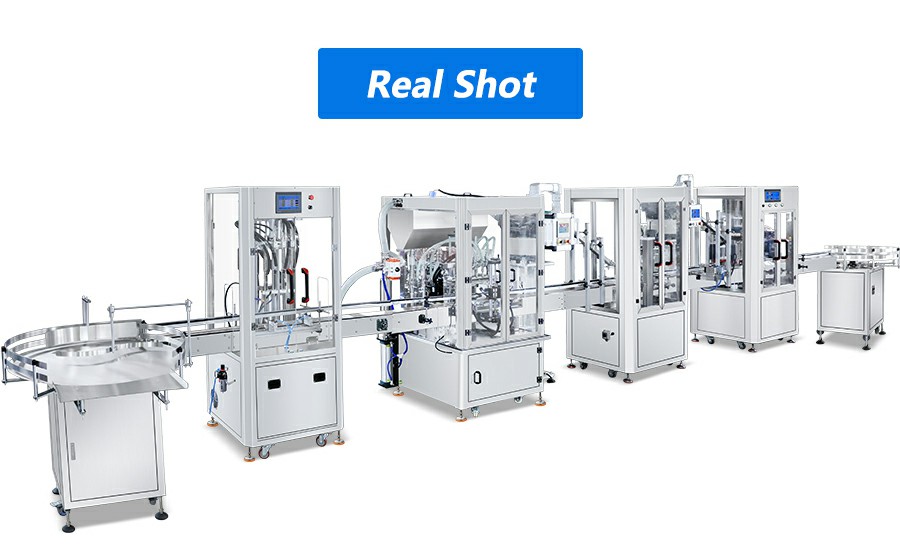

Automatic Water Sports Electrolyte Drinks Bottle Filling Capping Machine

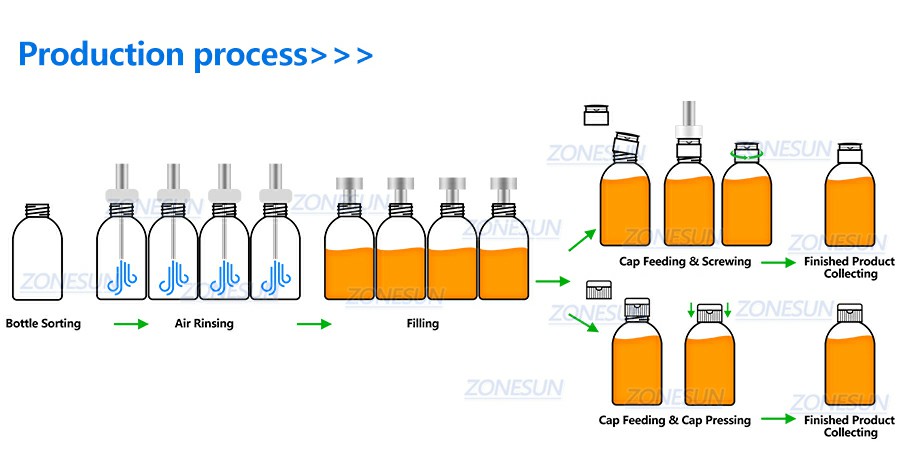

🎄 Can realize bottle sorting, rinsing, filling and capping.
🎄 Servo piston pump filling, suitable for liquid or viscous paste.
🎄 Can handle screw-type or press-type bottle caps.
🎄 With vibratory feeders to supply caps automatically.
🎄 Equipped with dust cover to ensure production cleanliness.
🎄 Auxiliary Equipment: Bottle labeler, case packer.
Video
Share to:

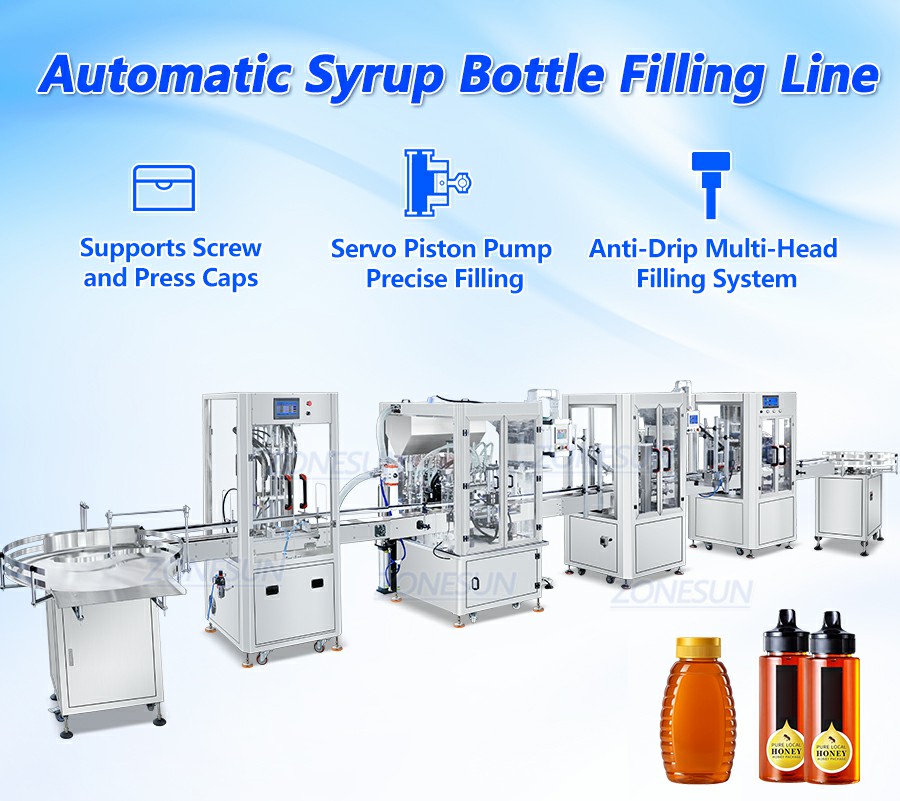

Description of the Electrolyte Drinks Bottle Filling Capping Machine:

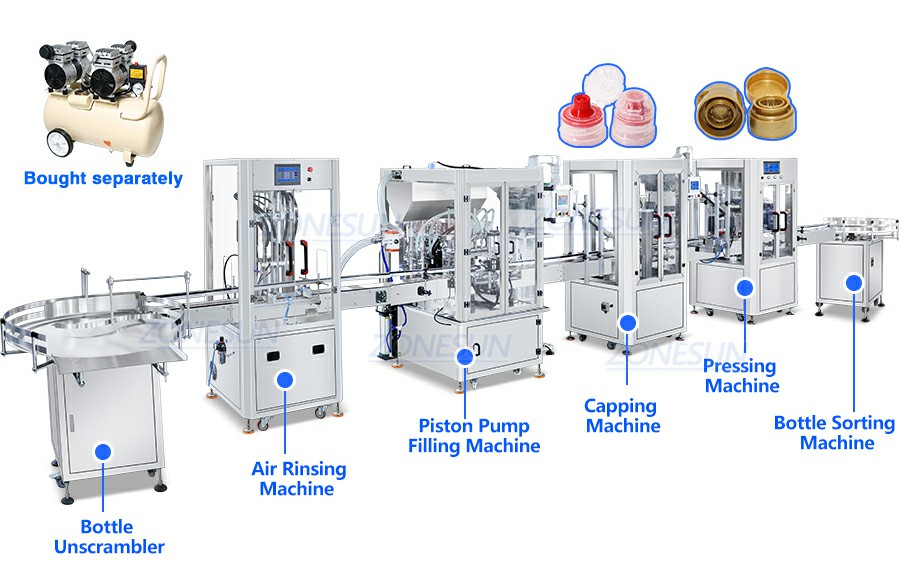

This model consists of bottle unscrambler, servo piston filling machine, cap screwing machine, cap pressing machine and bottle collecting turntable. It can be used for packing liquids or pastes, such as electrolyte drinks, syrups, squeeze condiments, etc. The capping system can handle screw-type or press-type bottle caps, which widens its application. The automatic electrolyte drinks filling capping machine can be customized according to your production requirements.

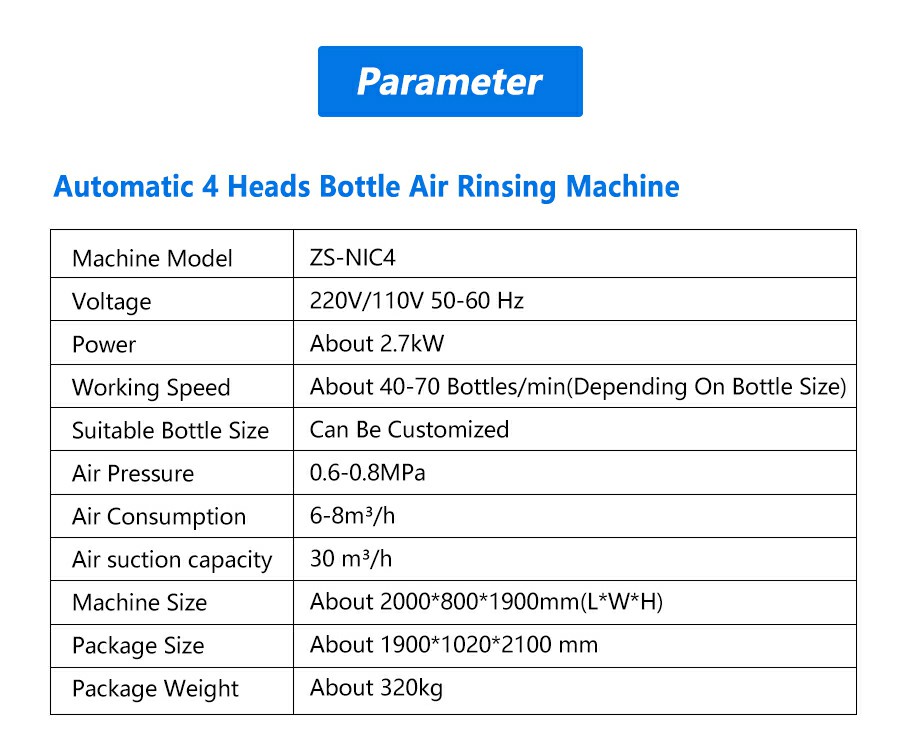

>Automatic Ionized Air Rinser
Machine Model | ZS-NIC4 |
| Machine Voltage | 220V/110V 50-60Hz |
Power | About 2.7KW |
| Working Speed | About 40-70 bottles/min(depending on bottle size) |
Applicable Bottle Size | Can Be Customized |
| Air Suction Capacity | 30m³/h |
Compressed Air Supply | 0.6-0.8MPa, 6-8m³/h |
| Machine Size | About 2000*800*1900mm(L*W*H) |
Package Size | About 1900*1020*2100mm |
| Package Weight | About 320KG |

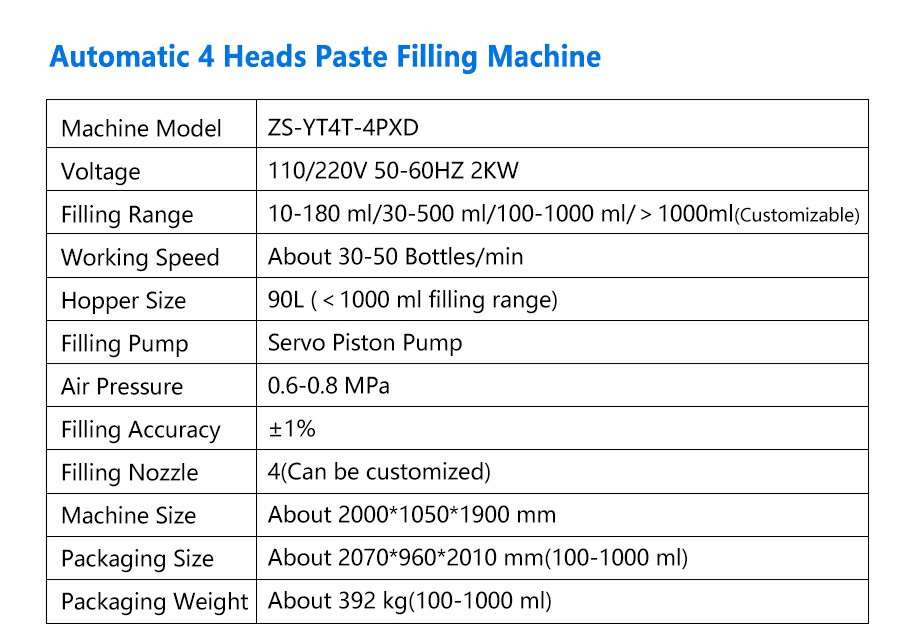

>Servo Automatic Filling Machine
Machine Model | ZS-YT4T-4PXD |
| Power Supply | 110/220V 50-60HZ 2KW |
Filling Range | 10-180ml/30-500ml/100-1000ml (Can be customized) |
| Filling Speed | About 30-50 bottles/min(depending on filling range & materials) |
Filling Pump | Servo Piston Pump |
| Filling Accuracy | ±1% |
Filling Nozzle | 4(Can be customized) |
| Hopper Size | 90L (<1000ml filling range) |
Air Pressure | 0.6-0.8MPa |
| Machine Size | About 2000*1050*1900mm |
Packaging Size | About 2070*960*2010mm(100-1000ml) |
| Packaging Weight | About 392KG(100-1000ml) |

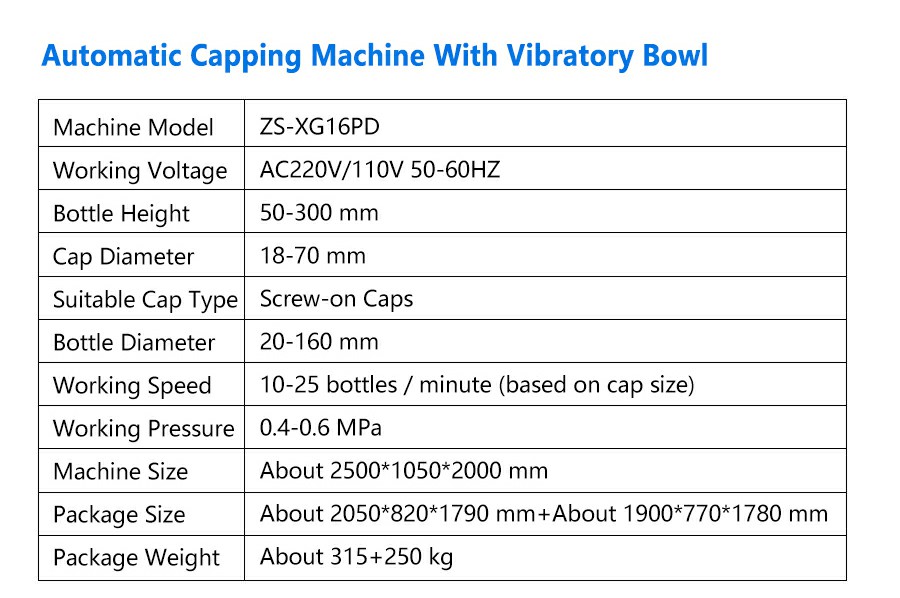

>Automatic Capping Machine
Machine Model | ZS-XG16PD |
| Machine Voltage | AC220V/110V 50-60HZ |
Capping Speed | About 10-25 bottles/min (based on cap size) |
| Bottle Size | φ20-160mm*(H)50-300mm |
Cap Diameter | 18-70mm |
| Applicable Cap Type | Screw-on Caps |
Working Pressure | 0.4-0.6MPa |
| Machine Size | About 2500*1050*2000mm |
Package Size | About 2050*820*1790mm+About 1900*770*1780mm |
| Package Weight | About 315+250KG |

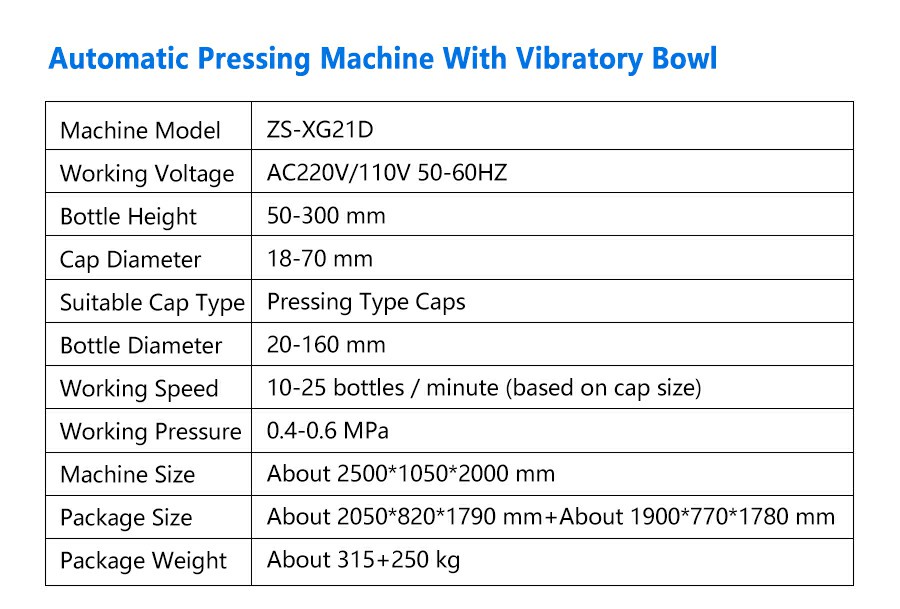

>Automatic Cap Pressing Machine
Machine Model | ZS-XG21D |
| Working Voltage | AC220V/110V 50-60HZ |
Working Speed | About 10-25 bottles/min (based on cap size) |
| Bottle Size | φ20-160mm*(H)50-300mm |
Cap Diameter | 18-70mm |
| Applicable Cap Type | Pressing Type Caps |
Working Pressure | 0.4-0.6MPa |
| Machine Size | About 2500*1050*2000mm |
Package Size | About 2050*820*1790mm+About 1900*770*1780mm |
| Package Weight | About 315+250KG |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

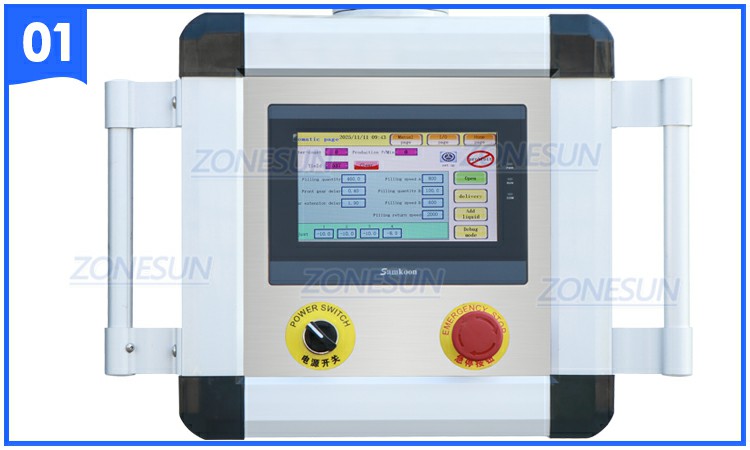

Touchscreen Panel
Working parameters can be easily adjusted via the touchscreen. It supports customization for multiple languages if needed.

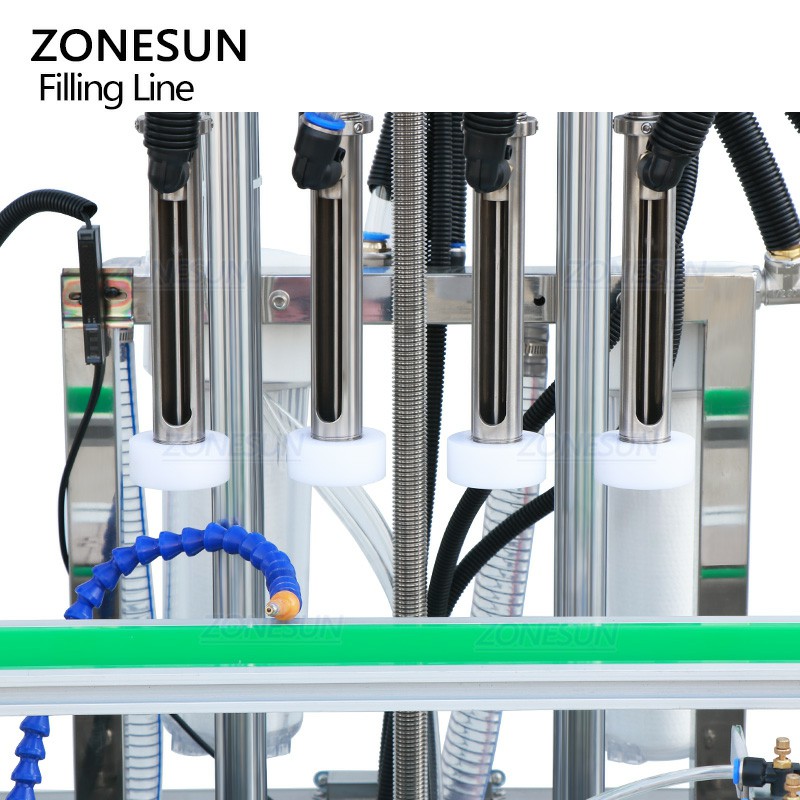

Ionized Air Rinsing System
Can remove contamination and dust from the inside of bottles. Rinsing head quantity can be customized.

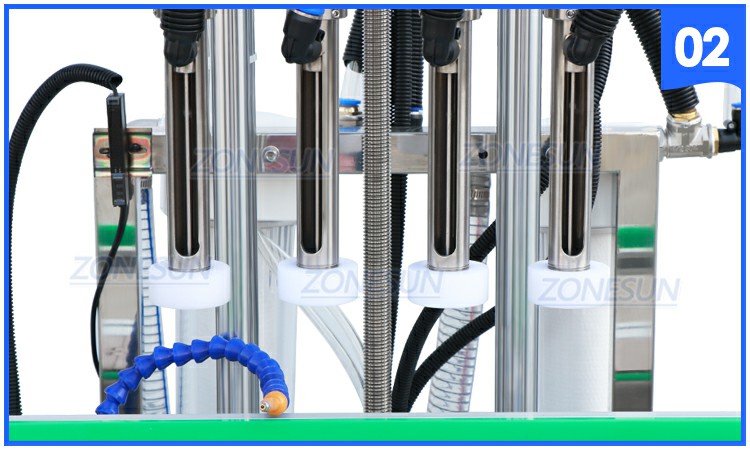

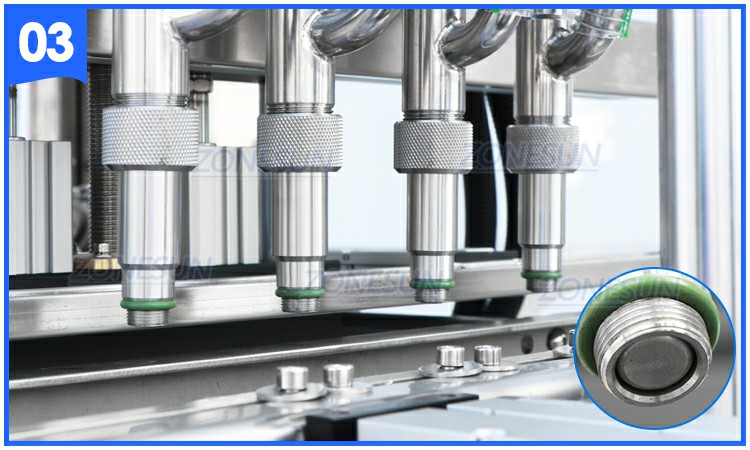

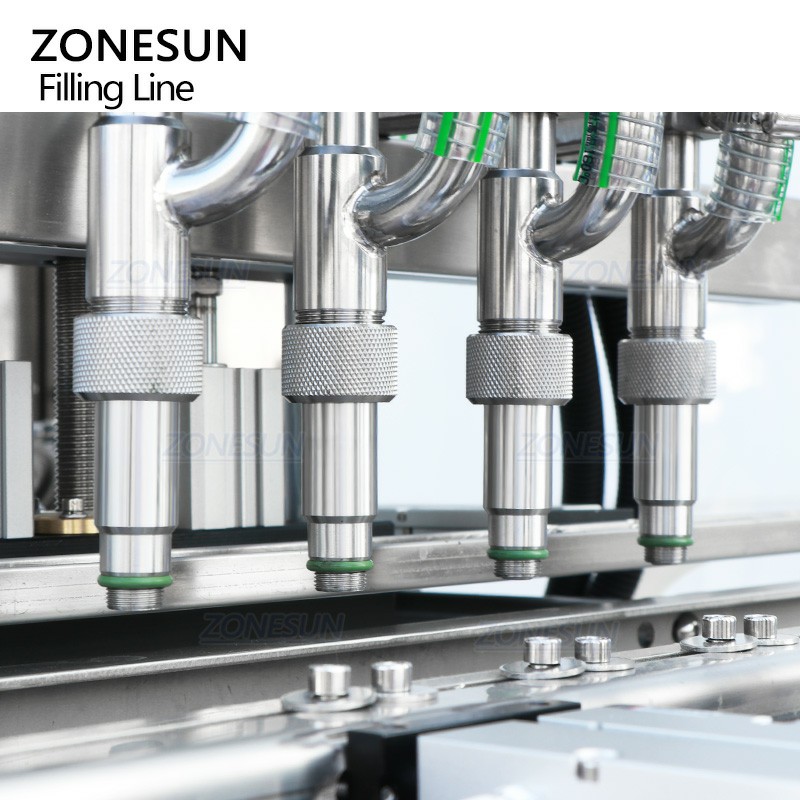

Servo Piston Pump Filling System
Can realize accurate filling of non-viscous and viscous materials. Filling volume is customized as your need.

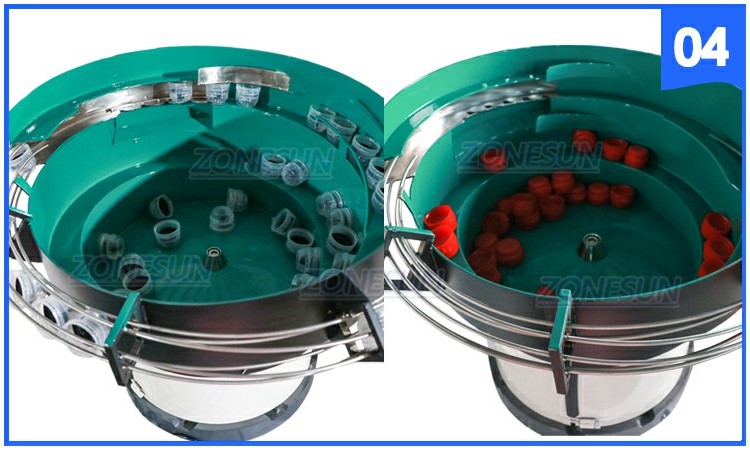

Vibratory Cap Feeder
Capable of orienting and feeding bottle caps continuously. The vibratory feeders are customized based on cap size.

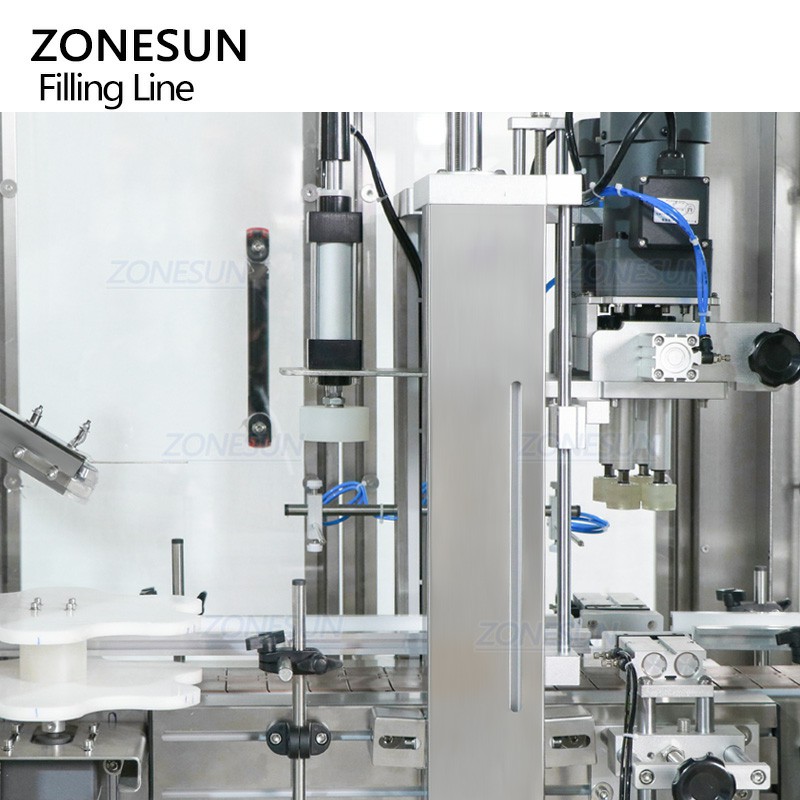

Cap Loading & Screwing Structure
Can load and tighten the screw-type caps to bottles. Capping height is adjustable as production need.

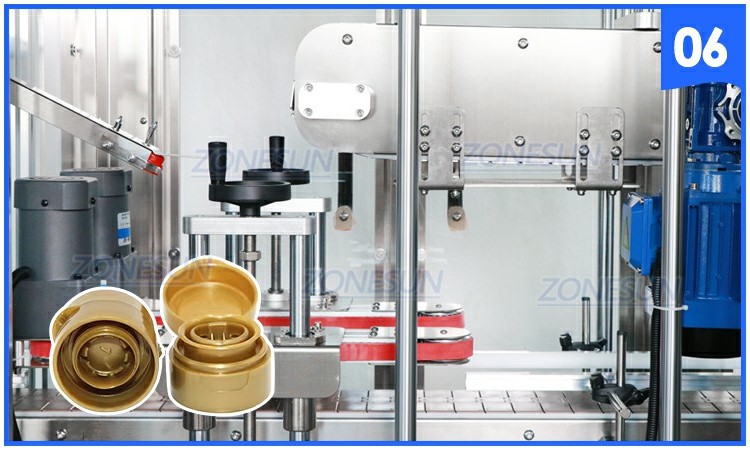

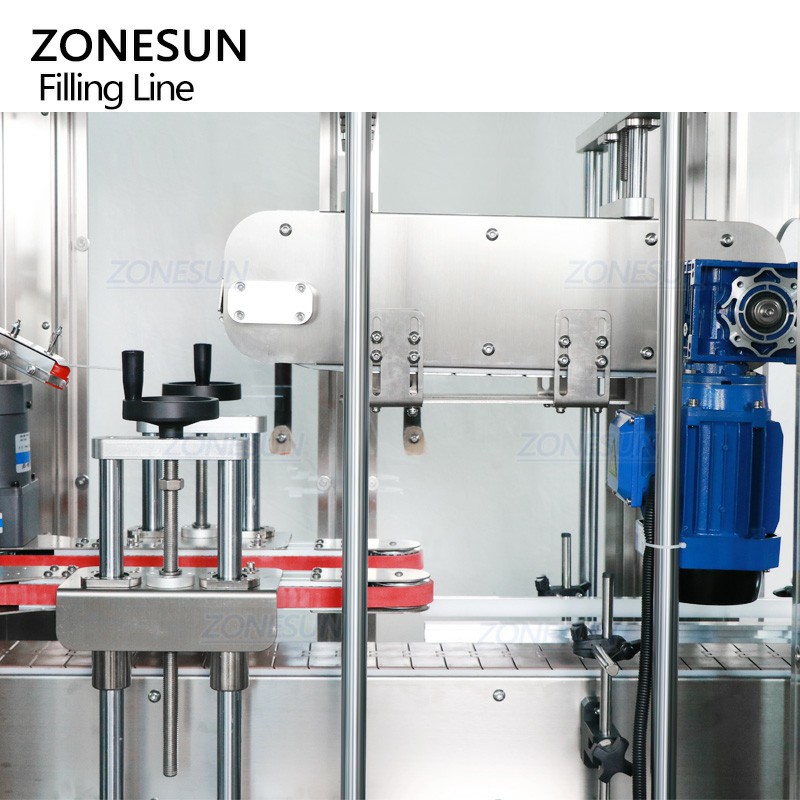

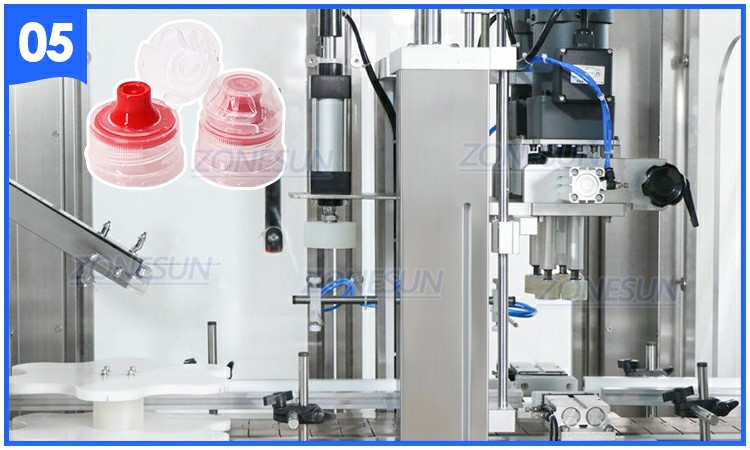

Cap Loading & Pressing Structure
Designed for press-type bottle caps, the machine is customized according to product size.

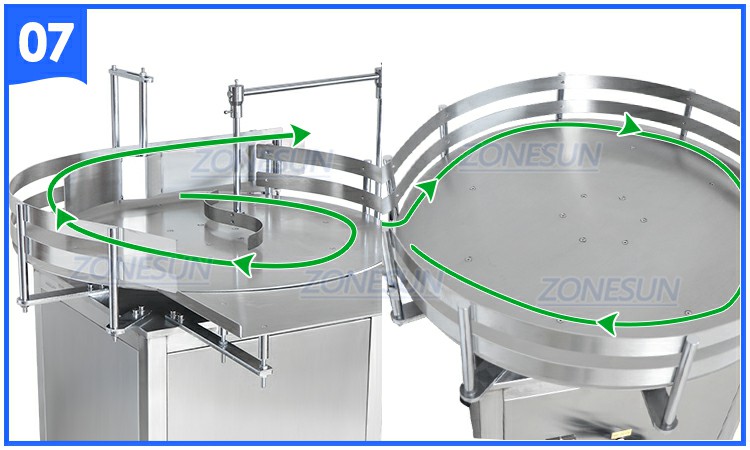

Bottle Sorting Turntable
Designed for arranging, feeding and collecting bottles. The turntable size can be customized as production need.
- Applicable Materials: Non-viscous or viscous materials.
- Applicable Bottle Caps: Screw-type or press-type caps.

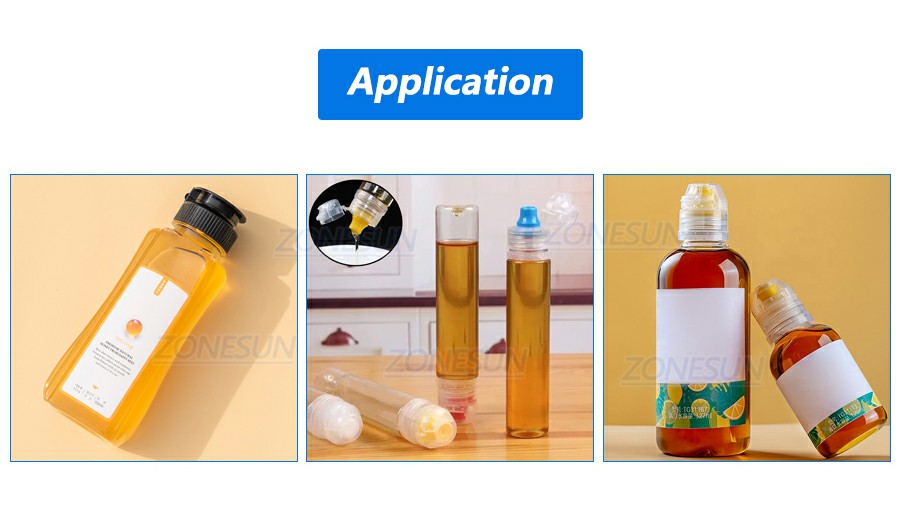

- Applicable Products: Electrolyte waters, sports drinks, syrups, honeys, dishwashing liquids, condiments, etc.
- Applicable Industries: Food, beverage, personal care, cosmetic, medicine industries.
