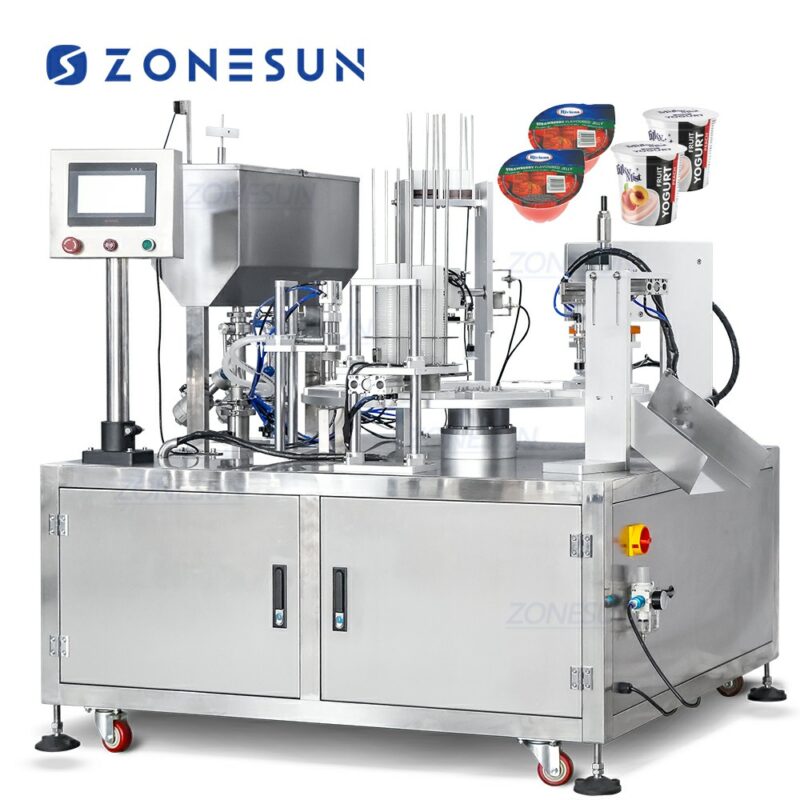

ZS-AFS02 Rotary Automatic Plastic Marinara Sauce Cup Filling And Sealing Machine

This machine has functions of feeding plastic cups and precut film lids, filling sauce, sealing cups and discharging finished products automatically. Made in monoblock design, it can save working space. The automatic cup filling and sealing machine can be customized to suit for your production need.

Share to:



Automatic Cup Filling And Sealing Machine

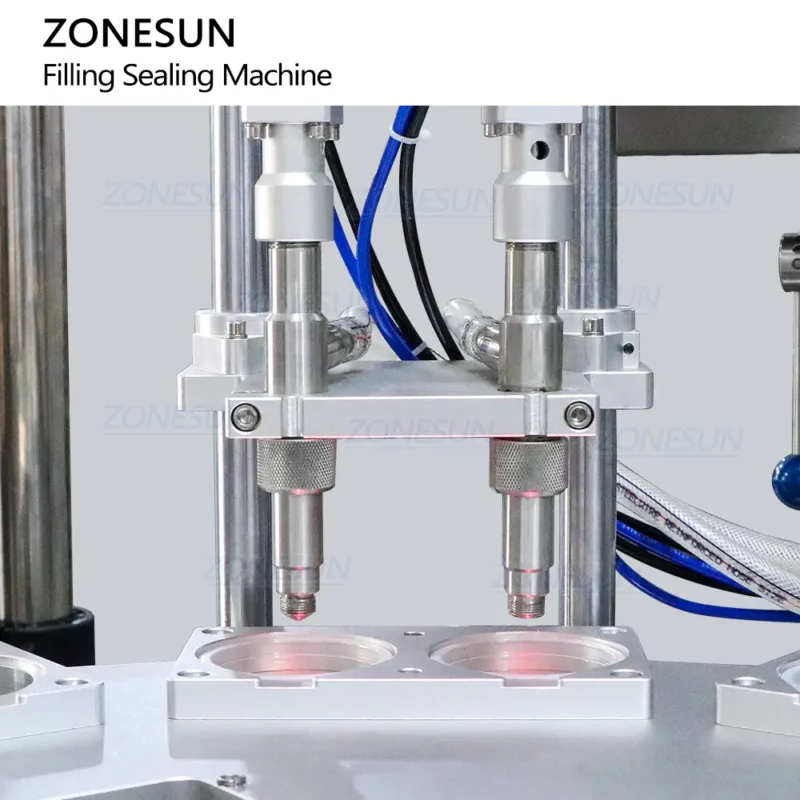

  • With piston pump, it can fill thick paste like marinara sauce, honey mustard.
  • The hopper can be customized with heating and stirring function.

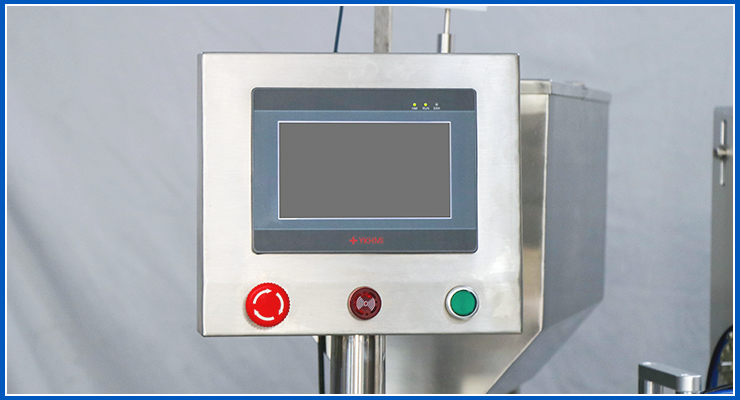

  • With touchscreen panel, it is easy to set or adjust working parameters. Language of panel can be customized.
  • Filling range and filling nozzle quantity can be customized as your need.
  • This automatic cup filling and sealing machine integrates functions of feeding, filling, sealing and discharging, greatly improving efficiency.

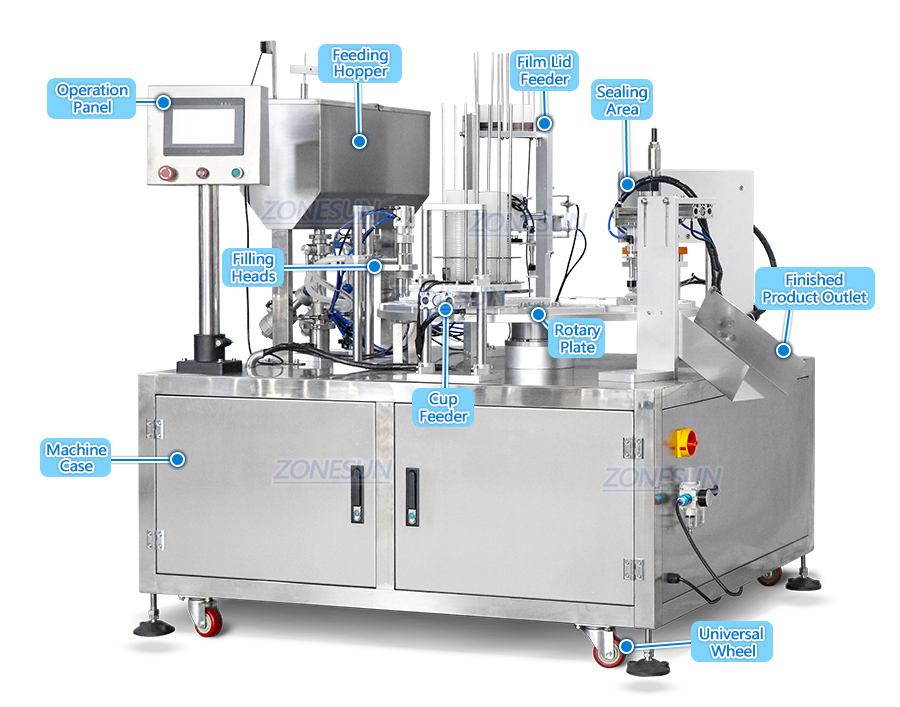

Diagram

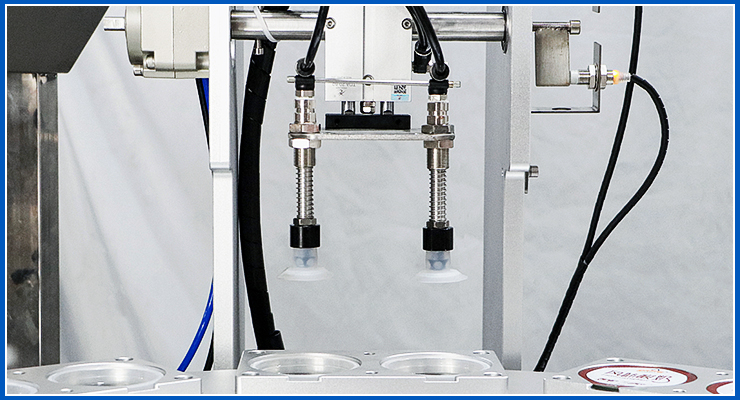

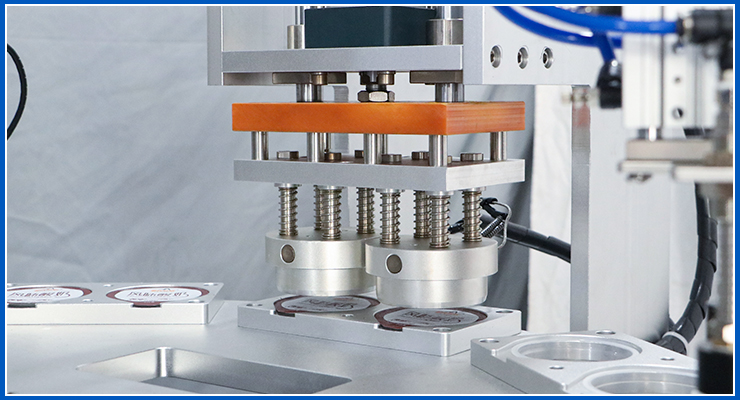

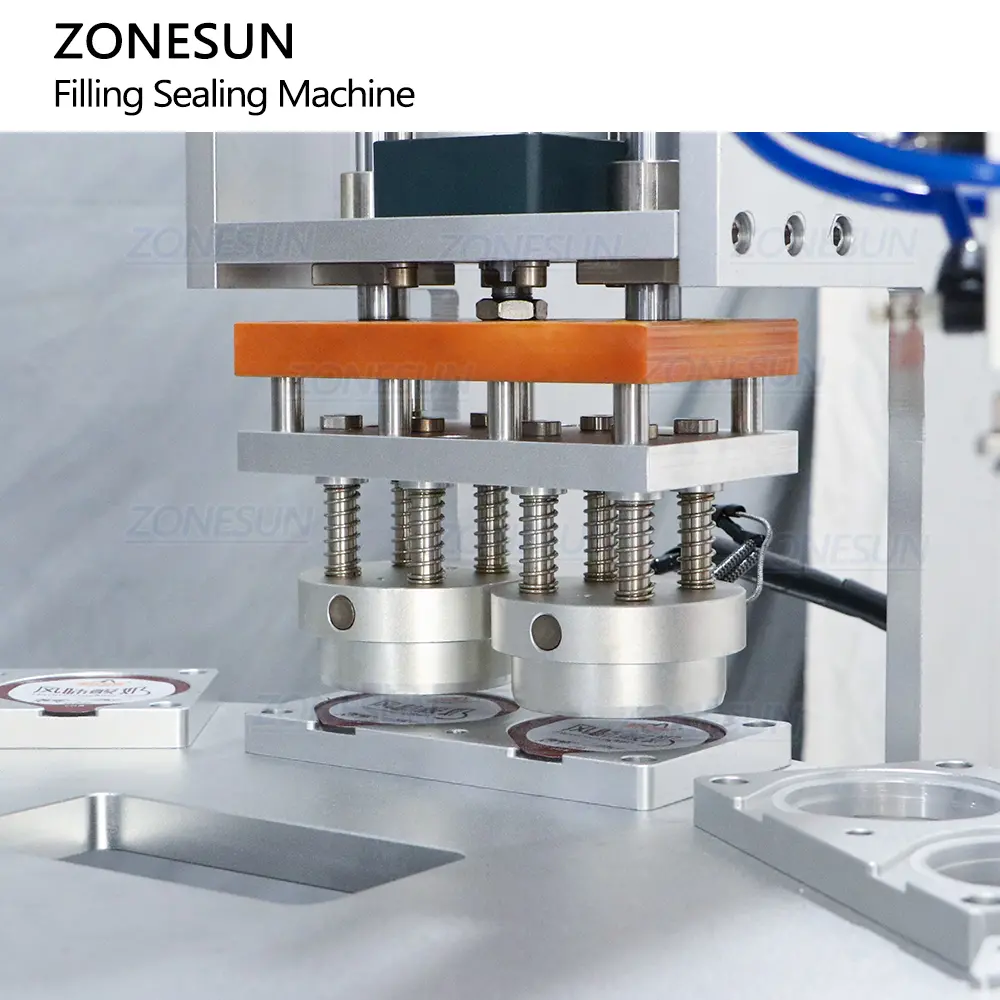

Detail of Cup Filling And Sealing Machine

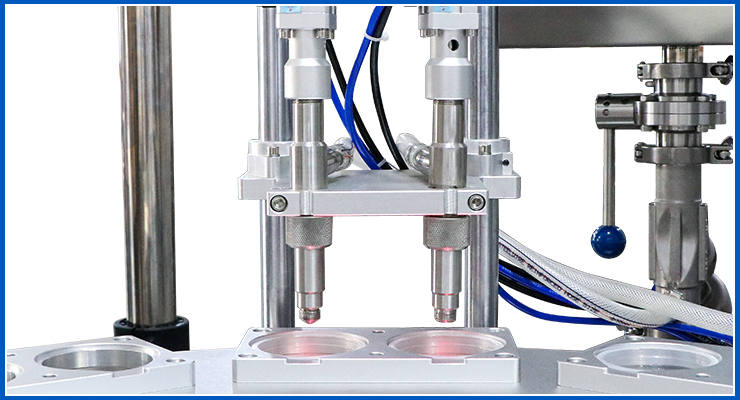

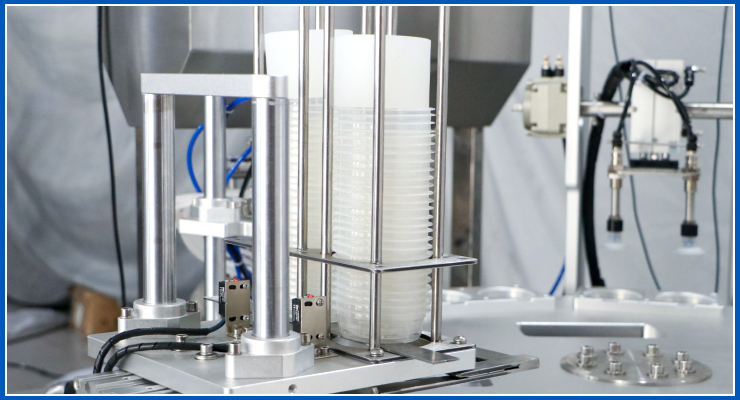

Detail of Automatic Plastic Cup Filling Sealing Machine

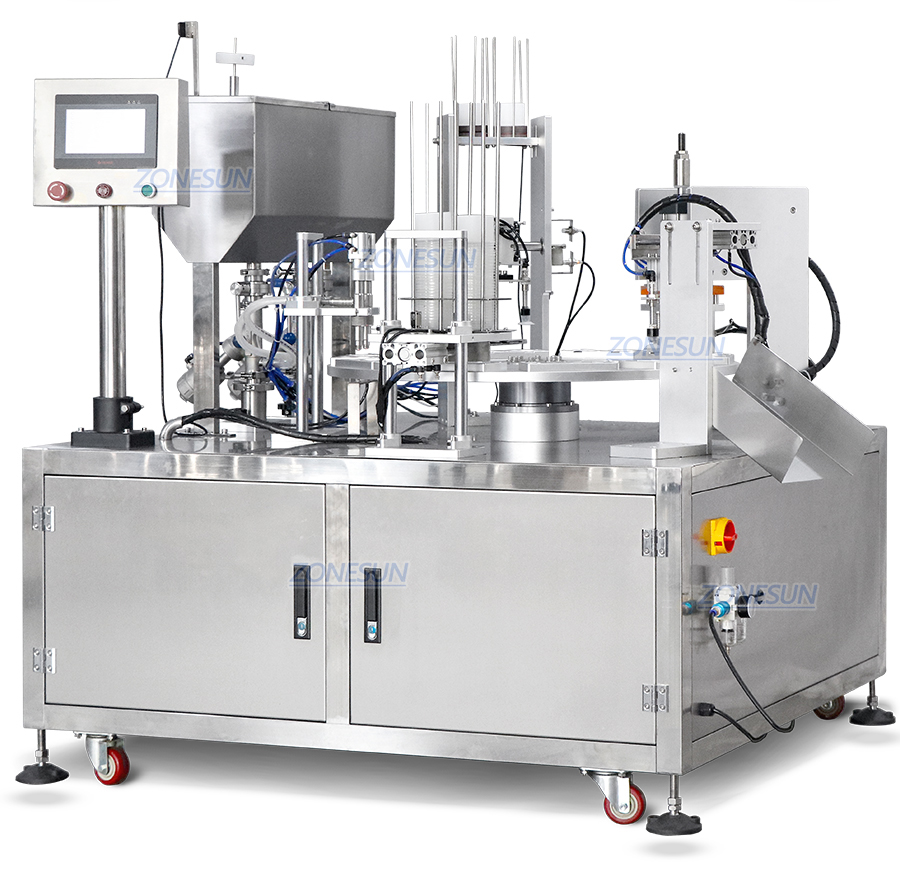

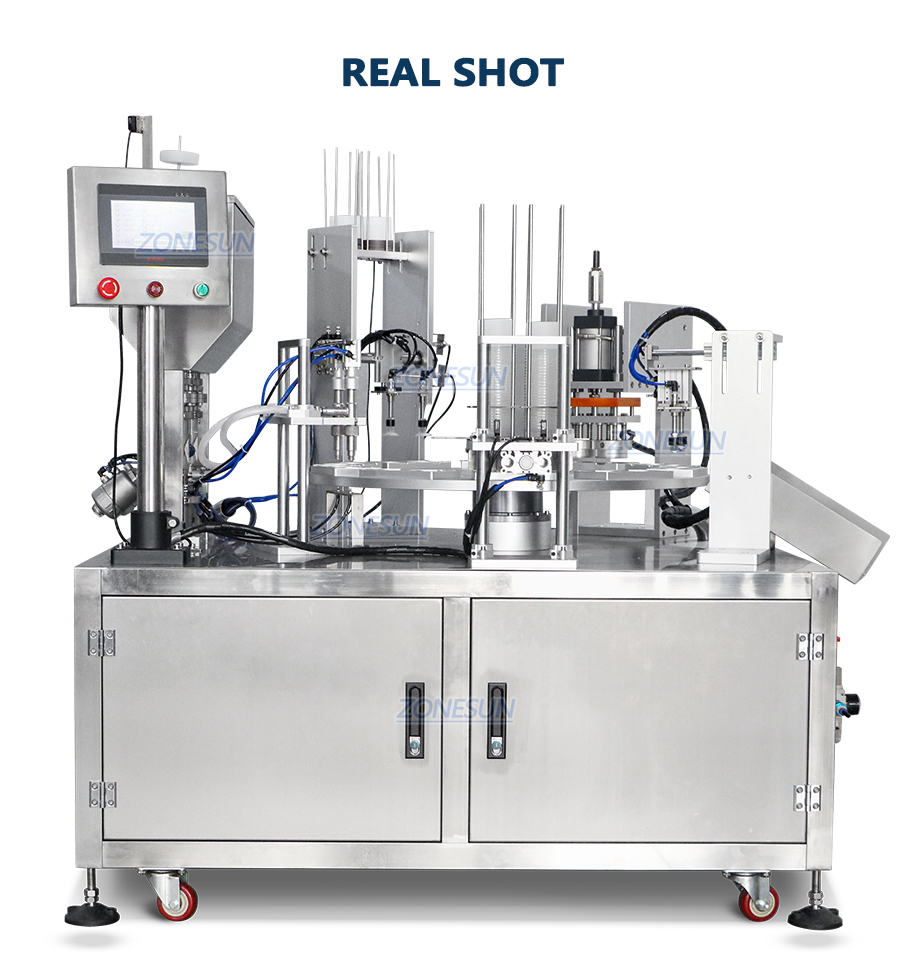

Real Shot of Cup Filling And Sealing Machine

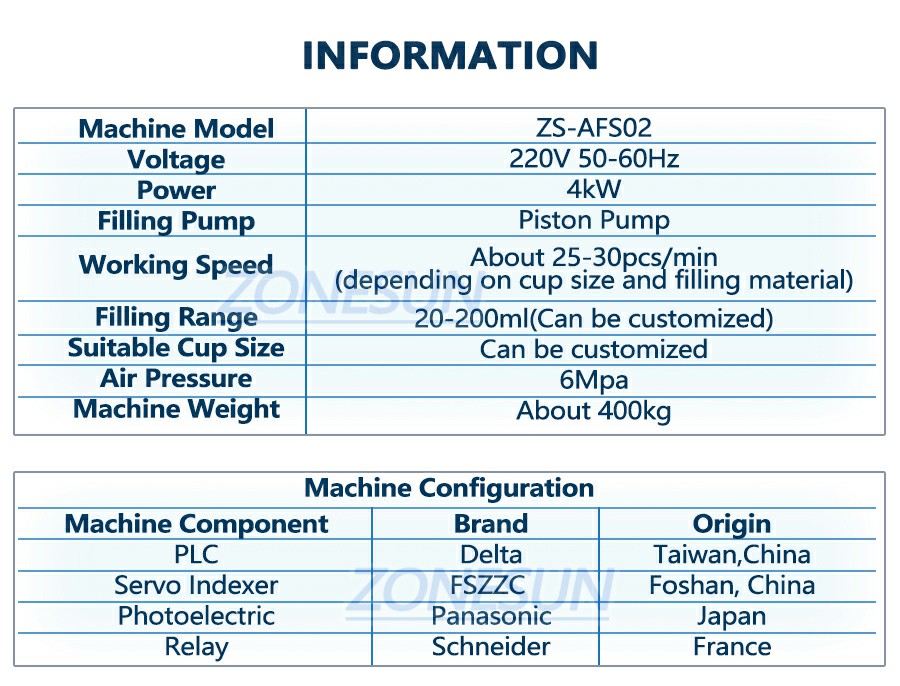

Machine Model ZS-AFS02
Voltage 220V 50-60Hz
Power 4kW
Filling Pump Piston Pump
Working Speed About 25-30pcs/min(depending on cup size and filling material)
Filling Range 20-200ml(Can be customized)
Applicable Cup Size Can be customized
Air Pressure 6Mpa
Machine Weight About 400kg



Machine Configuration
Machine Component Brand Origin
PLC Delta Taiwan,China
Servo Indexer FSZZC Foshan, China
Photoelectric Panasonic Japan
Relay Schneider France
  • Applicable Products: Marinara sauce, ketchup, jelly, apple sauce, honey mustard.
  • Applicable Industries: Food, beverage, chemical, medicine industries.

Application
