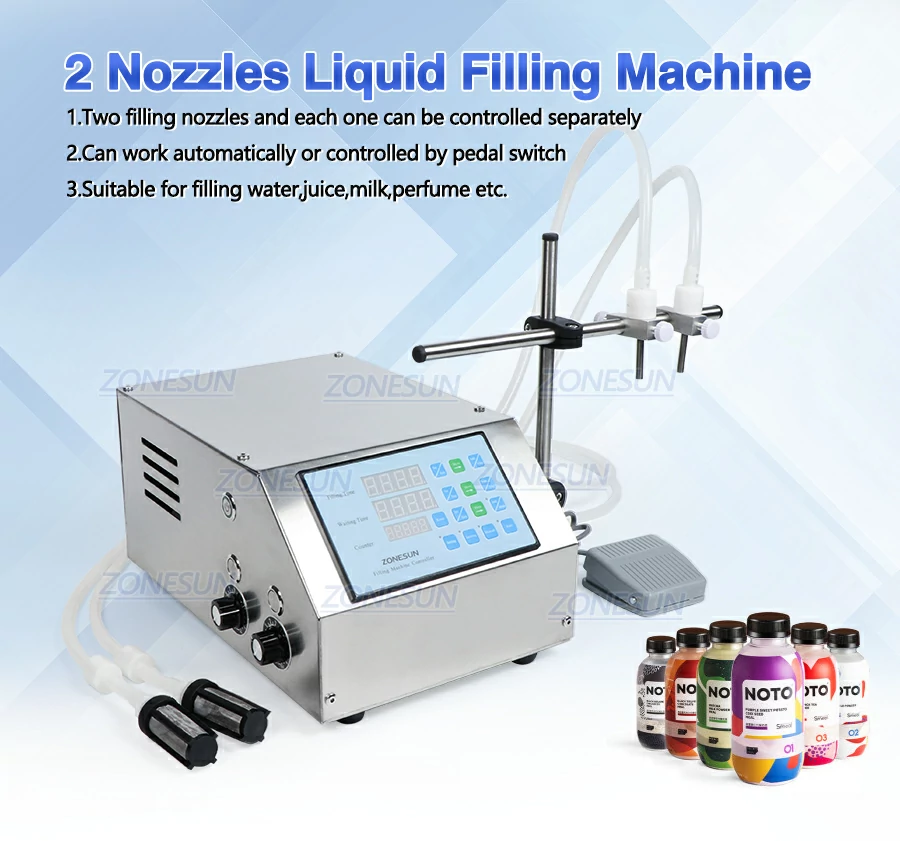

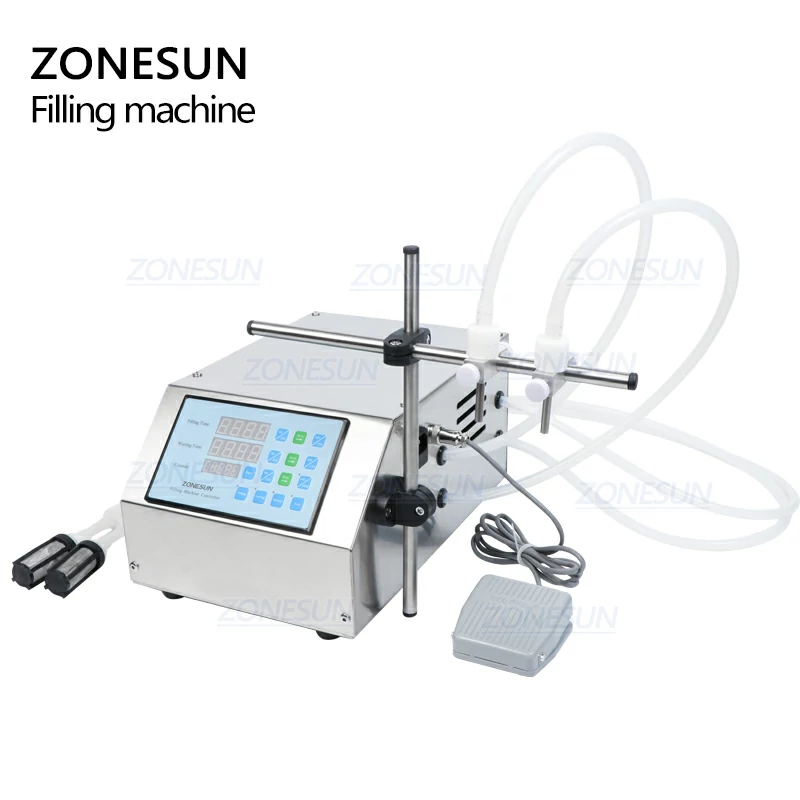

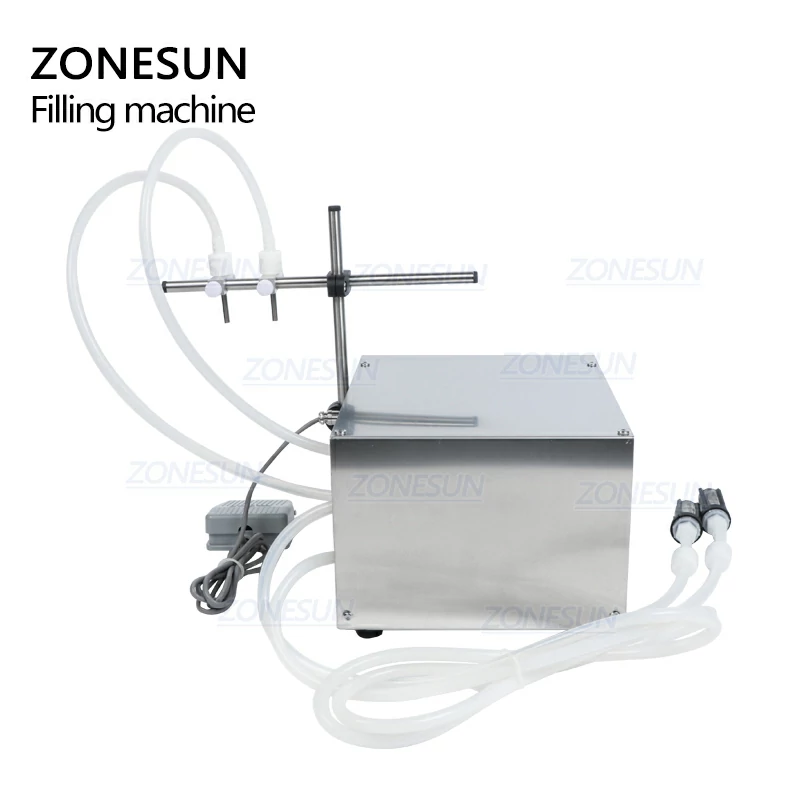

ZS-DPYT2P Digital Semi-Automatic 2 Heads Water Liquid Filling Machine

This digital filling machine is designed for filling low-viscosity liquid, such as juice, water, edible oil, etc. It can be connected with conveyor belt, realizing upgrade of automation level.

Share to:

Digital Liquid Filling Machine

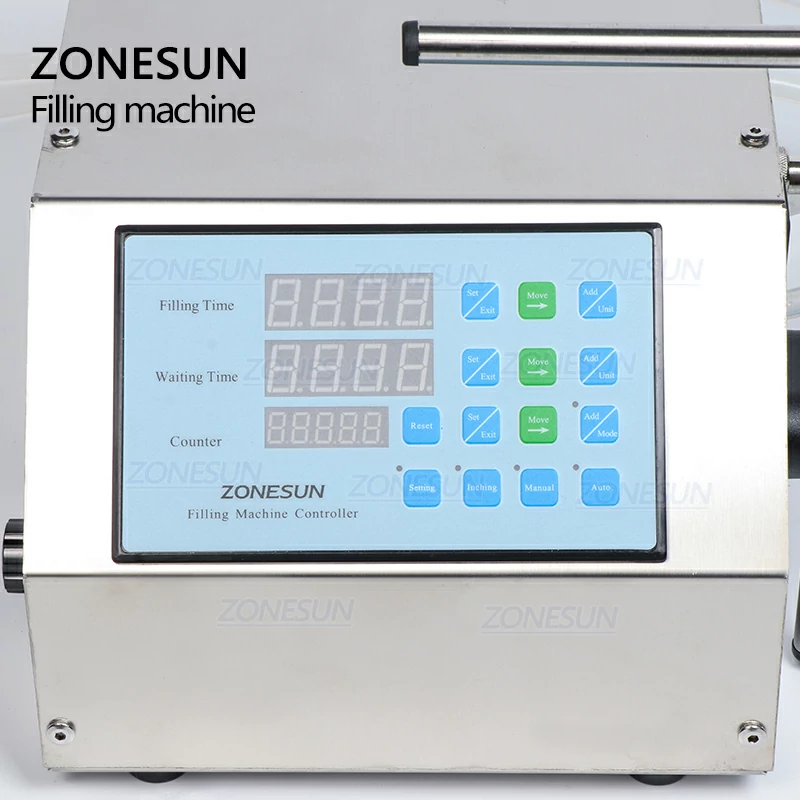

·With digital control panel, it’s easy to set or adjust parameters like filling time.
·This digital filling machine has automatic working mode and pedal switch control mode, which can be switched freely.

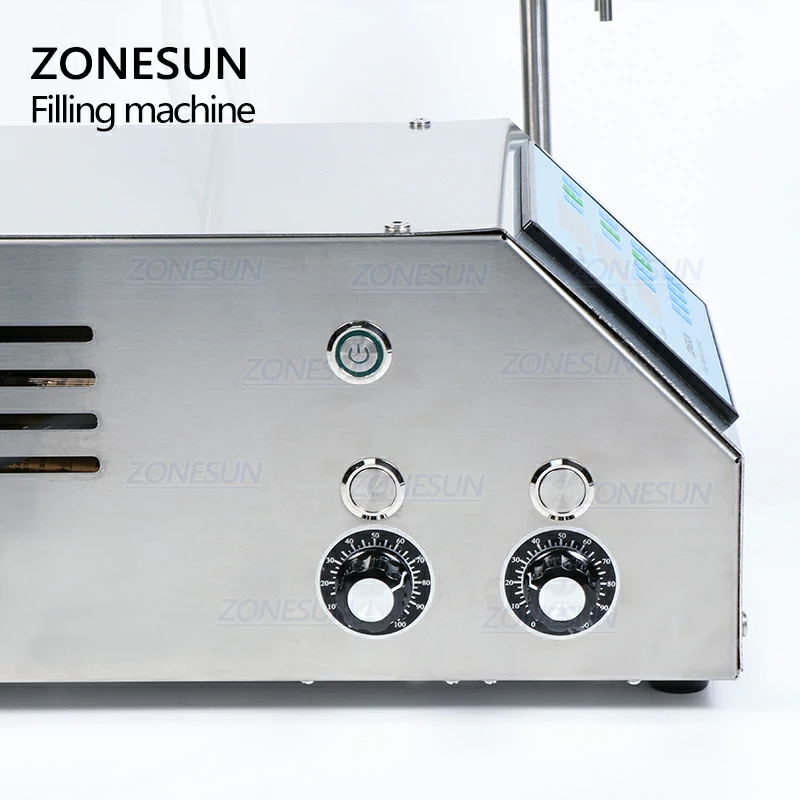

·The filling speed of 2 heads can be adjusted separately. Easy to operate.

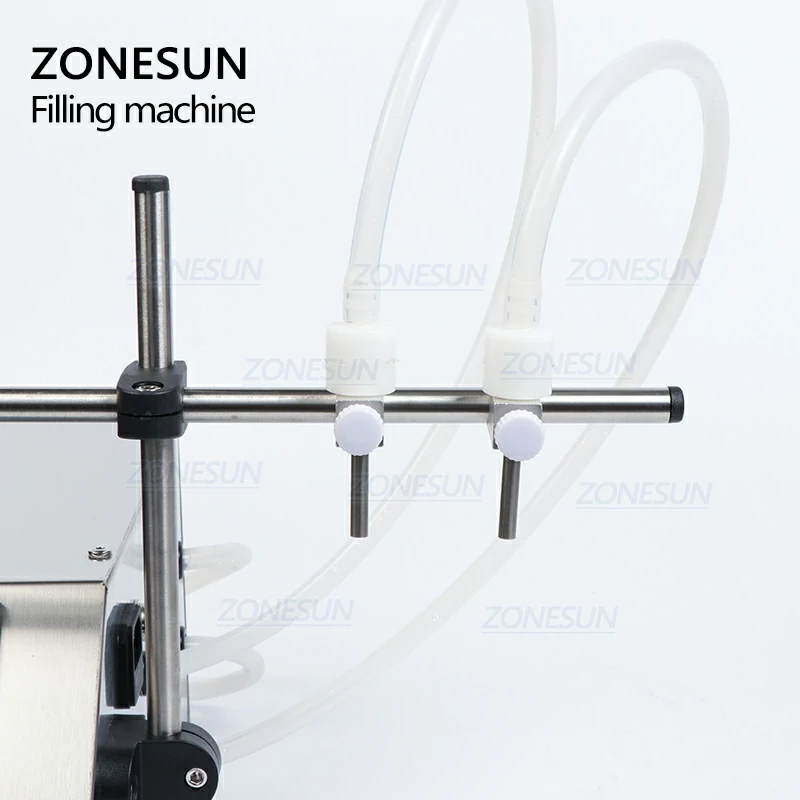

·The filling heads have anti-dripping function, ensuring high filling accuracy.

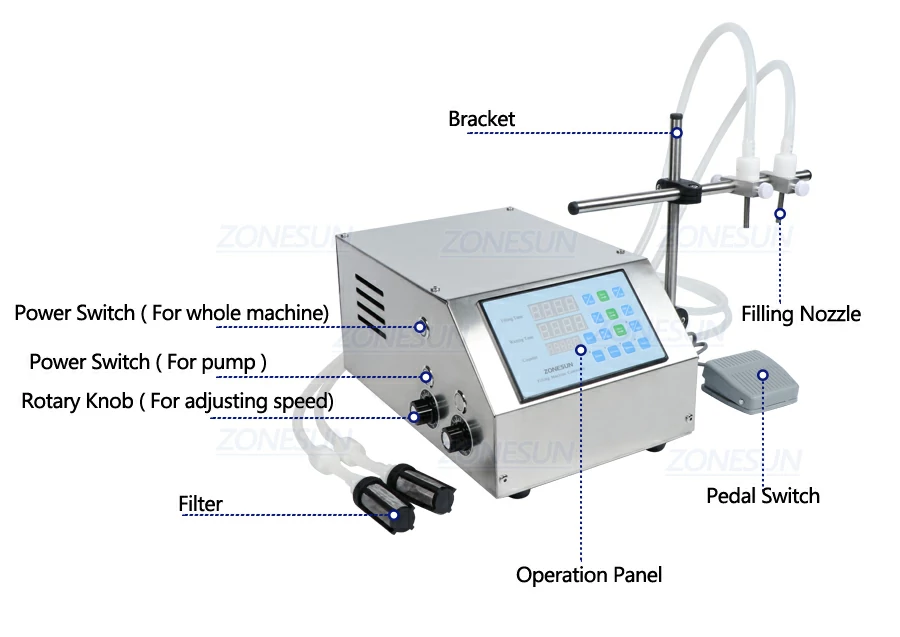

Diagram of digital liquid filling machineDiaphragm pump of semi-automatic digital filling machine

Machine Model ZS-DPYT2P
Voltage AC220V/110V 50-60HZ
Power 70W
Filling Pump Diaphragm Pump
Filling Range 50-4000ml
Maximum Suction Distance 1.5M
Maximum Flow Rate 4L/min(based on water)
Repetitive Error smaller than 0.5% (depending on the density of product)
Filling Nozzle Diameter OD 6mm
Machine Weight About 5kg
  • Applicable Liquid: Low-viscosity Liquid.
  • Applicable Products: Juice, mineral water, soy sauce, edible oil.
  • Applicable Industries: Food, beverage industries.



Application of digital filling machine
