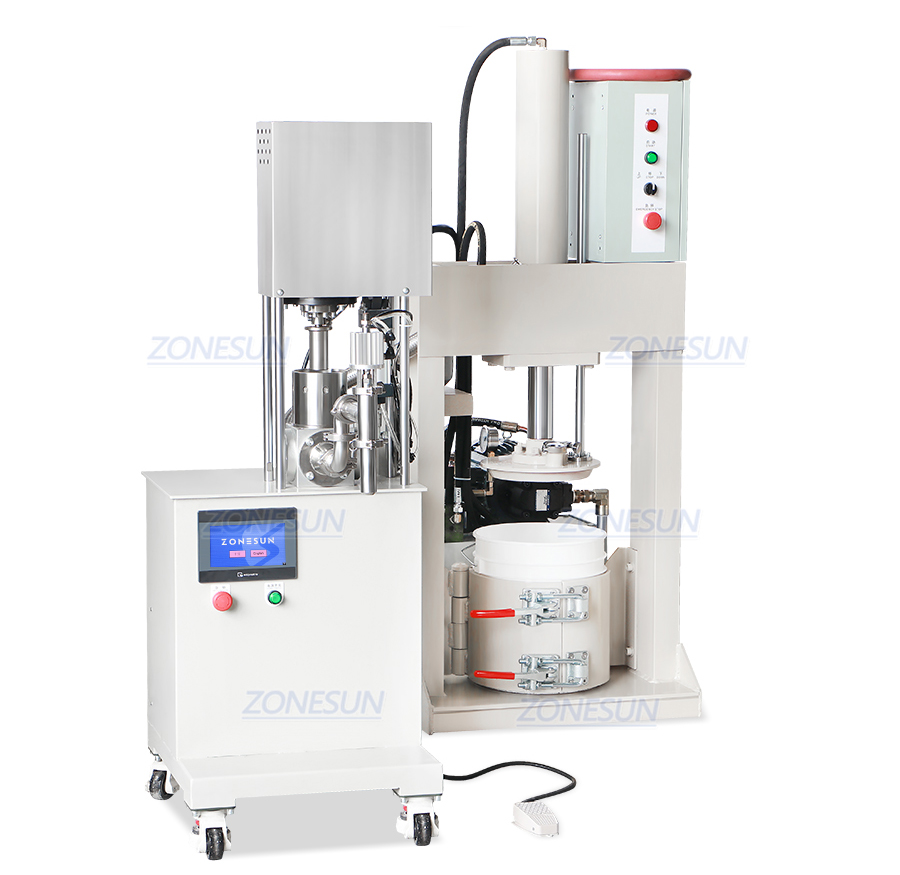

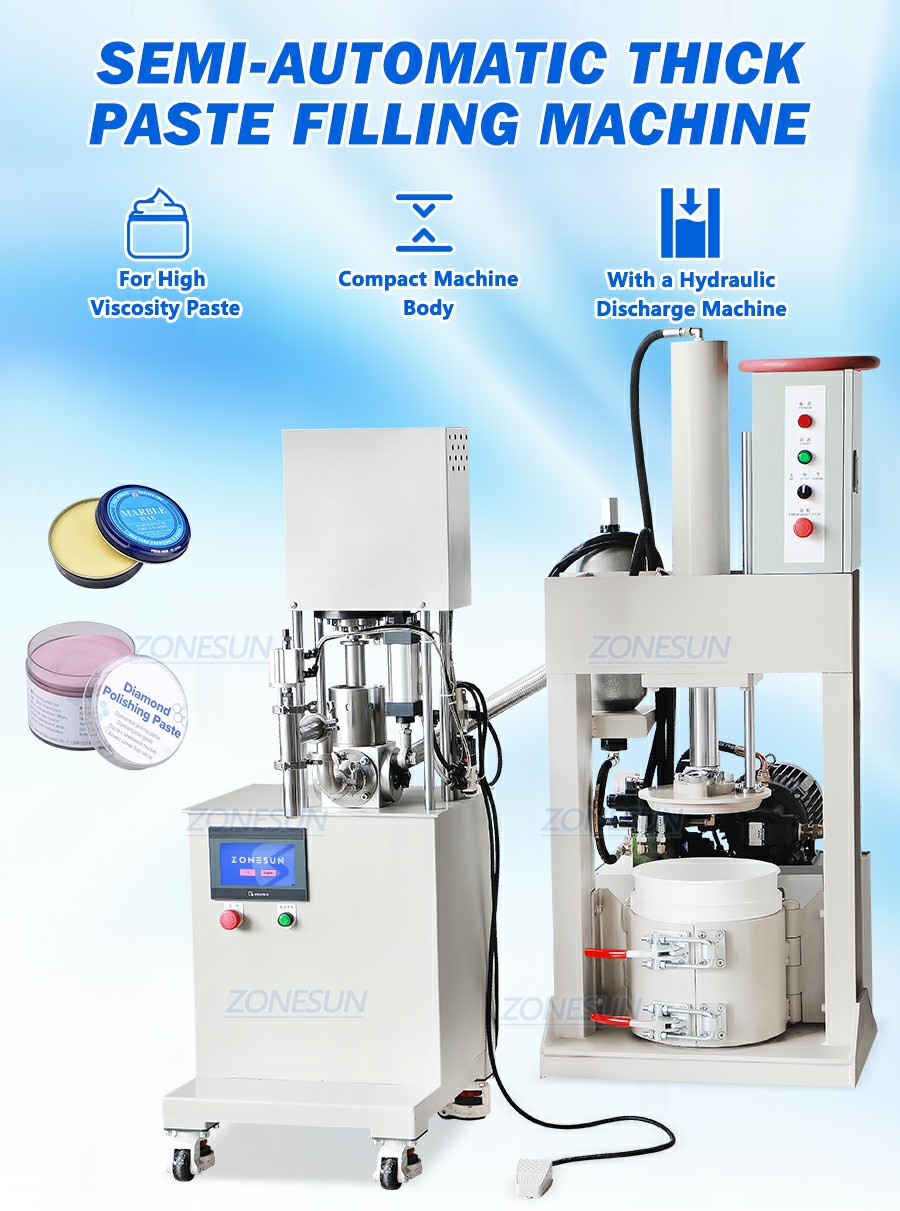

ZS-VGPJ1 Semi-Automatic Adhesive Epoxy Resin High Viscosity Filling Machine
🎄 Machine output is 900-2700pcs/hour.
🎄 With hydraulic system for smooth pushing of viscous products.
🎄 Filling volume can be set directly on panel.
🎄 Touchscreen interface, easy for monitoring performance.
🎄 Can be customized with capping system.
Video
Share to:
Product Description:

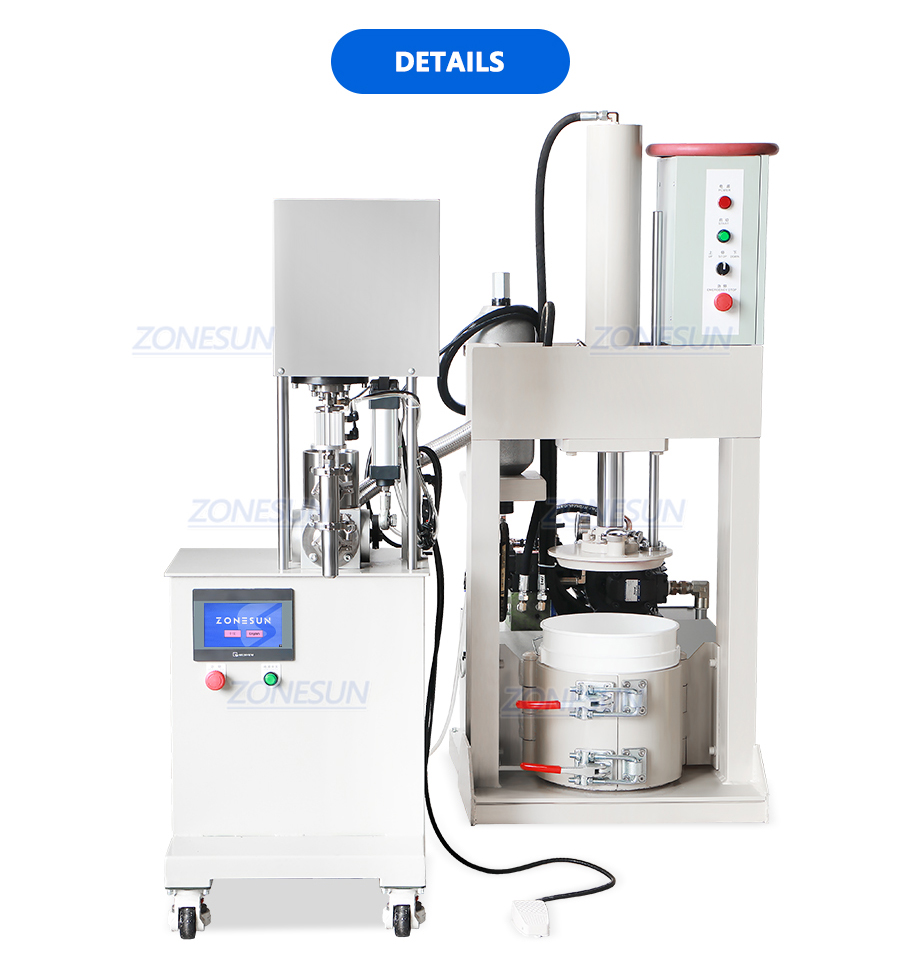

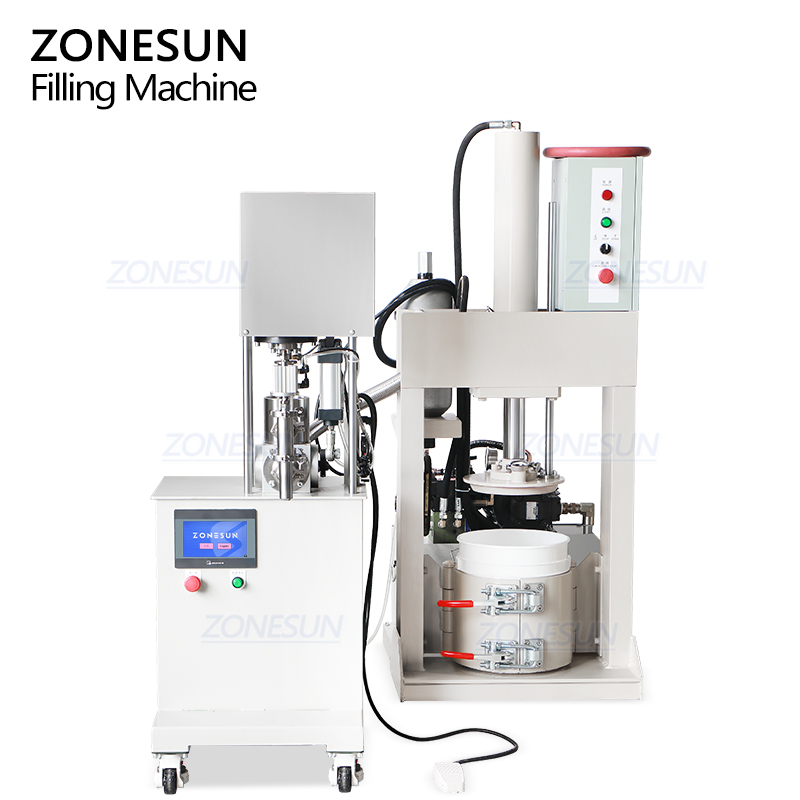

This high viscosity filling machine can be used for filling adhesives, sealants, greases, silicone gels, etc. Equipped with hydraulic discharge machine, it can generate high and stable pressure when pushing viscous products into the filling system. The machine can be customized according to your production need.

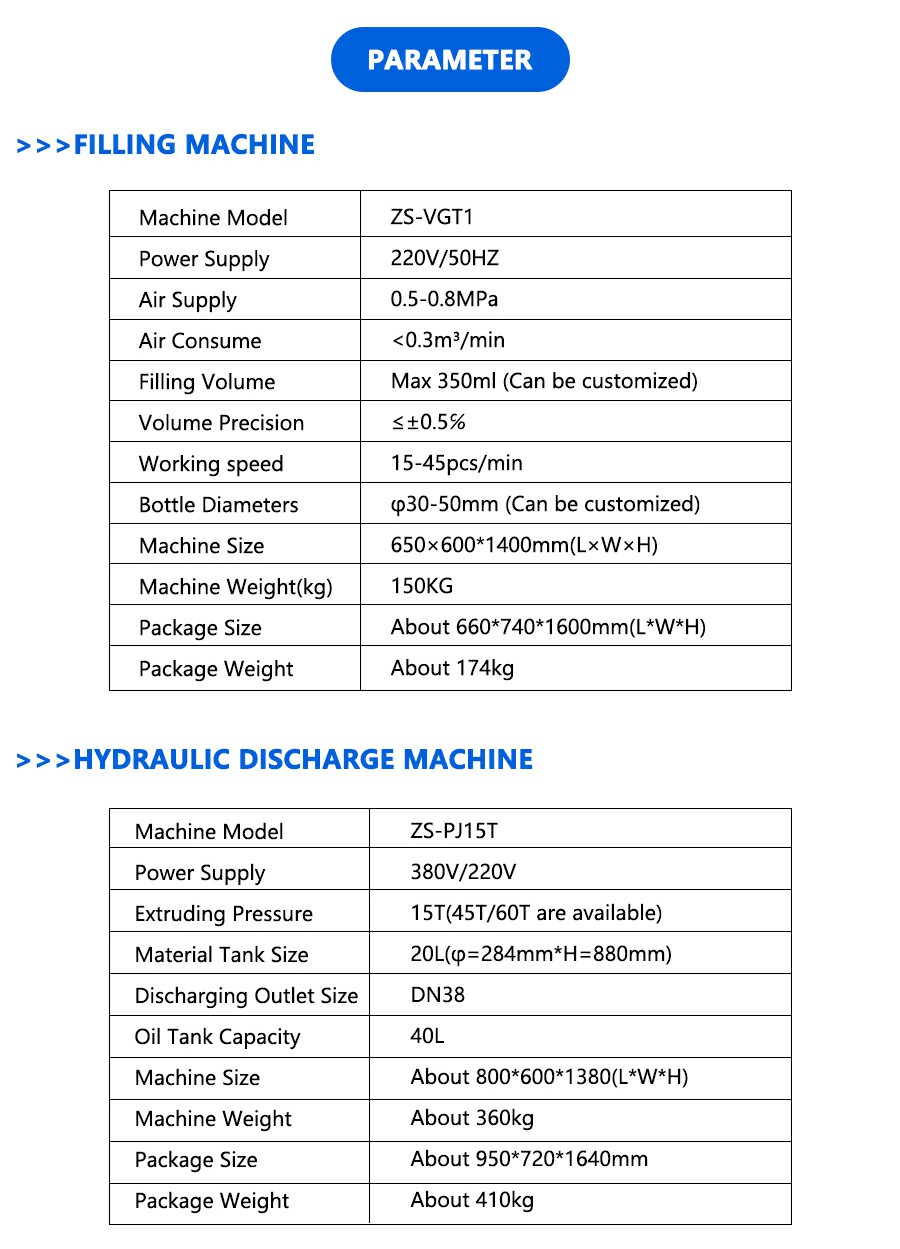

>High Viscosity Filling Machine
Machine Model | ZS-VGT1 |
| Machine Voltage | 220V/50HZ |
Filling Speed | About 15-45pcs/min(Varying on different materials and filling ranges) |
Filling Volume | Max 350ml(Can be customized) |
| Filling Precision | ≤±0.5% |
Bottle Diameter | φ30-50mm(Can be customized) |
Air Pressure | 0.5-0.8MPa |
| Air Consumption | <0.3m³/min |
Machine Size | About 650*600*1400mm(L*W*H) |
| Machine Weight | About 150KG |
Package Size | About 660*740*1600mm(L*W*H) |
| Package Weight | About 174kg |
>Hydraulic Discharge Machine
Machine Model | ZS-PJ15T |
| Machine Voltage | 380V/220V |
Extruding Pressure | 15T(45T/60T are available) |
| Material Tank Size | 20L(φ=284mm*H=880mm) |
Discharging Outlet Size | DN38 |
| Oil Tank Capacity | 40L |
Machine Size | About 800*600*1380mm(L*W*H) |
| Machine Weight | About 360kg |
Package Size | About 950*720*1640mm(L*W*H) |
| Package Weight | About 410kg |

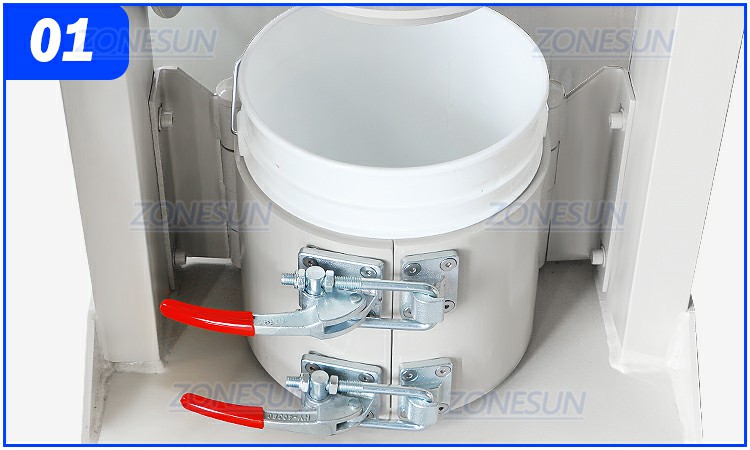

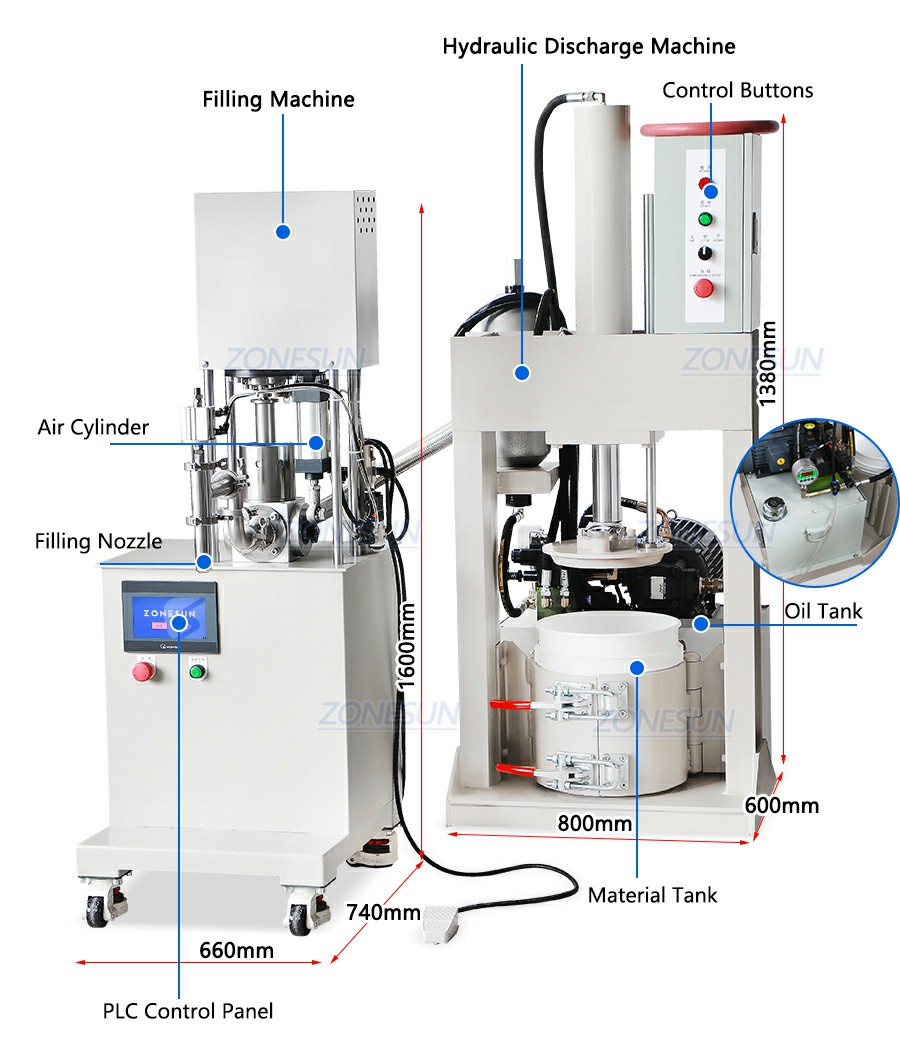

Hydraulic Discharge System
Hydraulic plate can push the viscous paste out of the tank while eliminating trapped air bubbles of products.

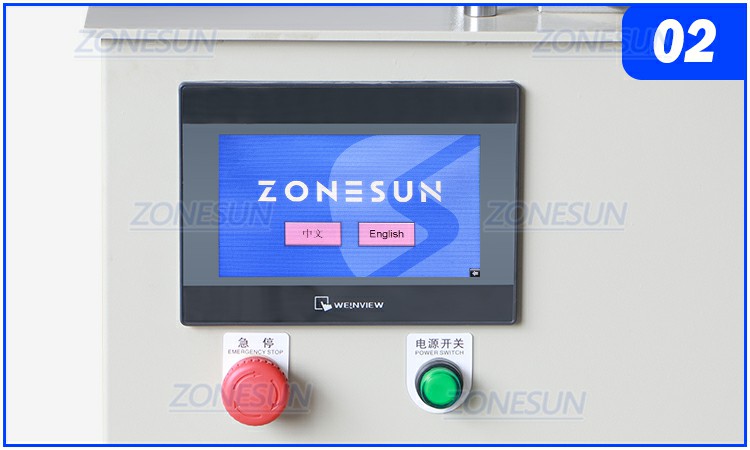

Touchscreen Panel
Clear panel makes it convenient to monitor performance and troubleshoot problems. It can be customized into different languages.

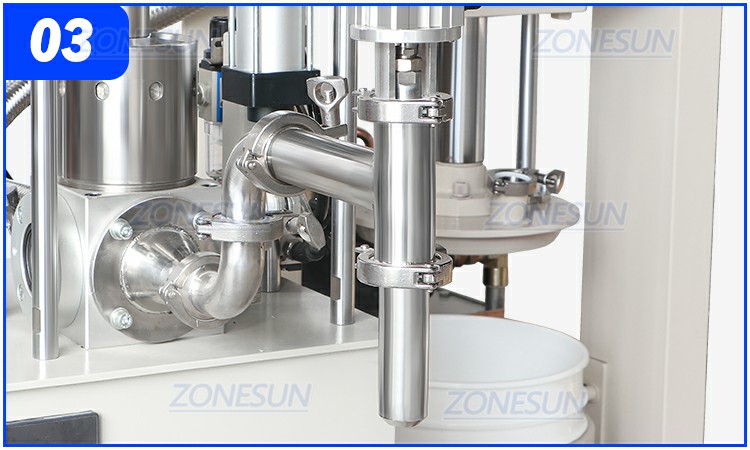

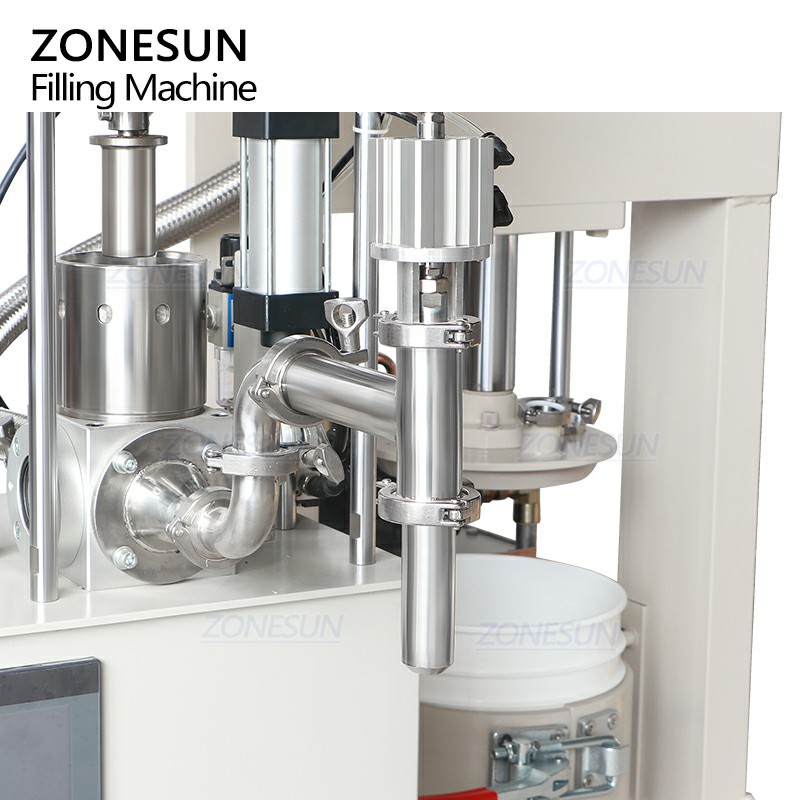

Pneumatic Filling Head
The machine uses measuring cup to achieve quantitative dispensing of products. Its filling range can be customized as production need.

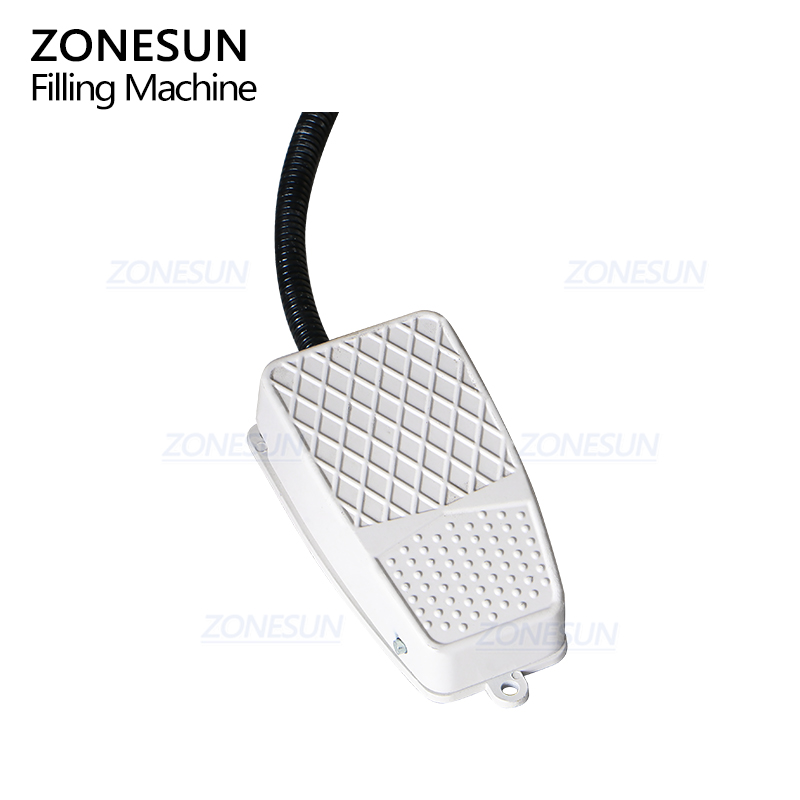

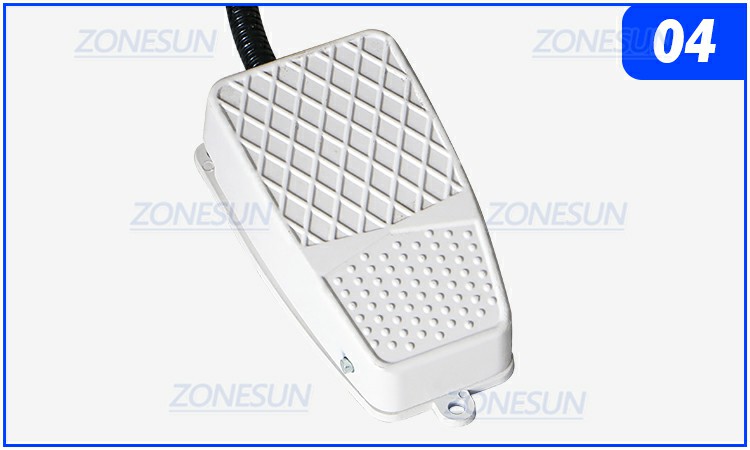

Pedal Control
Press pedal switch to control the machine operating, easy to operate.
- Applicable Products: Resin, adhesive, body scrub, silicone gel, lubricant grease, sealant, etc.
- Applicable Industries: Chemical, daily chemical, medicine industries.
