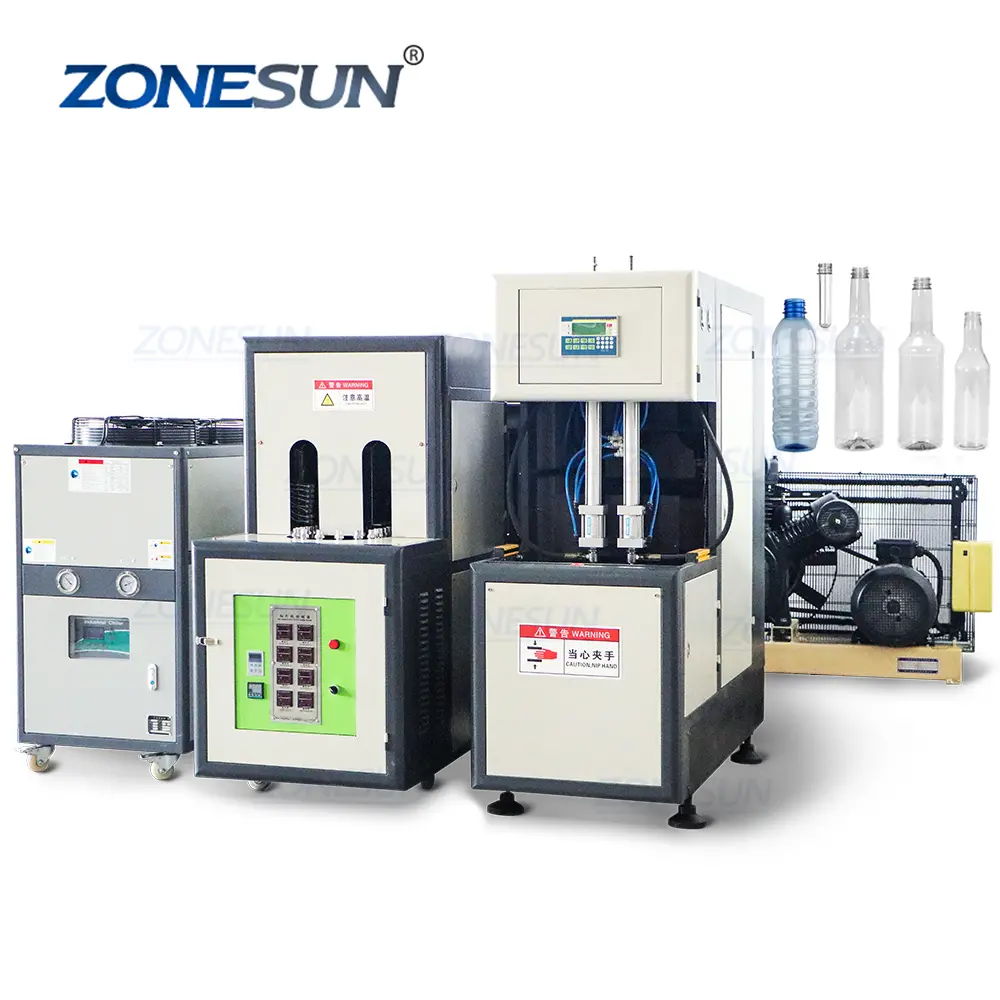

ZS-SBMM1 Semi-Automatic PET Bottle Stretch Blow Moulding Machine

This machine is suitable for forming bottles, like 3-gallon bottles, 5-gallon bottles, cosmetic bottles, mineral water bottles, oil bottles, etc. The plastic blow moulding machine can be customized according to bottle size and bottle shape.

Share to:



Semi Automatic PET Bottle Stretch Blow Moulding Machine

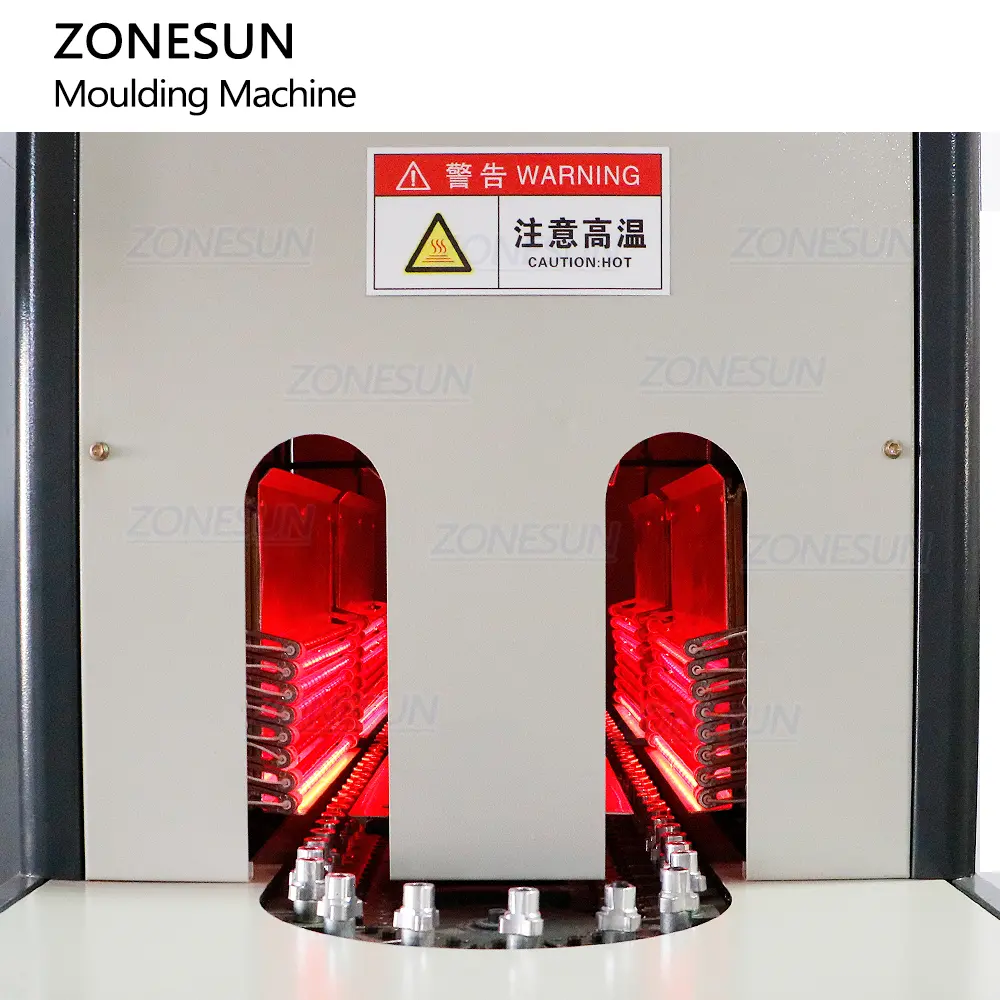

  • With the way of infrared heating, it can heat preforms evenly.
  • The blowing mould can be customized to suit for your products.

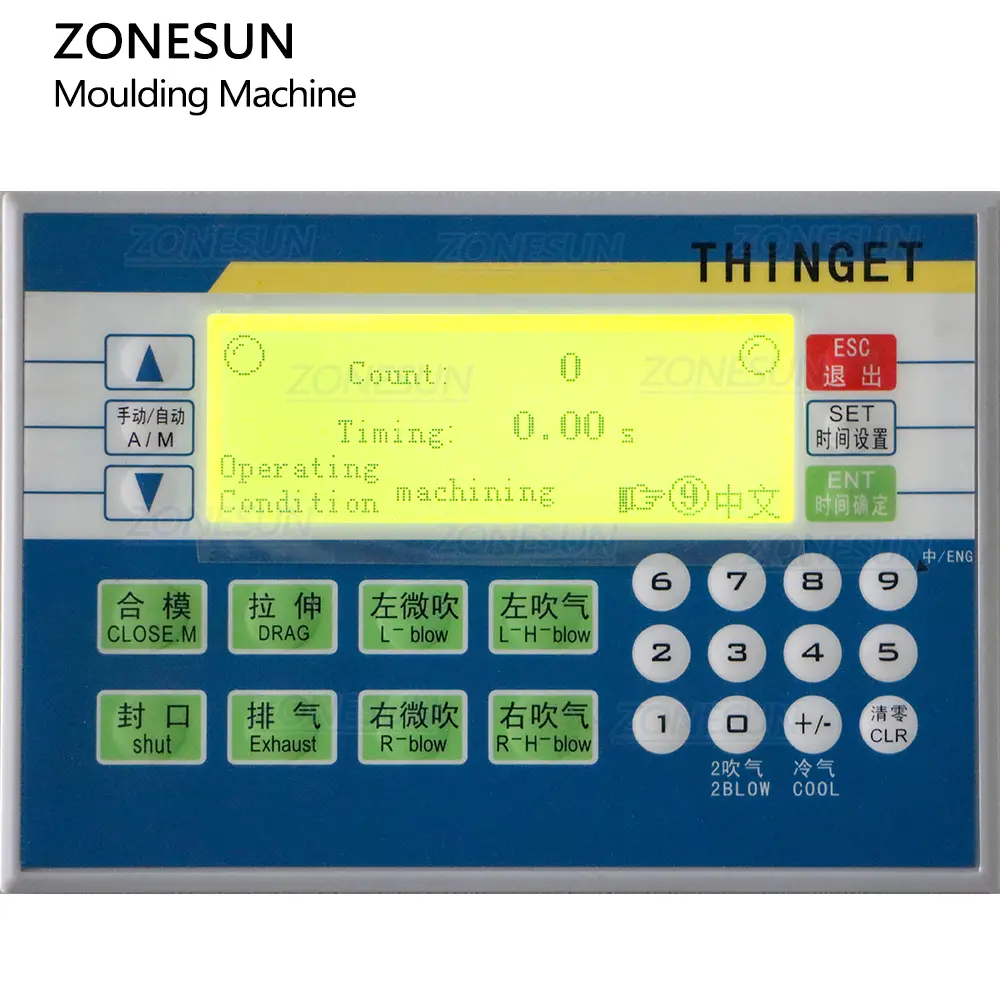

  • Designed with digital panels, it is easy to set and adjust working parameters like heating temperature.
  • This stretch blow moulding machine can be widely applied in chemical, daily chemical, beverage, cosmetic industries.
  • With cooling machine, it can help to accelerate bottle forming, ensuring product quality.

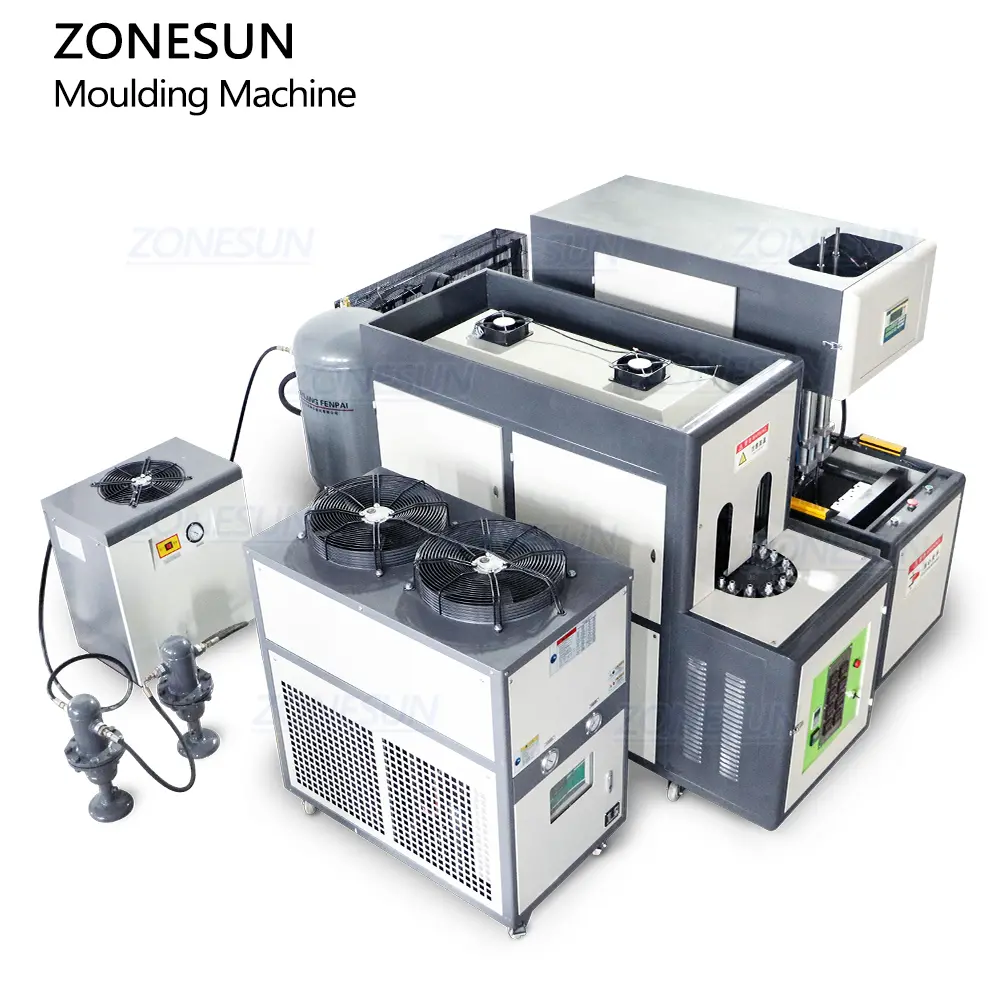

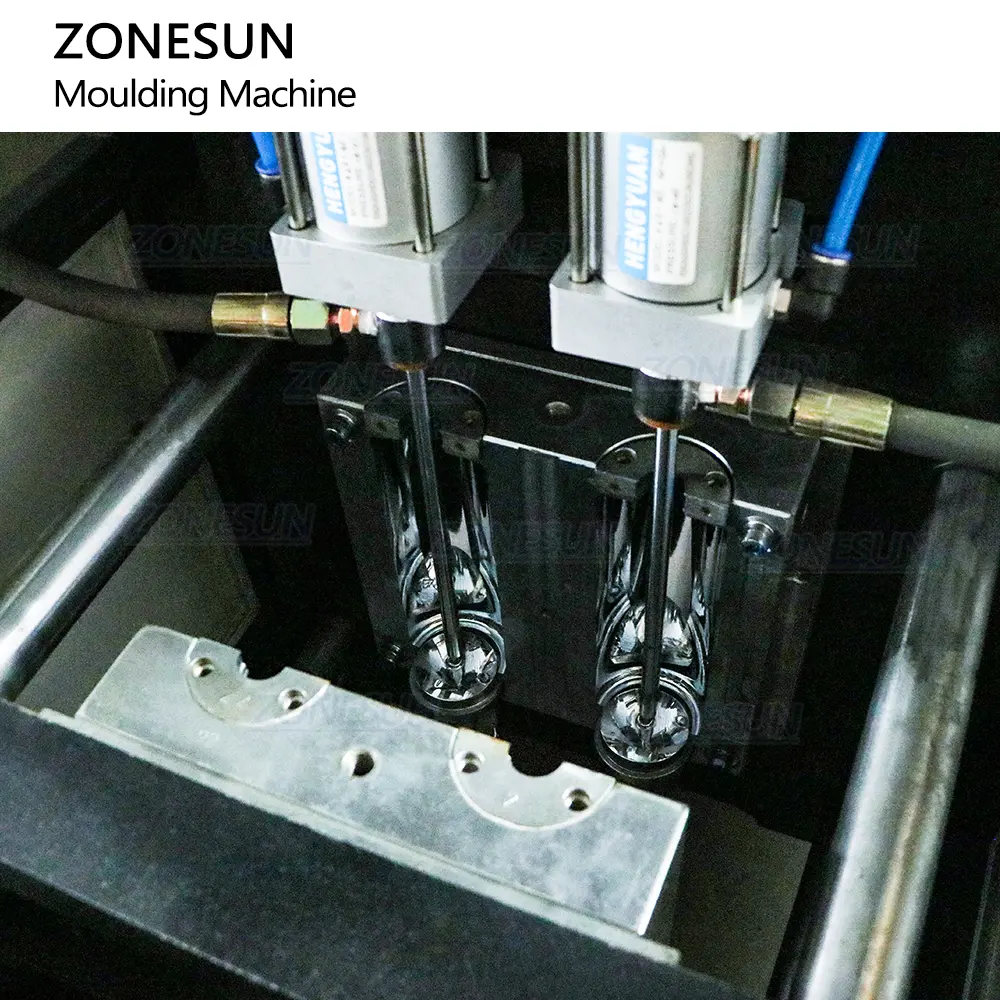

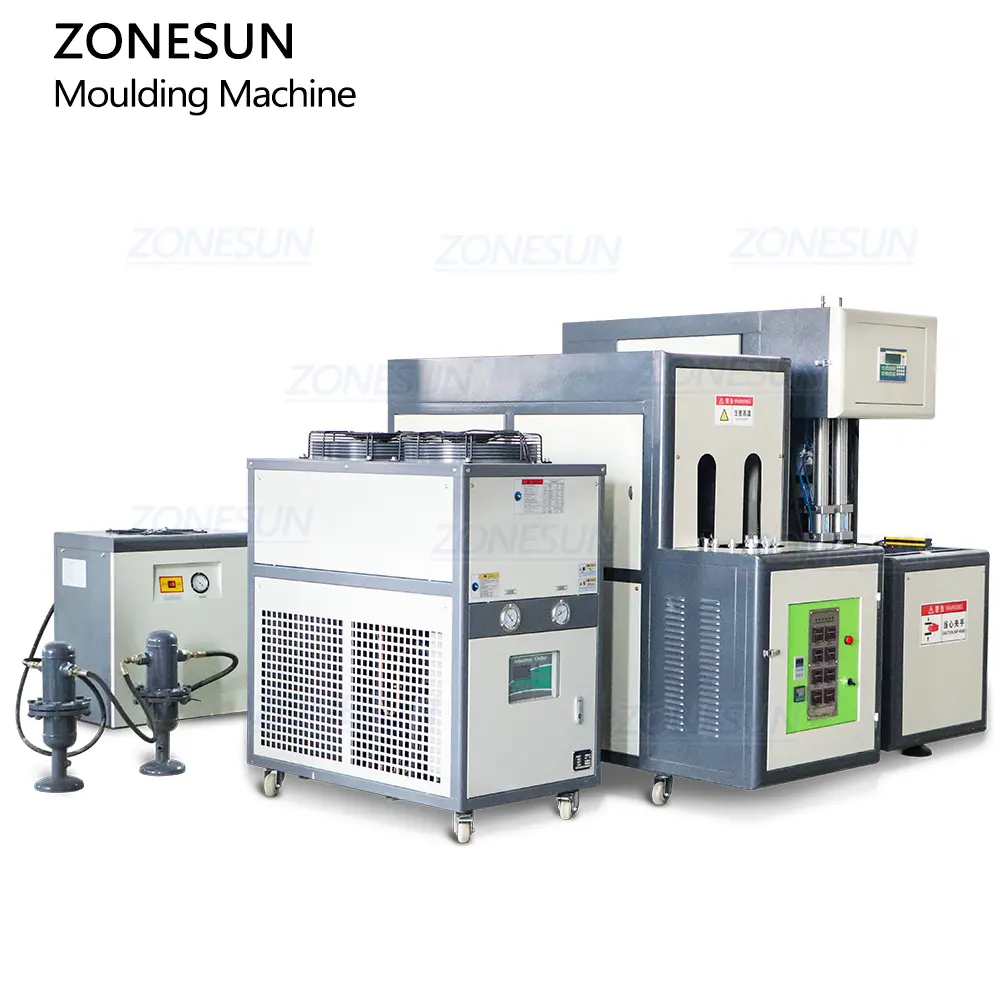

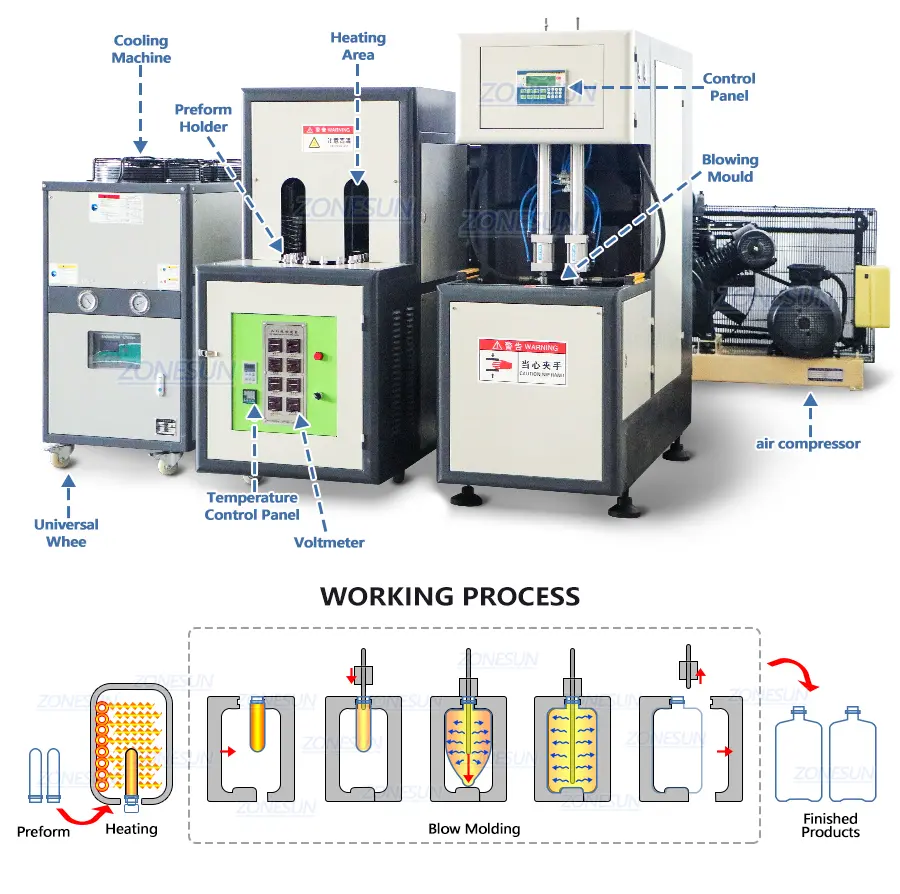

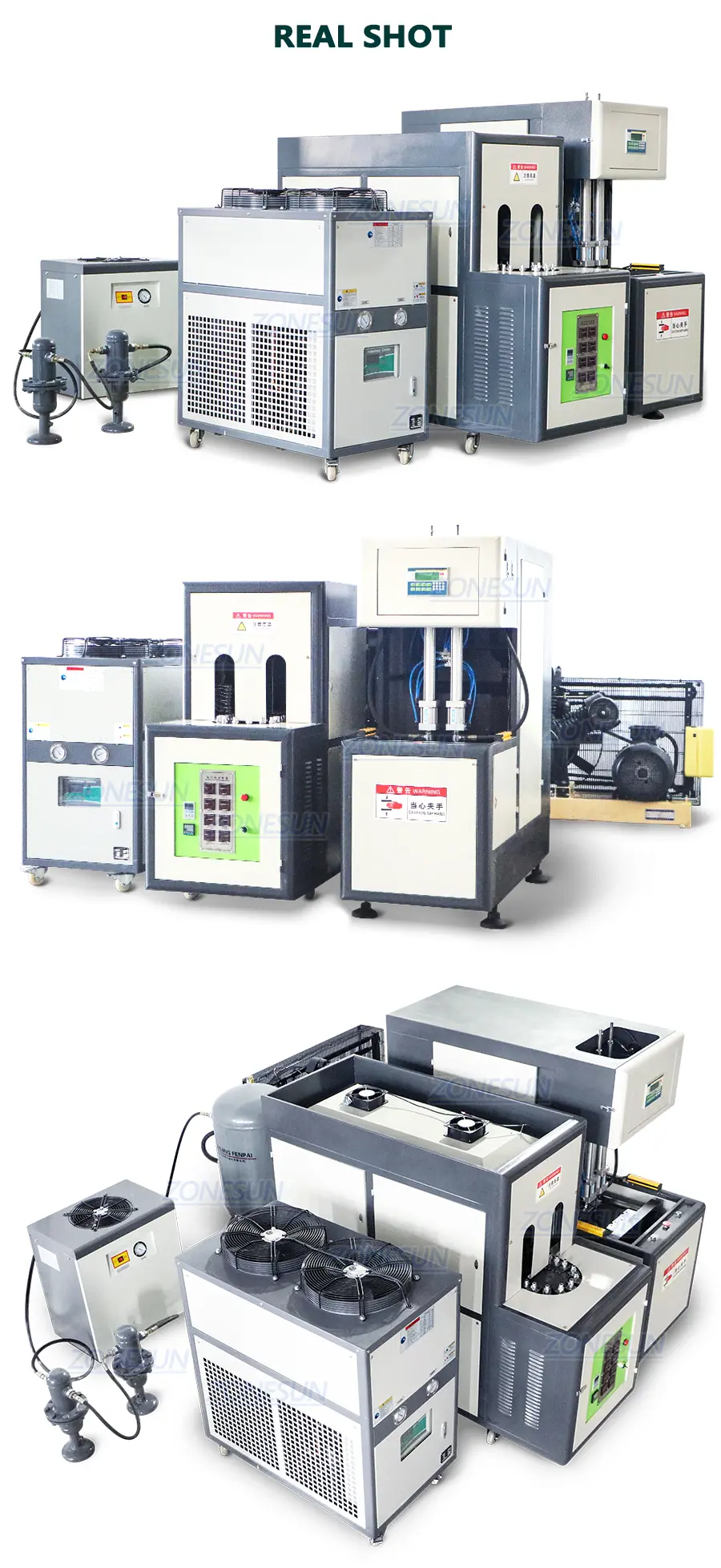

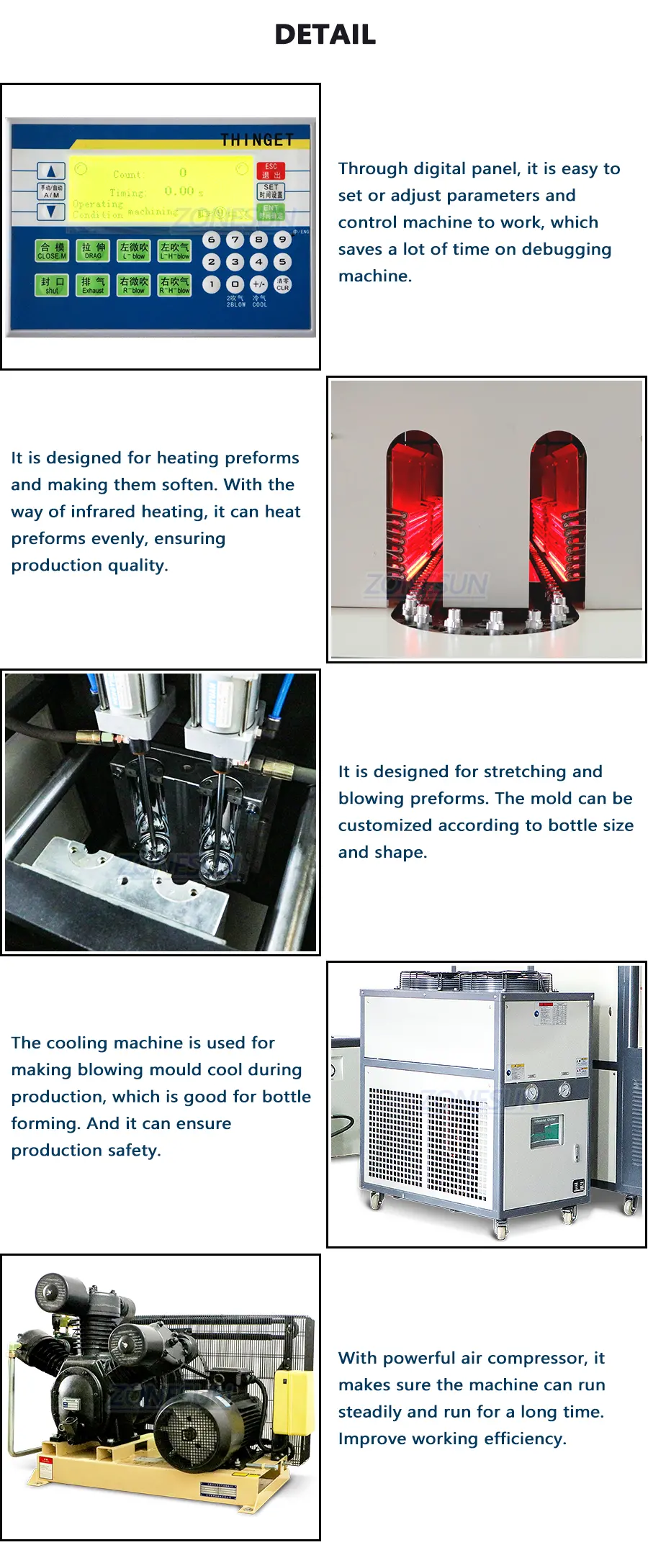

Diagram of PET Bottle Blow Moulding MachineDetail of Stretch Blow Moulding MachineReal Shot of Stretch Blow Moulding Machine

Main Machines Specifications

Molding Machine

Cavity 2
Container Volume 3000ml
Production Capacity About 1200pcs/h
Clamping Stroke 150mm
Max Thickness of Mold 200mm
Max Container Height 350mm
Max Container Diameter 125mm
Machine Size About 610*1905*1630mm
Heating Machine Voltage 380V 50-60Hz
Heating Power 12kW
Quantity of Preform Holders 72
Machine Size About 665*1730*1455mm

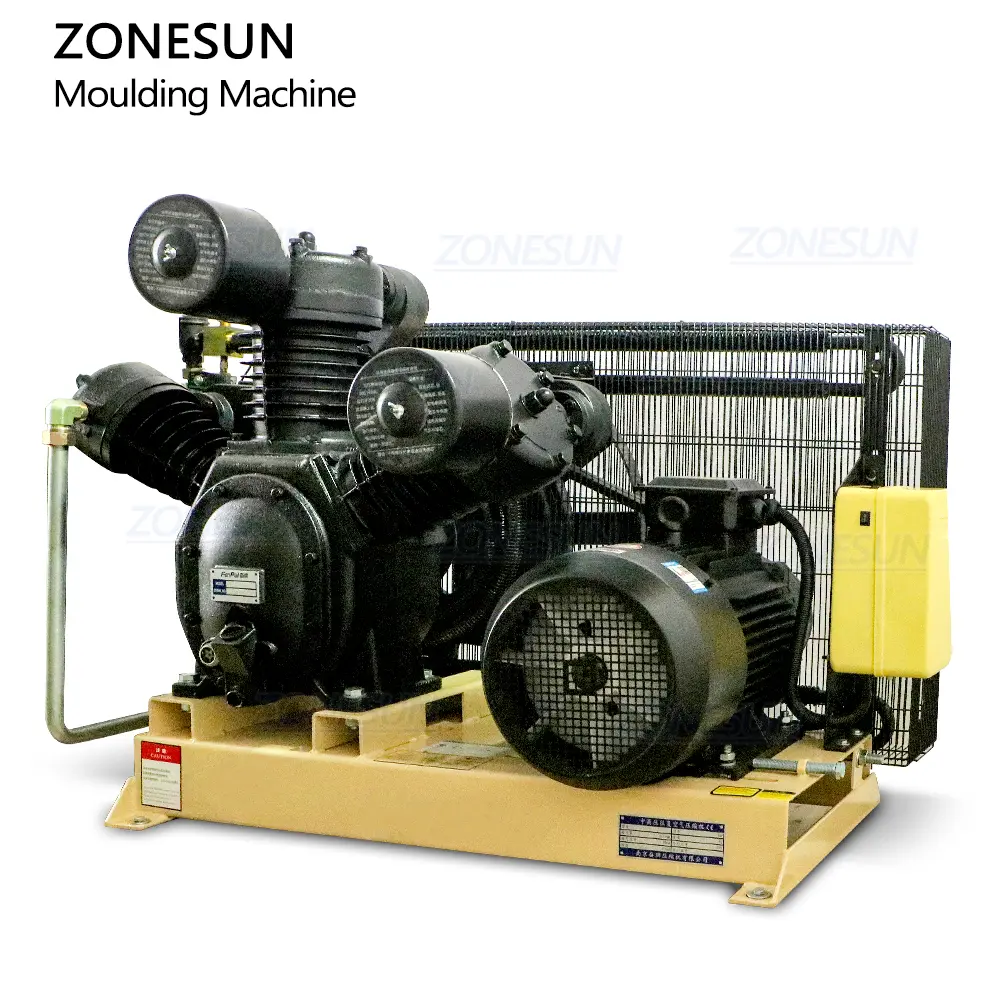

Air Compressor

Air Consumption 0.8L/min
Working Pressure 3Mpa
Motor Power 15kW
 Machine Size About 1800*800*1150mm





Machine Configuration
Machine Component Brand Origin
PLC XINJE China
Blow Valve Parker United States
Electromagnetic Valve SMC Japan
Breaker Schneider France
Contactor Schneider France
Switch Schneider France
Oil-water Separator FETSO Germany
  • Applicable Bottles: Mineral water bottles, cosmetic bottles, oil bottles, beverage bottles, pill bottles, etc.
  • Applicable Industries: Beverage, food, cosmetic, chemical, medicine industries.

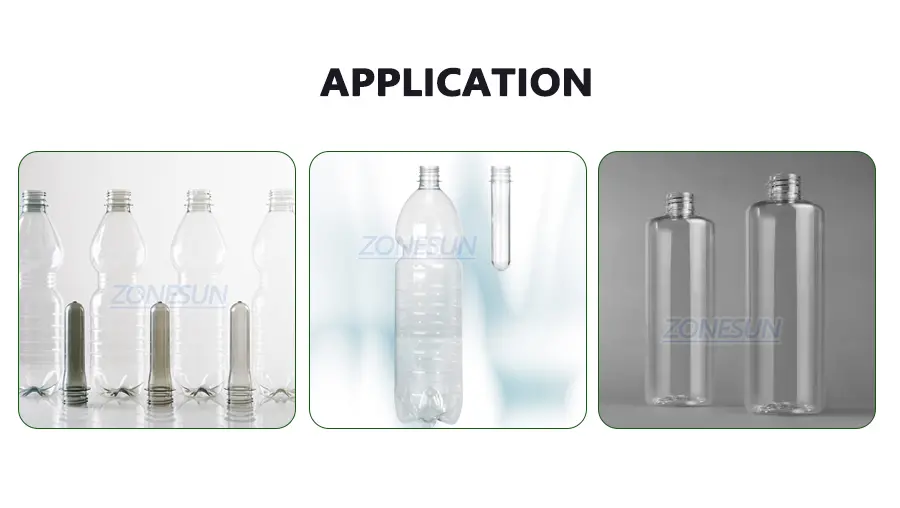

Application of stretch blow moulding machine
