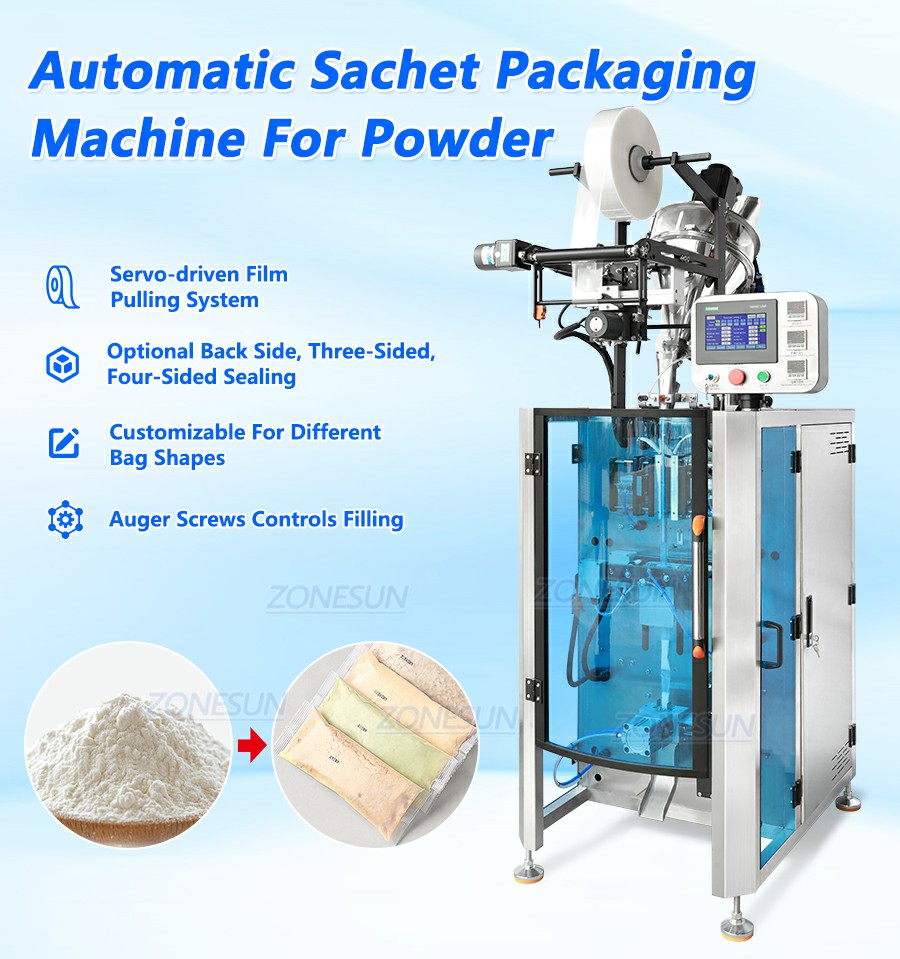

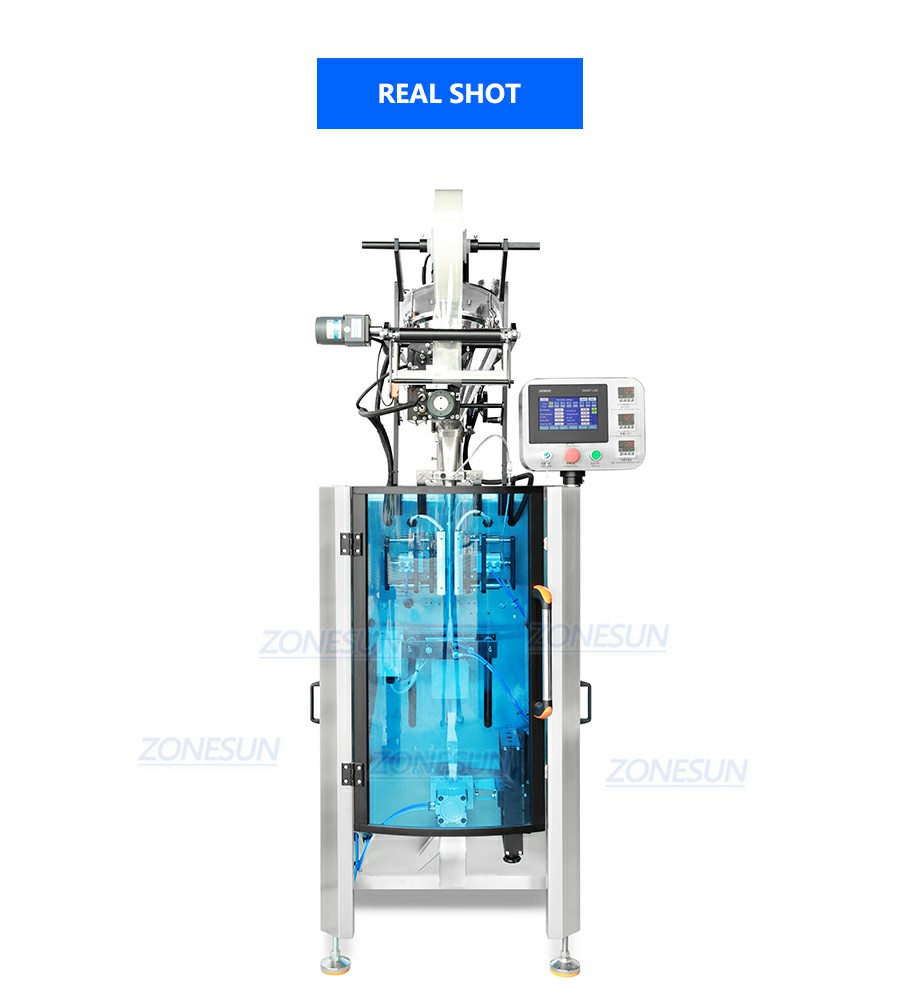

Servo Automatic Collagen Peptide Powder Sachet Packaging Machine
🎄 Machine output is 1800-2400 bags/hour.
🎄 Auger filling system, suitable for fine powders.
🎄 Film pulling system is controlled by servo motor.
🎄 Box-motion sealing jaw ensures continuous operation.
🎄 Can be designed for different shapes and sizes of sachets.
🎄 Auxiliary Equipment: Cartoning machine, powder feeder.
Video
Share to:

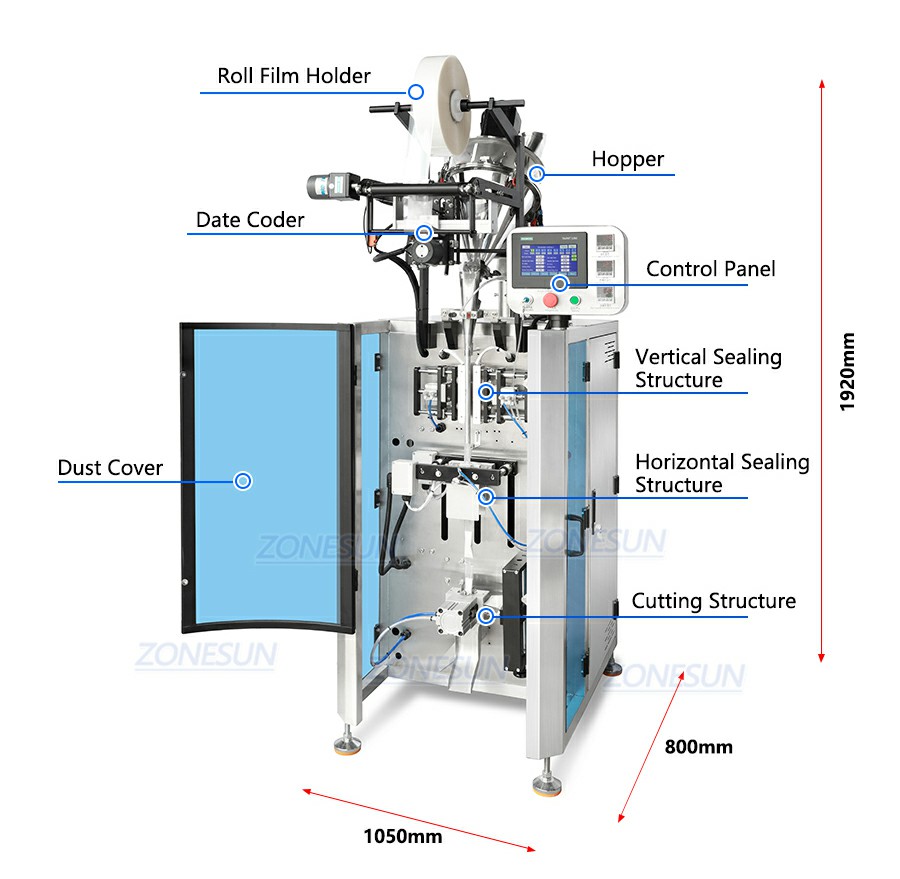

Description of the Servo Powder Sachet Packaging Machine:
This model performs automatic processes of forming, filling, sealing and cutting small sachets. Using auger filling system, it can accurately fill fine powders, such as collagen powders, drink mixes, probiotic powders. The settings can be saved in system, allowing for quick product change. The sealing system can be customized for different shapes of sachets. This collagen peptide powder sachet packaging machine can also work with cartoning machine to complete automation.

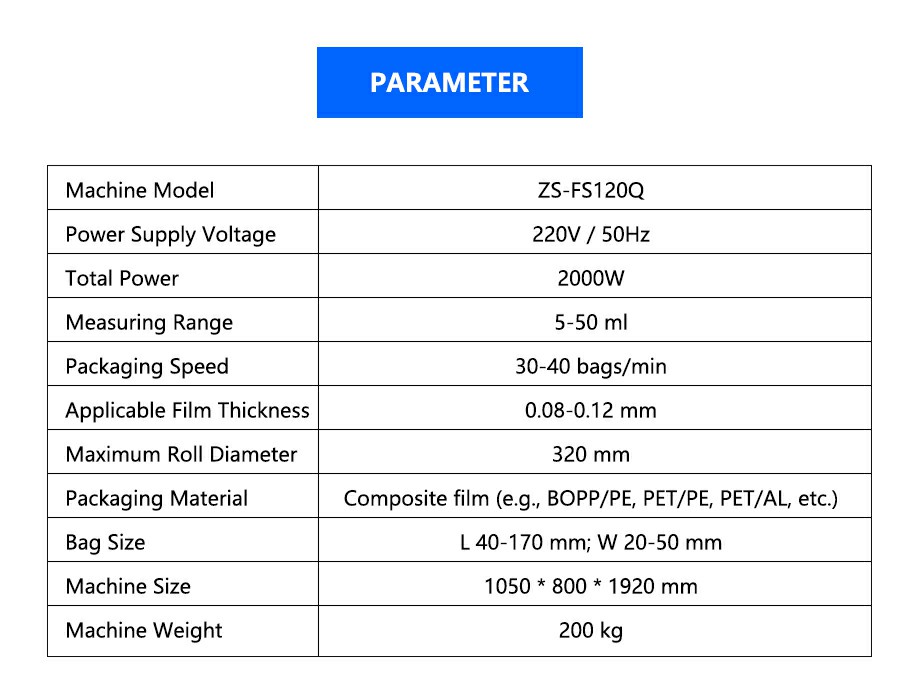

Machine Model | ZS-FS120Q |
| Machine Voltage | 220V/ 50-60Hz |
Total Power | 2KW |
| Packaging Speed | About 30-40 bags/min(depending on sachet size & filling materials) |
Filling System | Auger Filling |
| Filling Range | 5-50g(Can be customized) |
Sachet Size | (L)40-170mm*(W)20-50mm |
| Applicable Film Thickness | 0.08-0.12mm |
Film Materials | Composite Films (e.g., BOPP/PE, PET/PE, PET/AL, etc.) |
| Film Roll Diameter | Max. 320mm |
Machine Size | About 1050*800*1920mm/ About 41.3*31.5*75.6 inch |
| Machine Weight | 200kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

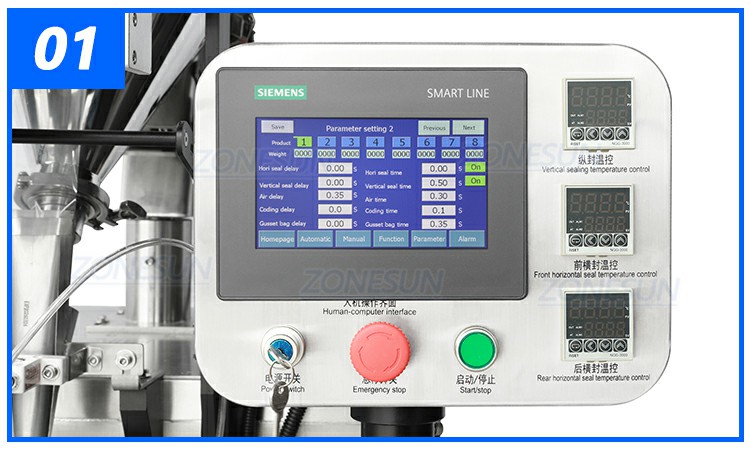

Touchscreen Panel
Intuitive panel makes it easier to modify machine settings. The system can save settings for quick product change.

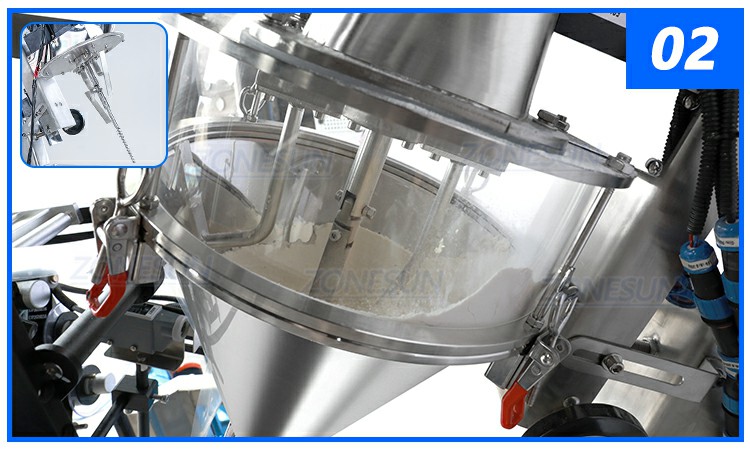

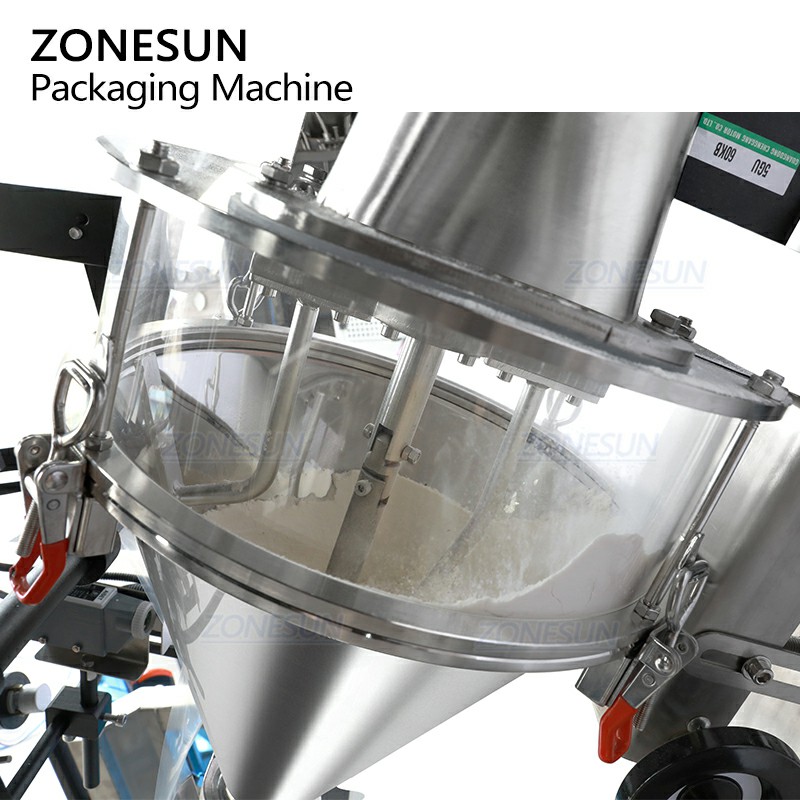

Auger Filling System
Can realize accurate dosing of dry powders. The auger can be changed for different filling weights.

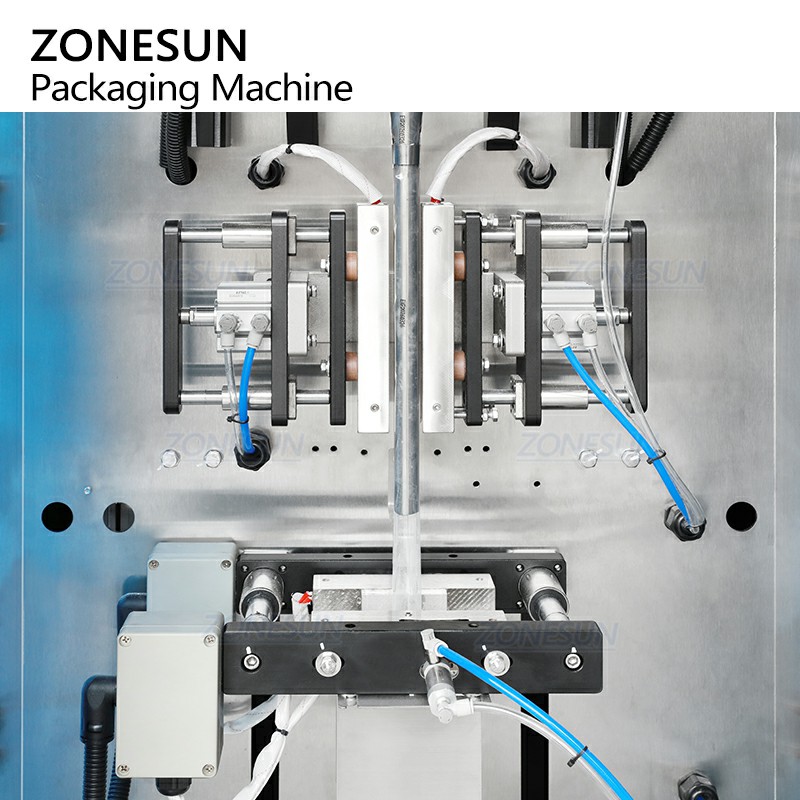

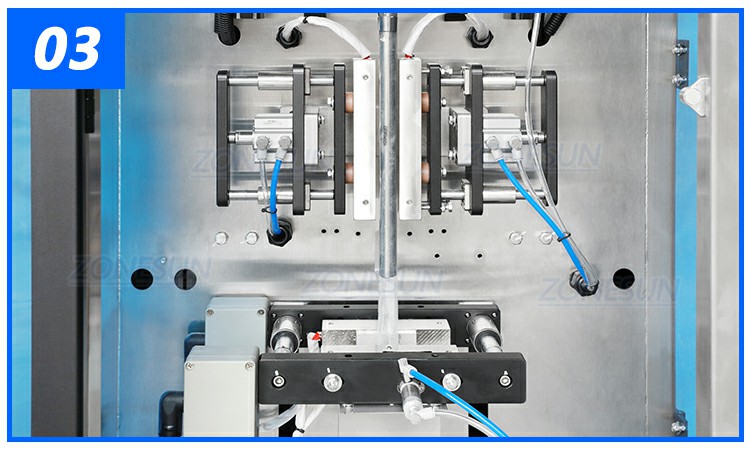

Sachet Sealing System
Sealing temperature can be adjusted as needed. The system can be customized for different sealing types.

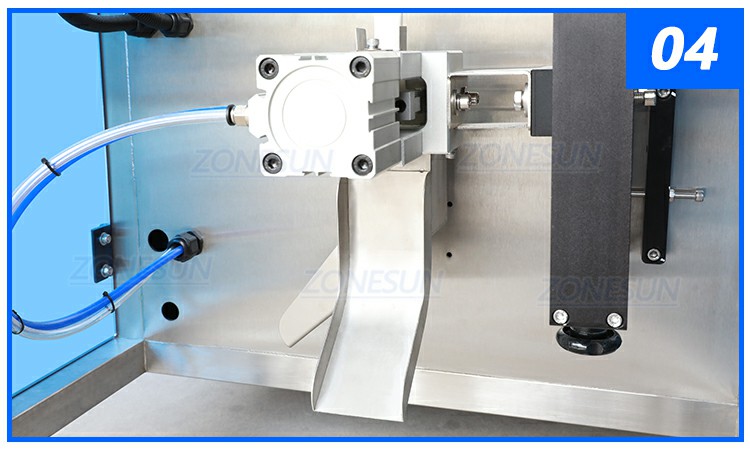

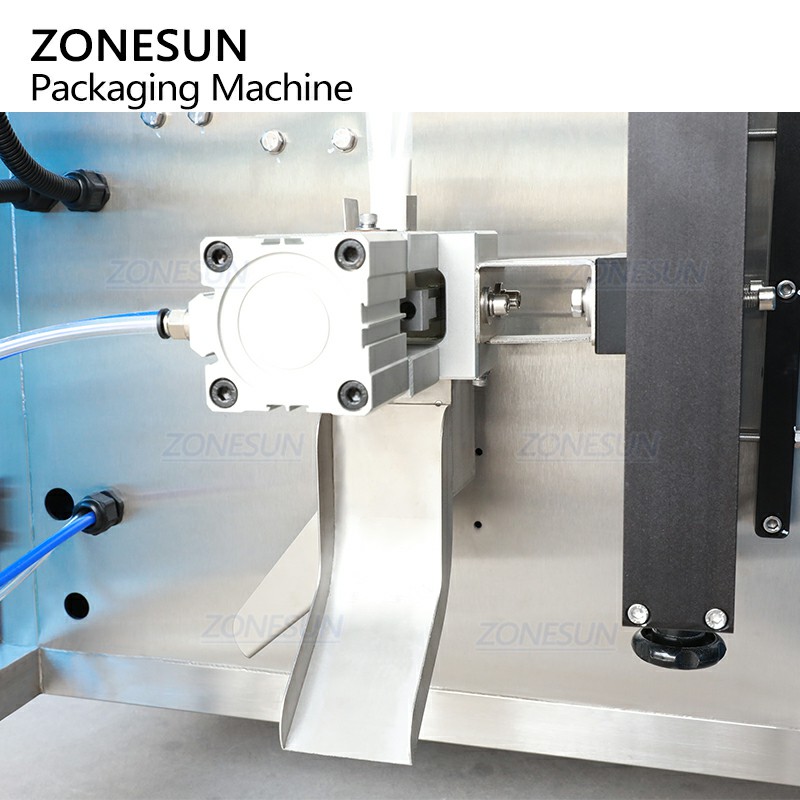

Sachet Cutting System
Cutting length is adjustable via touchscreen. It supports customization for round corner cutting.

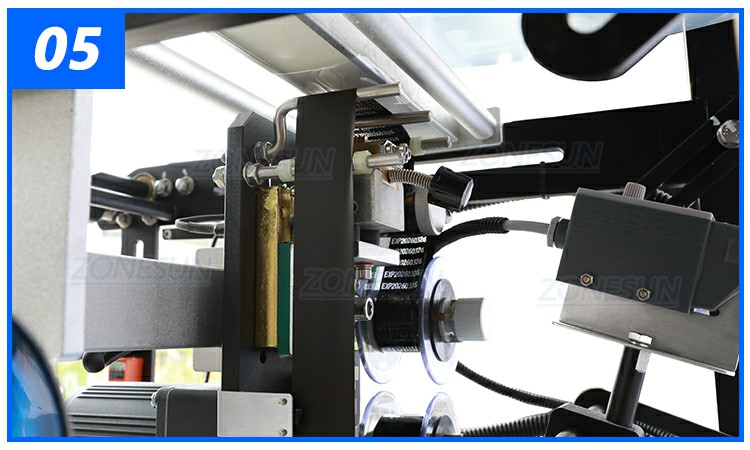

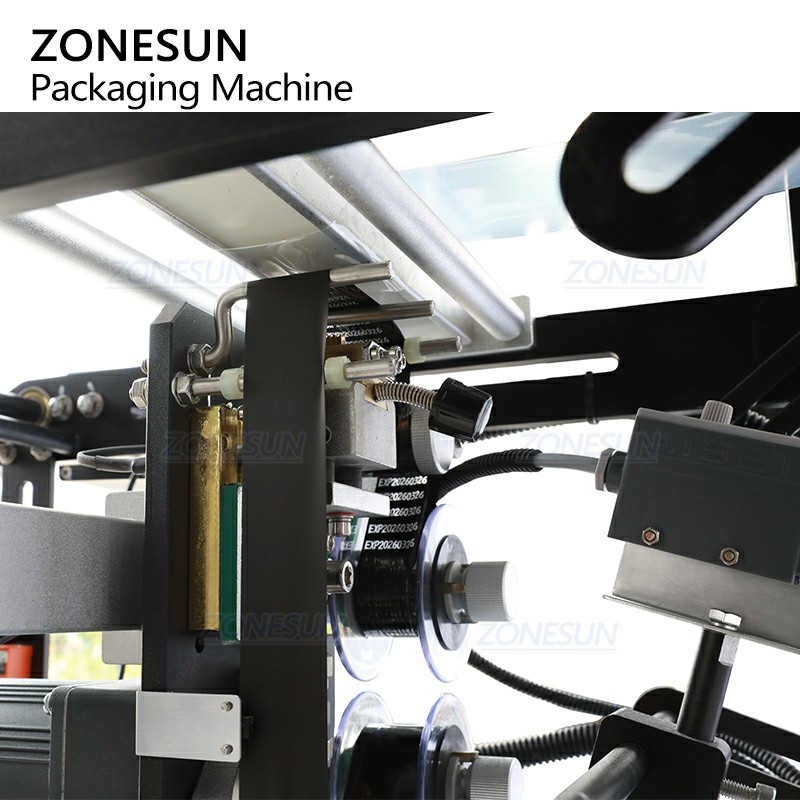

Date Coding Device
Designed for printing expiry dates on sachets. Please contact us if you need it.

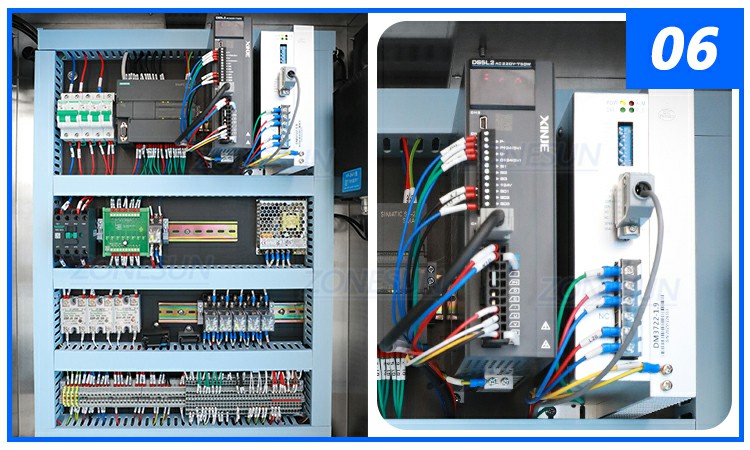

Electric Box
Properly arranged components allows for easy troubleshooting and repairing.
- Applicable Materials: Fine powders.
- Applicable Films: BOPP/PE, PET/PE, PET/ALfilms, etc.
- Applicable Products: Fiber supplement powders, baking powders, collagen peptides, coffee powders, probiotic powders, electrolyte drink mixes, etc.
- Applicable Industries: Food, beverage, cosmetic, daily chemical, medicine industries.
