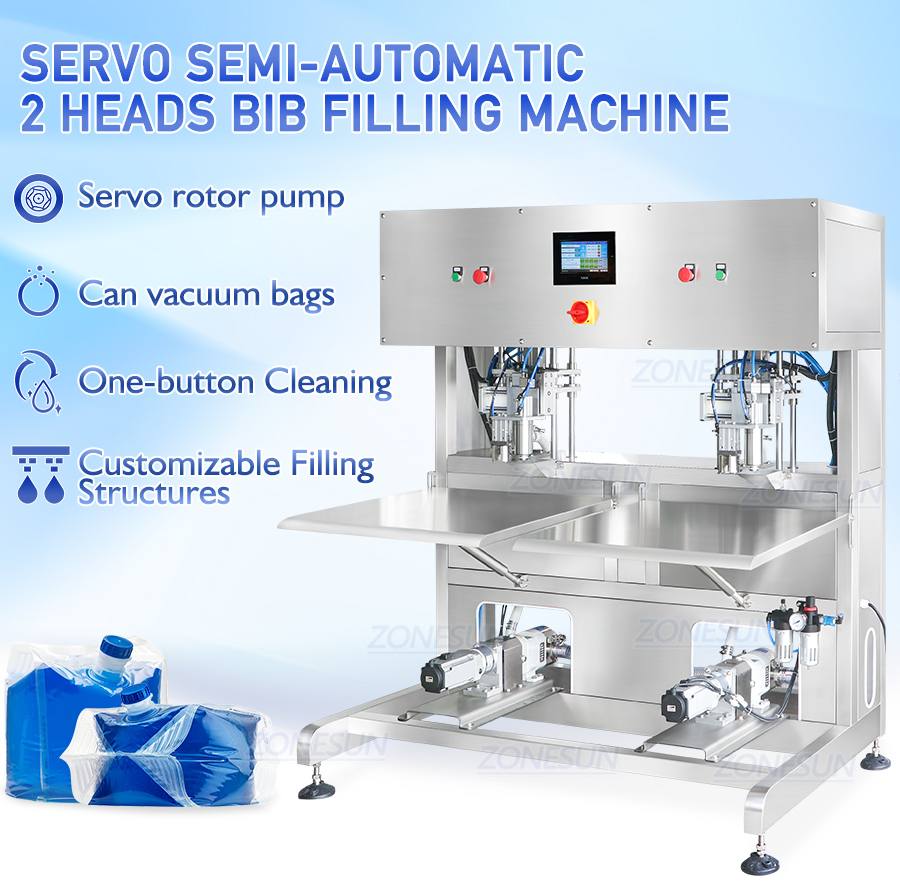

Semi Automatic Servo Bag In Box Filling Machine

ZS-BIB01D Servo Semi-Automatic Chili Sauce Oil Bag-In-Box Filling Machine

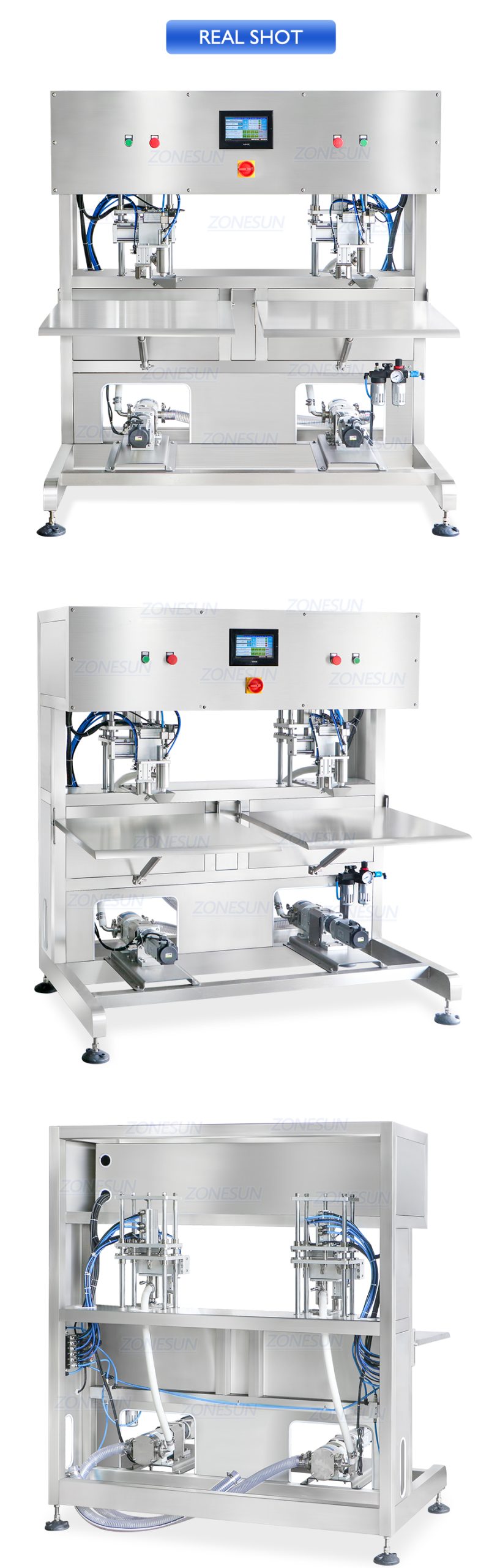

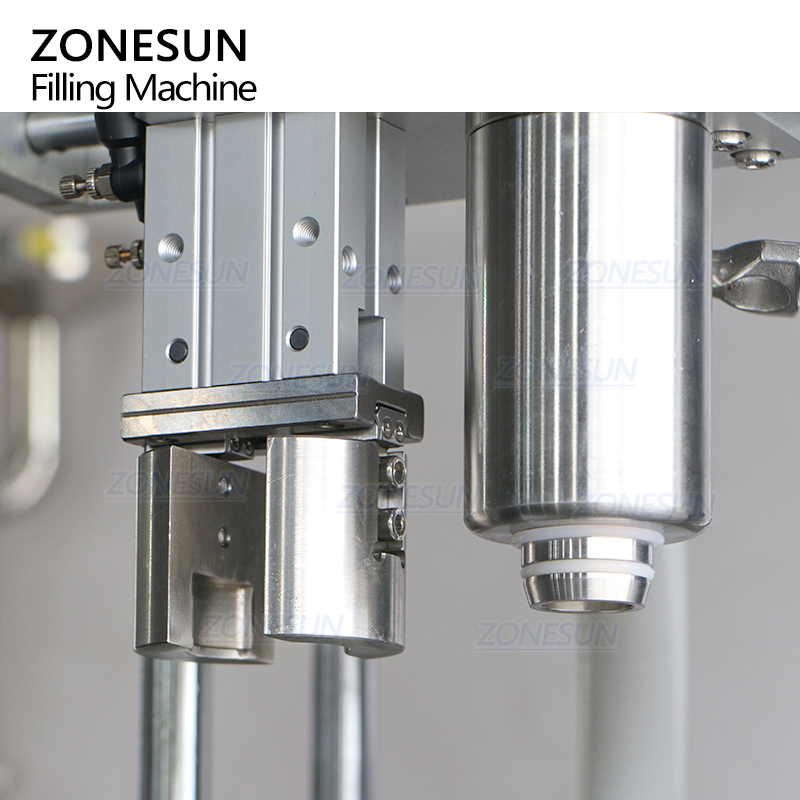

This servo bag in box filling machine integrates functions of taking out fitments, vacuuming bags, filling bags, and putting in fitments automatically. It adopts servo filling system, which has high filling precision. The machine can also be customized with nitrogen dosing structure as needed.

Video

Share to:

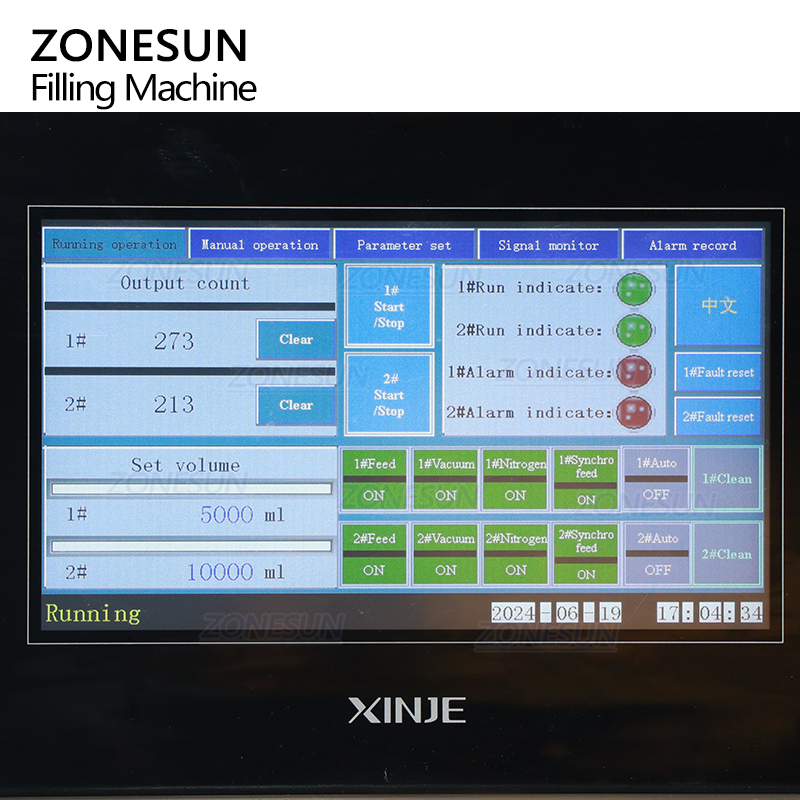

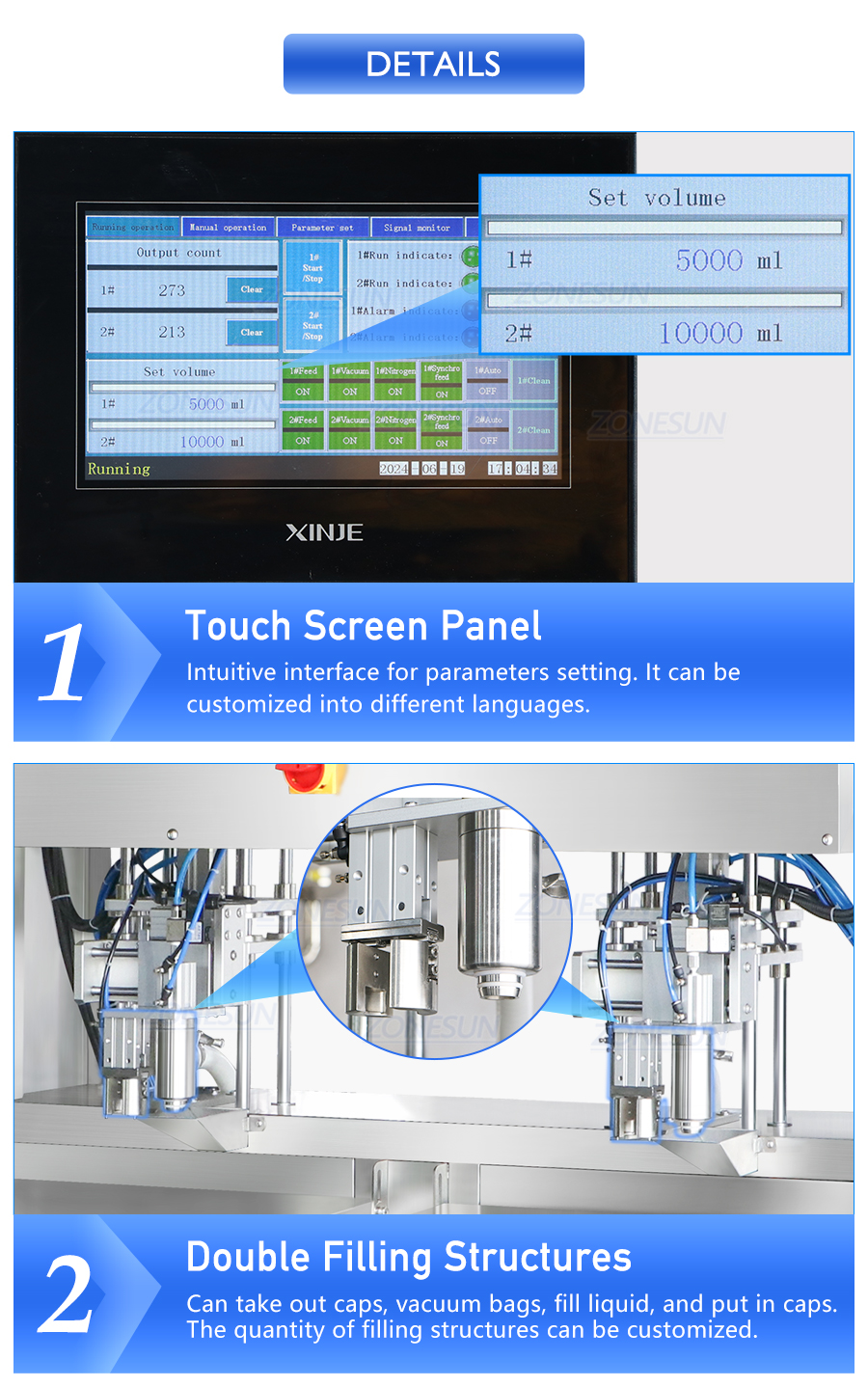

Language of operation interface can be customized as your need.
The two filling structures can be adjusted separately.

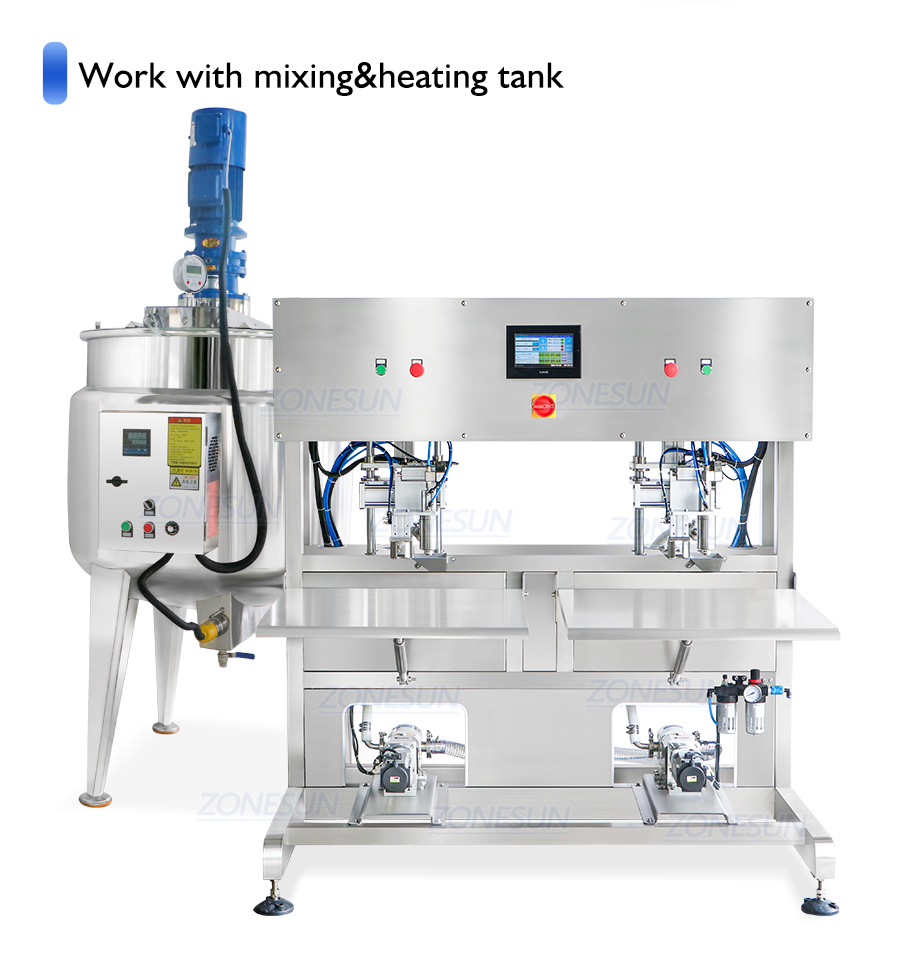

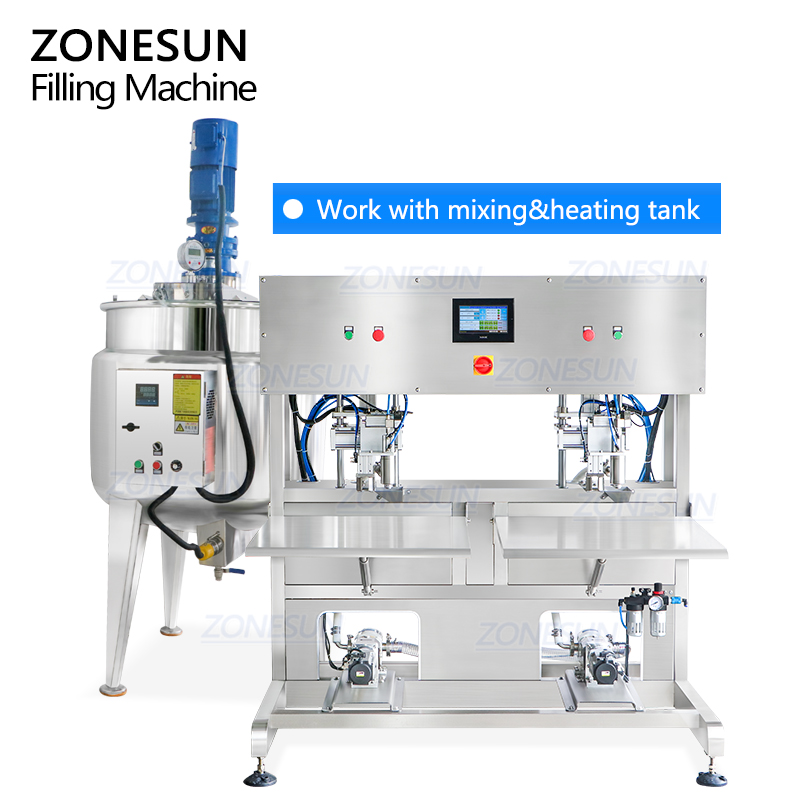

This servo bag in box filling machine can also work with mixing tank to handle materials automatically. Please contact us if you need it.

Machine Model	ZS-BIB01D
Voltage	220V/110V 50-60Hz
Power	About 2.3kW
Production Speed	About 450bags/h(based on 3L filling volume)
Filling Range	1-30L(Can be customized)
Filling Accuracy	±0.5%(for uniform materials like peanut butter) ±1%(for particle-containing materials like jam, chili sauce)

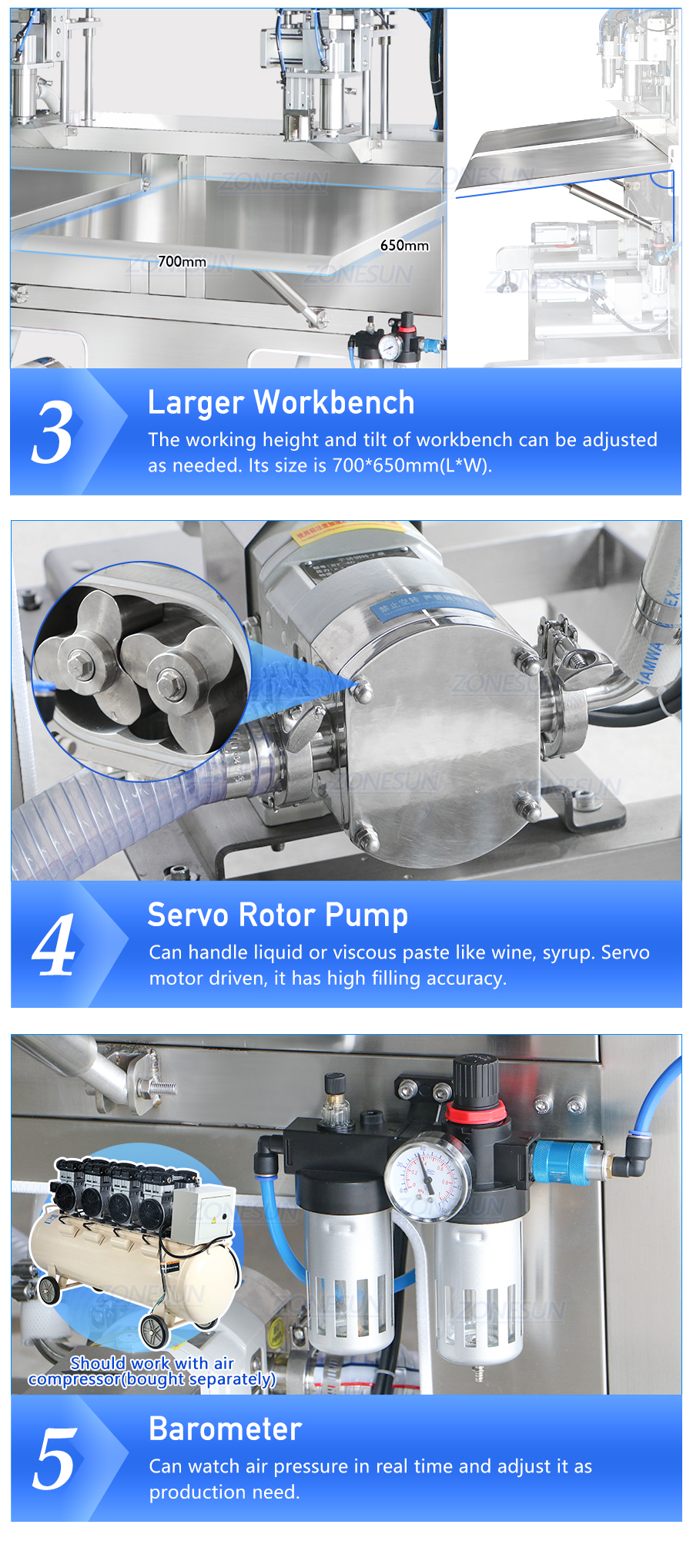

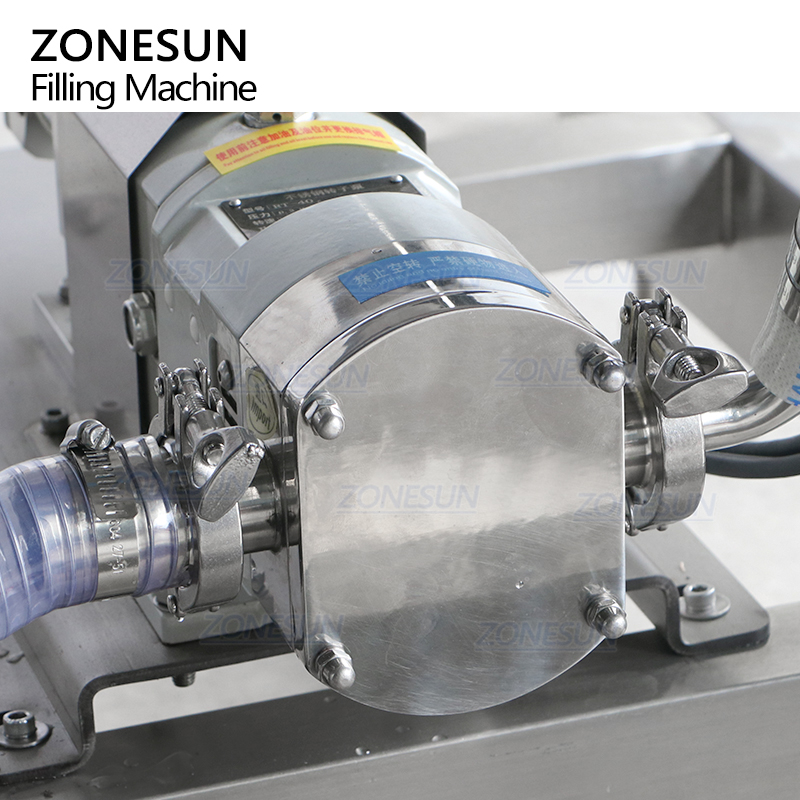

Filling Pump	Servo Rotor Pump
Air Pressure	0.6-0.8Mpa 0.5m³/min
Machine Size	About 15109501650mm(LWH)

Applicable Products: Syrup, olive oil, tomato sauce, mustard, jam, chili sauce, peanut butter, etc.
Applicable Industries: Food, beverage industries.
