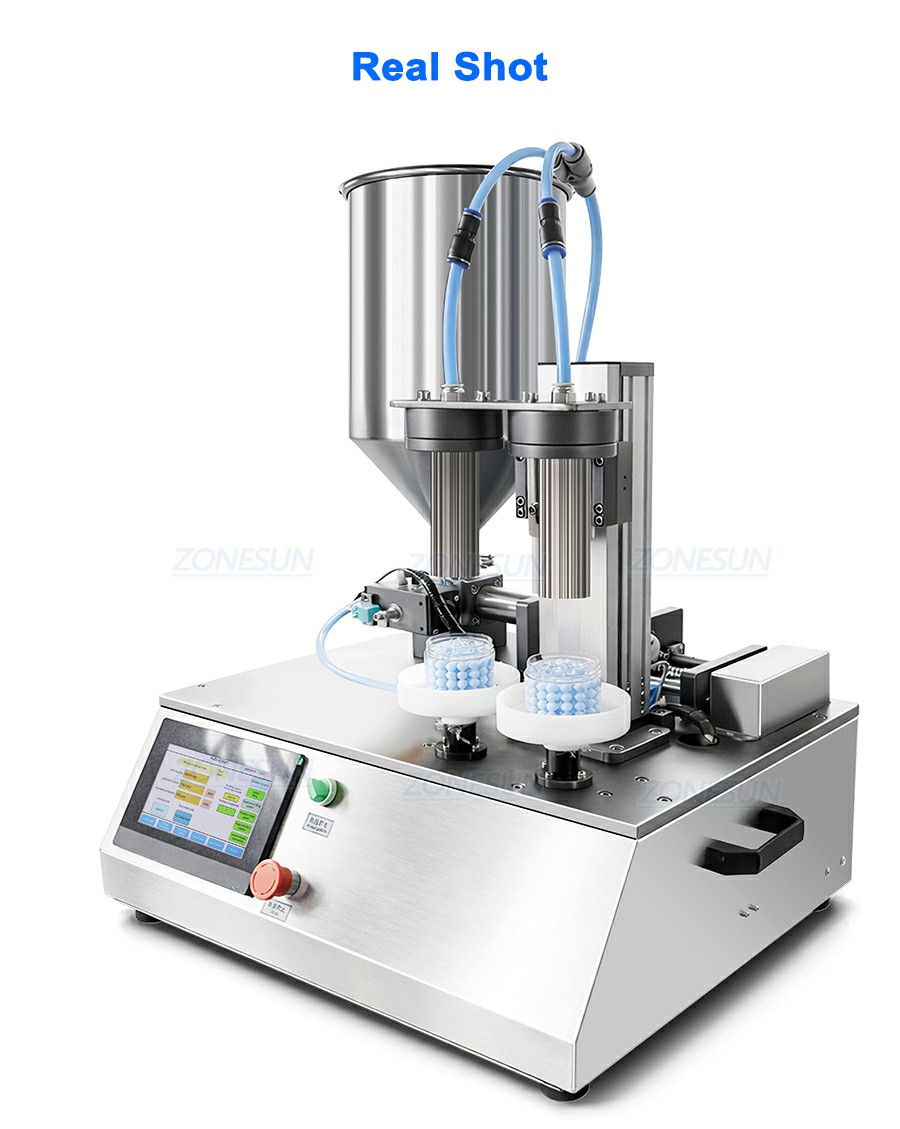

ZS-PGF5 Tabletop 2 Heads Moisturizing Capsule Cream Filling Machine
🎄 Specially designed for filling capsule creams.
🎄 Piston pump system, filling range is customized.
🎄 With touch screen to realize easy parameter setting.
🎄 Can be customized to suit for your bottle size.
🎄 Tabletop design saves working space.
Share to:

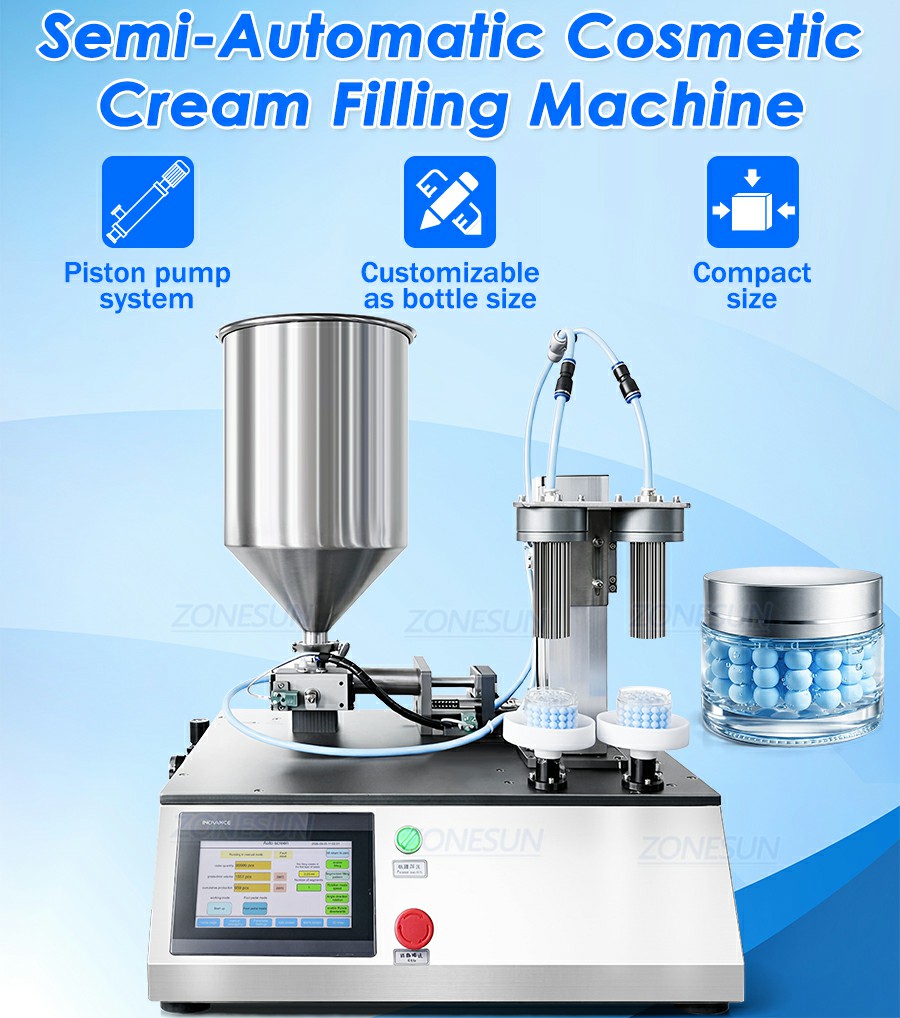

Description of the Tabletop Capsule Cream Filling Machine:

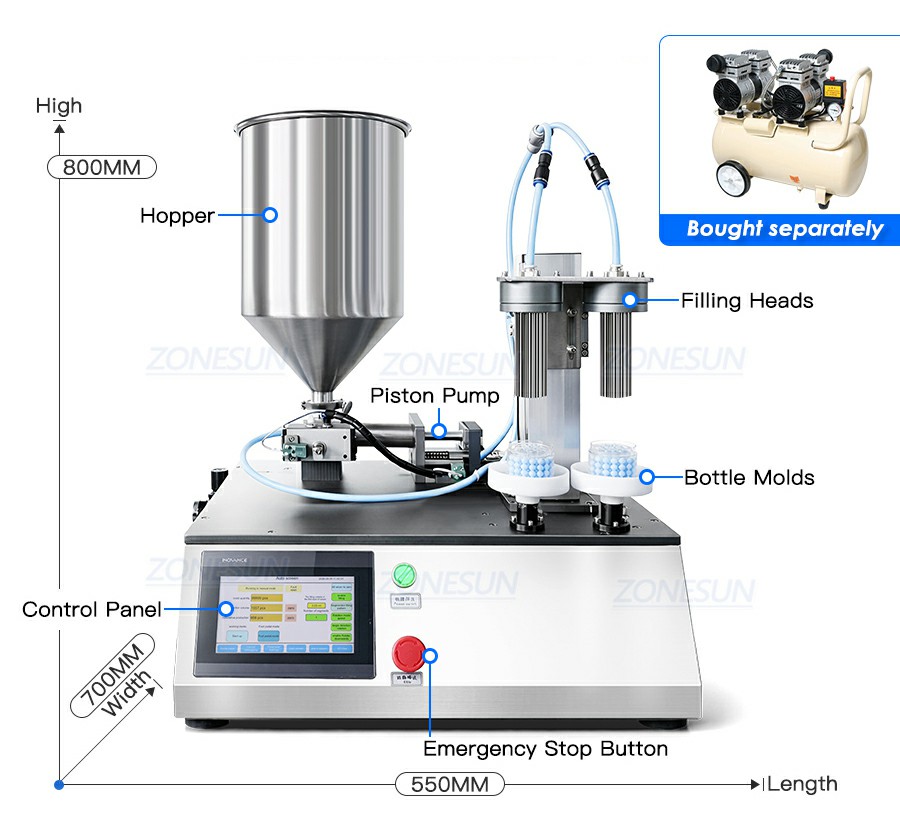

The ZS-PGF5 model is equipped with 2 bottom-up filling heads. It is designed for filling capsule-type creams into hydrating gel base. The model is made in tabletop design, which is space-saving. The filling parameters can be set on touch screen easily. This cosmetic cream filling machine can be customized according to your production needs.

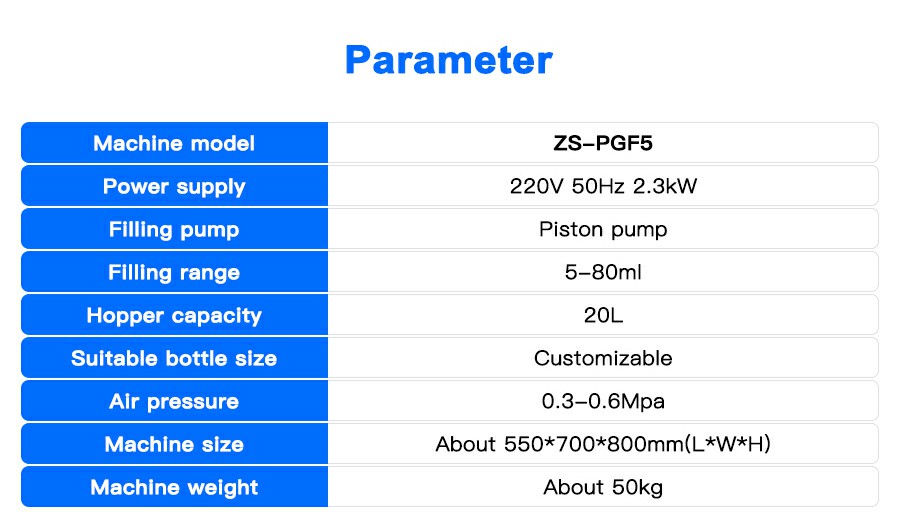

Machine Model | ZS-PGF5 |
| Machine Voltage | 220V 50Hz |
Power | 2.3KW |
| Filling Pump | Piston Pump |
Filling Range | 5-80ml |
| Hopper Capacity | 20L |
Applicable Bottle Size | Can be customized |
| Air Pressure | 0.3-0.6Mpa |
Machine Size | About 550*700*800mm/ About 21.7*27.6*31.5 inch |
Machine Weight | About 50kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

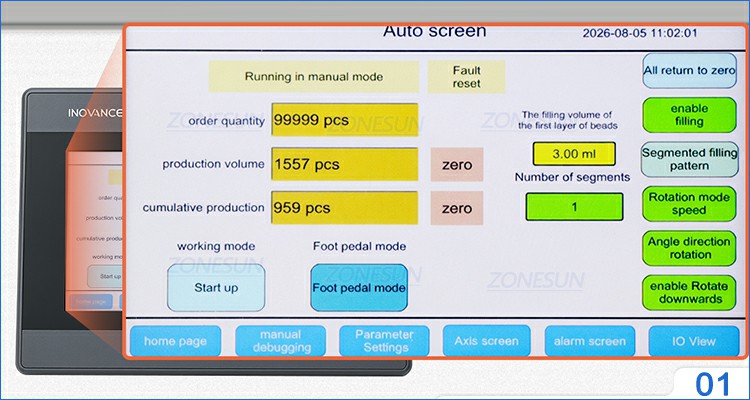

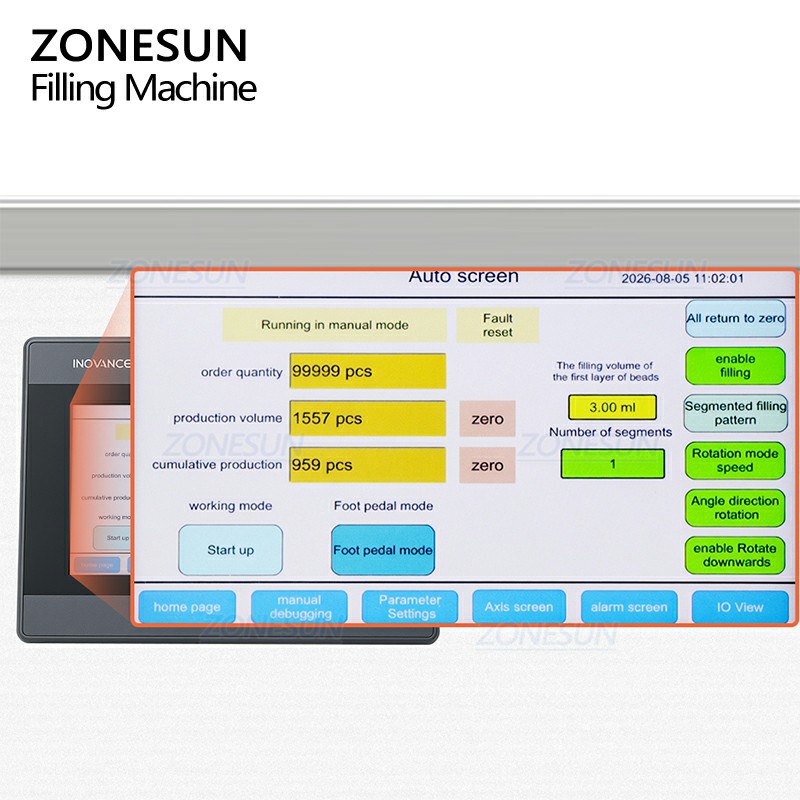

Touchscreen Interface
Can display production speed and running status intuitively. The language of interface can be customized as needed.

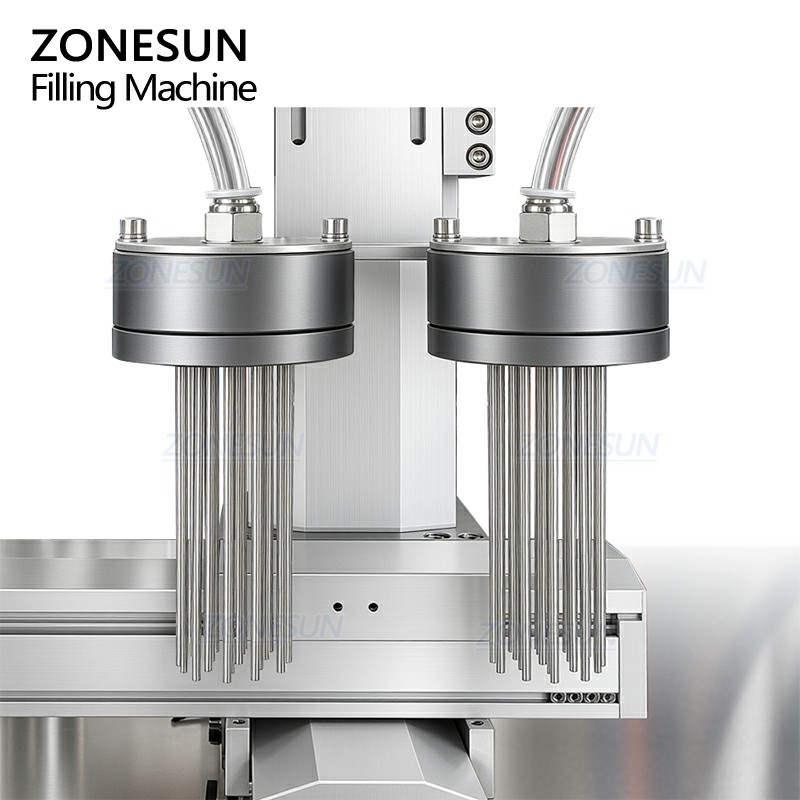

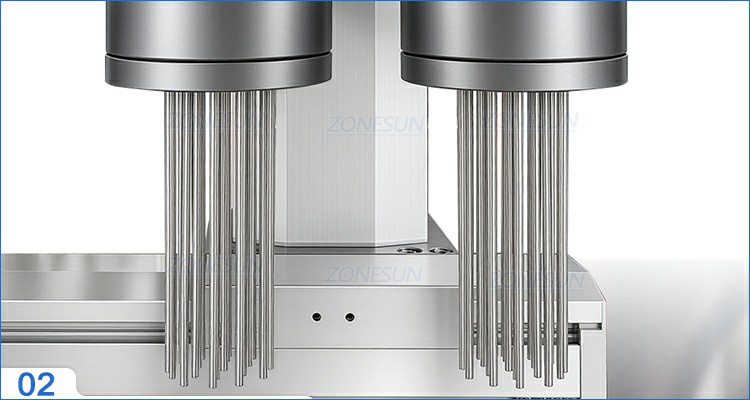

Double Filling Heads
Can move from bottom to up to create capsule-type creams. Filling range can be customized.

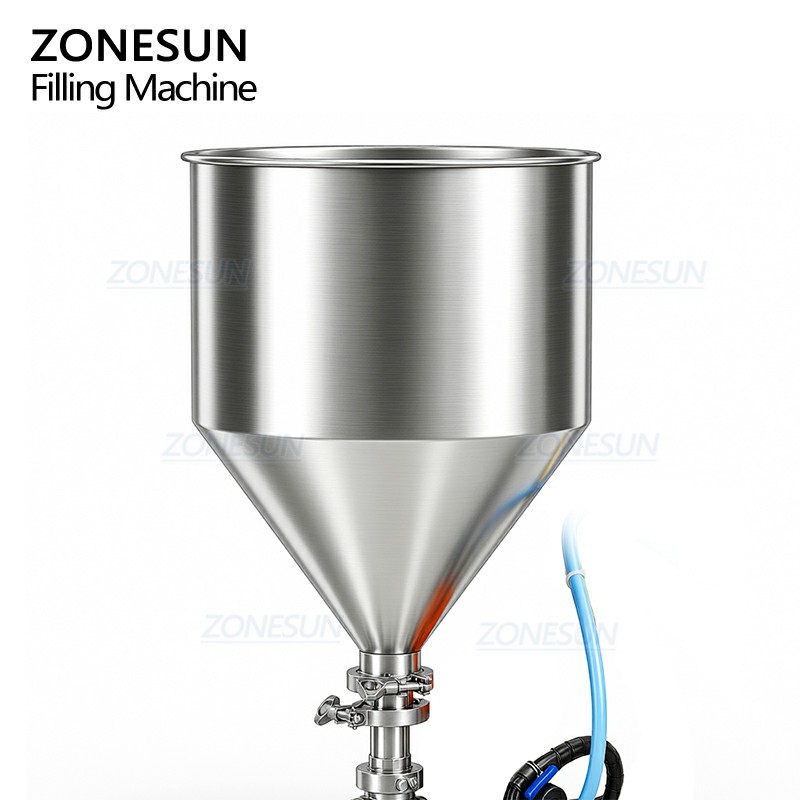

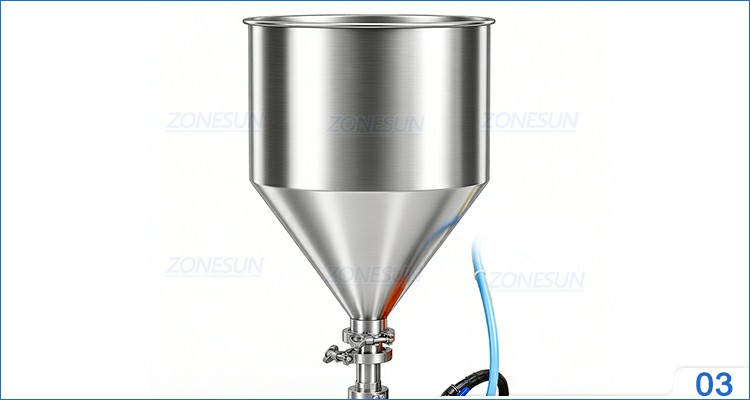

20L Hopper
Can consistently supply materials to filling mechanism. The hopper can be customized with mixer or heater if needed.

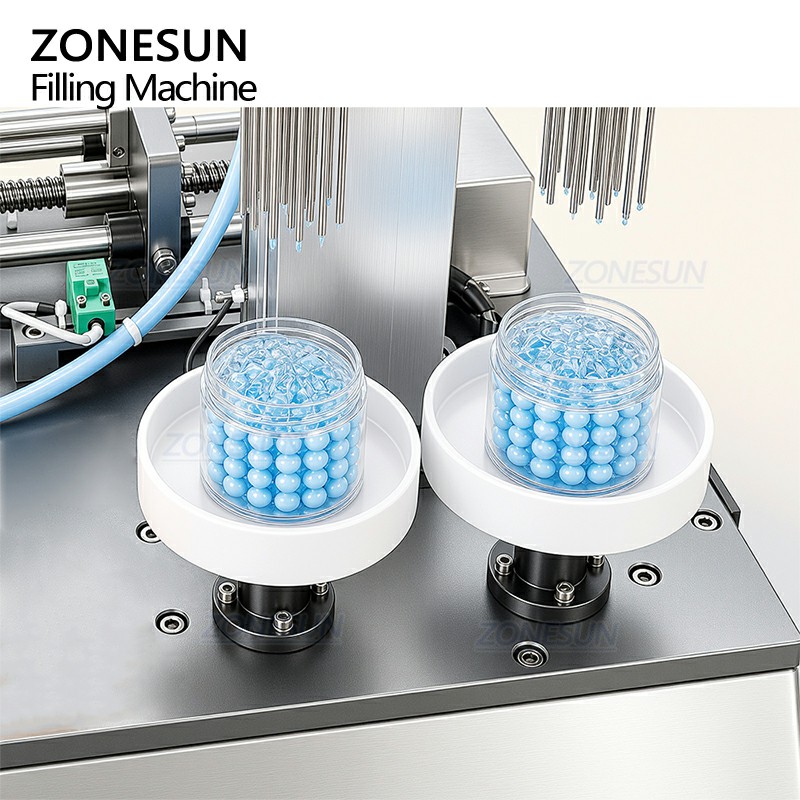

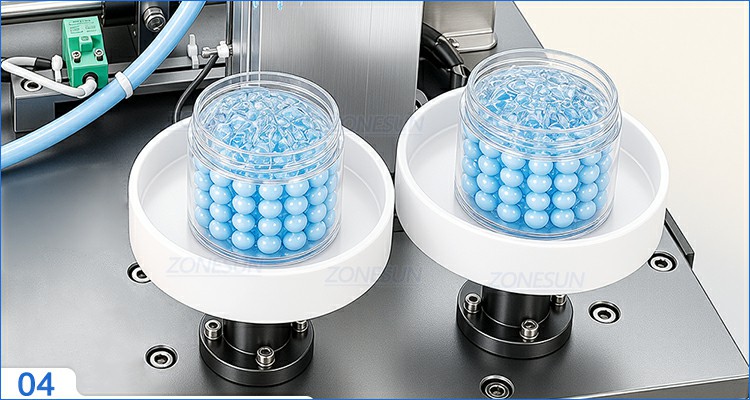

Bottle Molds
Capable of holding the bottles during production. The molds are customized based on your bottle size.


- Applicable Products: Capsule creams, face moisturizers.
- Applicable Industries: Cosmetic, personal care industries.
