ZS-TB150PBF Tabletop Doypack Zipper Bag Labeling Machine With Feeder

🎄 Can realize automatic bag feeding and labeling.
🎄 Machine output is 1200-3000pcs/hour.
🎄 Can be adjusted to handle different sizes of bags.
🎄 Can be equipped with ribbon coder for automatic date printing.
🎄 No air compressor required.

Video

Share to:

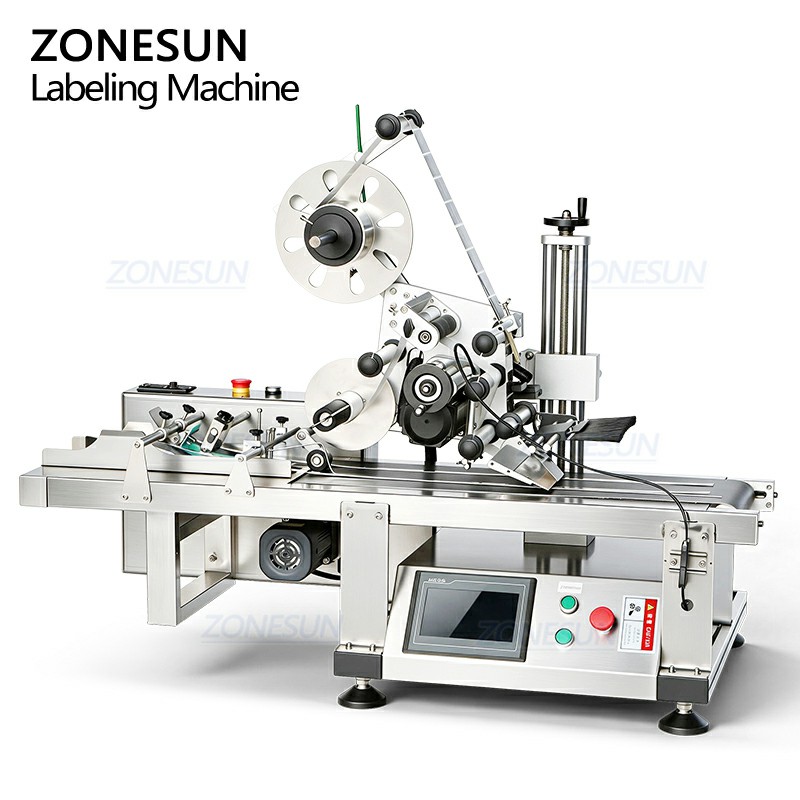

Tabletop Zipper Bag Labeling Machine With Feeder

Machine Application

Description of the Automatic Tabletop Zipper Bag Labeling Machine:

The ZS-TB150PBF model has functions of feeding and labeling flat bags automatically. Its labeling speed can reach 20-50 pieces per minute. Equipped with bag feeder, it can separate and feed the bags automatically, ensuring efficient operation. The feeding structure and labeling structure can be adjusted to fit different bag sizes. This automatic tabletop bag labeler can also work with ribbon coder to print expiry dates or batch numbers on labels.

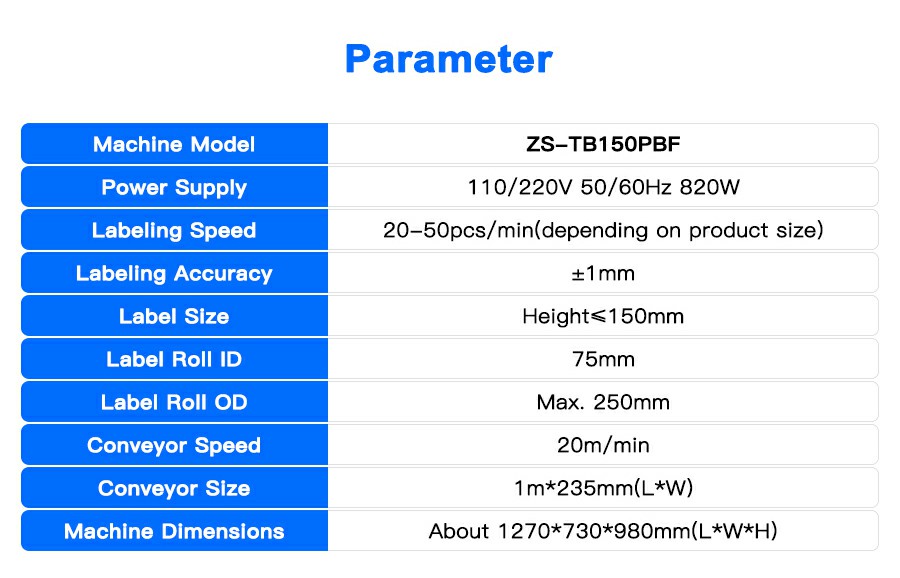

Machine Parameter

Machine Model

ZS-TB150PBF
Machine Voltage

220V/110V 50/60Hz

Power

820W
Production Capacity

About 20-50pcs/min(depending on product and label size)

Labeling Accuracy

±1mm
Label Size

Height≤150mm

Label Roll Inner Diameter

75mm
Label Roll Outer Diameter

Max. 250mm

Conveying Speed

20m/min
Conveyor Size

1m*235mm(L*W)

Machine Size

About 1270*730*980mm/ About 50*28.7*38.6 inch

❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

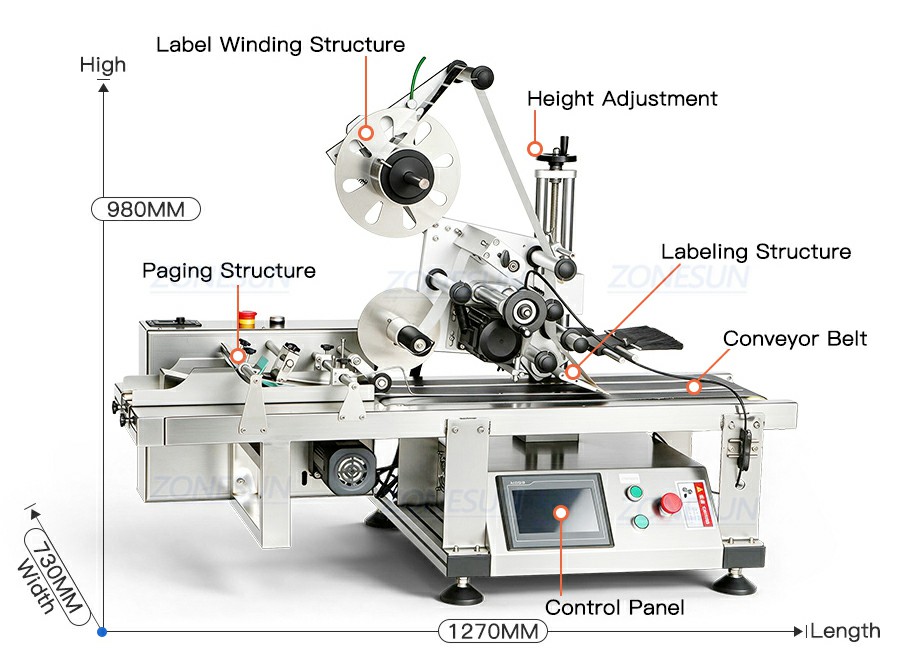

Tabletop Automatic Bag Labeler

Machine Details

Machine Detail 1

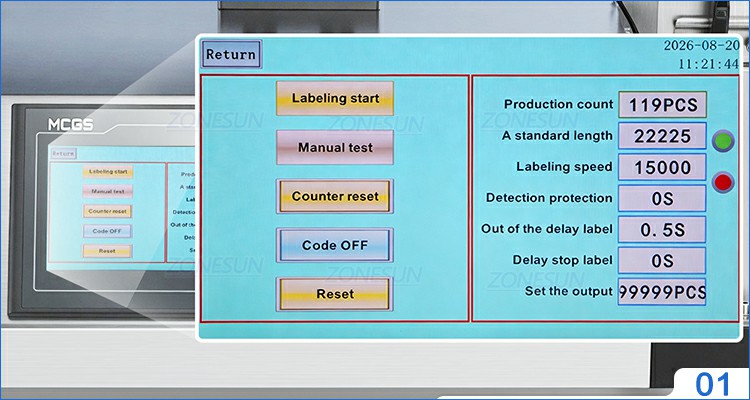

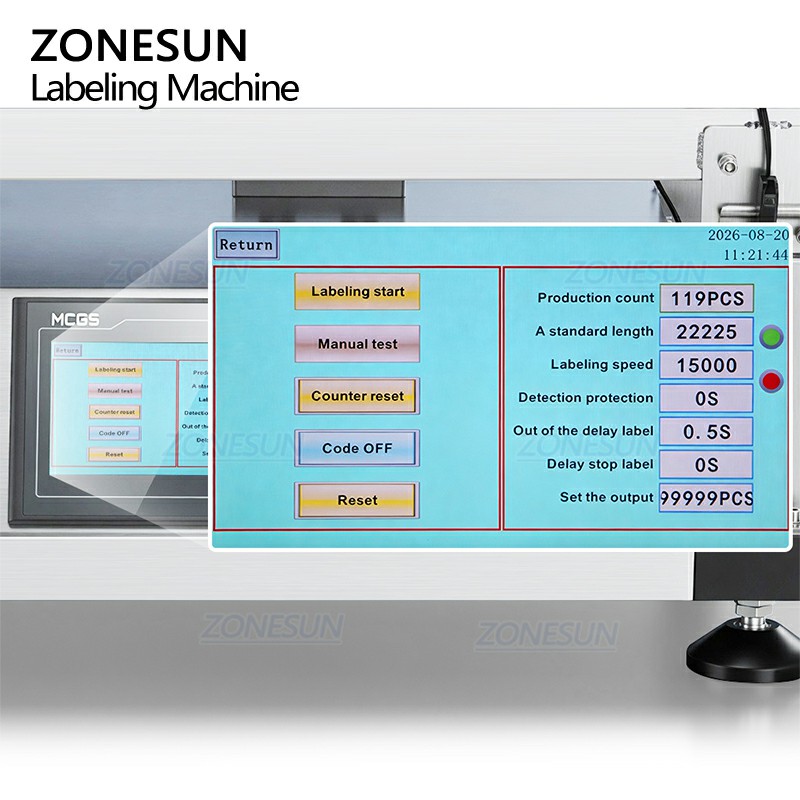

Touchscreen Interface

Can intuitively display live performance data, output counts and immediate error alerts. The language of interface can be customized as needed.

Machine Detail 2

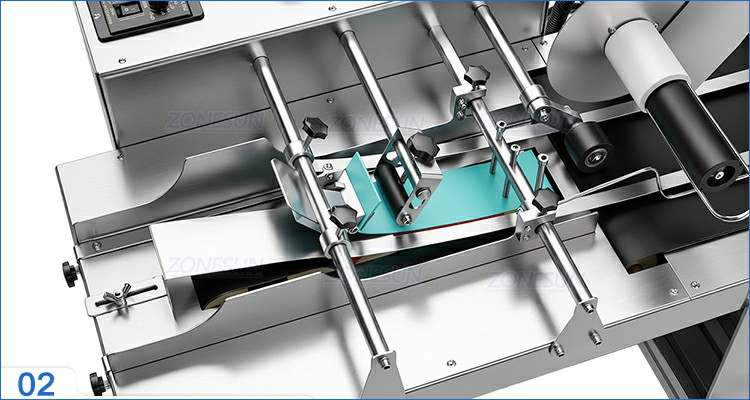

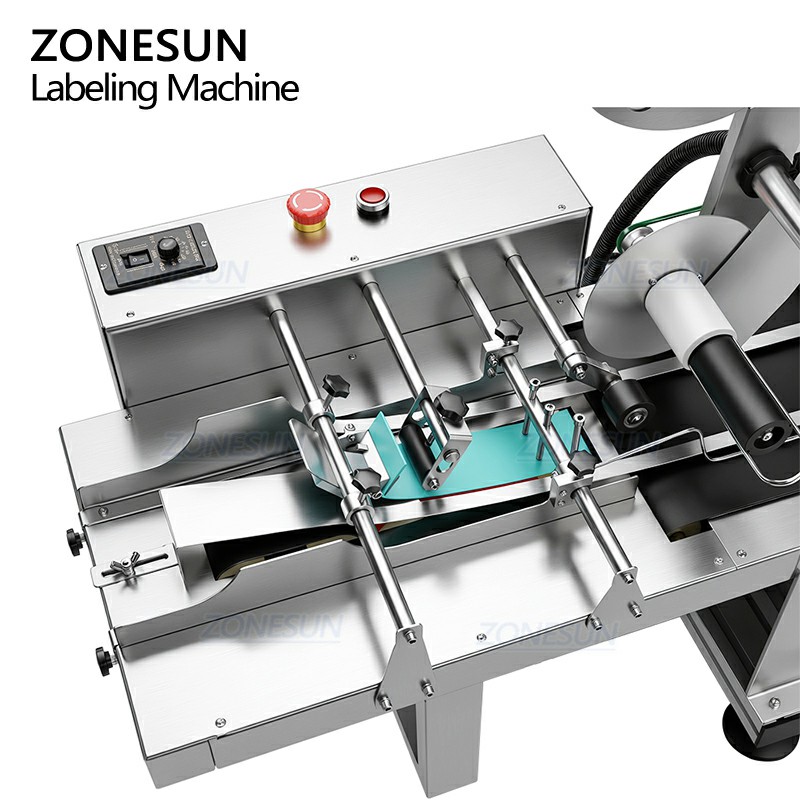

Bag Feeding Structure

Can continuously separate bags from a stack and transfer them to labeling station. It is adjustable according to bag sizes.

Machine Detail 3

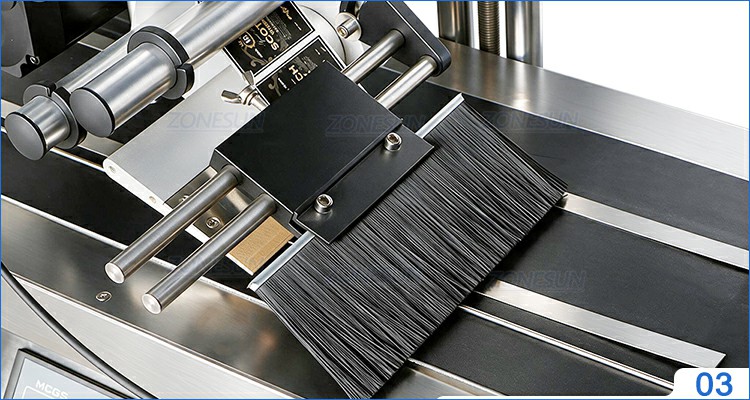

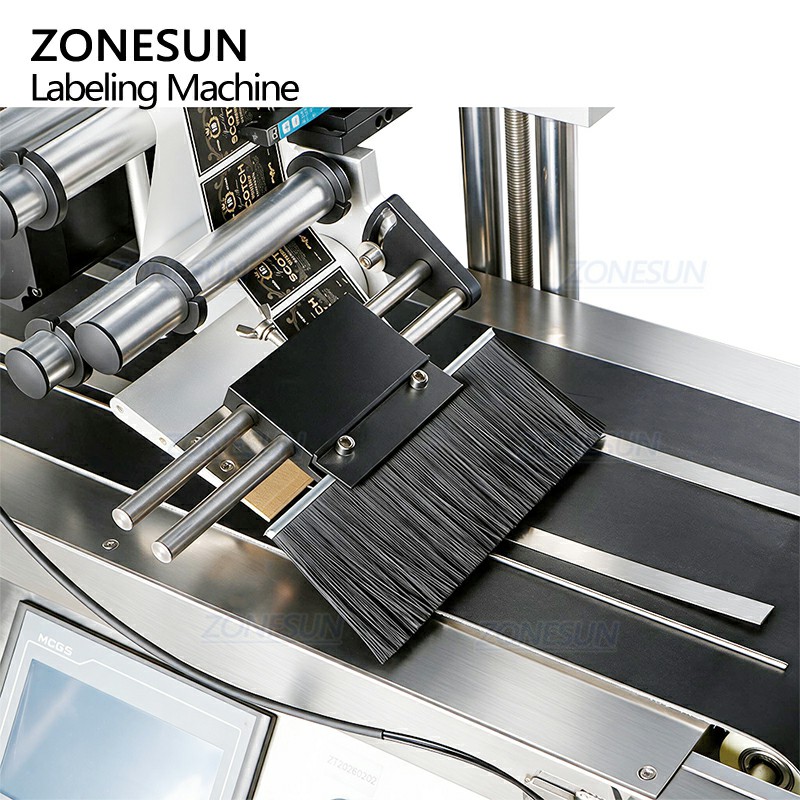

Flat Surface Label Applicator

Capable of applying labels to flat surfaces automatically. The brush ensures even label adhesion.

Machine Detail 4

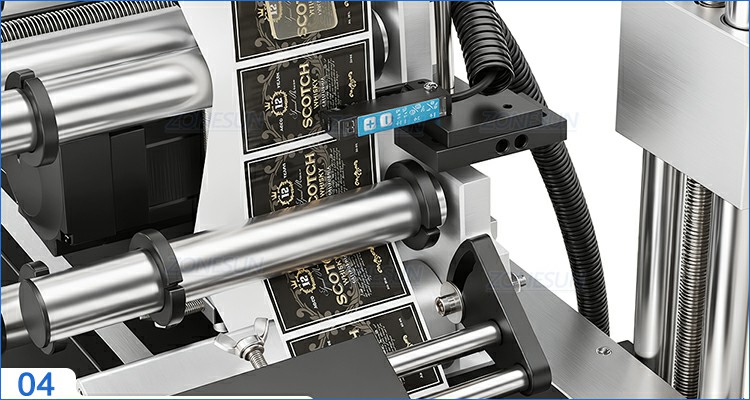

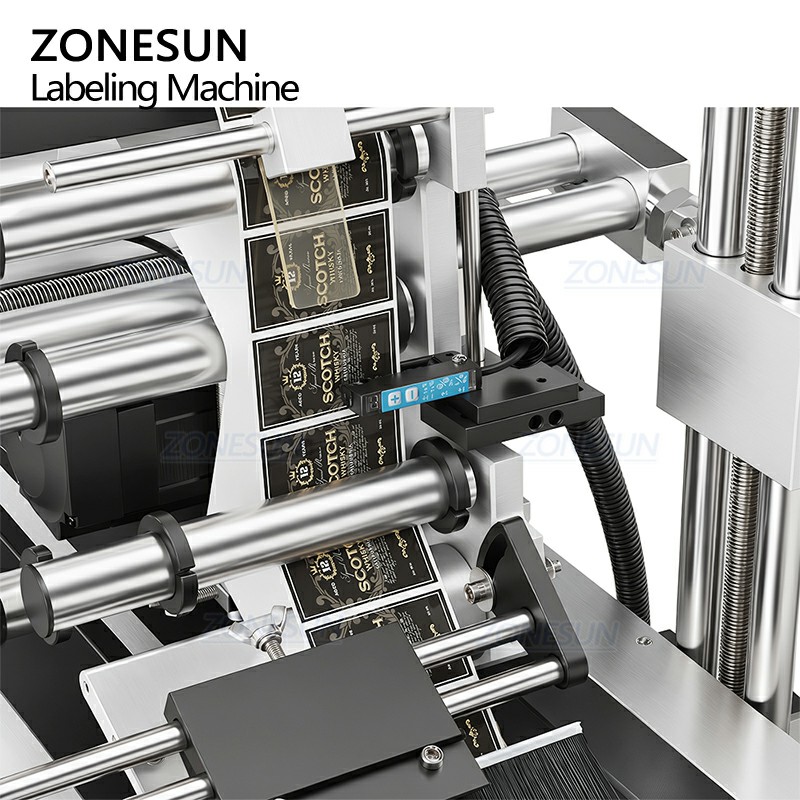

Label Sensor

Intelligent sensor can detect label gaps and control the machine to dispense labels accurately. Its sensitivity is adjustable for different label materials.

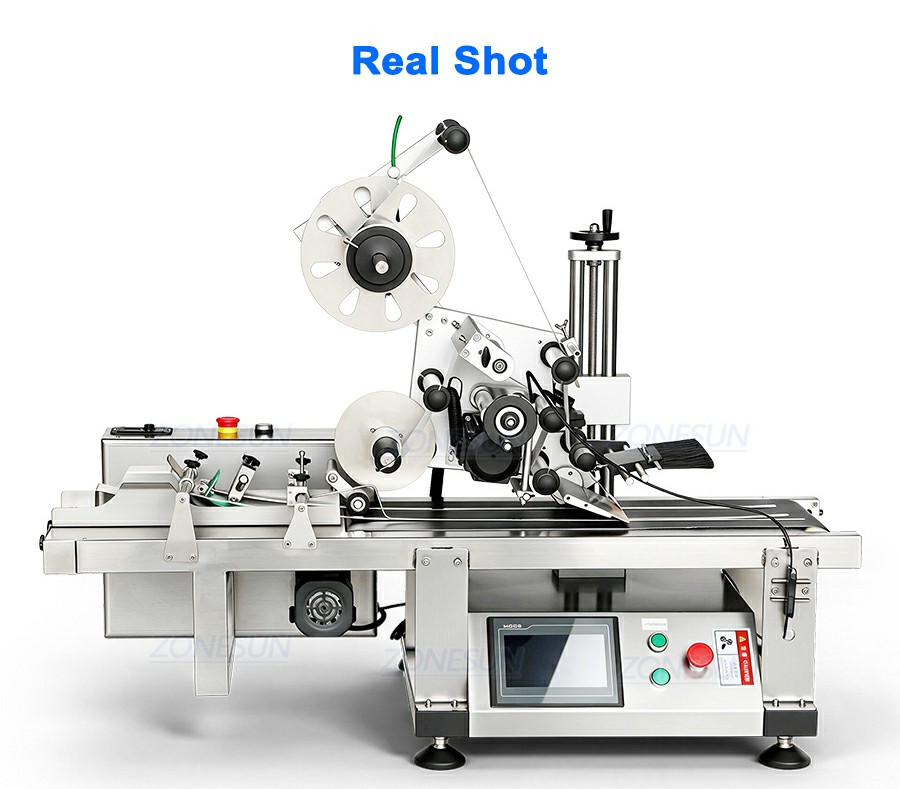

Tabletop Bag Label Applicator

Parameter Of Zipper Bag Labeling Machine

  • Applicable Labels: Adhesive labels (Normal labels/Transparent labels).
  • Applicable Products: Plastic bags, pouches, zipper bags, paper cards, doypack, unfolded cartons, etc.
  • Applicable Industries: Food, medicine, cosmetic, daily chemical, retail industries.
