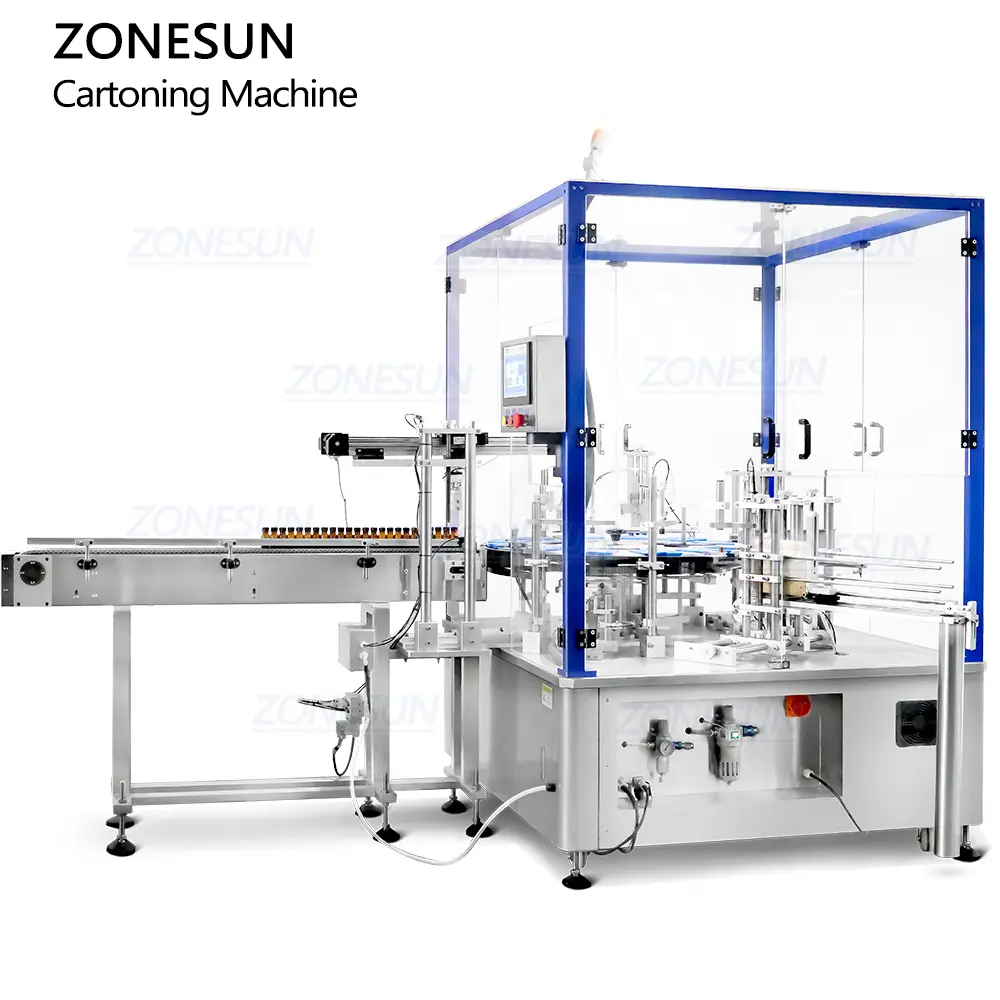

ZS-MSZH50L Vertical Automatic Cartoning Machine For Bottles

This vertical cartoning machine integrates functions of erecting folding boxes, closing bottom tuck flap, packing bottles into boxes, closing top tuck flap and discharging finished products. Packing speed can reach 20-50 boxes/min. The machine can be customized to meet your production demands.

Share to:

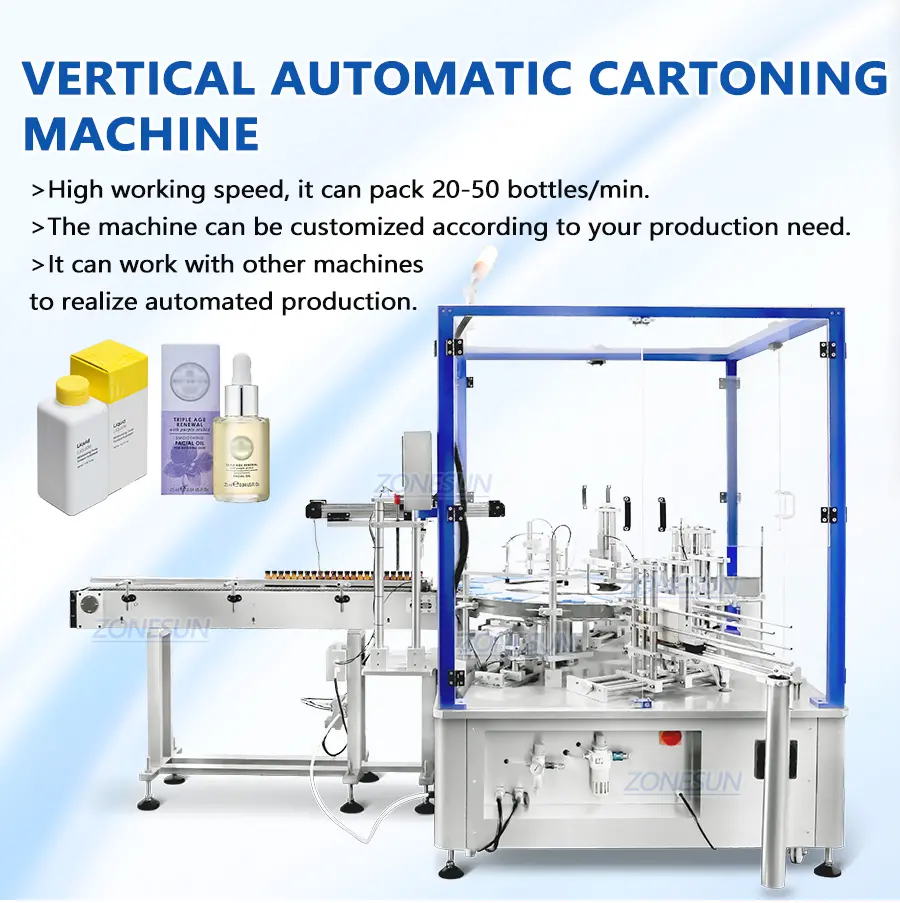

Automatic Vertical Cartoning Machine for Bottles

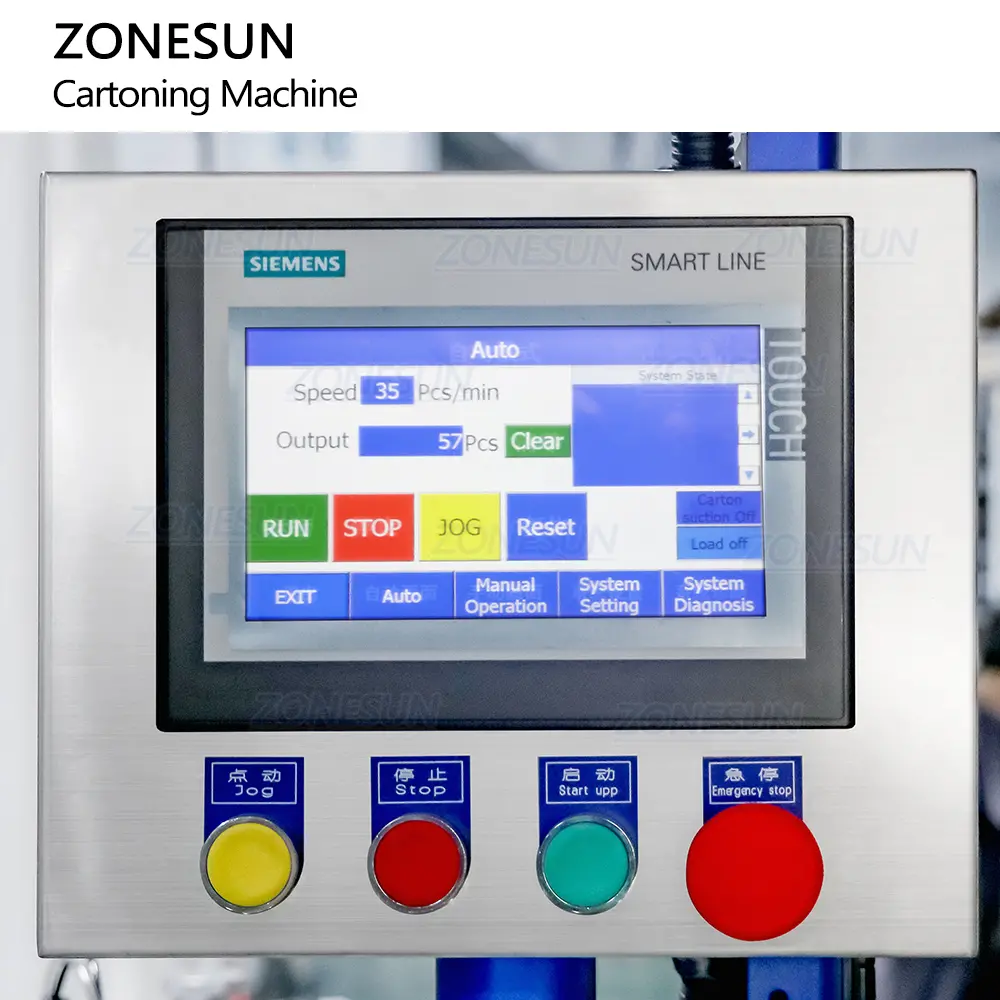

  • Equipped with touchscreen panel, it is convenient to control and debug the machine. Language of panel can be customized as needed.

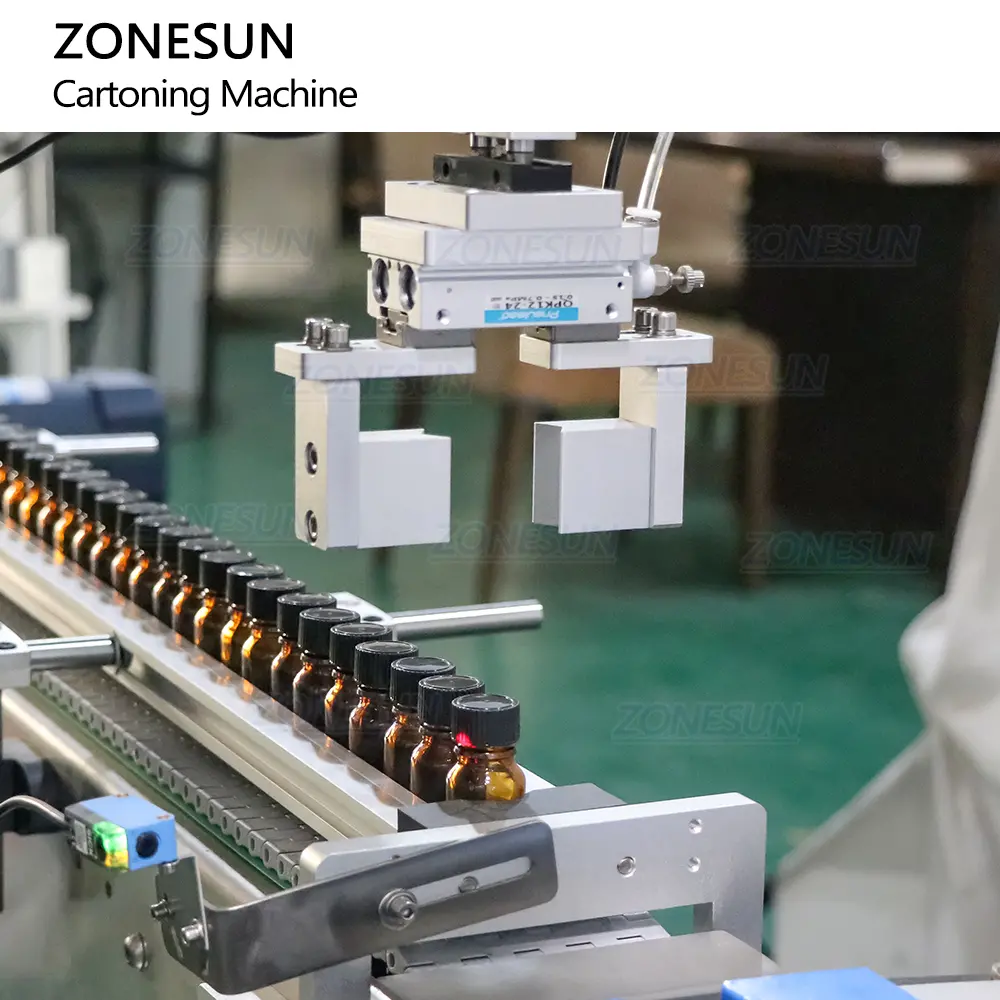

  • With gripper, it can pick up bottles and pack them into boxes automatically, saving labor cost.

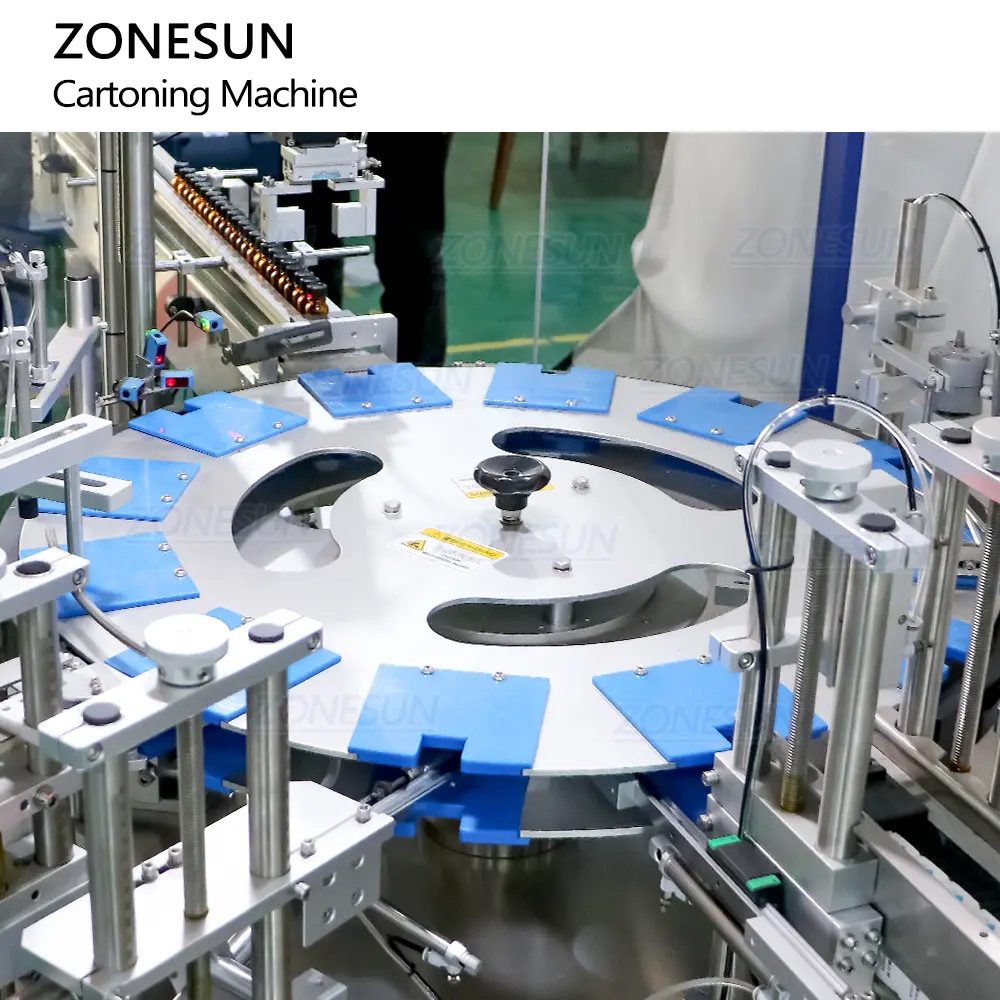

  • The star wheel can transport boxes during production, improving efficiency. It can be customized to suit for your products.
  • This vertical cartoning machine can also be customized with date coding function, leaflet feeding function and gluing function. Please contact us if you need it.

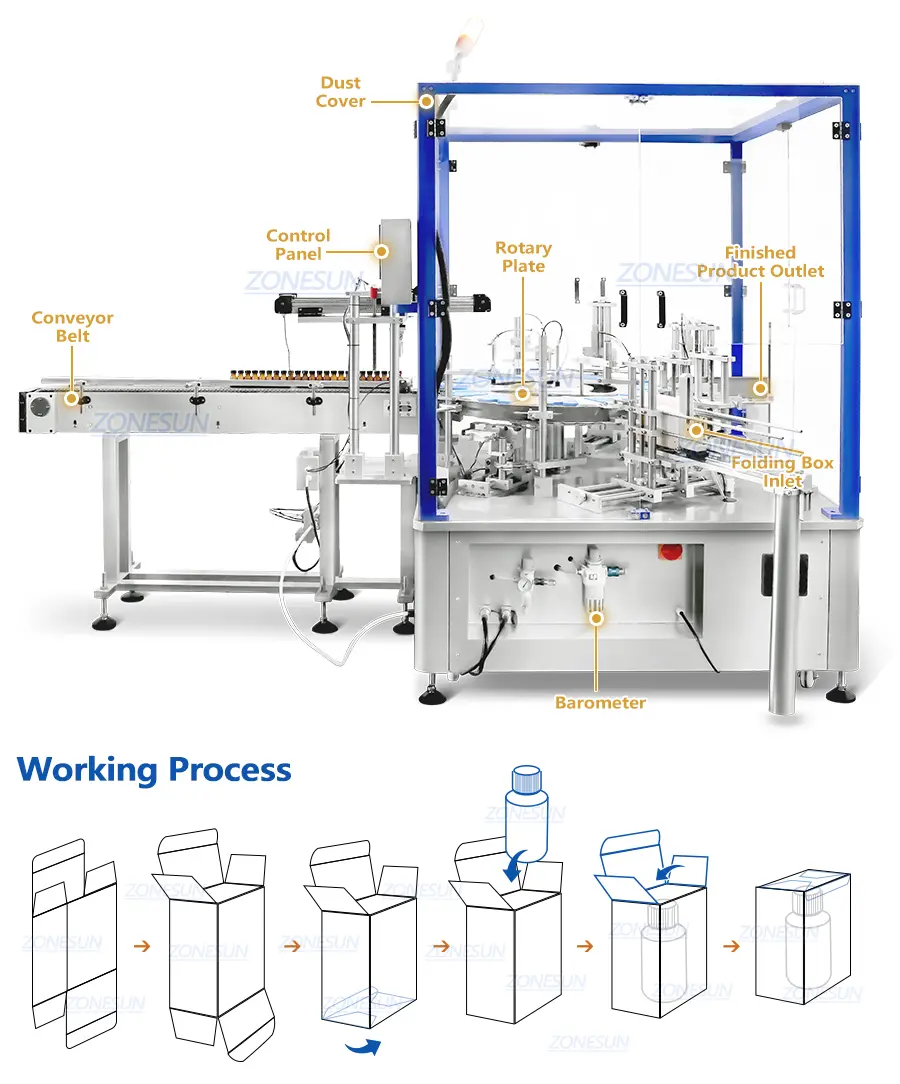

Machine Diagram

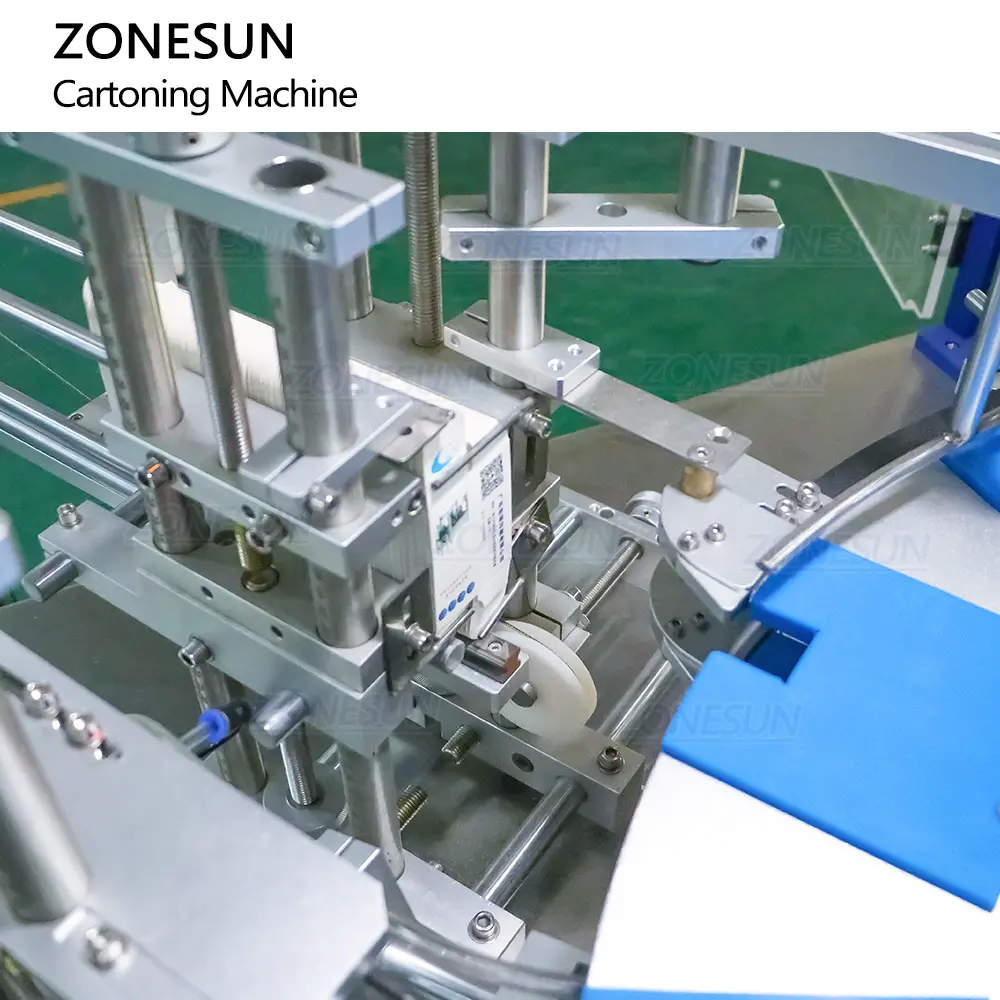

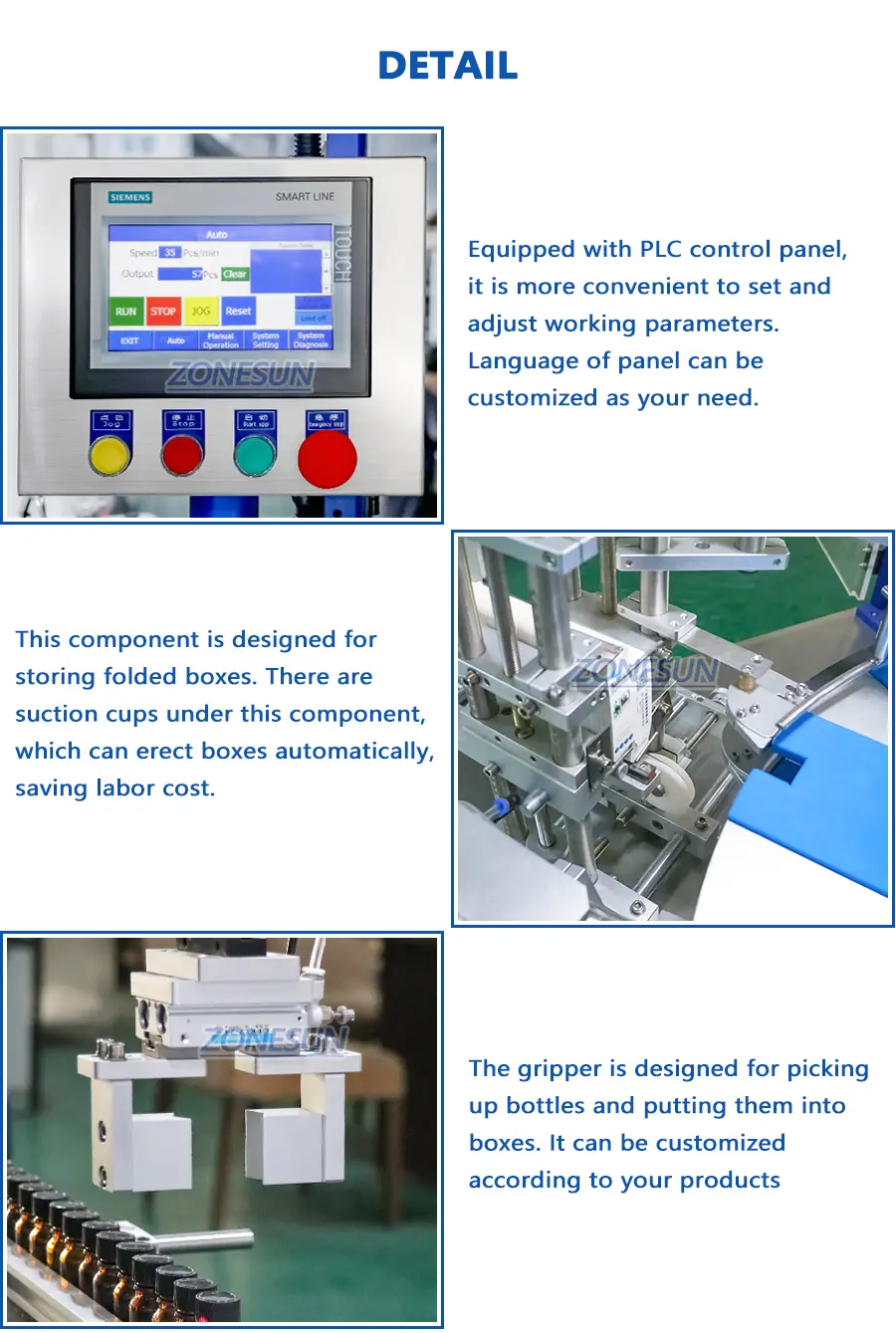

Machine Detail-1

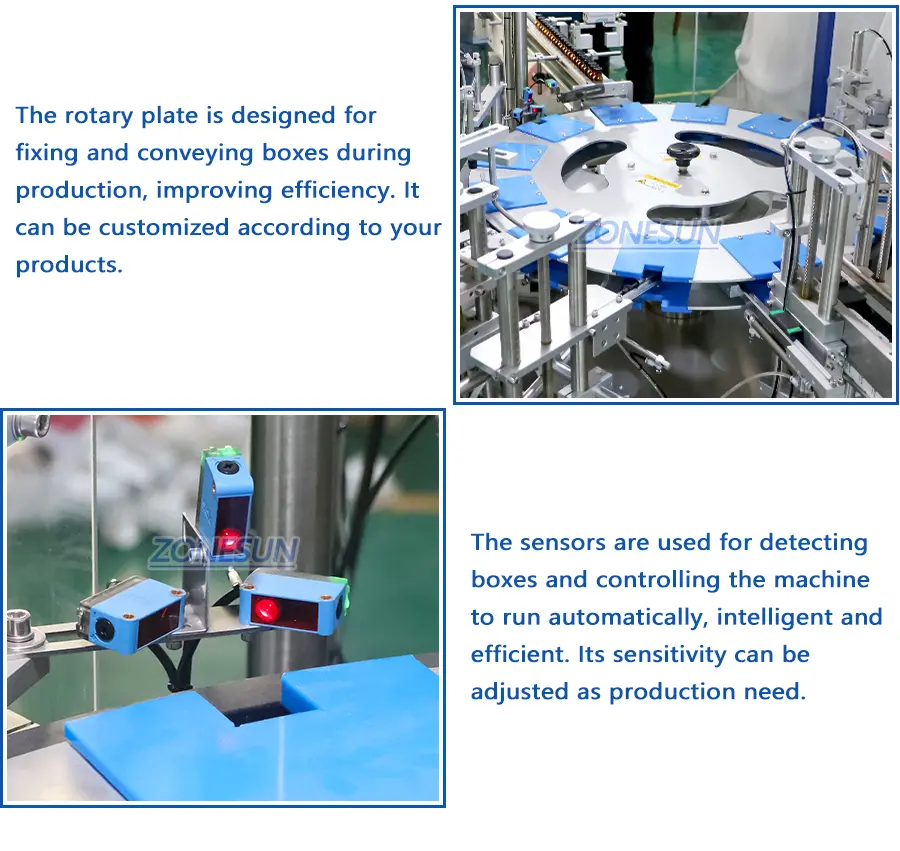

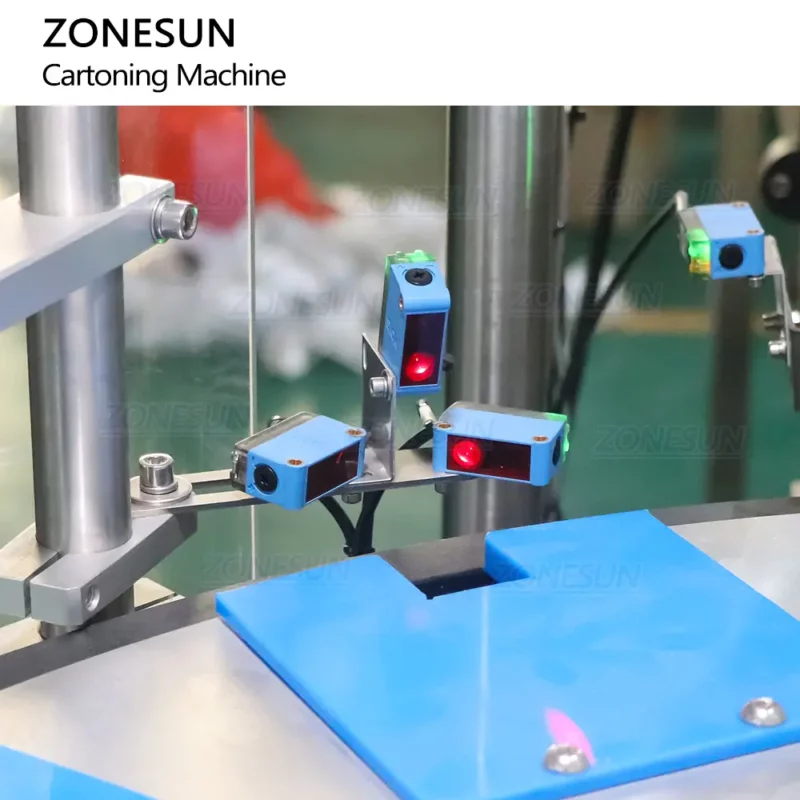

Machine Detail-2

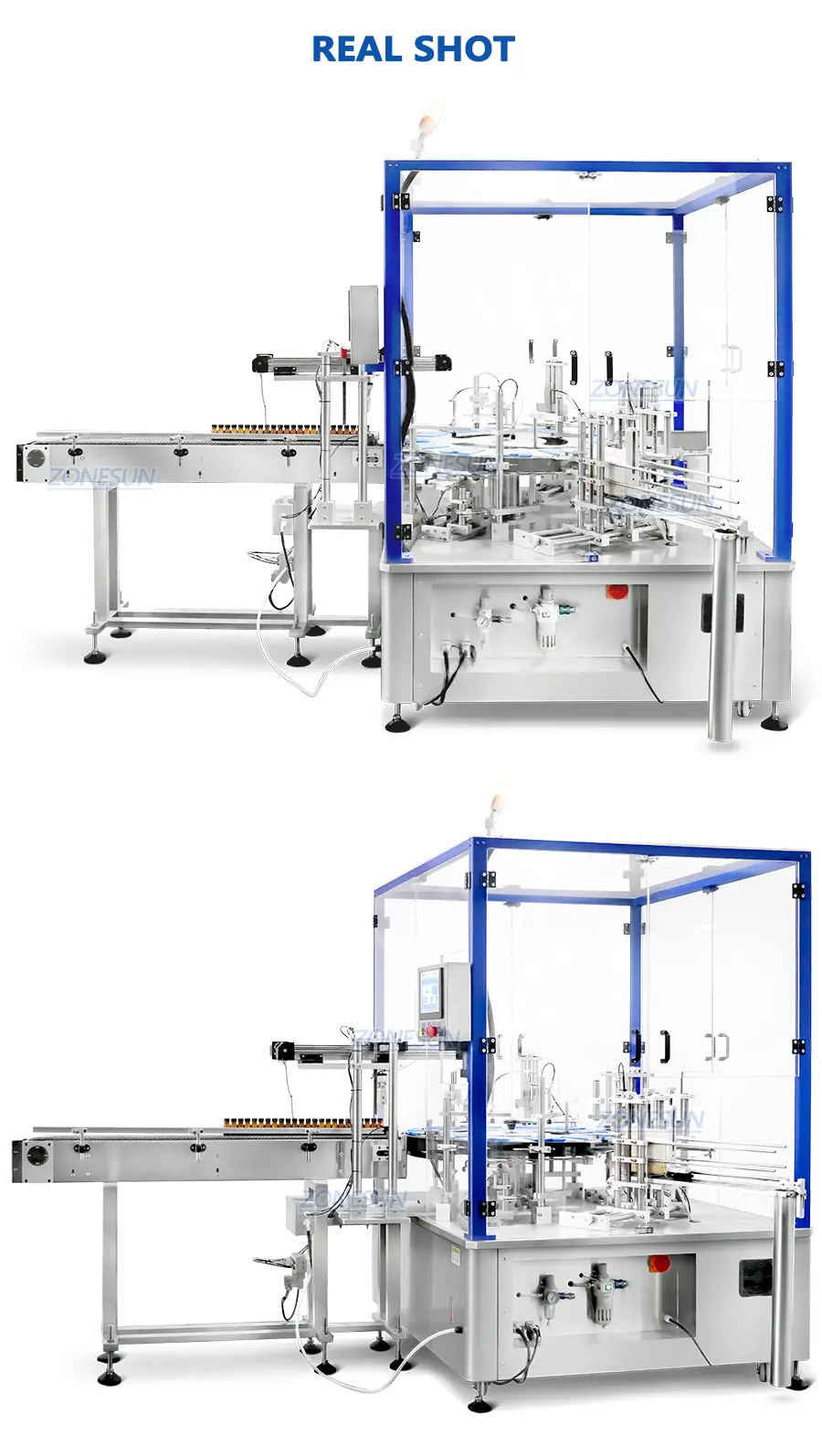

Real Shot

Machine Model ZS-MSZH50L
Voltage 220V 50-60Hz  Single Phase
Motor Power 1.5kW
Working Speed About 20-50boxes/min
Max Size of Box 200*80*80mm
Minimum Size of Box 60*20*20mm
Paper Quality of Box 250-350g/m³
Air Consumption 260L/min
Air Pressure 0.5-0.8MPa
Optional Functions 1. Gluing Function

2. Leaflet Feeding Function

3. Date Coding Function

Machine Size About 1100*1500*1700mm(L*W*H)
Machine Weight About 450kg



Machine Configuration
Machine Component Brand Origin
Control Panel SIEMENS Germany
PLC SIEMENS Germany
Inverter DANFOSS Denmark
Air Cylinder AirTac Taiwan,China
Switching Power Supply Schneider France
Emergency Stop Button Schneider France
Photoelectric Switch Omron Japan
Encoder Omron Japan

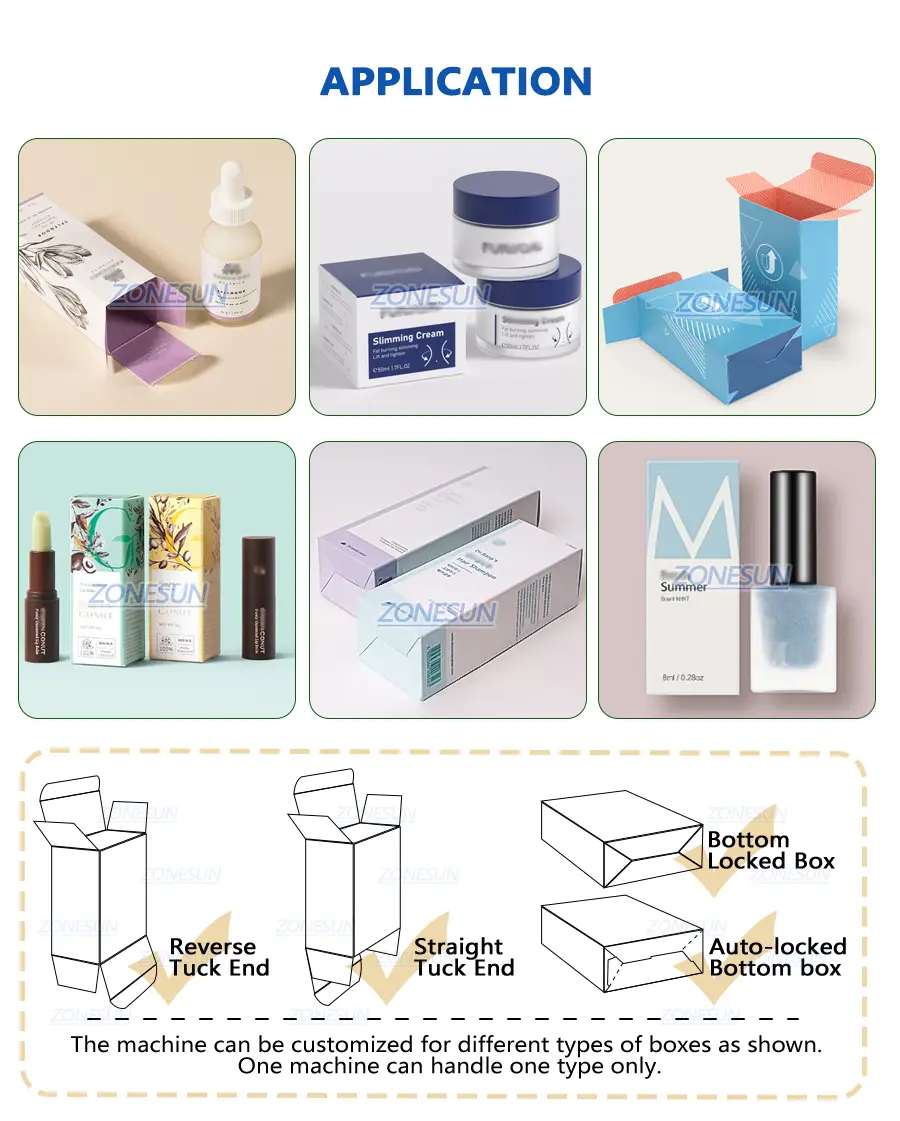

  • Applicable Boxes: Reverse tuck-end boxes, straight tuck-end boxes, lock bottom boxes, auto lock bottom boxes, etc.
  • Applicable Products: Eye drops, light bulb, lipsticks, mascara, lotion, makeup remover, etc.
  • Applicable Industries: Cosmetic, chemical, daily chemical, personal care industries.

Application of vertical cartoner
