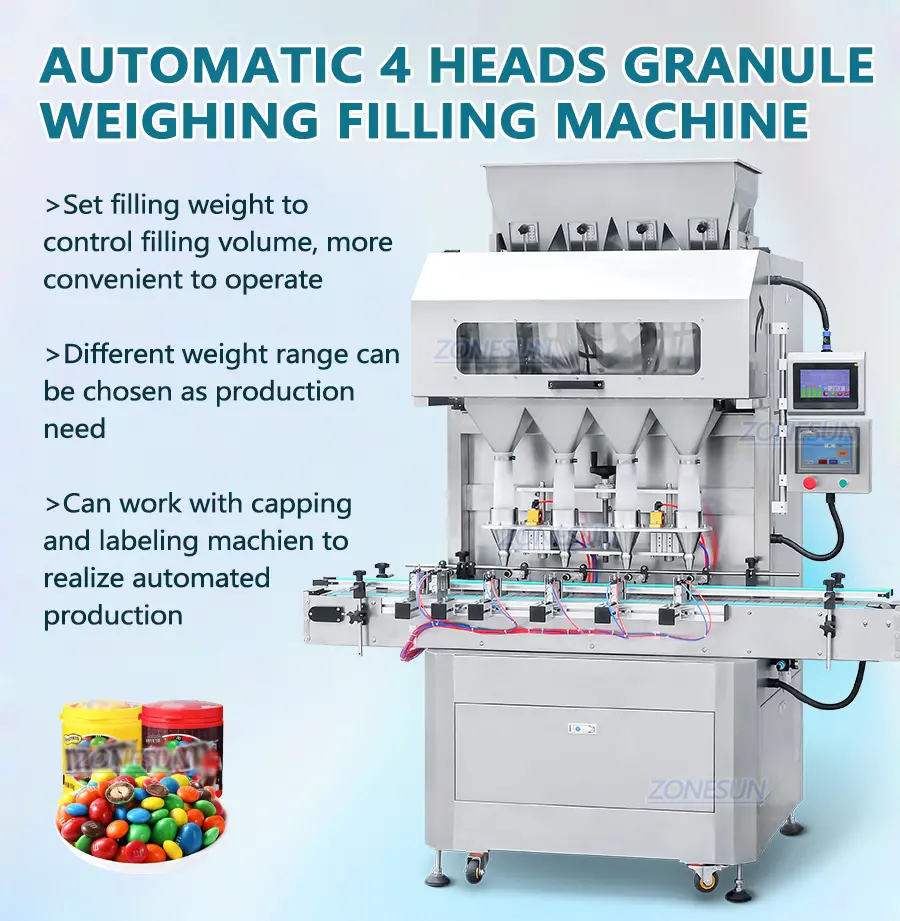

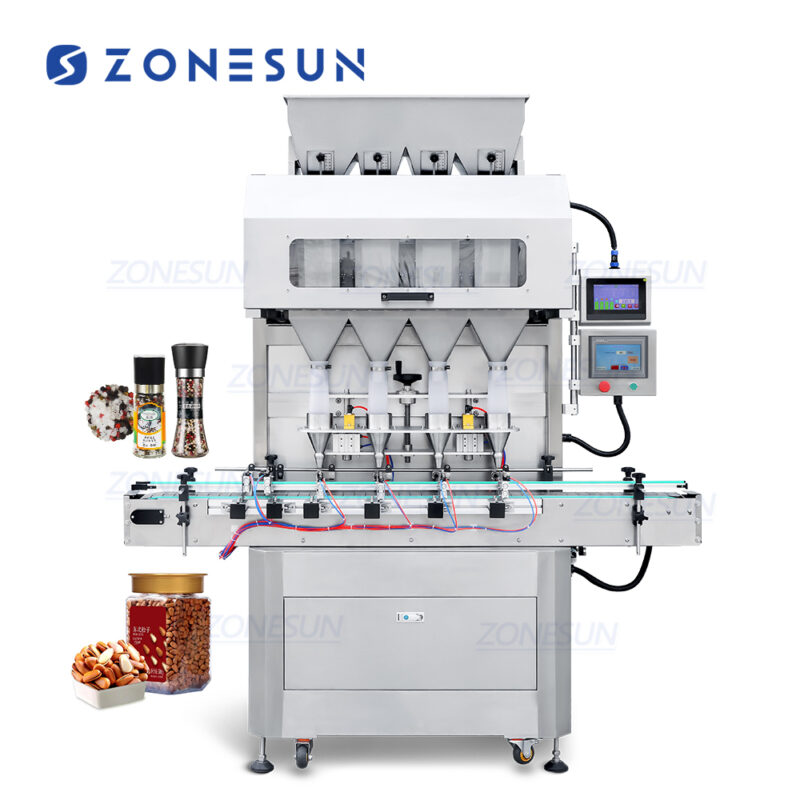

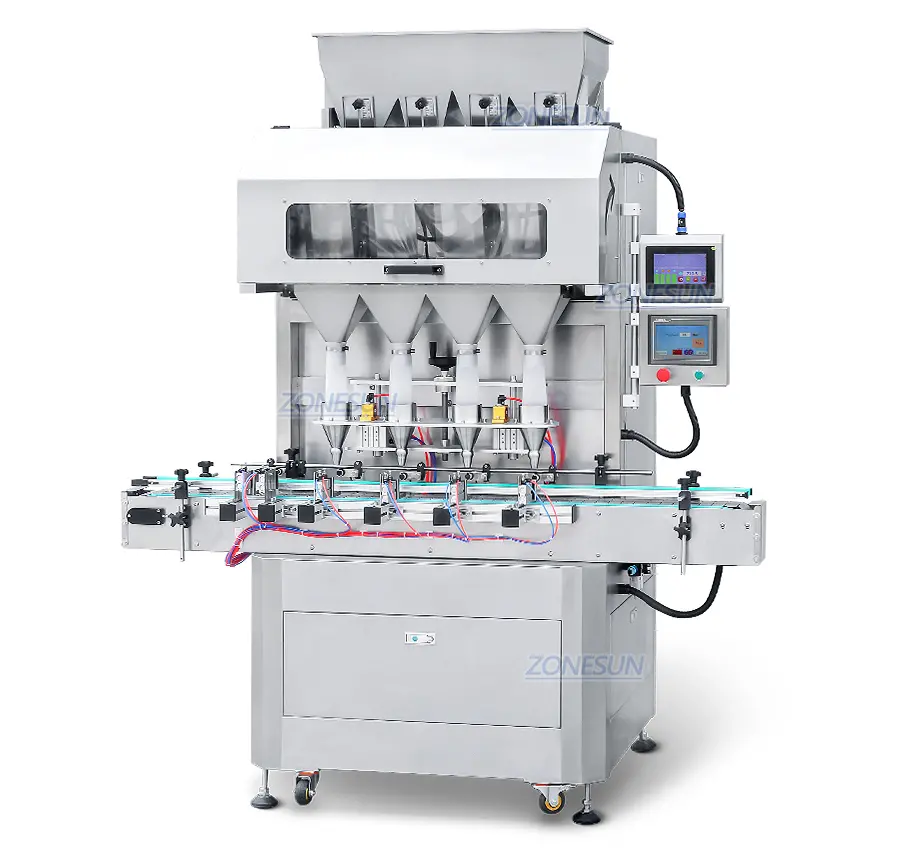

ZS-GW5 Automatic 4 Heads Spice Granular Filling Machine

This machine is designed for filling non-stick and dry granules, such as spice, coffee beans, pet food, cashew nuts, etc. It adopts the way of weighing and filling, which can fill materials quantitatively. The granular filling machine can work with capping and labeling machine to complete automation.

Share to:



Automatic Spice Filling Machine

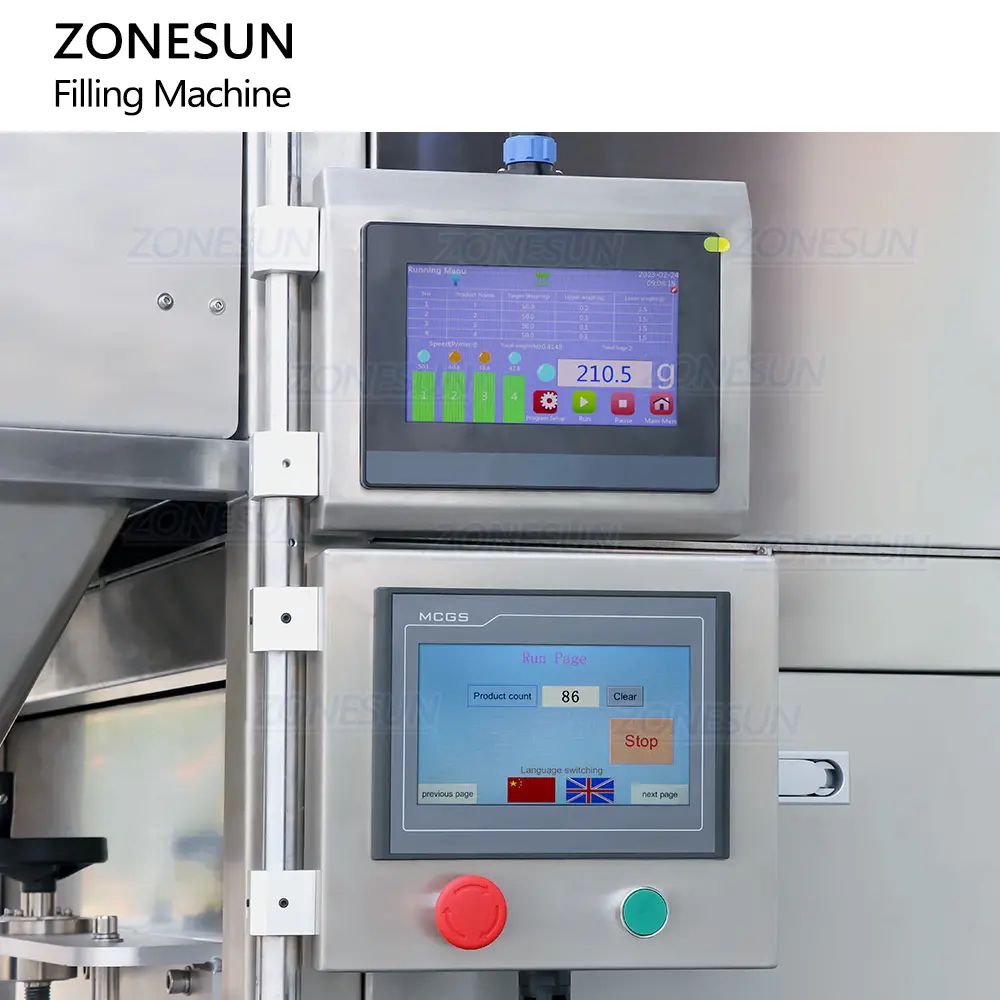

  • Designed with PLC operation panel, it is easier to set and adjust parameters. Language of panel can be customized.
  • Easy Operation: Set filling weight directly to achieve quantitative filling.
  • Filling range and head quantity of this spice filling machine can be customized.

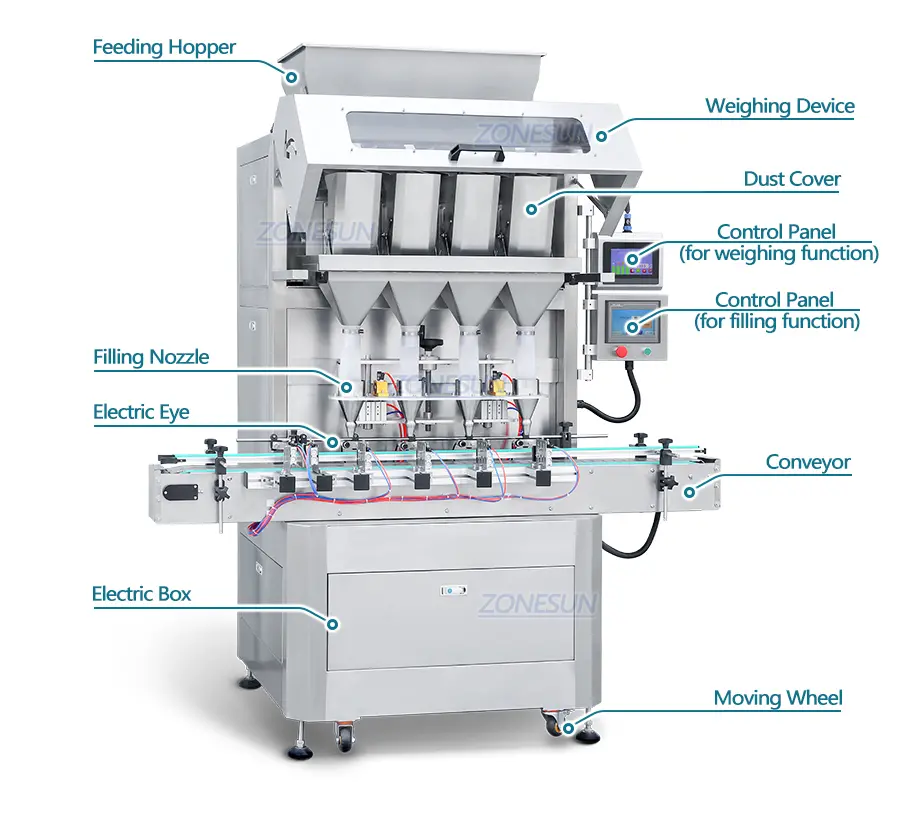

Diagram of Granular Filling Machine

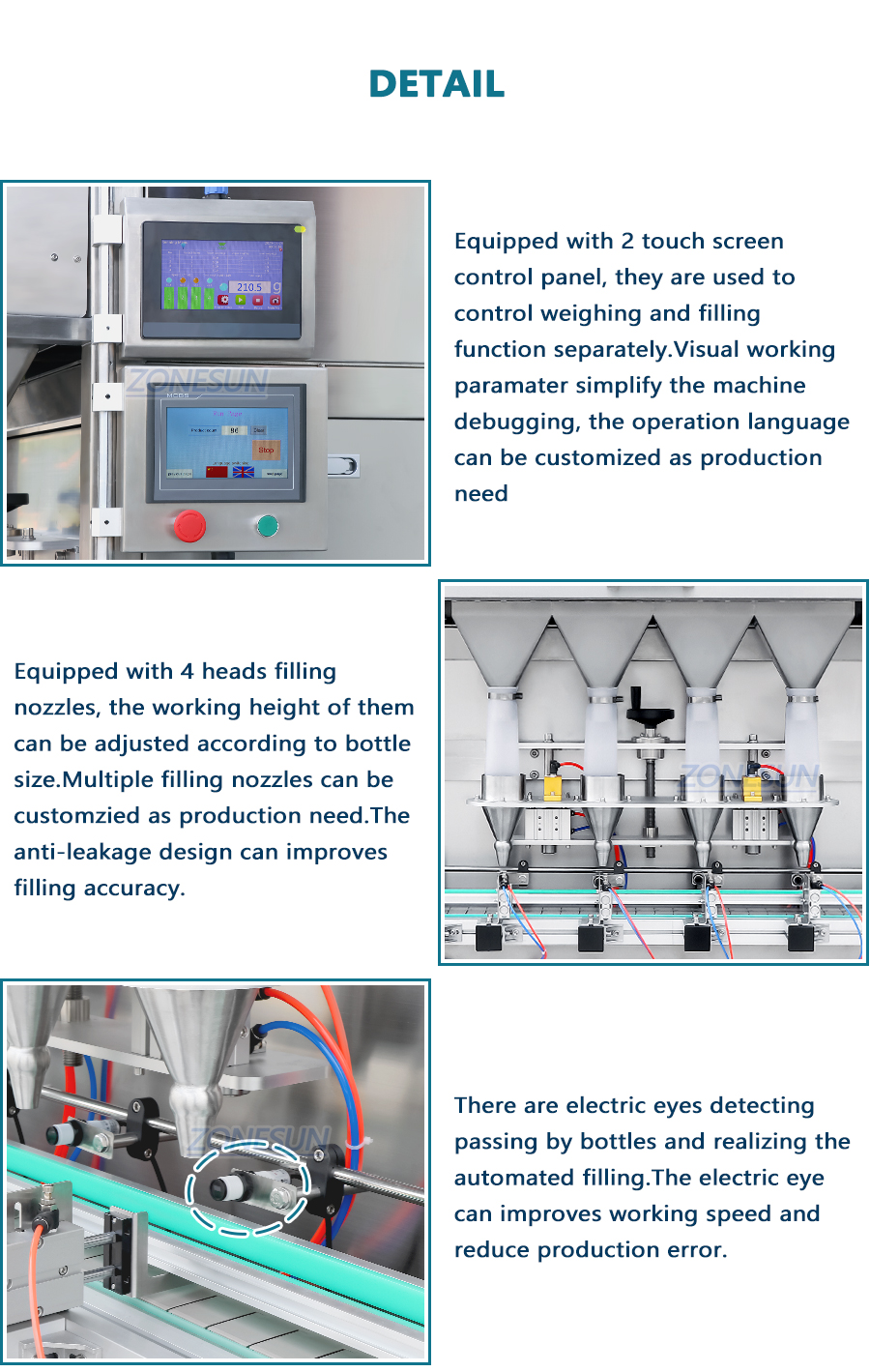

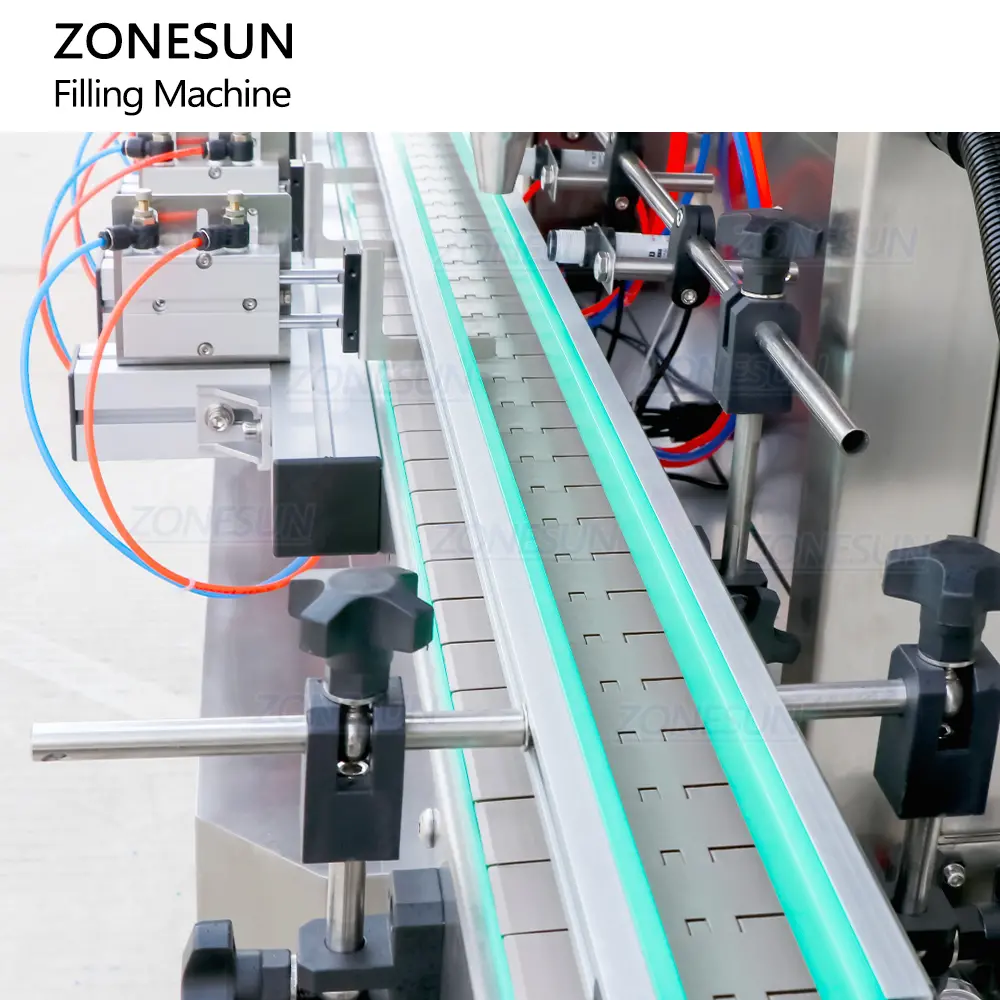

Machine Detail-1

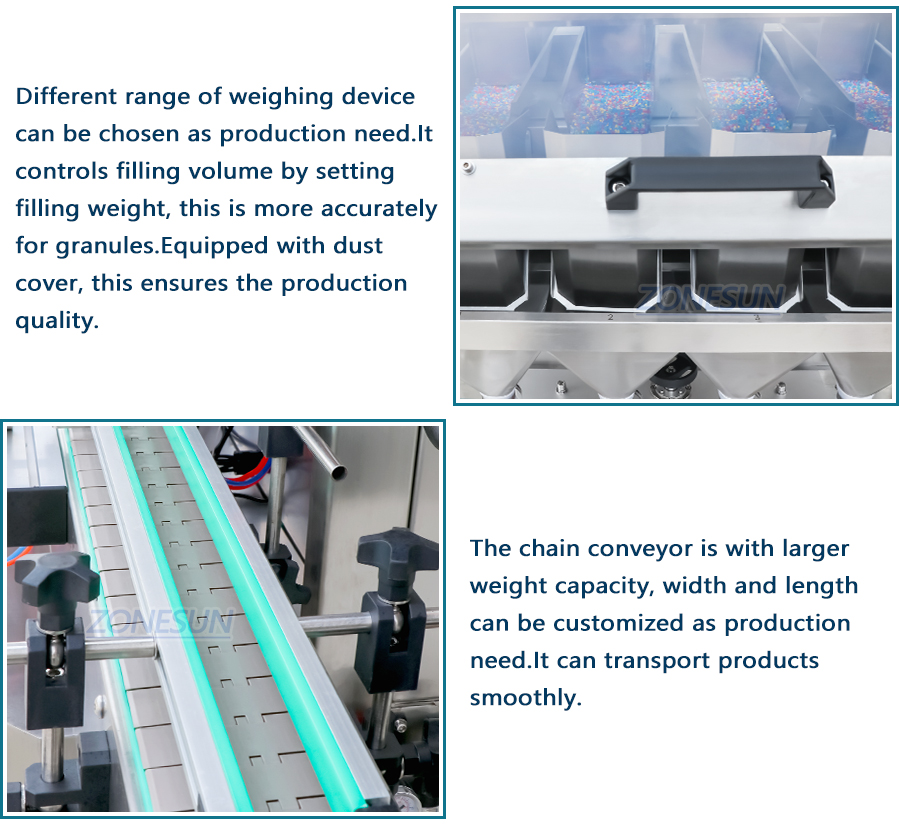

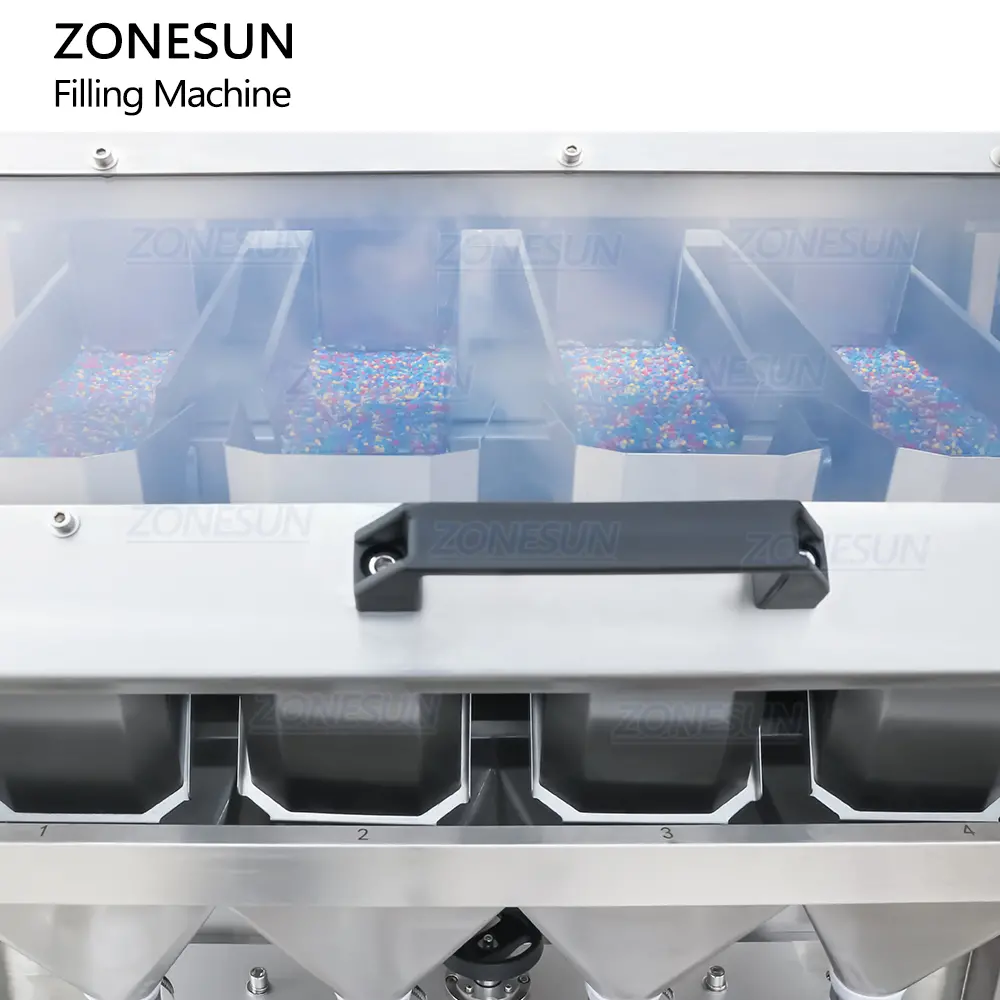

Machine Detail-2

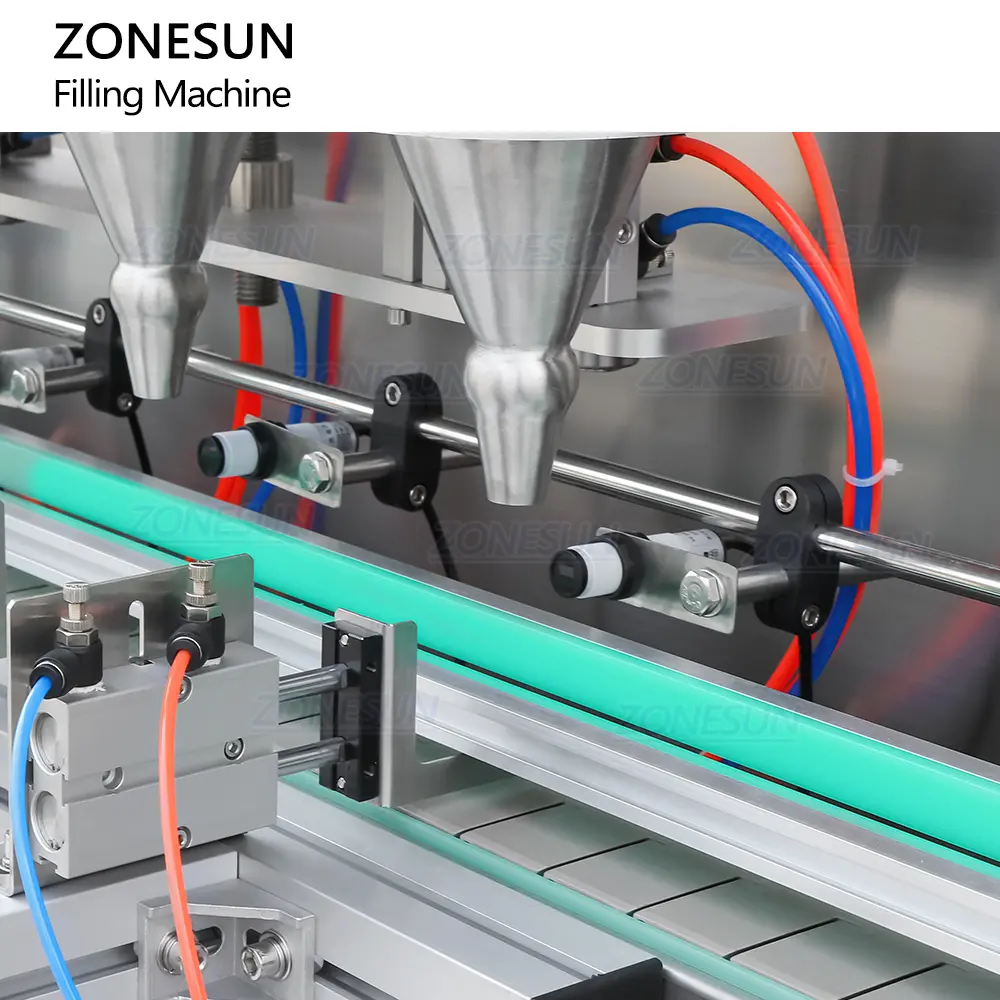

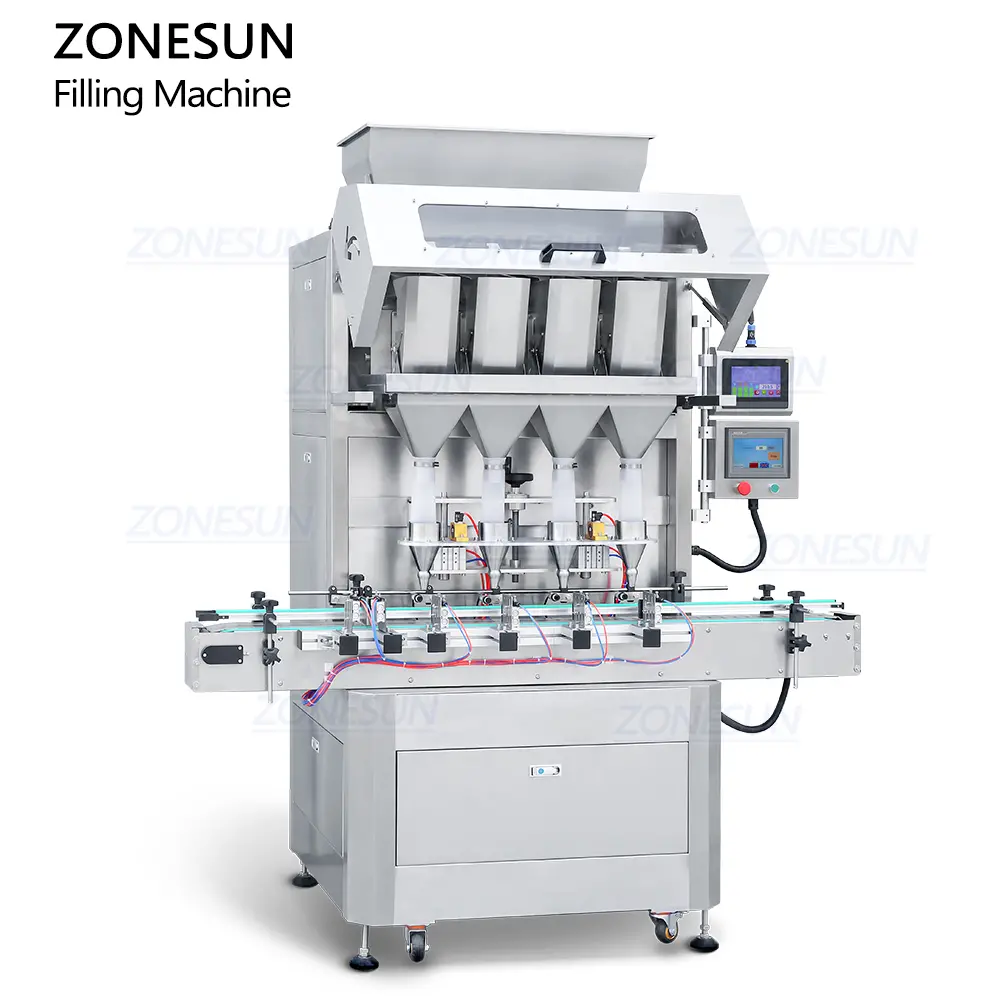

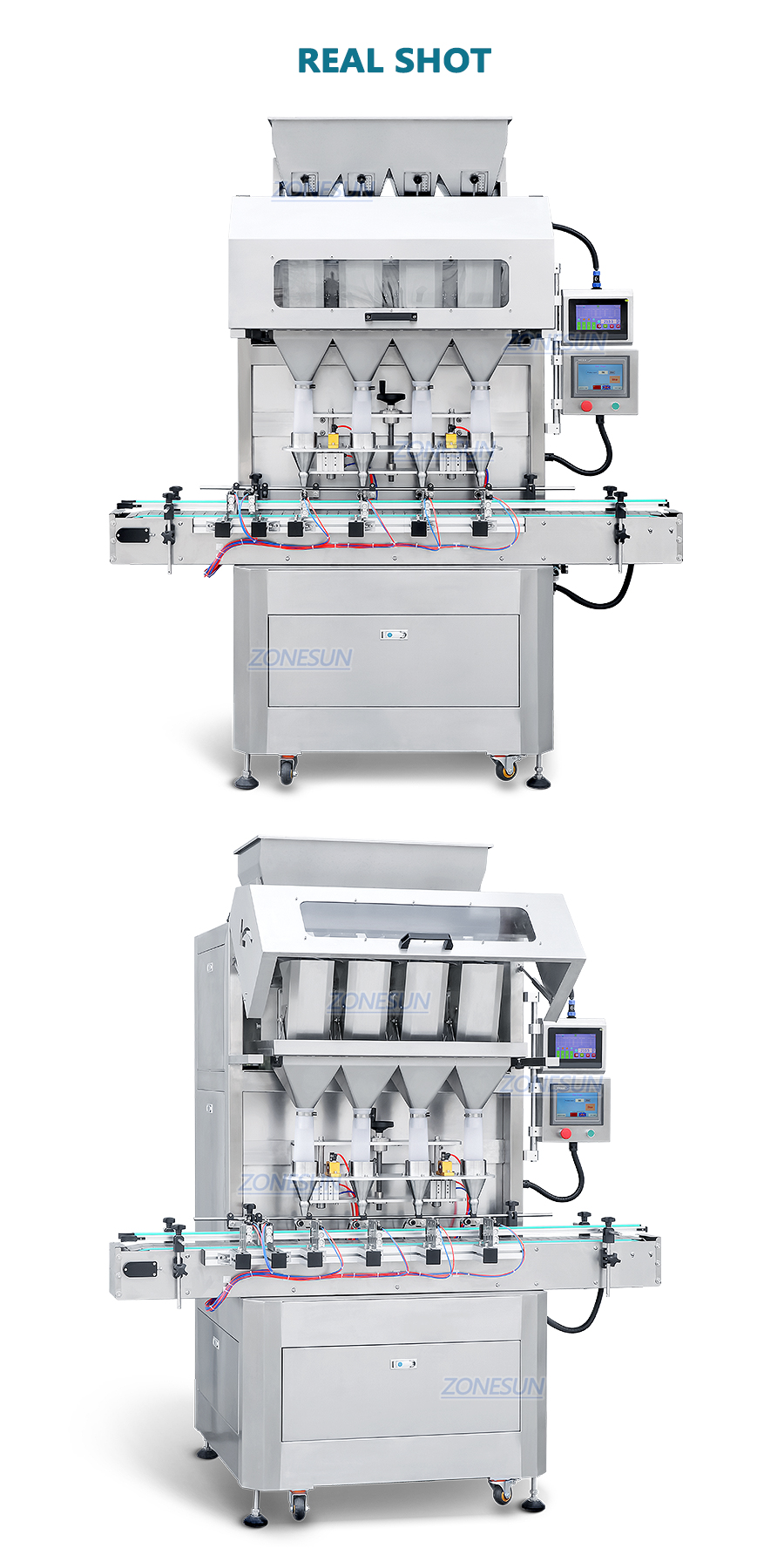

Real Shot

Machine Model ZS-GW5
Voltage 110/220V 50-60Hz
Power 3kW
Working Speed About 20-30 bottles/min (depending on bottle size and filling material)
Weighing Range 2-50g/10-1000g/10-2000g/10-3000g/100-10000g (can choose other weighing range)
Weighing Error ±1-2g(depending on filling range)
Air Pressure 0.4-0.6MPa
Machine Size About 1950mm*1100mm*2270mm
  • Applicable Granules: Non-sticky and dry granules.
  • Applicable Products: Spice, gummy, fertilizers, coffee beans, peanuts, cornflakes, etc.
  • Applicable Industries: Food, chemical, agricultural, medicine industries.



Application of automatic granule filling machine
