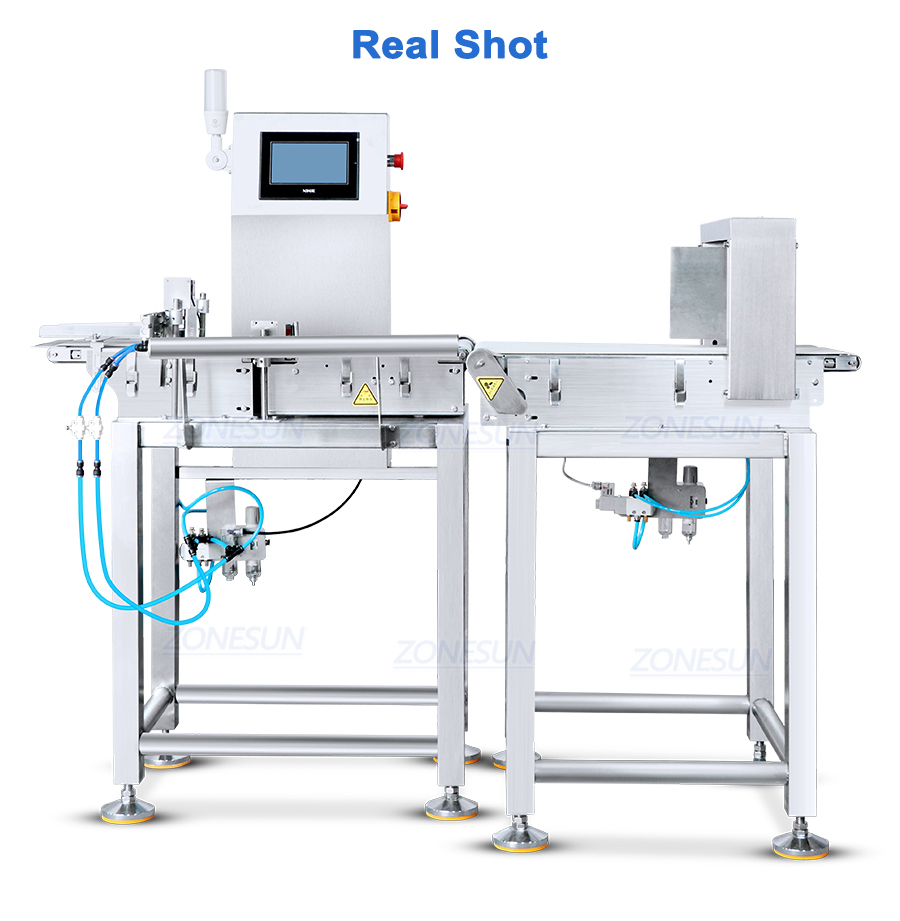

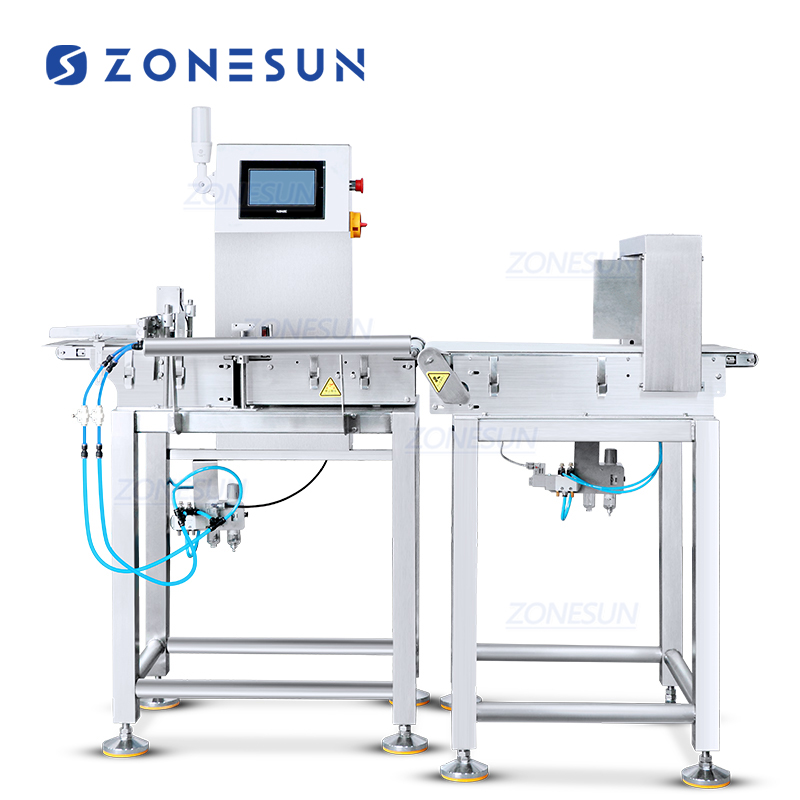

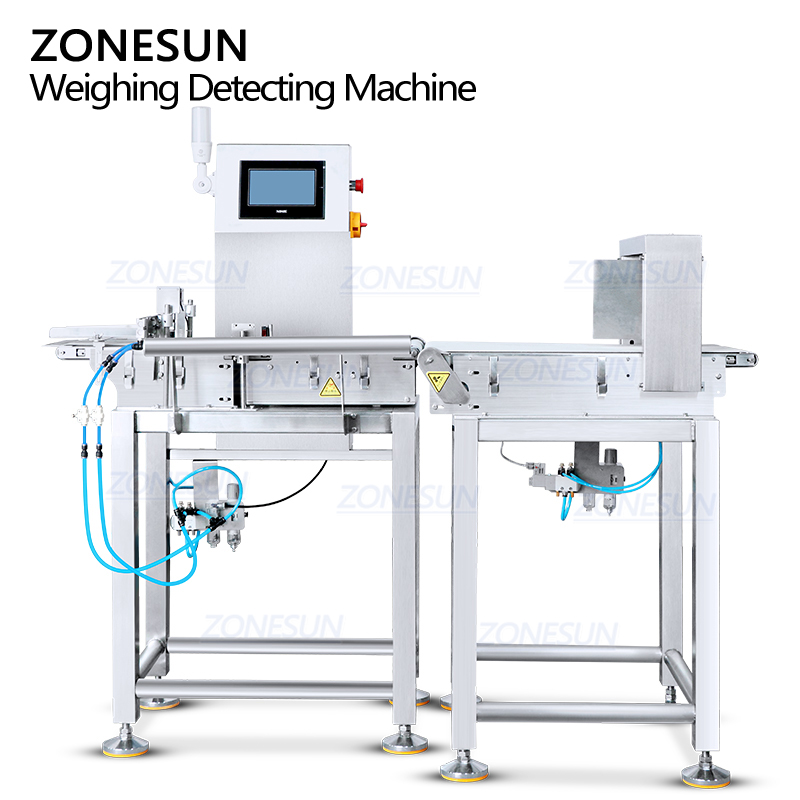

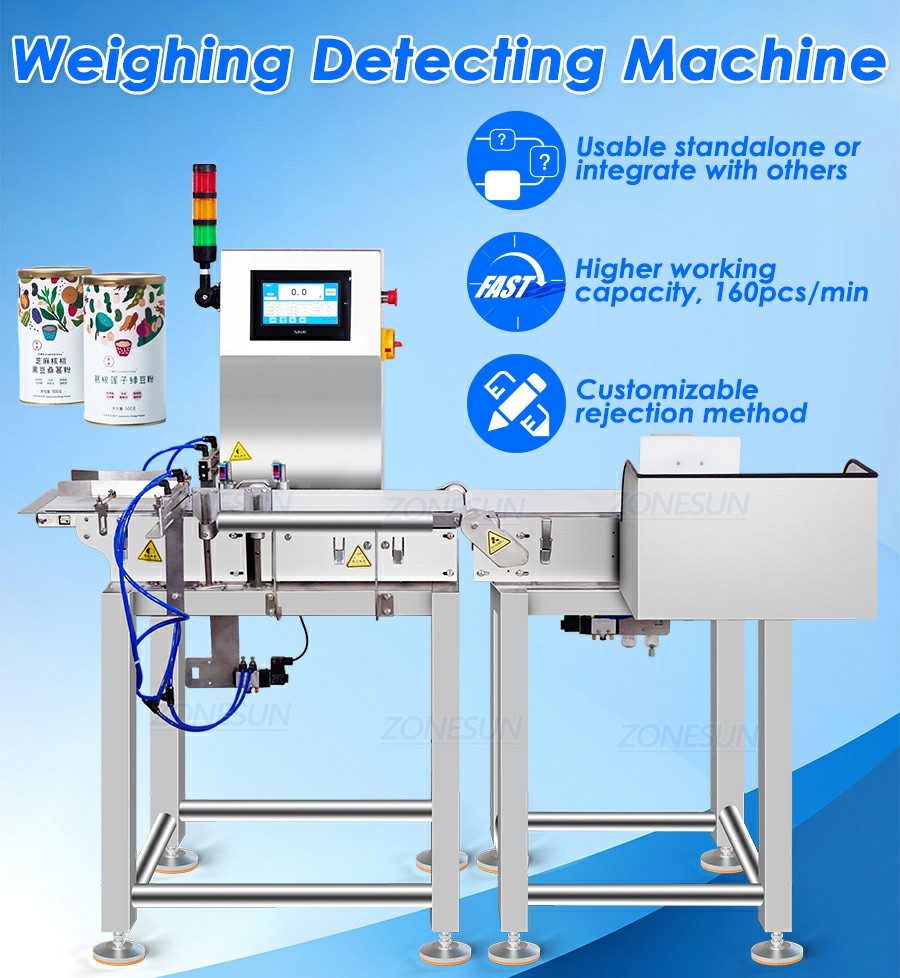

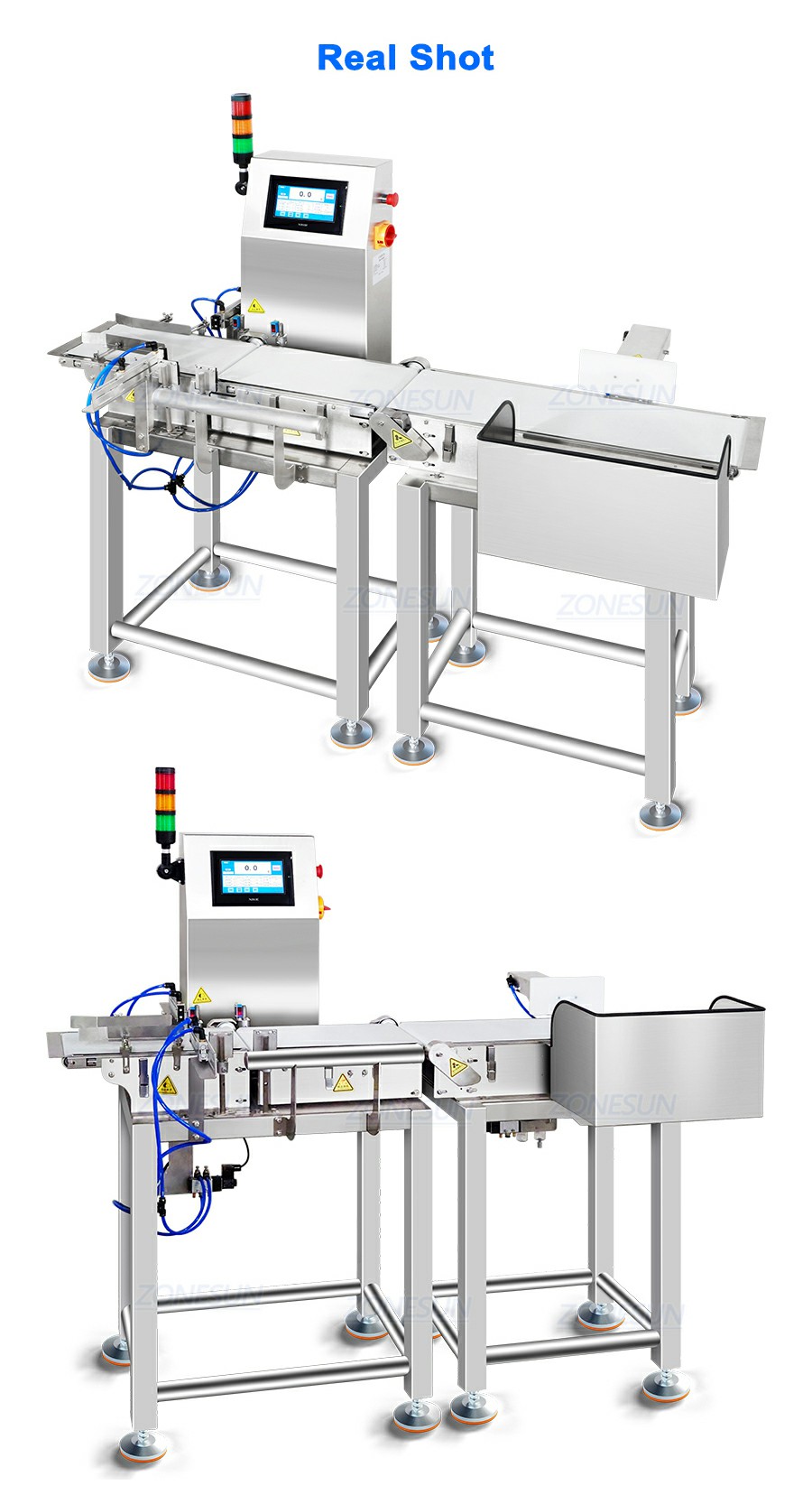

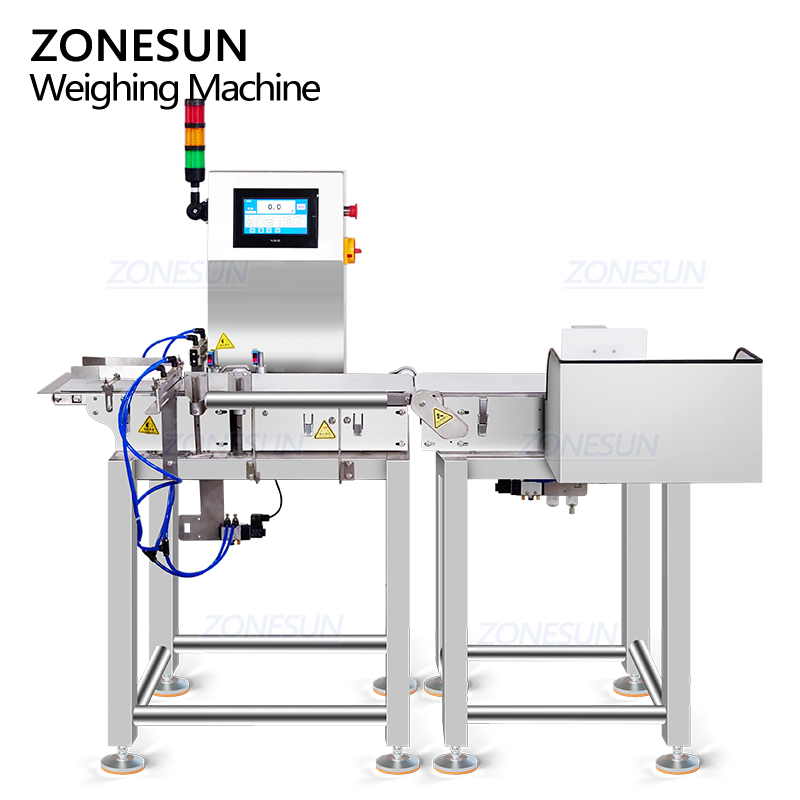

ZS-MD210 Automatic Inline Checkweigher Machine For Food Industry

This inline checkweigher is usually used at the end of a packaging line, which can make sure the weigh of the commodity is within the prescribed range. It can reject the unqualified items whose weight is out of tolerance. The weight checking machine can be widely used for bottles, bags, packages and cartons.

Video

Share to:

The machine can weigh commodities and reject unqualified items, helping to improve production quality.
The system supports multiple languages, which can be customized as your need.

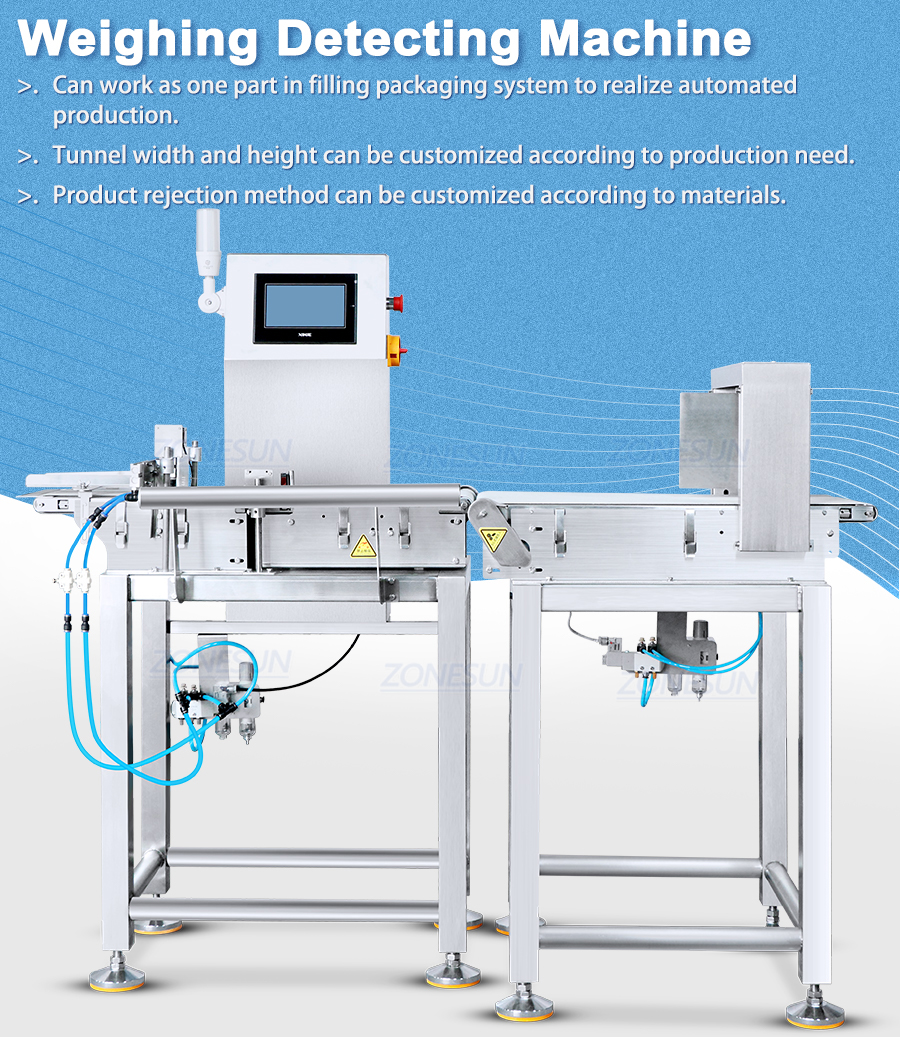

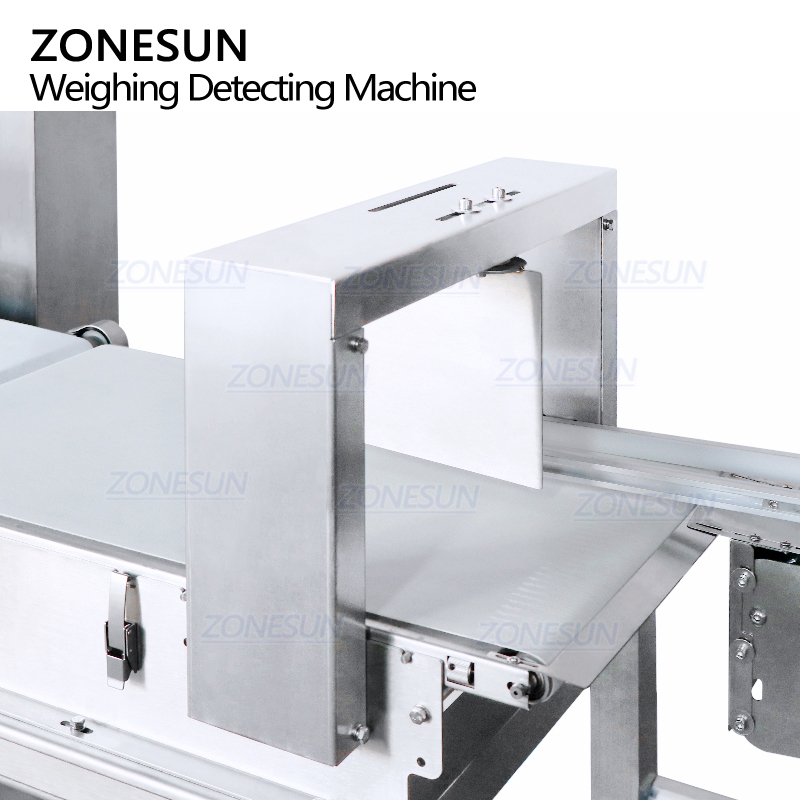

This inline checkweigher can work with metal detector machine and be easily integrated into your existing production line.

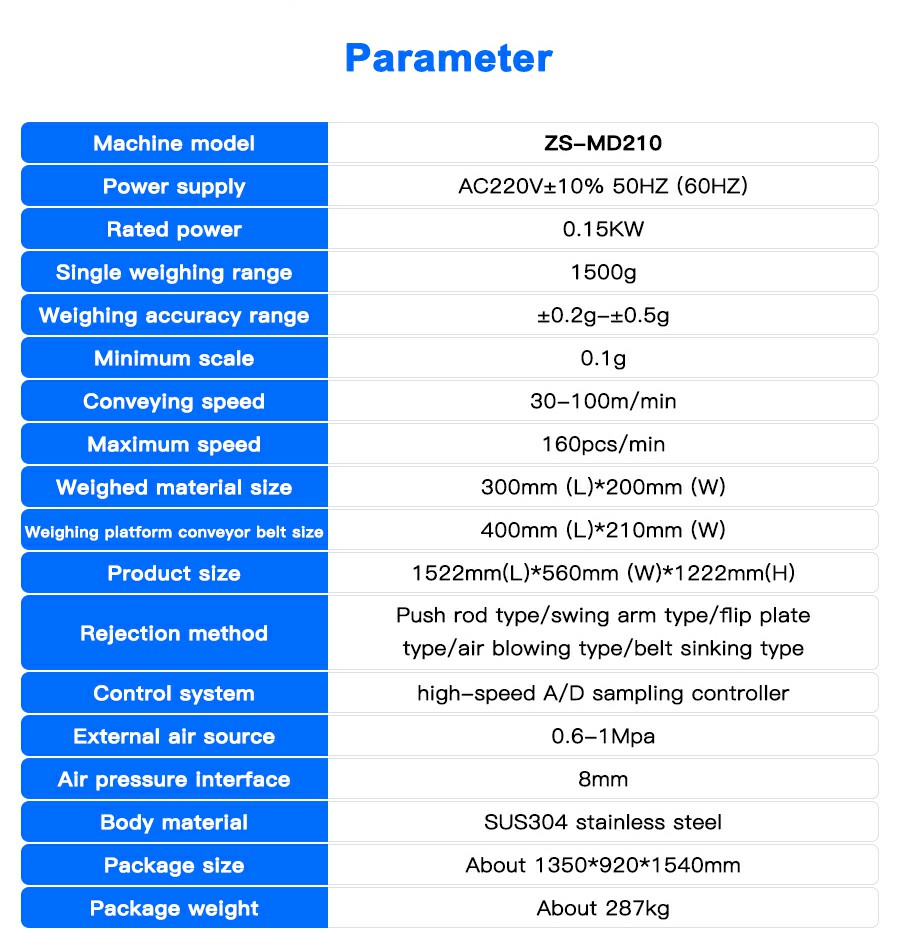

Machine Model	ZS-MD210
Power Supply	AC220V±10% 50HZ (60HZ)
Rated Power	150W
Single Weighing Range	1500g
Weighing Accuracy Range	±0.2g-±0.5g
Minimum Scale	0.1g
Conveying Speed	30-100m/min
Maximum Speed	160pcs/min
Weighed Material Size	300mm (L)*200mm (W)
Weighing Platform Conveyor Belt Size	400mm (L)*210mm (W)

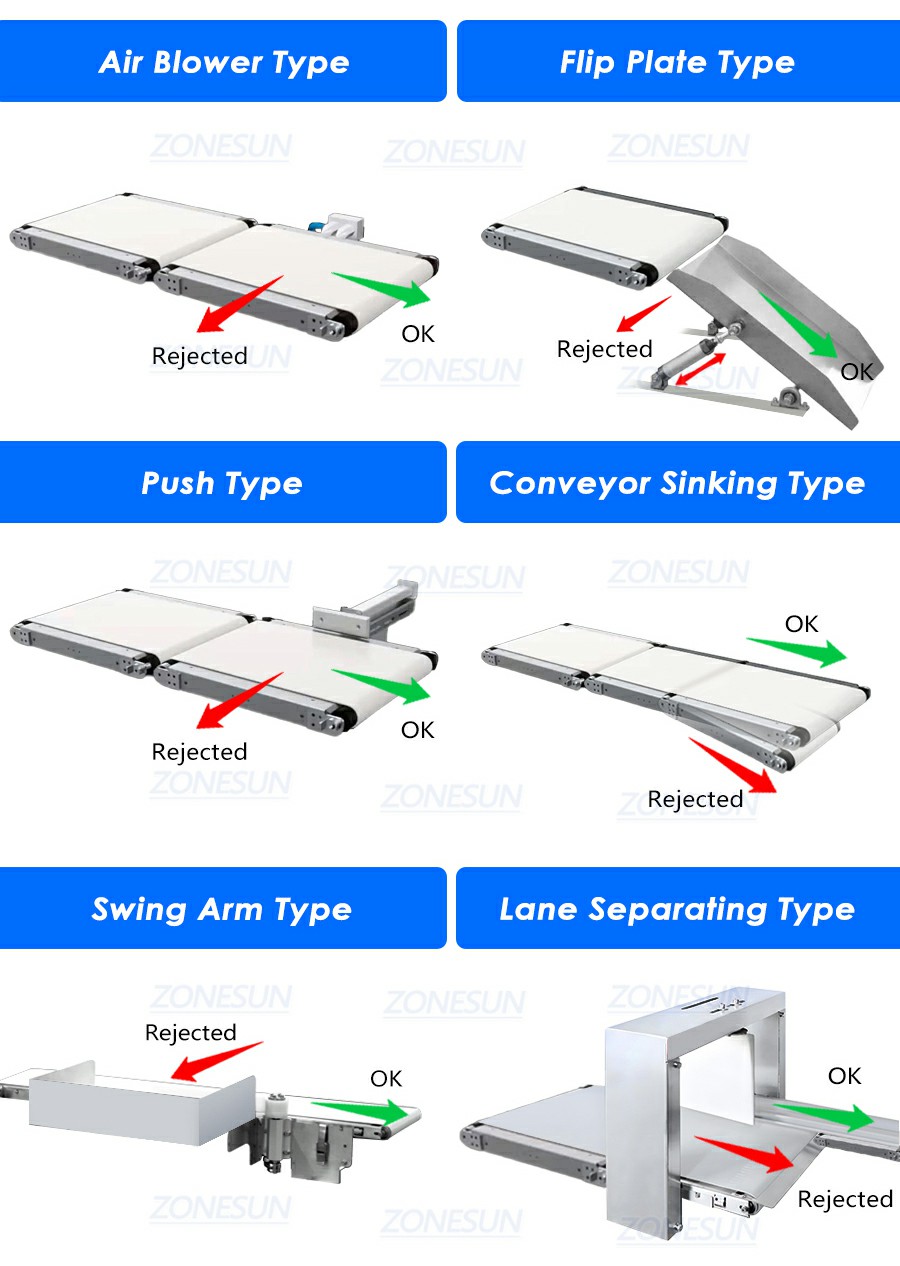

Rejection Method	Push rod type/lever/flip plate/blowing type/belt sinking
Control System	High-speed A/D sampling controller
External Air Source	0.6-1Mpa
Air Pressure Interface	8mm
Machine Material	SUS304 Stainless Steel

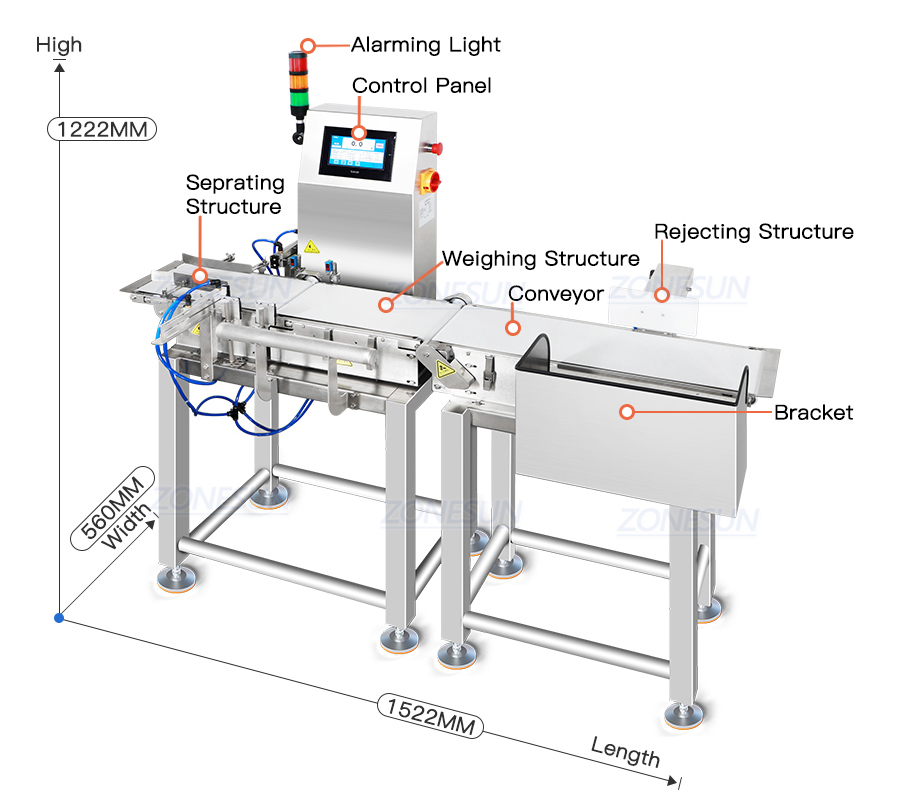

Machine Size	1522mm(L)560mm (W)1222mm(H)

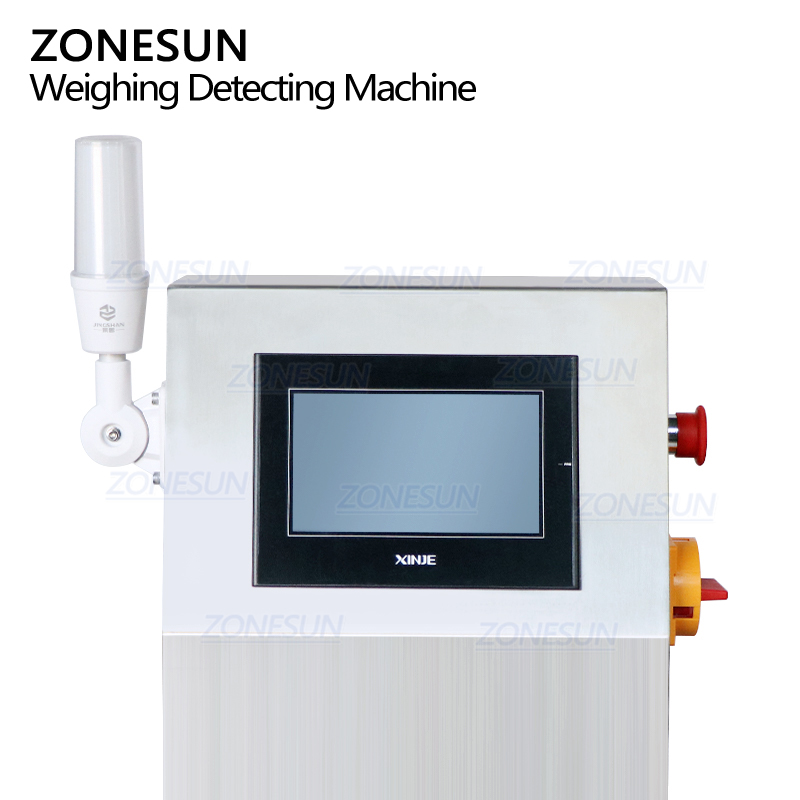

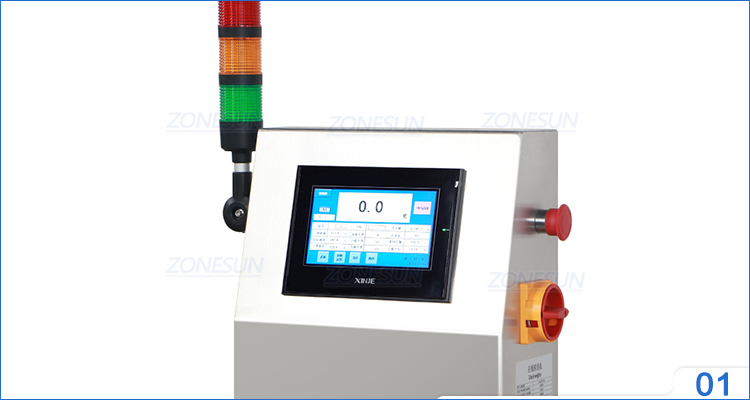

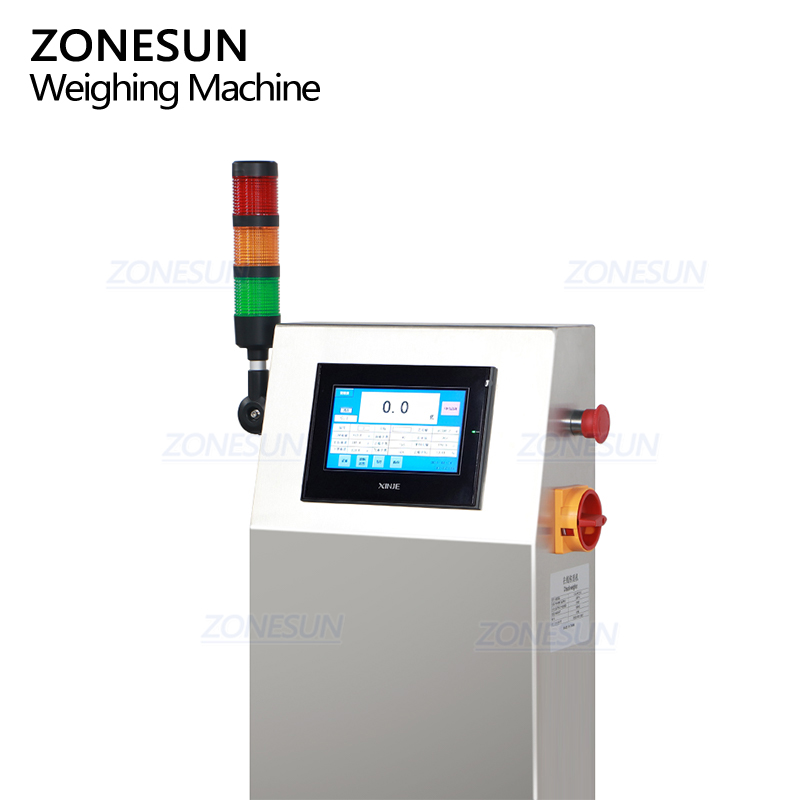

Touchscreen Interface

Intuitive interface makes it convenient to adjust parameters. The system can store setup for recall.

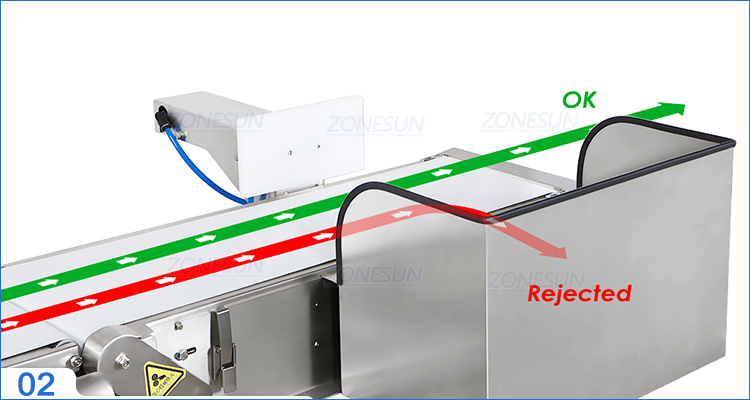

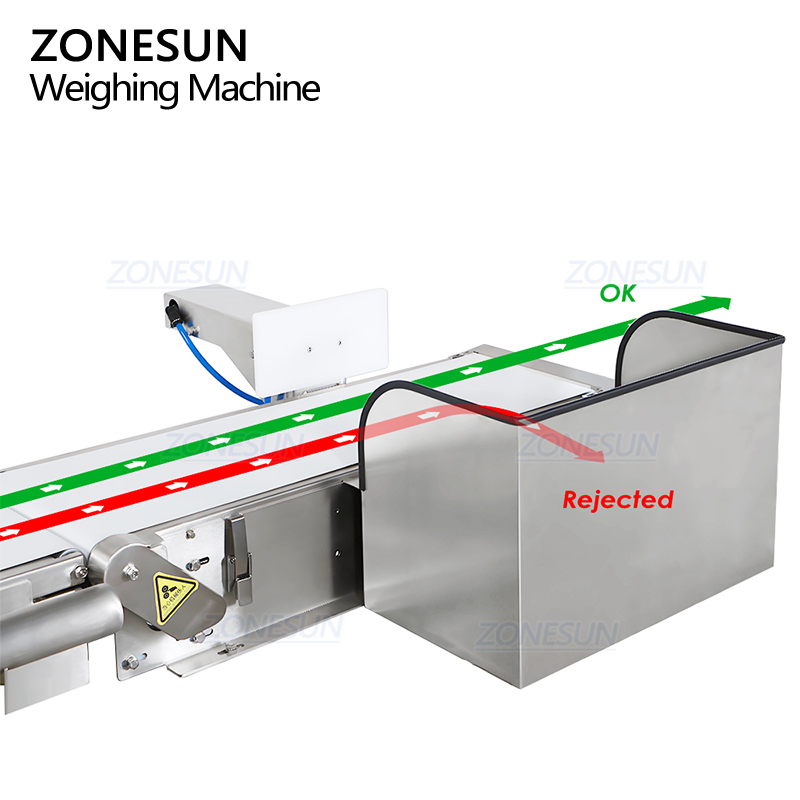

Rejecting System

Intended for removing unqualified items, the rejector can be customized to suit for different products.

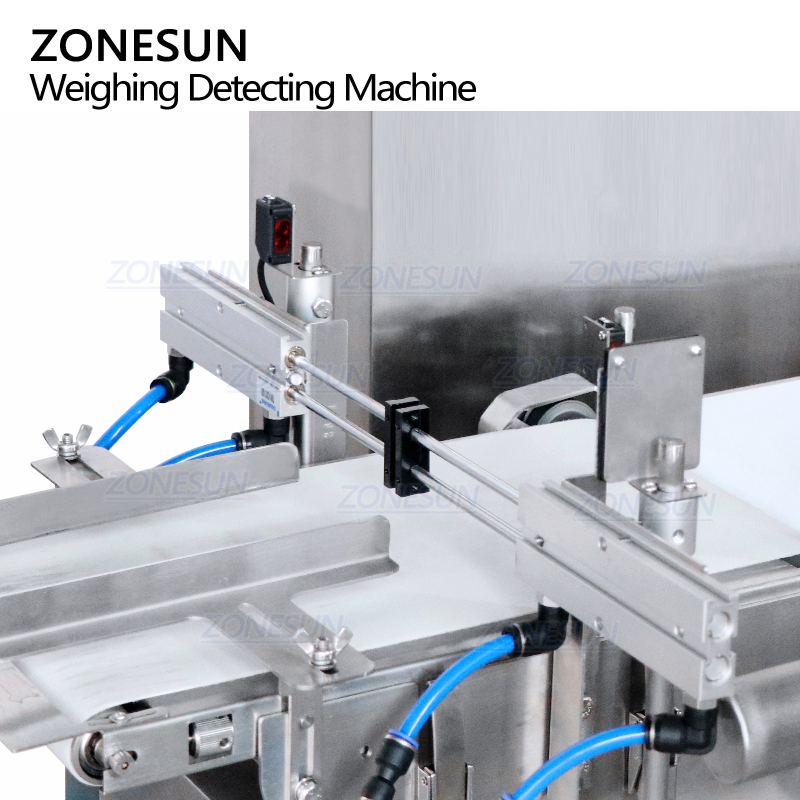

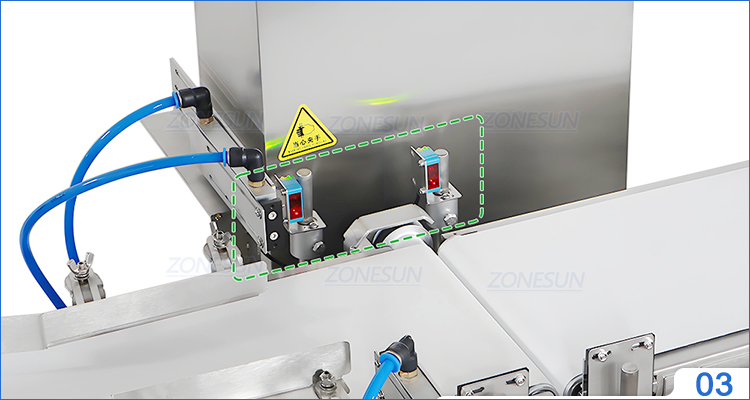

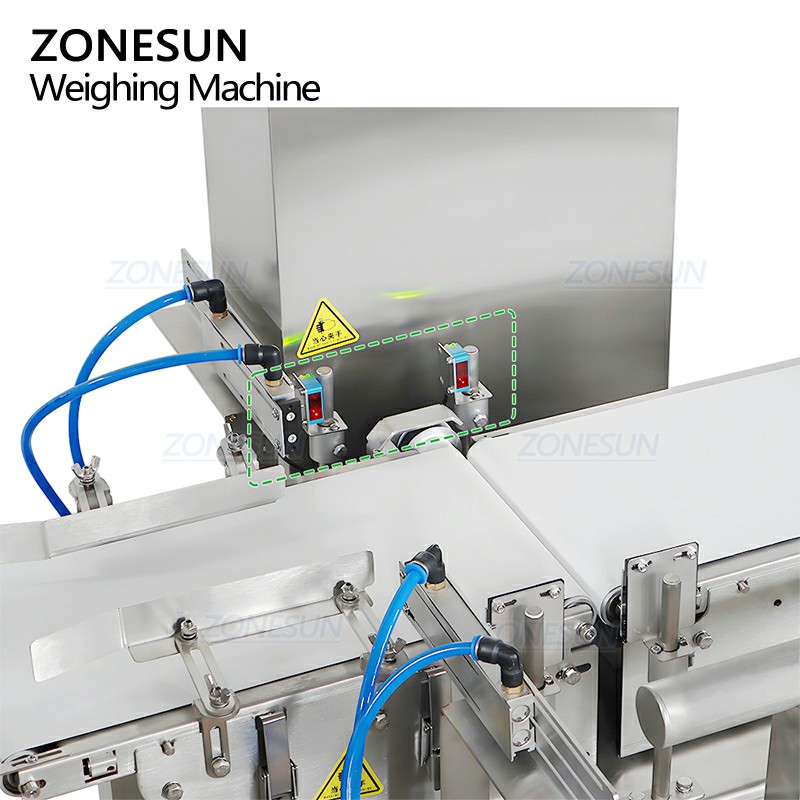

Product Sensor

Designed for sensing products, it can control the machine to realize automated work.

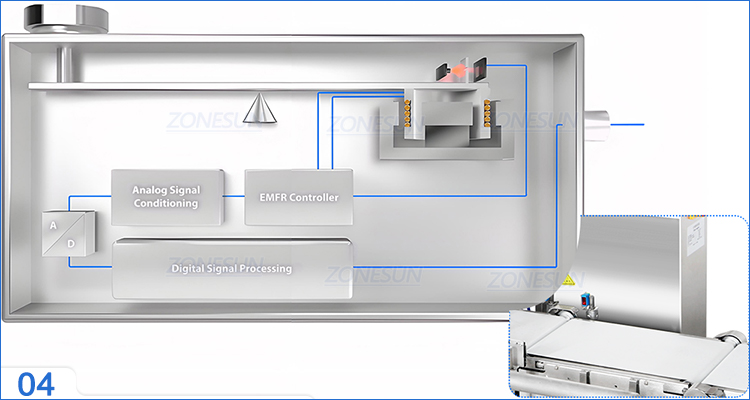

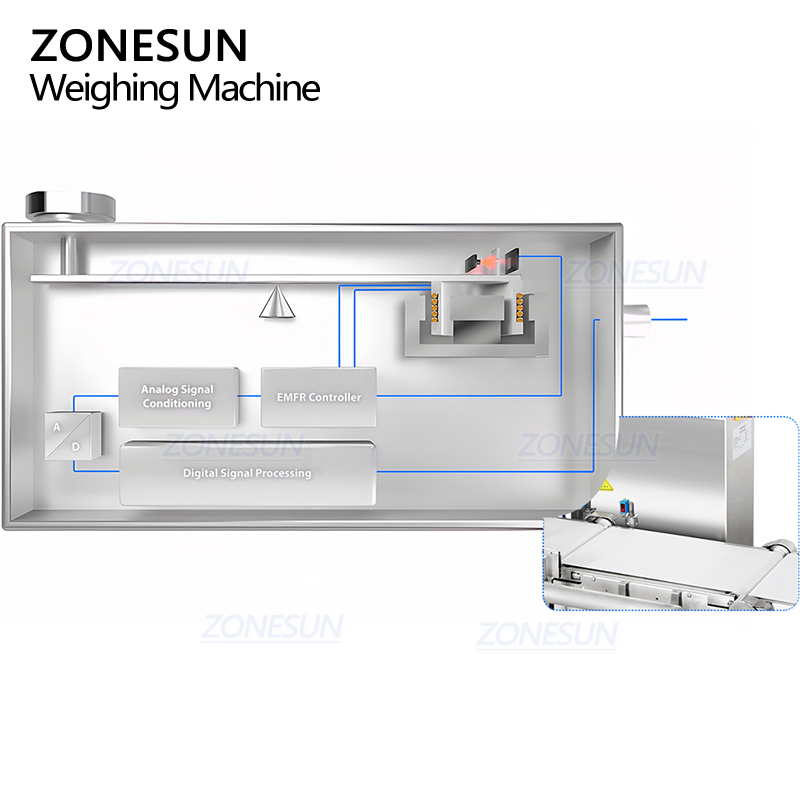

Weighing System

Dynamic weighing, this machine is suitable for products whose weights are below 1500g.

Applicable Products: Bottles, bags, packages, cartons, cases, etc.
Applicable Industries: Food, beverage, cosmetic, daily chemical, medicine industries.
