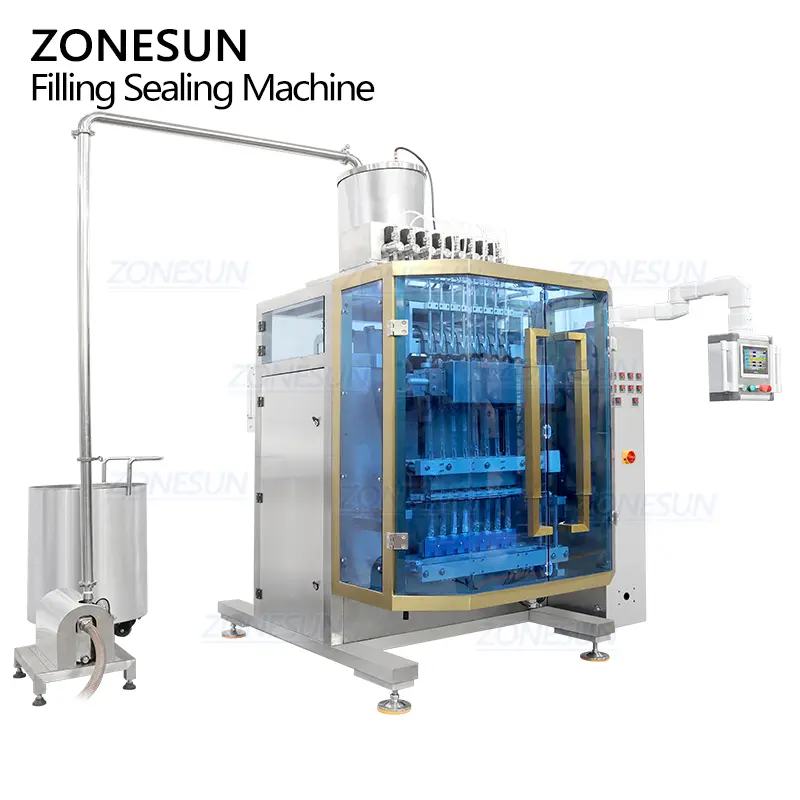

ZS-FS500L8 Automatic Multi Lane Liquid Stick Packing Machine for Vitamin Drink

This multi lane stick packing machine is applicable for packing liquid products, such as vitamin drink, mouthwash, supplement liquid, etc. Driven by servo motor, it can run quickly and steadily, which packing speed is 200-320pcs/min. The machine can be customized according to your products.

Share to:

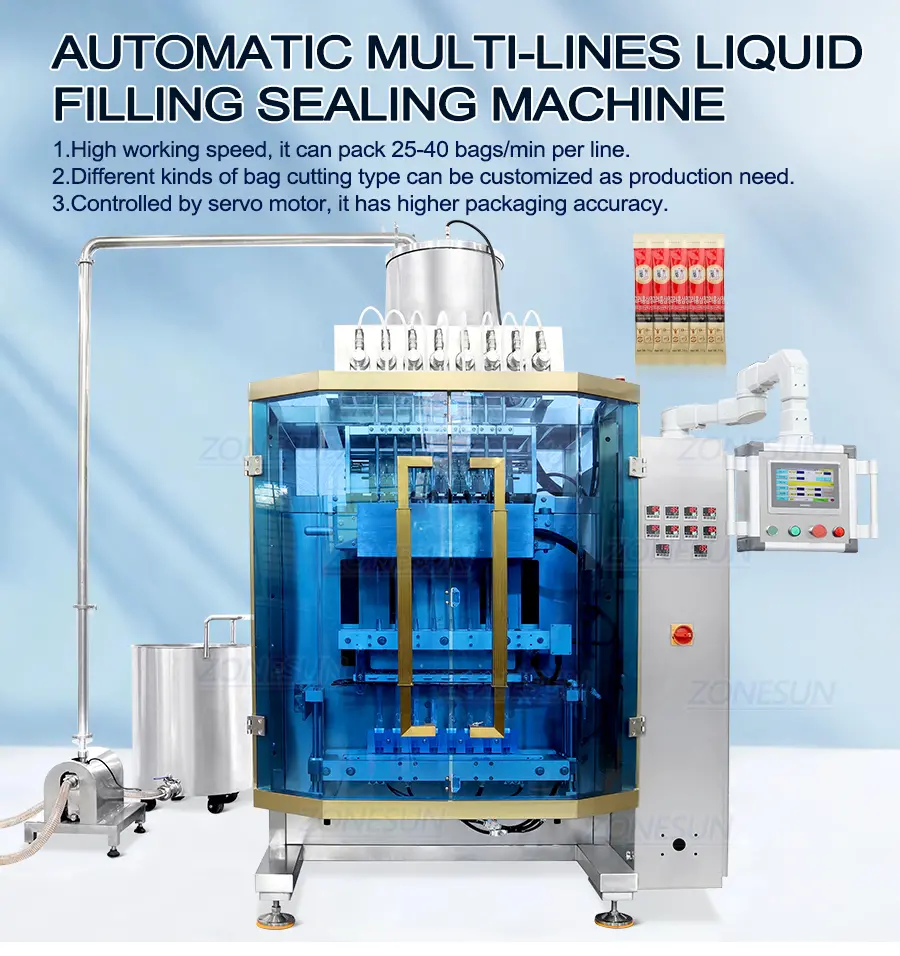

Automatic Multi Lane Liquid Stick Packing Machine

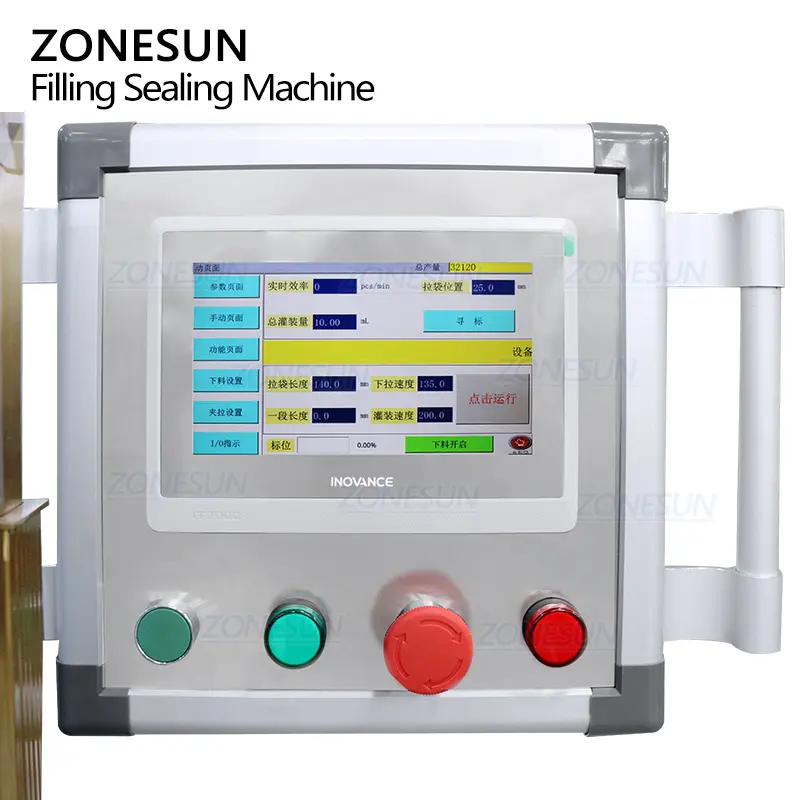

  • Designed with PLC panel, it is easy to set and adjust working data. The language of panel can be customized as your need.
  • Sealing types like back-side, 4-side or 3-side sealing can be customized as needed.
  • Sealing temperature and sealing length can be set on panel as production need.

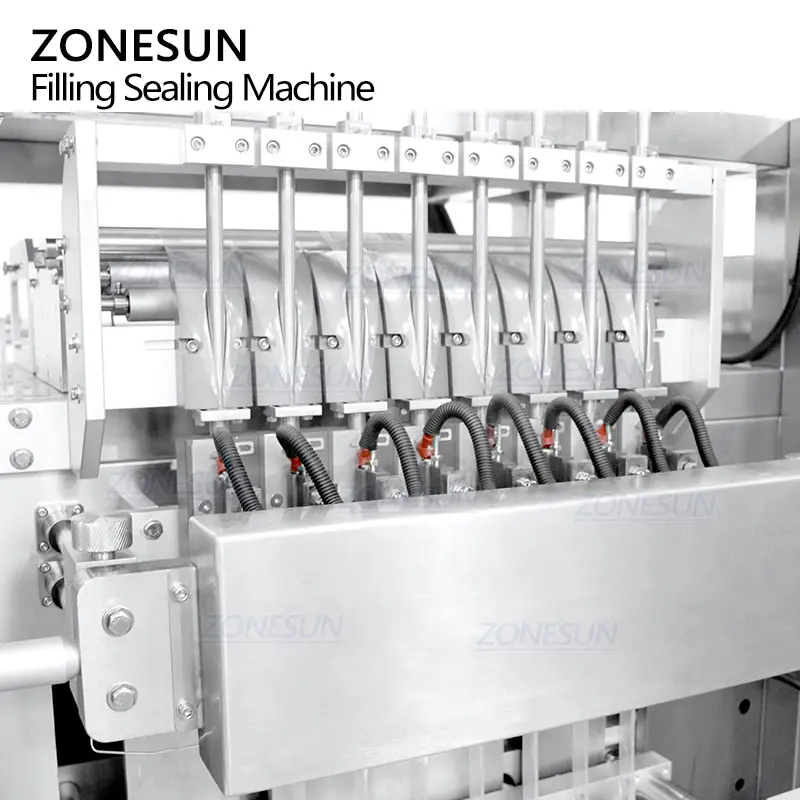

  • The quantity of filling lanes can be customized as production need.
  • This machine is equipped with rotor pump feeding machine, which can supply materials in time, saving labor cost.
  • The multi lane stick packing machine can also be equipped with date coder, which can print production date on stick packs automatically. Please contact us if you need it.

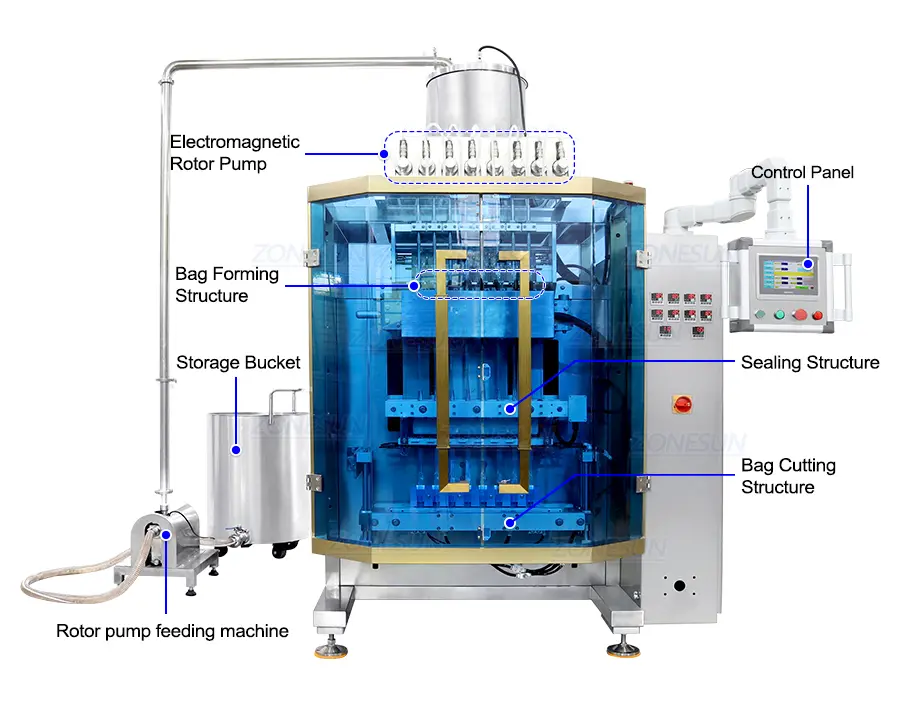

Diagram of liquid stick pack machine

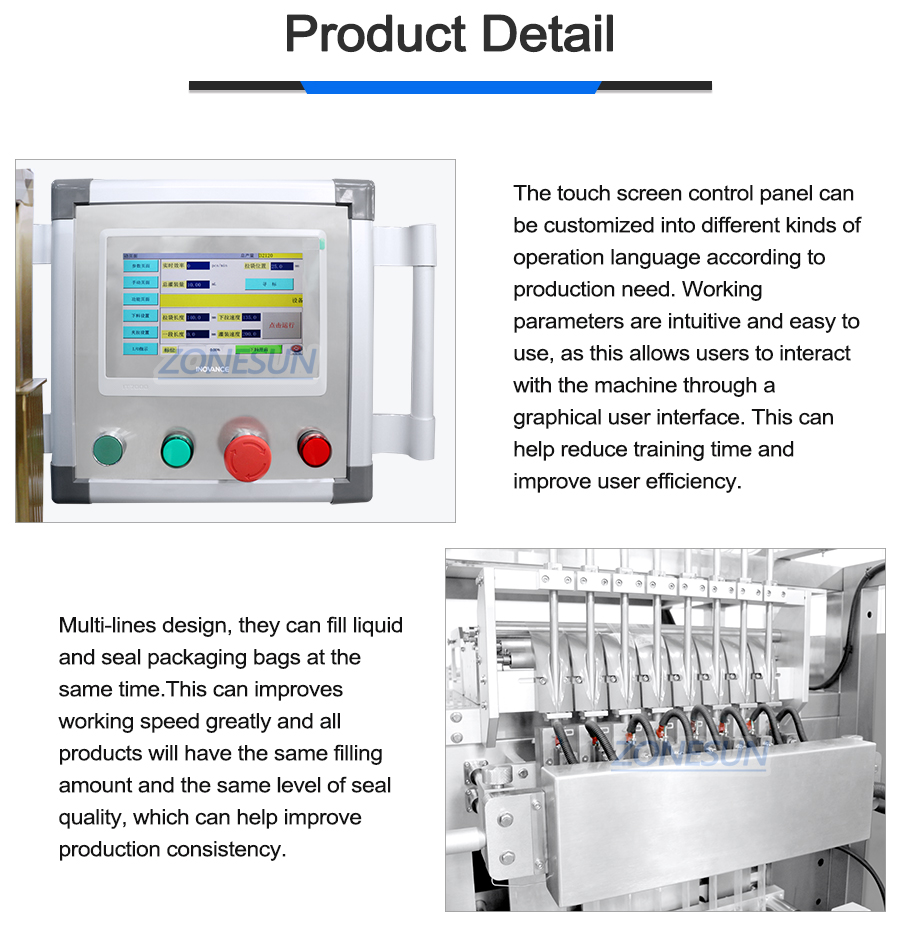

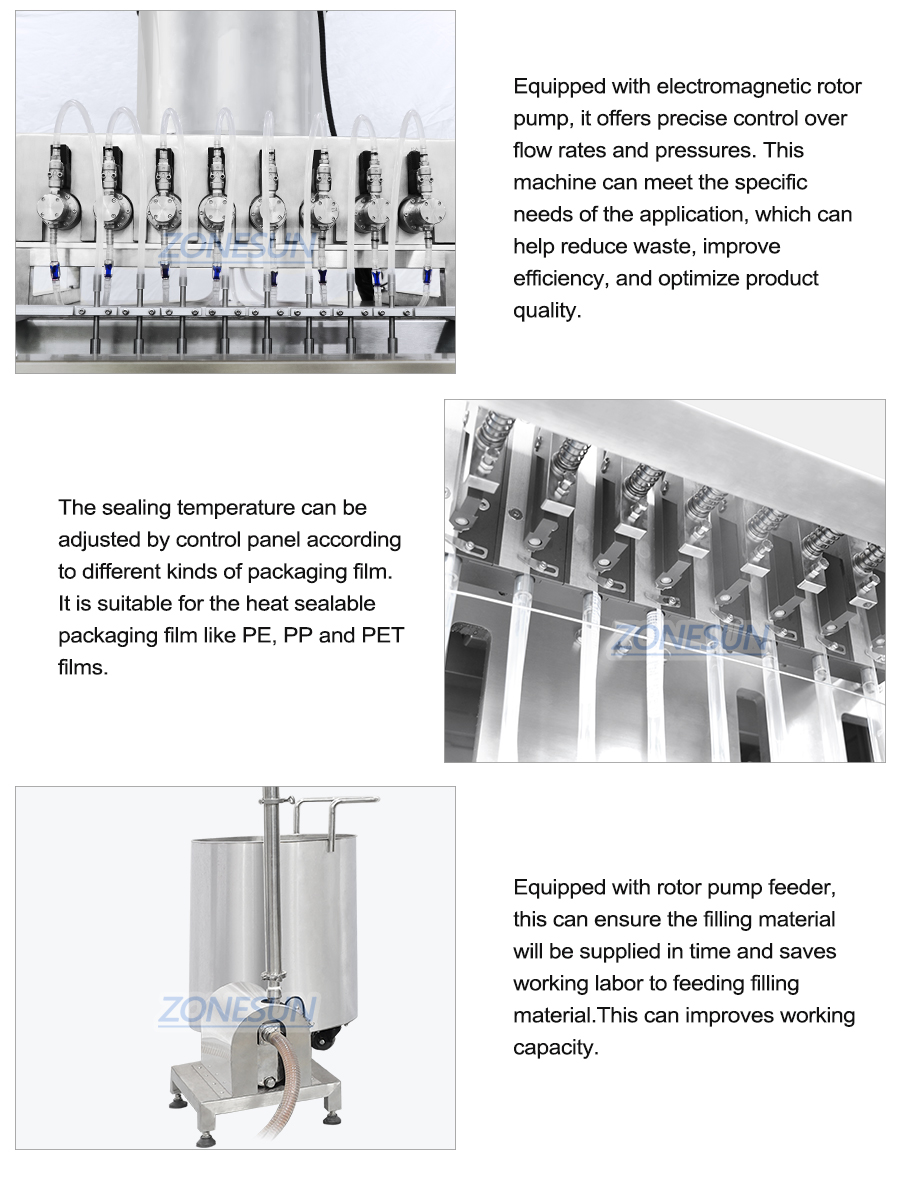

Machine Detail-1
Machine Detail-2

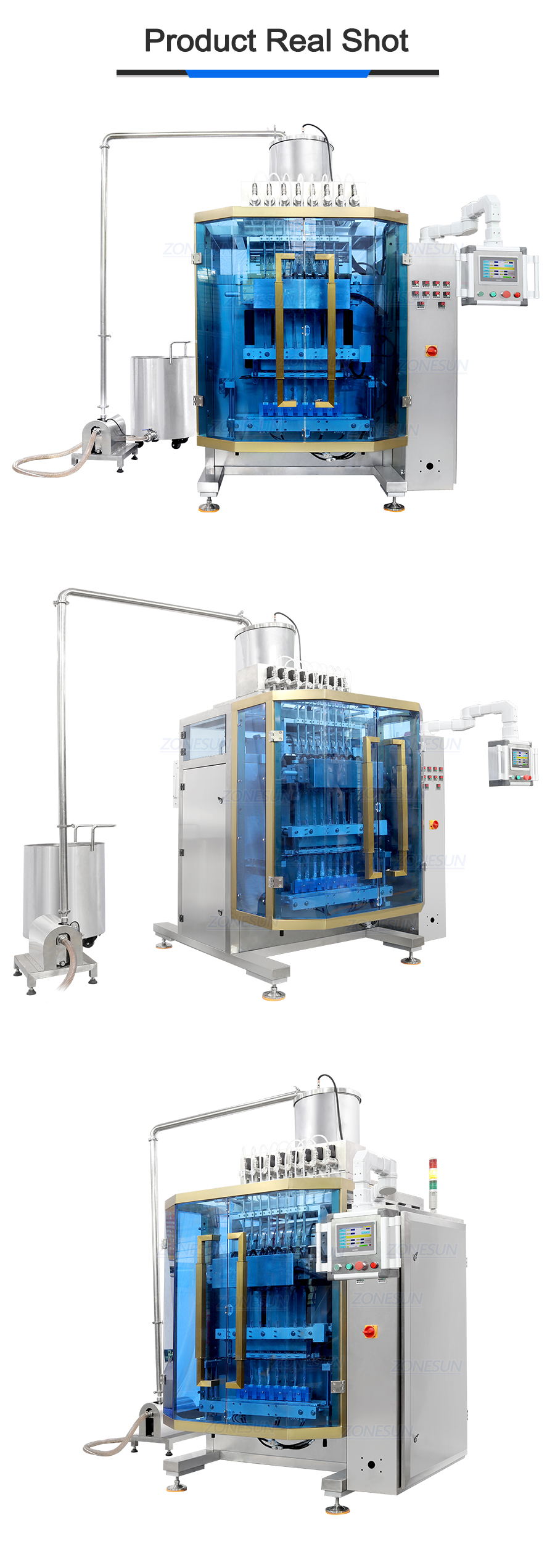

Real Shot

Machine Model ZS-FS500L8
Voltage 380V 50-60HZ 9.5KW
Filling Range 1-30ml(Can be customized)

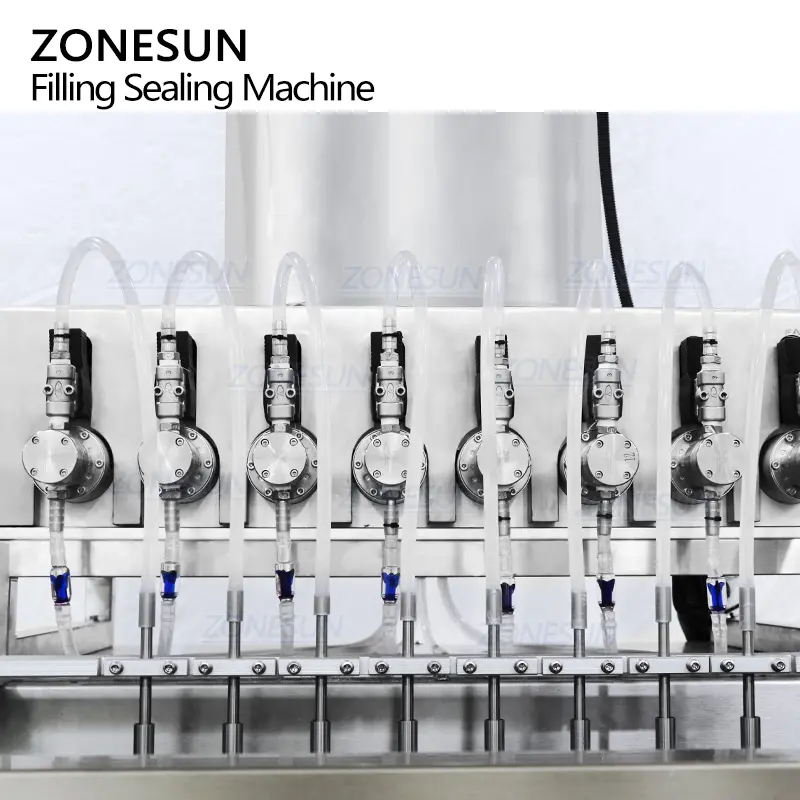

Filling Pump Electromagnetic Rotor Pump
Sealing Type Back side sealing(Can be customized)
Control System PLC control, servo motor
Packaging Speed 25-40bags/min*8
Stick Pack Size 34-150mm(L)*15-36mm(W)
Bag Material Heat-seal bags
Packaging Size About 2100*1700*1800mm
Packaging Weight About 700kg
  • Applicable Products: Vitamin drink, supplement liquid, mouthwash, electrolyte drinks, etc.
  • Applicable Industries: Cosmetic, daily chemical, chemical, medicine, drink industries.

Application
