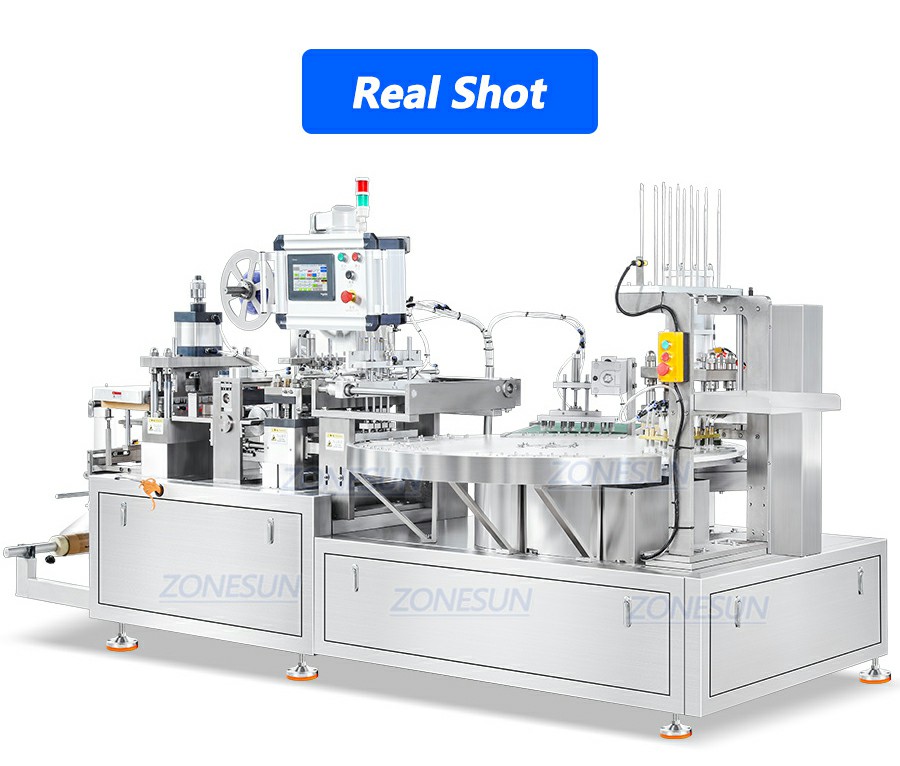

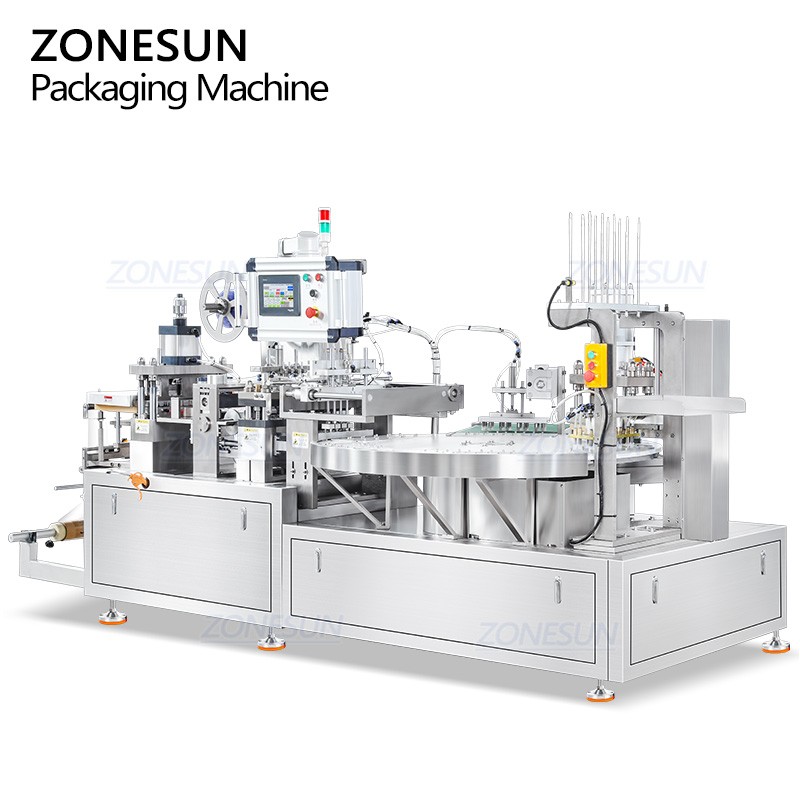

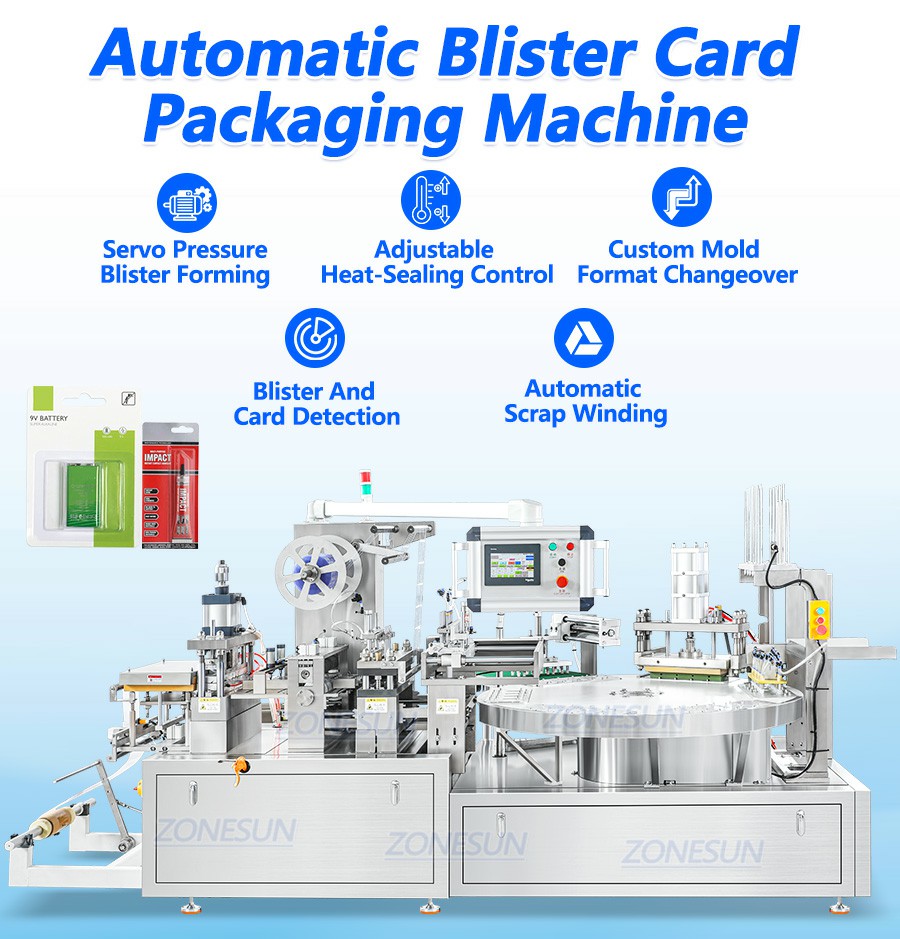

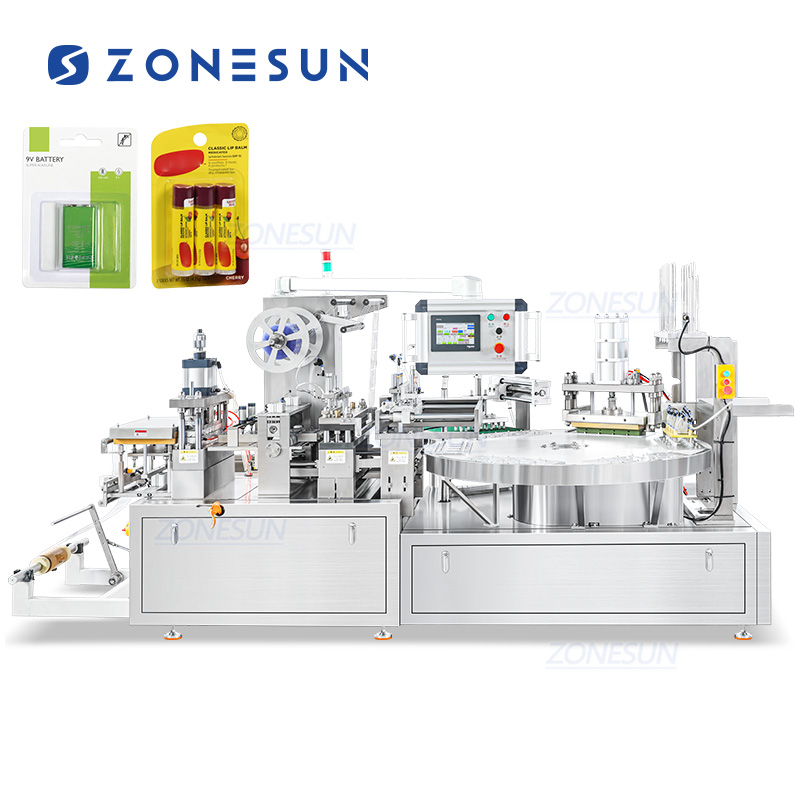

ZS-DDP350 Bleach Pen Lip Balm Blister Card Packing Machine
🎄 Can realize blister forming and paperboard card sealing.
🎄 Machine output is 40-100pcs/min.
🎄 Servo-driven blister forming system, stable and accurate.
🎄 With automatic backing card loading function.
🎄 Heating temperature is adjustable as production need.
🎄 Machine is customized according to product size and shape.
Video
Share to:
Description of the Blister Card Packing Machine:
The ZS-DDP350 model is a blister packing system that has functions of forming blister cavities, loading backing cards, and sealing the blister packs. Using manual product loading method, it is suitable for packing perfume sample vials, teeth whitening pens, lip balm tubes, batteries, etc. The molds can be customized and changed to handle different products. This blister card sealing machine can also work with other packaging equipment to realize automated production.

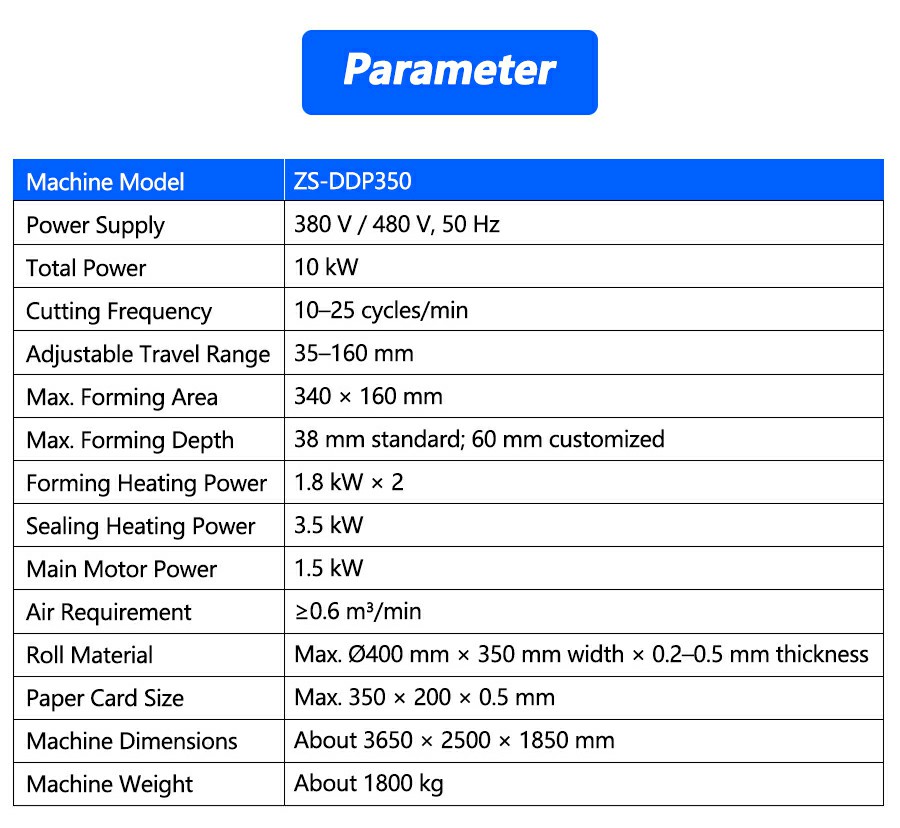

Machine Model | ZS-DDP350 |
Machine Voltage | 380V/480V 50Hz |
| Total Power | 10KW |
Cutting Frequency | About 10-25 cycles/min(depending on product size) |
| Adjustable Travel Range | 35-160mm |
Max. Forming Area | 340*160mm |
| Max. Forming Depth | 38mm standard; 60mm customized |
Film Roll Material | Max. Ø400mm*350mm width* 0.2-0.5mm thickness |
| Paper Card Size | Max. 350*200*0.5mm |
Forming Heating Power | 1.8KW*2 |
| Sealing Heating Power | 3.5KW |
Main Motor Power | 1.5KW |
| Compressed Air Requirement | ≥0.6 m³/min |

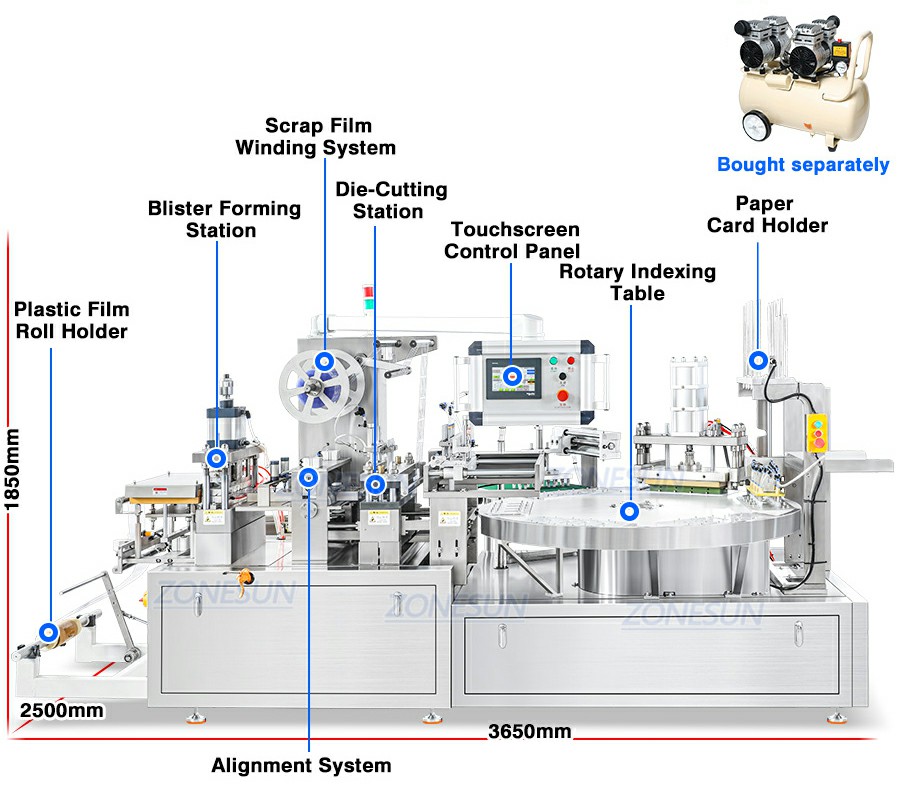

Machine Size | About 3650*2500*1850mm |
| Machine Weight | About 1800kg |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

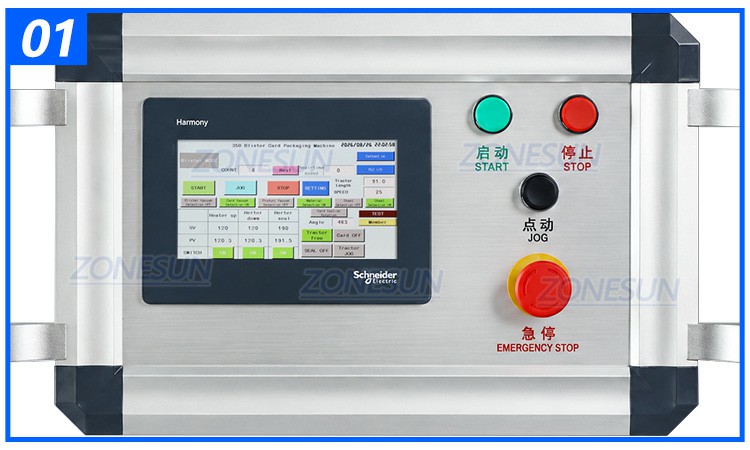

PLC Control & Touch Screen
Intuitive panel enables real-time monitoring of blister forming and sealing status, and easy parameter setting. It can be customized with different languages.

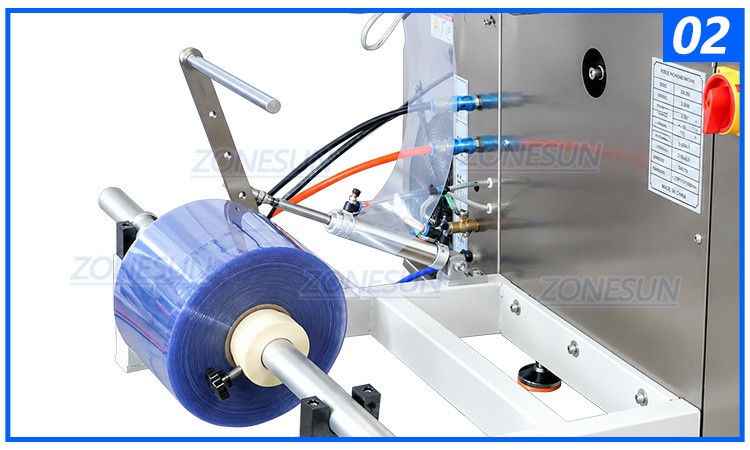

Plastic Sheet Feeding System
The roll of plastic sheets will be fed automatically to heating station, ensuring continuous blister packing operation.

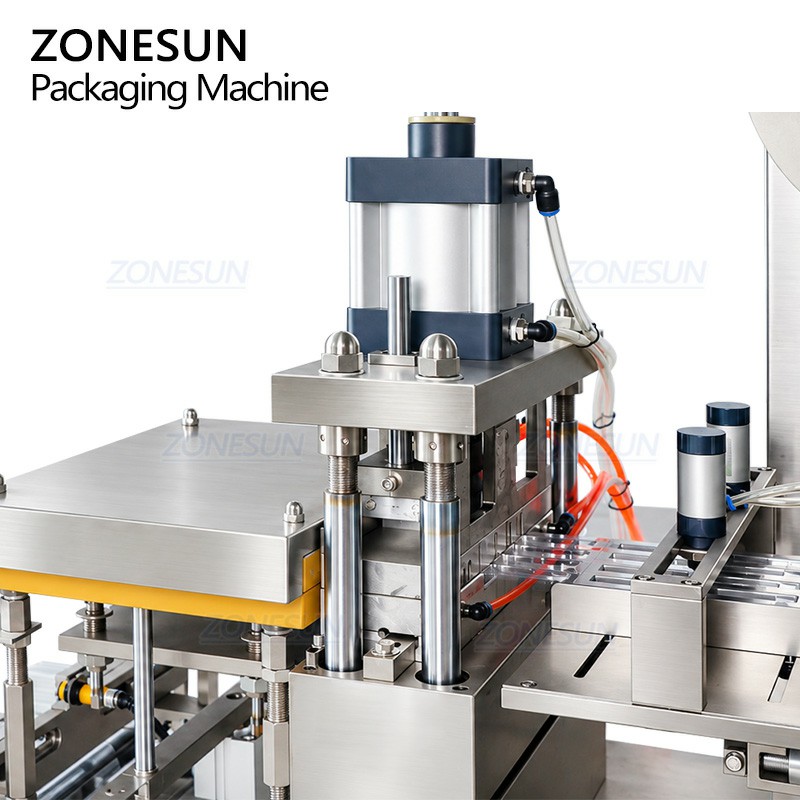

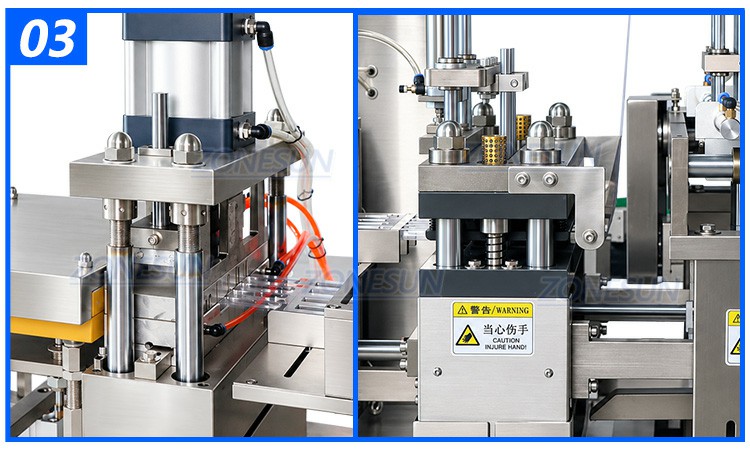

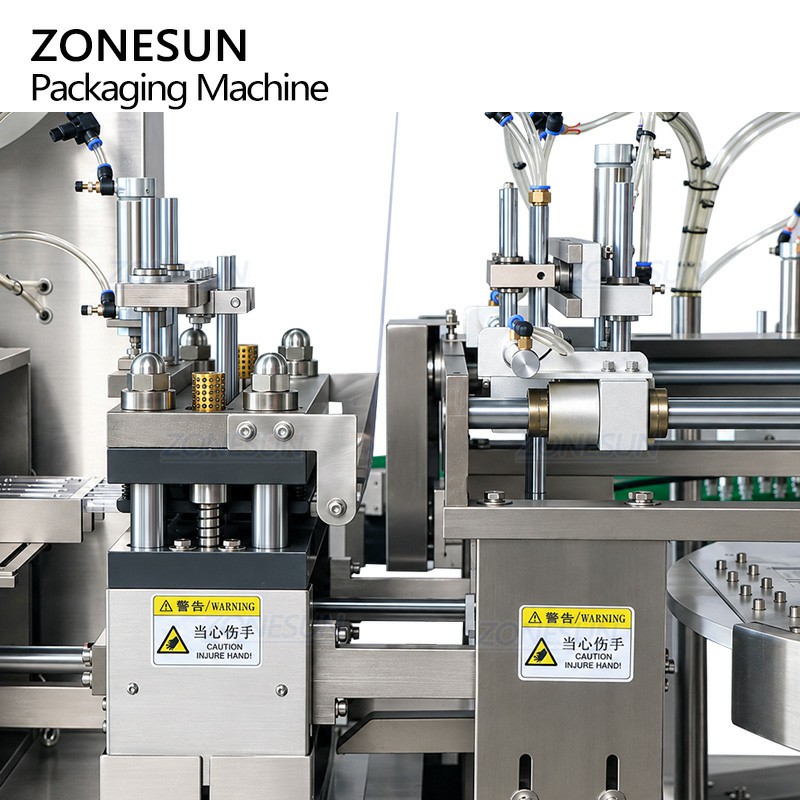

Blister Forming And Cutting System
The machine uses vacuum pressure to form the plastic sheets into blister cavities, and cuts them into individual ones. Forming system is customized as your products.

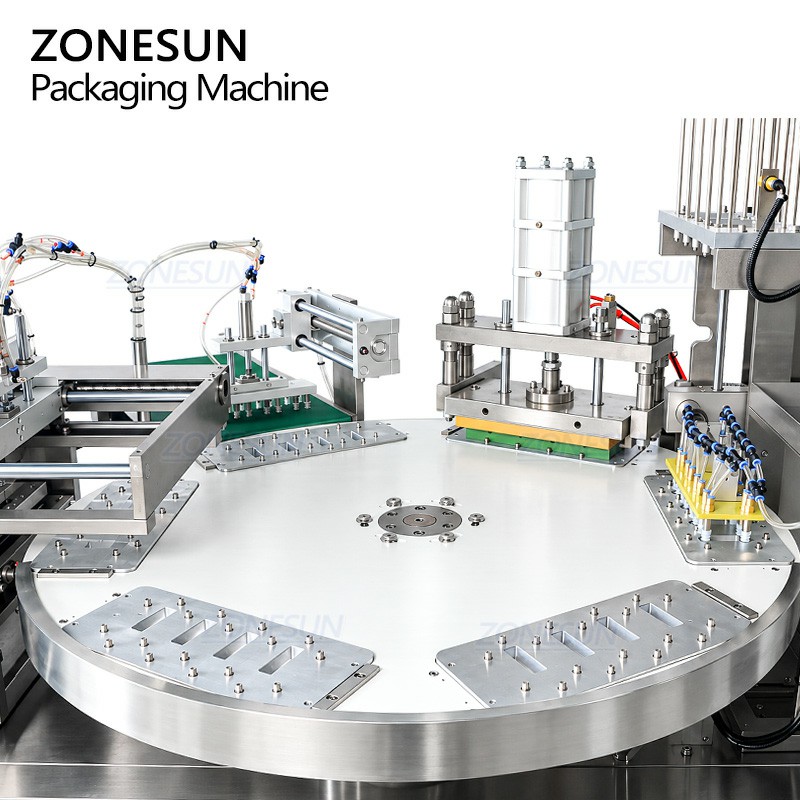

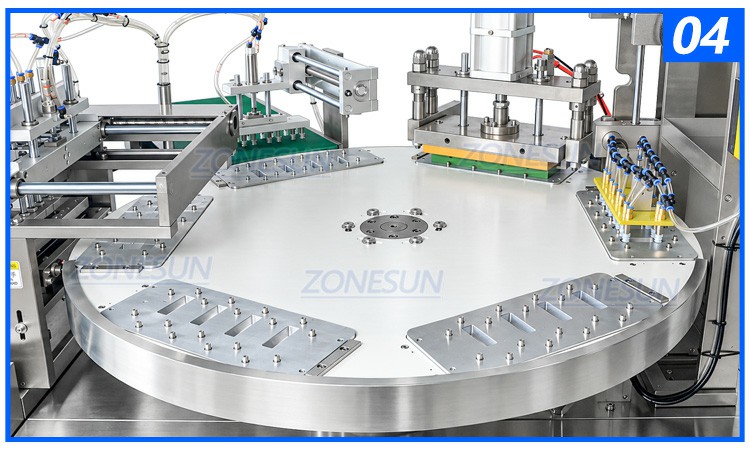

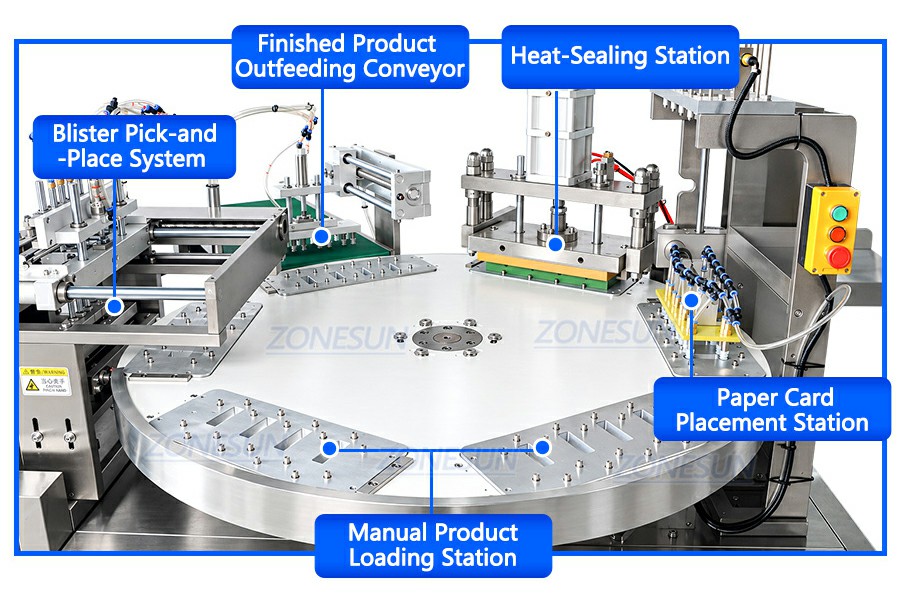

Integrated Working Stations
Backing card loading, blister sealing and product discharging are completed at one machine. The rotary plate is customized based on product size.

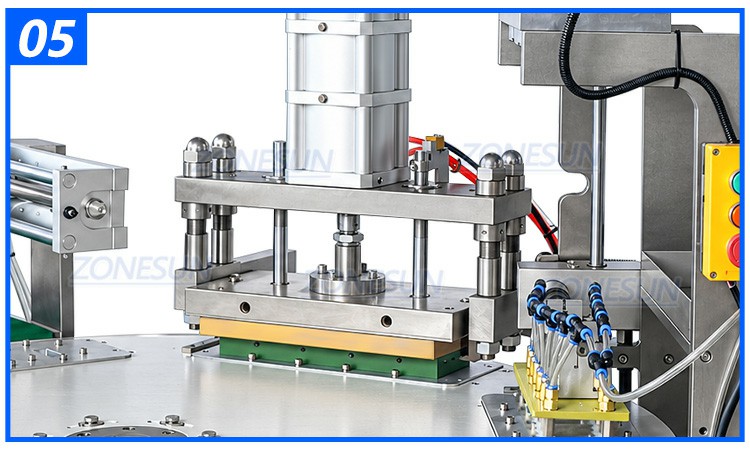

Blister Sealing System
Sealing dies can apply controlled heat and pressure to securely bond the blister flange to the backing card. Heat temperature and time are adjustable.

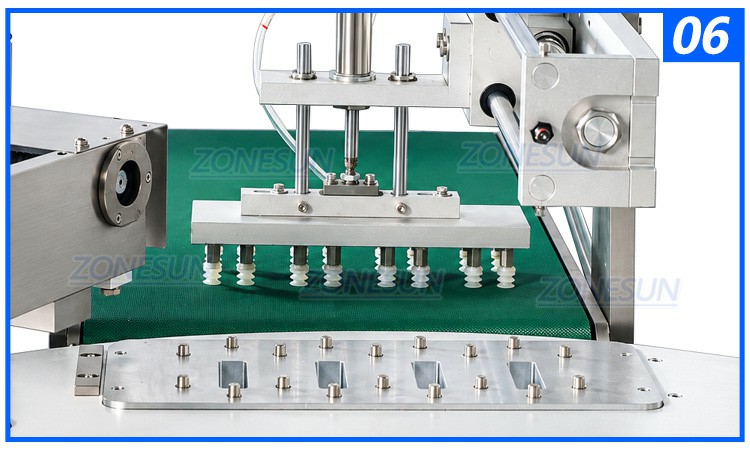

Finished Product Outlet
Vacuum grippers can pick up sealed blisters from molds and place them onto conveyor. This saves labor and is convenient for subsequent packaging.

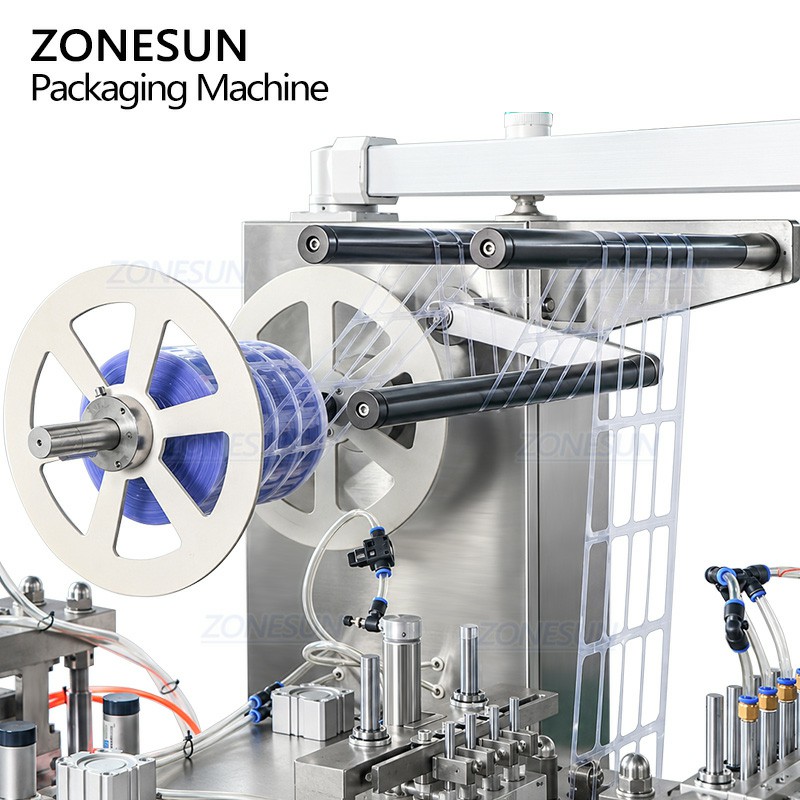

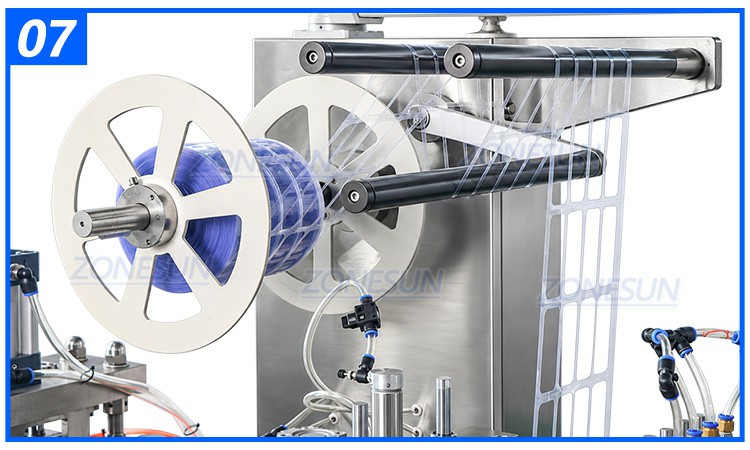

Scrap Winding System
The scrap winding structure can automatically pull and roll the leftover sheets onto a reel after blisters are cut out.
- Applicable Products: Lip gloss tubes, stain remover pens, super glues, Small hand tools, cell batteries, small toys, tweezers, perfume samples, etc.
- Applicable Industries: Cosmetic, daily chemical, chemical, medicine industries.
