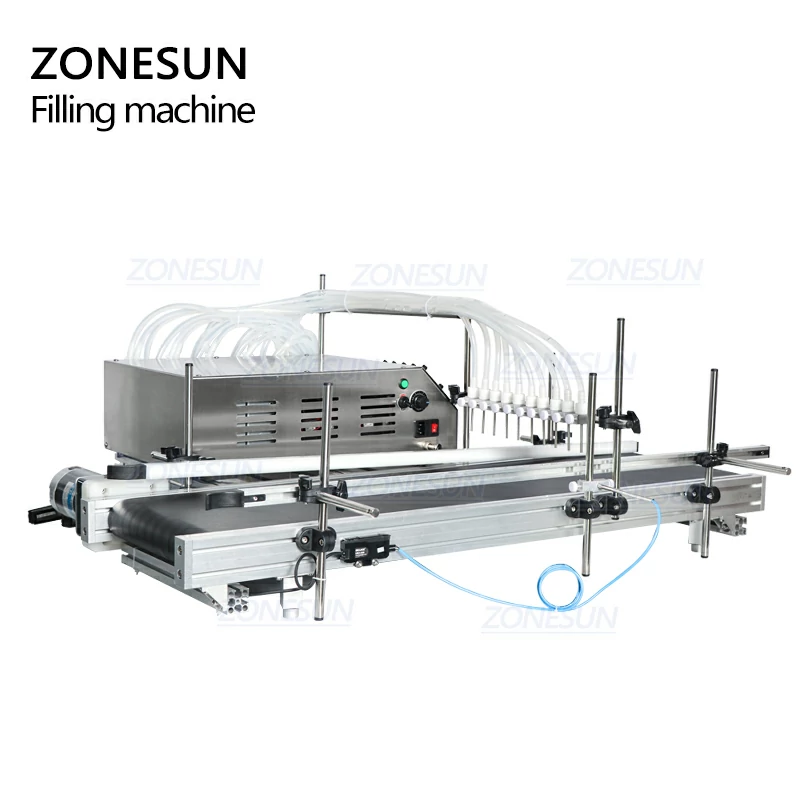

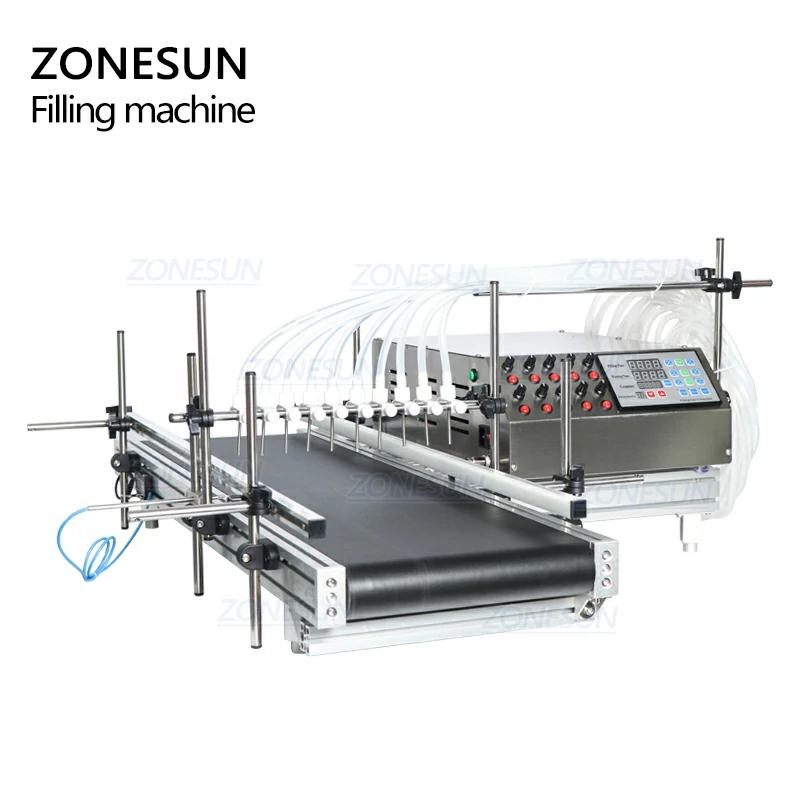

ZS-DTPP10B Automatic 10 Heads Peristaltic Pump Liquid Filling Machine

This machine has the function of filling low-viscosity liquid into small bottles. With 10 filling heads, whose filling speed can be adjusted separately, it can greatly improve working efficiency. The small bottle filling machine is in small size and can run automatically, saving space and labor cost.

Share to:

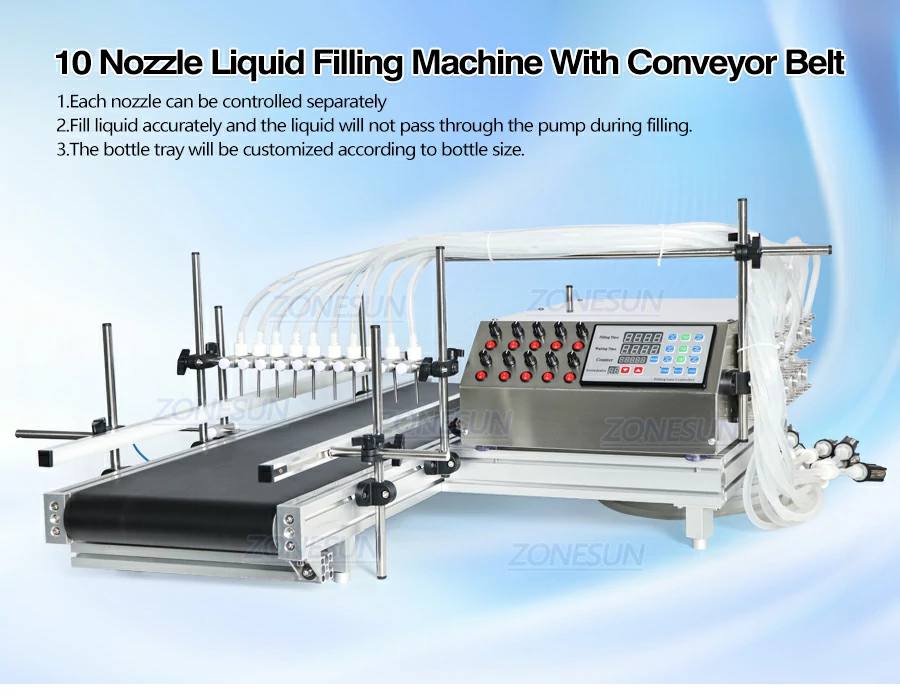

Automatic 10 Nozzles Small Bottle Filling Machine

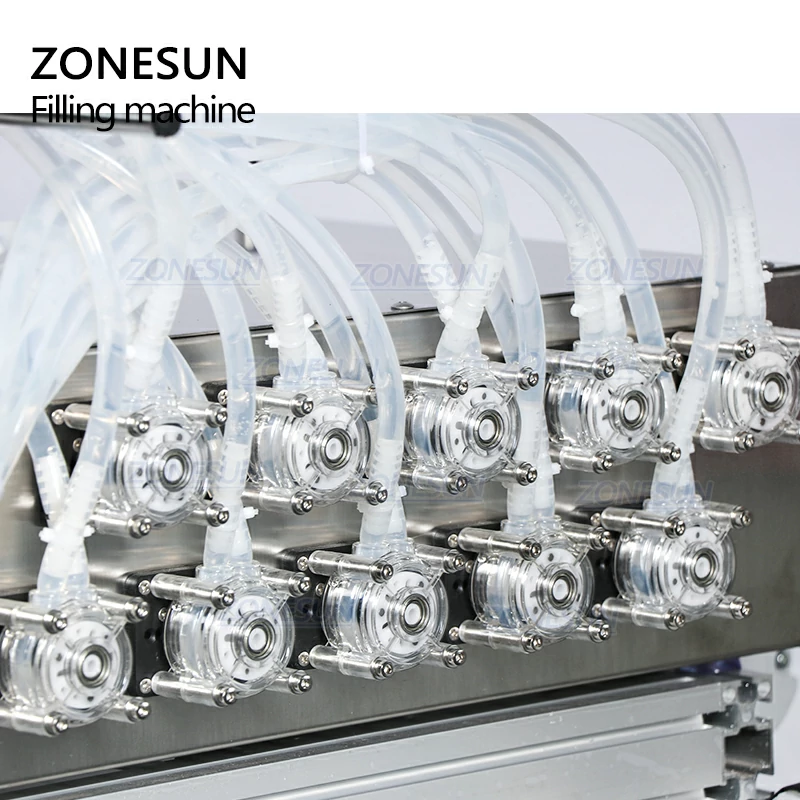

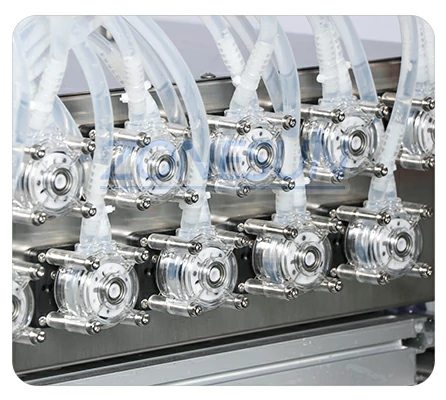

  • With peristaltic pump, the liquid won’t pass through pump during filling, ensuring its cleanliness.

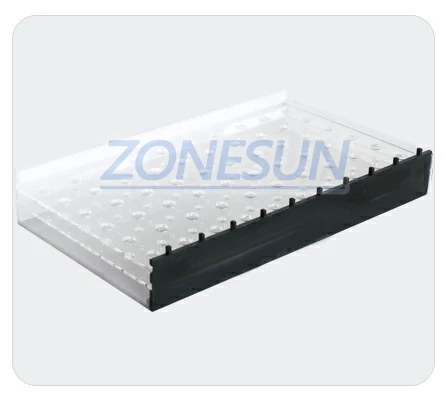

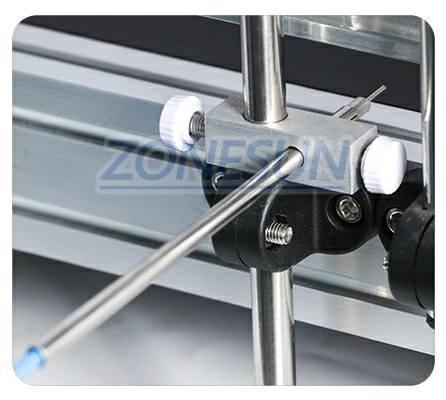

  • With bottle holder, it can arrange bottles in order during filling, which can be customized according to bottles’size.
  • With anti-dripping function, the nozzles can fill low-viscosity liquid accurately.
  • This small bottle filling machine is equipped with electric eye, which can detect bottle and control the machine to run automatically.

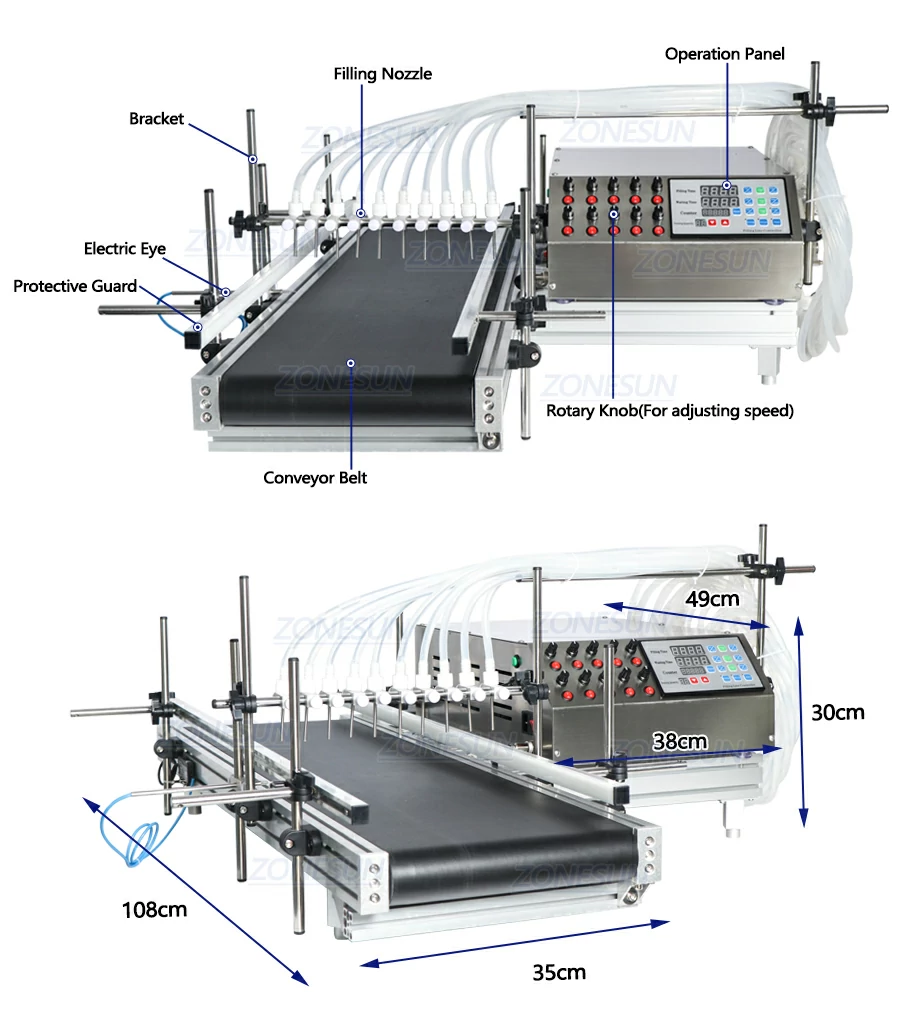

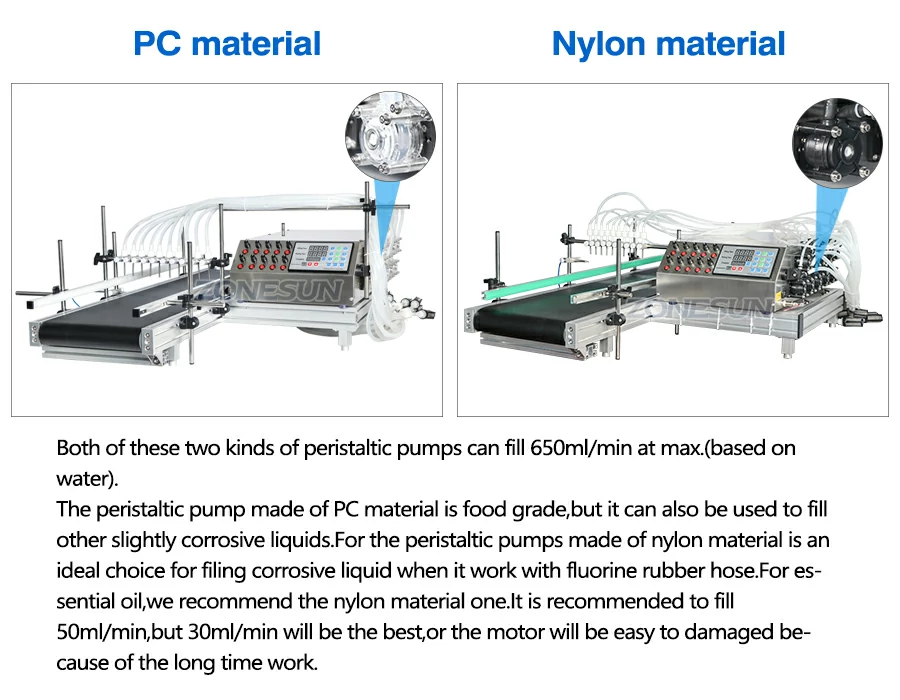

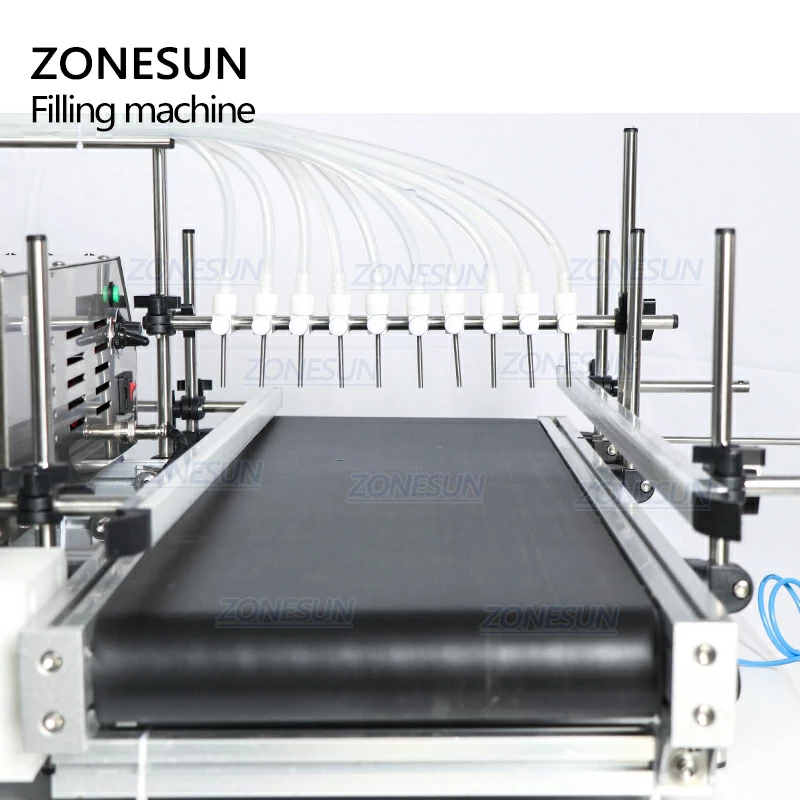

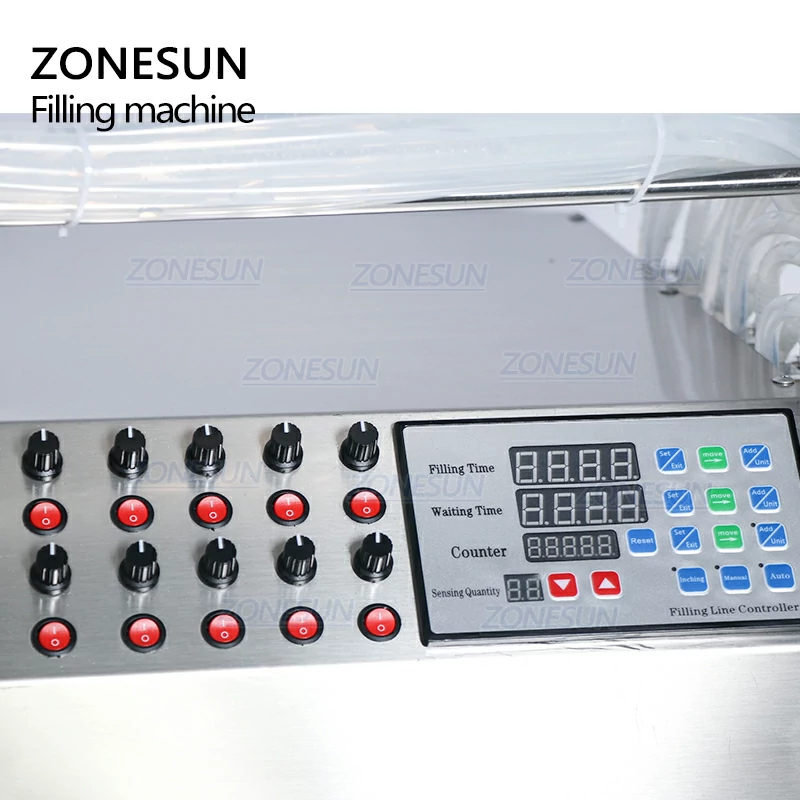

Diagram of small bottle filling machineMachine Detail-1Machine Detail-2Machine Detail-3Machine Detail-4Different Types of Peristaltic Pumps

Machine Model ZS-DTPP10B
Power Supply AC110V/220V 50Hz-60Hz 60W*10
Machine Pump Peristaltic Pump
Filling Range ≤50ml
Maximum Flow 650ml/min for each nozzle (based on water)
Filling Nozzles 10(Can be customized)
Working Speed 70-90 bottles/min(based on 50ml-water)
Filling Accuracy ≤±1% (For water)

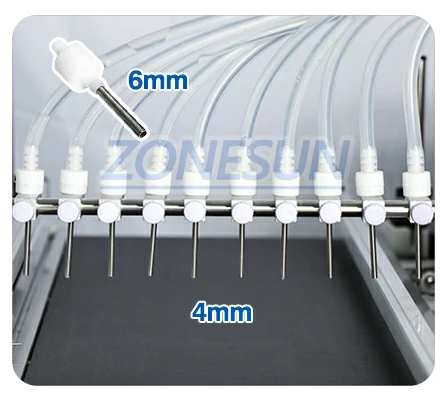

Diameter of Filling Nozzle 4mm
Delay Range 0.01-999.9s
Conveyor Size 1080*350mm(L*W)
Machine Size About 380*490*300mm(Without conveyor belt)
Net Weight About 38kg
  • Applicable Liquid: Low-viscosity Liquid.
  • Applicable Products: Biological reagent, perfume, eye drops, essential oil, etc.
  • Applicable Industries: Chemical, cosmetic, health care industries.



Application of small bottle filling machine
