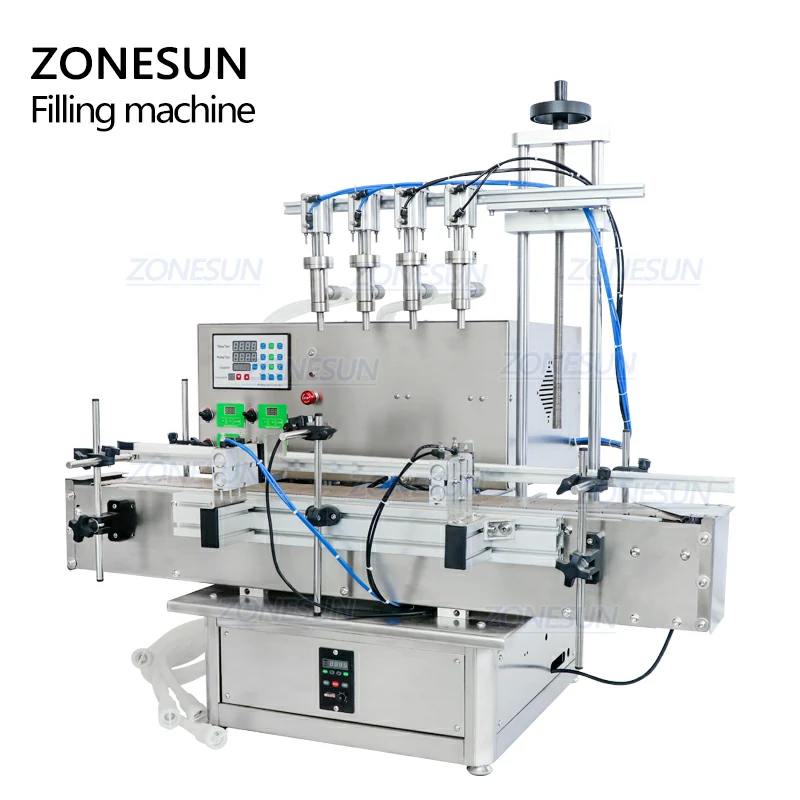

ZS-DTPP4E Tabletop Automatic 4 Head Toner Perfume Liquid Filling Machine

This machine is suitable for filling low-viscosity liquid, such as perfume, essential oil, toner, juice, etc. Quantity of filling nozzles can be customized as needed. The machine can work with capping and labeling machine to complete automated production.

Share to:

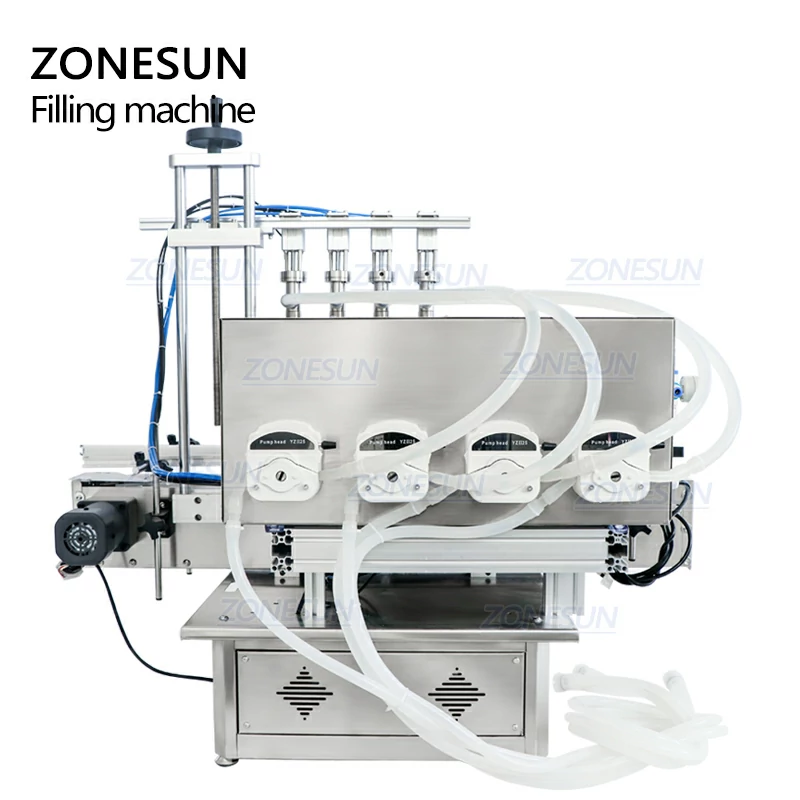

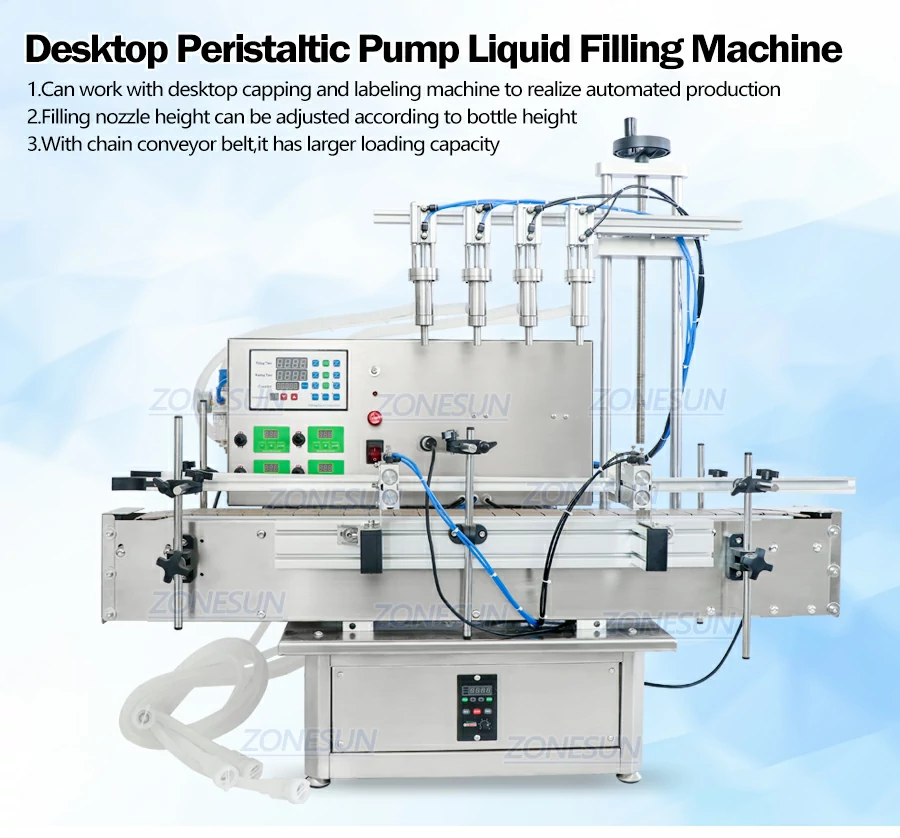

Tabletop automatic peristaltic pump liquid filling machine



  • The peristaltic pumps enable it to change tube easily when filling different liquid. And liquid only flows in tube, ensuring its cleanliness.
  • With electric eye to detect bottles, it can work automatically. Smart and intelligent.
  • Filling speed of 4 heads can be adjusted on digital panels separately.

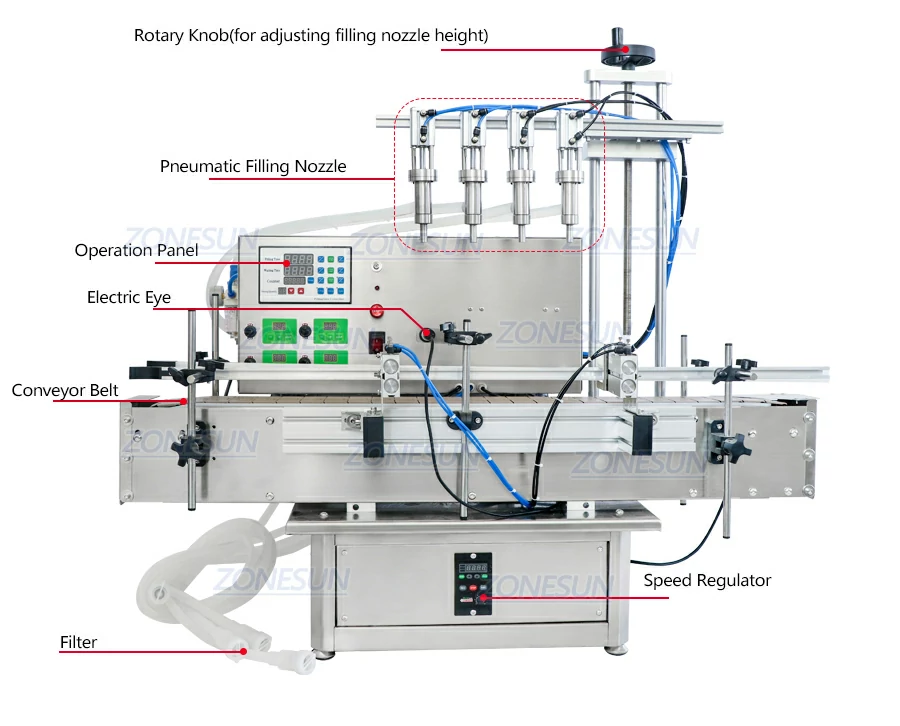

Diagram of automatic peristaltic pump liquid filler

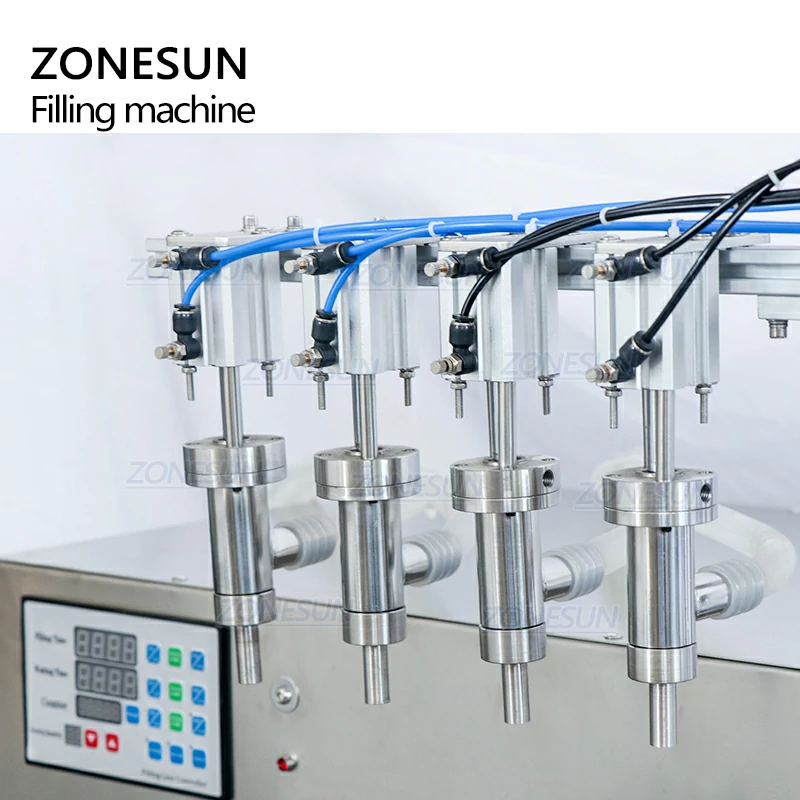

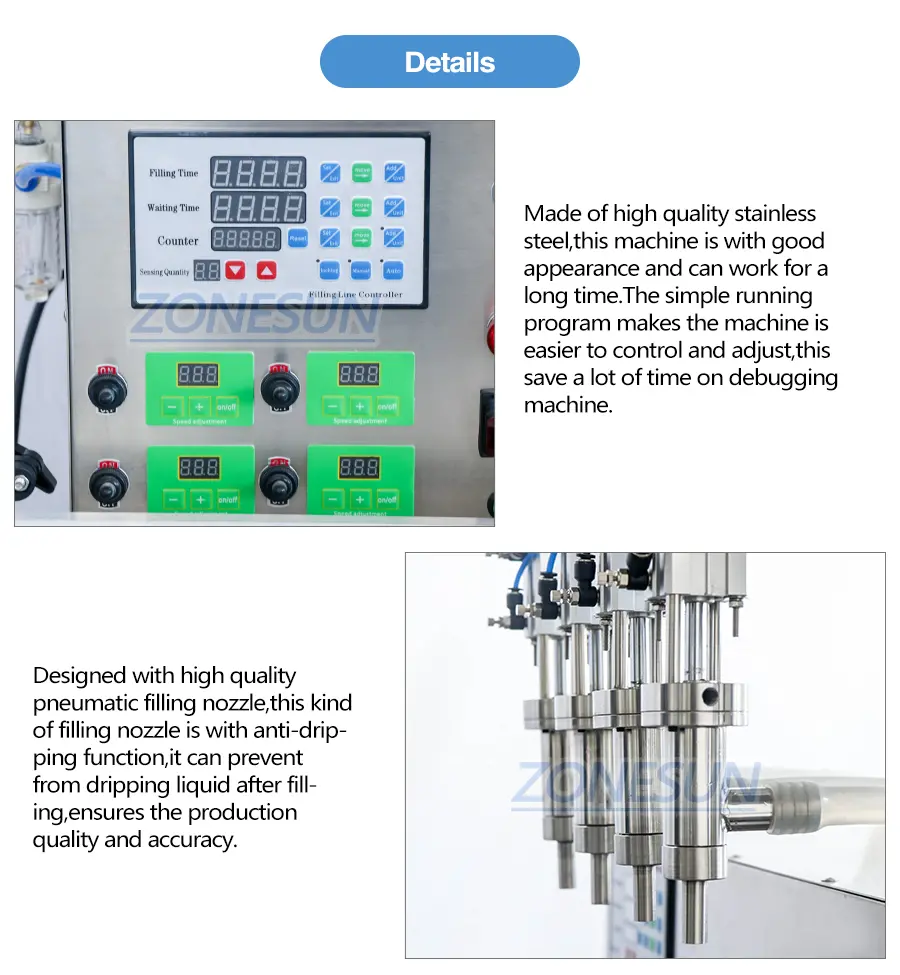

Machine Detail-1

Machine Detail-2

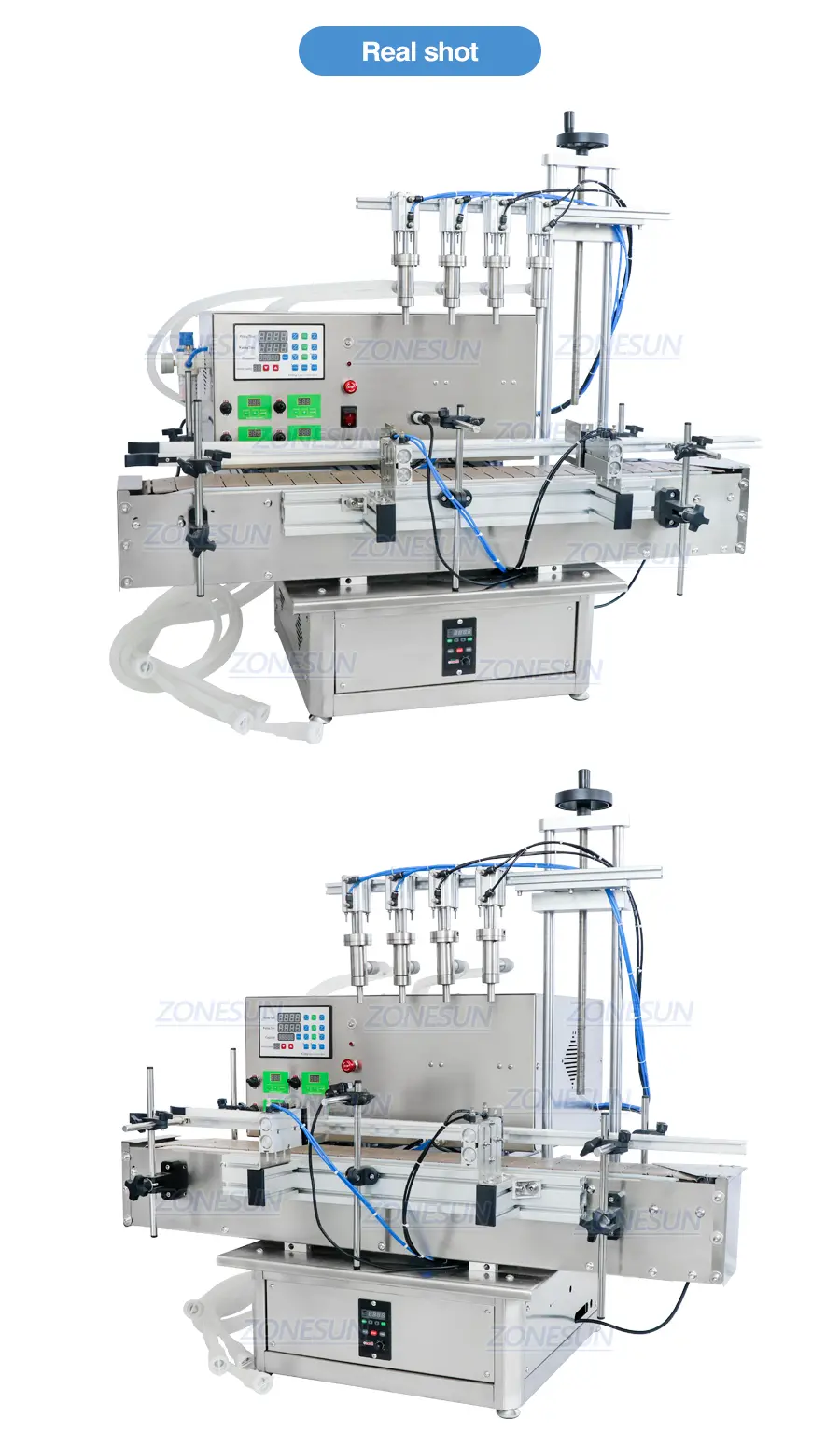

Real Shot

Machine Model ZS-DTPP4E
Voltage AC110V/220V 50Hz-60Hz
Power 60W(Each Pump)
Machine Pump Peristaltic Pump
Recommended Filling Volume 10-1000ml(Gel is better ≤100ml)
Maximum Flow 4L/min for each nozzle (based on water)
Filling Heads 4(Can be customized)
Working Speed 30-50 bottles/min(based on bottle size and liquid)
Air Pressure 0.3-0.4Mpa
Filling Accuracy ≤±1%(for water)
Delay Range 0.01s-999.9s
Belt Length 1m
Size of Air Compressor Connector OD 8mm
Applicable Bottle Height <220mm(Can be customized,max height 300mm)
Machine Size About 1100*580*1070mm
Conveyor Size About 1100*115mm
  • Applicable Products: Perfume, olive oil, eye drops, juice, etc.
  • Applicable Industries: Pharmaceutical, cosmetic, beverage, chemical industries.

Application
