Plastic Dropper Bottle Filling Capping Machine

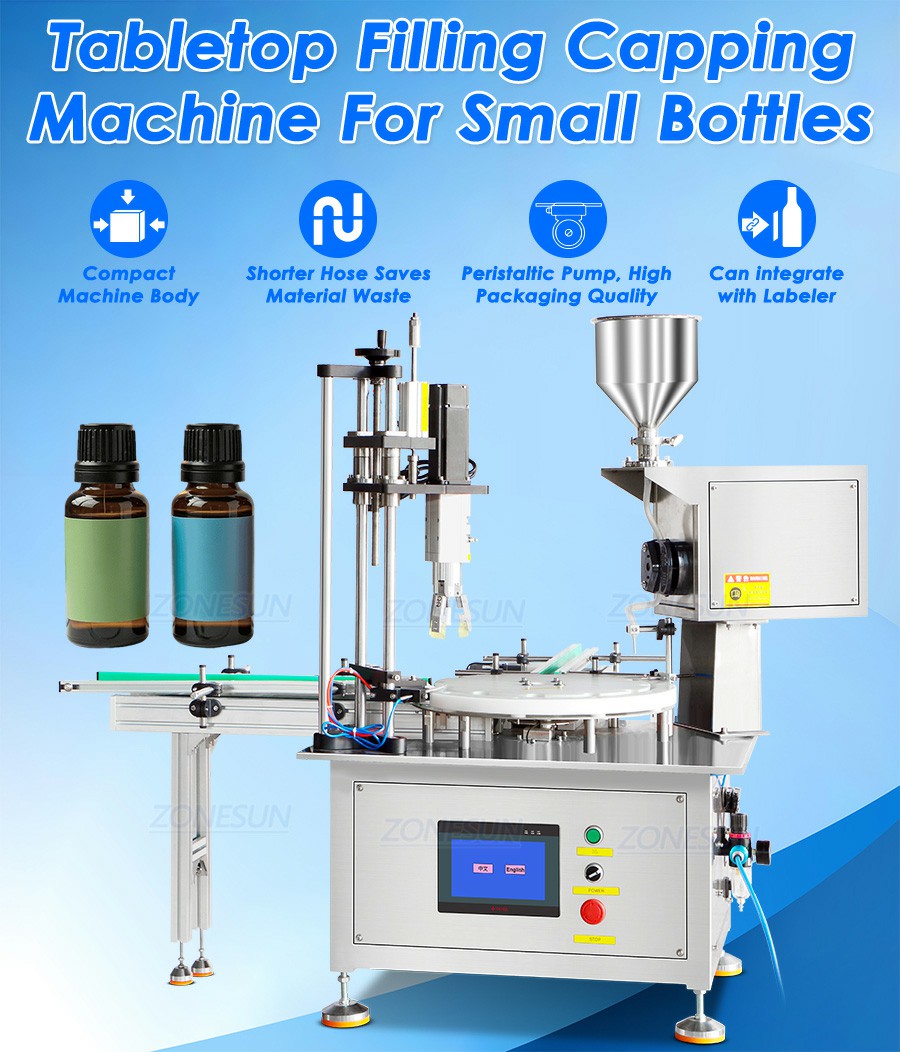

ZS-AFC47 Desktop Rotary Plastic Dropper Bottle Filling Capping Machine

🎄 Machine output is 900-1500BPH.
🎄 Peristaltic pump filling, filling range is customized.
🎄 Servo-driven capping system, high accuracy.
🎄 Starwheel can be customized or changed for different bottles.
🎄 Machine can work with labeling machine.

Video

Share to:

Product Description:

This plastic dropper bottle filling capping machine adopts peristaltic filling system and servo-controlled capping system. It can be used for packing eye drops, adhesives, solvents, and so on. The machine can also work with cap feeder to realize automatic cap feeding and loading. This machine can be widely used in pharmaceutical, personal care, chemical industries.

Machine Model	ZS-AFC47
Voltage	110/220V 50-60HZ
Machine Power	1000W
Working Speed	15-25bottles/min(depending on liquid and bottle size)
Filling Pump	Peristaltic Pump
Filling Range	1-15ml(Customized)
Filling Hose	#16
Bottle Diameter	20-50mm
Bottle Height	30-60mm (Can be customized for higher bottles)
Cap Diameter	H=10-30mm φ20-50mm (Customized)
Size of Filling Nozzle	OD 2-6mm (Customized)
Conveyor Belt Size	About 670*80mm
Machine Size	About 580580900mm/ About 22.822.835.4 inch
Machine Weight	About 88kg
Package Size	About 800710980mm/ About 31.528.038.6 inch
Package Weight	About 133kg

Touchscreen Panel

Intuitive interface makes it easy for machine operation and parameter adjustment. The language of panel can be customized.

Peristaltic Filling System

Storage funnel ensures for continuous material feeding. Utilizing peristaltic pump, it is easy to change or clean hoses when filling different products.

Servo Capping Structure

It is suitable for tightening different kinds of bottle caps, such as dropper caps, mist spray caps. The structure can be customized to suit for your caps.

Starwheel

It can be customized or changed to suit for different sizes of bottles.

Electric Eye

Infrared photoelectric sensor can detect bottles and ensure accurate capping.

Applicable Bottle Caps: Screw-type caps, such as dropper caps, twist top cap.
Applicable Products: Eye drops, essential oil, essence, adhesives, solvents, etc.
Applicable Industries: Cosmetic, chemical, pharmaceutical industries.
