ZS-AFC21 Fully Automatic Mouth Freshener Bottle Filling And Capping Machine

This machine integrates functions of feeding bottles, perfume spray caps and covers, filling liquid, crimping spray caps and pressing covers automatically. Designed with peristaltic pump, it is convenient to change tubes when you fill different liquid. This mouth freshener bottle filling and capping machine can be customized to suit for your production need.

Share to:

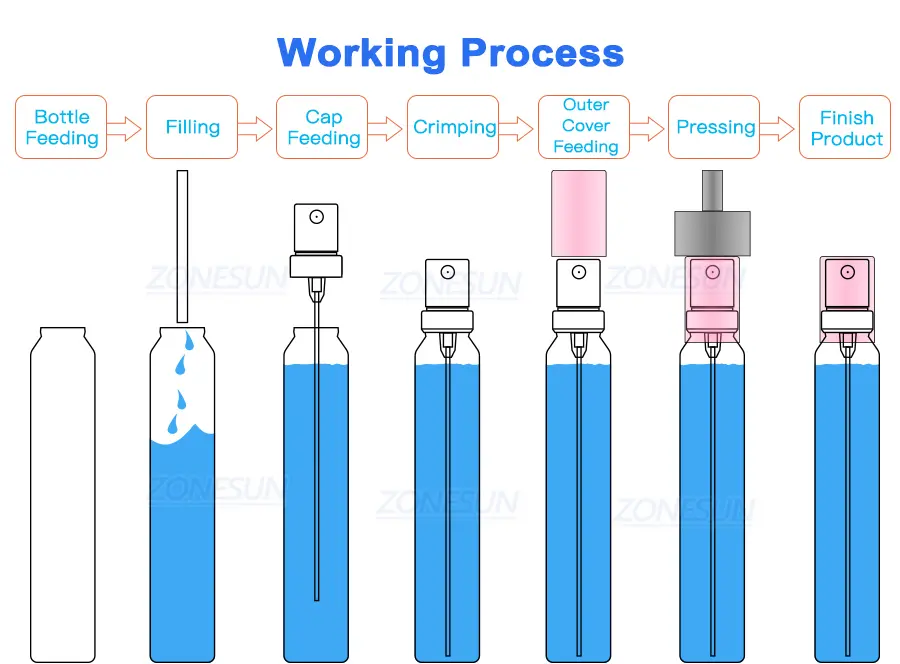

Automatic Mouth Freshener Bottle Filling And Capping MachineWorking Process

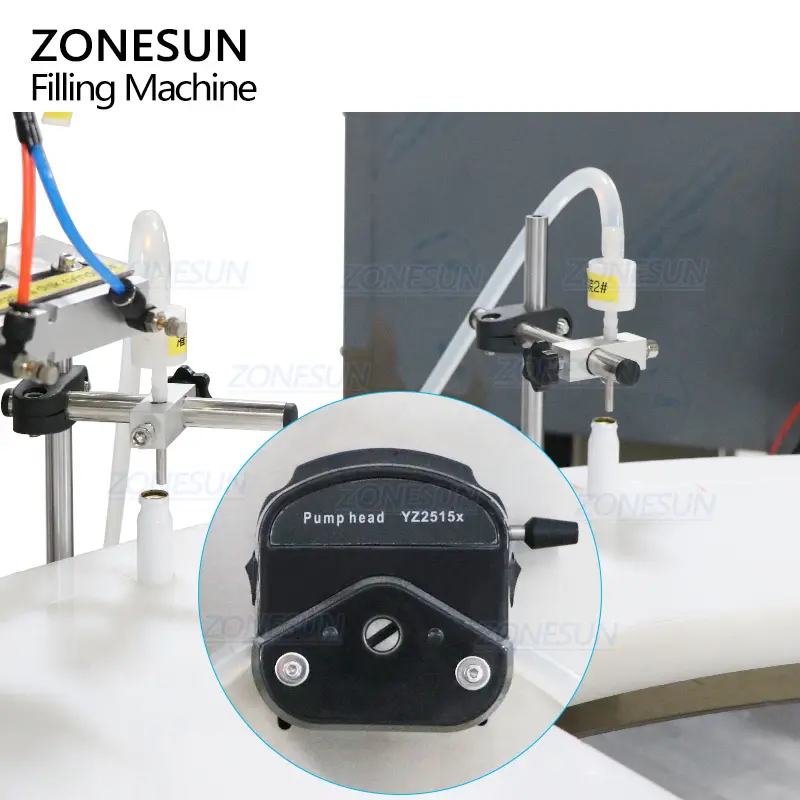

  • Equipped with peristaltic pumps, it can fill liquid accurately. The liquid won’t pass through pumps, which can ensure its cleanliness.
  • With PLC control panel, it is easy to set and adjust working parameters. The language of panel can be customized as your need.

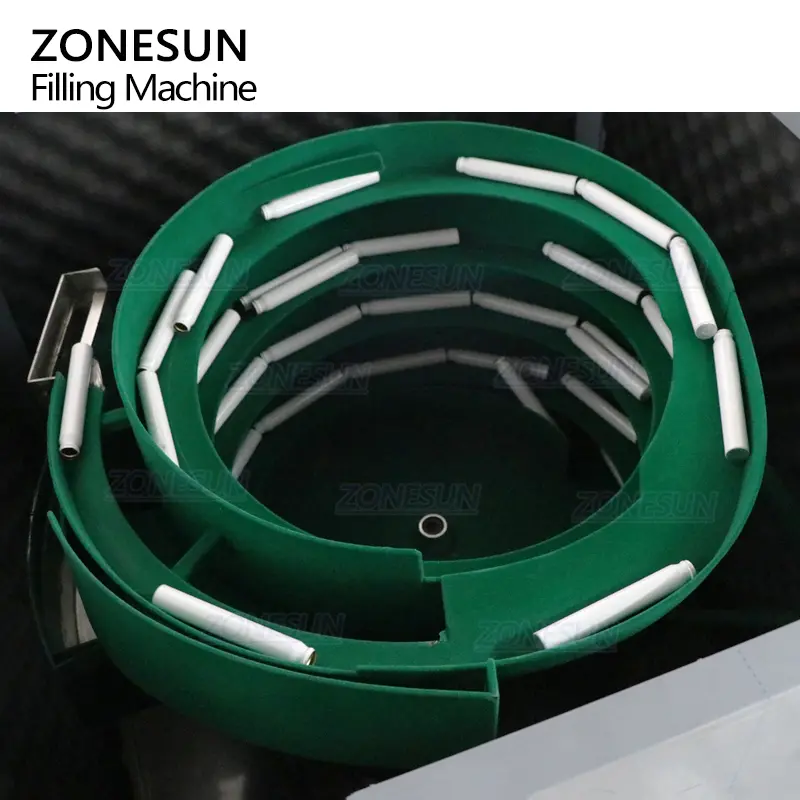

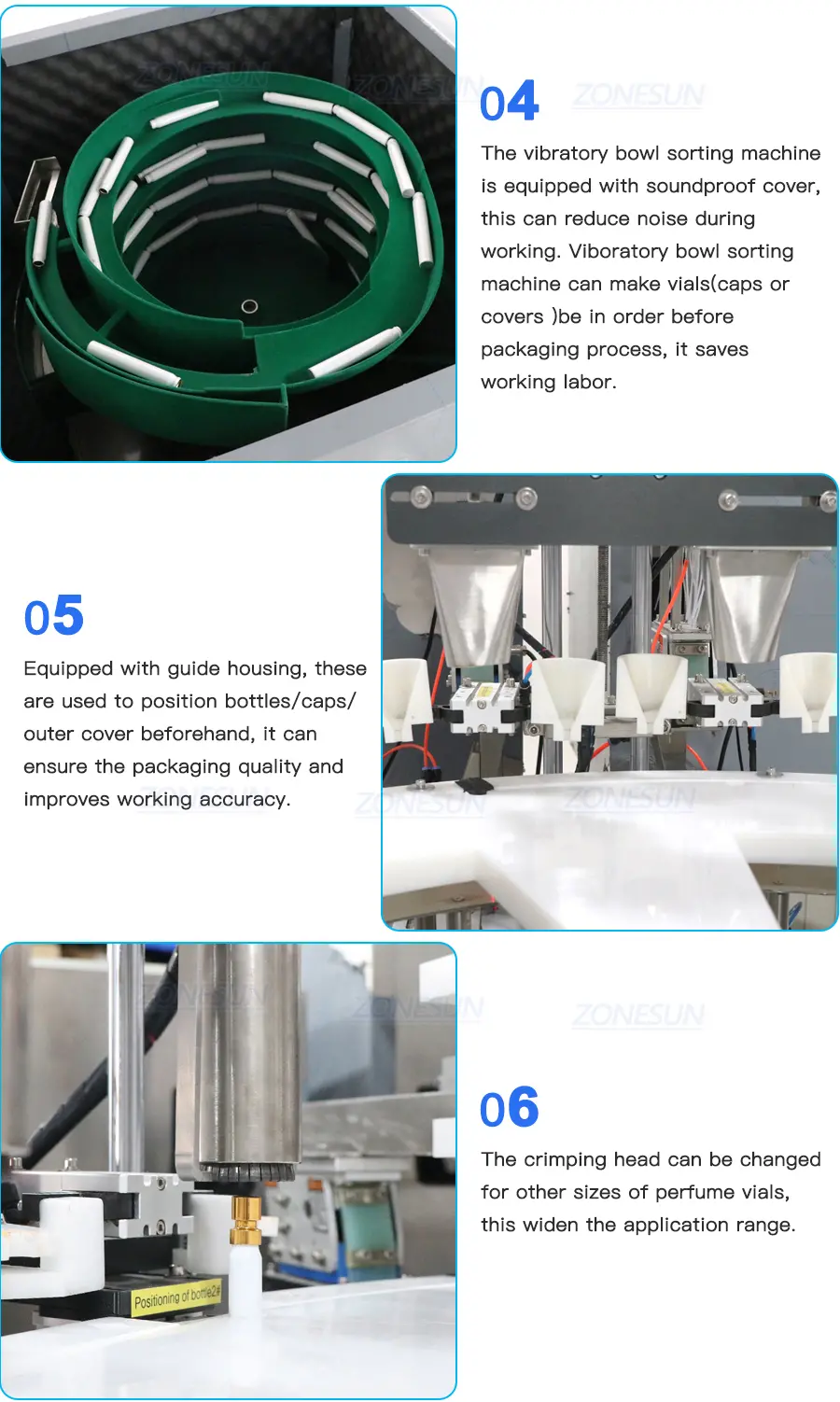

  • Designed with 3 vibratory bowls, it can feed bottles, spray caps and covers automatically, greatly saving labor cost. Size of vibratory bowls can be customized.

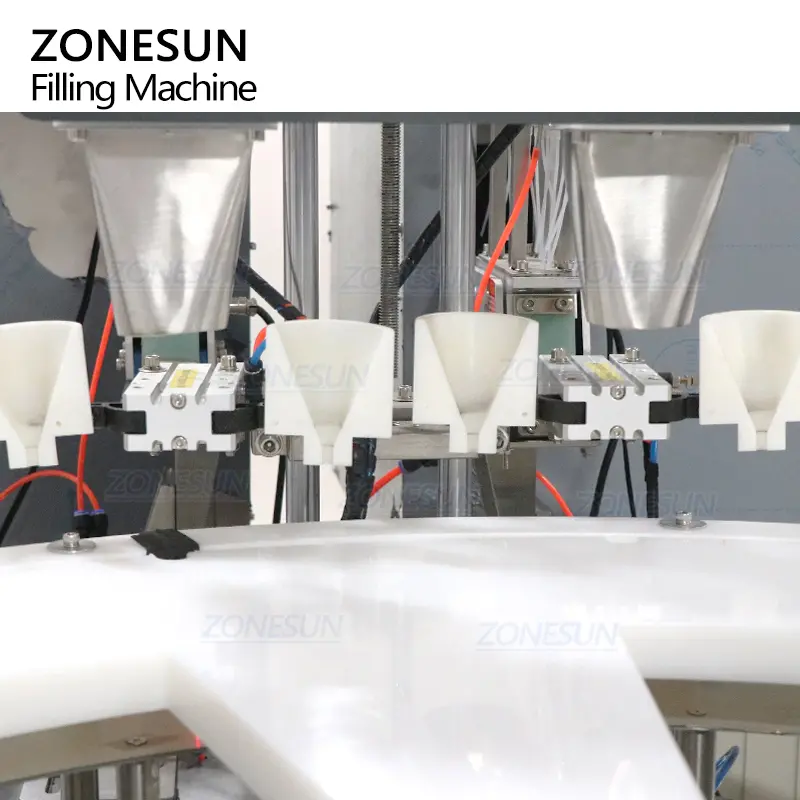

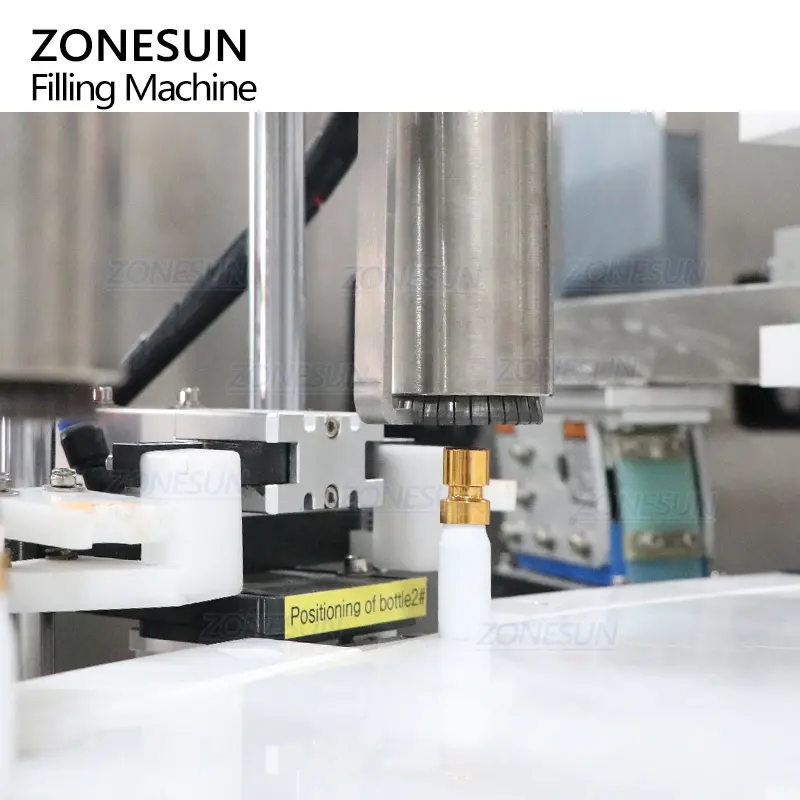

  • The crimping mold can be changed or customized according to your caps.

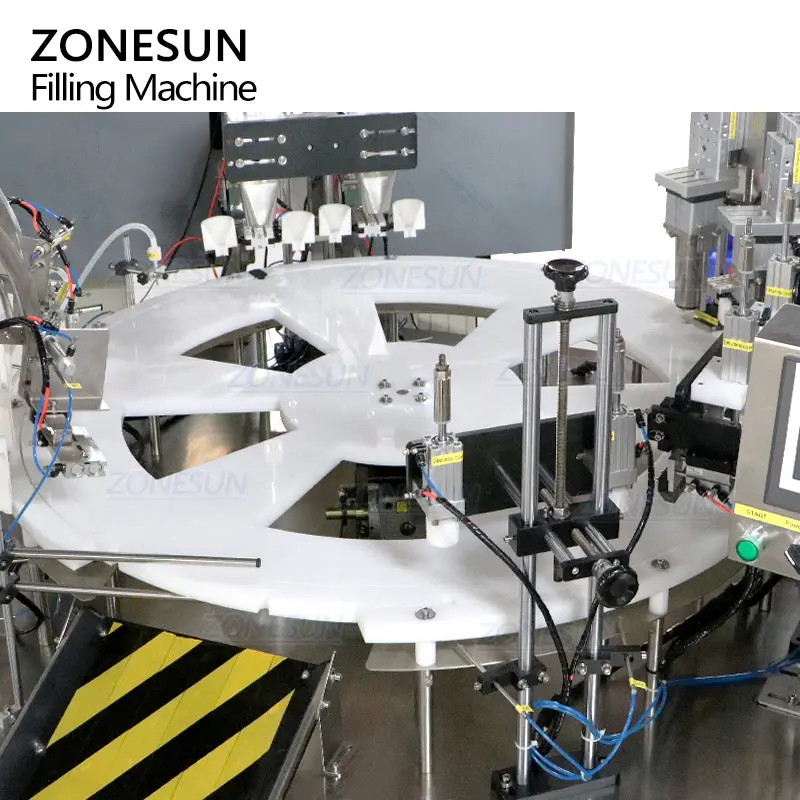

  • With star wheel, it can convey mouth freshener bottles during production. The running speed can be adjusted as production need.

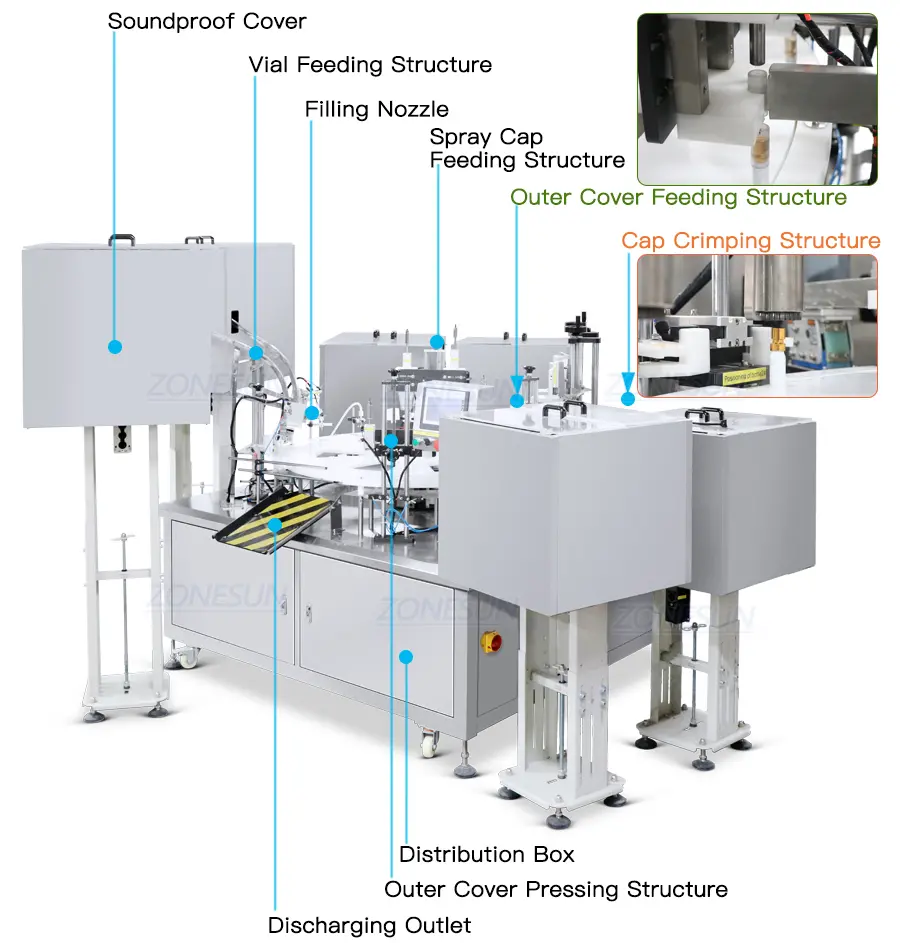

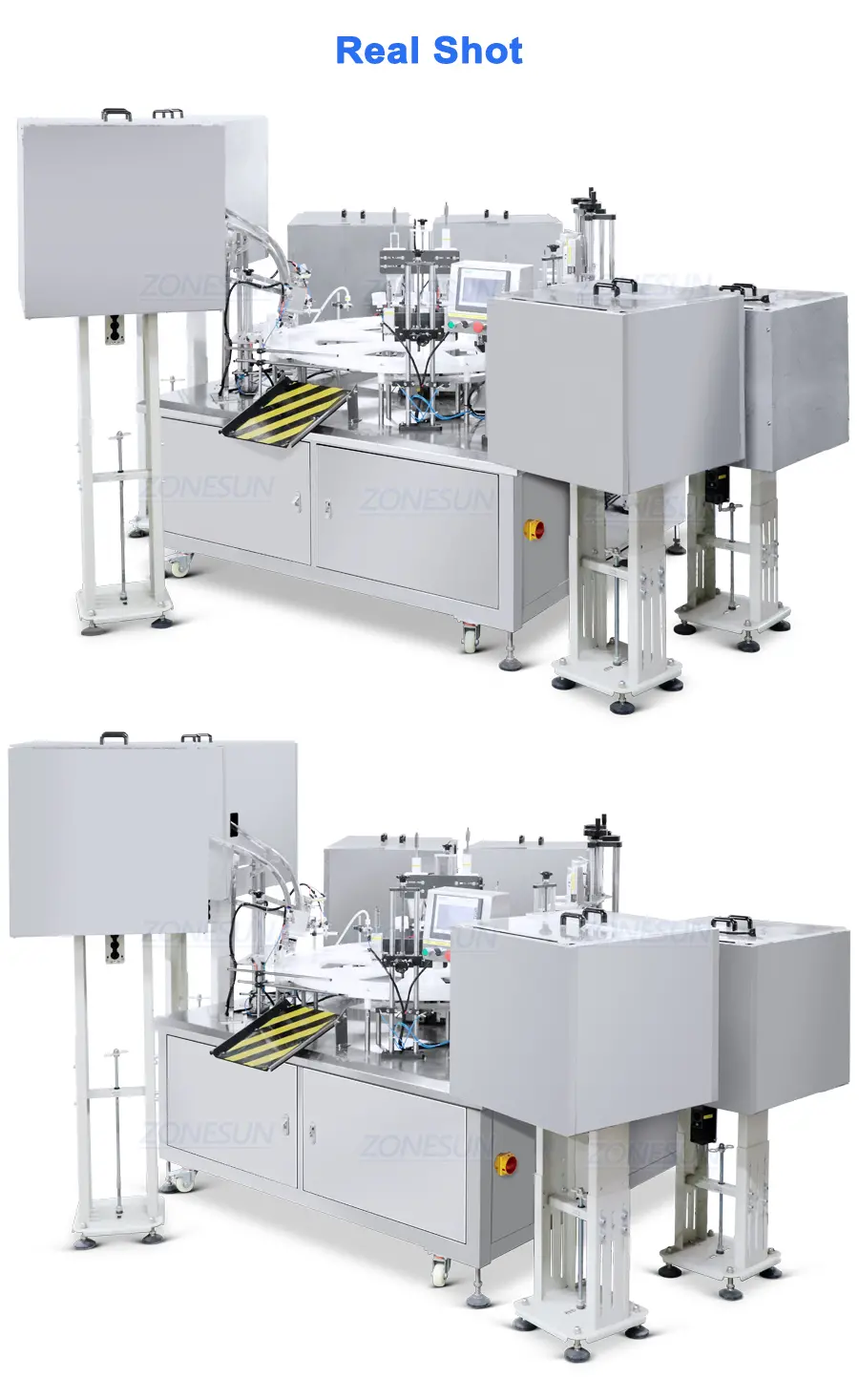

Diagram of Mouth Freshener Bottle Filling And Capping MachineDetail_1 of mouth freshener filling capping machine Detail_2 of mouth freshener bottle filling capping machineReal Shot

Machine ModelZS-AFC21
Voltage220V/110V 50-60Hz
Power Supply1600W
Filling PumpPeristaltic Pump
Filling Heads2 Heads(Can be customized)
Production CapacityAbout 25-30bottles/min(depending on filling material and bottle size)
Recommend Filling Range20-100ml(Can be customized)
Max Flow RateAbout 2.5L/min
Applicable Bottle SizeH=50-150mm Φ15-35mm(Can be customized)
Applicable Bottle Cap DiameterΦ13-22mm(Can be customized)
Machine SizeAbout 3600*3700*1950mm(L*W*H)
  • Applicable Products: Mouth freshener, perfume, cosmetic oil, toner, makeup remover, eye drops, liquid solution, etc.
  • Applicable Industries: Cosmetic, chemical, daily chemical, pharmaceutical, personal care industries.
