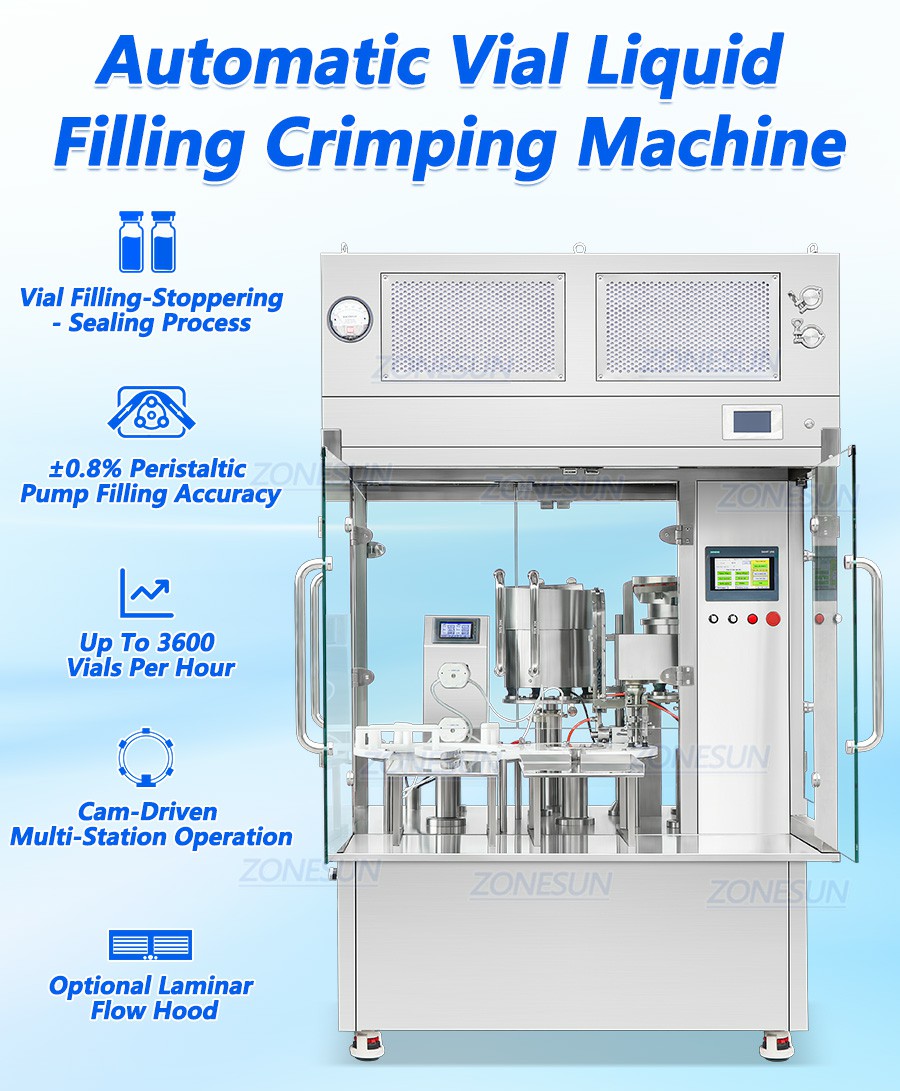

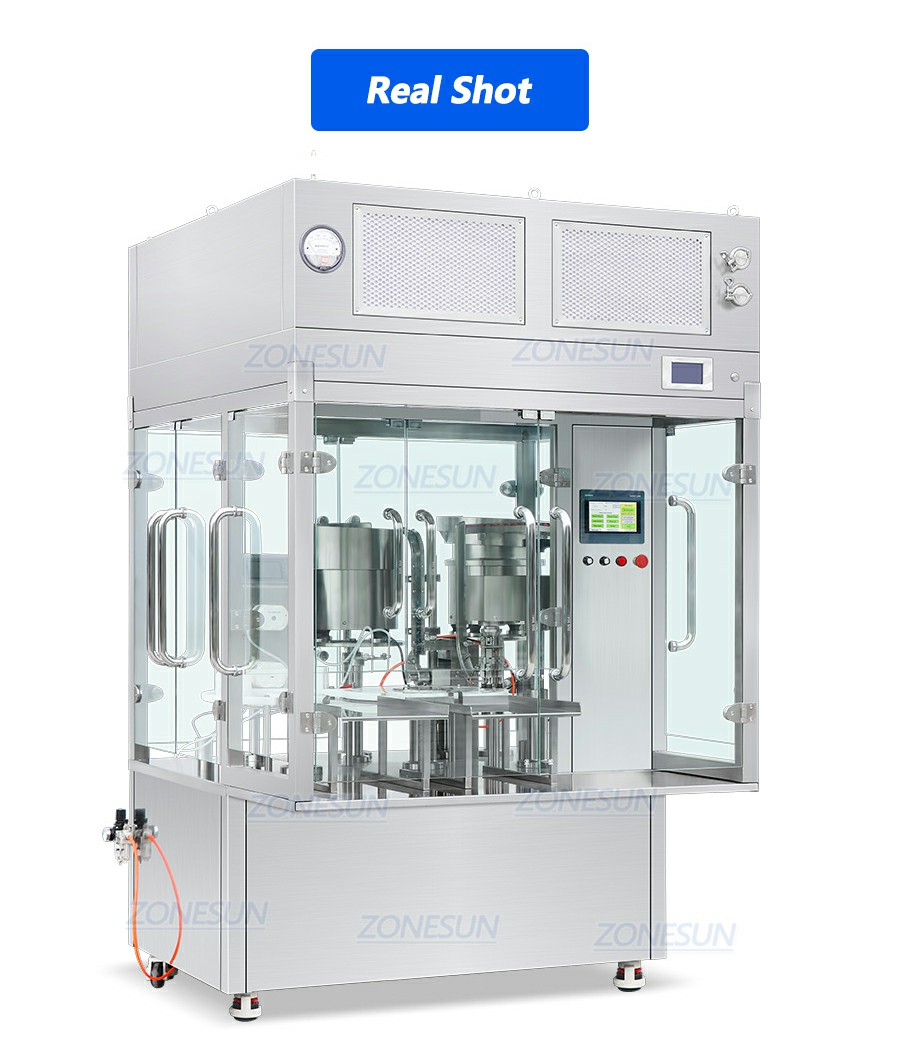

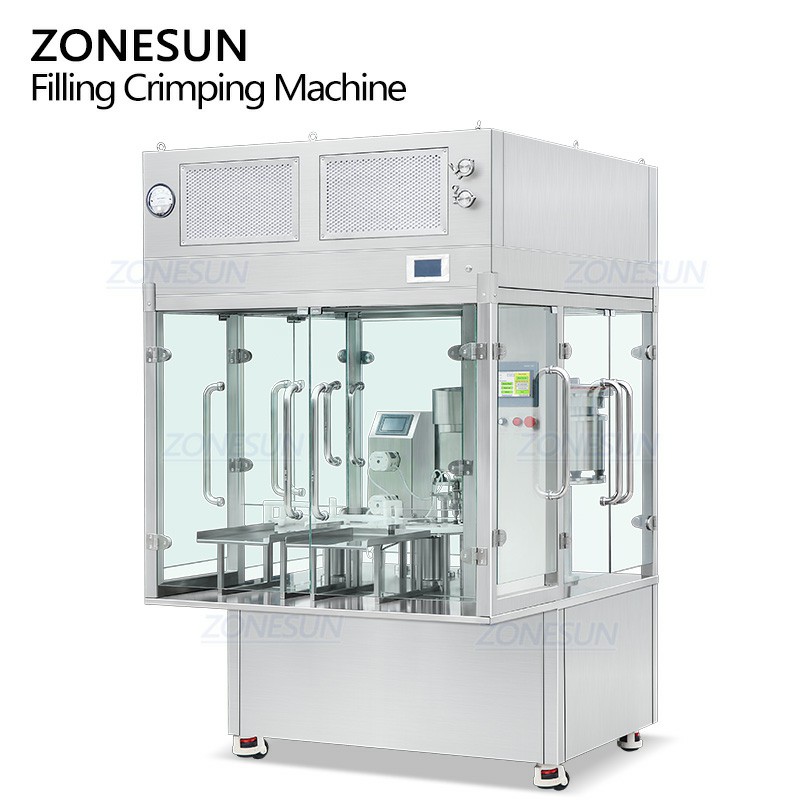

ZS-AFC39D Monoblock Medical Liquid Vial Filling Stoppering Capping Machine
🎄 Combines vial unscrambling, filling, stoppering and capping.
🎄 Cam control system, output is 3600BPH.
🎄 With peristaltic pump system for precise liquid filling.
🎄 With vibratory feeders for automatic stopper and cap feeding.
🎄 With laminar flow hood to realize sterile production.
🎄 Machine can be integrated into production line.
Video
Share to:

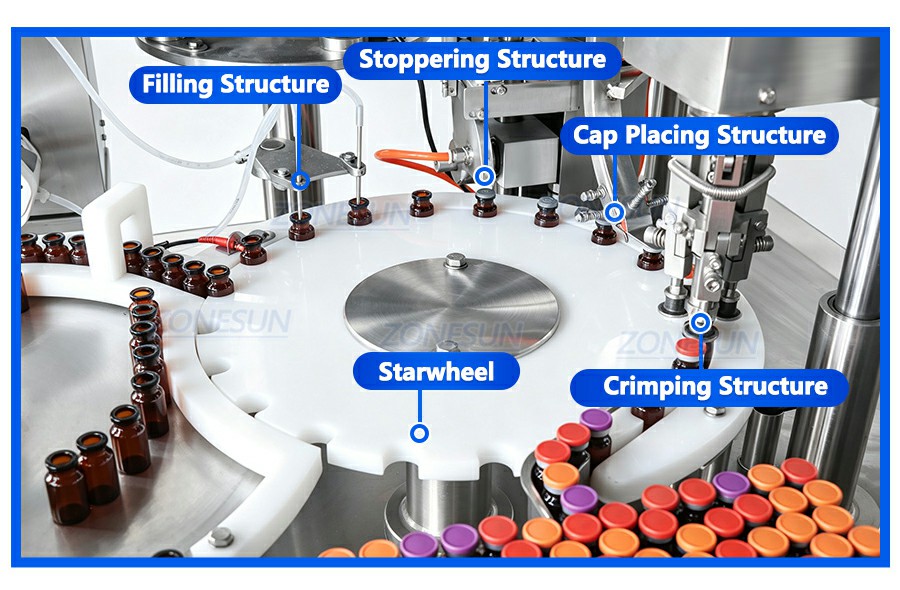

Description of the Automatic Monoblock Vial Filling Stoppering Capping Machine:

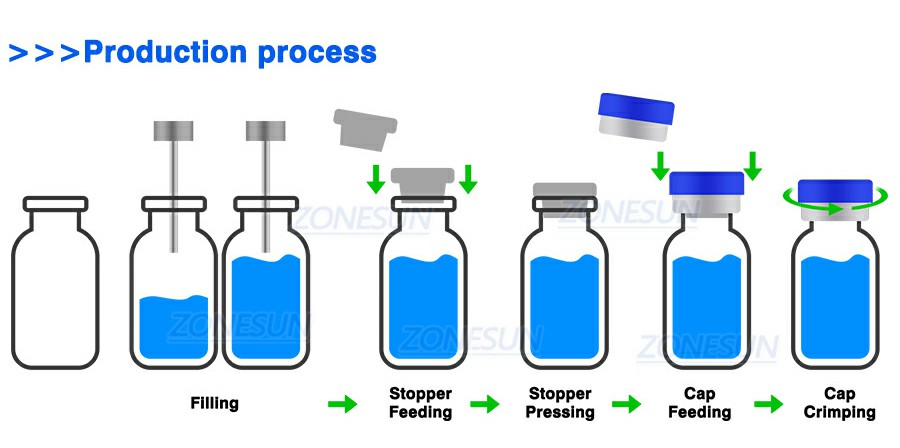

The ZS-AFC39D model combines functions of unscrambling vials, filling liquids, pressing stoppers, and crimping aluminum caps. Driven by cam system, it can fill and seal the vials at speed of 60BPM. The model is equipped with laminar flow hood, which prevents contamination and can create a sterile environment for vial production. Using precise peristaltic pumps, it can fill antibiotics, biochemical liquids, cosmetics, etc. The machine can be customized to suit for your vial and cap sizes. This monoblock liquid vial filling machine can also work with labeling machine and cartoning machine to complete automation.

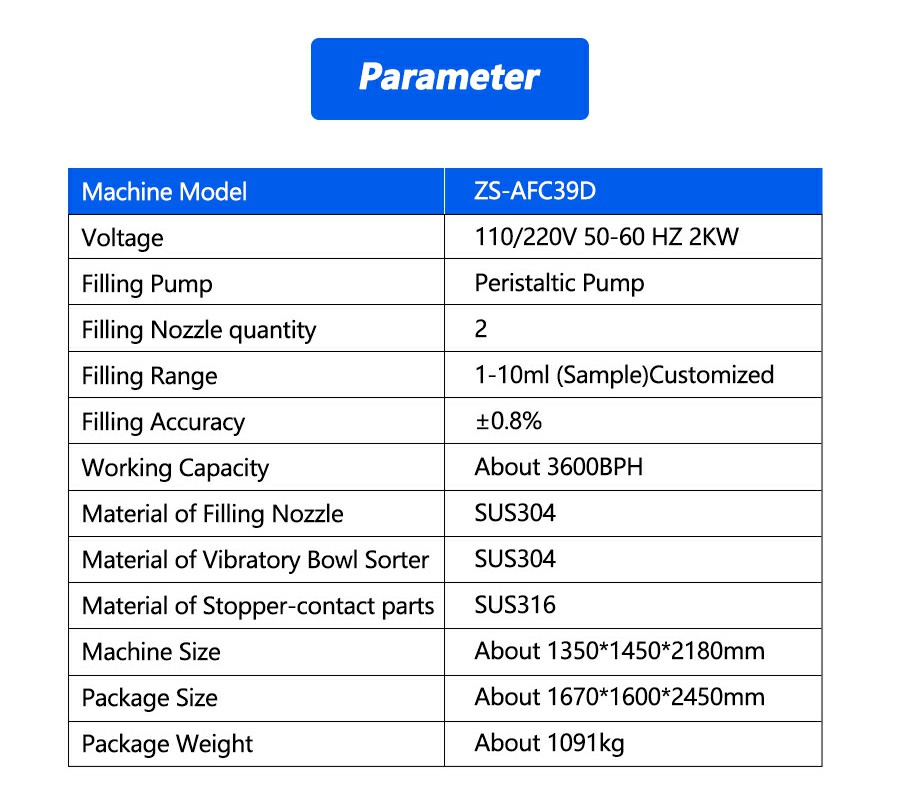

Machine Model | ZS-AFC39D |
| Voltage | 220V/110V 50-60HZ |
Power | 2KW |
| Filling Head Quantity | 2 Heads |
Production Speed | About 3600BPH |
| Filling Pump | Peristaltic Pump |
Filling Range | 1-10ml (Sample, can be customized) |
| Filling Accuracy | ±0.8% |
Material of Filling Heads | SUS304 |
| Material of Vibratory Bowl Feeder | SUS304 |
Material of Stopper-contact parts | SUS316 |
| Machine Size | About 1350*1450*2180mm/ About 53.1*57.1*85.8 inch |
Package Size | About 1670*1600*2450mm/ About 65.7*63.0*96.5 inch |
| Package Weight | About 1091KG |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

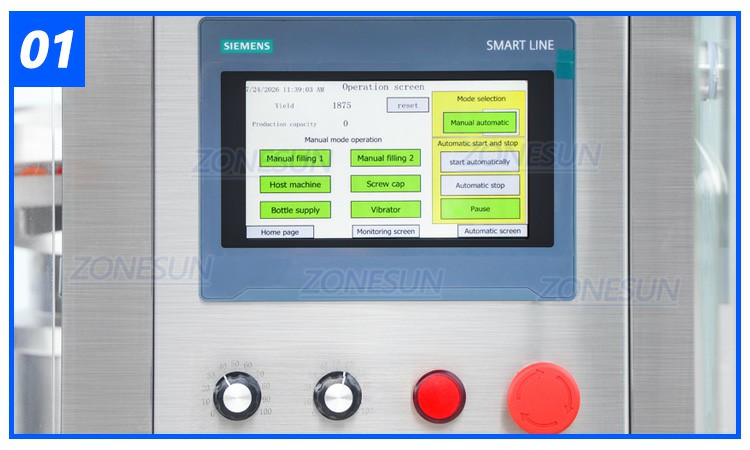

PLC Control & Touch Screen
Smart control system makes it easy to monitor operation and control the machine. The touchscreen can be customized with multiple languages.

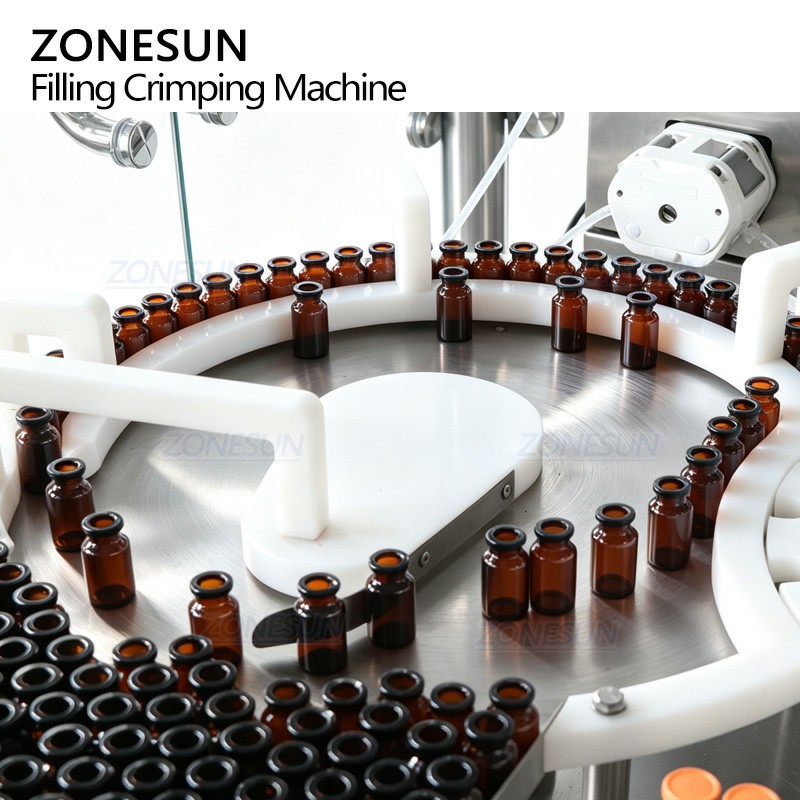

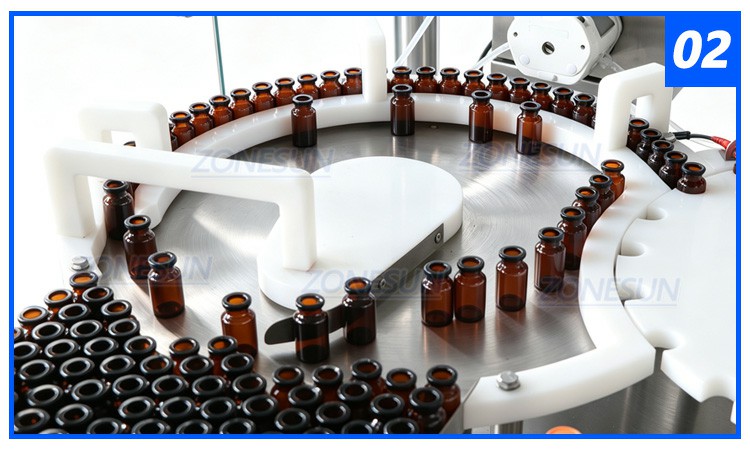

Vial Unscrambling Table
Can automatically arrange and guide the empty vials into starwheel, reducing manual vial handling.

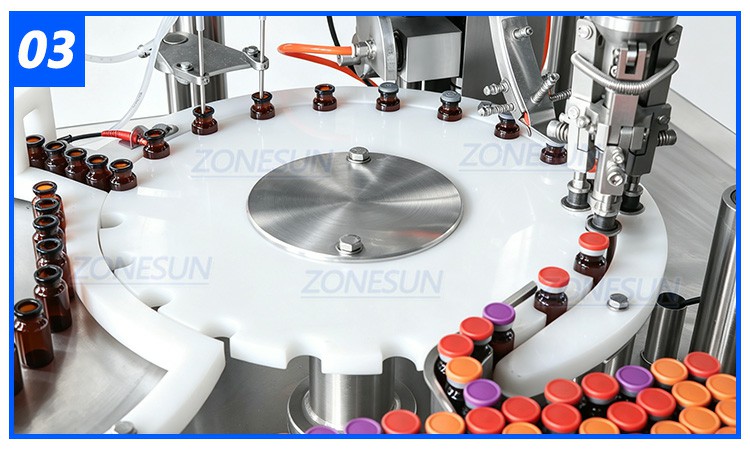

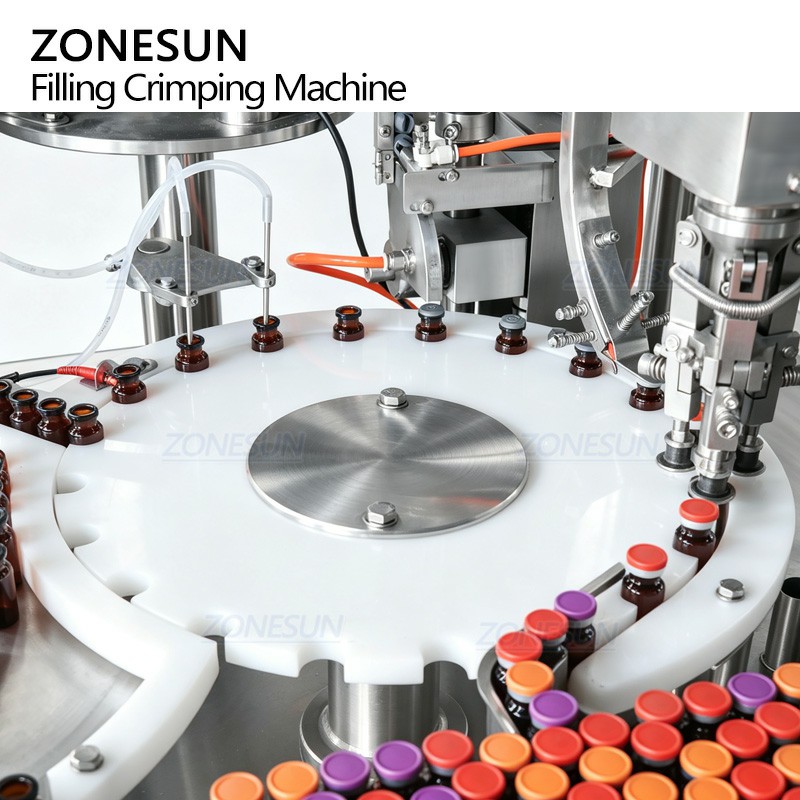

Cam-driven Starwheel System
Cam system allows for accurate vial positioning and transferring, and supports efficient vial filling and capping operation.

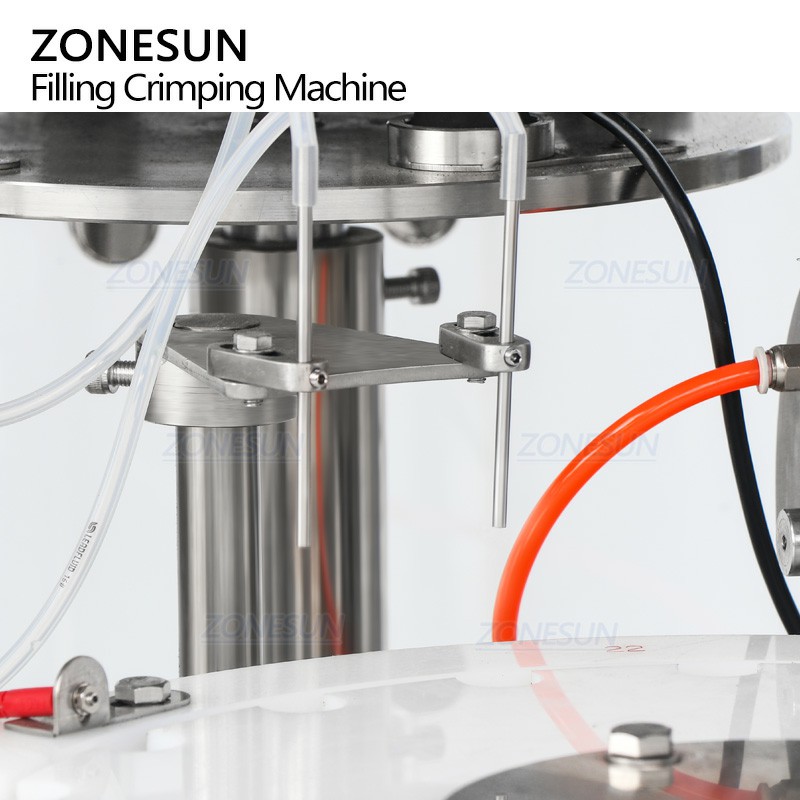

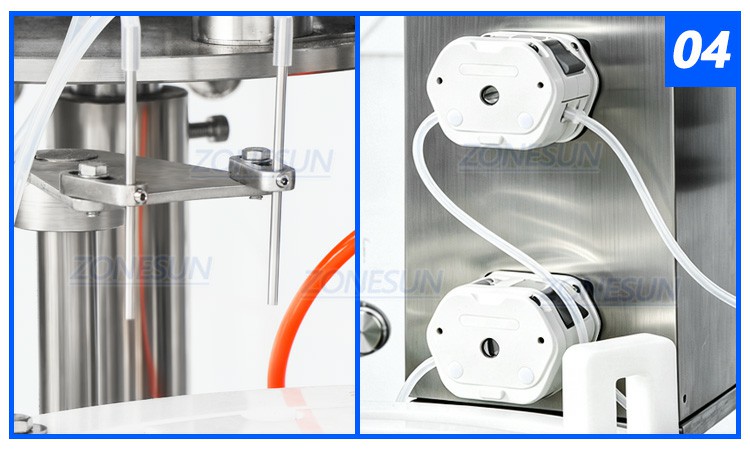

2 Heads Peristaltic Pump Filling System
Peristaltic pumps enable precise liquid dosing and easy tubing change for different liquids. Filling range is customized as needed.

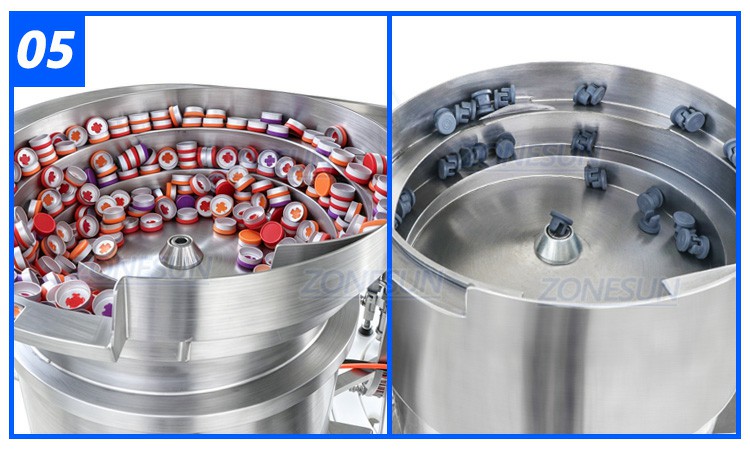

Double Vibratory Bowl Feeders
Capable of feeding rubber stoppers and aluminum caps to loading station. The bowl feeders are customized based on your product size.

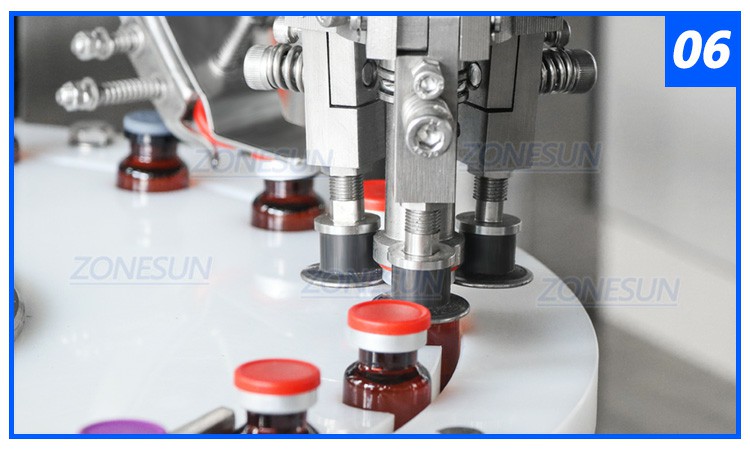

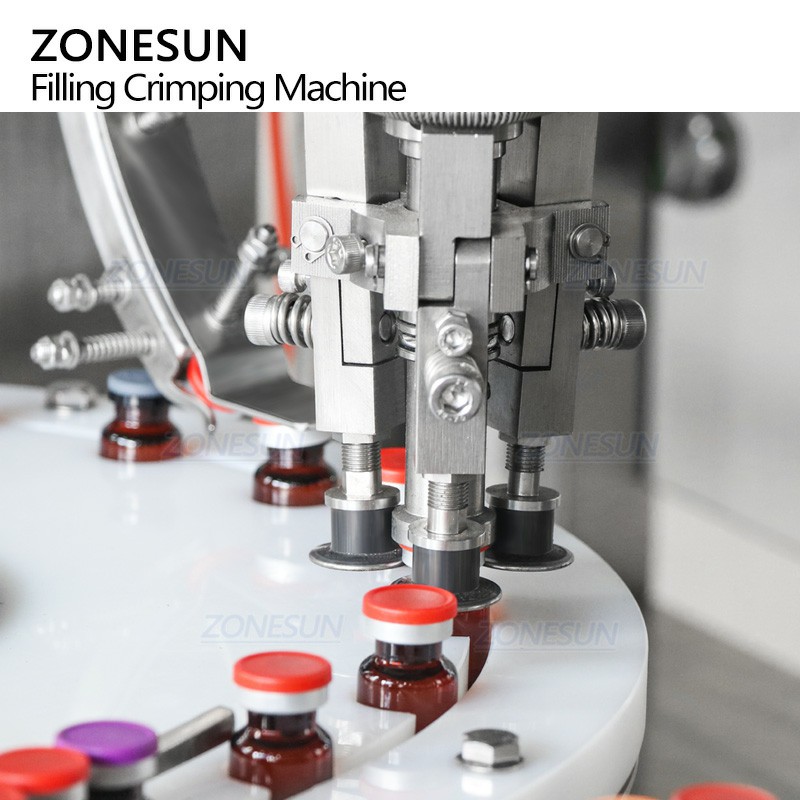

Aluminum Cap Crimping Structure
Spinning capping head can apply controlled pressure to realize uniform and secure vial sealing. Its size and quantity can be customized as production need.

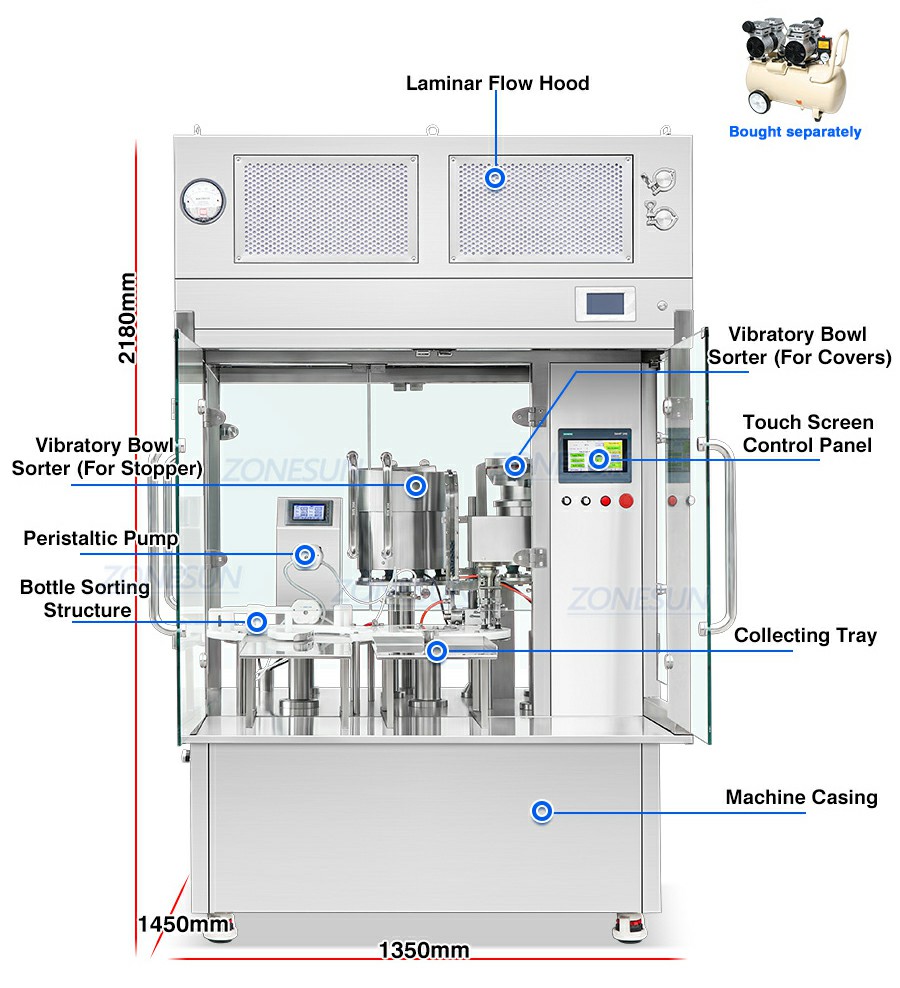

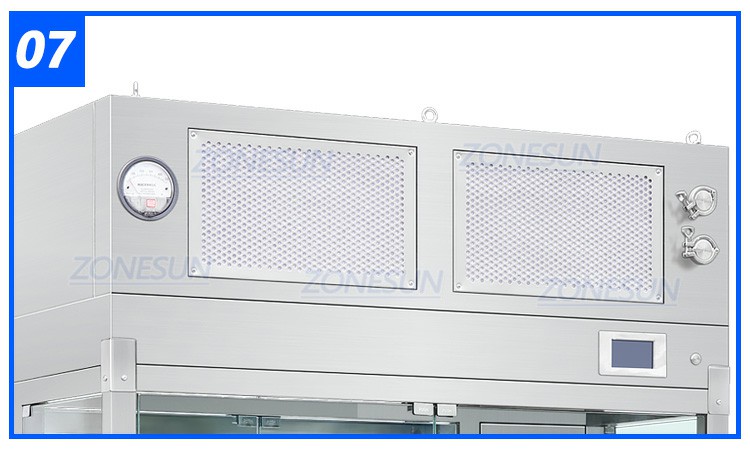

Laminar Airflow System
Can provide filtered clean air over the working area, helping to prevent microbial contamination and maintain a sterile environment for vial production.

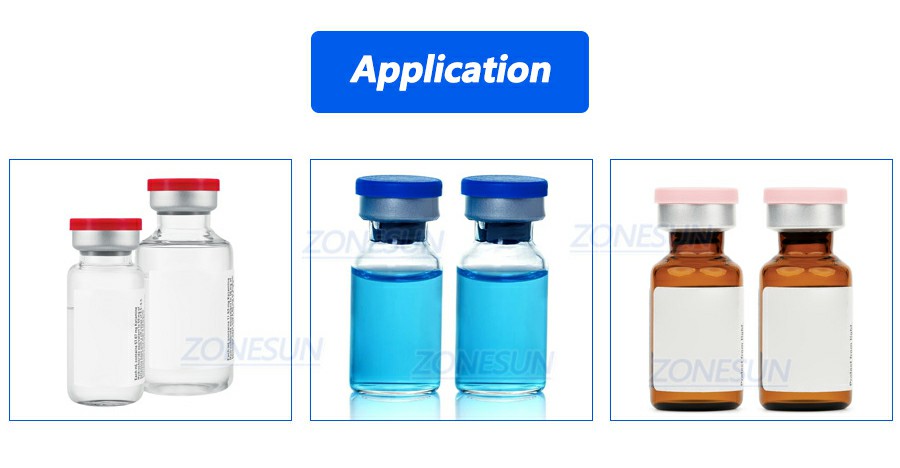

- Applicable Containers: Glass Vials.
- Applicable Bottle Caps: Rubber stoppers and crimp-type caps.
- Applicable Liquids: Injectable medicines, antibiotics, diagnostic samples, biochemical liquids, serums, etc.
- Applicable Industries: Biochemical, pharmaceutical, cosmetic industries.
