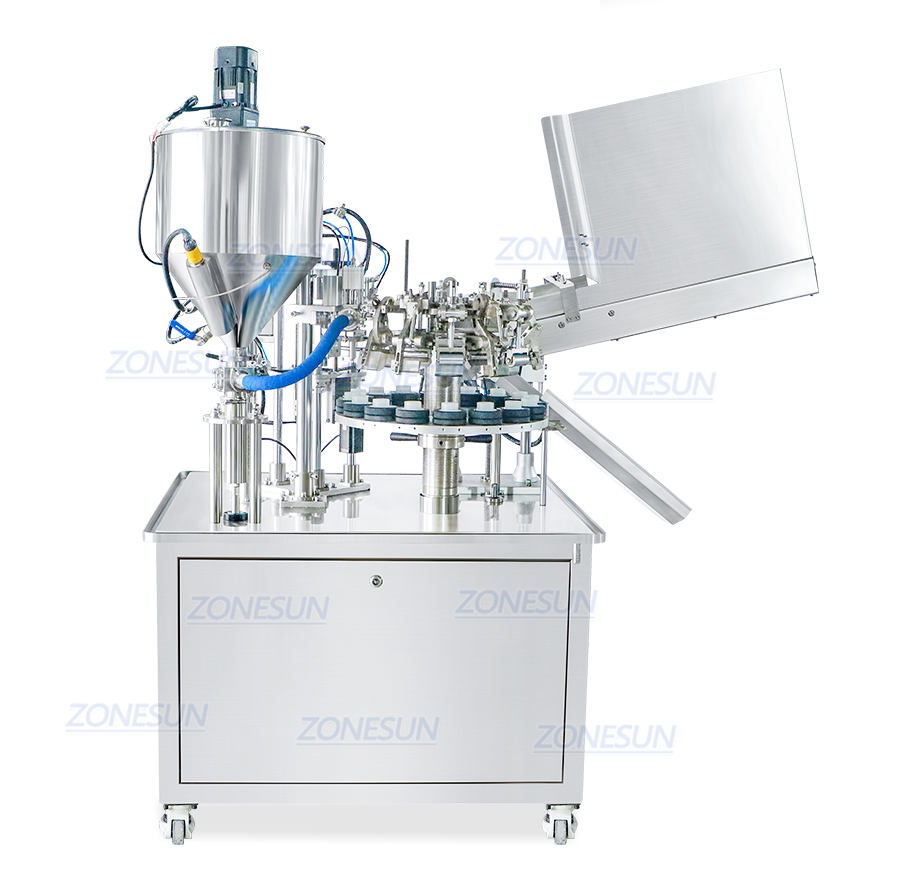

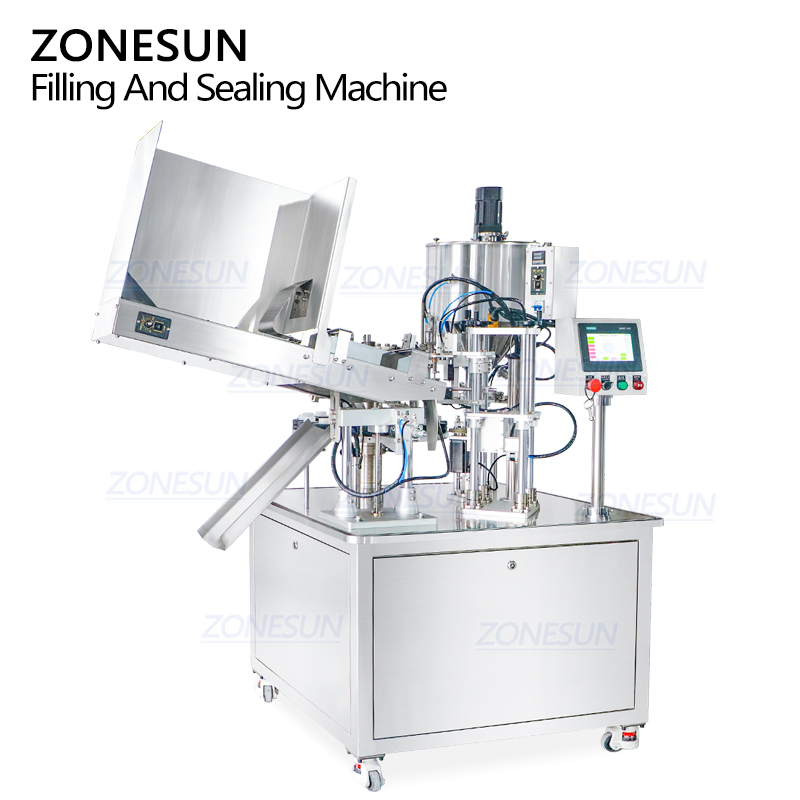

ZS-FS009A Rotary Automatic Ointment Aluminum Tube Filling And Sealing Machine

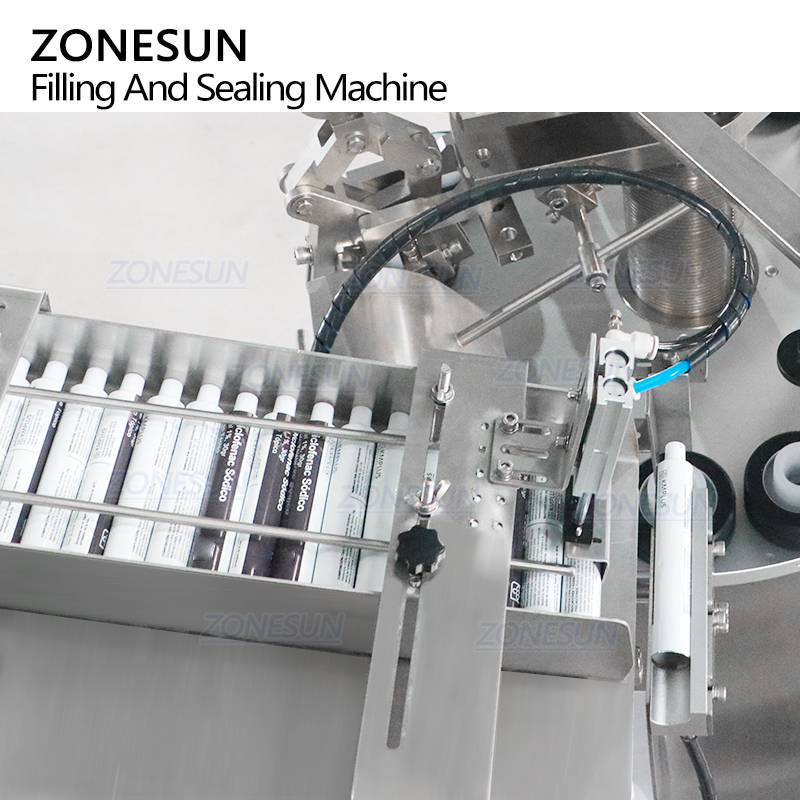

Designed for fully-aluminium tubes, this machine integrates functions of feeding tubes, filling thick liquid or paste, crimping tubes and discharging finished products automatically. Packing speed is 20-50pcs/min. This aluminum tube filling and sealing machine can be customized to suit for your production need.

Share to:

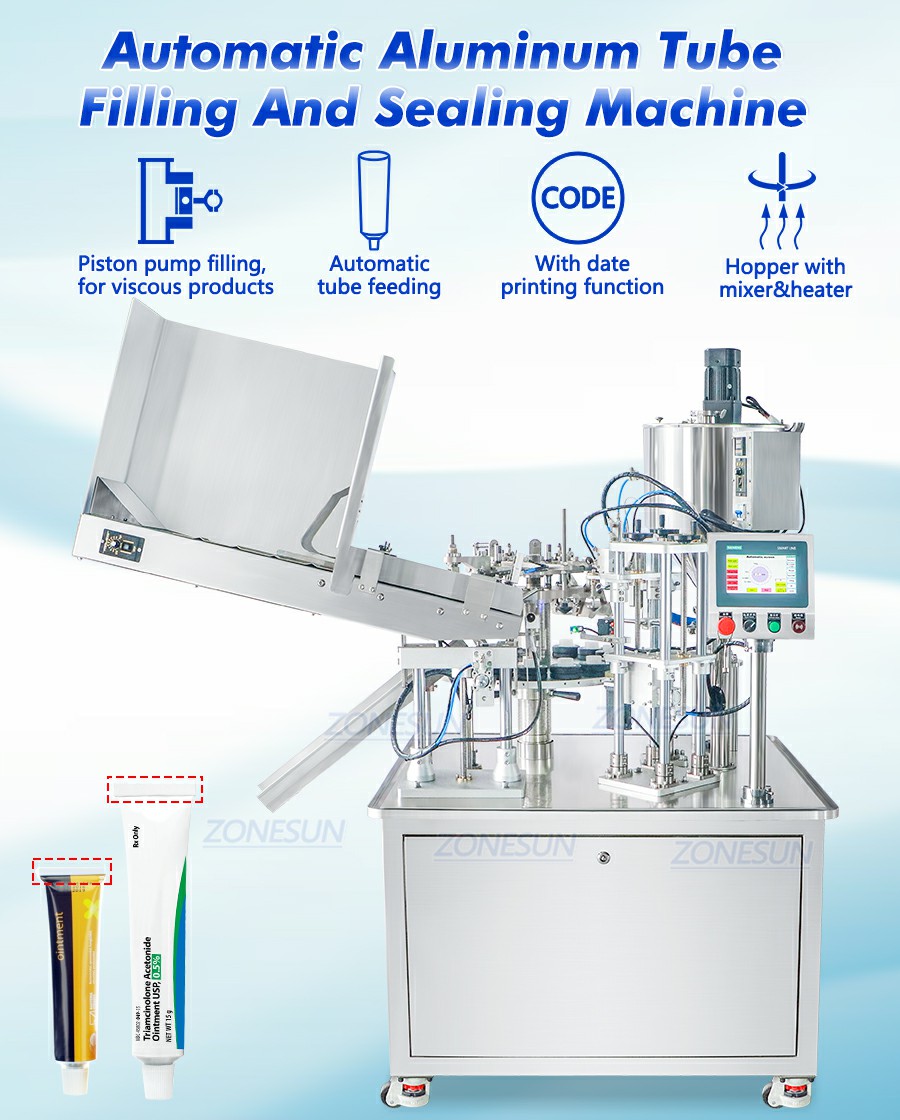

Squeeze Aluminium Tube Filling And Sealing Machine

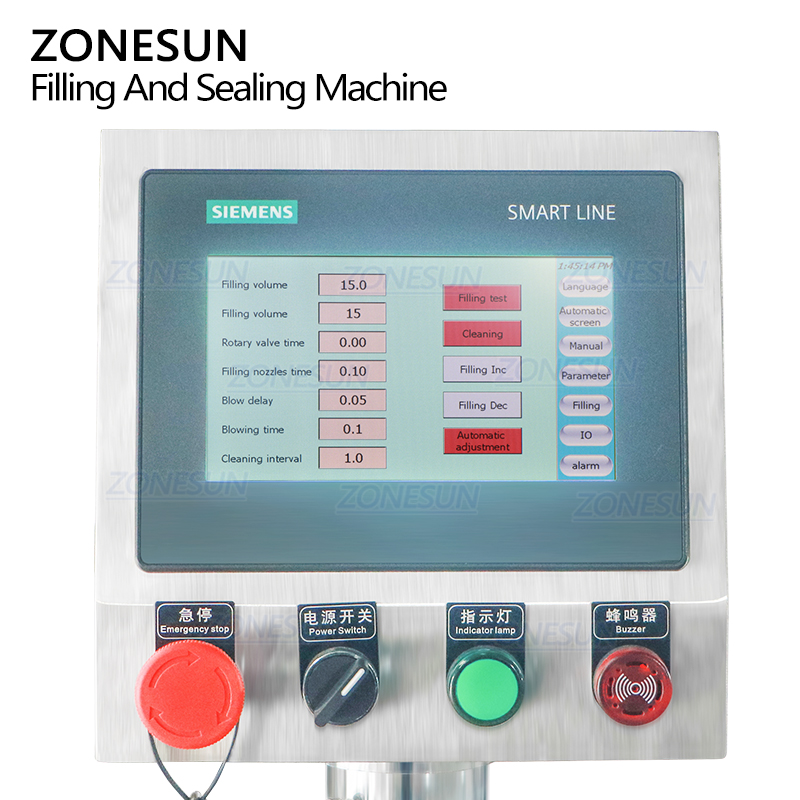

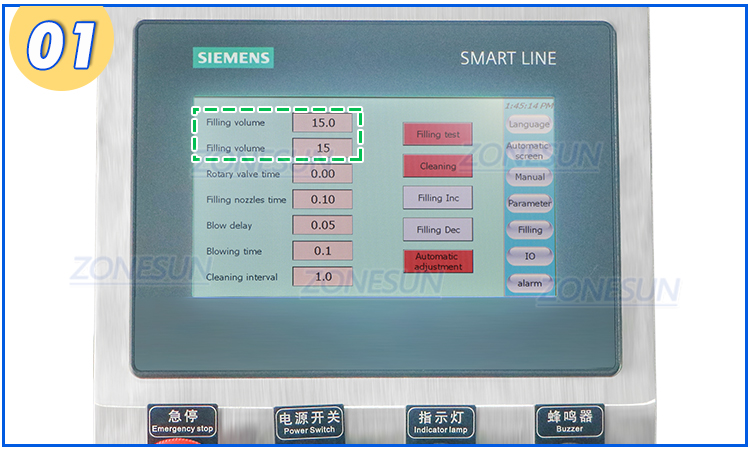

  • Designed with PLC panel, it is more convenient to control and debug the machine. Language of panel can be customized as your need.
  • Driven by piston pump, it is suitable for filling thick liquid or paste like glue. Filling range of the pump can be customized.

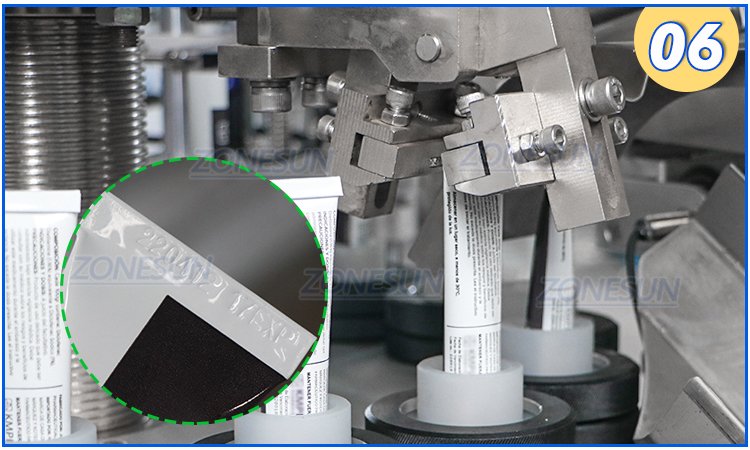

  • The aluminium tube filling and sealing machine can be equipped with letter molds, which can print production date on tubes. Please contact us if you need it.

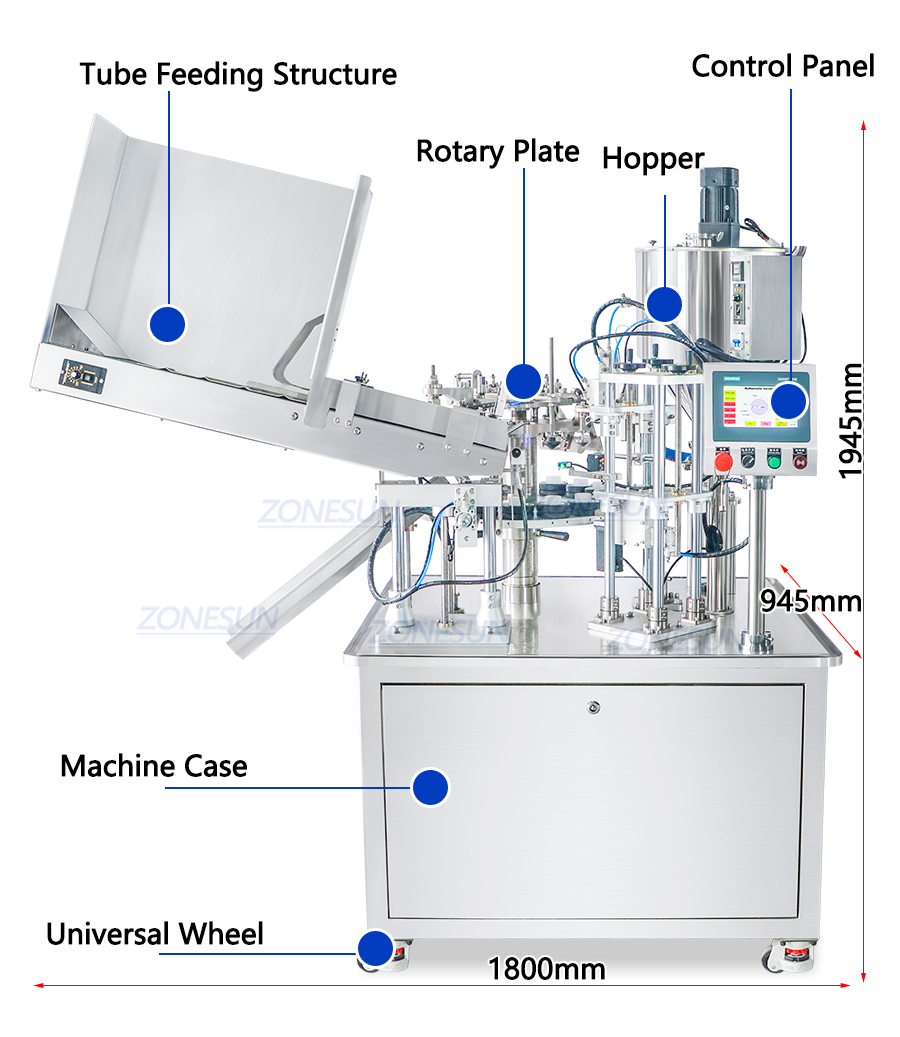

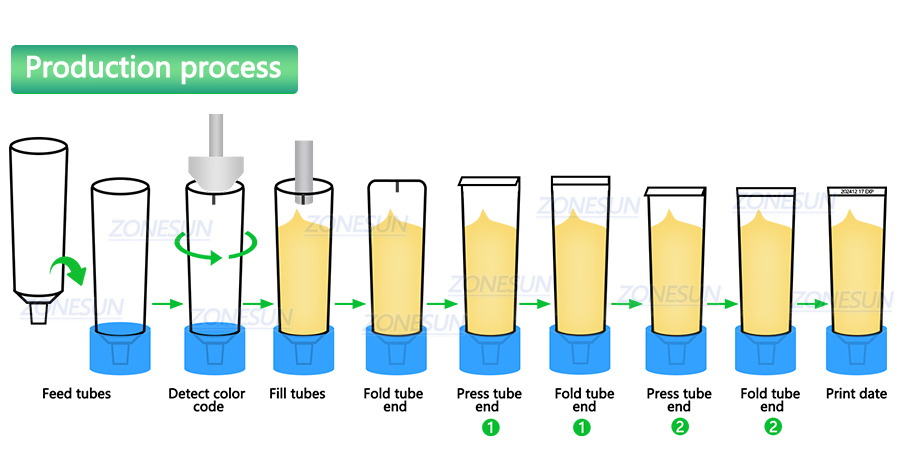

Diagram of aluminum tube filling and sealing machine

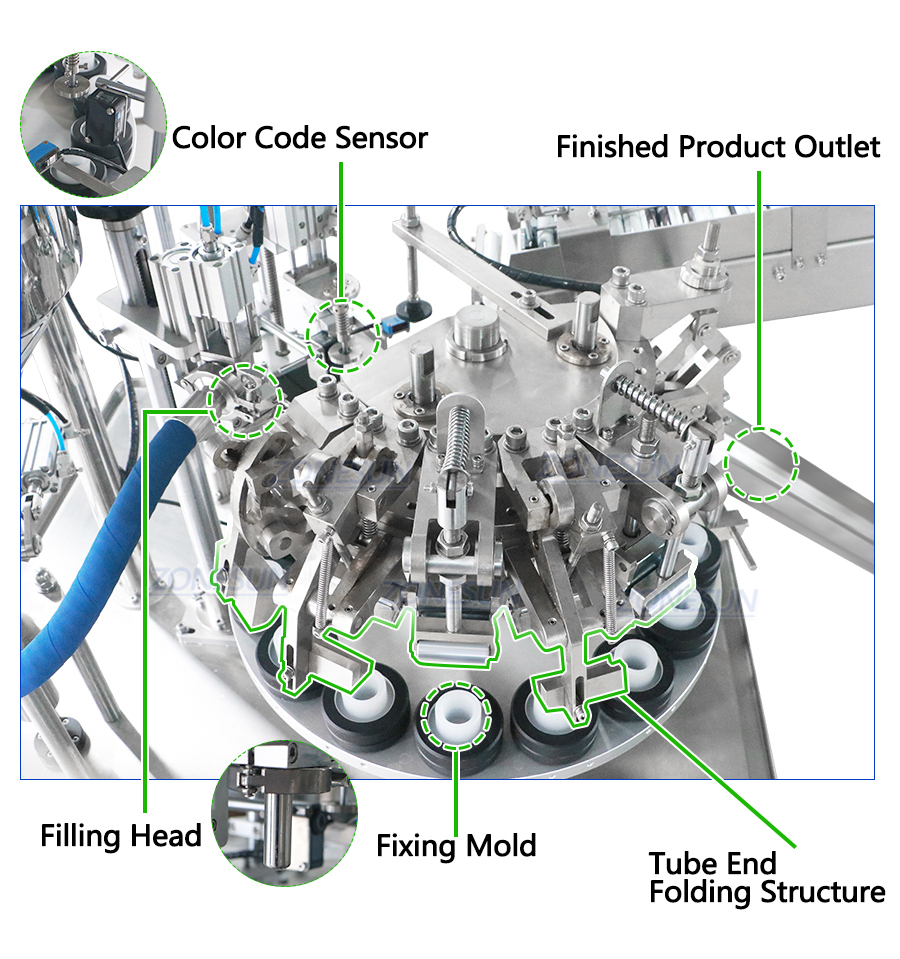

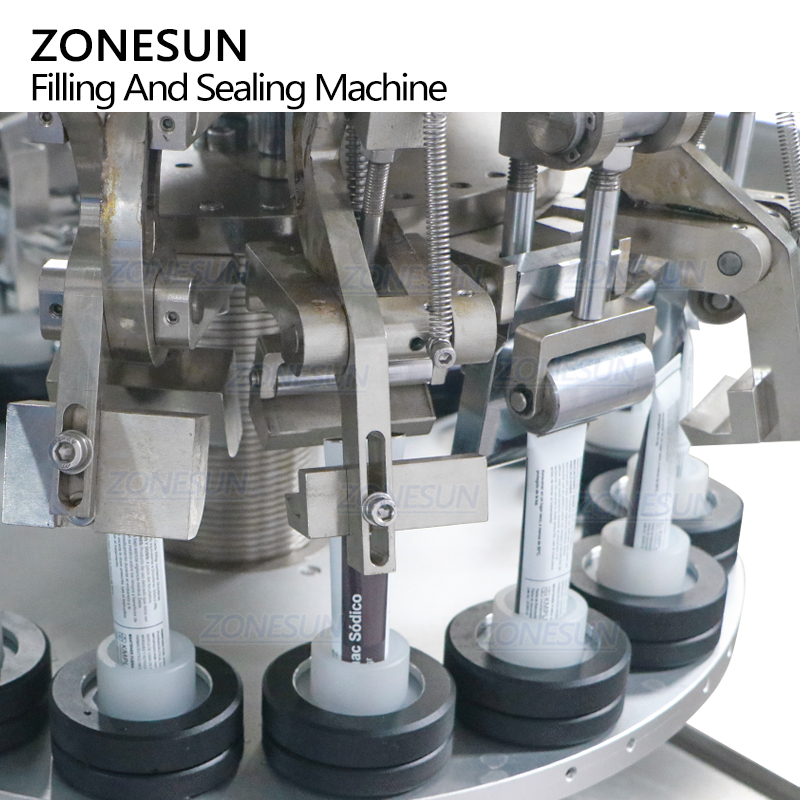

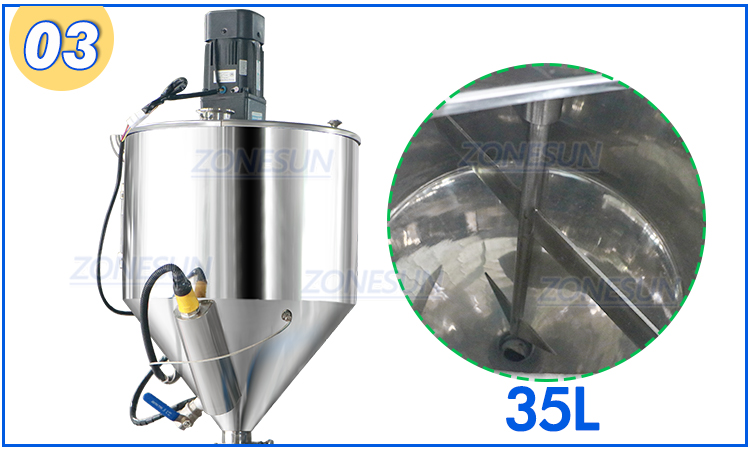

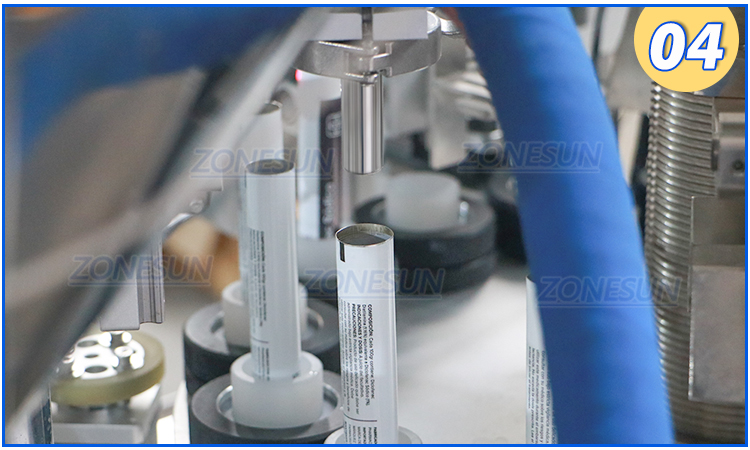

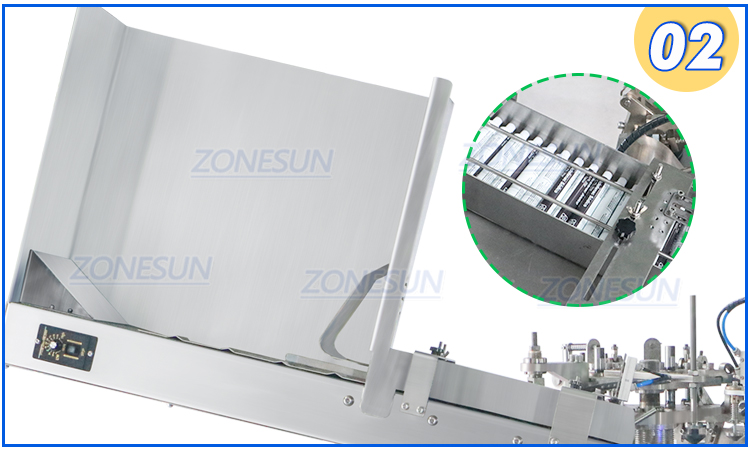

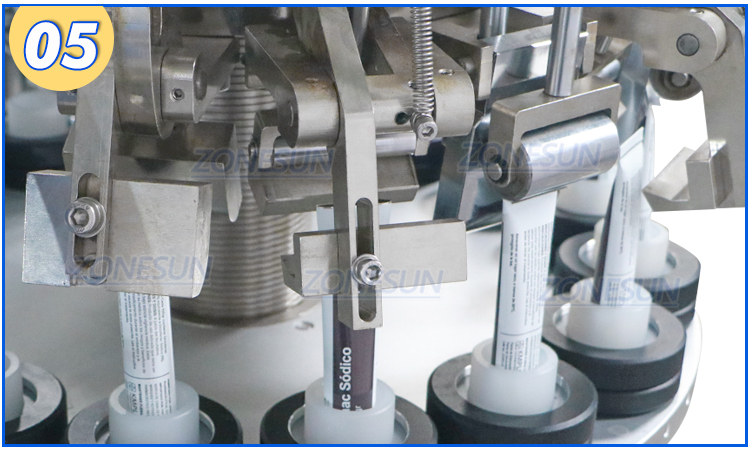

Machine Detail

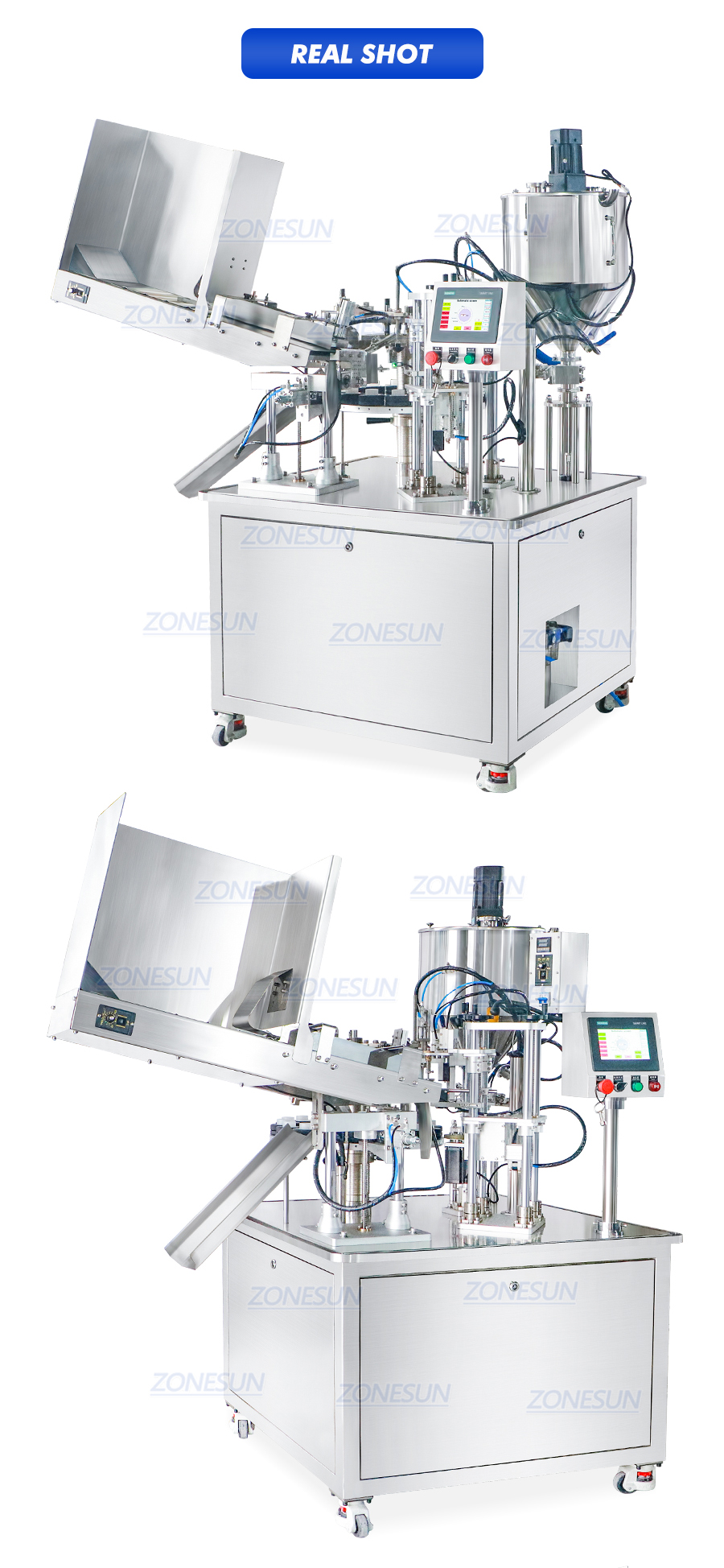

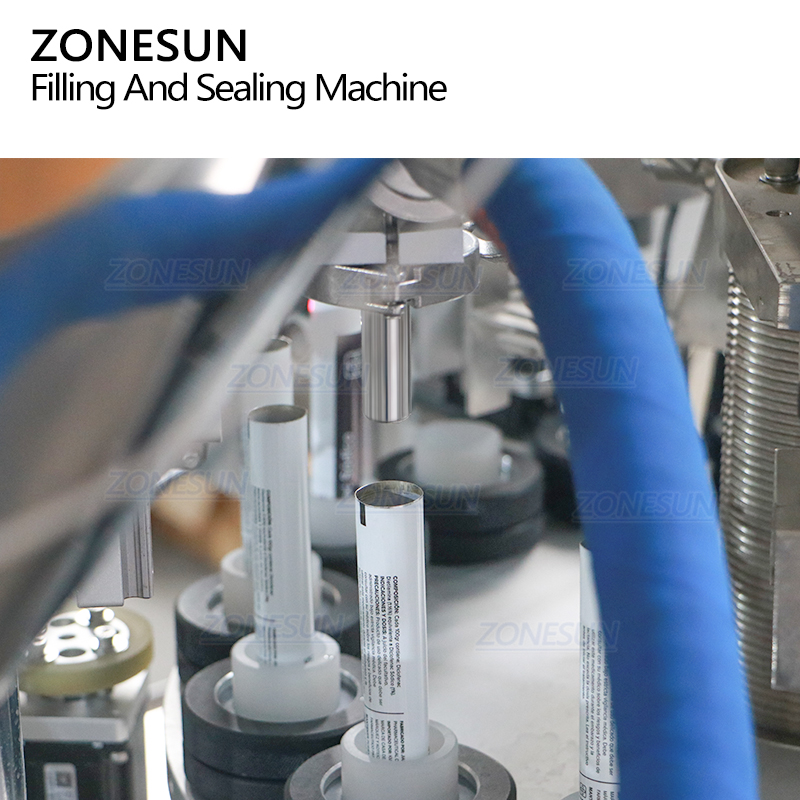

Real Shot

Machine Model ZS-FS009A
Machine Voltage 220/380V 2.6KW
Filling Pump Piston Pump
Working Speed About 20-50pcs/min(depending on tube size)
Filling Volume 6-75ml/20-150ml/50-300ml (Can be chosen as production need)
Filling Accuracy ±1%
Aluminium Tube Length 60-220mm(Can be customized)
Aluminium Tube Diameter φ13-40mm
Air Pressure 0.55-0.65MPa
Machine Size About 2150*950*2000mm
Machine Weight About 600kg



Machine Configuration
Machine Component Brand Origin
PLC INOVANCE China
Photoelectric Sensors Panasonic Japan
Color Mark Sensor Sick/Panasonic Germany/Japan
Relay/Air Switch Delixi/CHINT China
Touchscreen INOVANCE China
Pneumatic Element AirTAC Taiwan, China
Motor Inverter INOVANCE China
  • Applicable Tubes: Fully-Aluminium Collapsible Tubes.
  • Applicable Products: Paint, ointment, grease oil, adhesive glue, toothpaste, etc.
  • Applicable Industries: Medicine, daily chemical, chemical industries.
