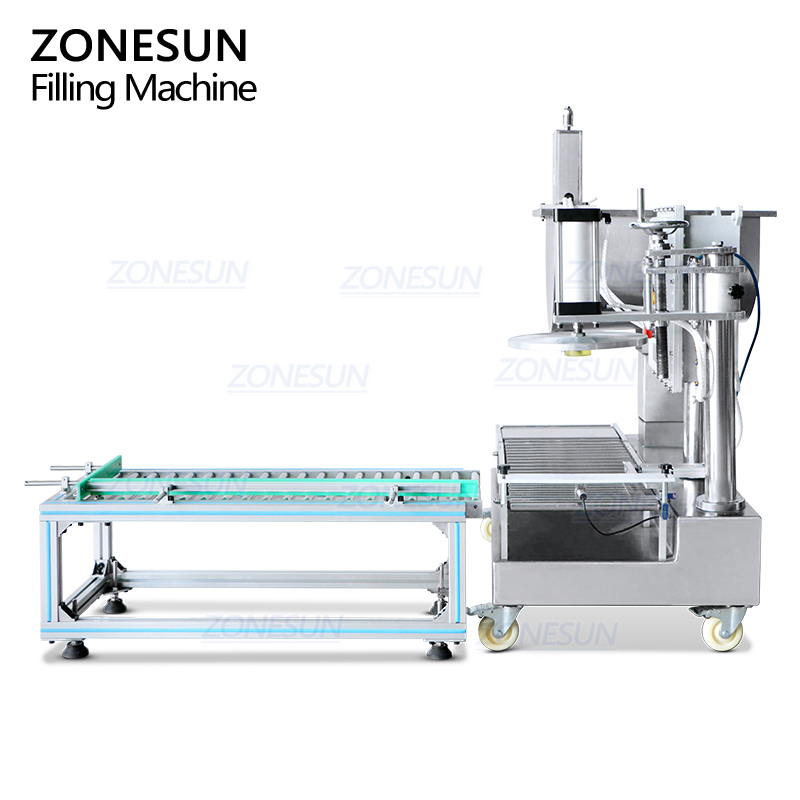

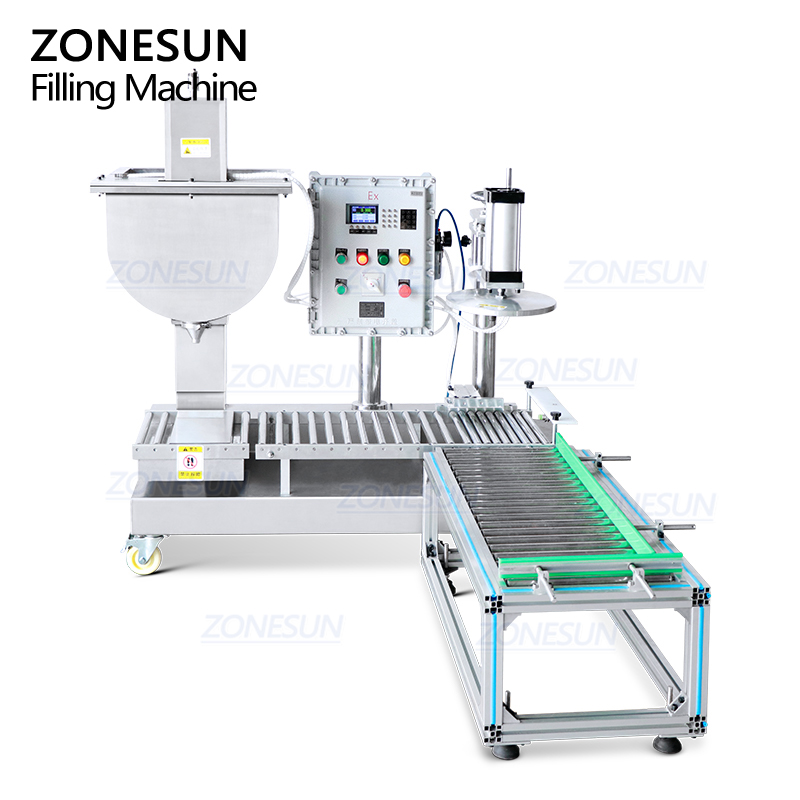

ZS-AFC22 Semi-Automatic Pigment Paint Bucket Filling And Capping Machine

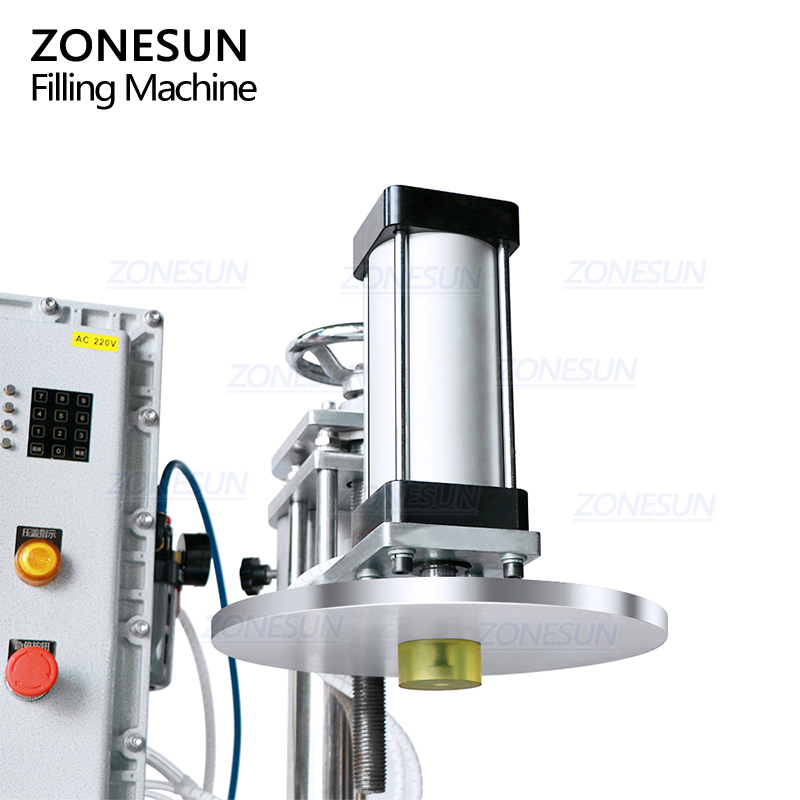

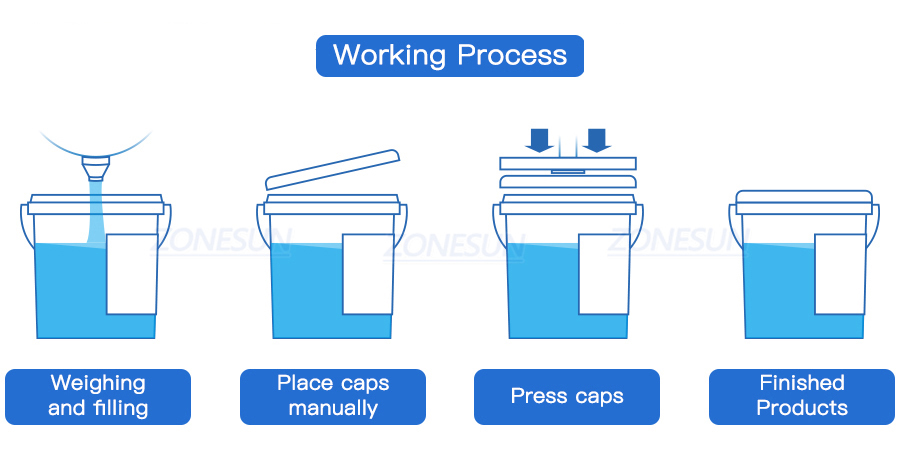

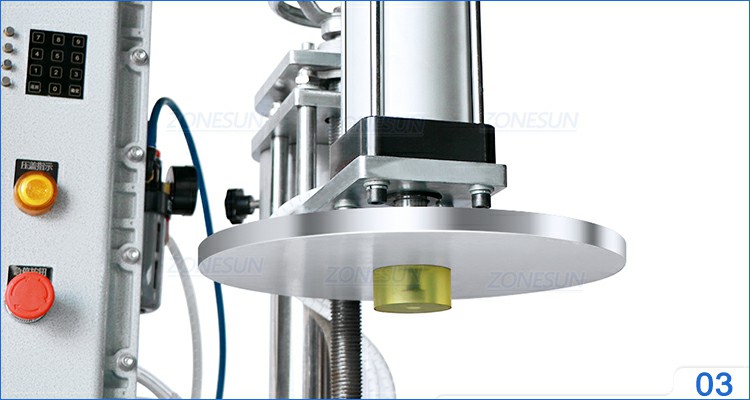

Designed for paint buckets, this machine has functions of filling paint and press covers automatically. Working speed is about 4-6 buckets/min. The machine can be customized to meet your production demands.

Share to:

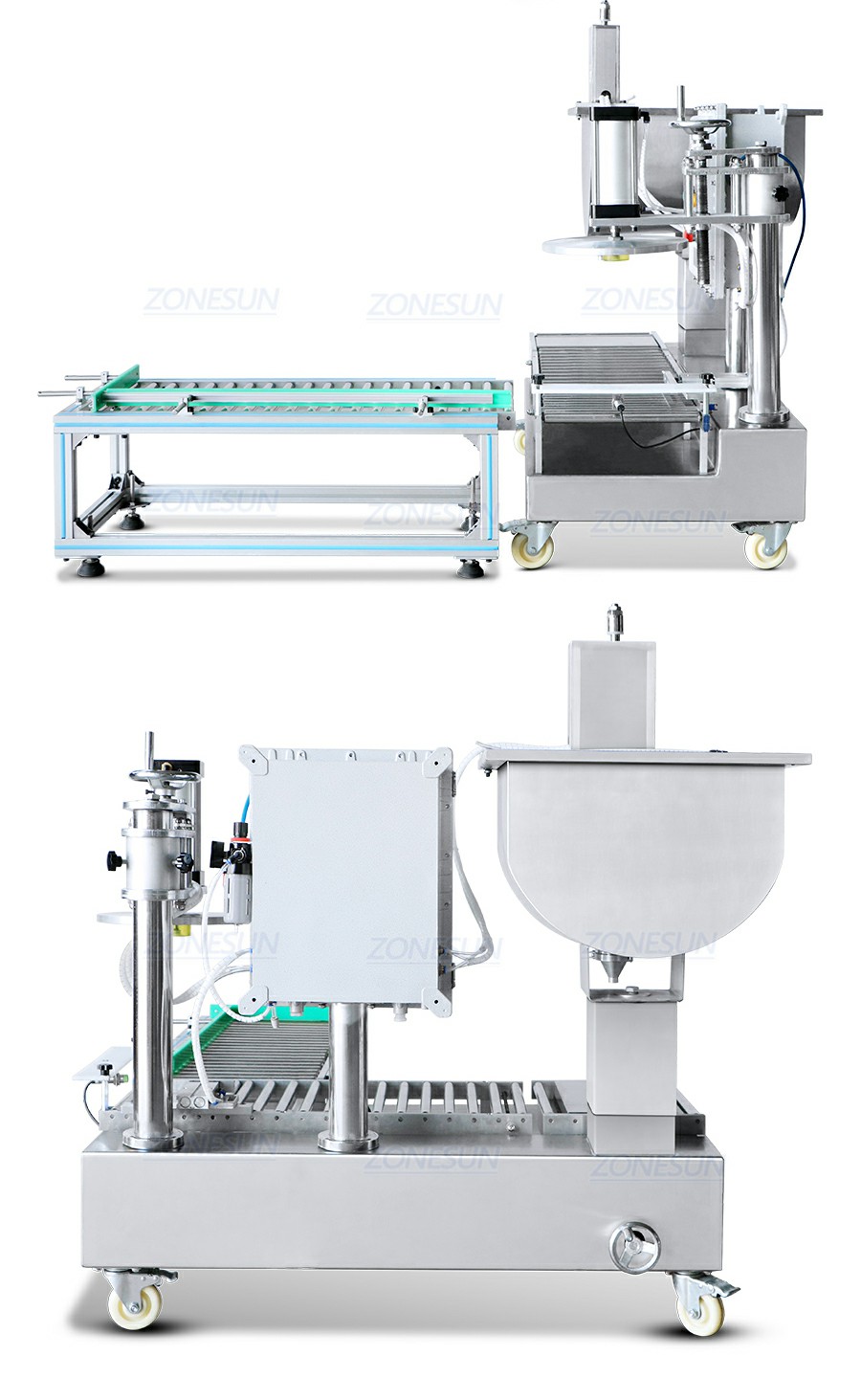

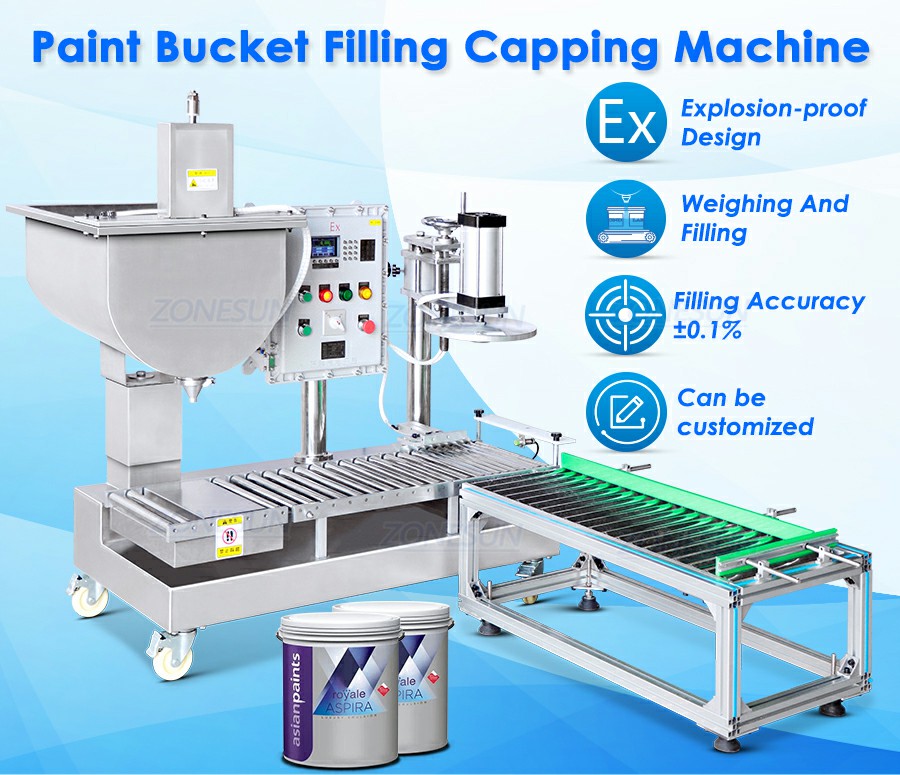

Semi Automatic Paint Bucket Filling Capping Machine


  • The paint filling machine is made in explosion proof design, which can make sure production safety.

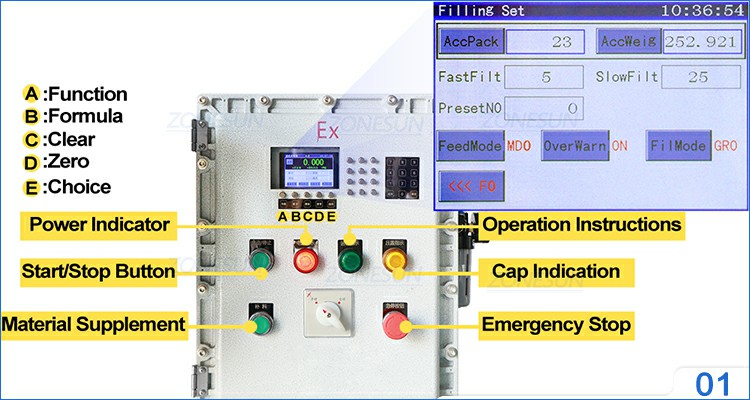

  • Designed with PLC panel, it is convenient to set and debug the machine. The language of panel can be customized.

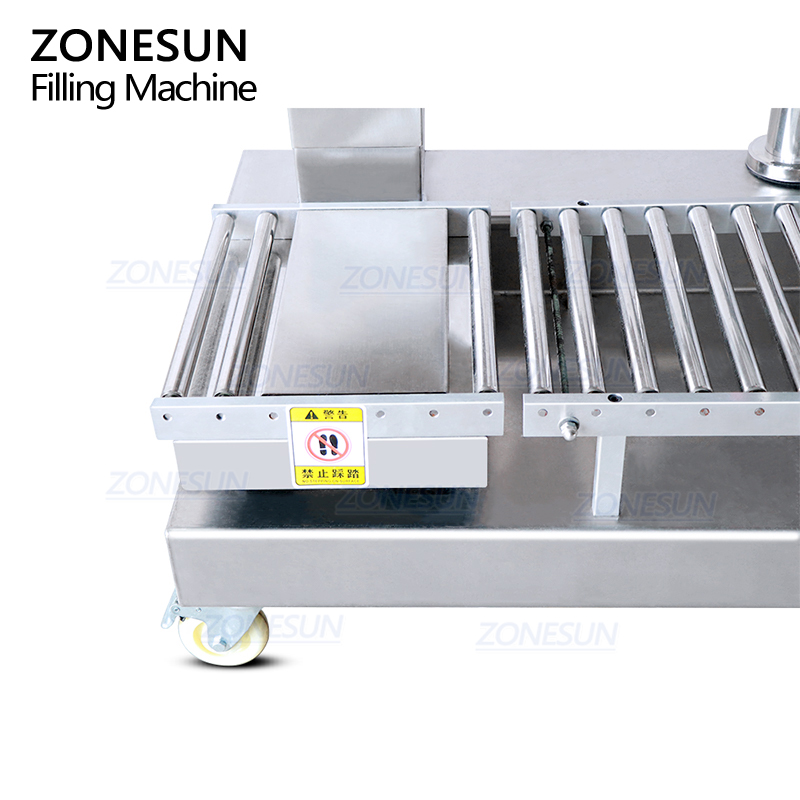

  • The machine is equipped with electronic scale, enabling it to fill paint quantitatively.

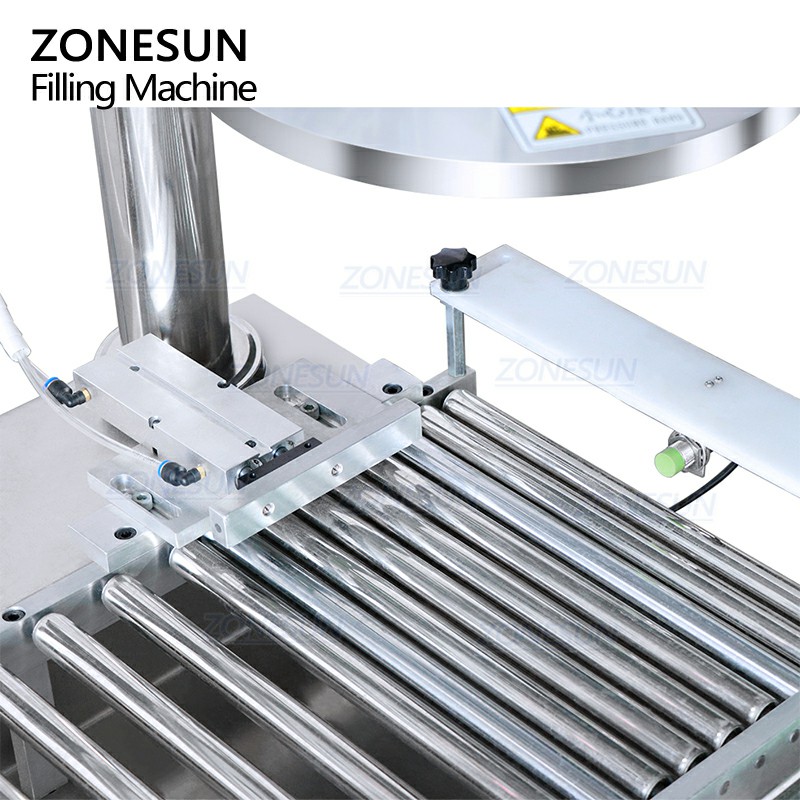

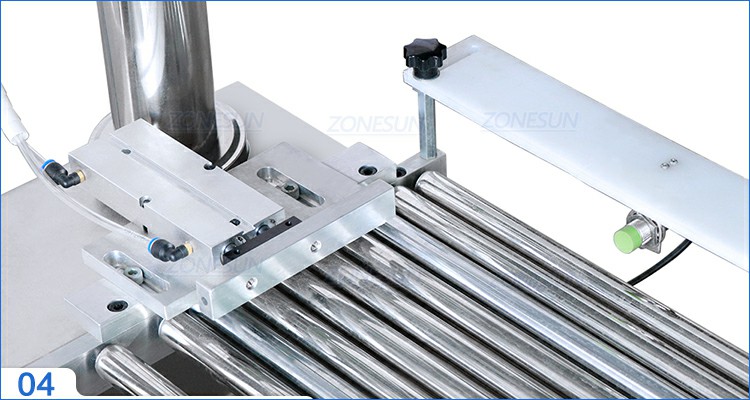

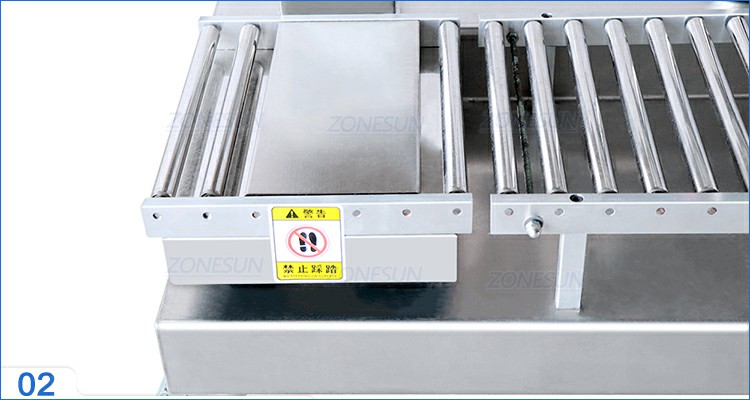

  • Equipped with roller conveyor, it can convey paint buckets well, saving labor.

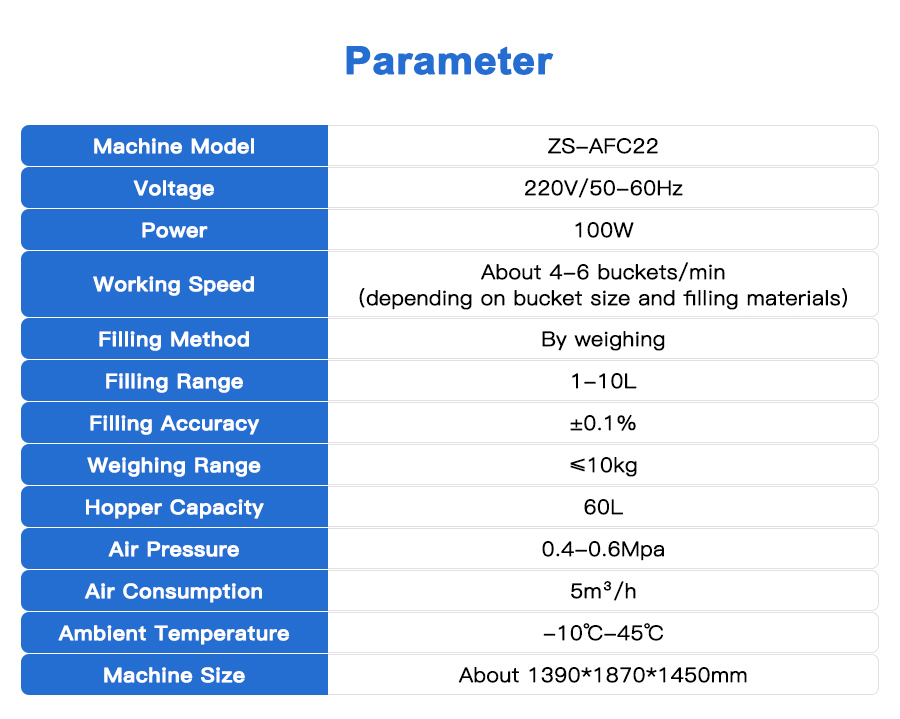

Machine Model ZS-AFC22
Voltage 220V/110V 50-60Hz
Power 100W
Filling Pump Diagram Pump
Working Speed About 4-6 buckets/min(depending on bucket size)
Filling Range 1-10L
Filling Accuracy ±0.02g
Weighing Range ≤10kg
Hopper Capacity 60L
Air Pressure 0.4-0.6MPa
Air Consumption 5m³/h
Ambient Temperature -10℃-45℃

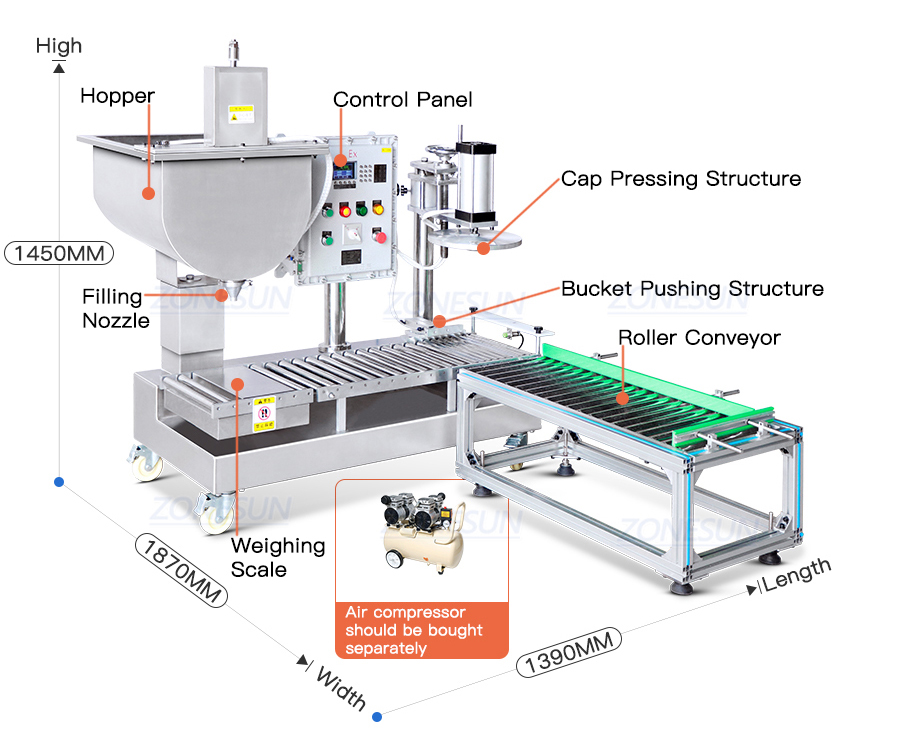

Machine Size About 1200*650*1450mm
Machine Weight About 100kg
  • Applicable Products: Paint, pigment, etc.
  • Applicable Industries: Daily chemical, industrial industries.
