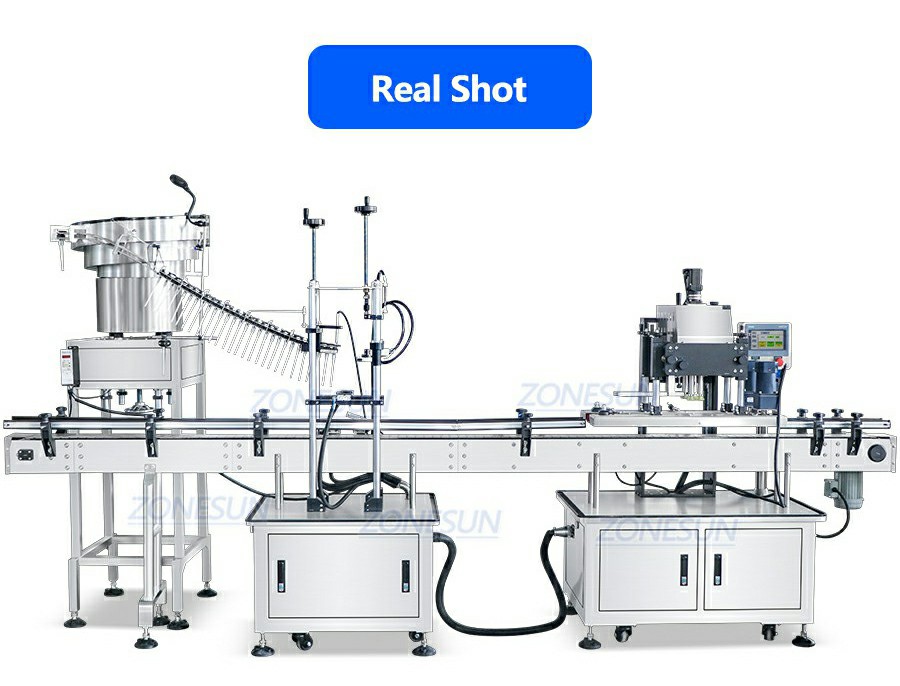

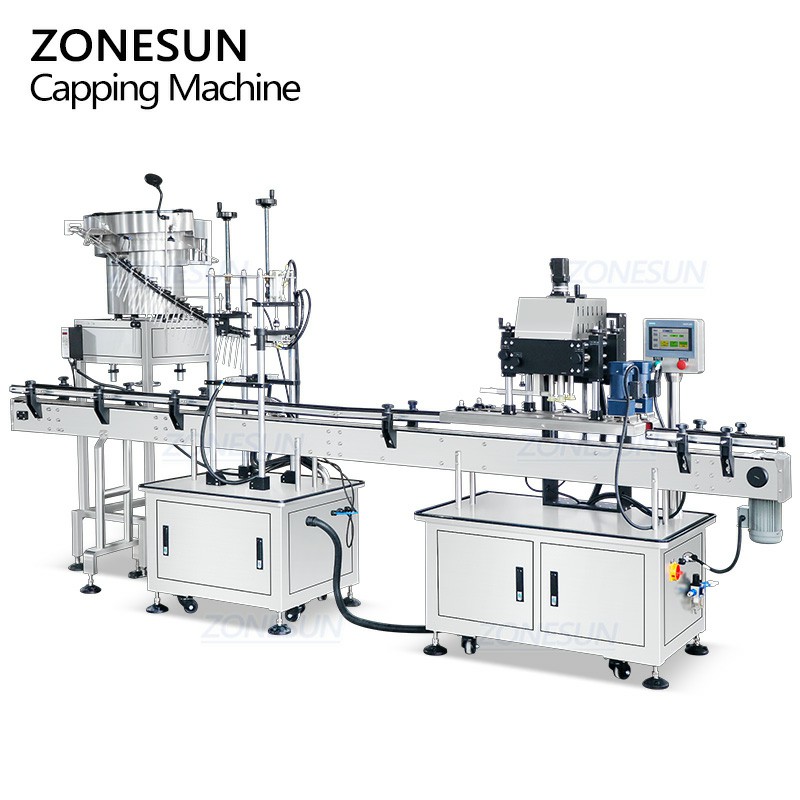

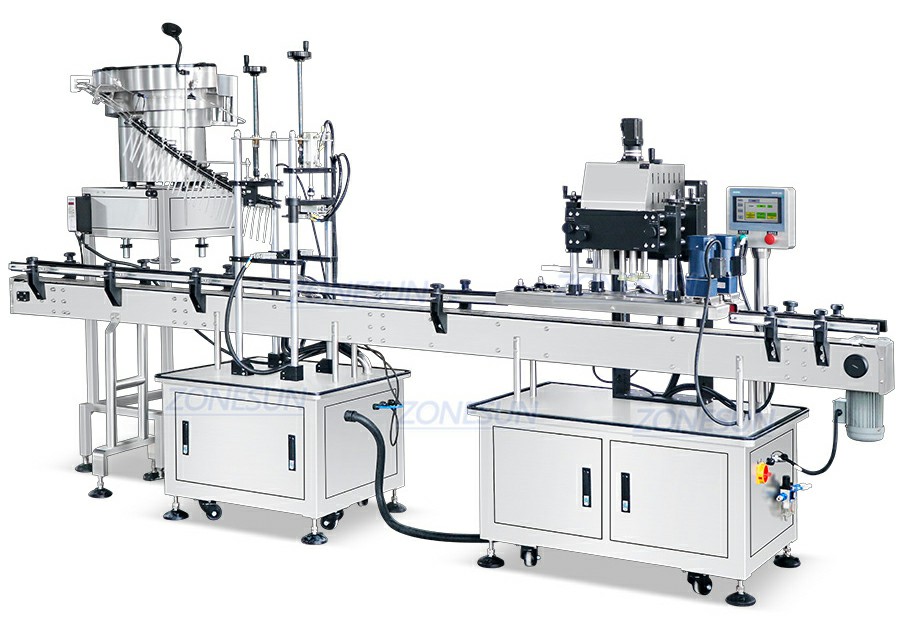

ZS-XG24 Servo Automatic Gel Hand Wash Capping Machine With Cap Feeder
🎄 Capable of feeding, loading and screwing pump caps.
🎄 Servo capping system, output is 900-1500BPH.
🎄 With vibratory bowl feeder to feed the caps orderly.
🎄 Preset settings can be saved for quick product switching.
🎄 Machine is customized based on your product size.
🎄 Machine can work with filling and labeling machine.
Video
Share to:
Description of the Servo Automatic Gel Hand Wash Capping Machine:

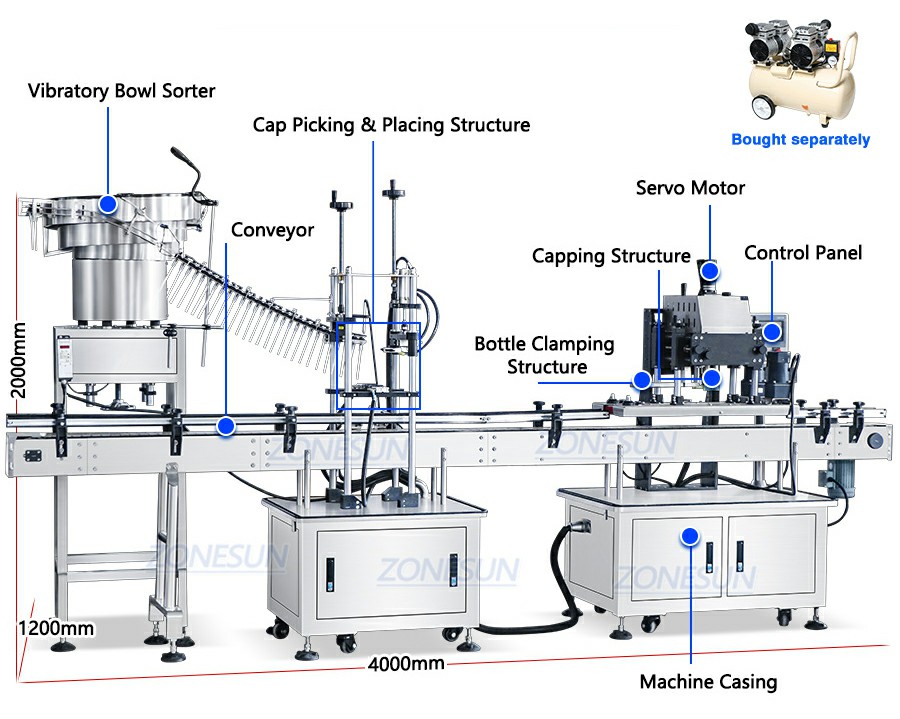

The ZS-XG24 model can realize automatic feeding and screwing of pump caps. Controlled by servo motor, the capping system can apply consistent torque and achieve accurate capping. With bowl feeder, it can arrange and feed the pump caps orderly. The model is also equipped with guide housing, ensuring the dip tubes align with bottle mouth and realizing accurate cap placing. This machine can be adjusted to handle different bottle sizes. The hand wash bottle capping machine can be connected with other packaging machines to complete automated production.

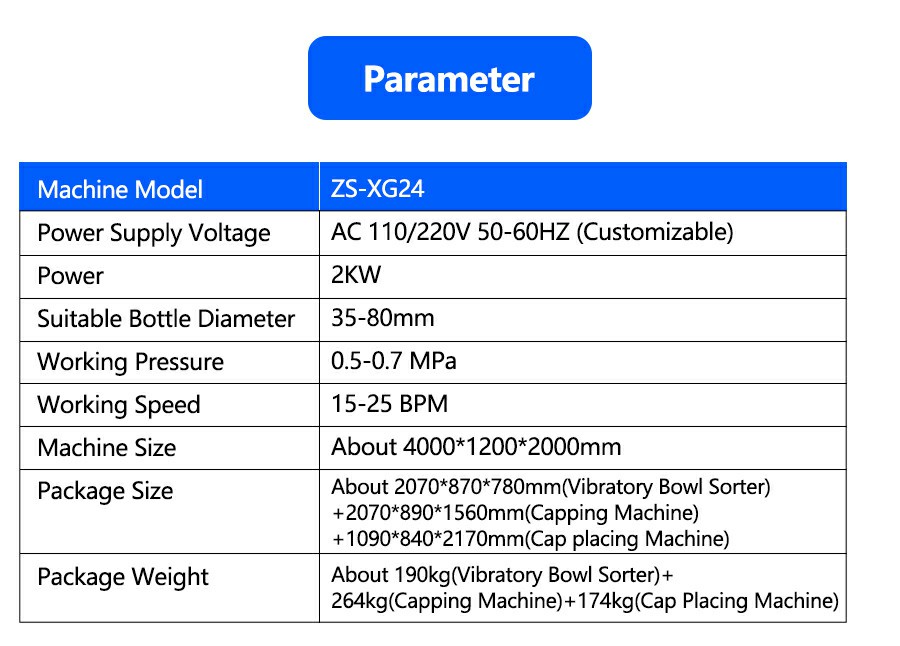

Machine Model | ZS-XG24 |
| Machine Voltage | AC 220V/110V 50-60HZ |
Power | 2KW |
| Production Capacity | About 15-25 bottles/min(depending on bottle and cap size) |
Applicable Bottle Diameter | 35-80mm |
| Applicable Cap Size | Can be customized |
Air Pressure | 0.5-0.7MPa |
| Machine Size | About 4000*1200*2000mm |
Package Size | About 2070*870*780mm(Bowl Feeder) +1090*840*2170mm(Cap Placing Machine) +2070*890*1560mm(Capping machine) |
| Package Weight | About 190KG(Bowl Feeder) +174KG(Cap Placing Machine) +264KG(Capping Machine) |
❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

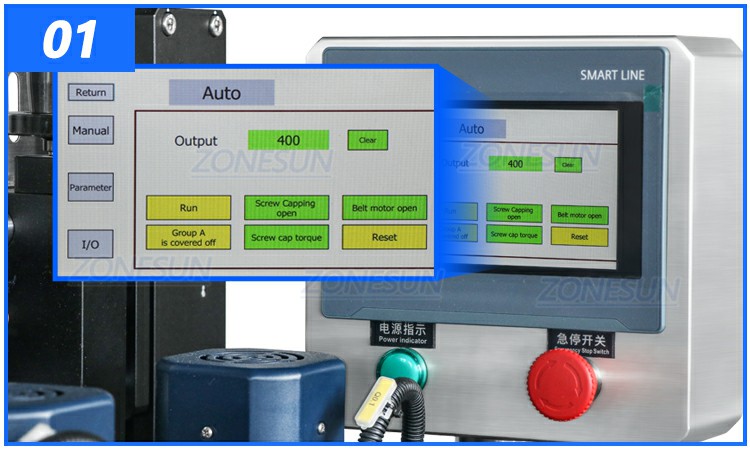

Touchscreen Interface
Can intuitively show operation status and enable easy settings adjustment. The language of interface can be customized as needed.

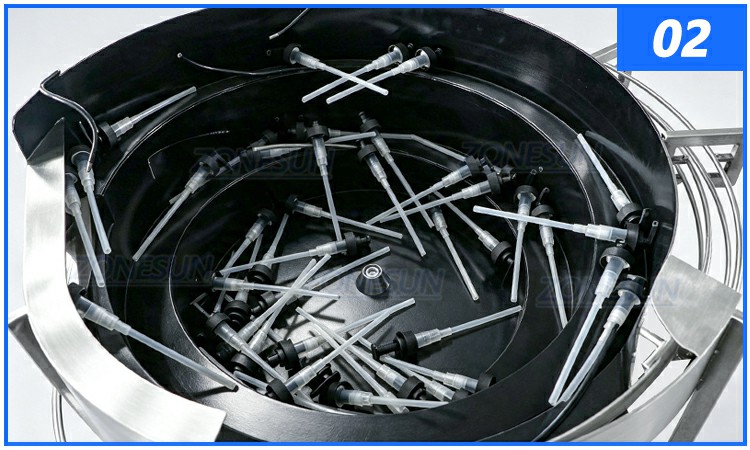

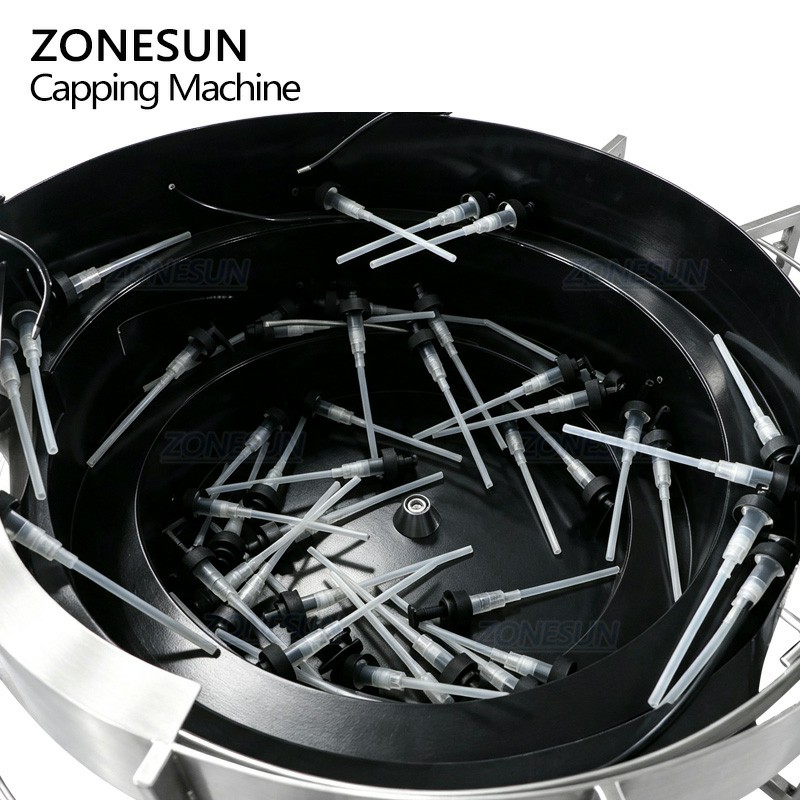

Vibratory Bowl Feeder
Can continuously arrange and feed the pump caps to loading station. The bowl feeder is customized based on cap size.

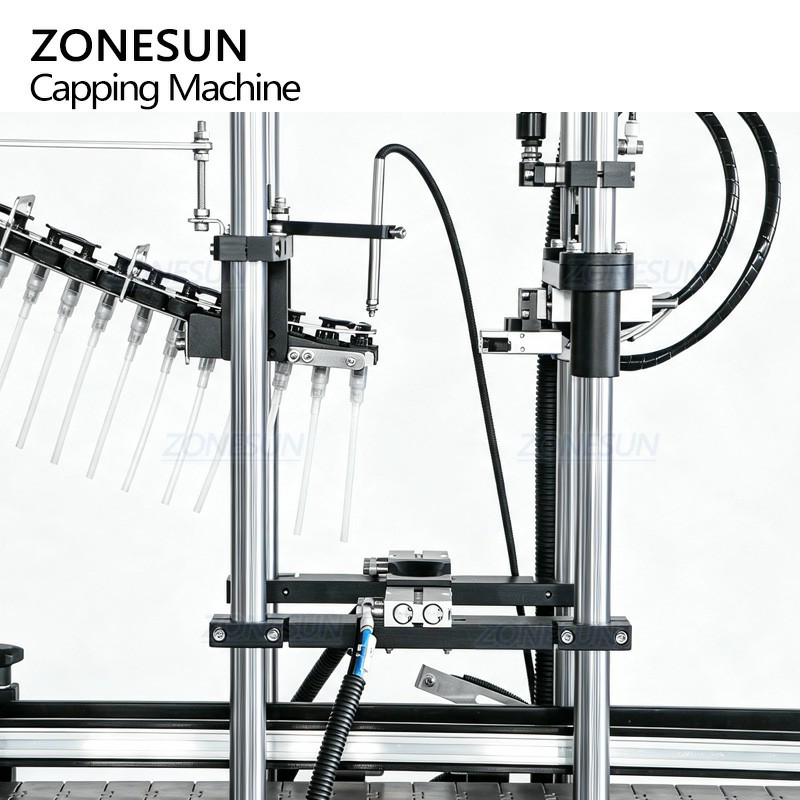

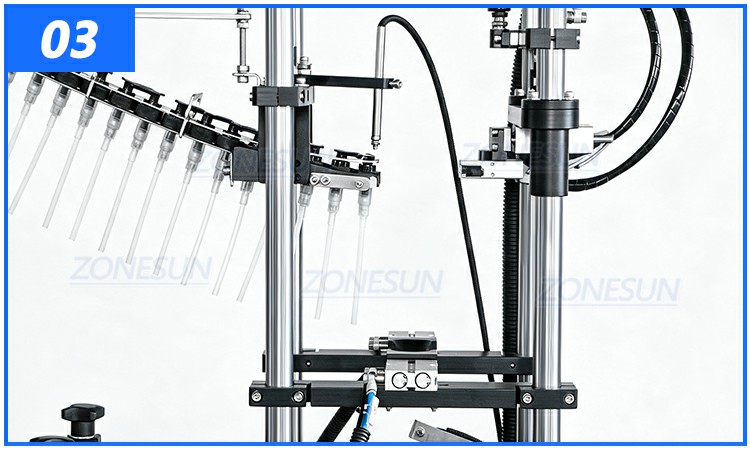

Cap Guiding & Loading System
Capable of loading pump caps to bottles automatically. With guide housing, it can realize accurate cap placement.

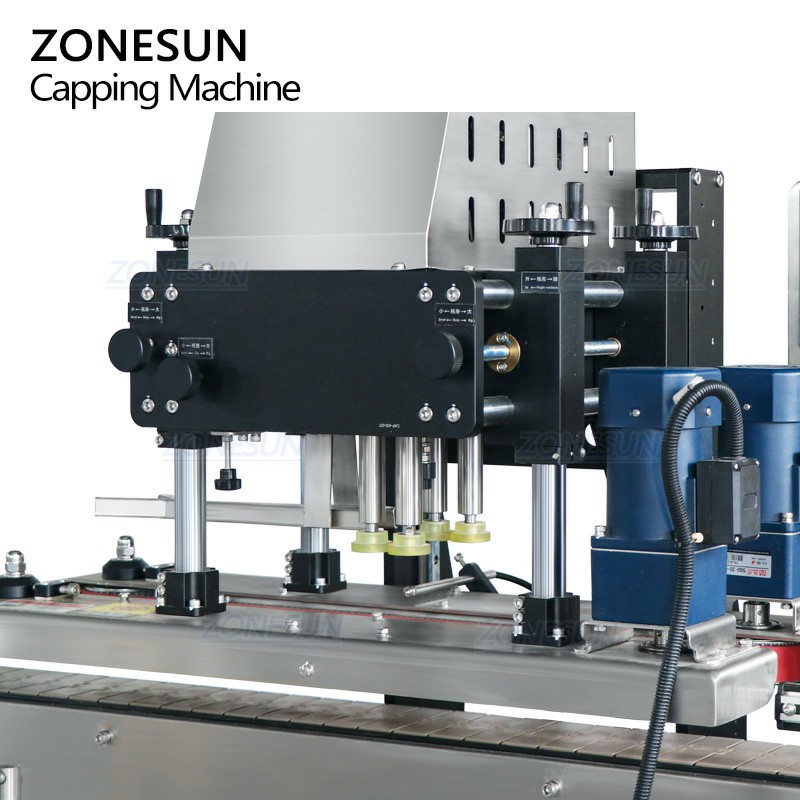

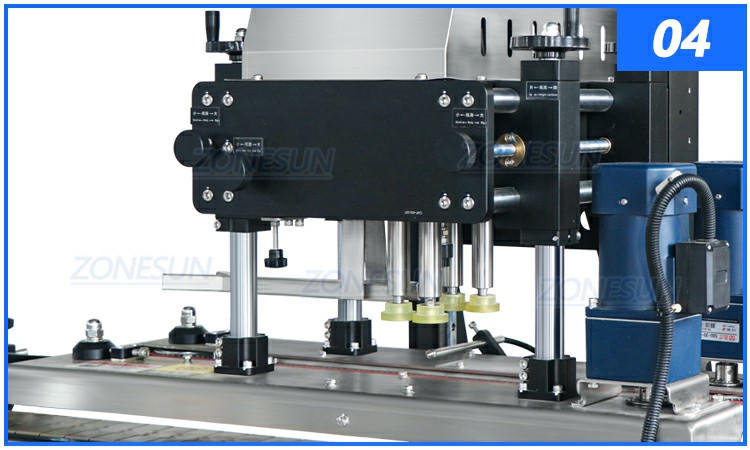

Servo Capping System
Servo motor offers consistent and precise torque control. Capping torque and speed are adjustable as production need.

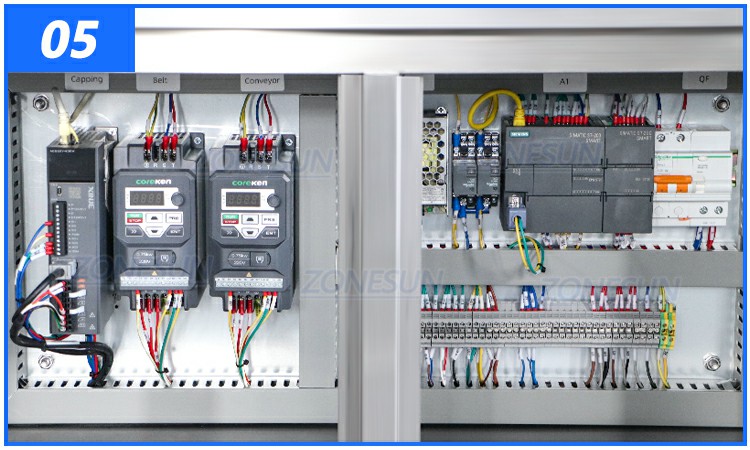

Electrical Control Box
Organized components ensure stable cap feeding and capping operations, and support easy maintenance.
- Applicable Bottle Caps: Dispensing pumps, lotion pumps, treatment pumps, etc.
- Applicable Products: Hand gel, body soap, shampoo, cleansing oil, body cream, styling gel, etc.
- Applicable Industries: Daily chemical, personal care, cosmetic industries.
