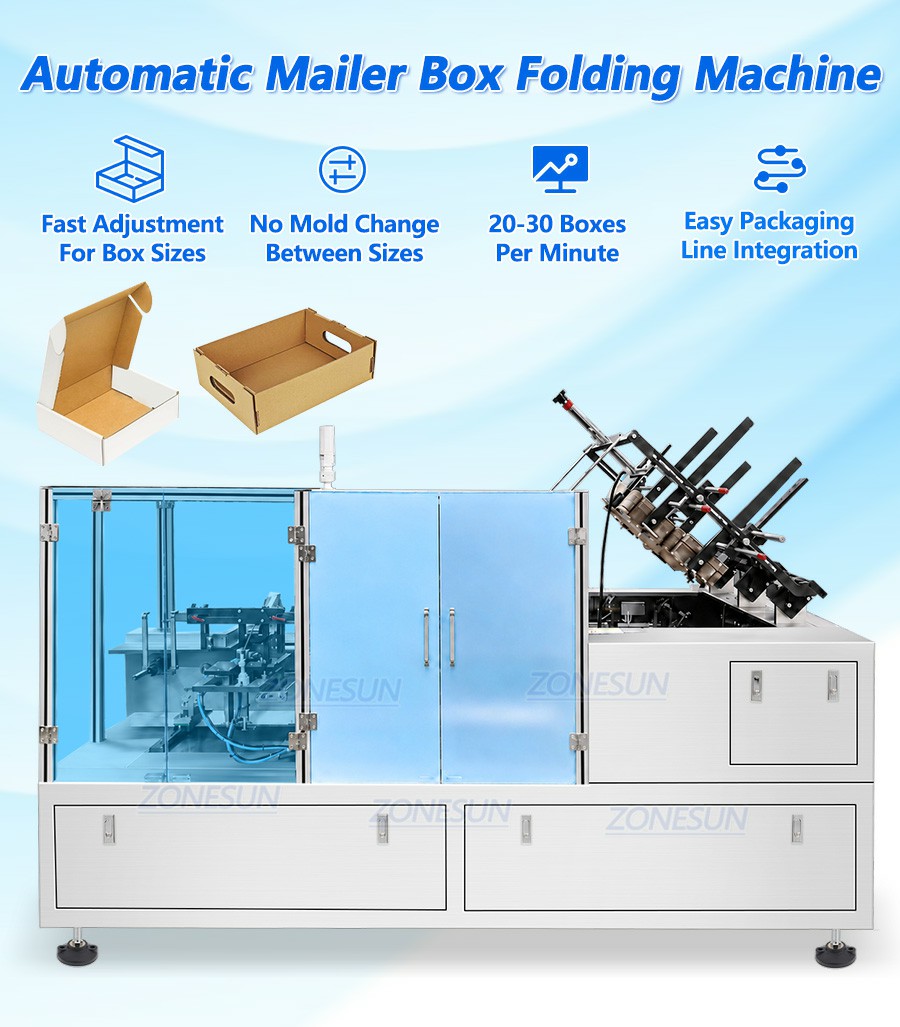

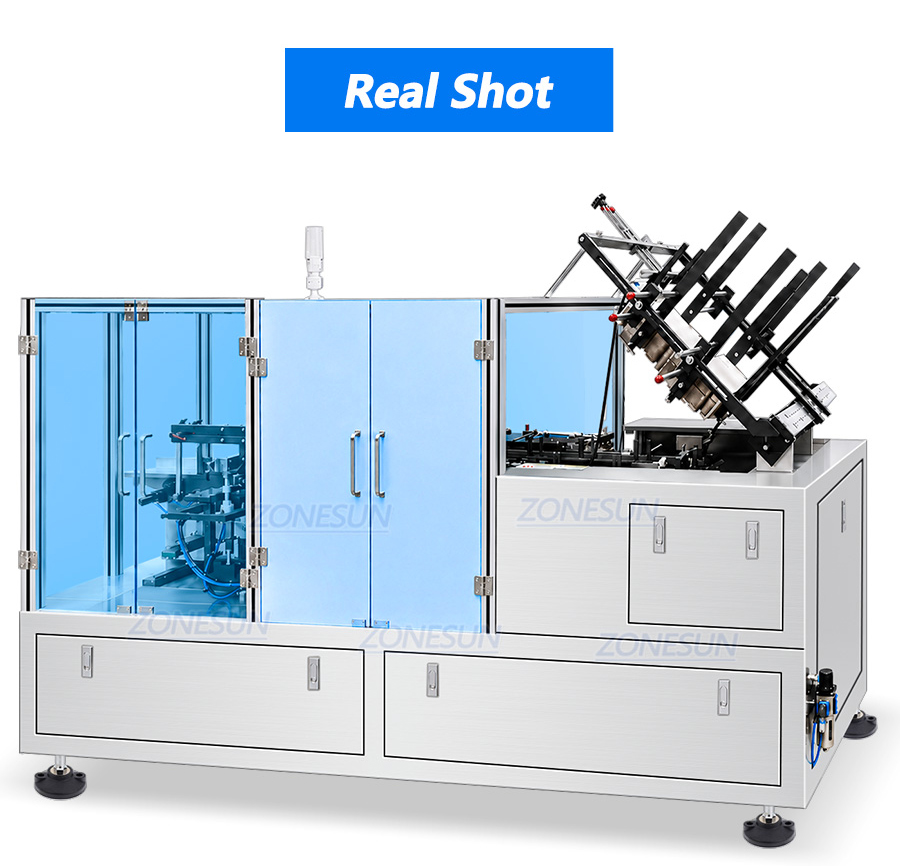

ZS-MSZH20L Servo Automatic Small Cardboard Shipping Box Folding Machine

🎄 Can feed and fold flat cardboard sheets into boxes.
🎄 Servo system, output is 1200-1800pcs/hour.
🎄 Can be easily adjusted to handle different box sizes.
🎄 Machine can be customized according to production need.
🎄 Machine can be integrated into production line.

Video

Share to:

Description of the Servo Automatic Shipping Box Folding Machine:

The ZS-MSZH20L model combines functions of feeding flat cardboard sheets, and folding the cardboard into three-dimensional boxes. Using servo control, it can run stably and reach at speed of 20-30 pieces per minute. The model supports quick adjustment for different box sizes. This small shipping box folding machine can be customized according to your production need.

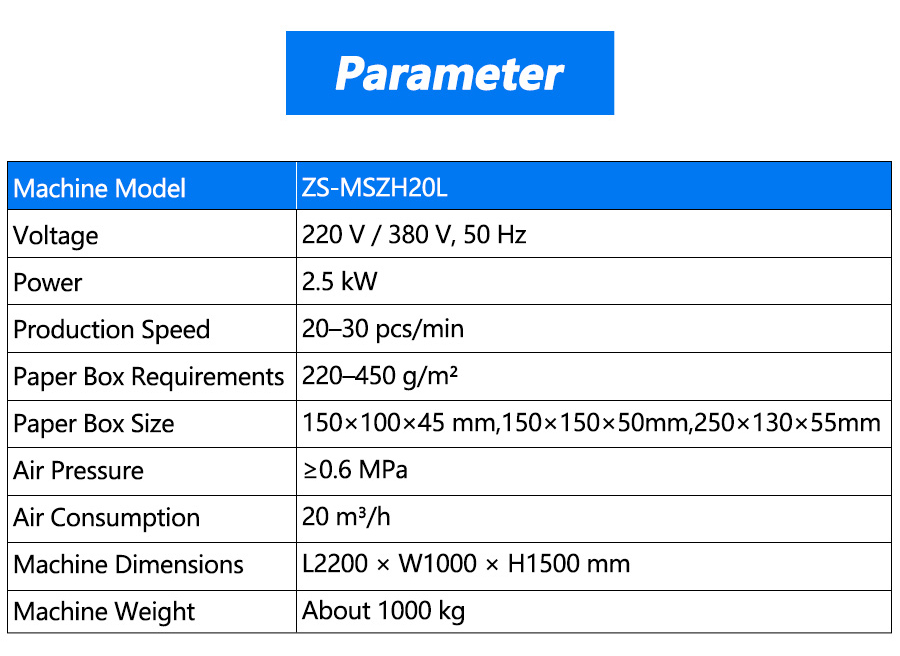

Machine Model	ZS-MSZH20L
Machine Voltage	380V/220V 50Hz
Power	2.5KW
Working Capacity	About 20-30pcs/min(depending on product size)
Paper Box Requirements	220-450g/m²
Paper Box Size	15010045mm, 15015050mm, 25013055mm
Air Pressure	≥0.6MPa
Air Consumption	20m³/h

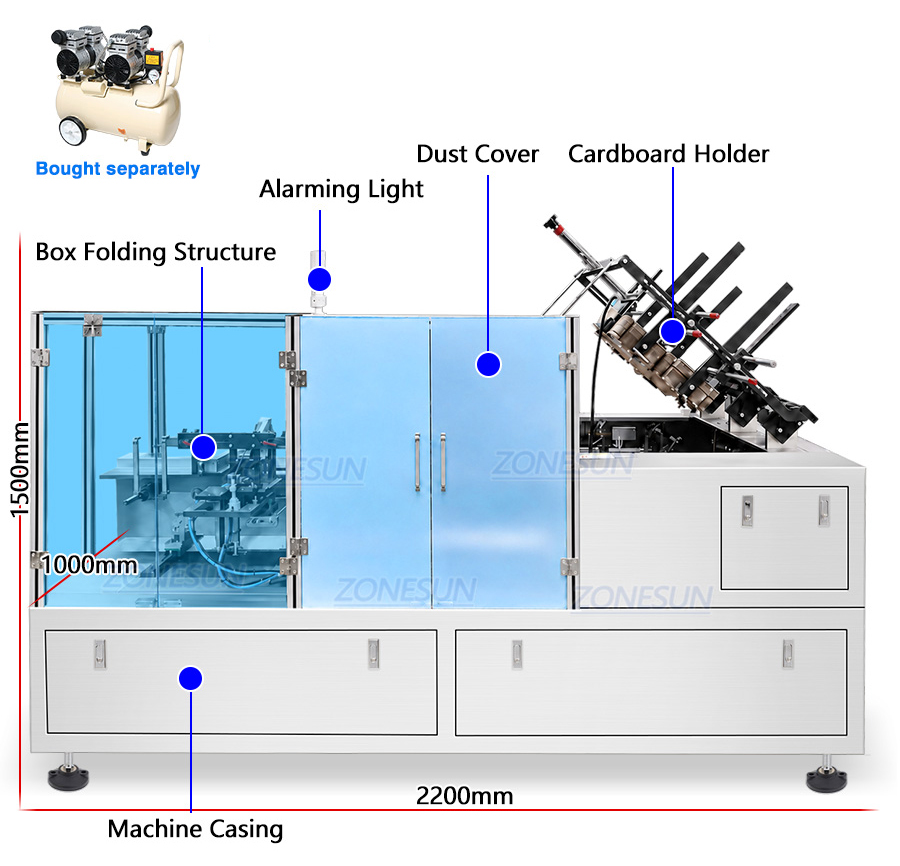

Machine Size	About 220010001500mm/ About 86.639.459.1 inch
Machine Weight	About 1000kg

❤ Notice: Parameters are for reference only and may vary depending on your products. Please contact us for more details if needed.

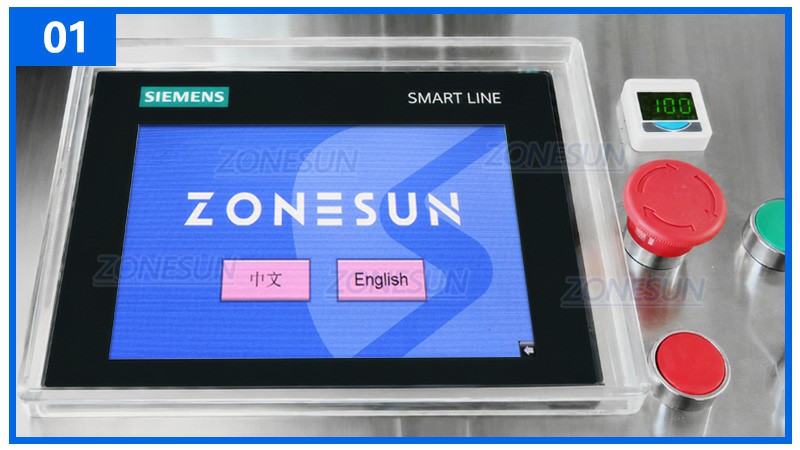

PLC Control Panel

Can clearly show parameter settings and operating status. The panel can be customized with multiple languages if needed.

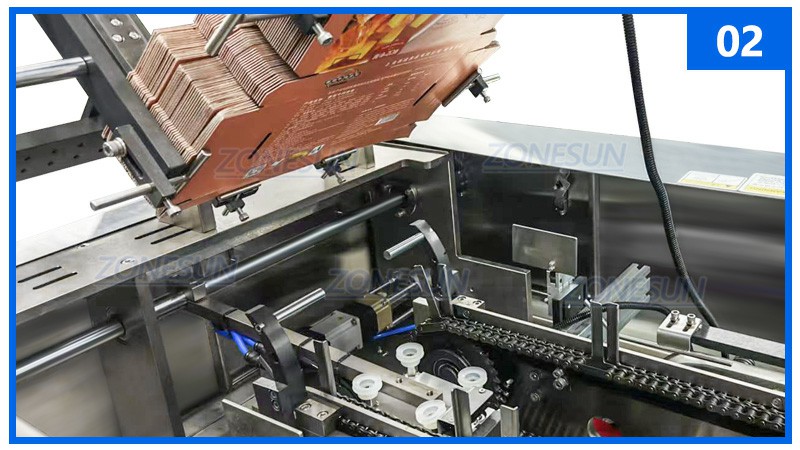

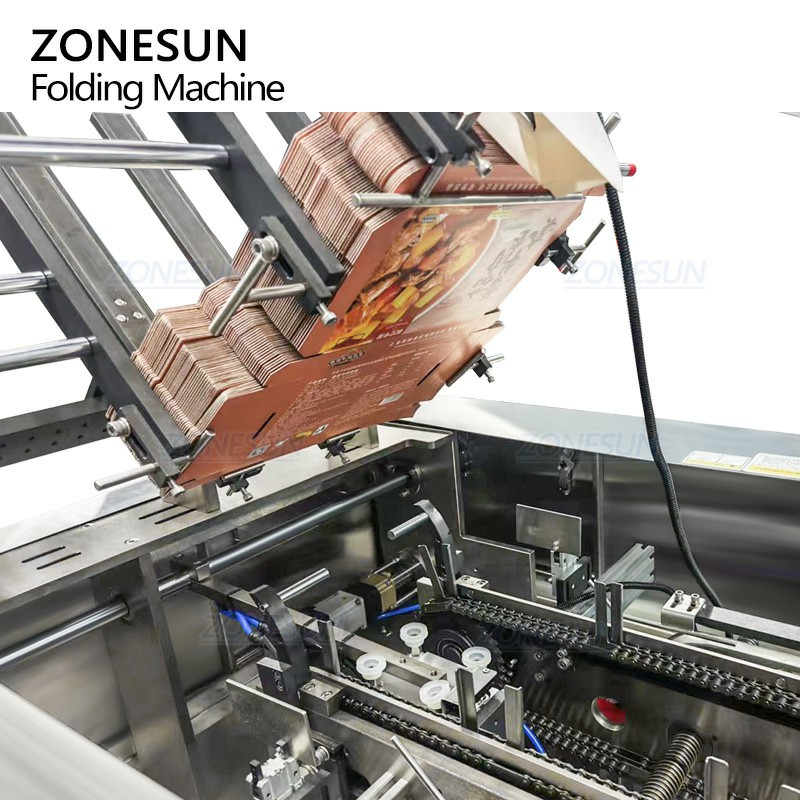

Cardboard Sheet Feeding System

With vacuum suction cups to pick and move the flat cardboard sheets to next process. This ensures efficient box folding operations.

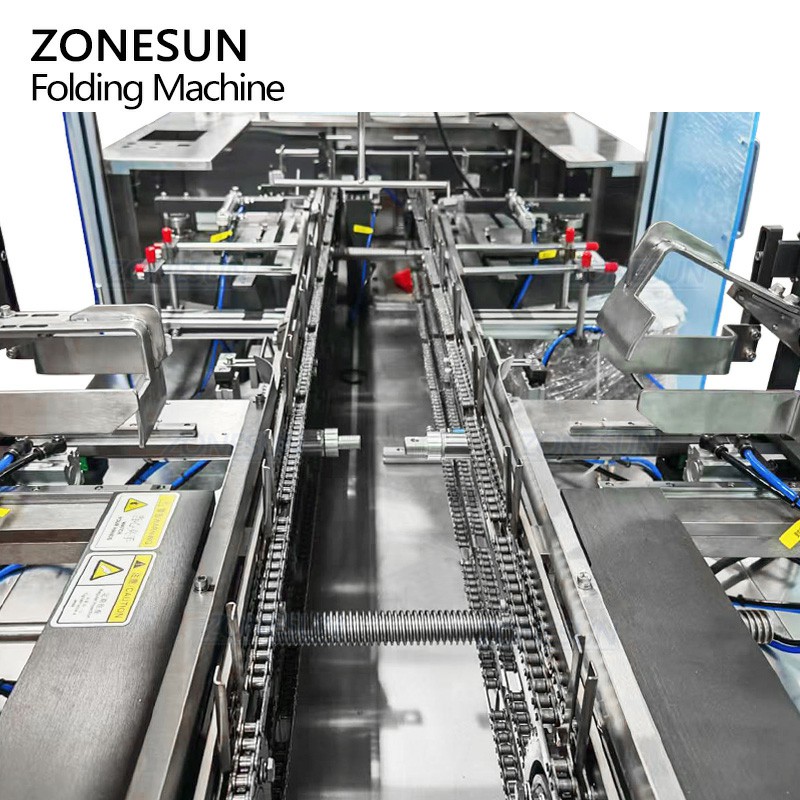

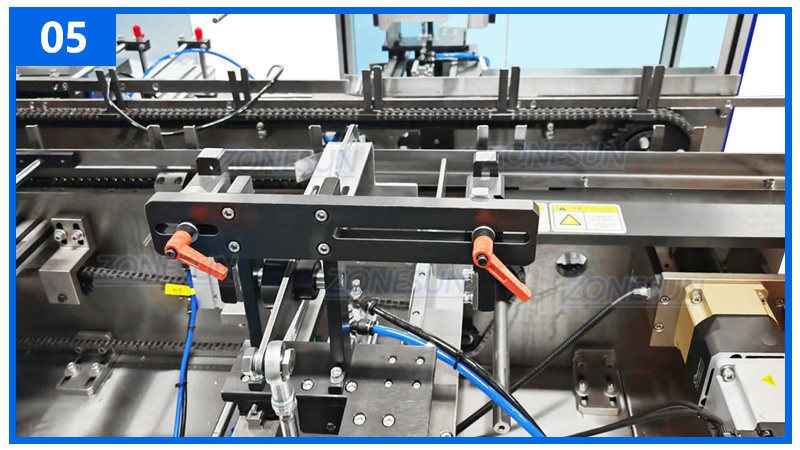

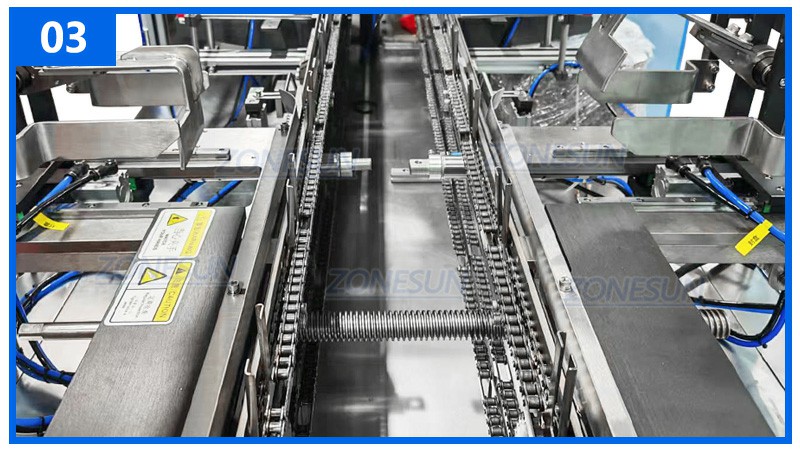

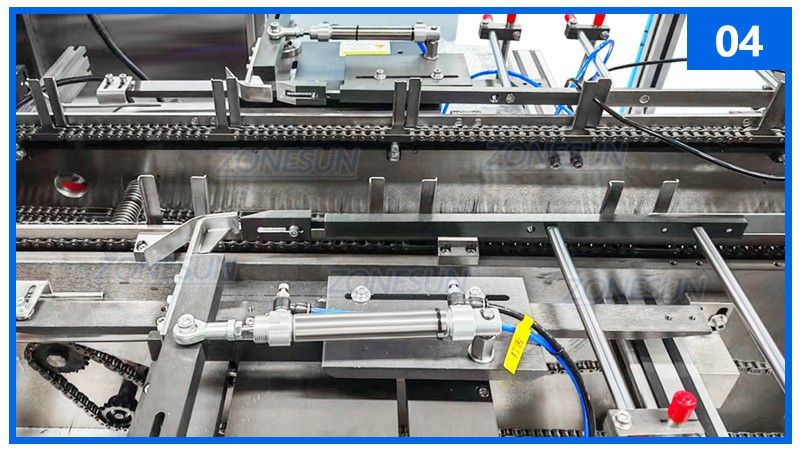

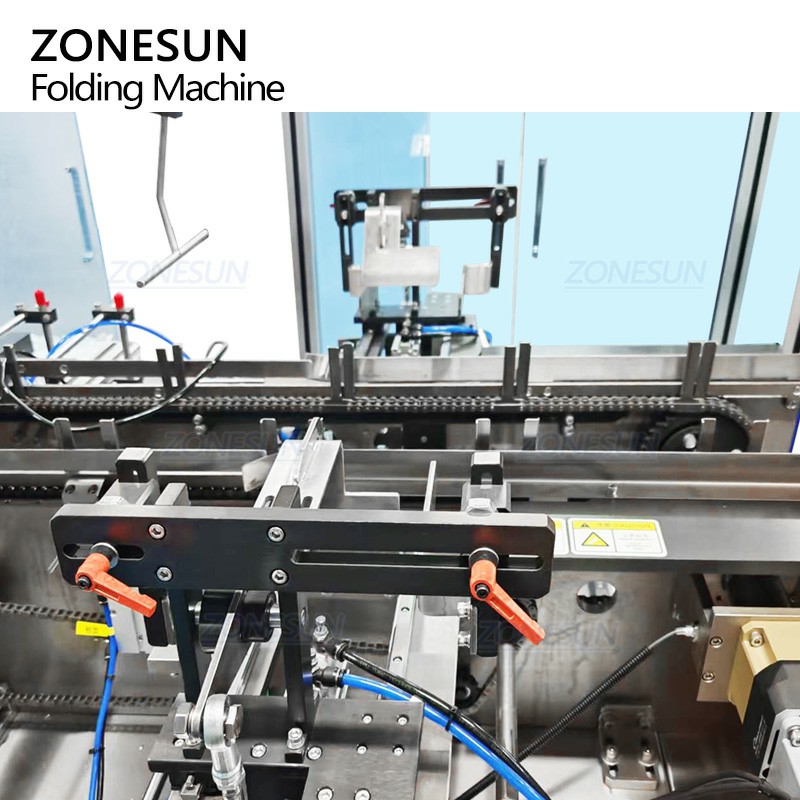

Box Transferring System

The structures can be easily adjusted to fit different sizes of boxes. It doesn’t need to change molds, ensuring quick switch between different products.
