ZS-FAL180A7 Automatic 4 Heads Chili Paste Bottle Filling Capping Machine

This production line can fill paste, feed bottle caps and cap bottles automatically. It can be connected with labeling machine and bottle turntable, achieving automated production.

Machine Including:
>Automatic 4 Heads Paste Filling Machine
>Automatic Bottle Cap Feeding Machine
>Automatic Bottle Capping Machine

Video

Share to:

Automatic Chili Paste Bottle Filling Capping Machine

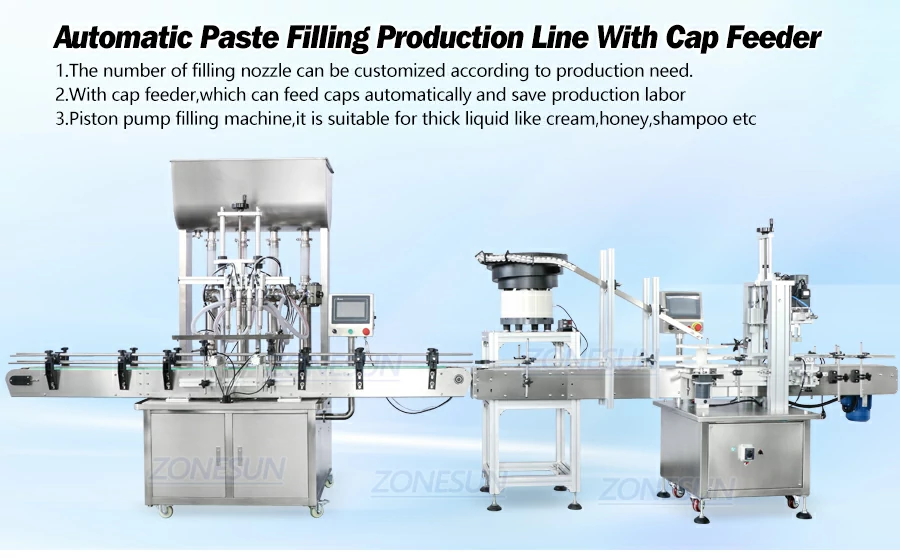

Diagram of paste filling capping machine

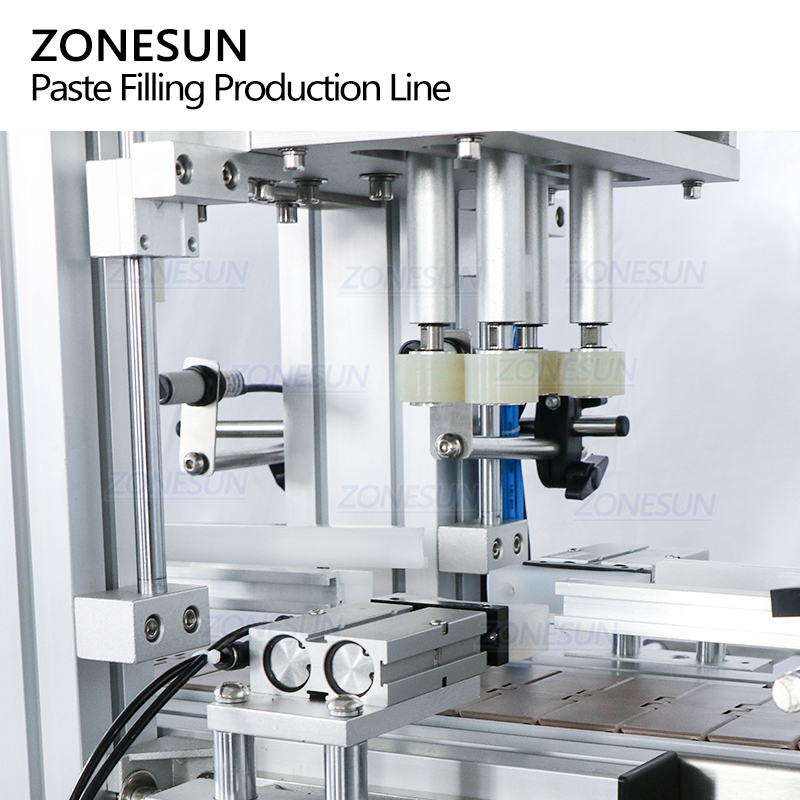

>Filling Machine

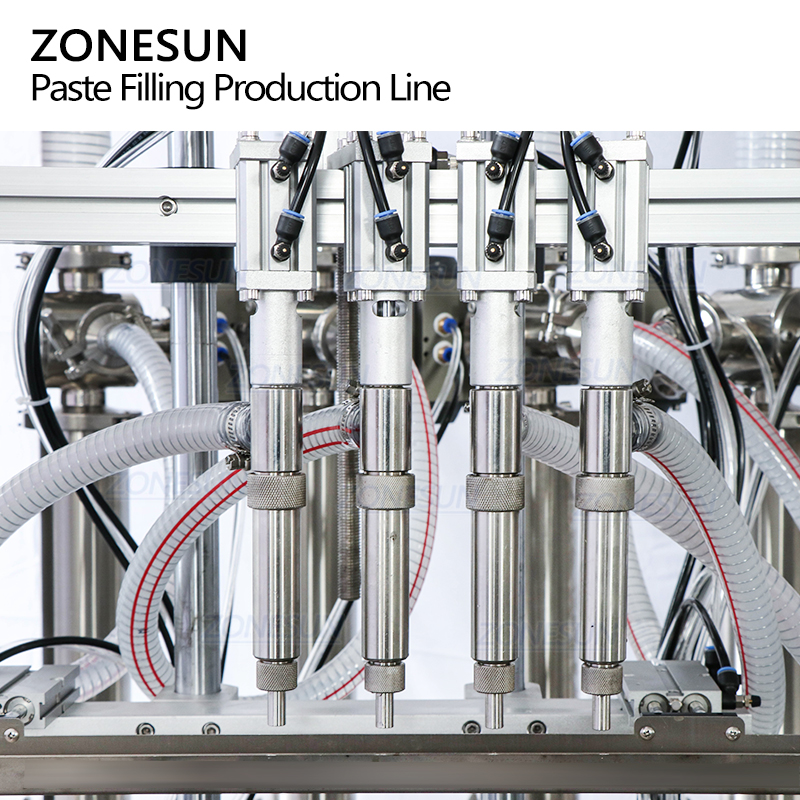

  • With pneumatic filling heads, it can fill viscous liquid quickly and accurately.
  • It is equipped with anti-dripping device, which ensures production cleanliness.
  • With electric eye to detect bottles, it can run automatically. Smart and efficient.

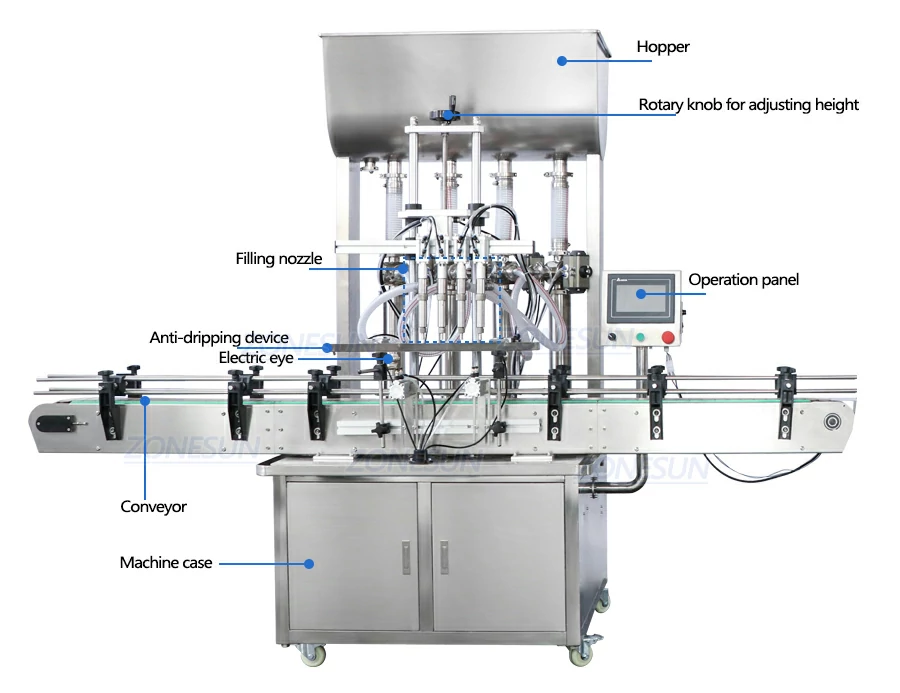

Filling Machine Diagram



>Capping Machine

  • Wide Application: It suits for diverse shapes of caps, like sprayer caps.
  • With touch screen panel, operator can set parameters easily. The panel’s language can be customized.
  • The chain conveyor belt is with large bearing capacity, which can convey bottles steadily.

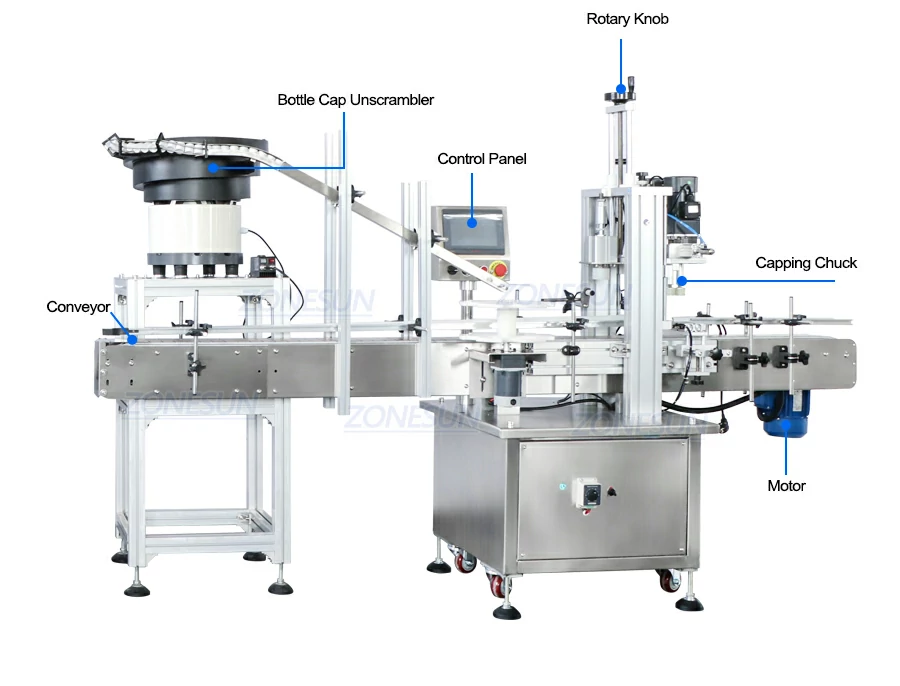

Capping Machine Diagram

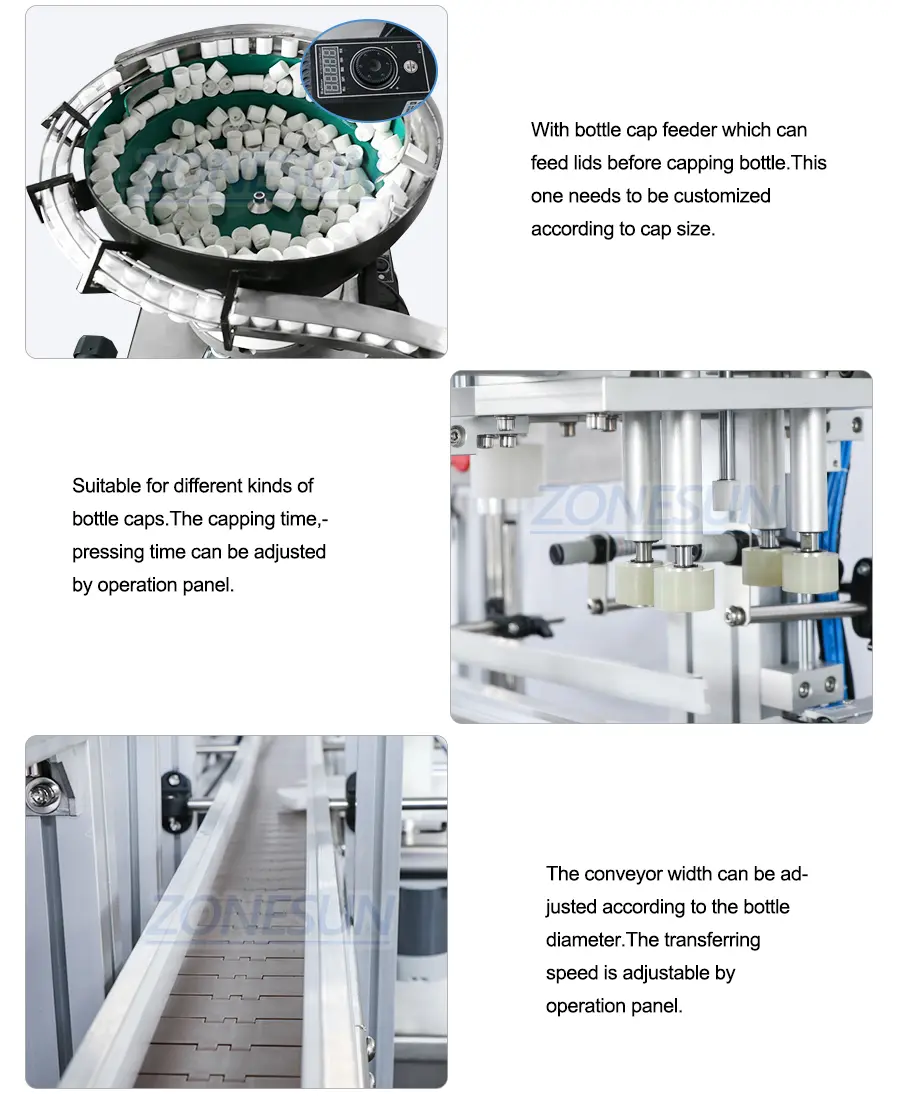

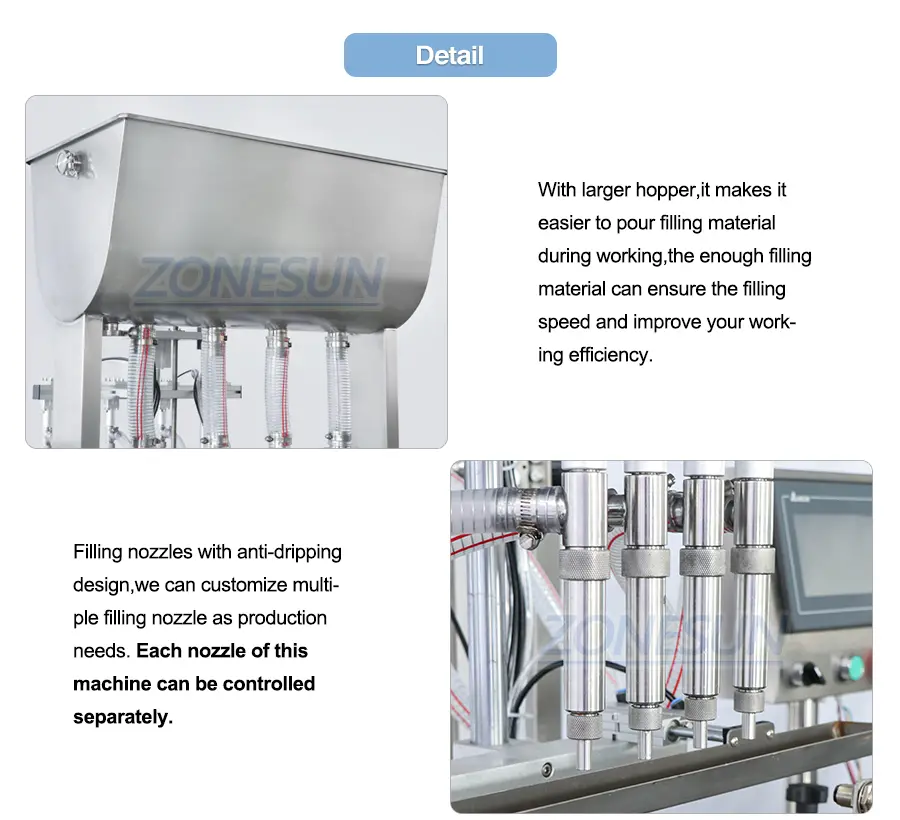

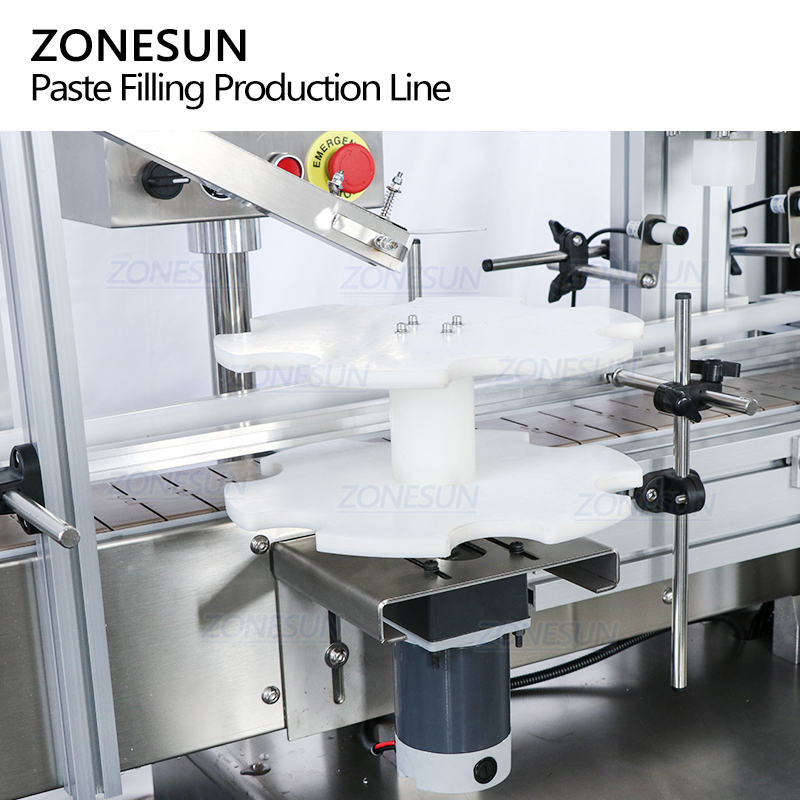

Machine Detail-1

Machine Detail-2

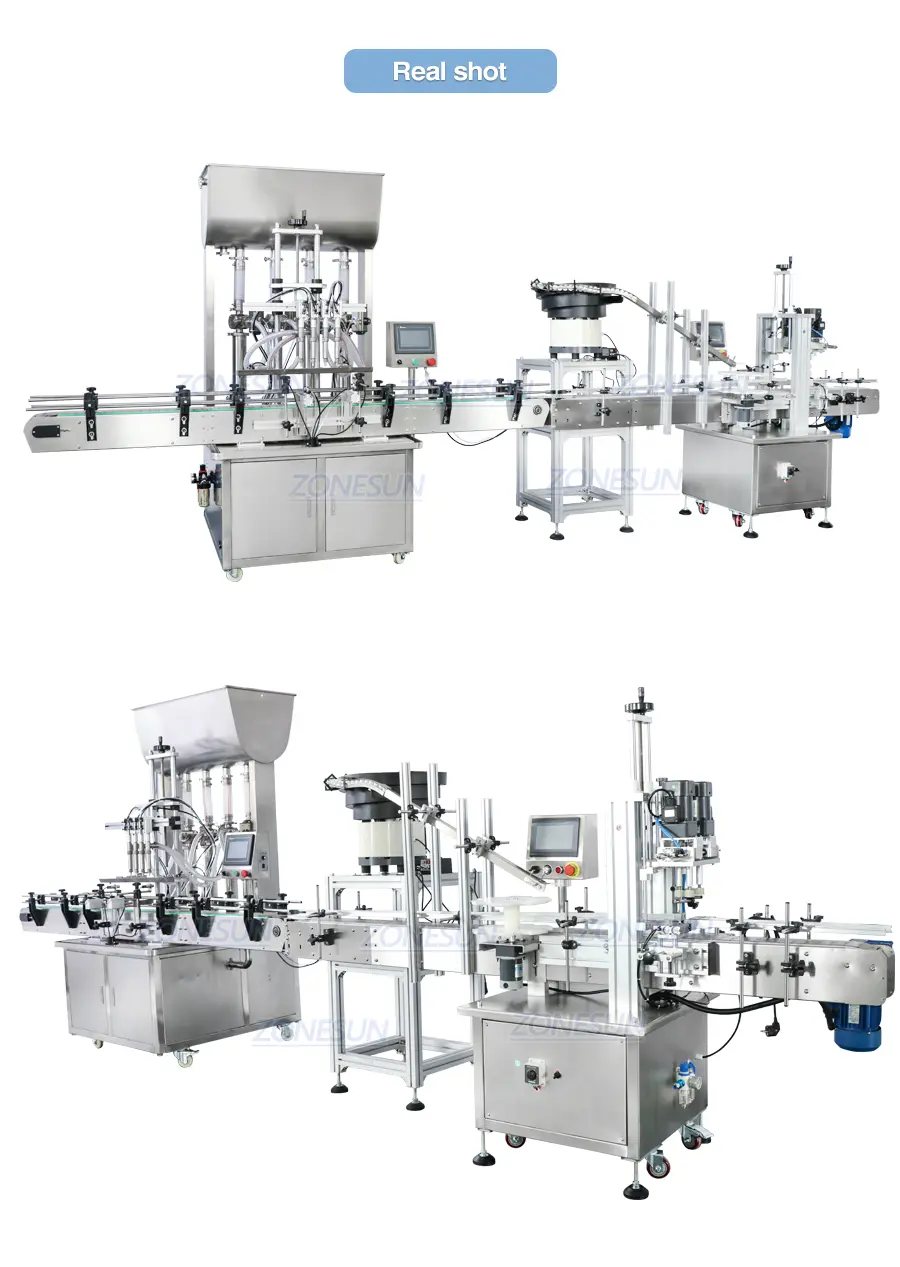

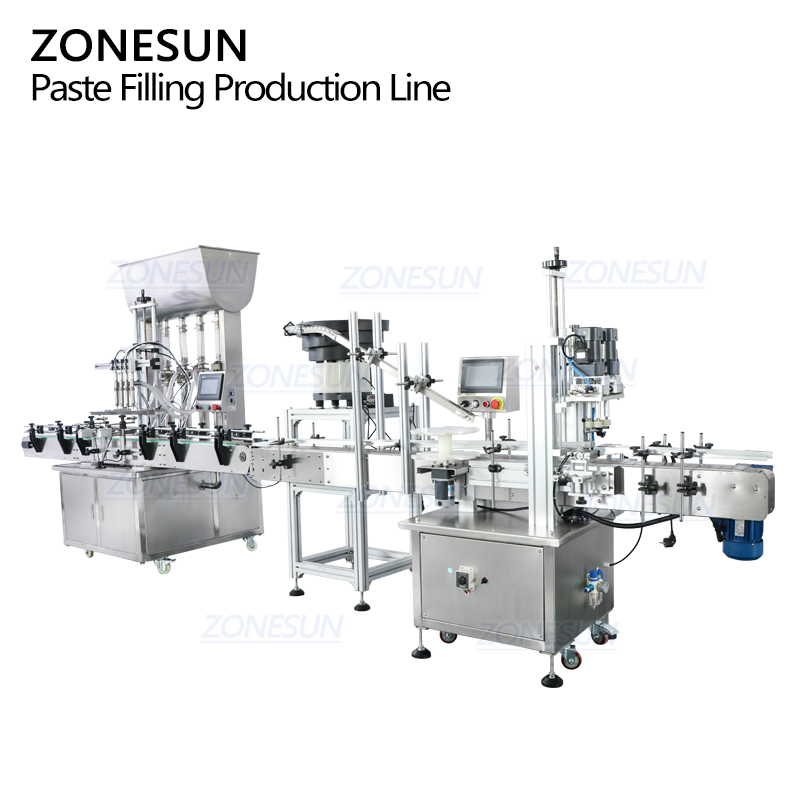

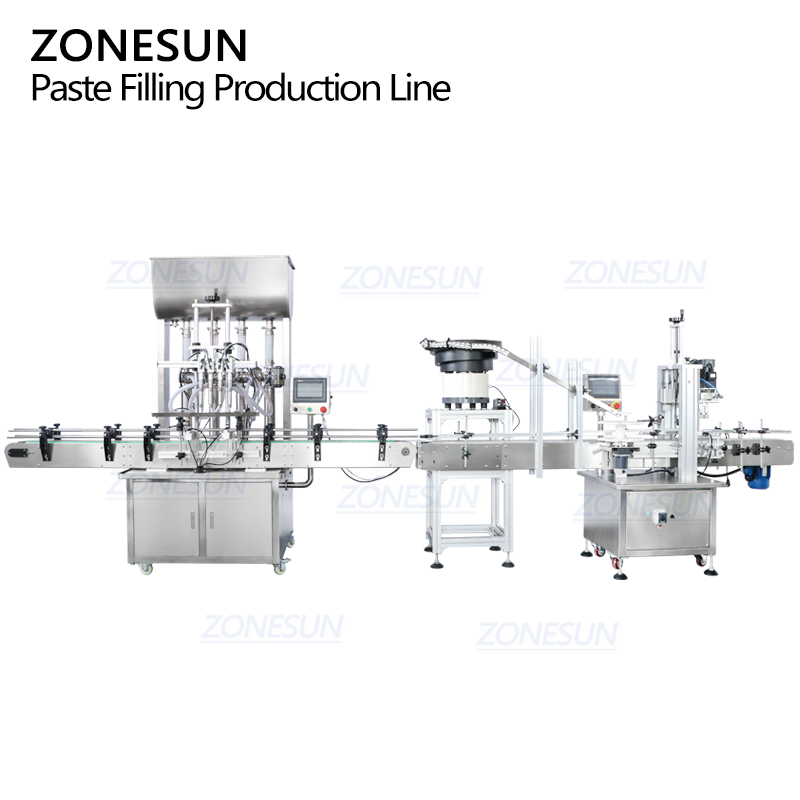

Real Shot

>Filling Machine

Model ZS-YT4T-4P
Voltage 110/220V 50-60HZ 800W
Filling Range 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed About 30-70bottles/min(based on water)
Filling Accuracy ≤+1%
Conveyor Size About 2500*100mm(L*W)
Size of filling nozzle φ10mm
Size of Air Compressor Connector φ10mm

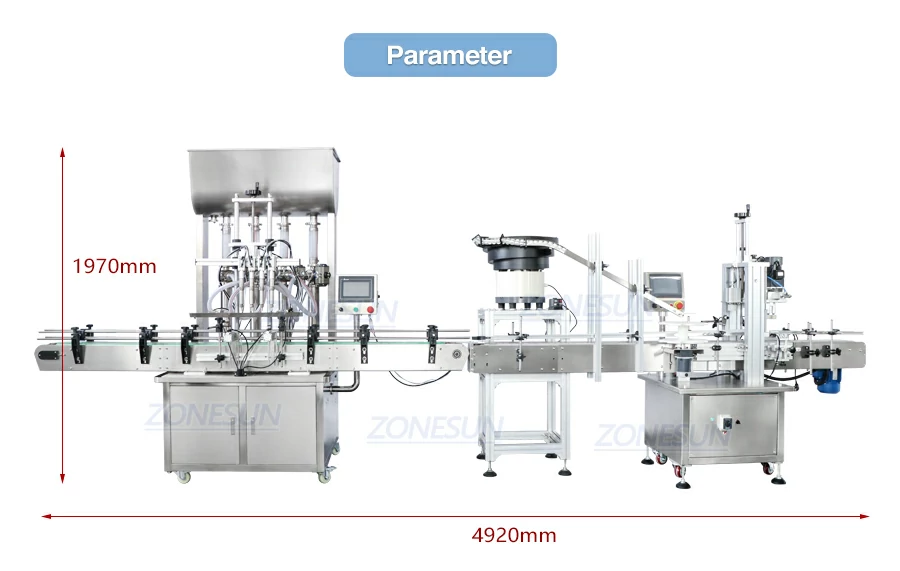

Machine Size About 2500*980*1970mm
Package Size About 1393*1216*2130mm
Net Weight/Gross Weight About 291kg/335kg



>Capping Machine

Machine Model

ZS-XG16V
Voltage

AC220V/110V 50-60HZ

Applicable Bottle Height

30-300mm
Applicable Cap Diameter

18-70mm

Applicable Bottle Diameter

20-160mm
Working Speed

20-60 bottles/min (depending on bottle and cap size and shape)

Working Pressure

0.4-0.6MPa
Machine Size

About 1930*740*1600mm

Package Size

About 2000*820*1760mm
Machine Weight

About 150kg



  • Applicable Bottles: Round/Square Bottles. Glass/Plastic Bottles.
  • Applicable Bottle Caps: Screw-type caps: lotion pump, yorker spout caps.
  • Applicable Labels: Self-adhesive labels: Normal labels/Transparent labels.
  • Applicable Products: Ketchup, mustard, salad dressing, cough syrup, body lotion.
  • Applicable Industries: Food, cosmetic, daily chemical, chemical, medicine industries.
