ZS-FAL180F7 Automatic Coconut Jelly Drink Bottle Filling And Capping Machine

This filling and capping machine is specially designed for drinks with pieces of coconut jelly, such as juice, coconut milk. The filling work is controlled by servo piston pump, which has stable performance and high filling accuracy. This coconut jelly drink filling and capping machine can be customized according to your production need.

Share to:



Coconut Jelly Drink Bottle Filling And Capping Machine
Working Process of coconut jelly drink filling line



>Coconut Jelly Filling Machine

  • The filling volume can be adjusted as production need easily.

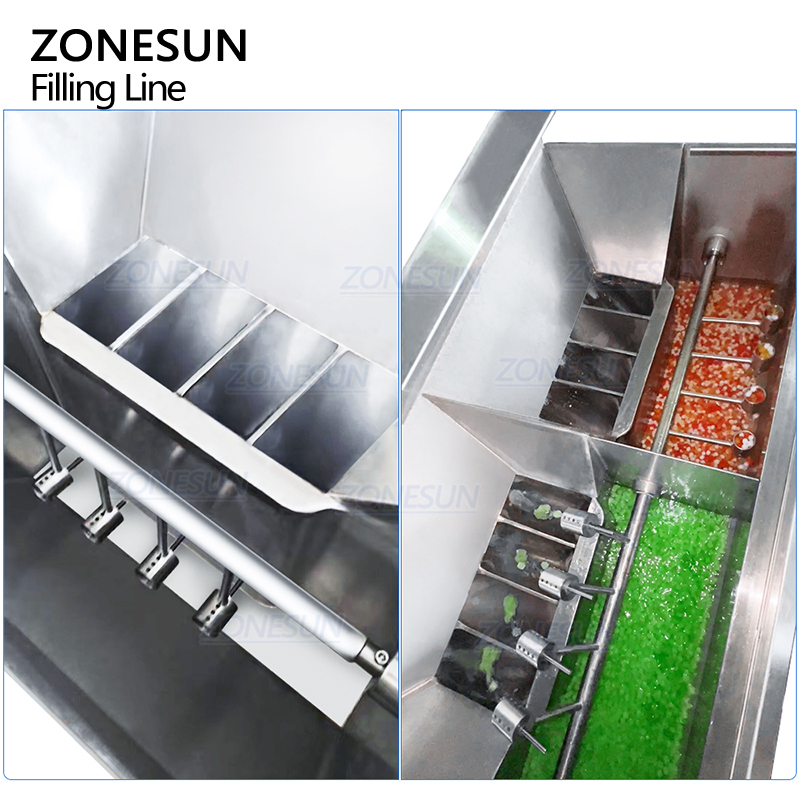

  • The size of hopper can be customized as needed.



Diagram of coconut jelly filling machine



>Drink Filling Machine

  • Servo motor driven, filling accuracy is ±1%.

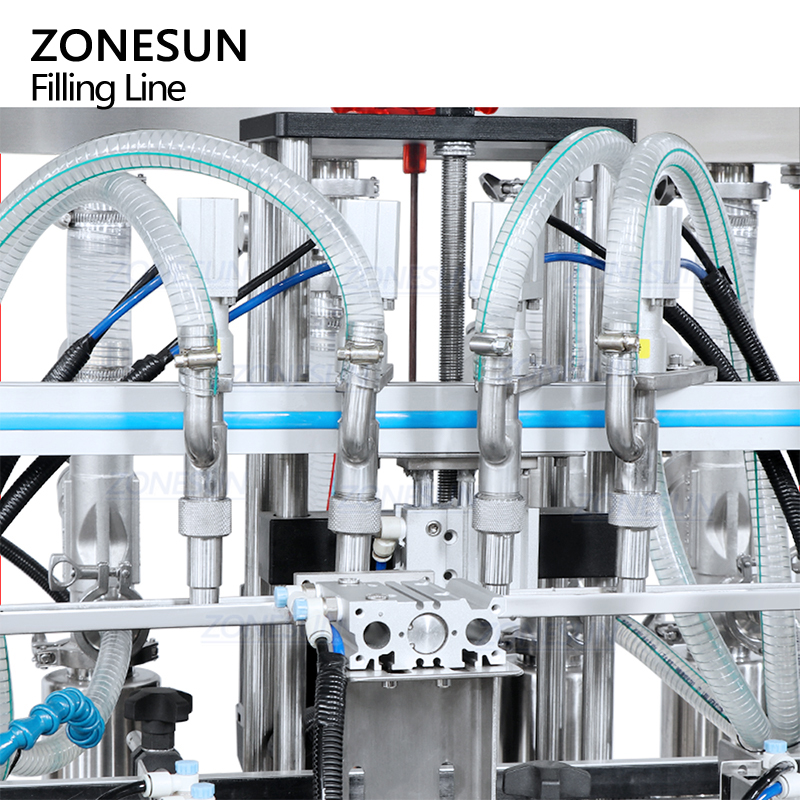

  • Filling range and filling nozzle quantity can be customized.

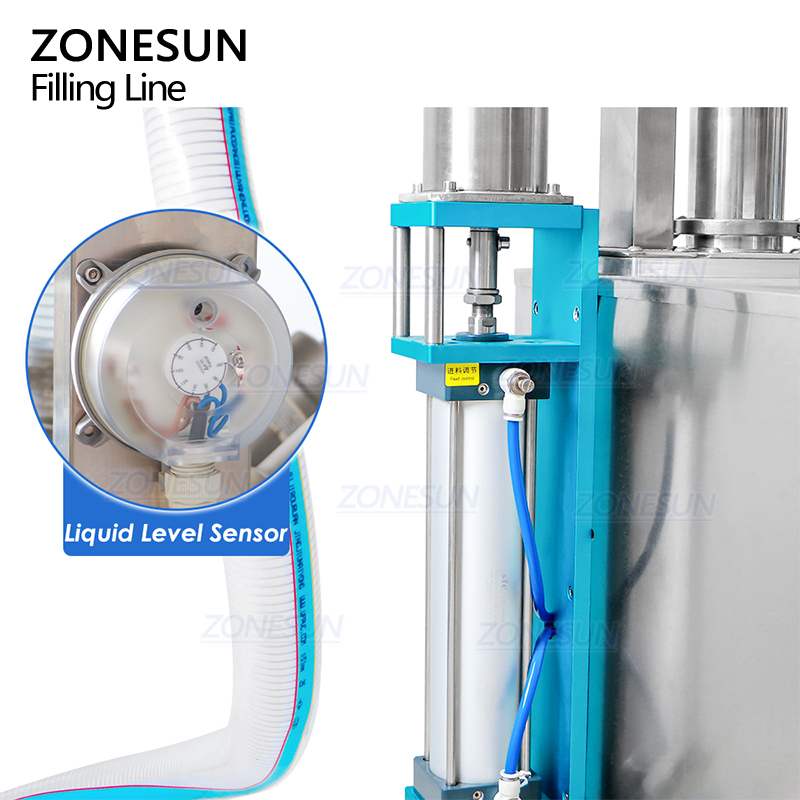

  • The machine is equipped with feeding pump, which can supply liquid into hopper automatically.

Diagram of drink filling machine



>Capping Machine

  • Working height of capping structure can be adjusted to suit different bottles.
  • It can feed, load and tighten caps automatically, saving labor cost.
  • The coconut jelly drink filling and capping machine can also work with bottle rinsing and labeling machine to complete automated production. Please contact us if you also need other machines.

Diagram of bottle capping machine

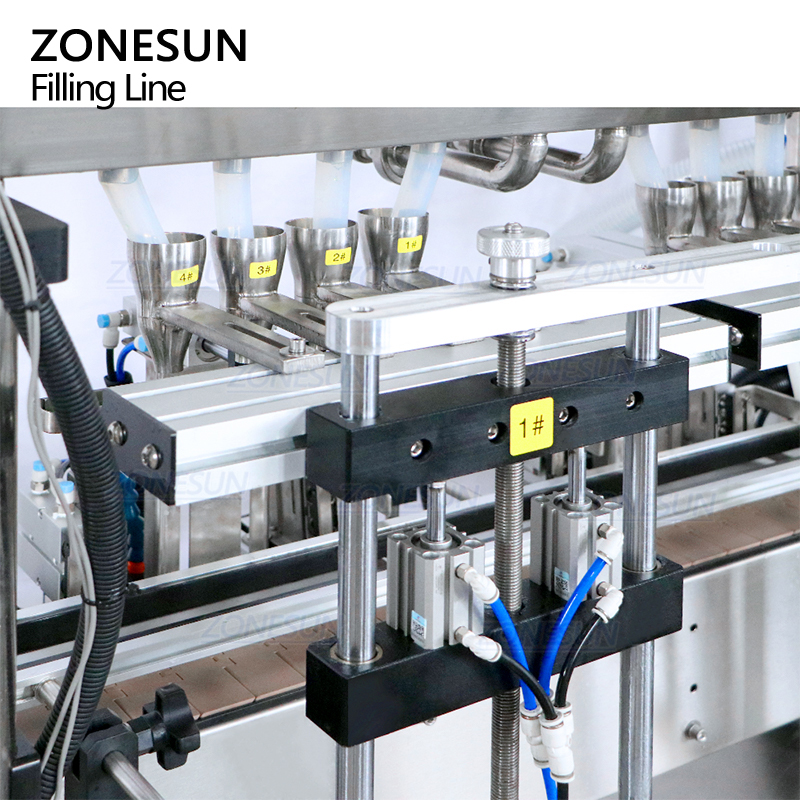

Machine Detail-1
Machine Detail-2
Real Shot of coconut jelly drink filling capping line

>Coconut Jelly Filling Machine

Machine Model

ZS-VTGT8

Machine Voltage

110/220V 50-60HZ 2KW
Working Speed

About 5-20 bottles/min

Filling Nozzle Quantity

4*2
Hopper Size

22.5L*2

Package Size

About 1820*1030*2040mm
Package Weight

About 430kg



>Drink Filling Machine

Machine Model

ZS-YT4T-4PX

Voltage

110/220V 50-60HZ 1KW
Filling Range

10-180ml/30-500ml/100-1000ml

Working Speed

About 30-50 bottles/min(depending on filling materials and filling volume)
Filling Pump

Servo Piston Pump

Air Pressure

0.6-0.8MPa
Filling Accuracy

±1%

Applicable Temperature Range

≤80℃
Filling Nozzle

4(can be customized)

Machine Size

About 2000*800*1800mm
Machine Weight

About 200kg

Packaging Size

About 2070*960*2010mm
Packaging Weight

About 392kg



>Capping Machine

Machine Model

ZS-XG16V

Working Voltage

AC220V/110V 50-60HZ
Power

About 1100W

Working Speed

20-60 bottles/min (depending on bottle and cap size and shape)
Bottle Height

30-300mm

Cap Diameter

18-70mm
Bottle Diameter

20-160mm

Working Pressure

0.4-0.6MPa
Machine Size

About 1930*740*1600mm

Package Size

About 2000*820*1760mm
Machine Weight

About 150kg

  • Applicable Bottle Caps: Screw-type caps.
  • Applicable Products: Coconut jelly drink, milk, coconut milk, juice, etc.
  • Applicable Industries: Food and beverage industries.

Application
